268 TRAVELER

Dimensions
Centerline Length :
26’
Beam :
9’-03”
Bridge Clearance :
102”
Deadrise :
20 degrees
Draft (hull) :
16"
Transom:
30"
Weight
Dry Weight :
5,523 lb
Maximum Weight :
8,220 lb
Capacity
Fuel Capacity :
127 gal
Persons Capacity :
Yacht Certified
Total Capacity :
Yacht Certified
Engines
Maximum Horsepower :
400 hp
268 TRAVELER Standard Features

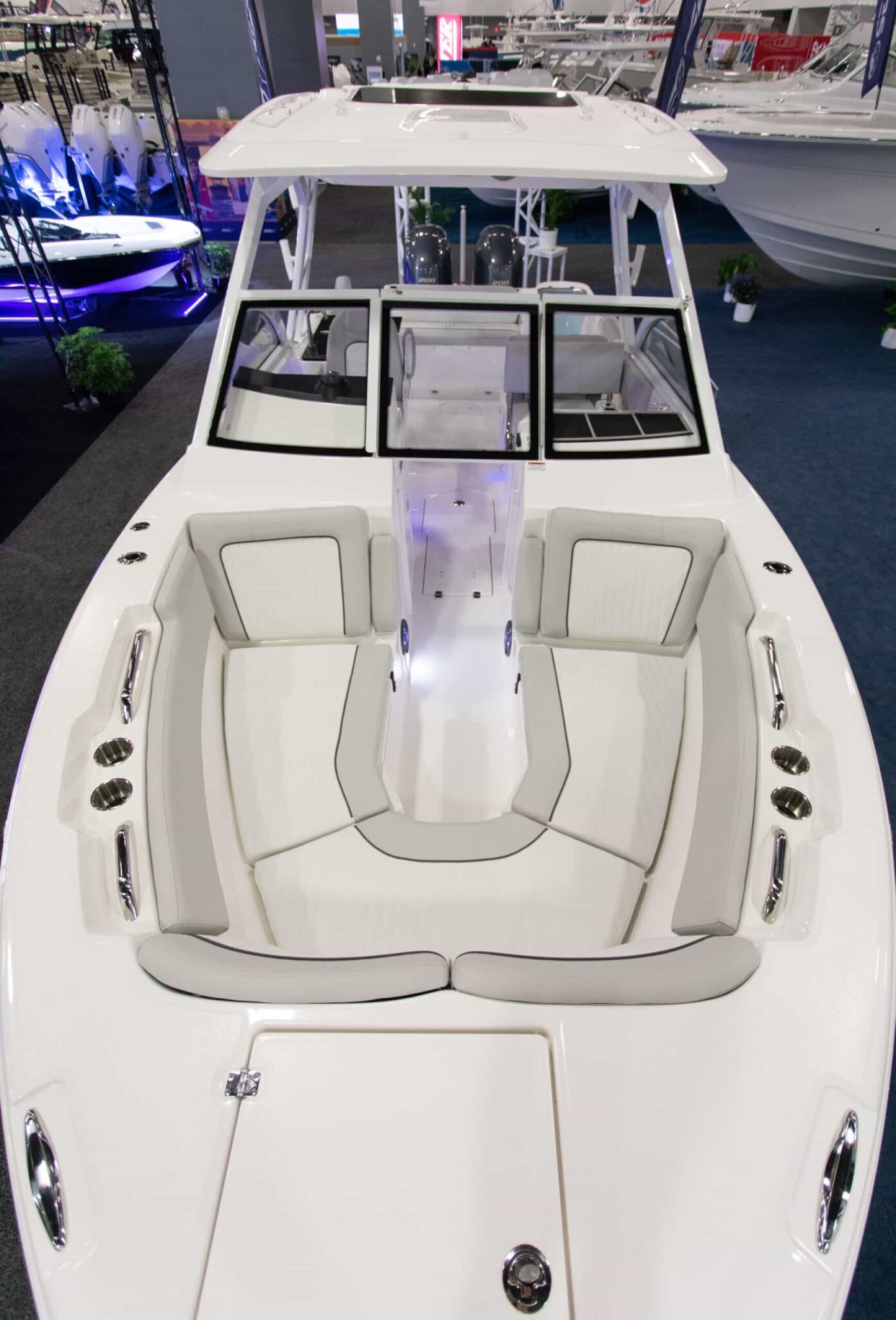

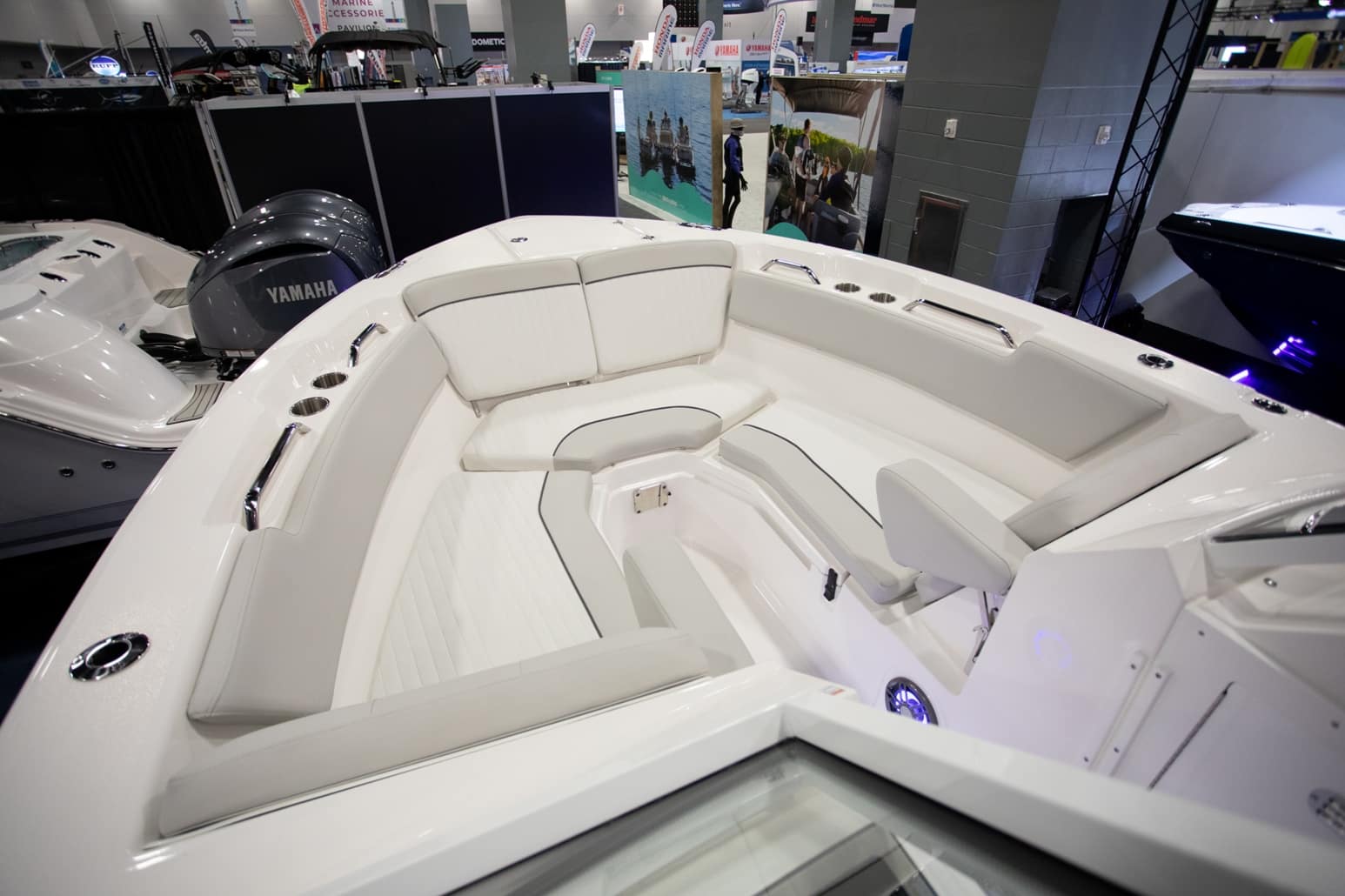

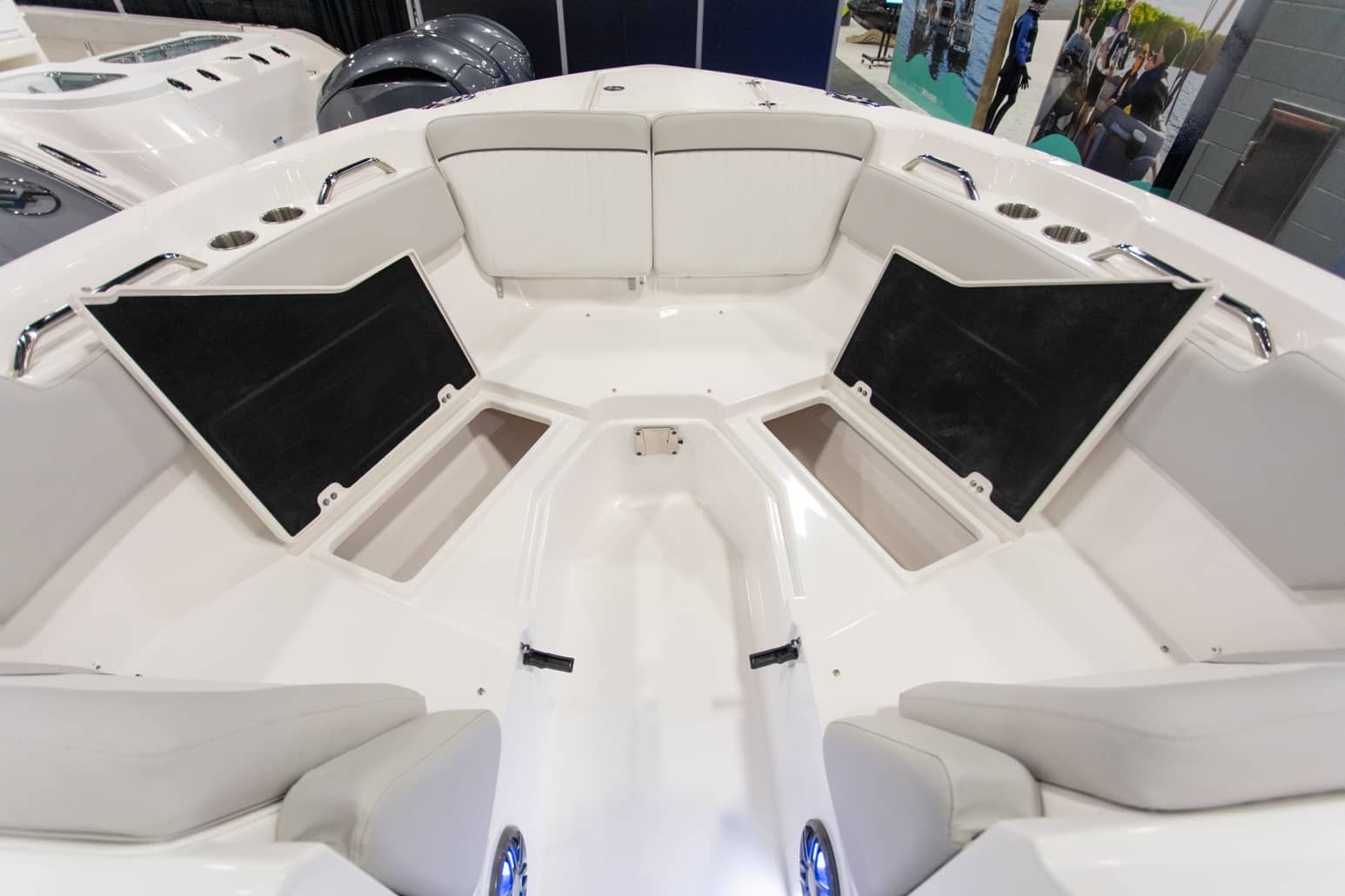

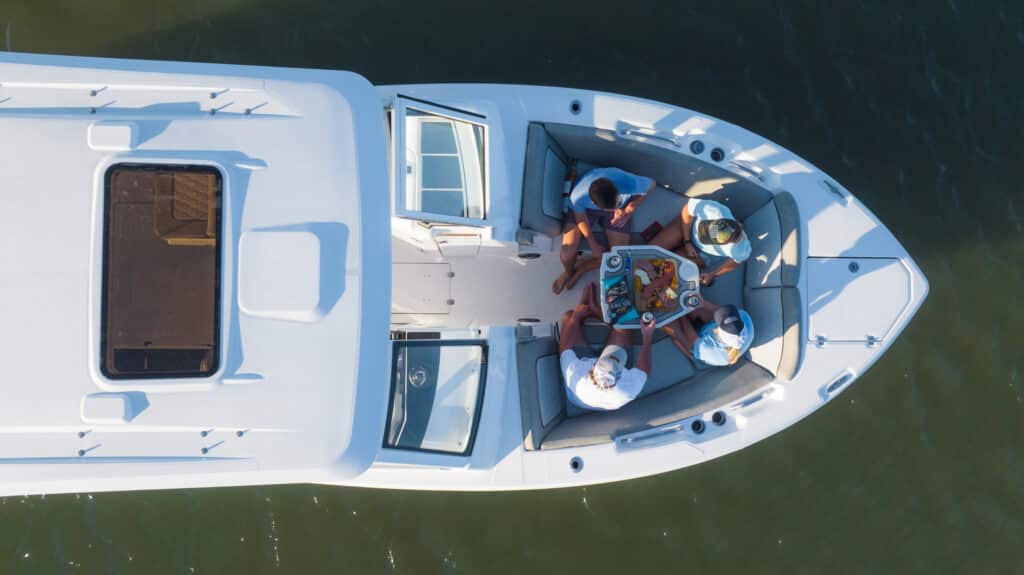

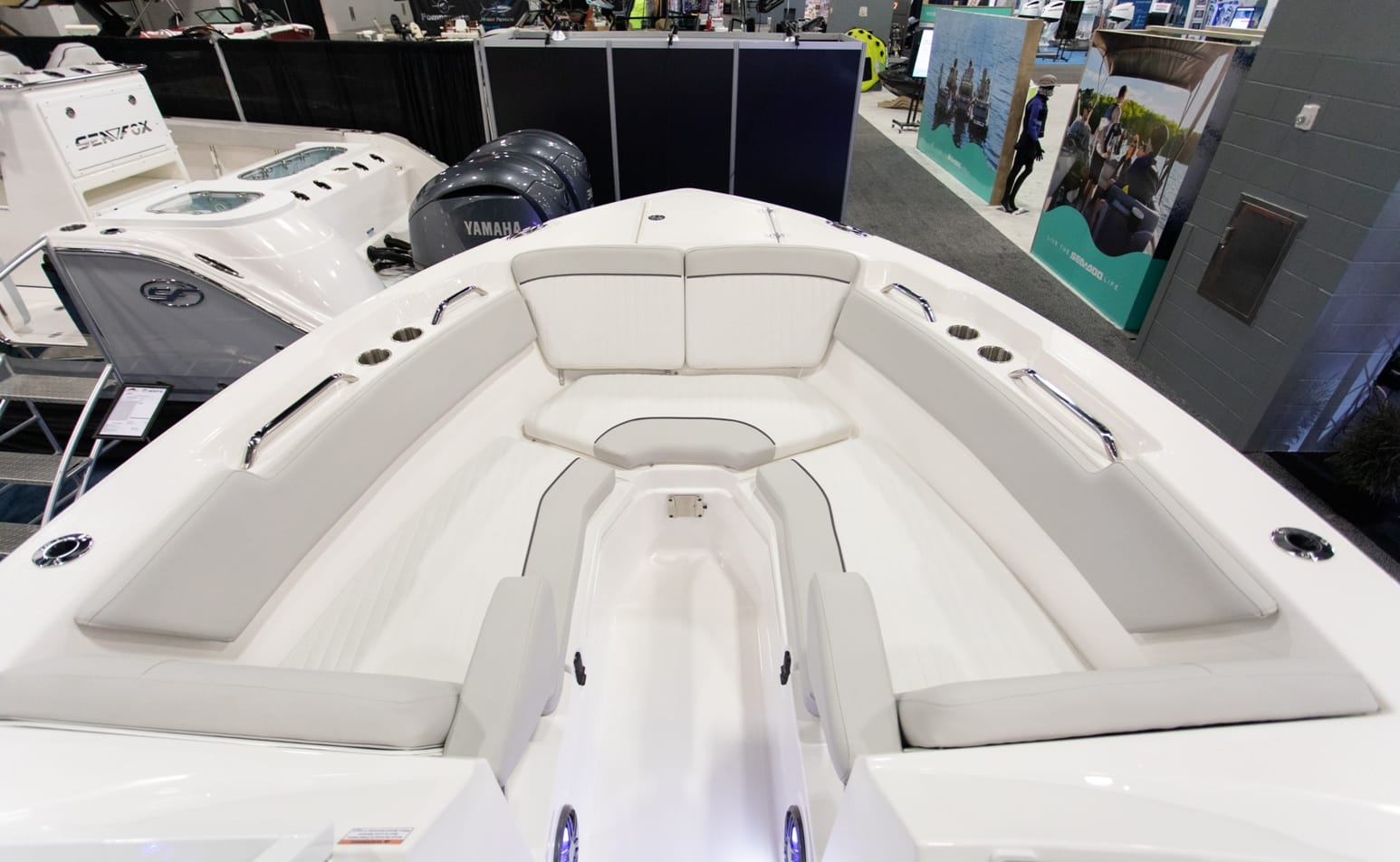

Bow:
- Stainless steel bow eye with chafe plate

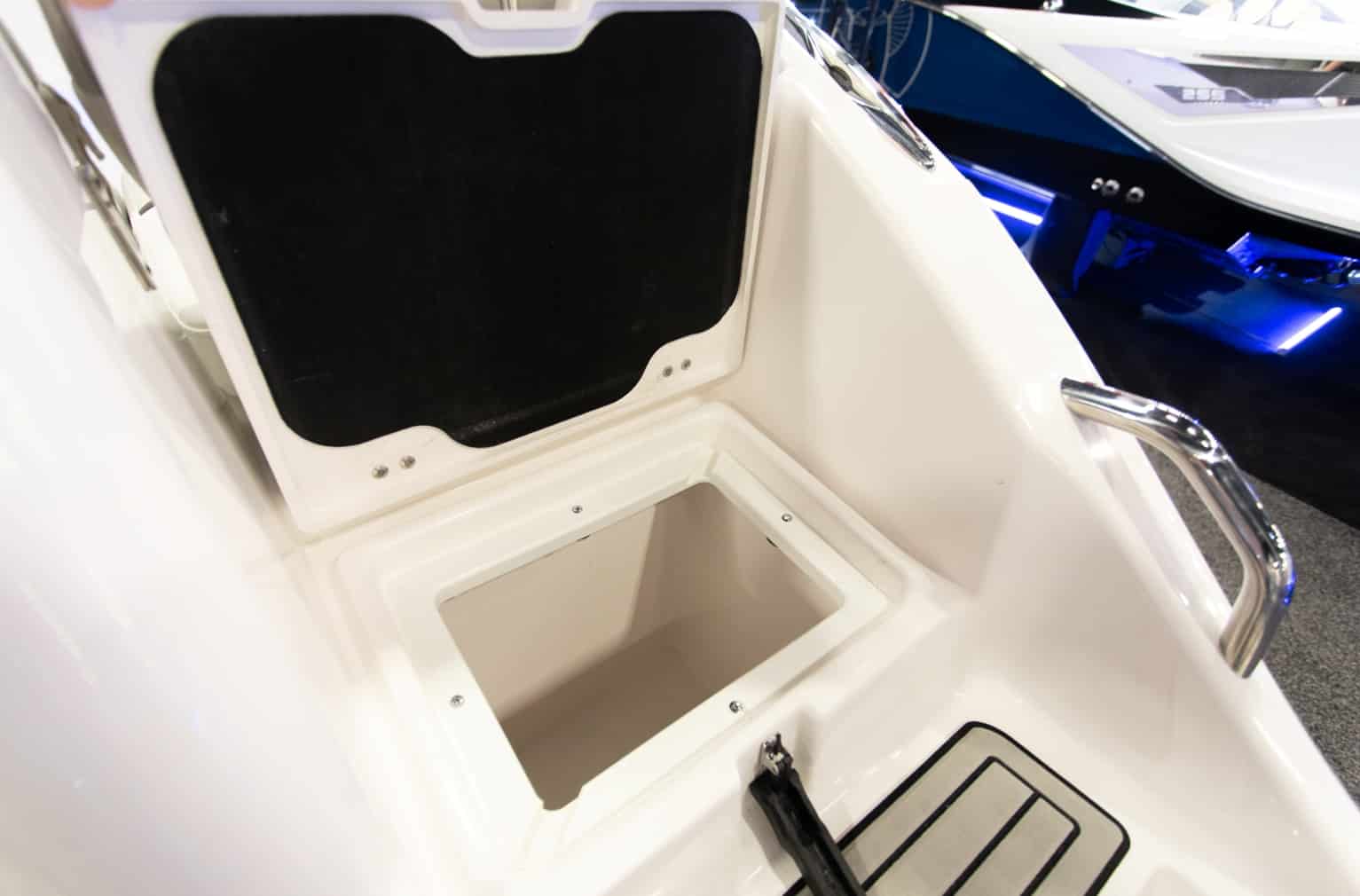

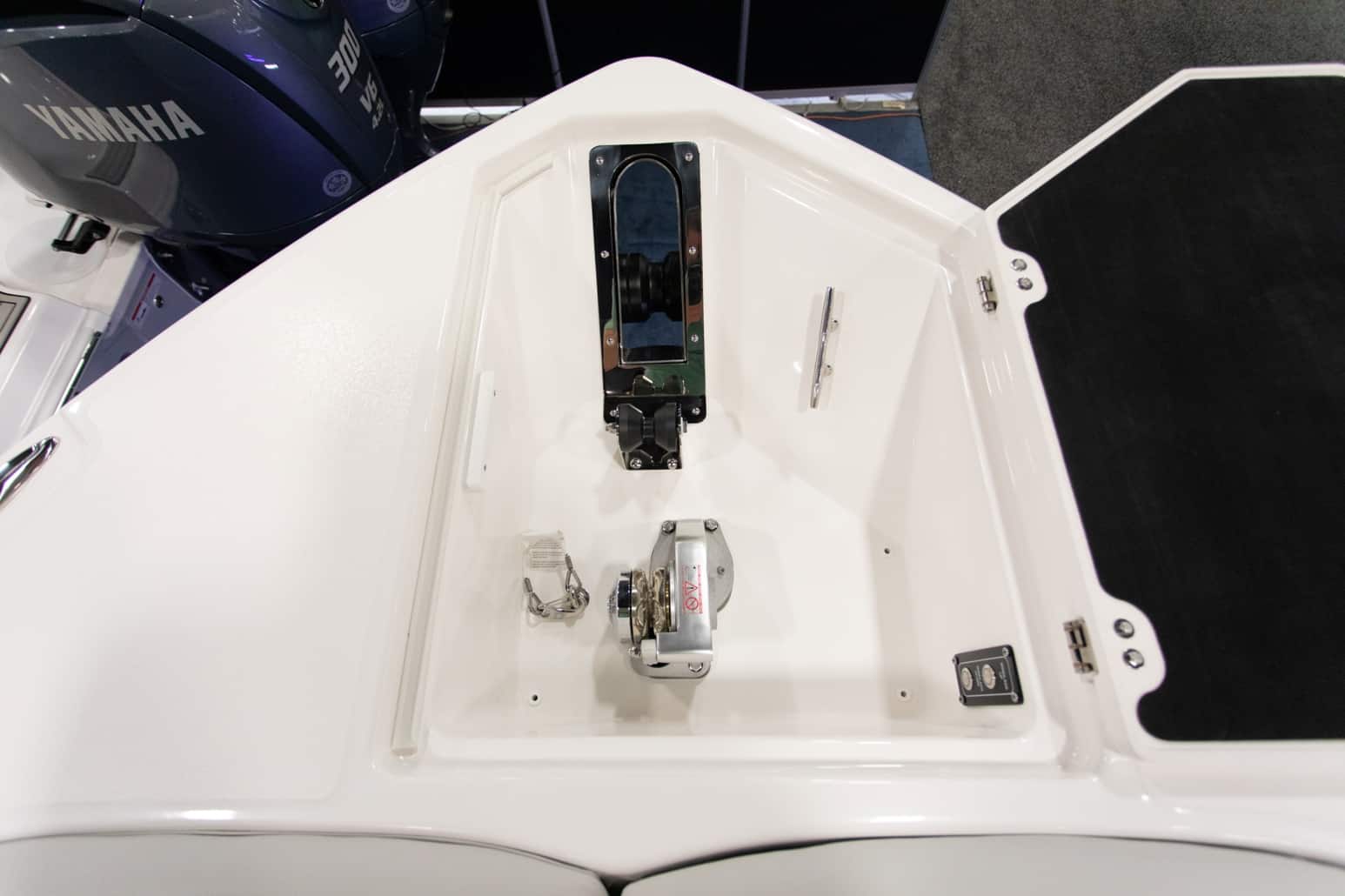

- Bow compartment with anchor roller chute, chafe plate, safety hook, rope storage and access
- Rub rail mounted LED navigation lights

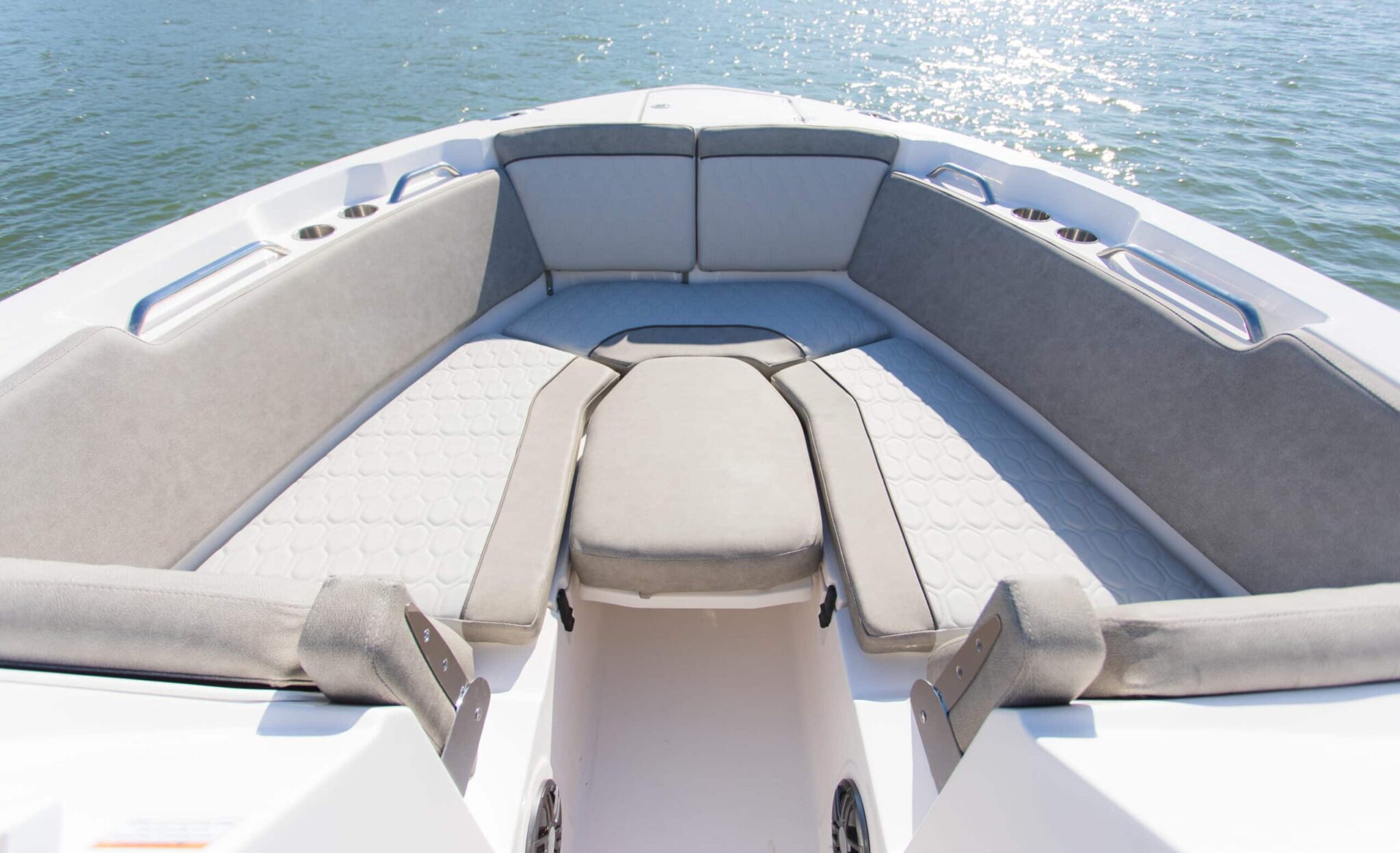

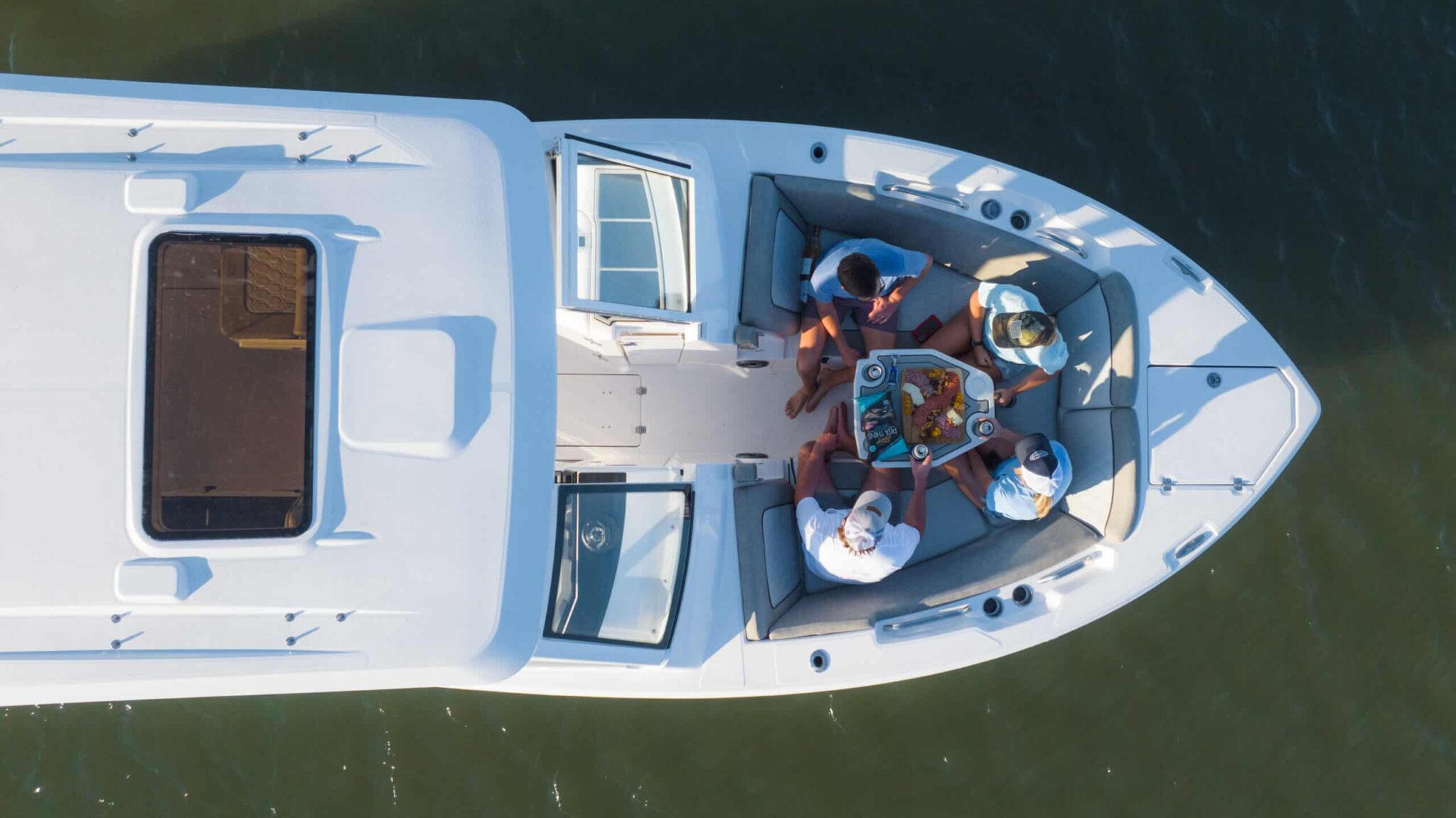

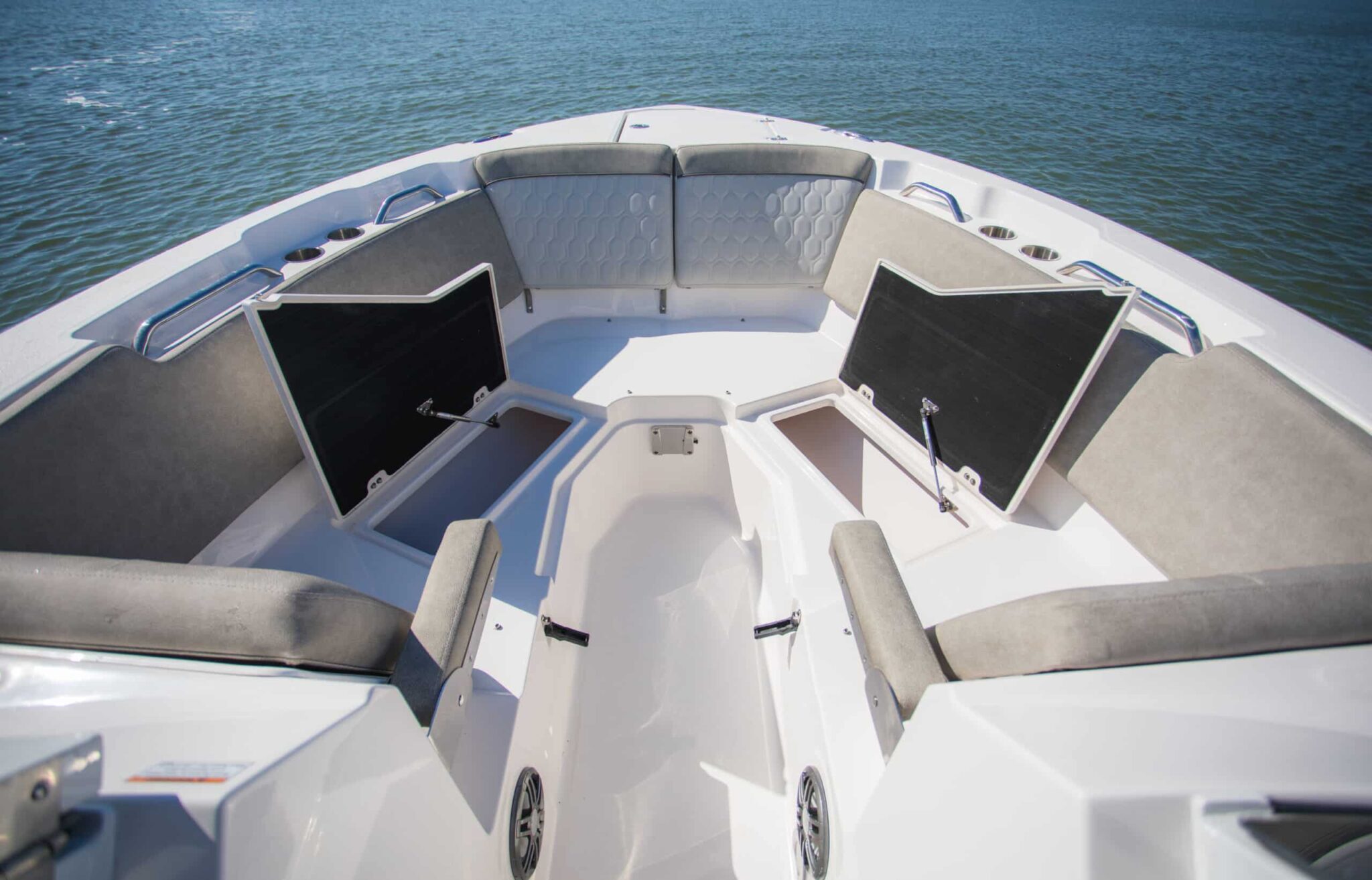

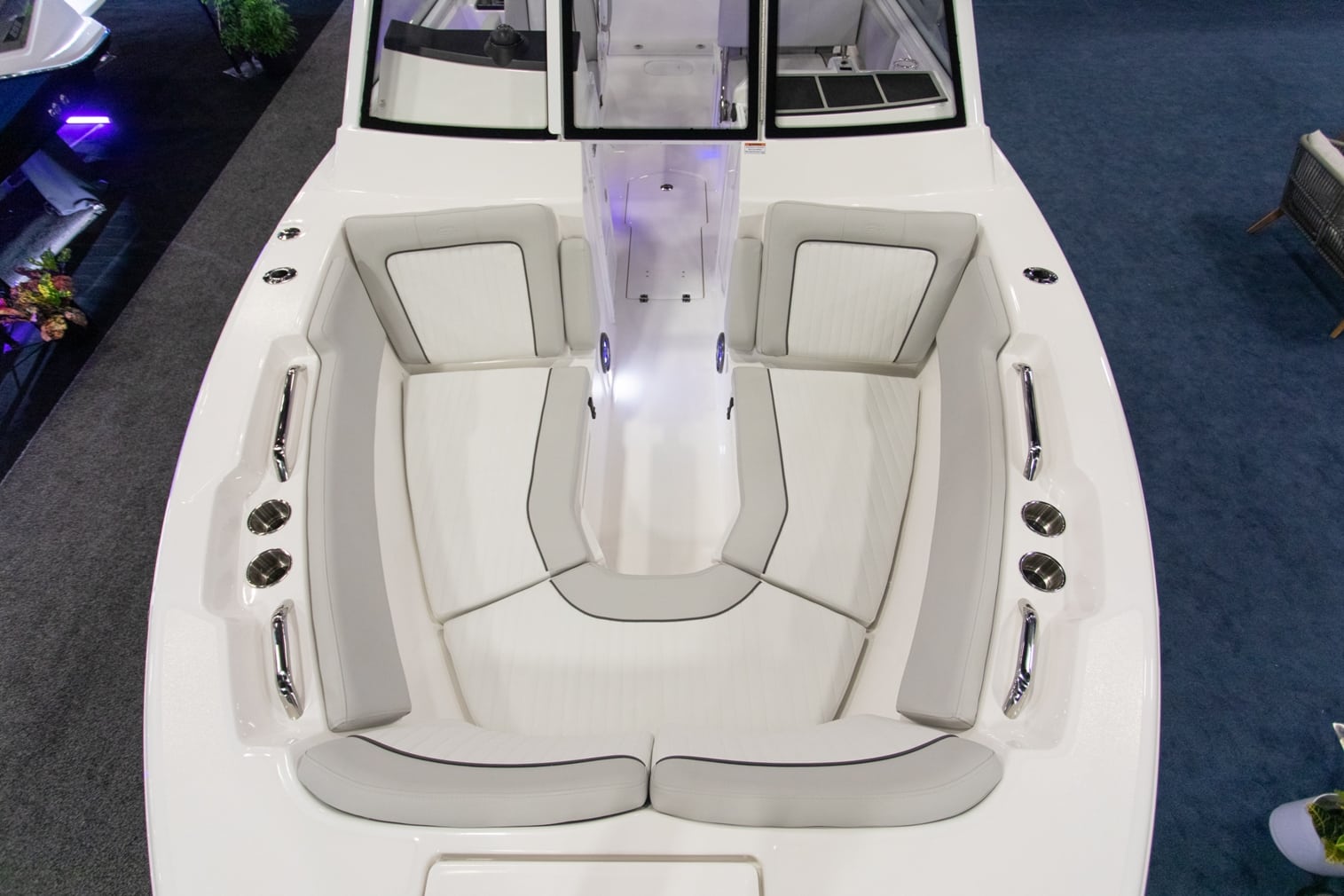

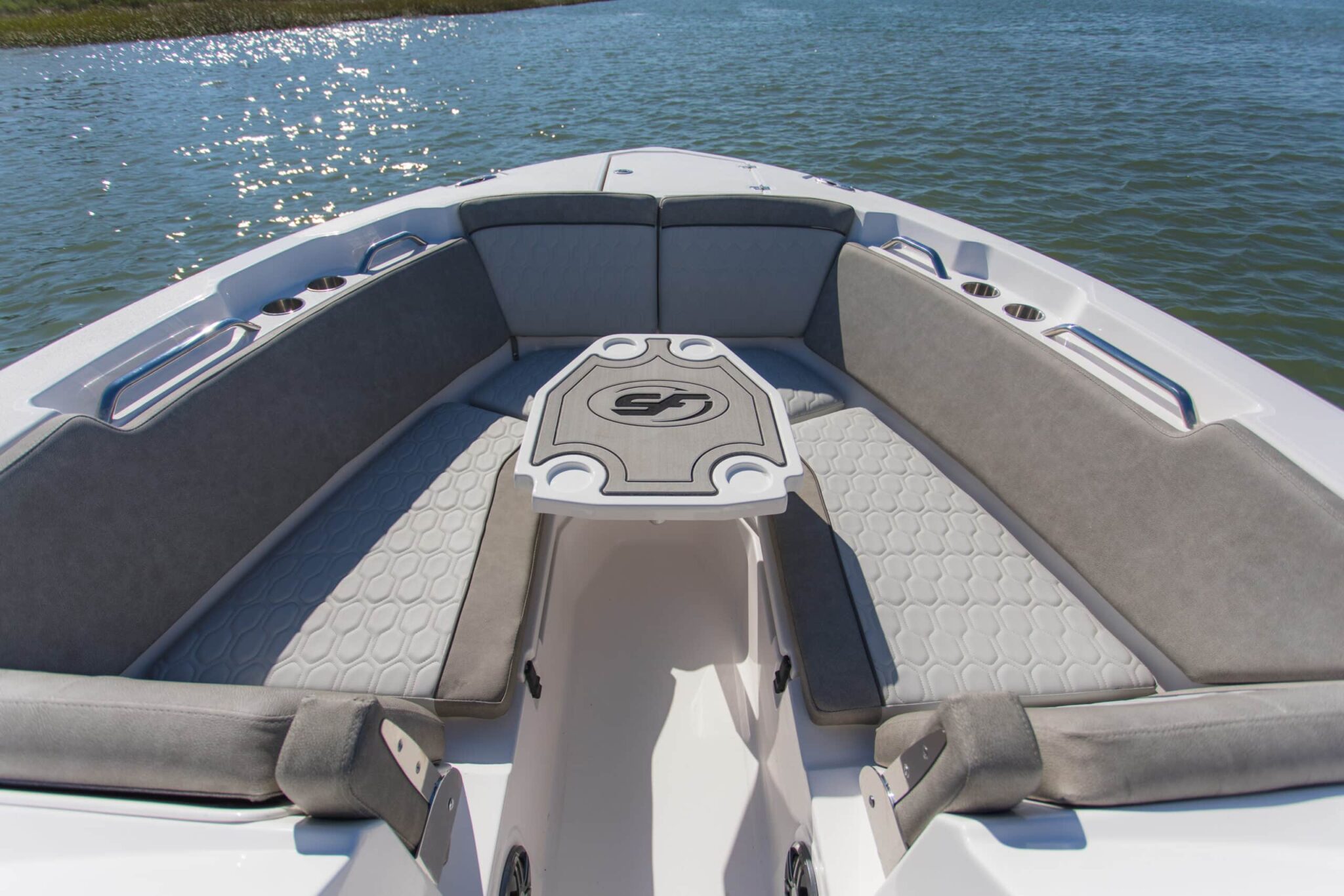

- Curved bow backrest cushions (aft-facing) with removeable bottom cushions

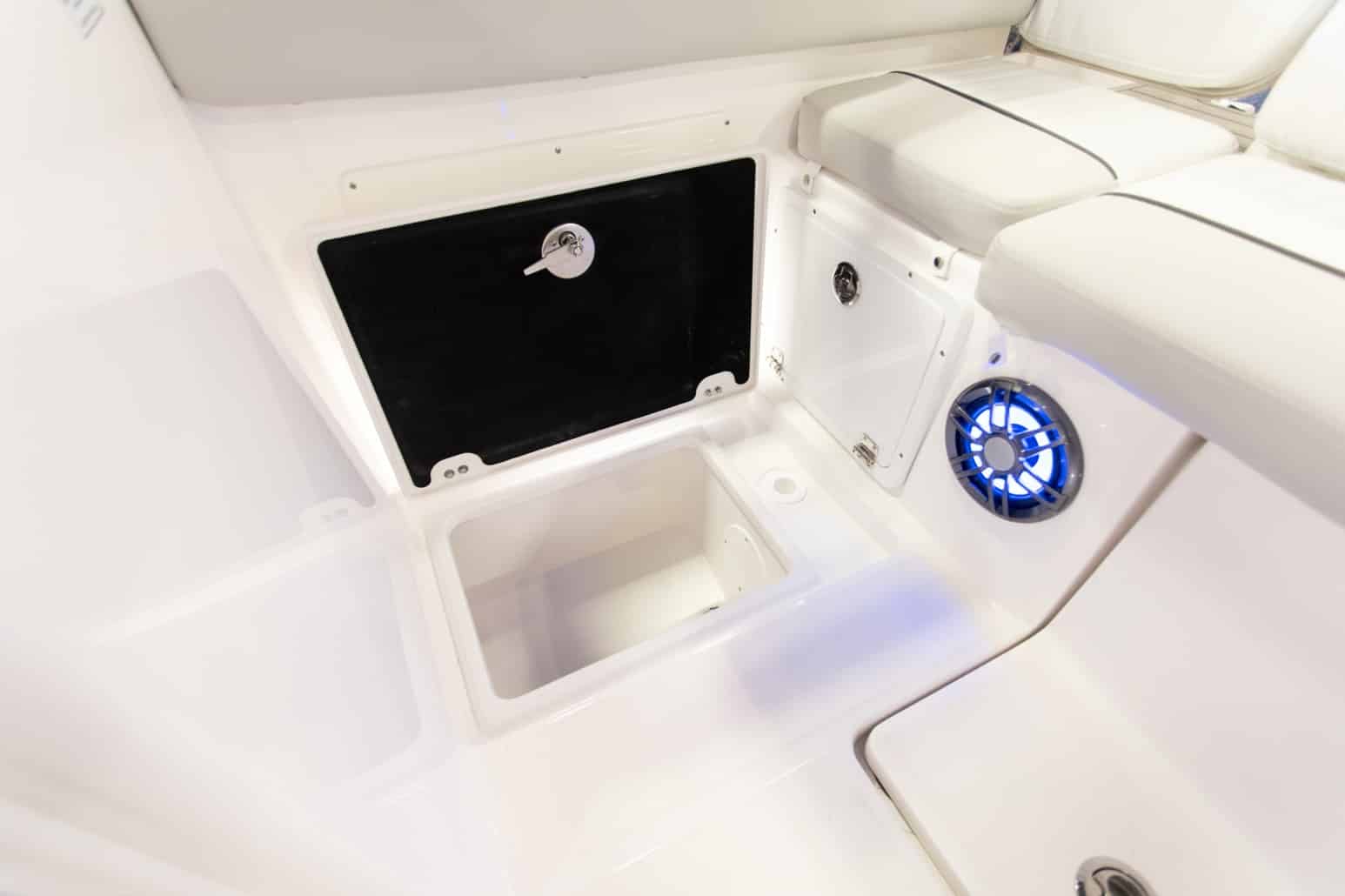

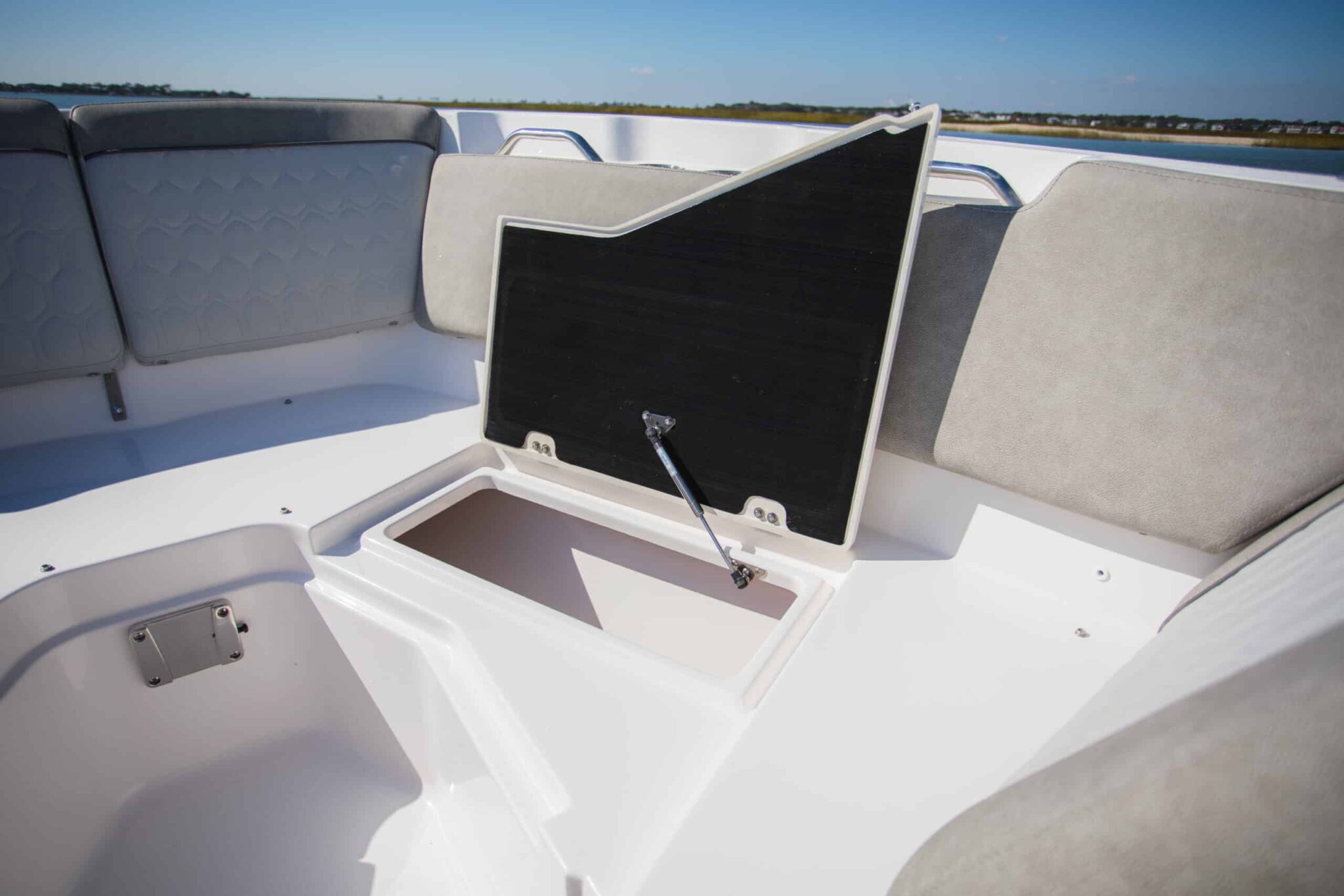

- Underseat storage-cooler-fishbox
- Casting deck with removable filler board

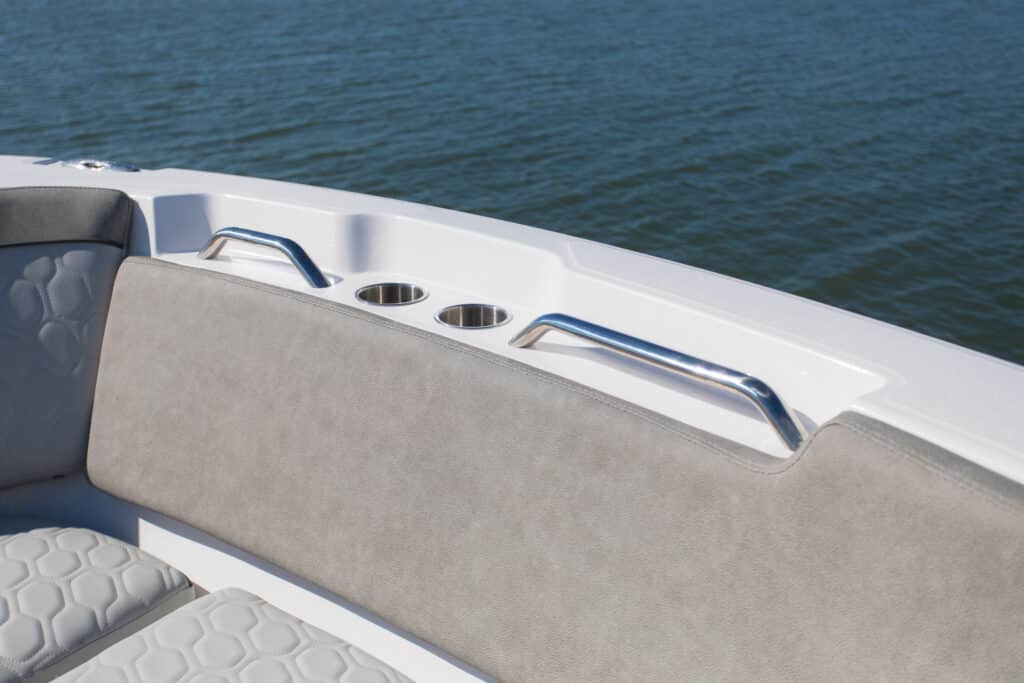

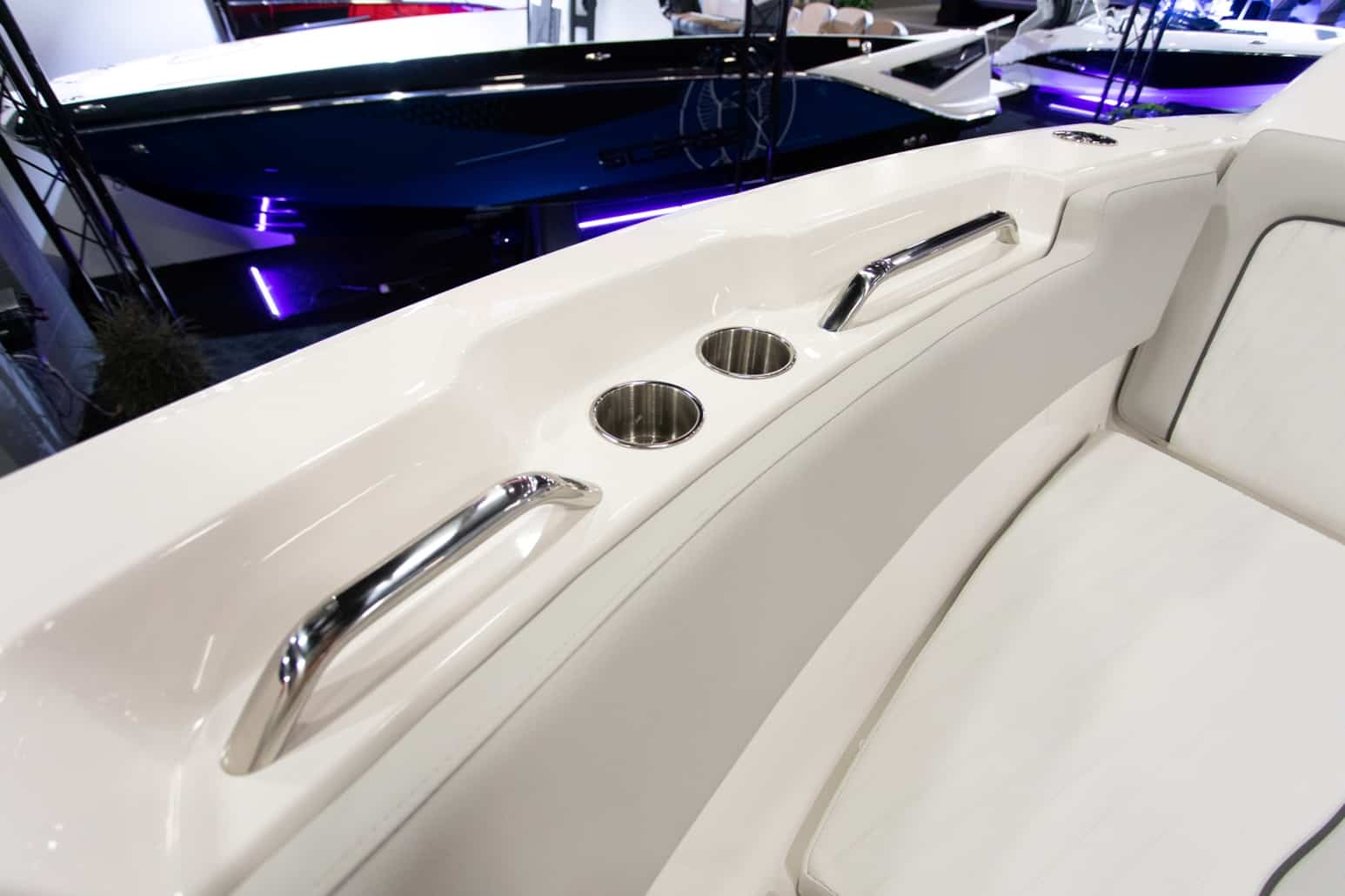

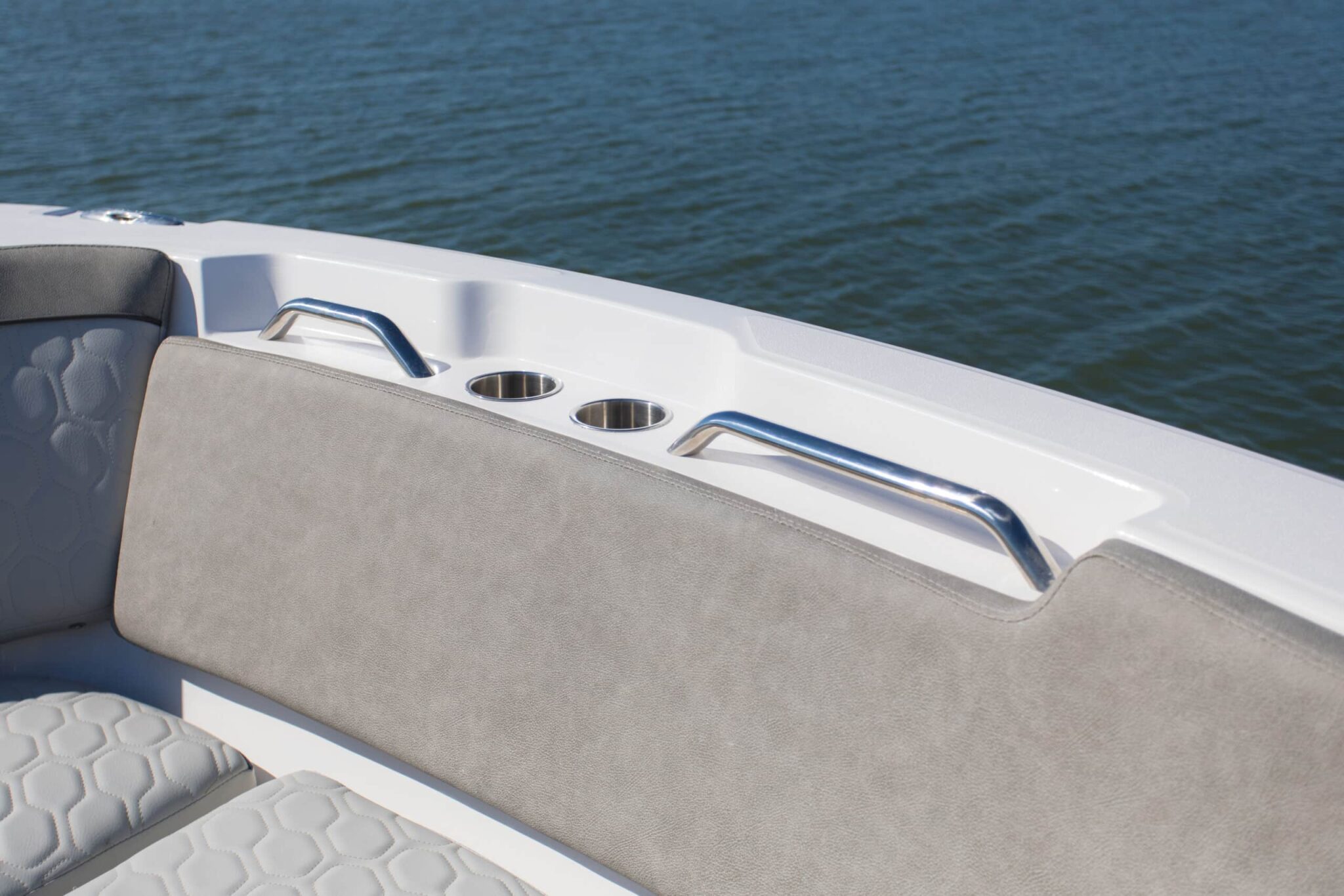

- Stainless steel recessed grab rail at bow

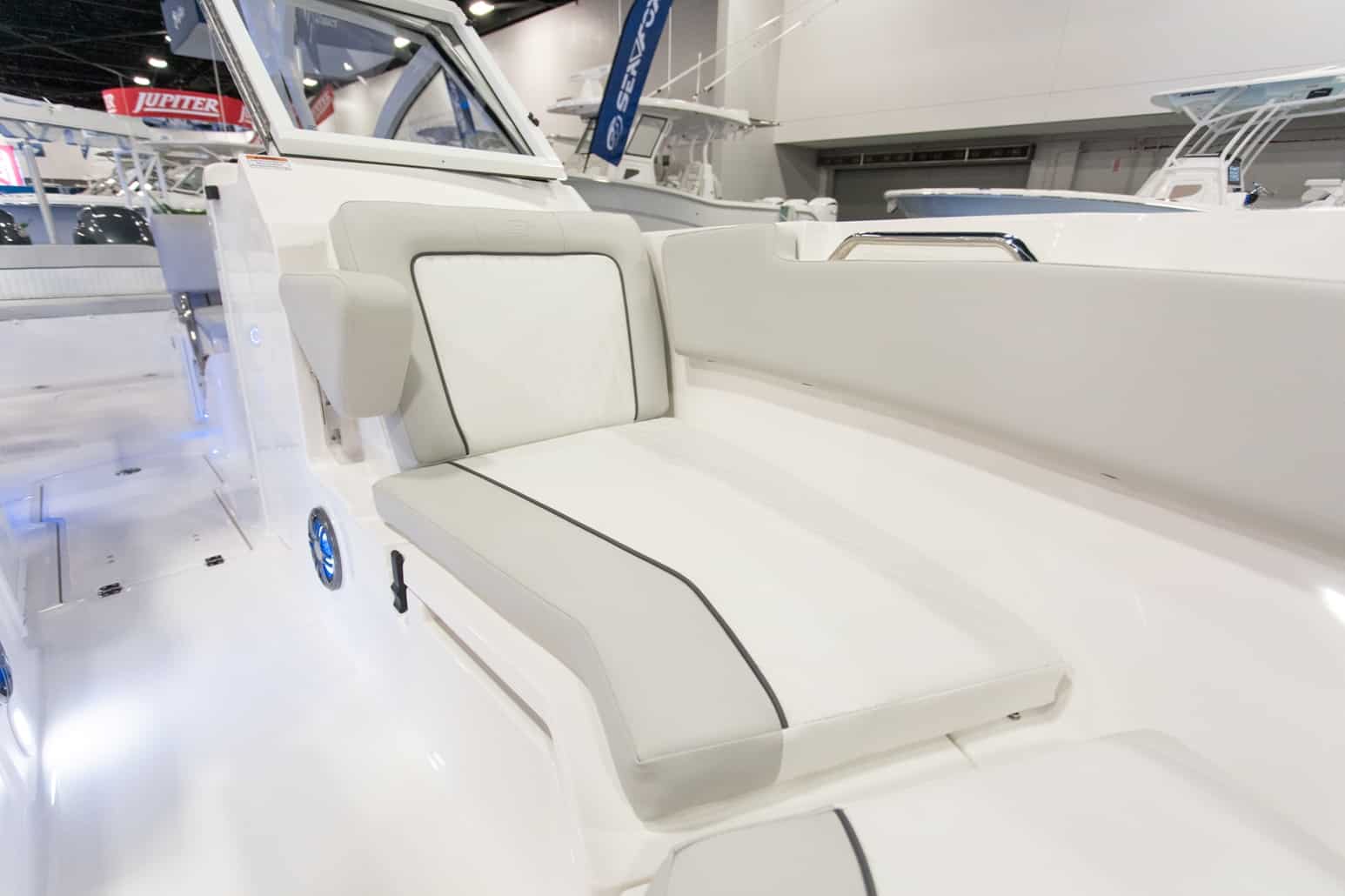

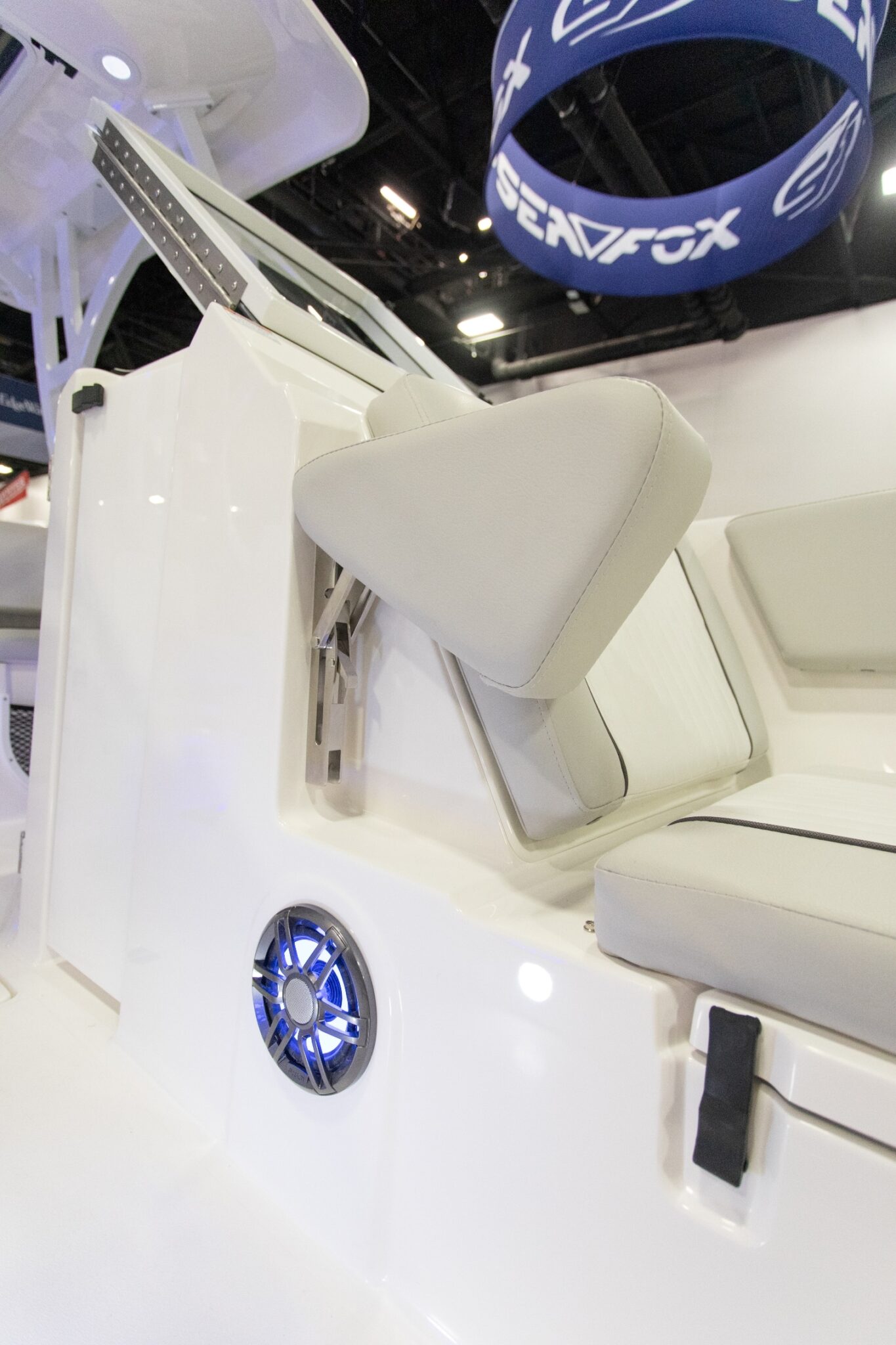

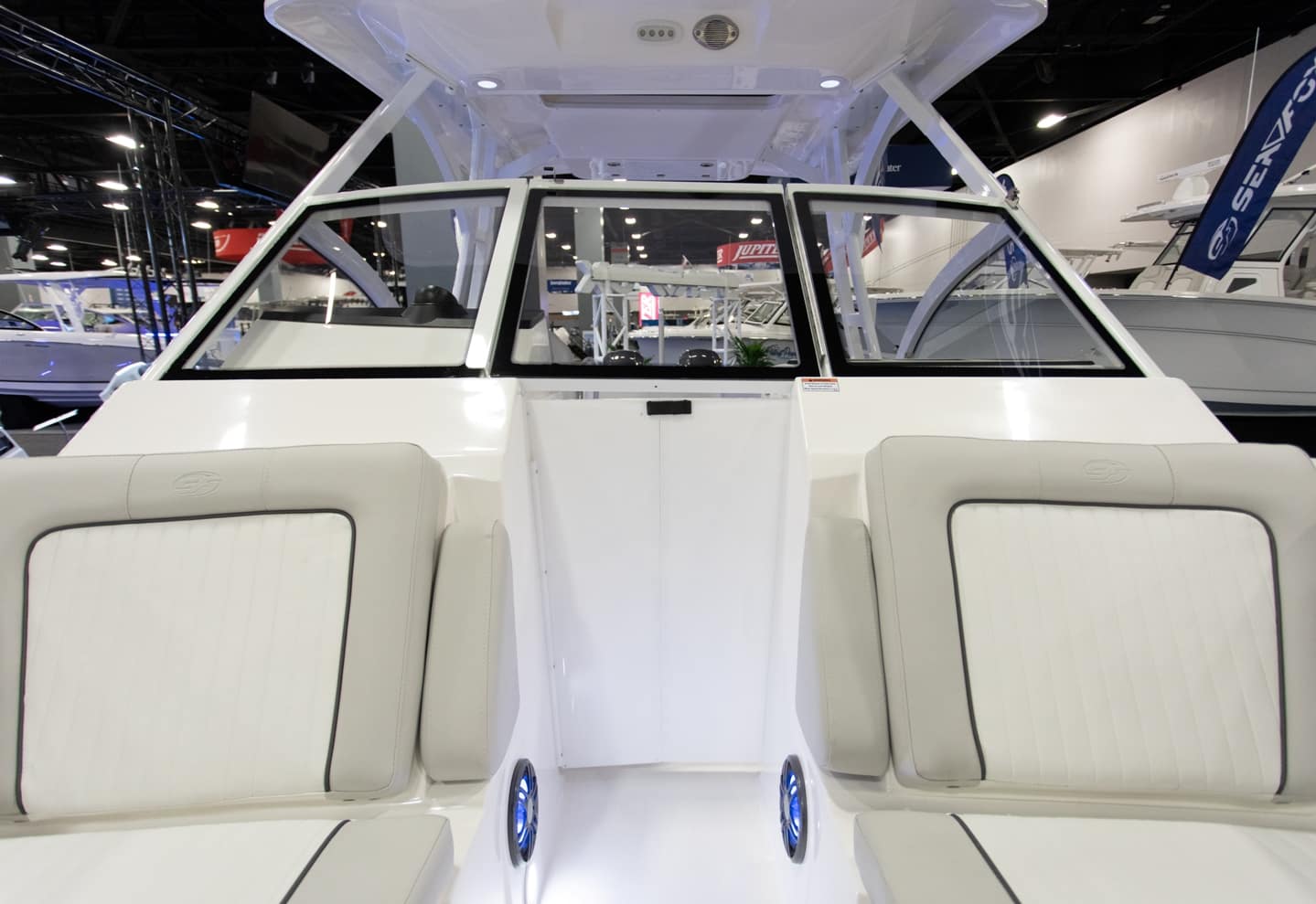

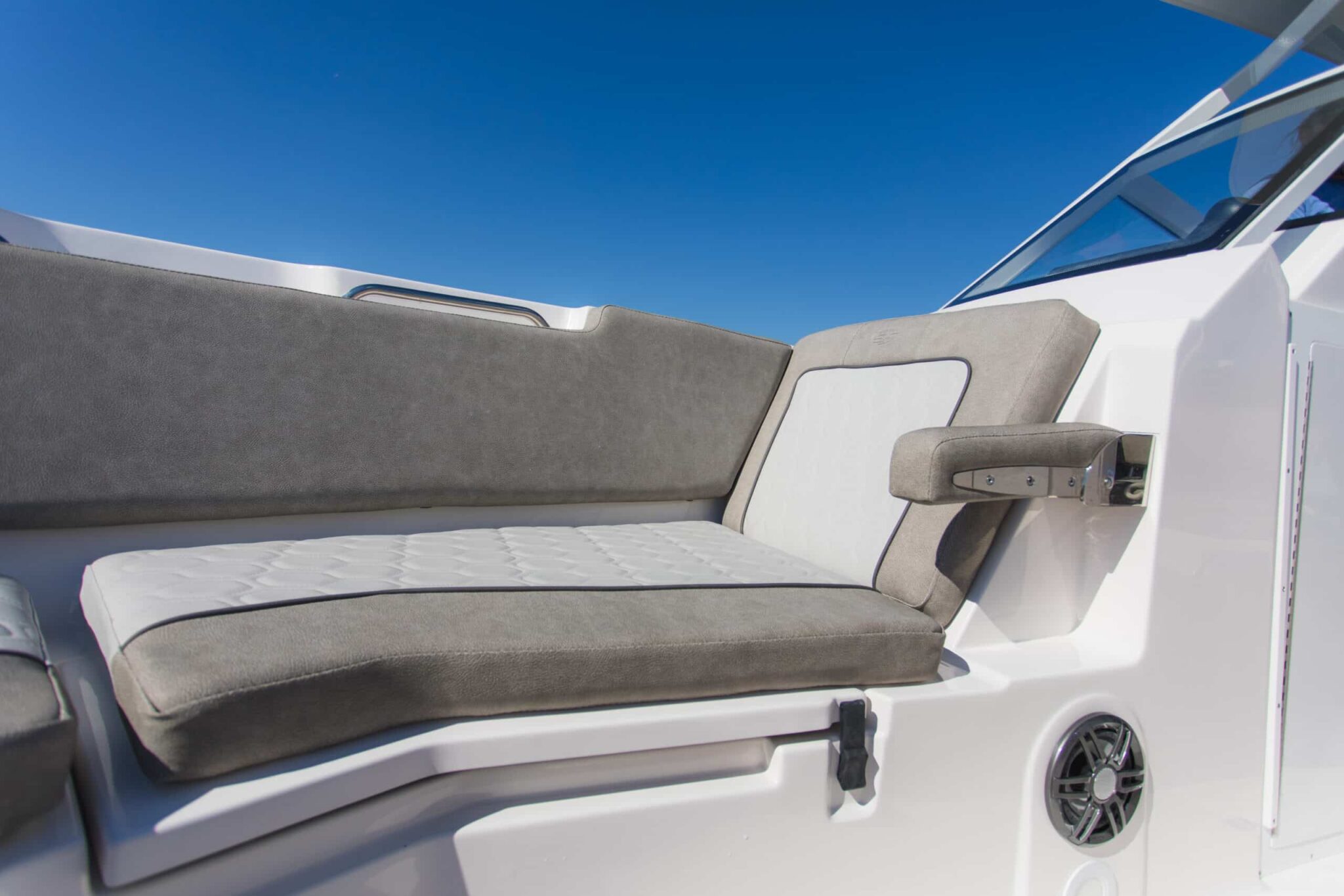

- Forward console seating with contoured backrests and adjustable armrests
- Stainless steel table mount
- Removable filler board table with leg and dedicated storage

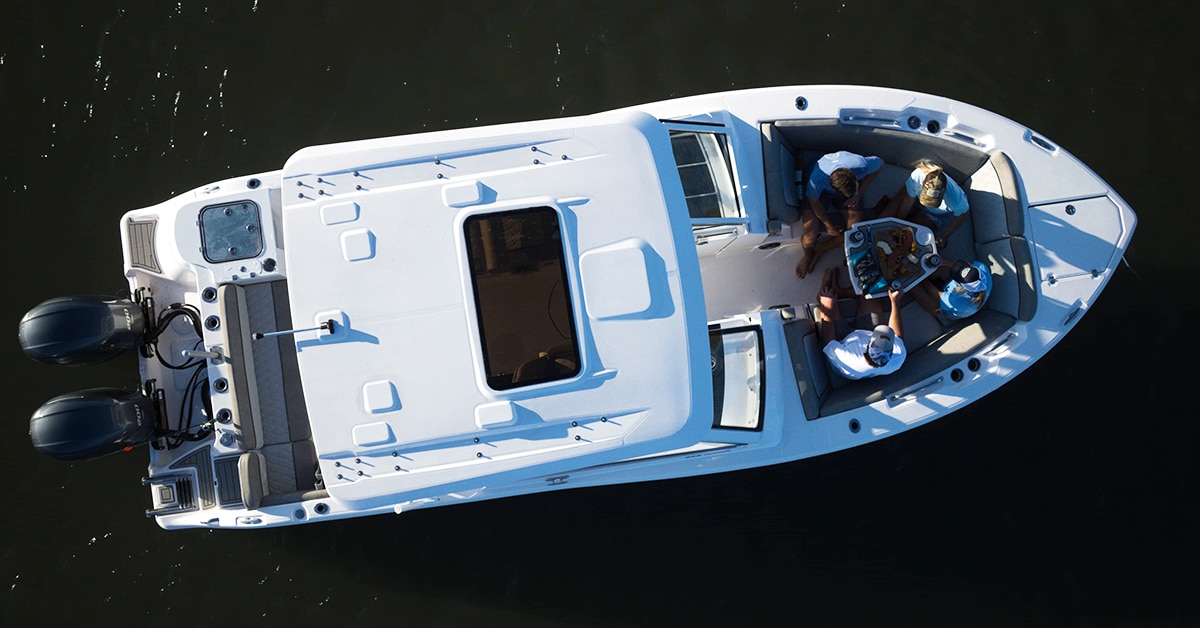

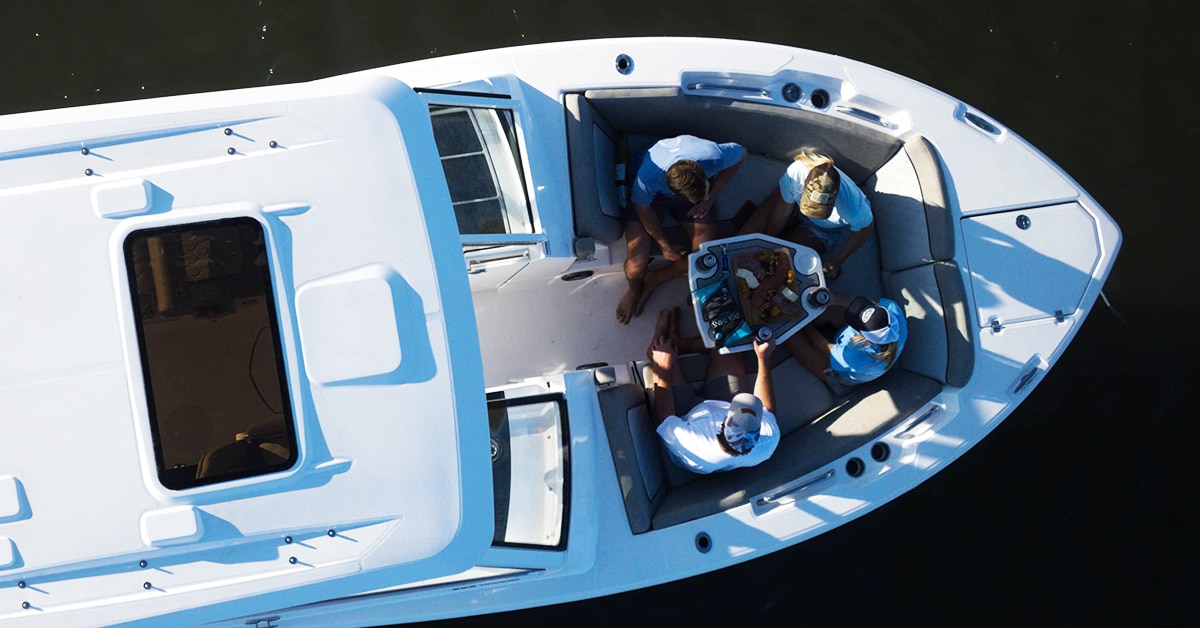

- Removable bow filler cushion
- Foldable wind dam

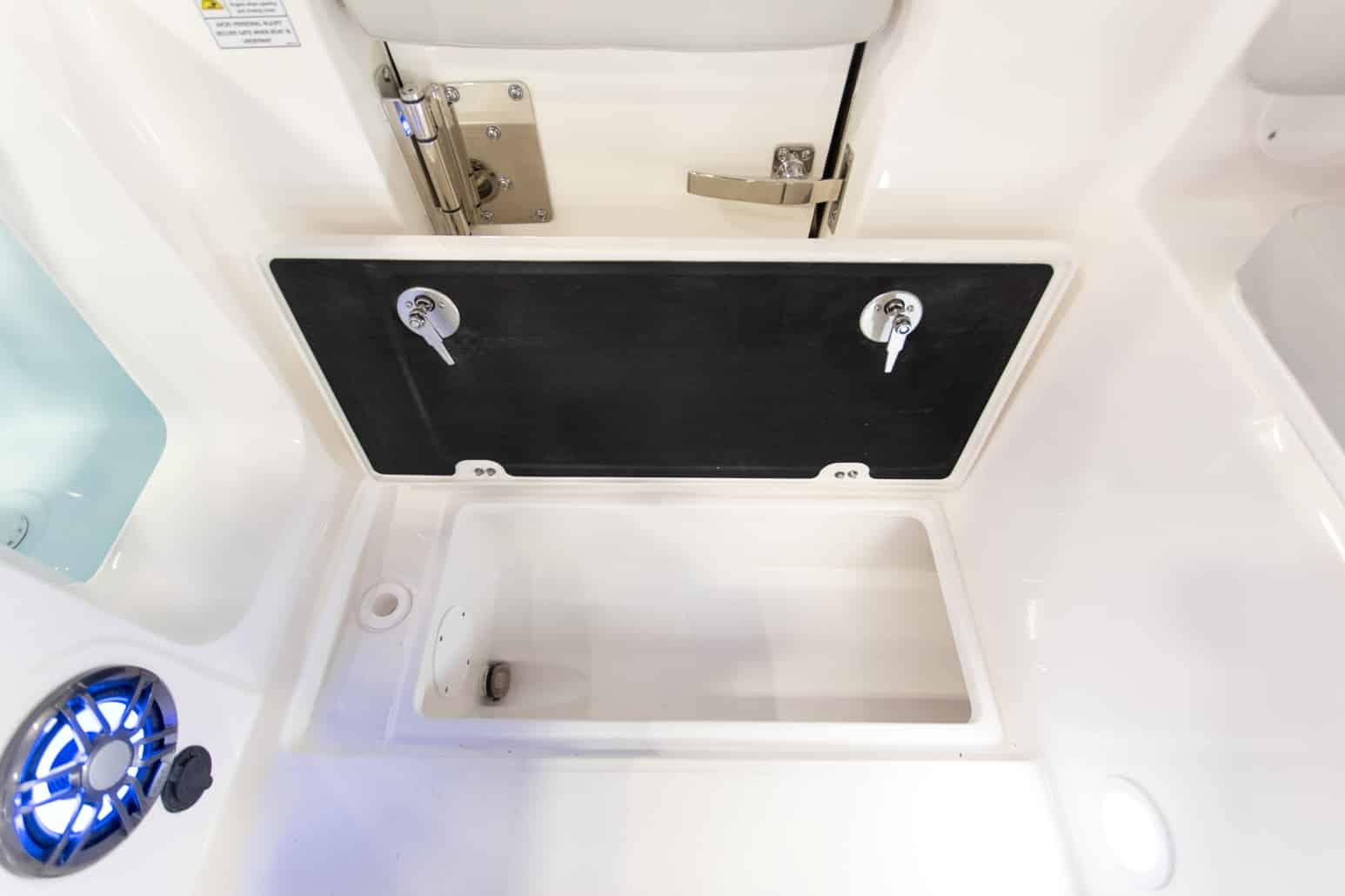

- Storage compartment with wiring access

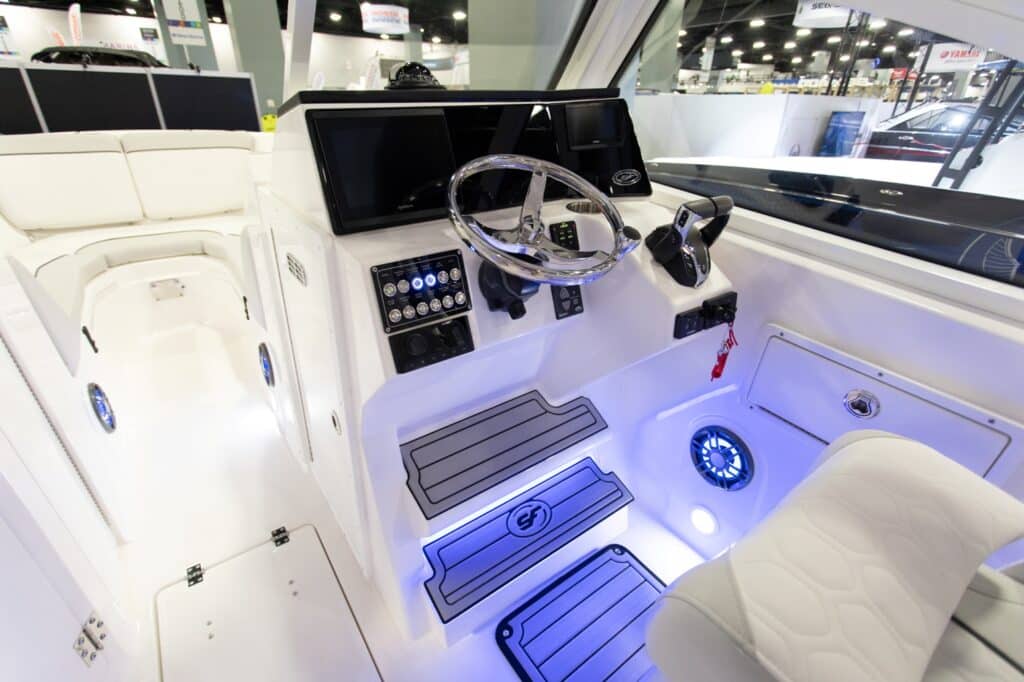

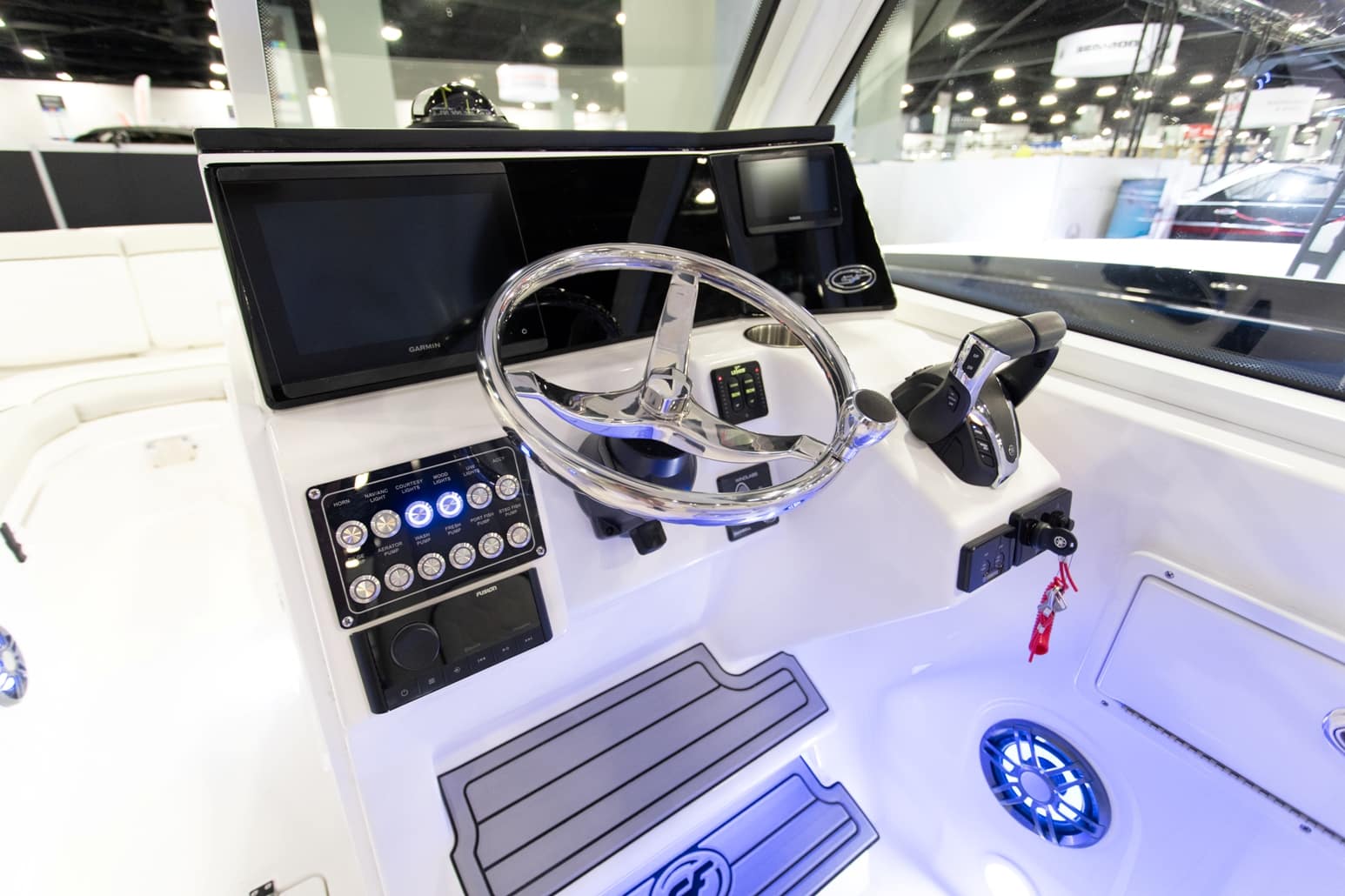

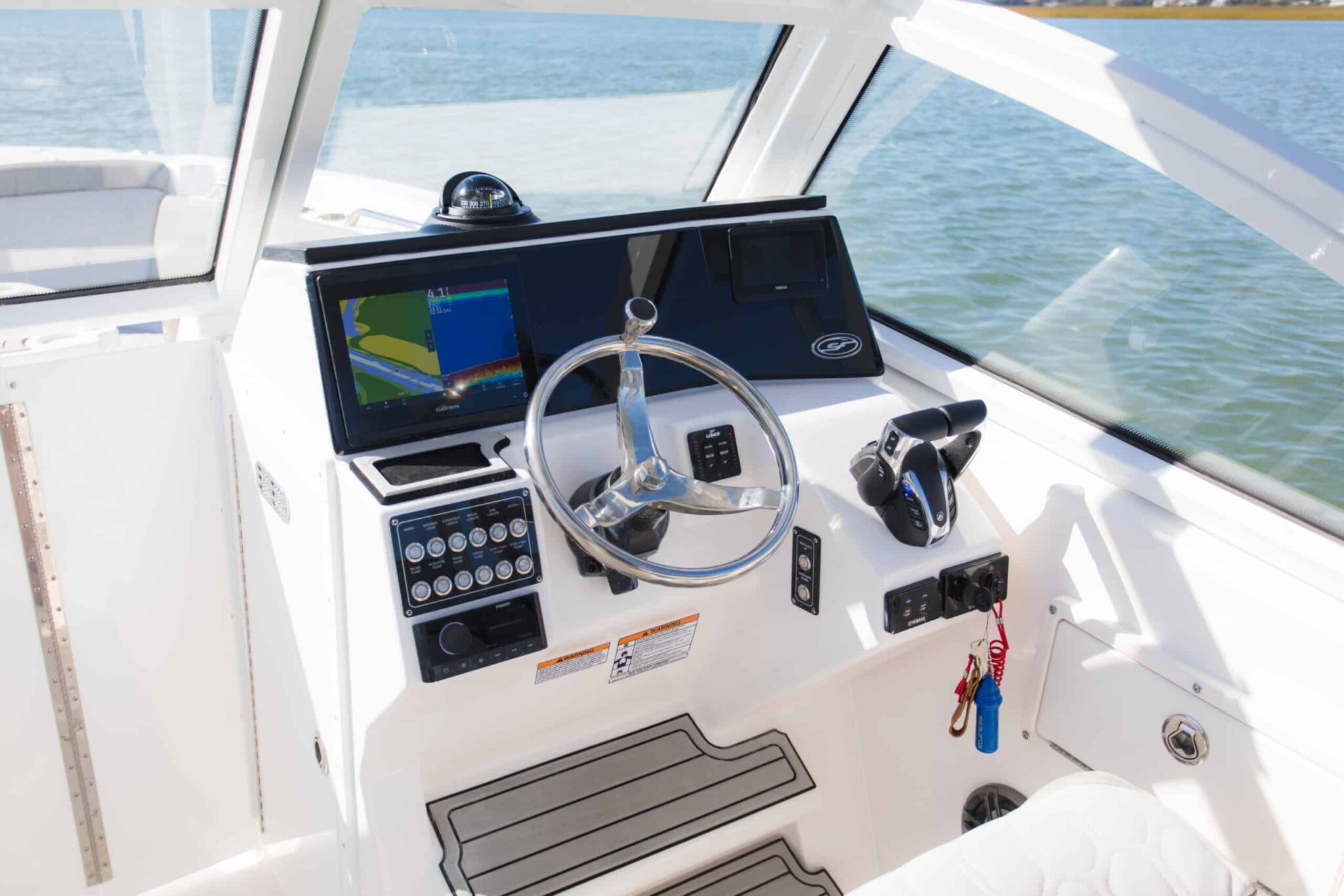

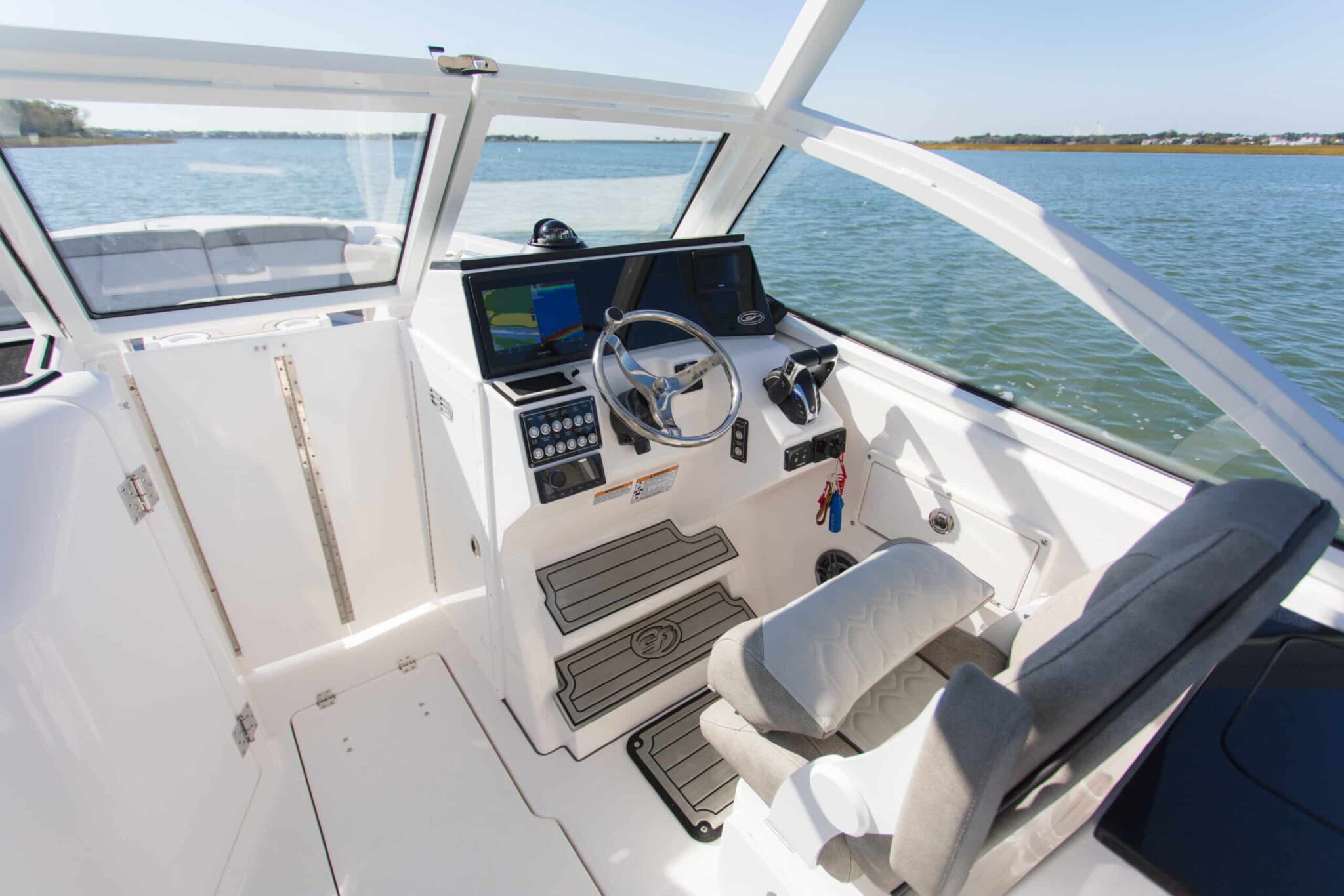

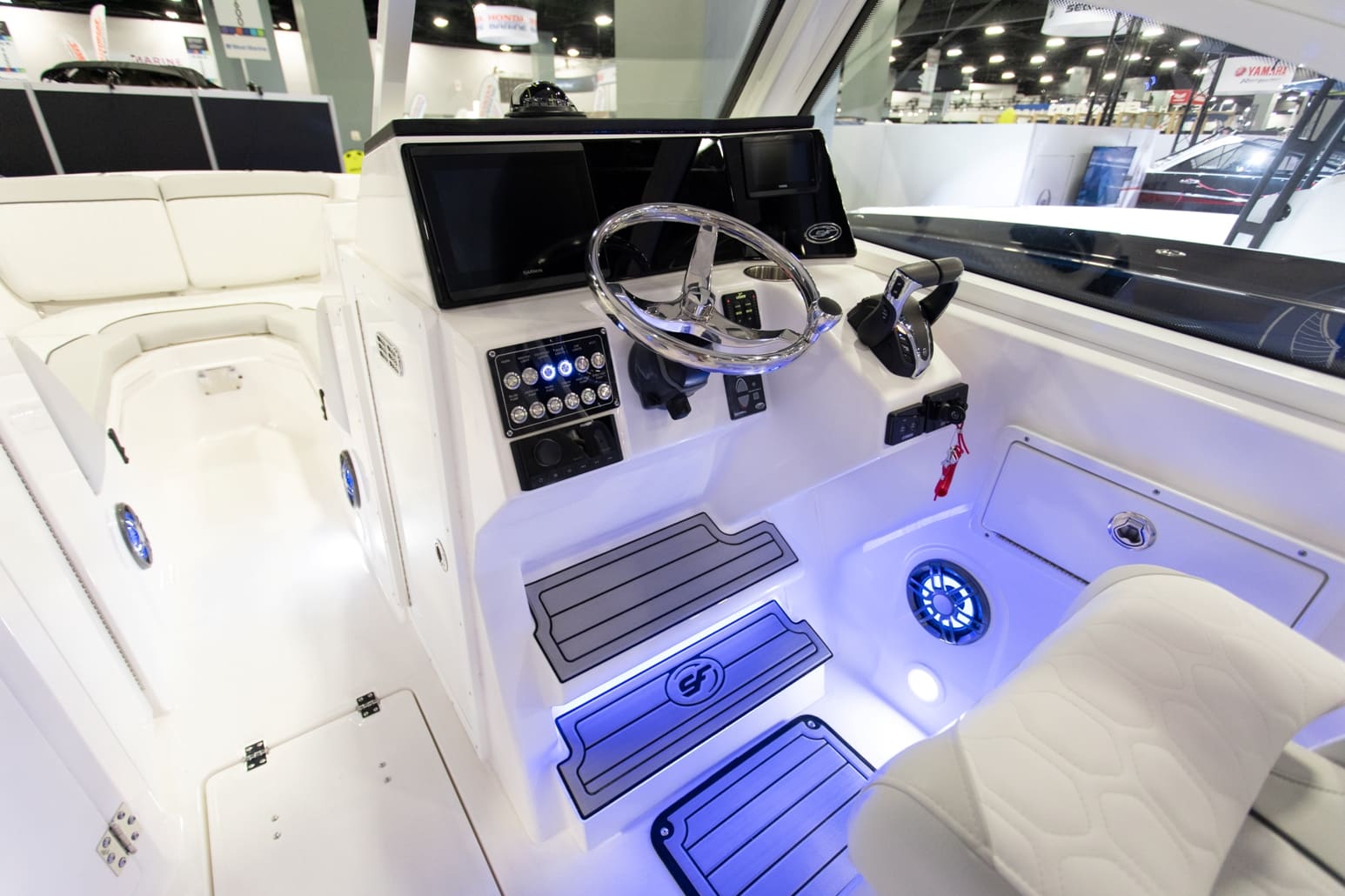

Helm:
- Yamaha digital electric steering (DES)
- For Yamaha digital motors (XC twin application):
- Multifunction instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions
- Display may vary with availability

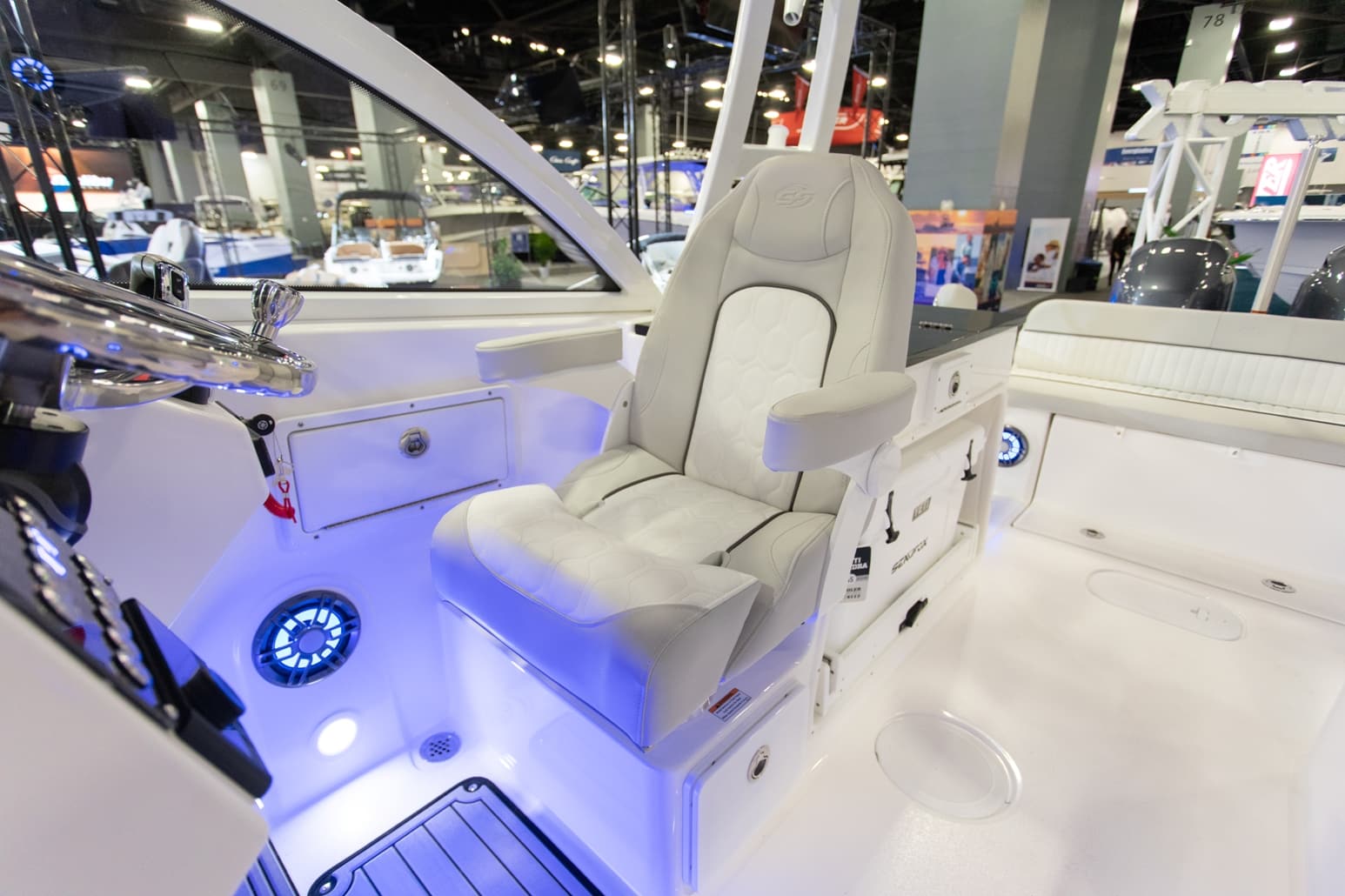

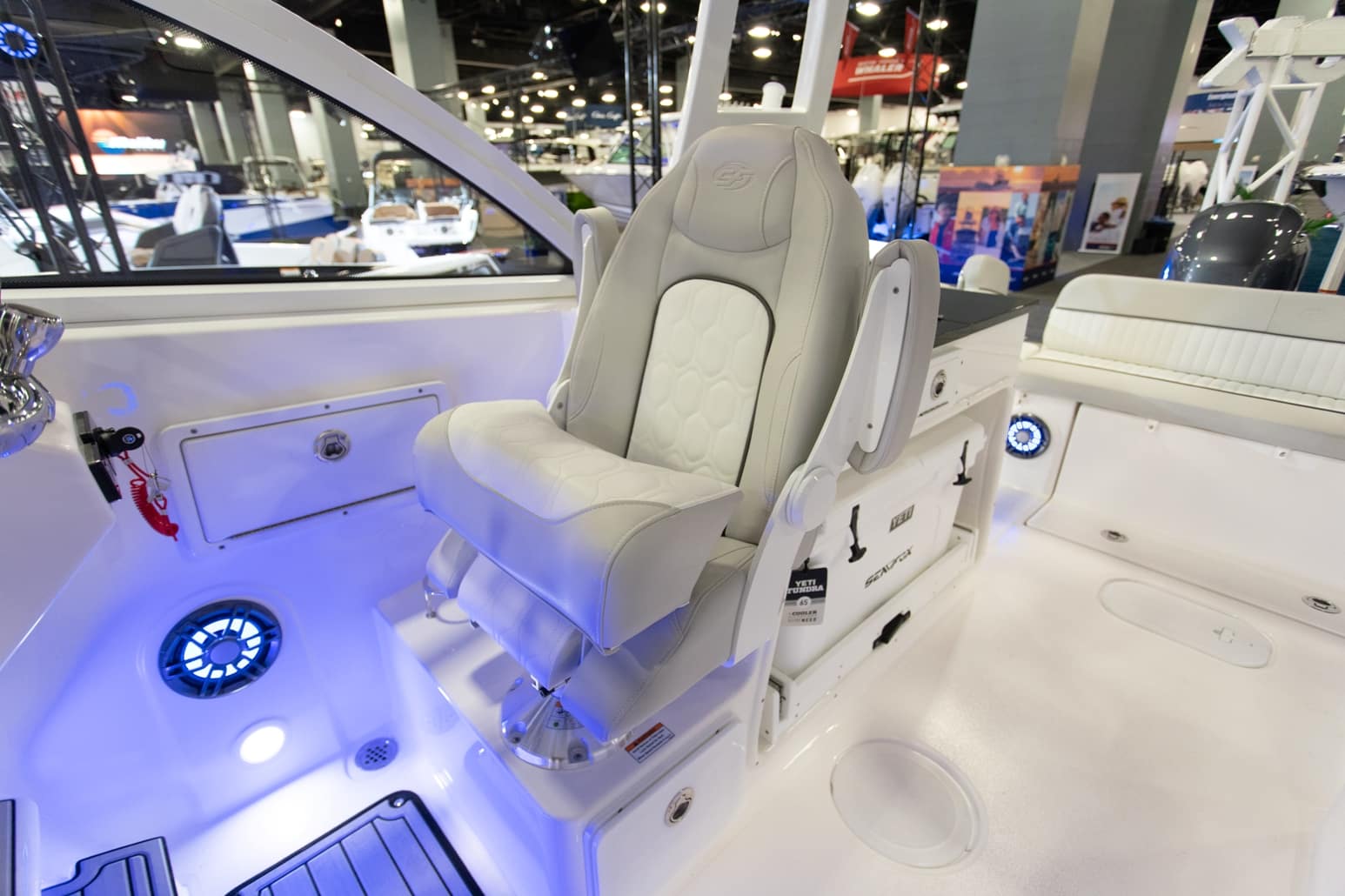

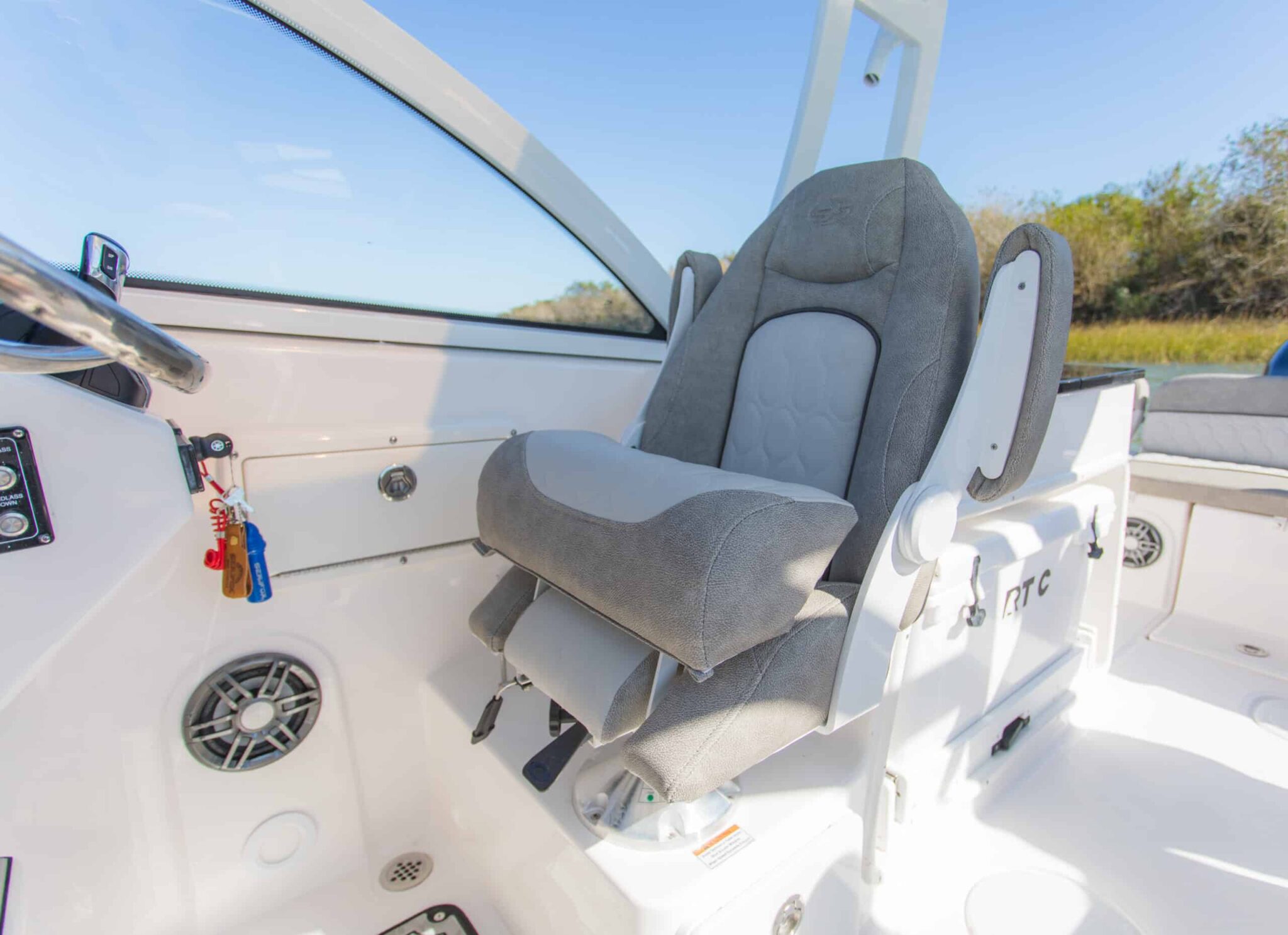

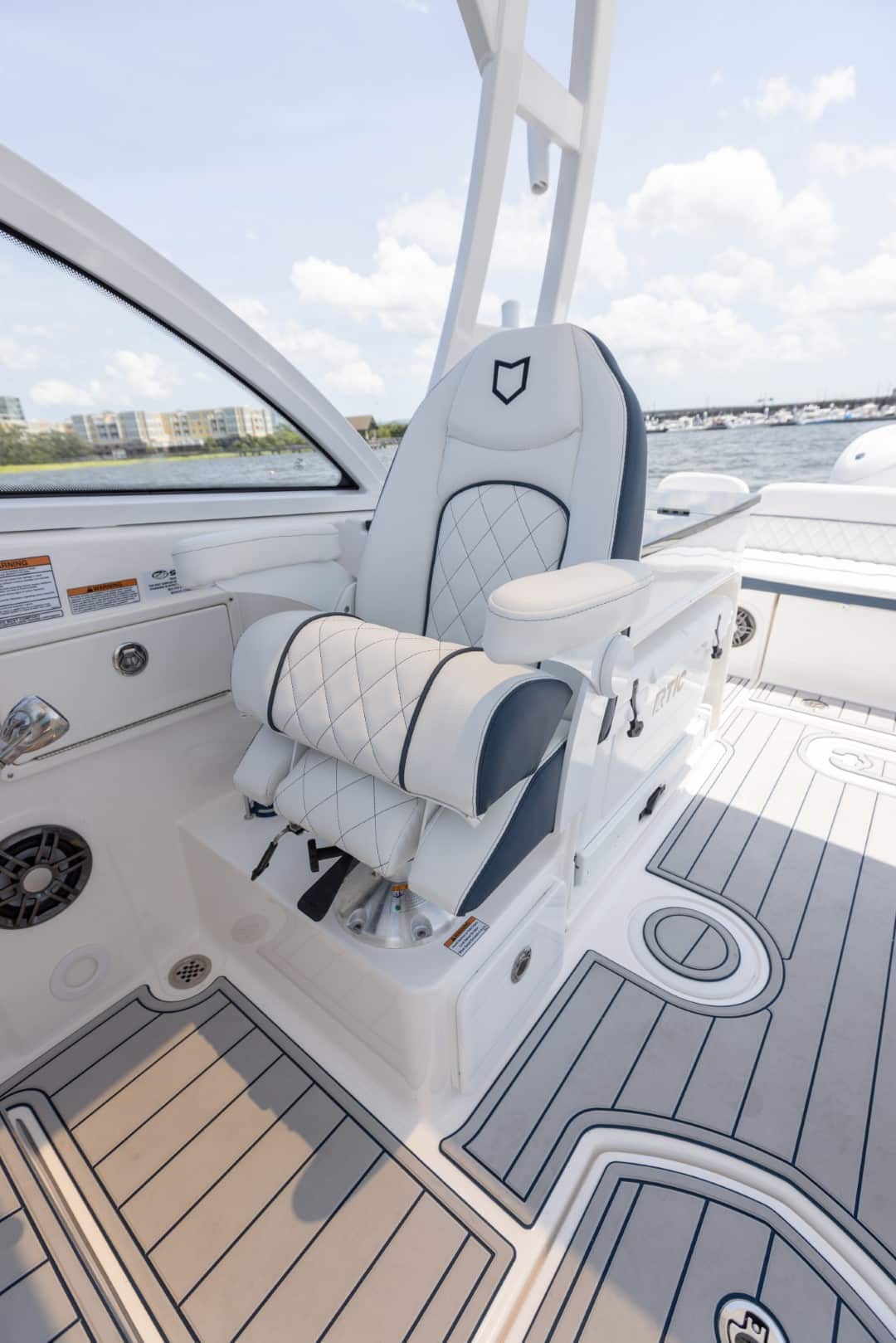

- Pedestal style helm chair with adjustable armrests
- Fusion stereo with USB adapter

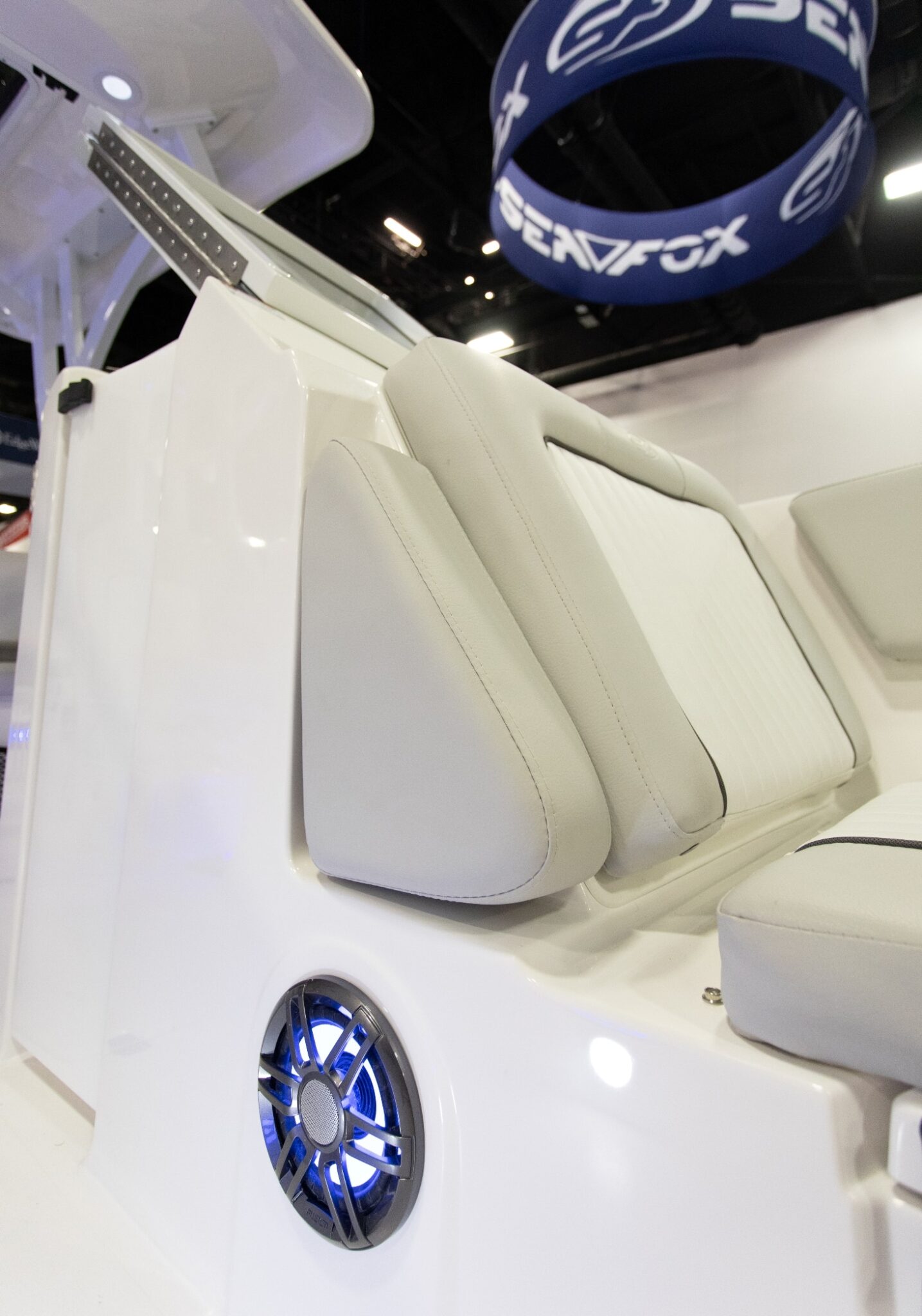

- Six Fusion speakers in deck
- Top mount compass on console
- Console dash shroud
- Black acrylic console display with room for flush electronics (compatible for two 10" displays)
- Stainless steel steering wheel with turning knob

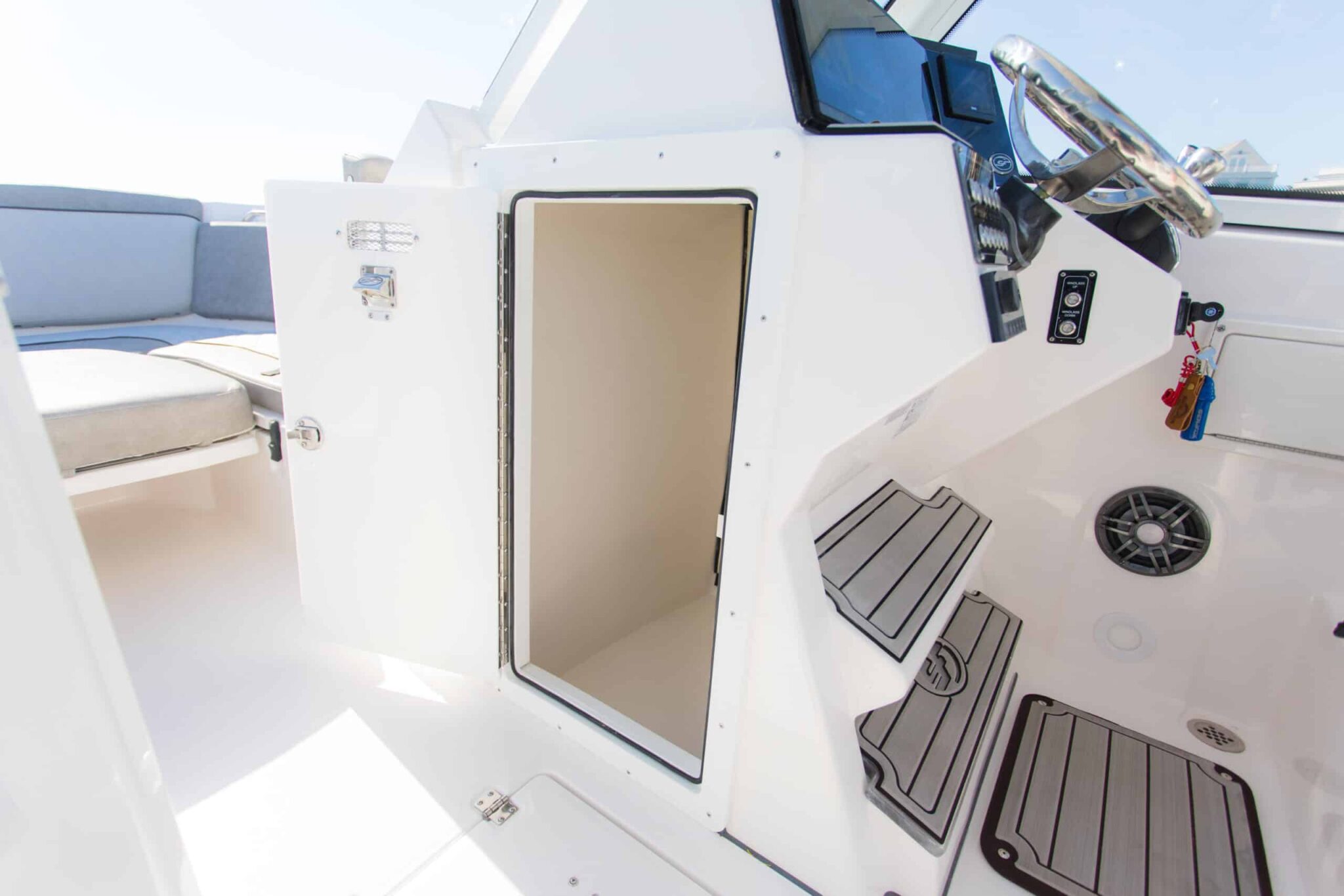

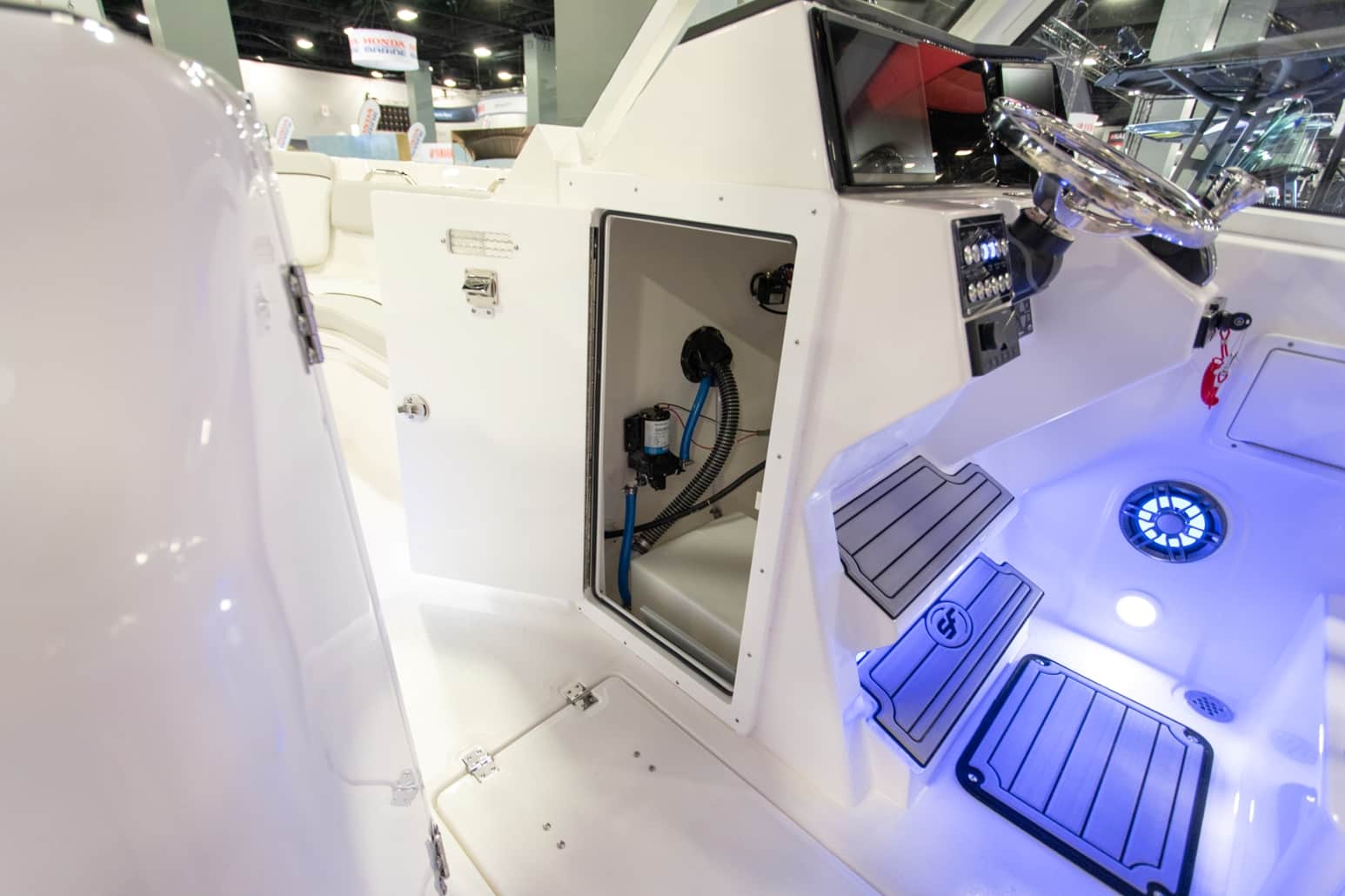

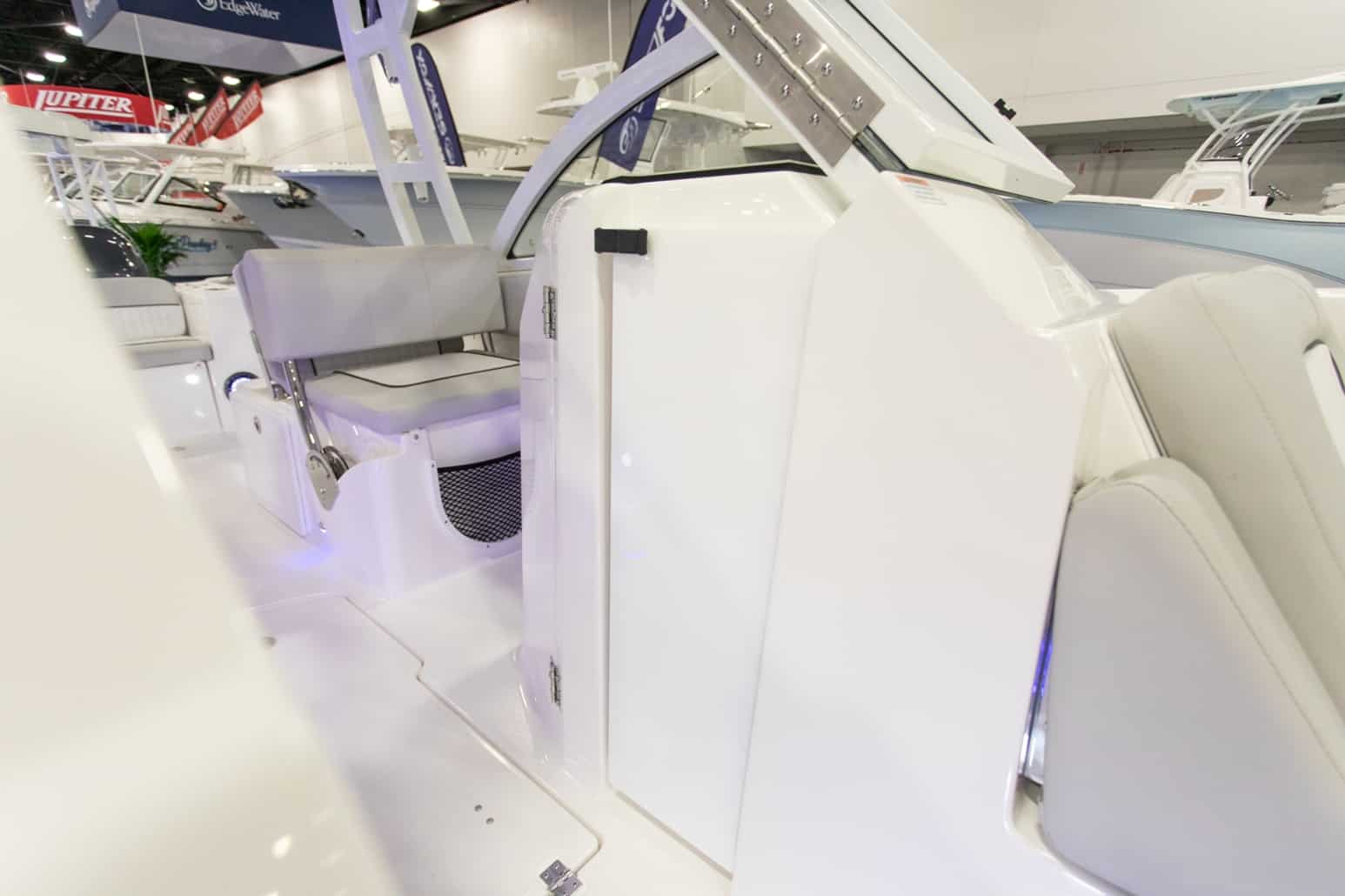

- Lockable console door with bottle opener and magnetic cap catch

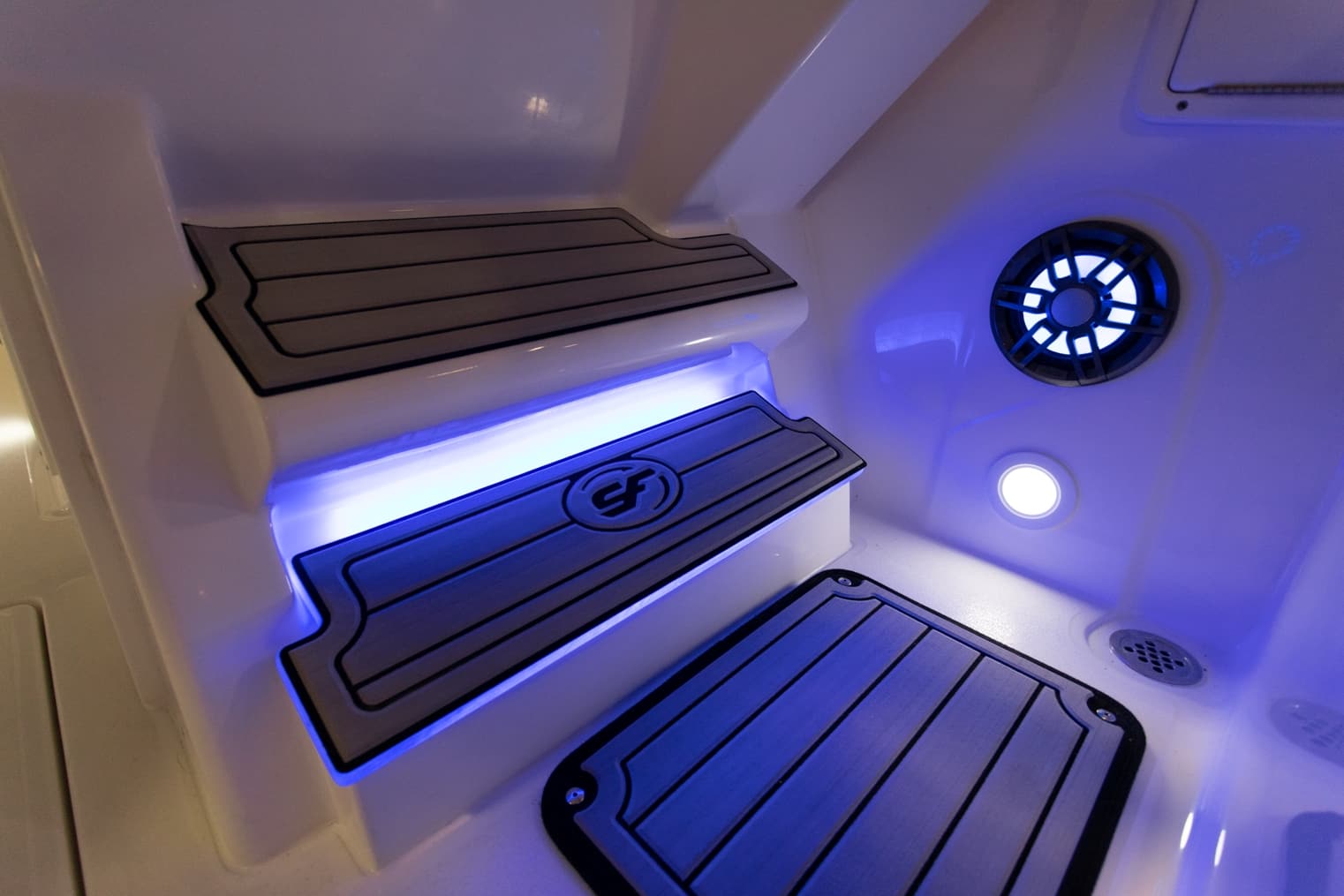

- Integrated two level console footrest

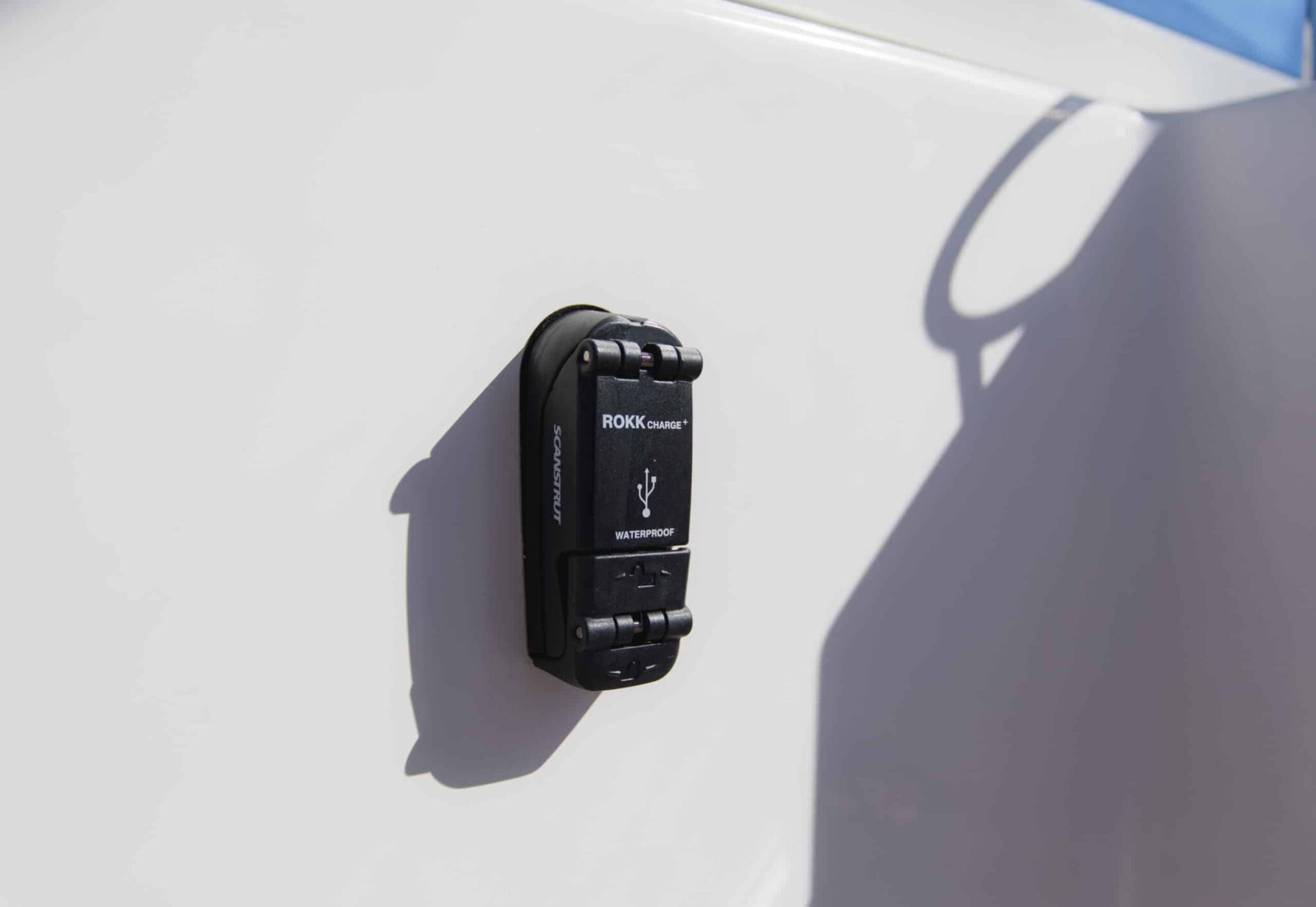

- 12-volt power point

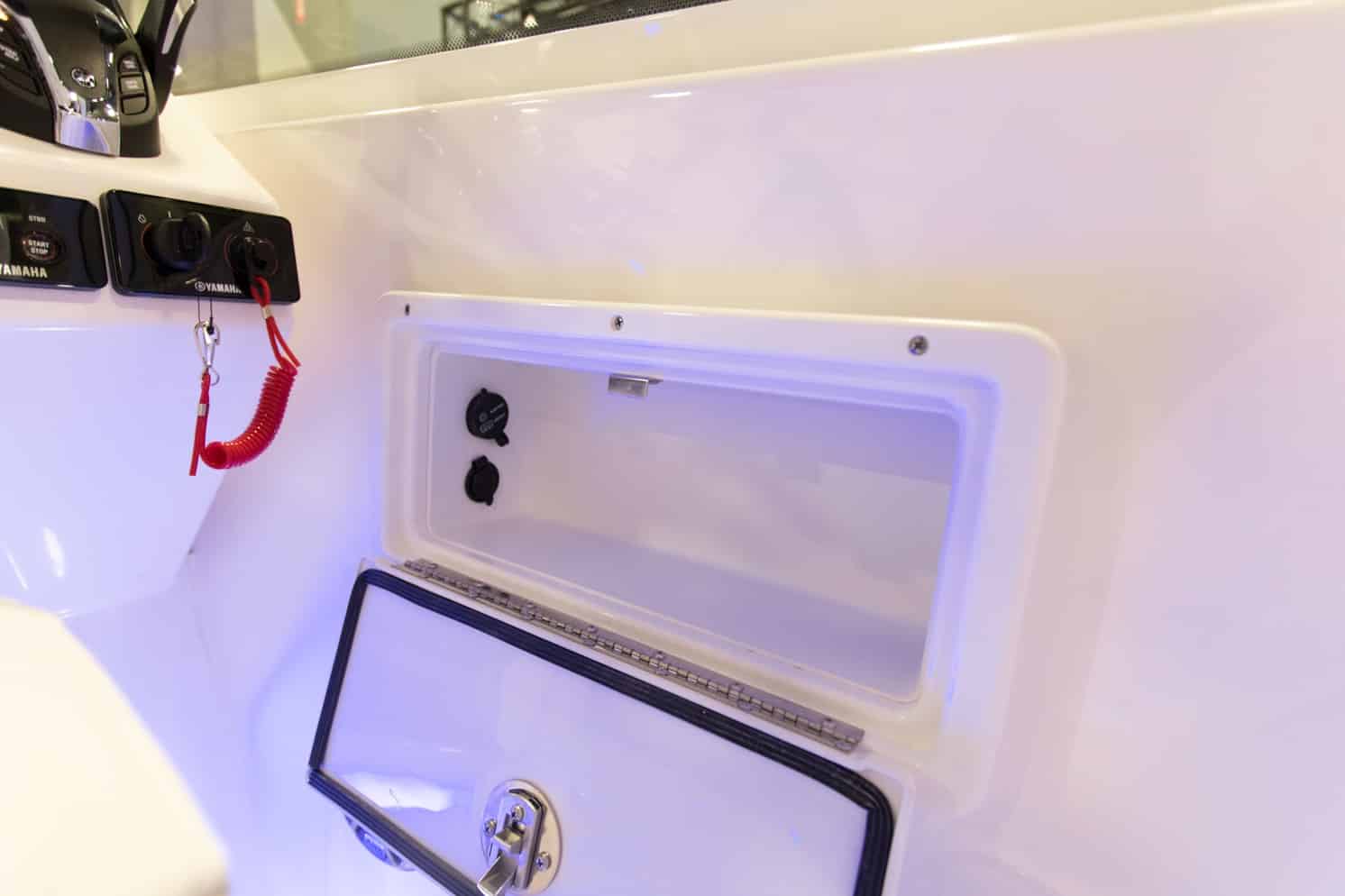

- Storage box
- Console courtesy lights

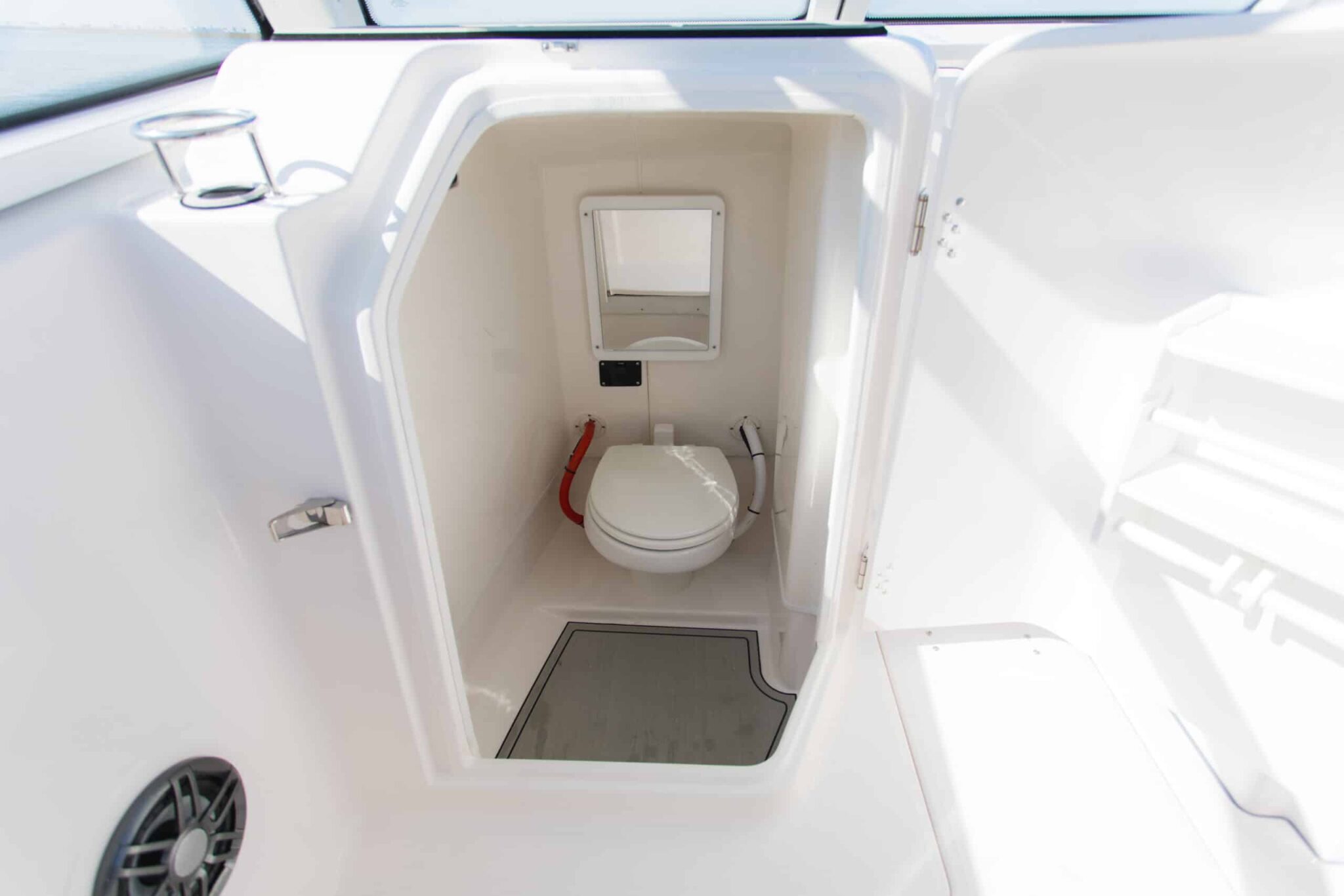

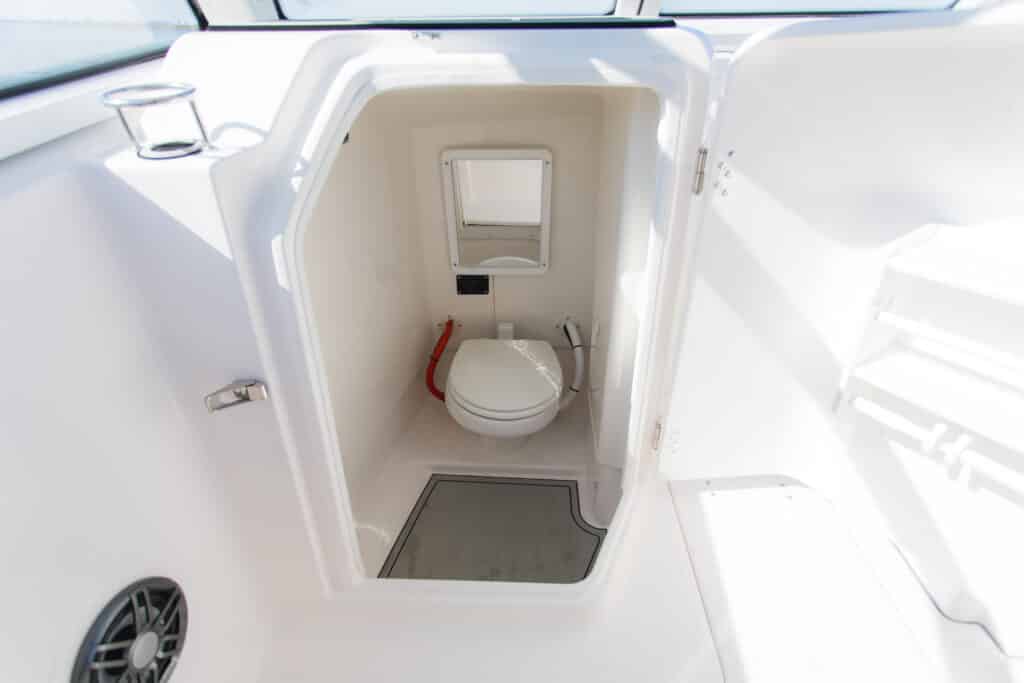

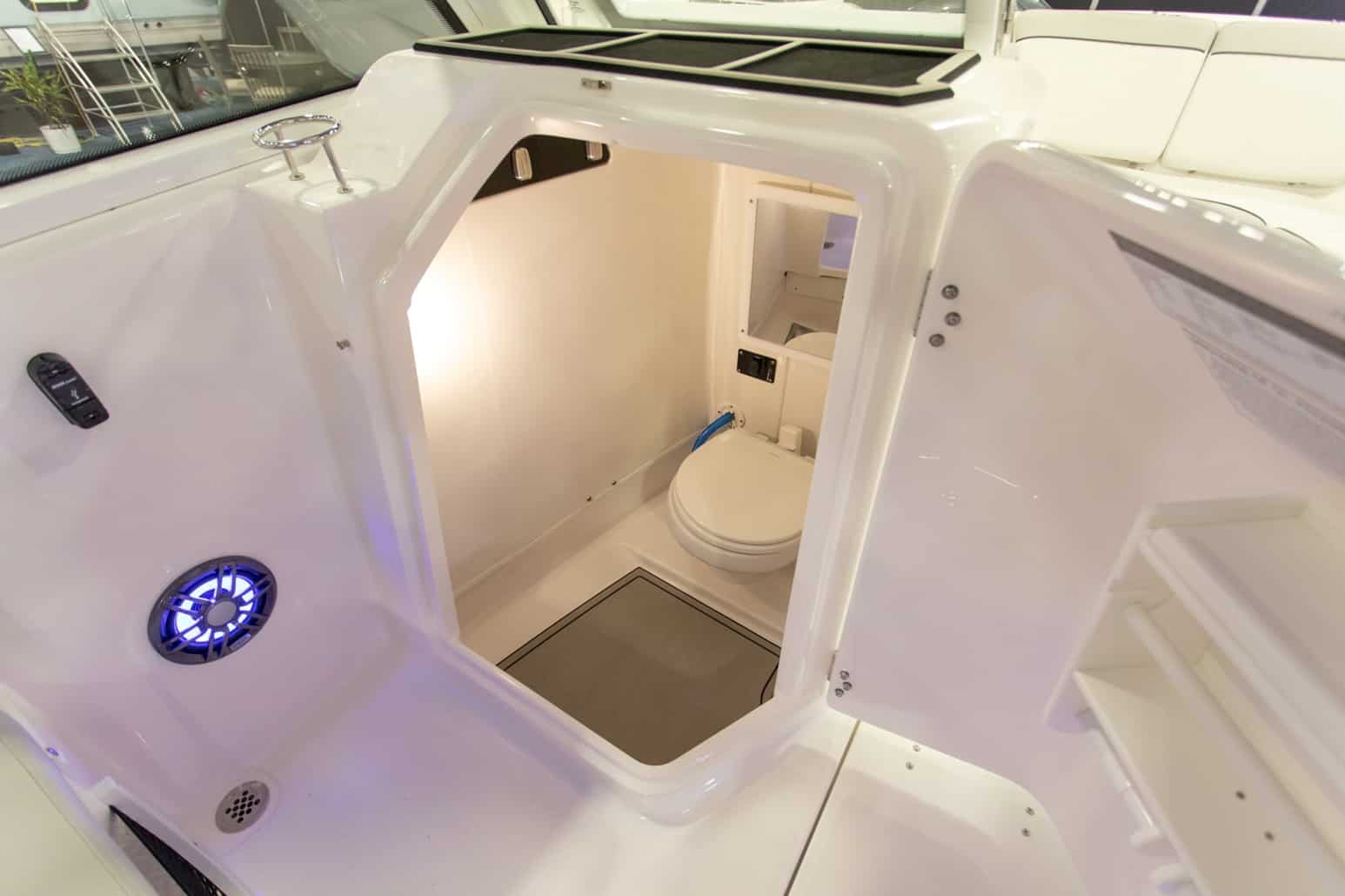

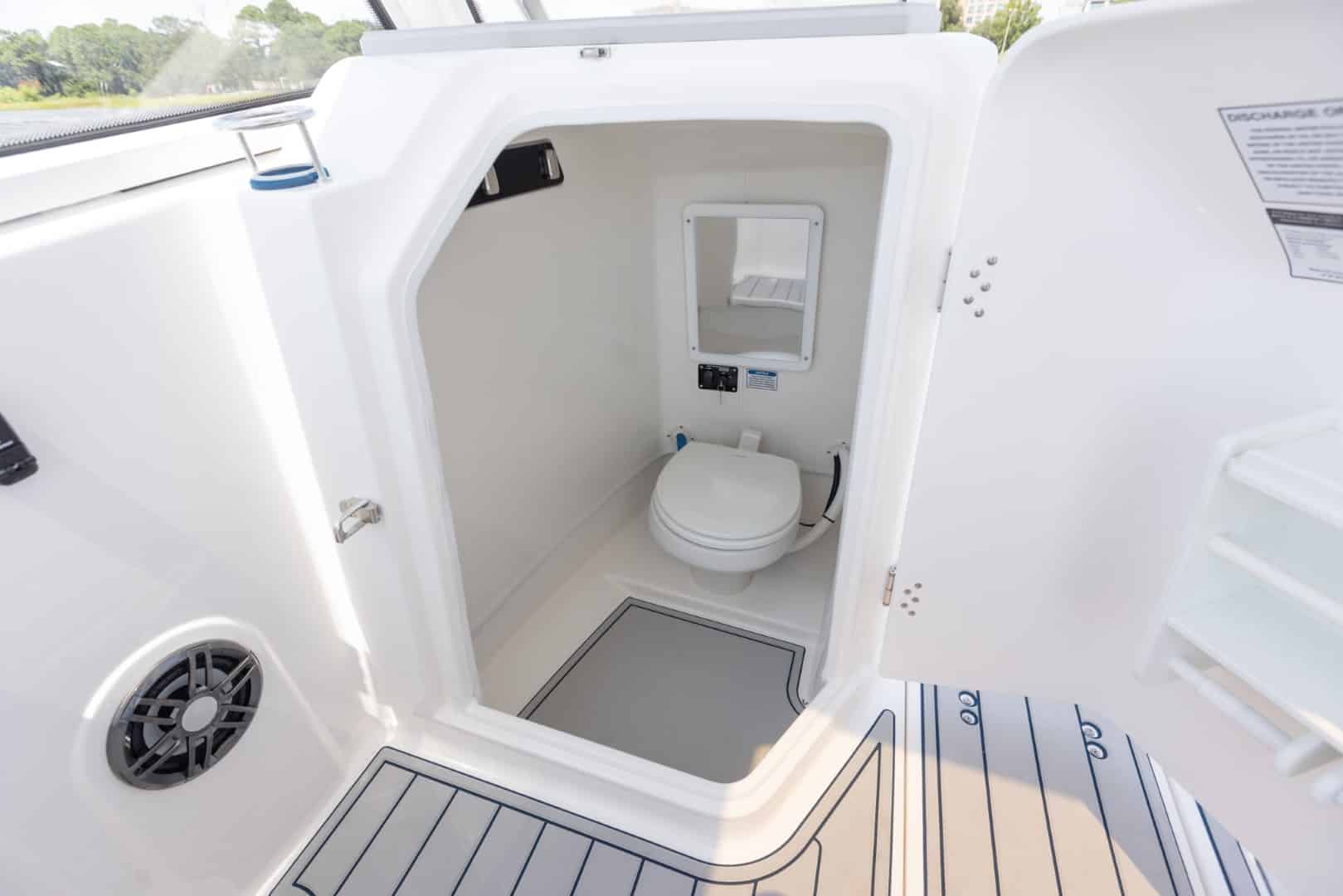

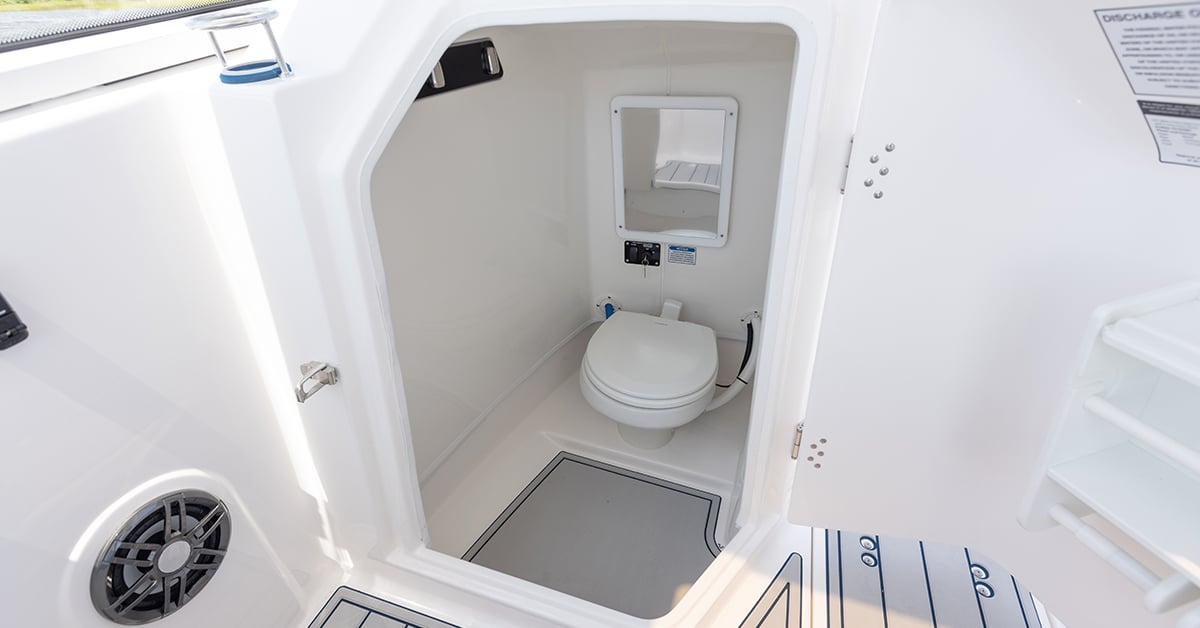

- Electric ceramic toilet with holding tank
- Freshwater sink with hard surface countertop accents and mirror
- Marine grade soft mat decking and console accents

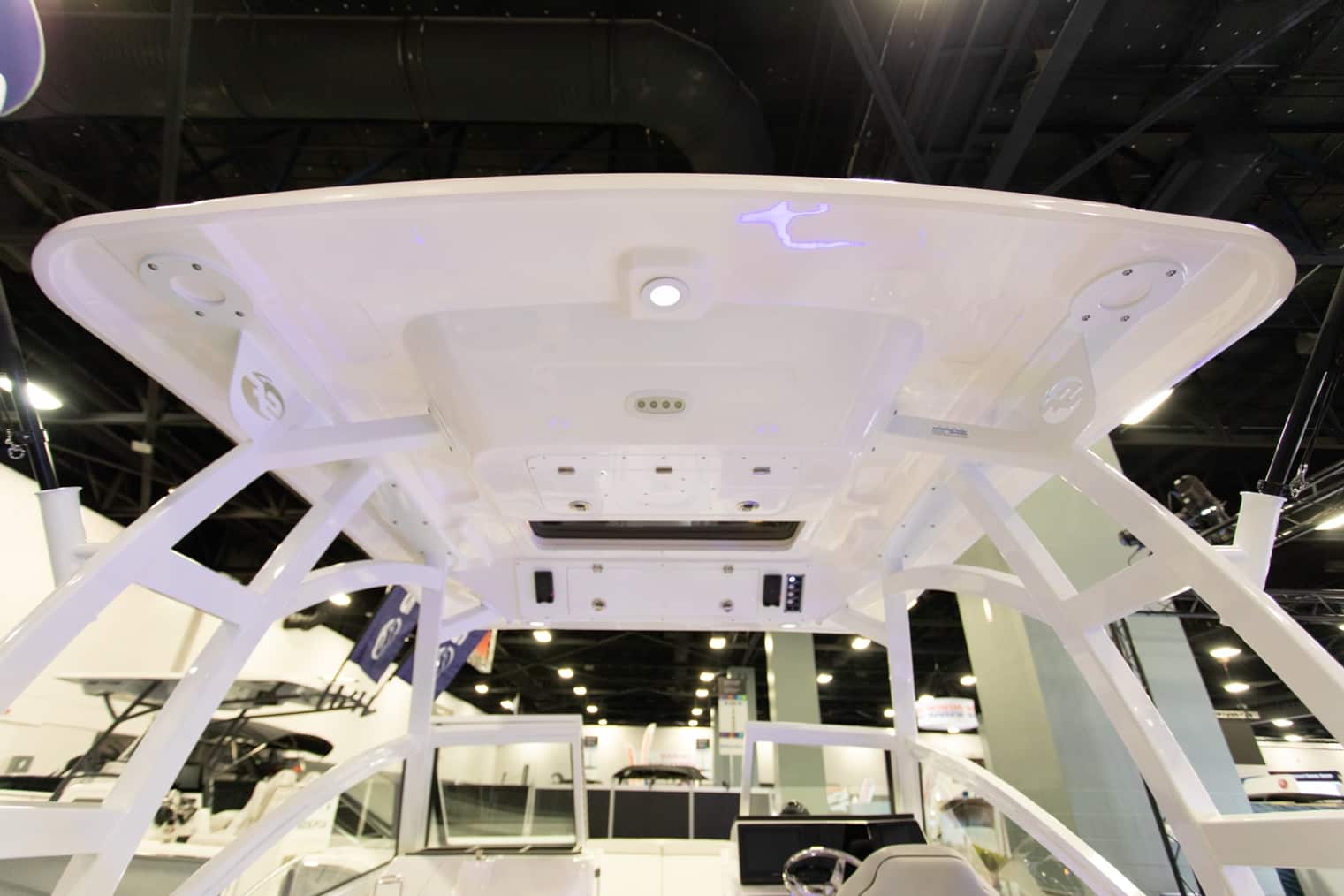

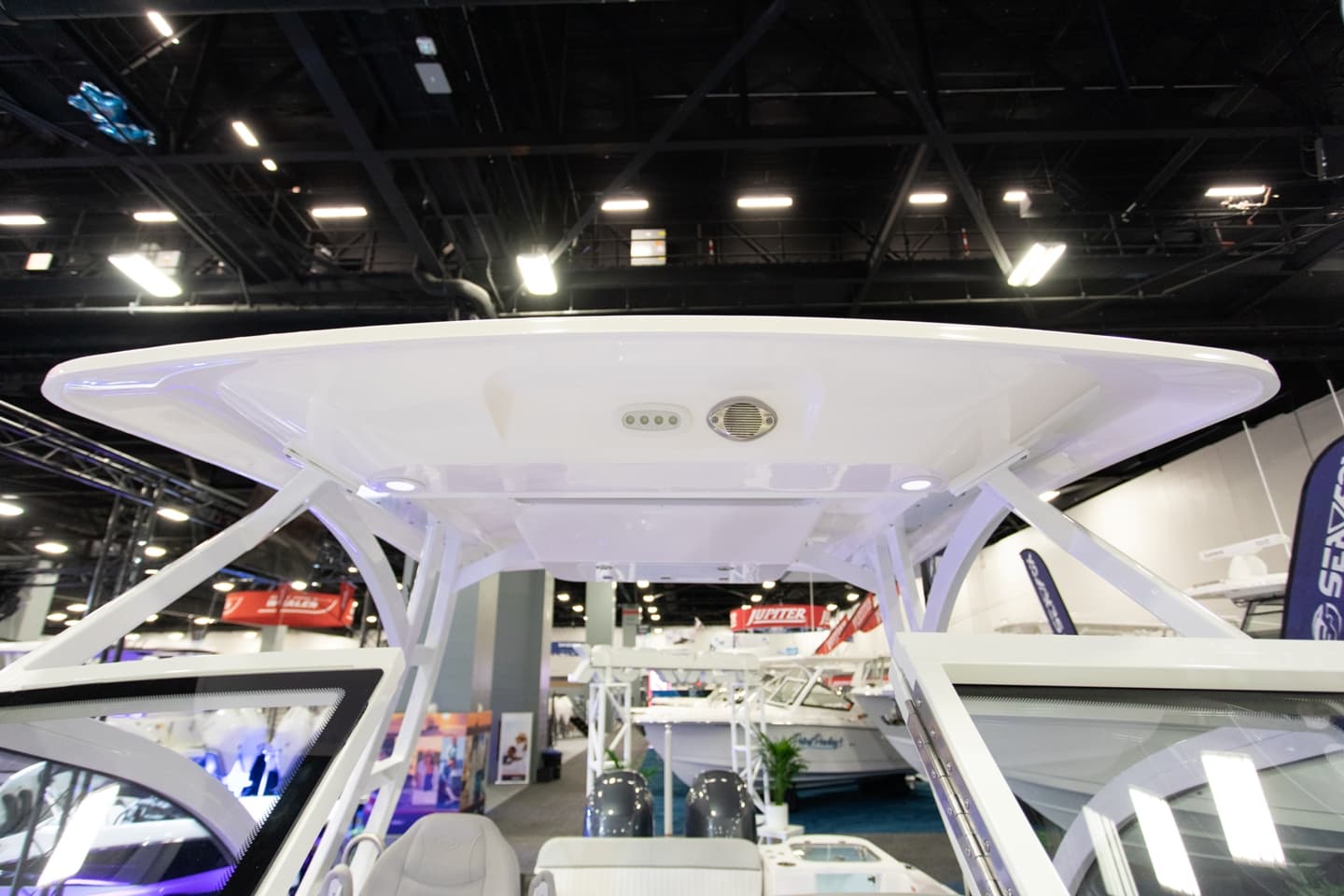

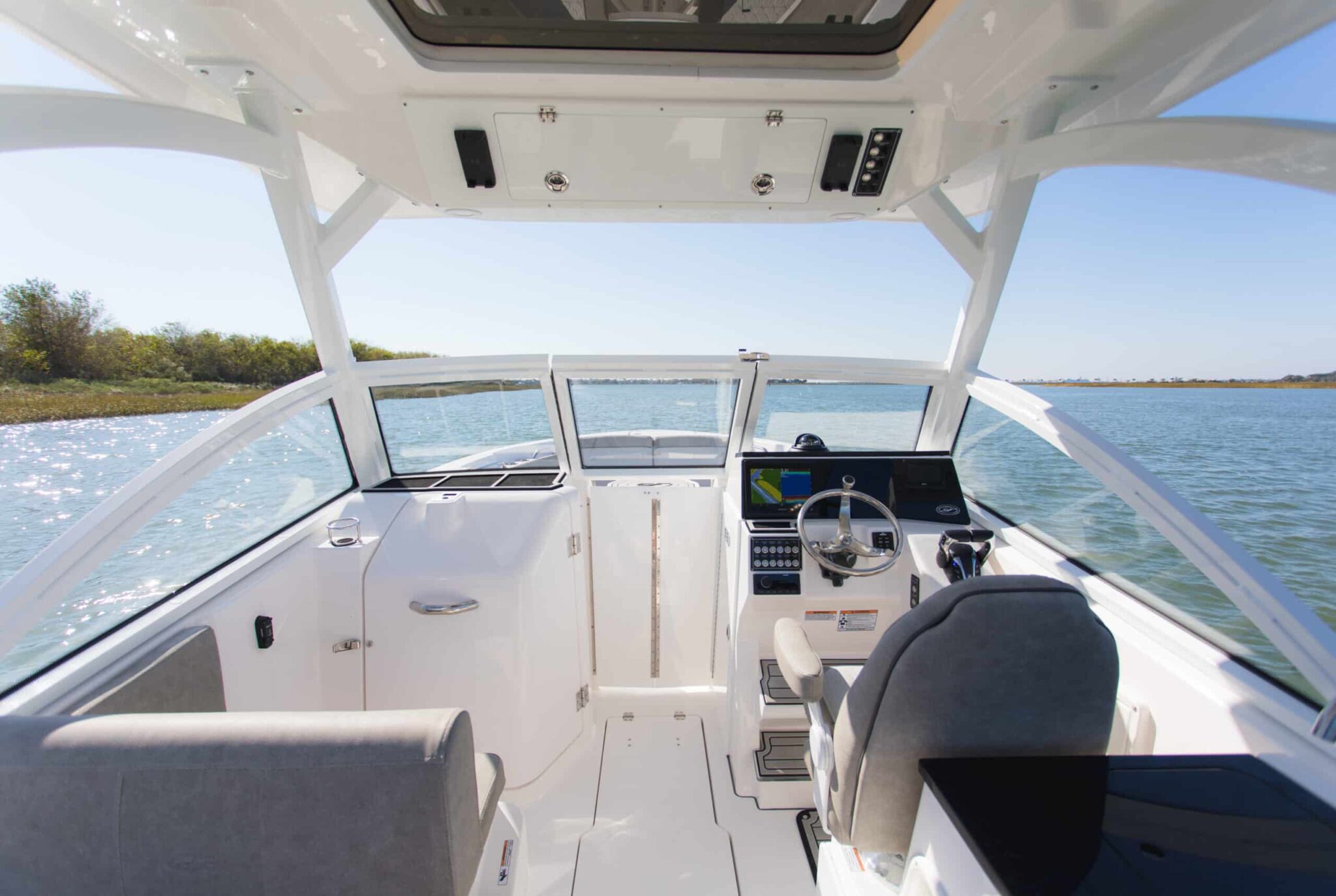

Ultima hard top:

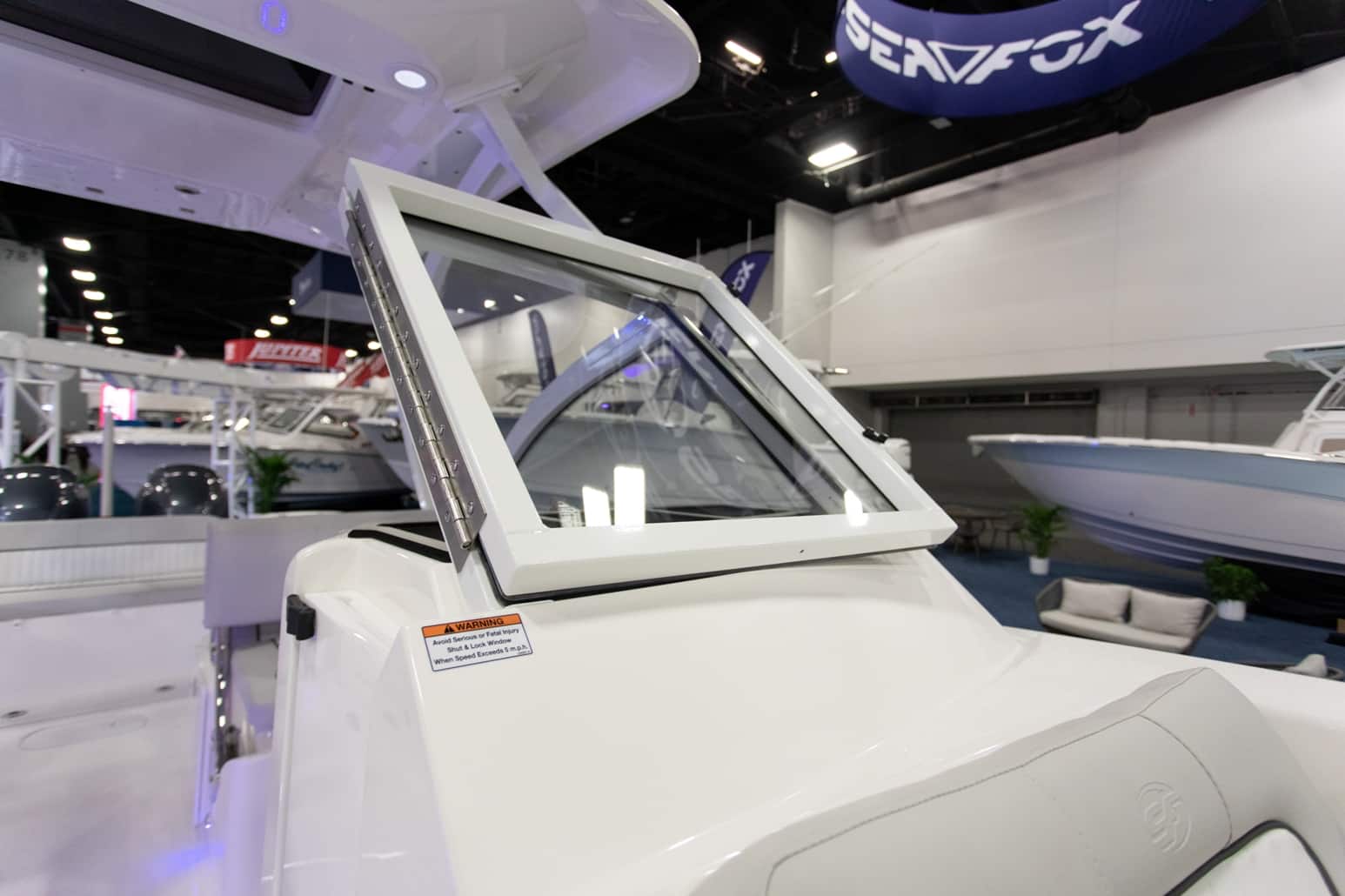

- D-tubing with full glass windshield
- White powder coat top and windshield frame (black and grey powder coating also available)
- Four LED spreader lights

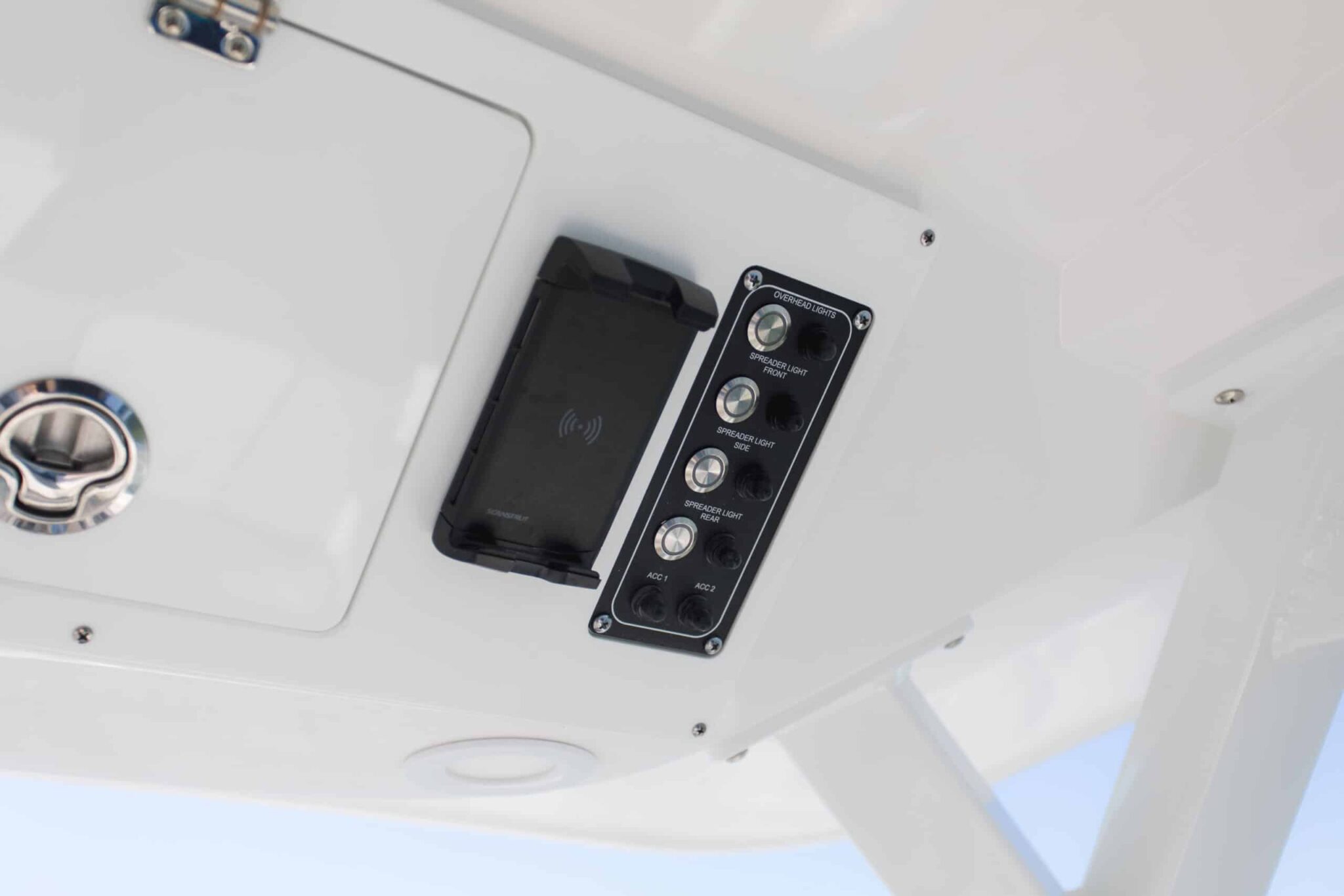

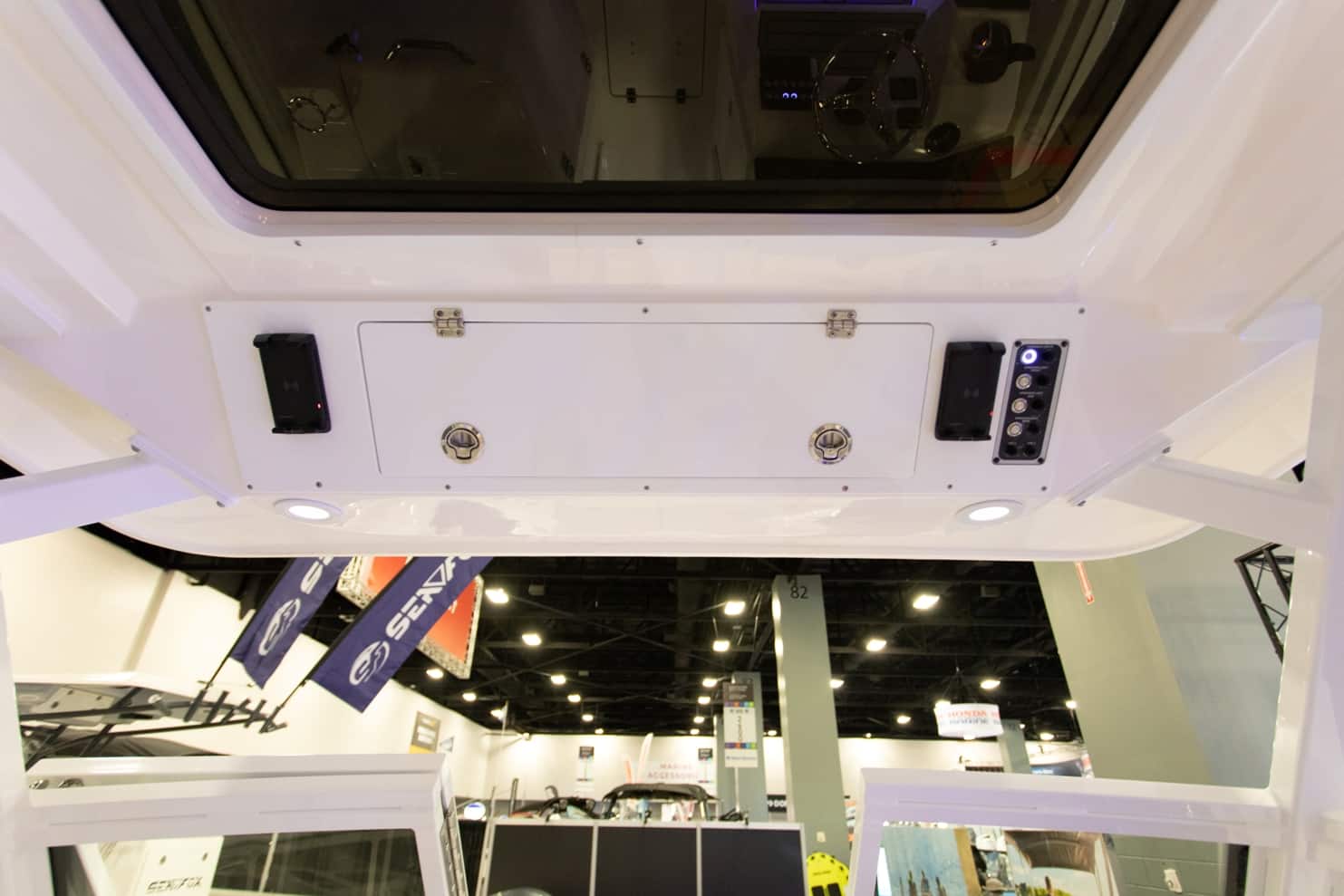

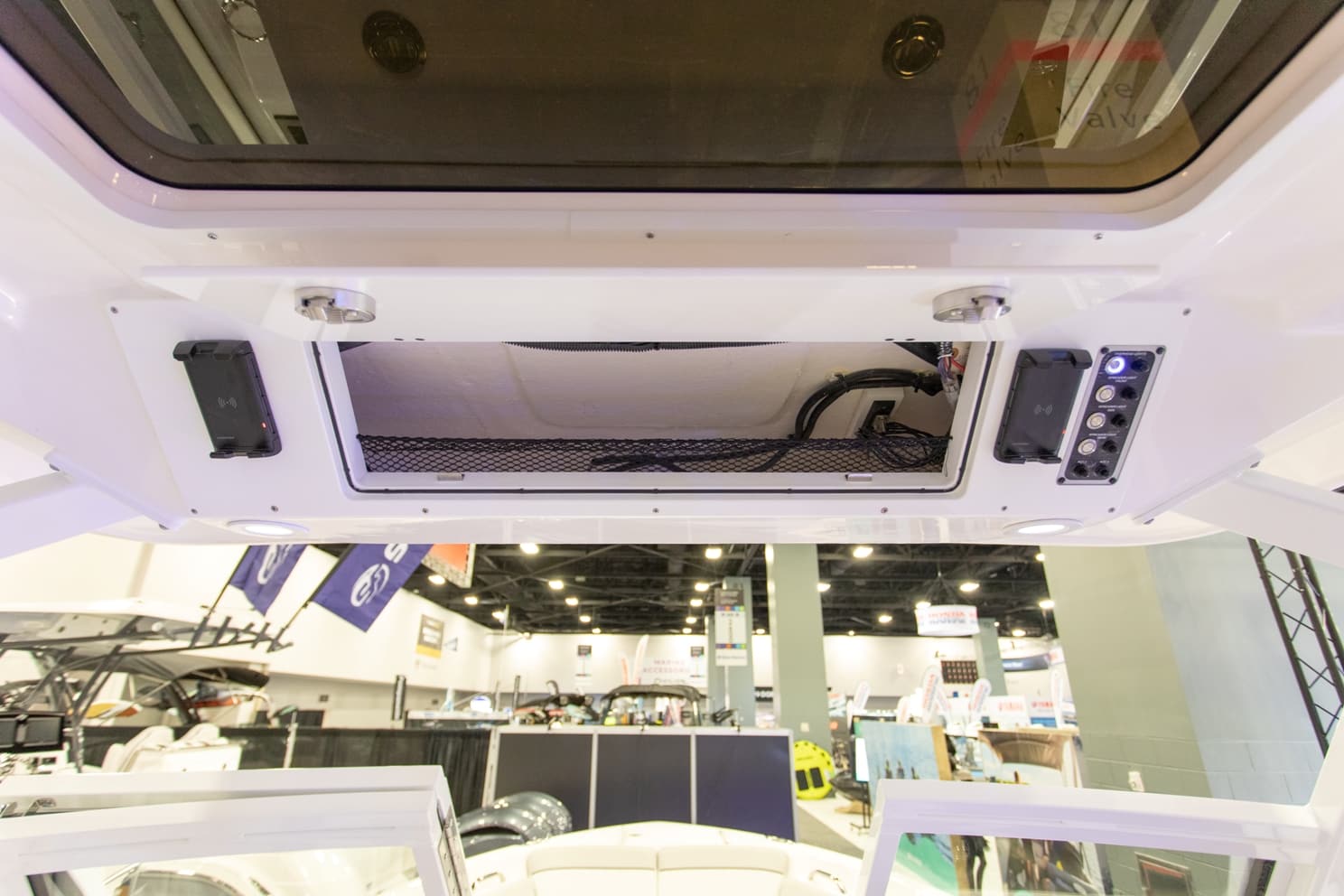

- Illuminated switch panel
- Molded-in storage box

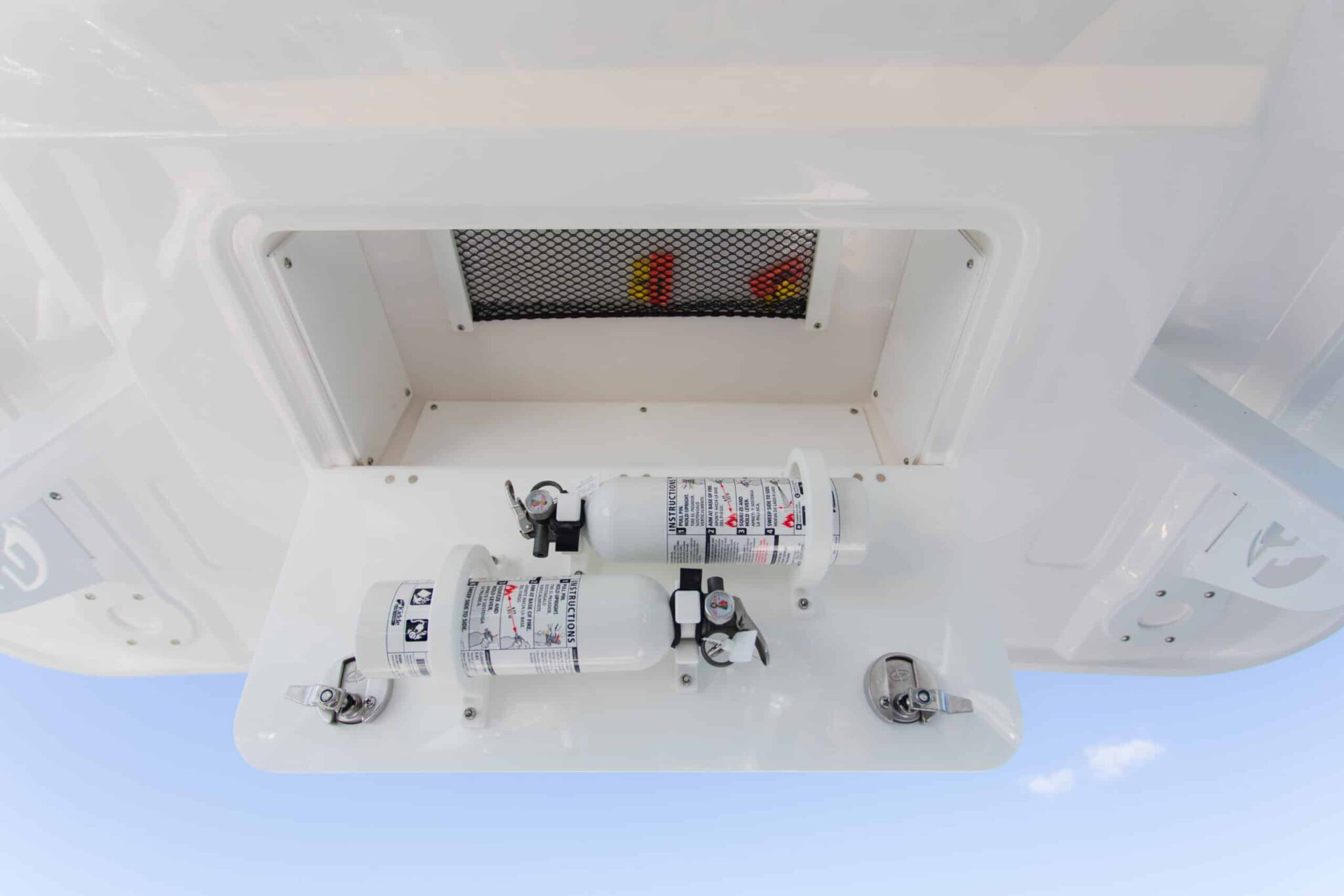

- Safety storage bow aft
- Horn
- Overhead LED lights (red, white, & blue power cycle)
- All around folding navigation-anchor light
- Four rod holders

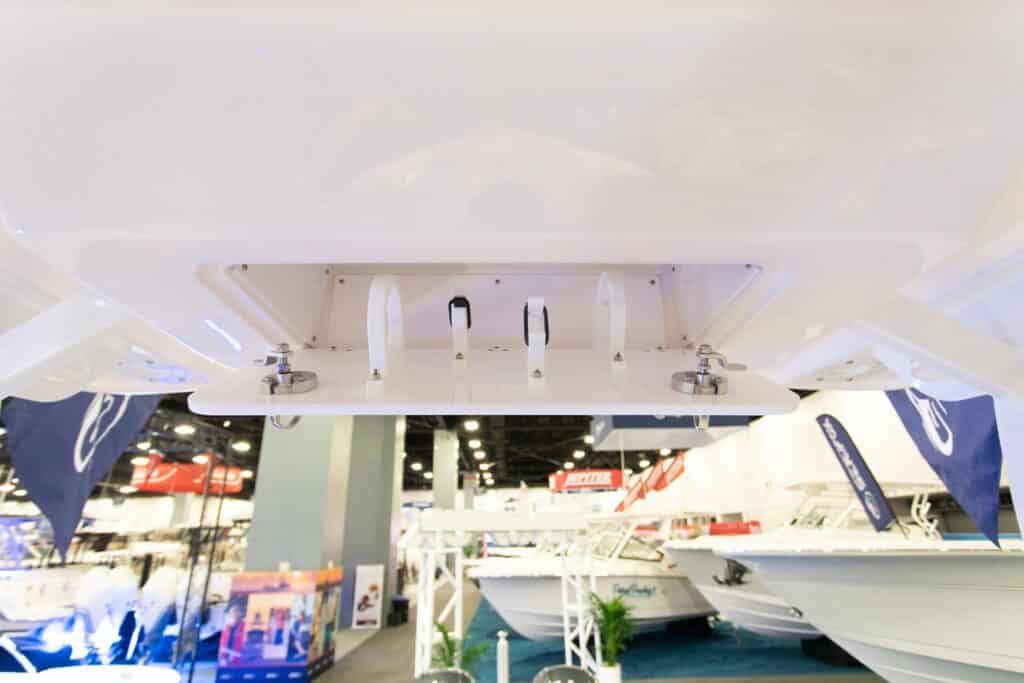

- Reinforced mounting pad for radar and antenna installation

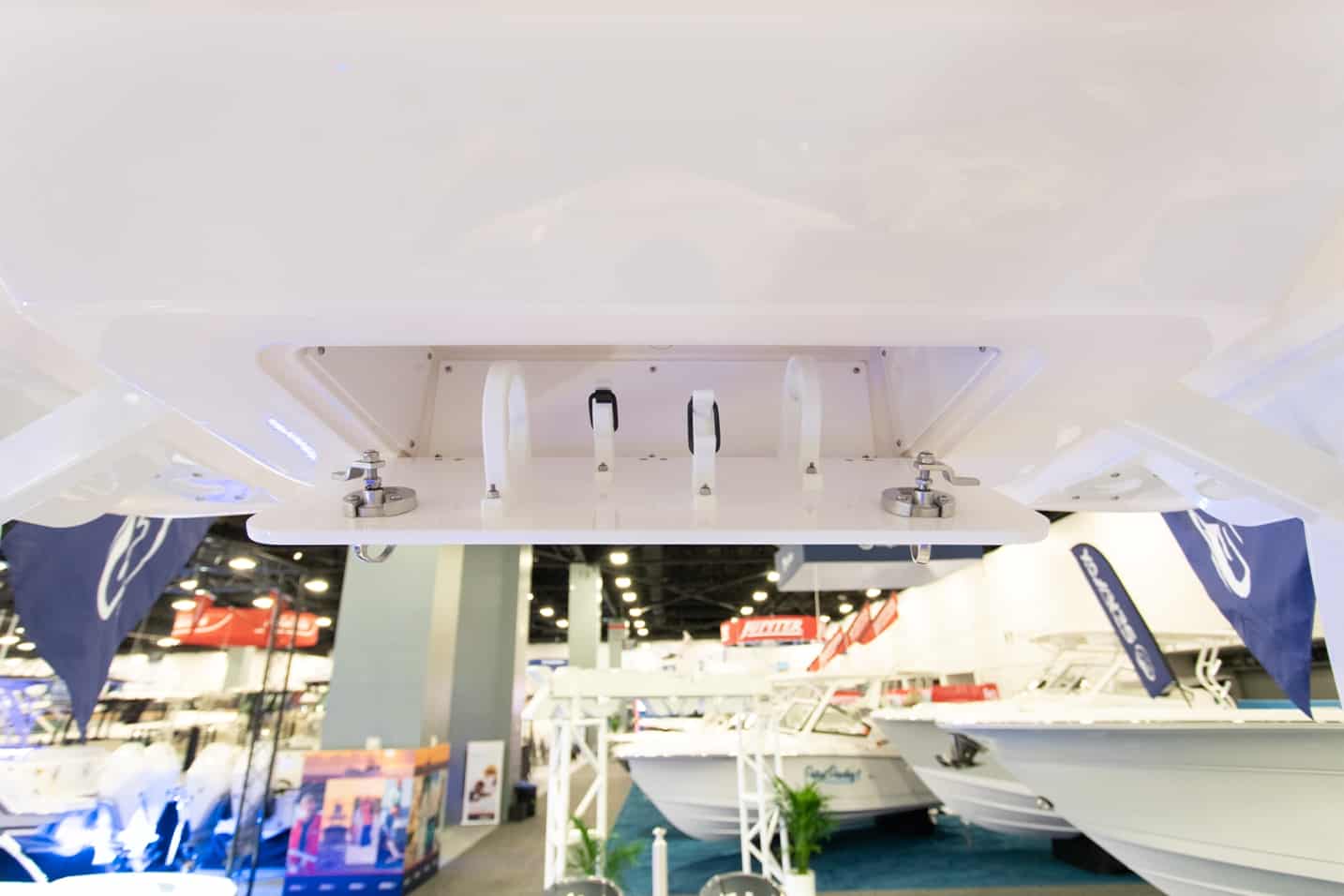

- Outrigger mounting brackets
- Fixed skylight

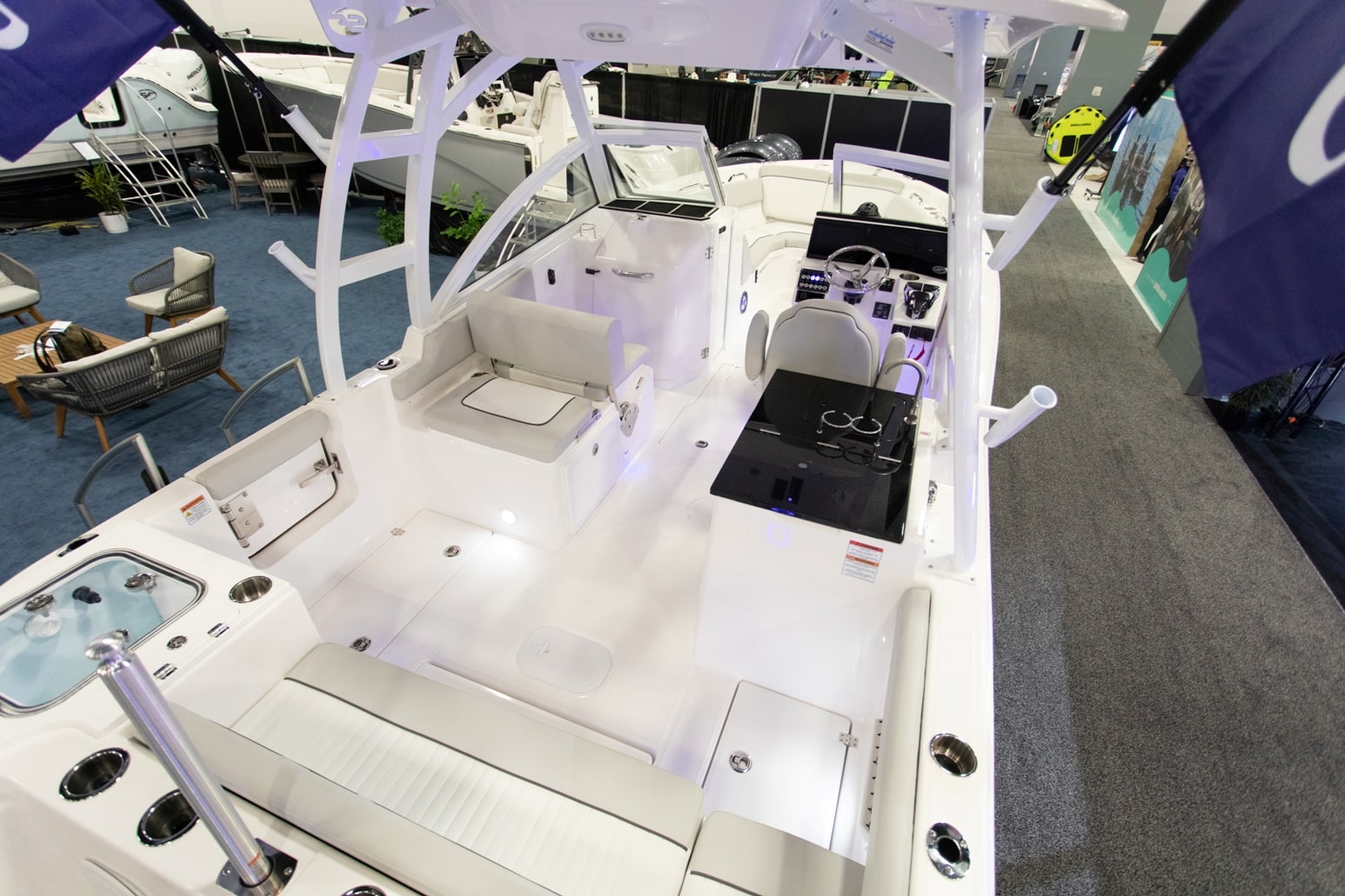

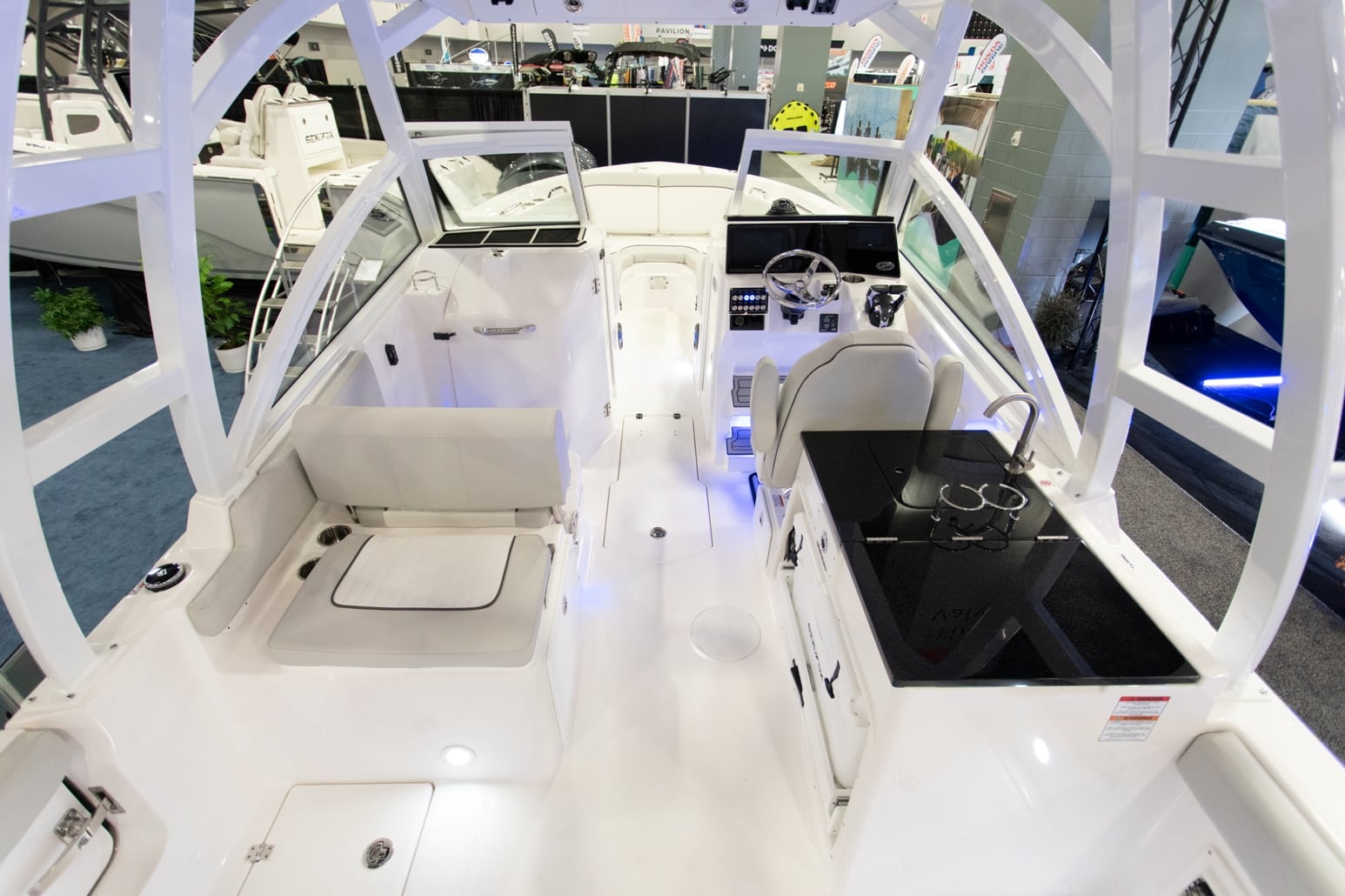

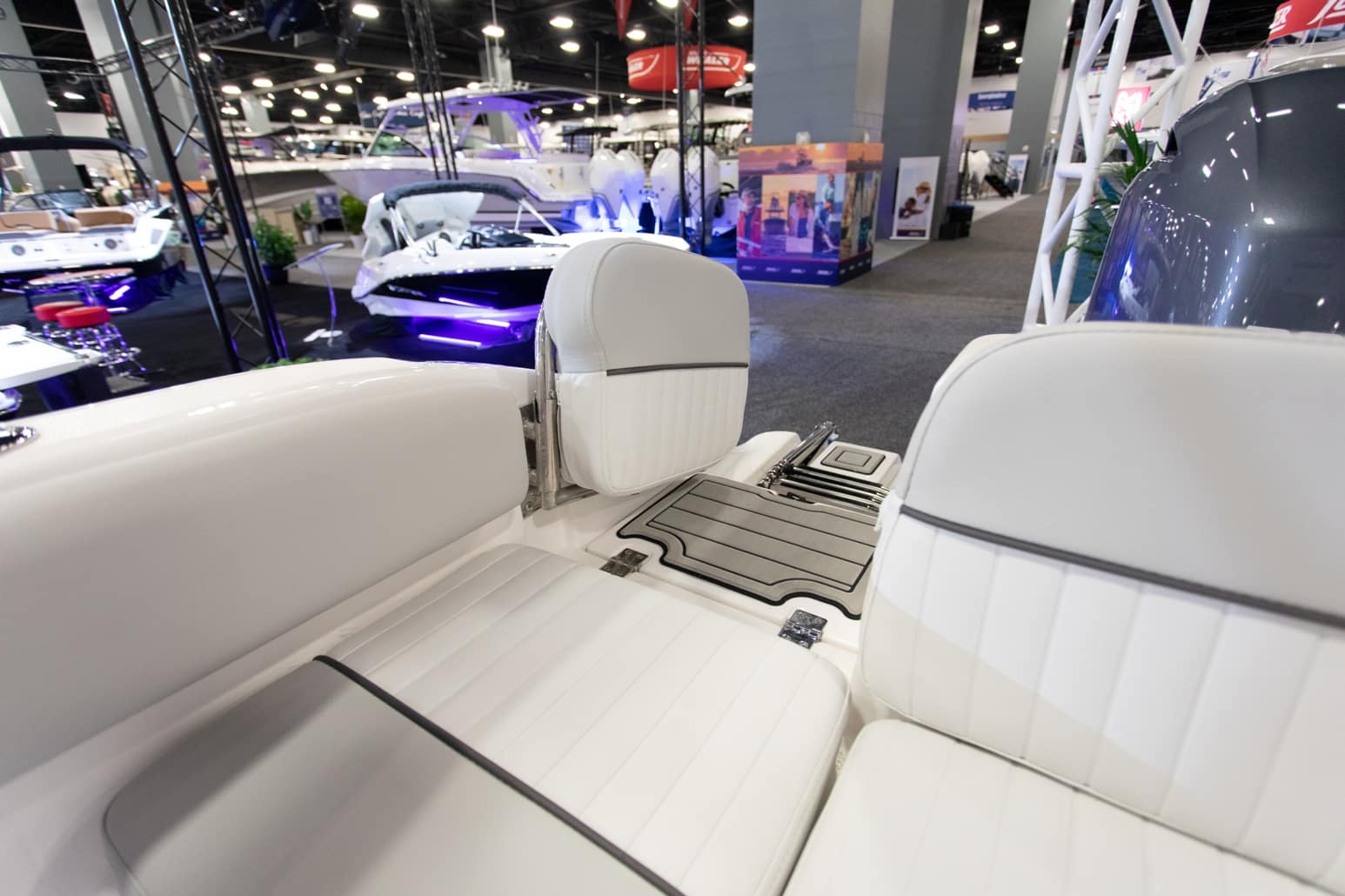

Cockpit:

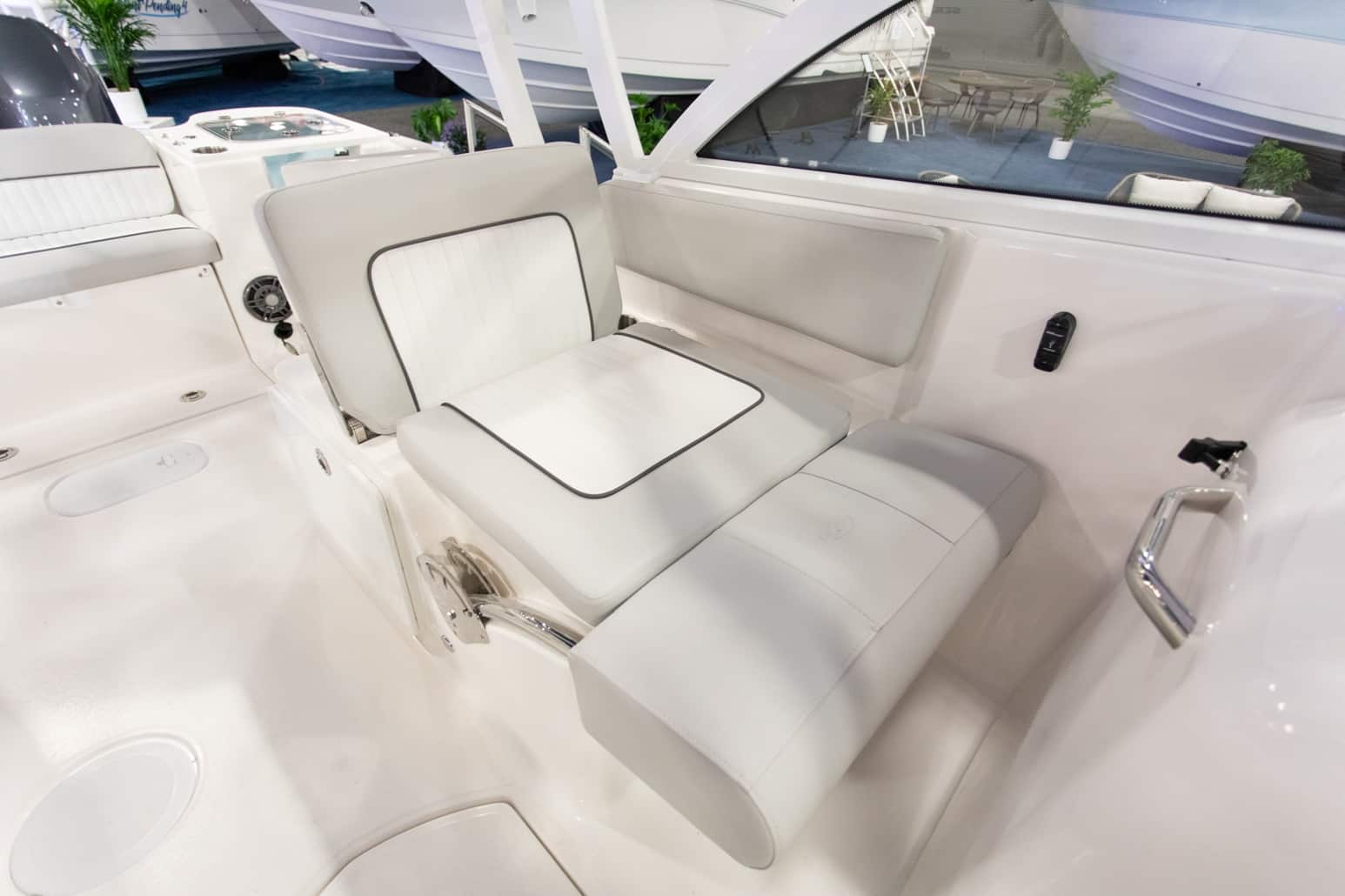

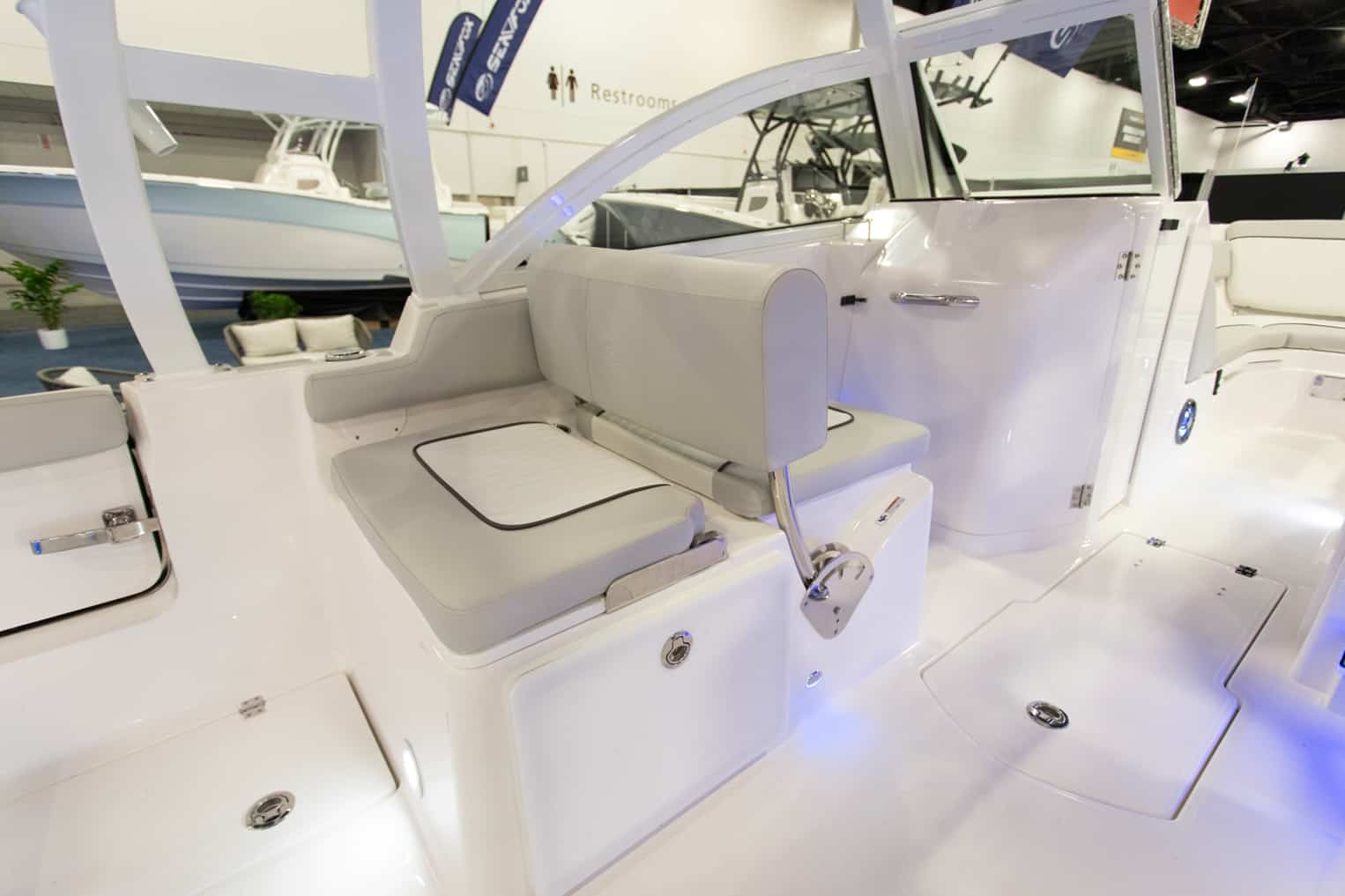

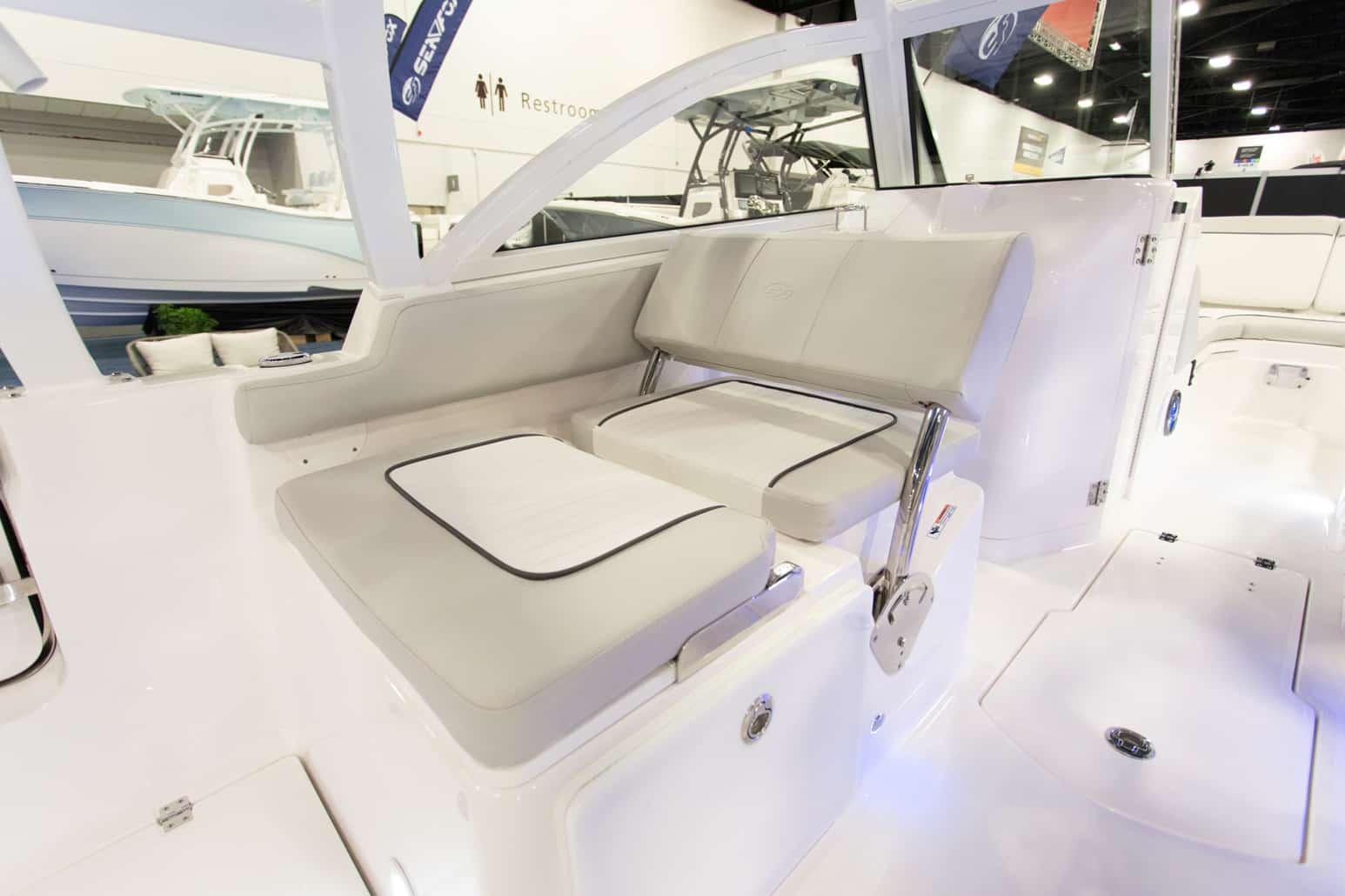

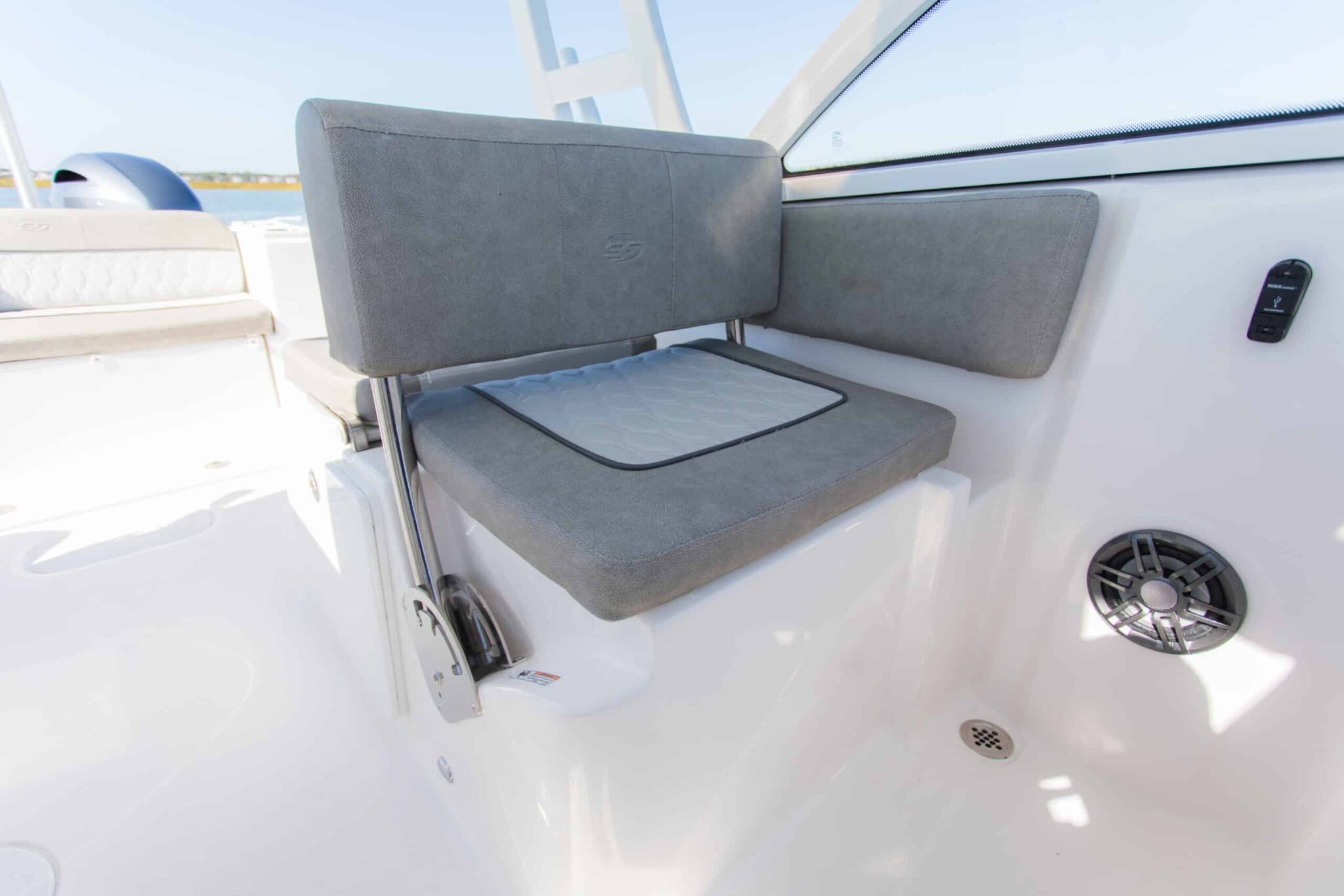

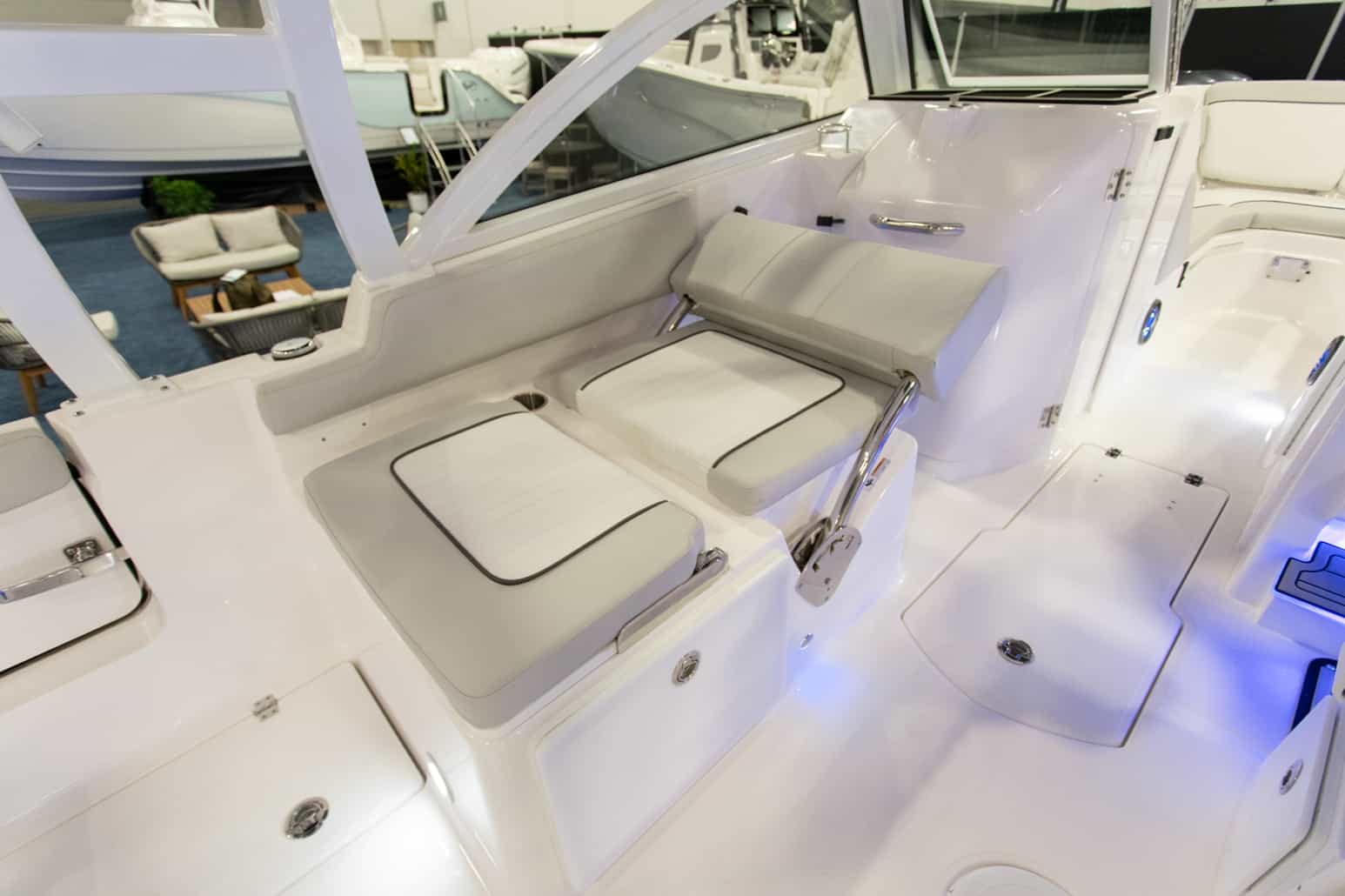

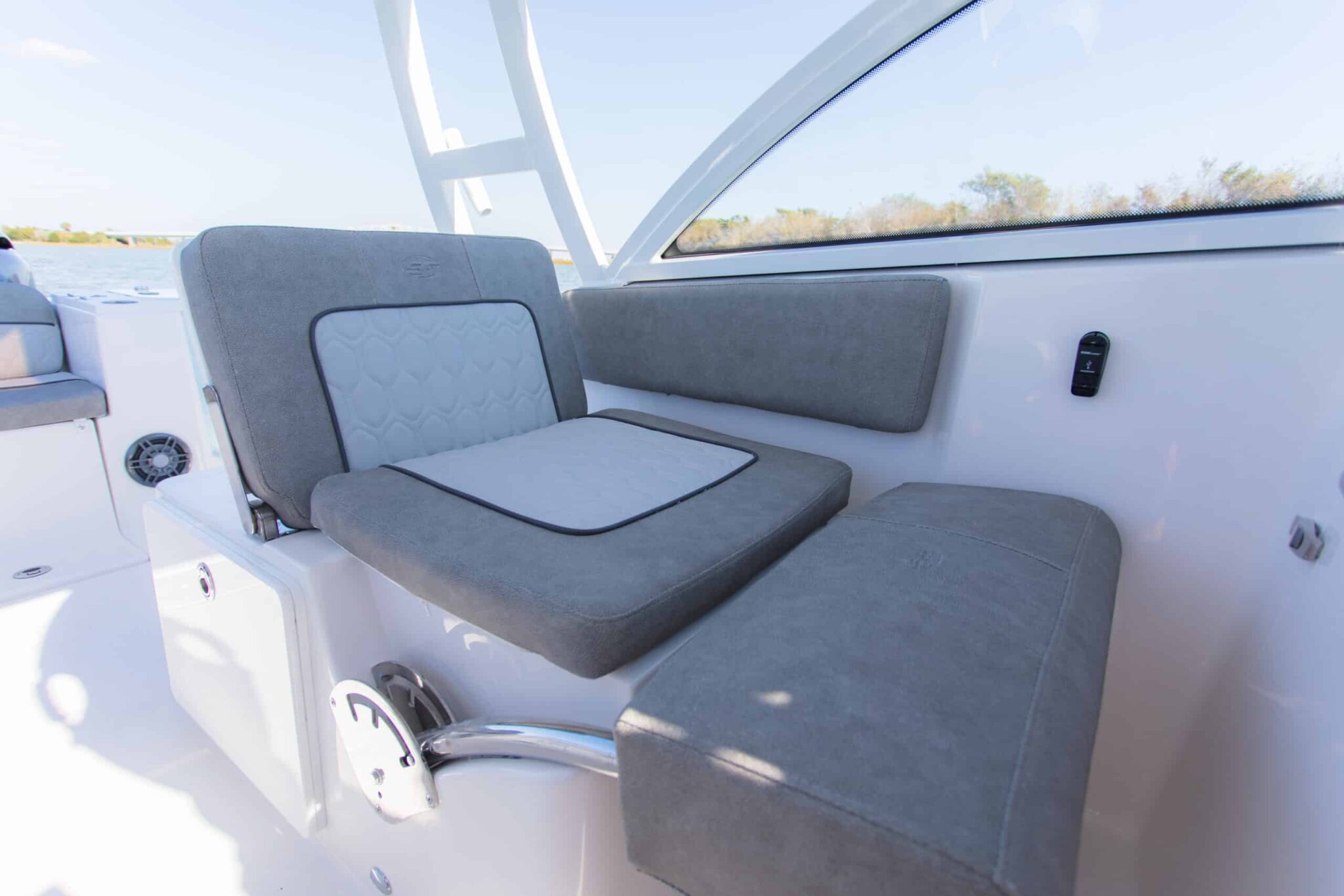

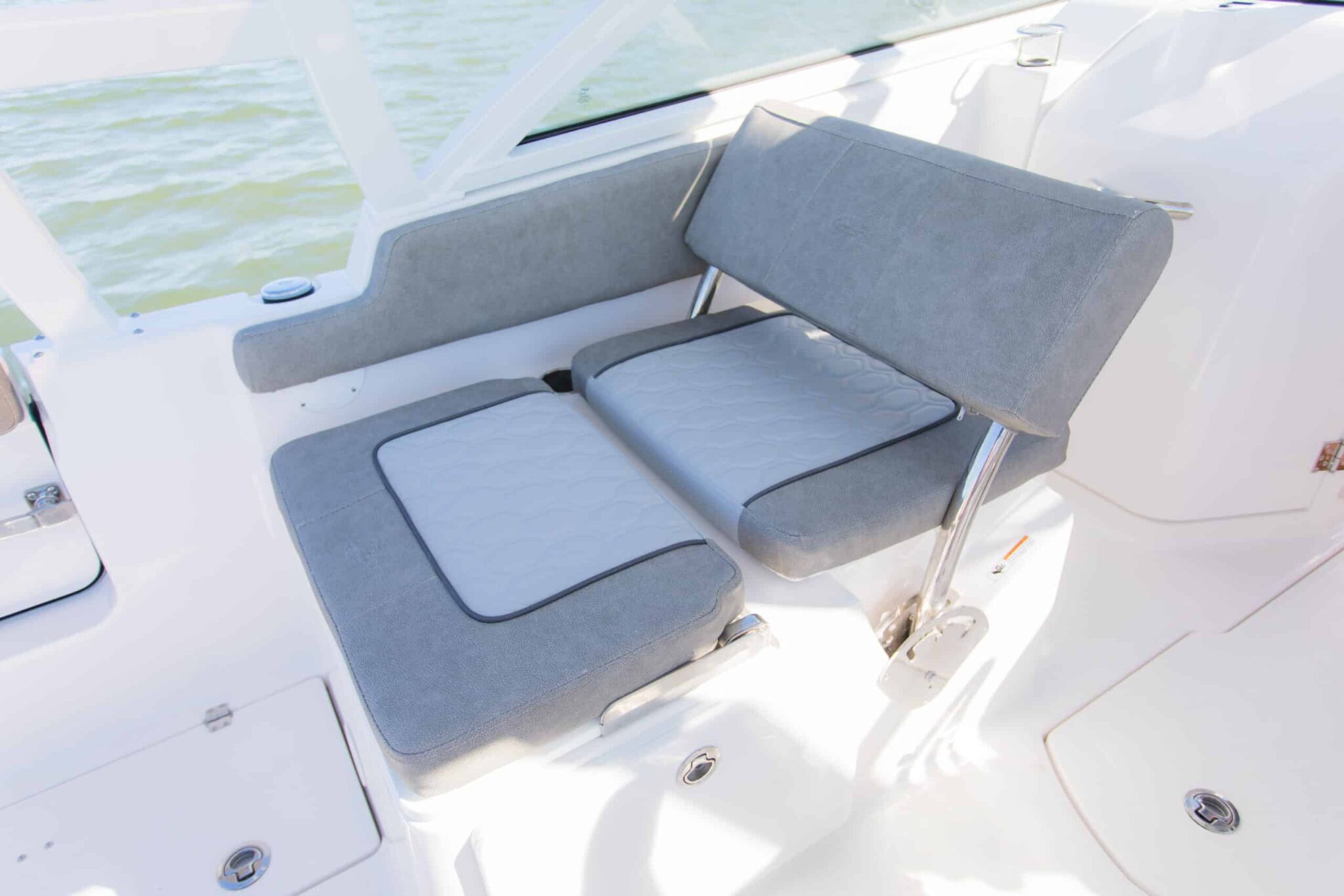

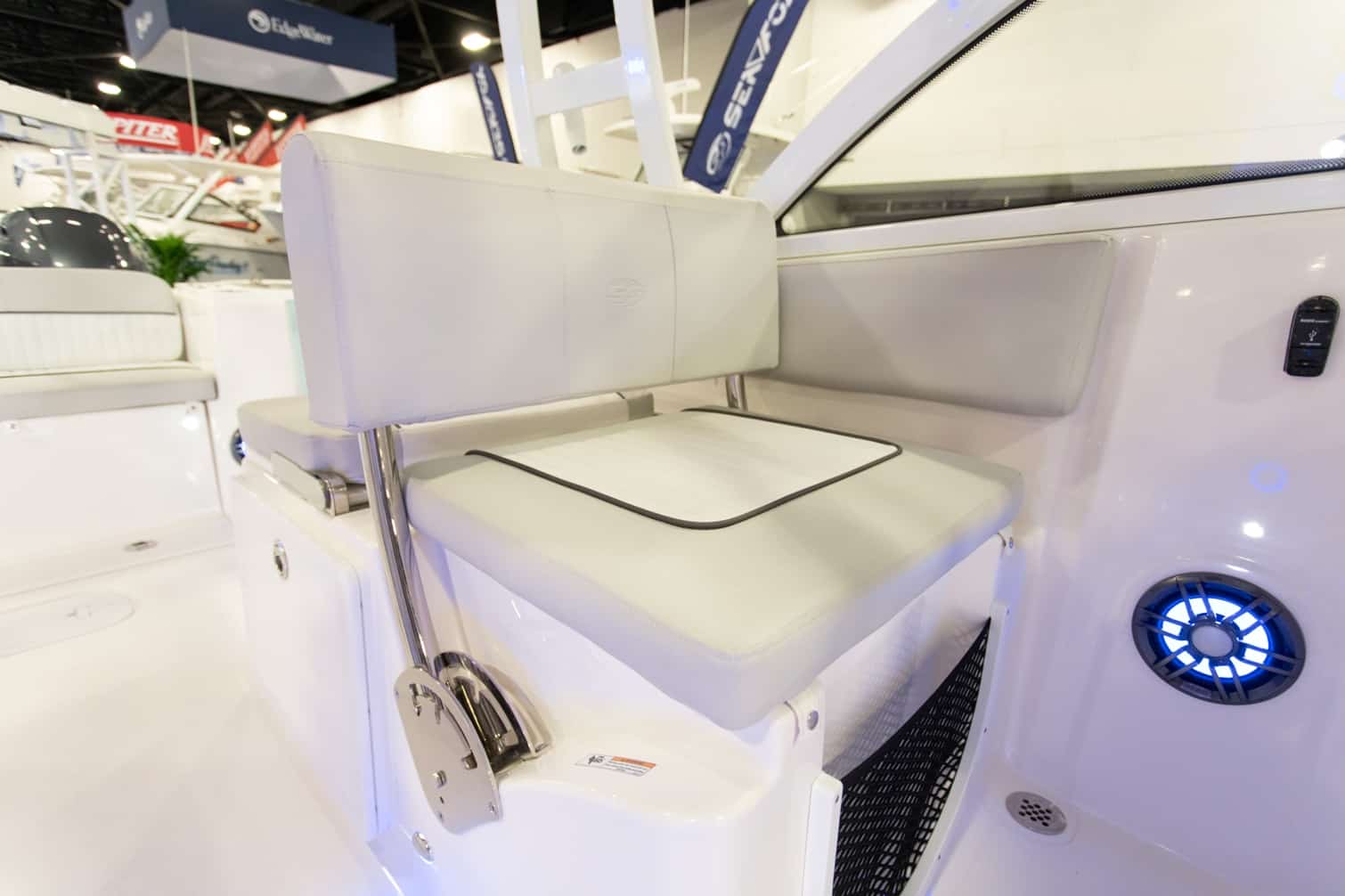

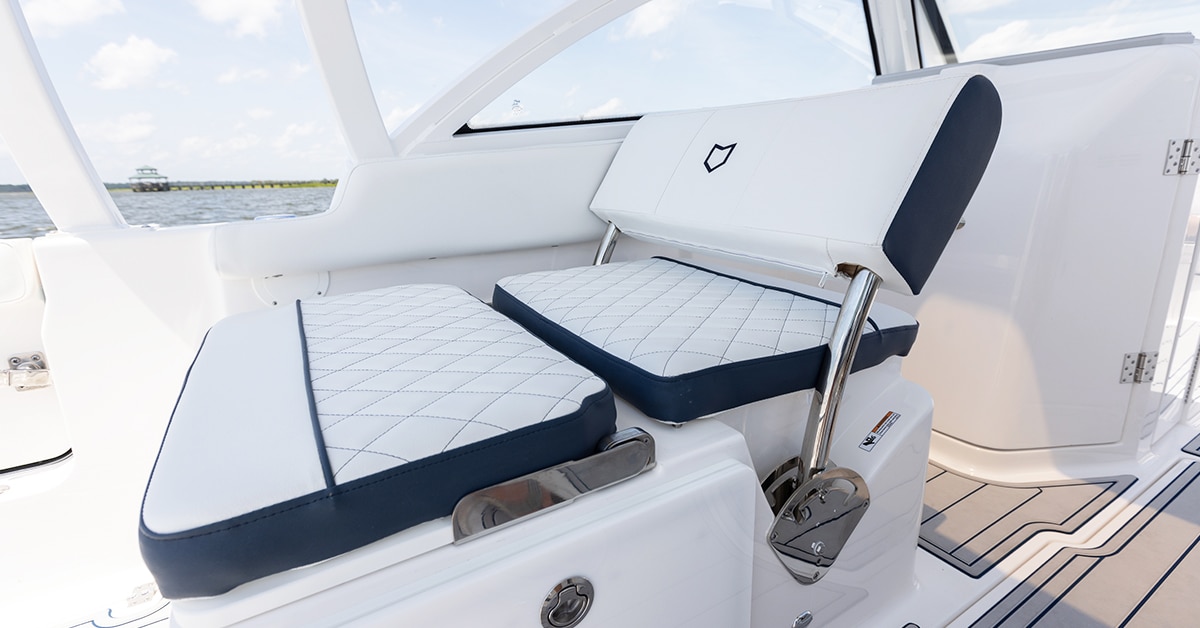

- Passenger lounge seating with multiple position backrest
- Full cockpit coaming pads

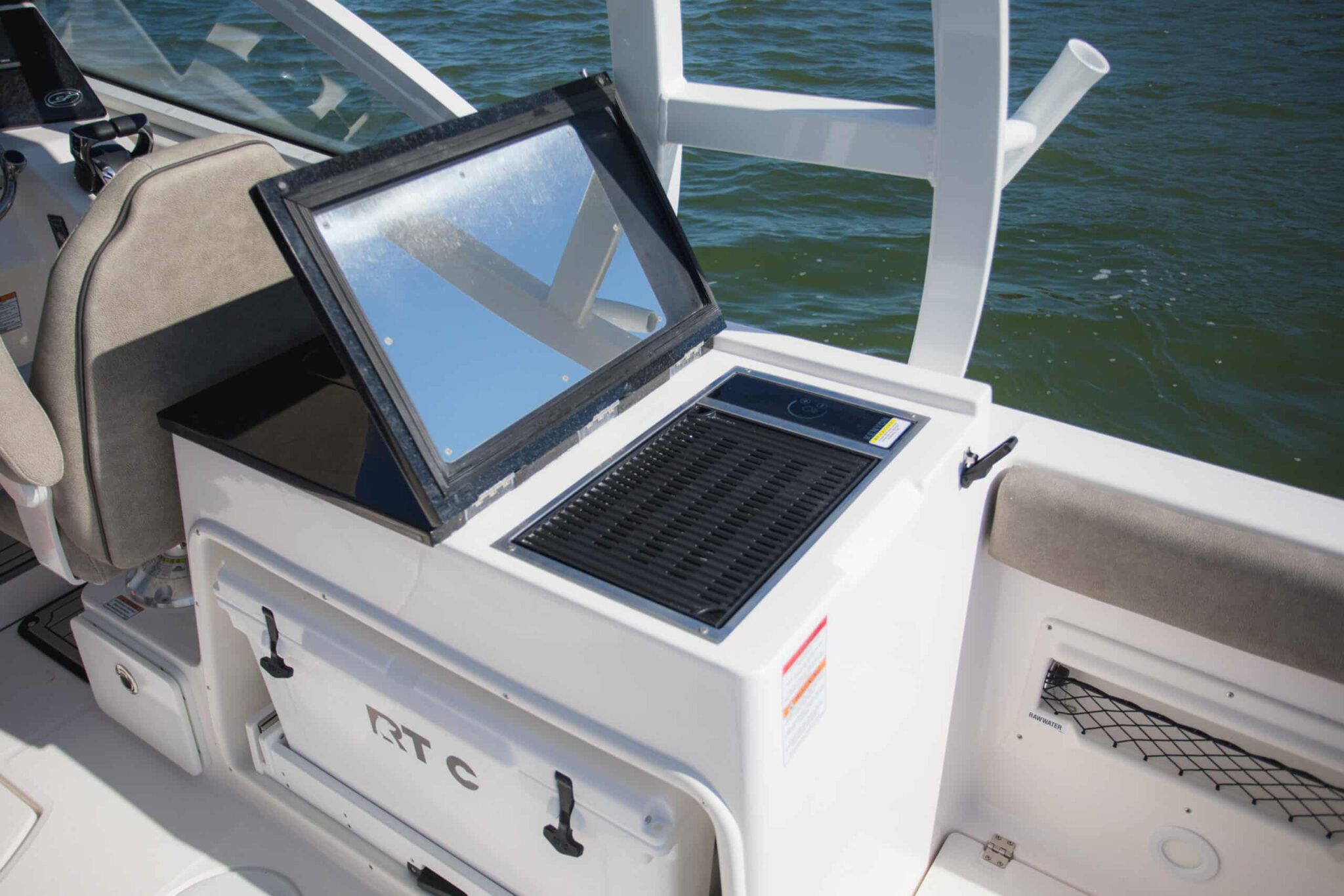

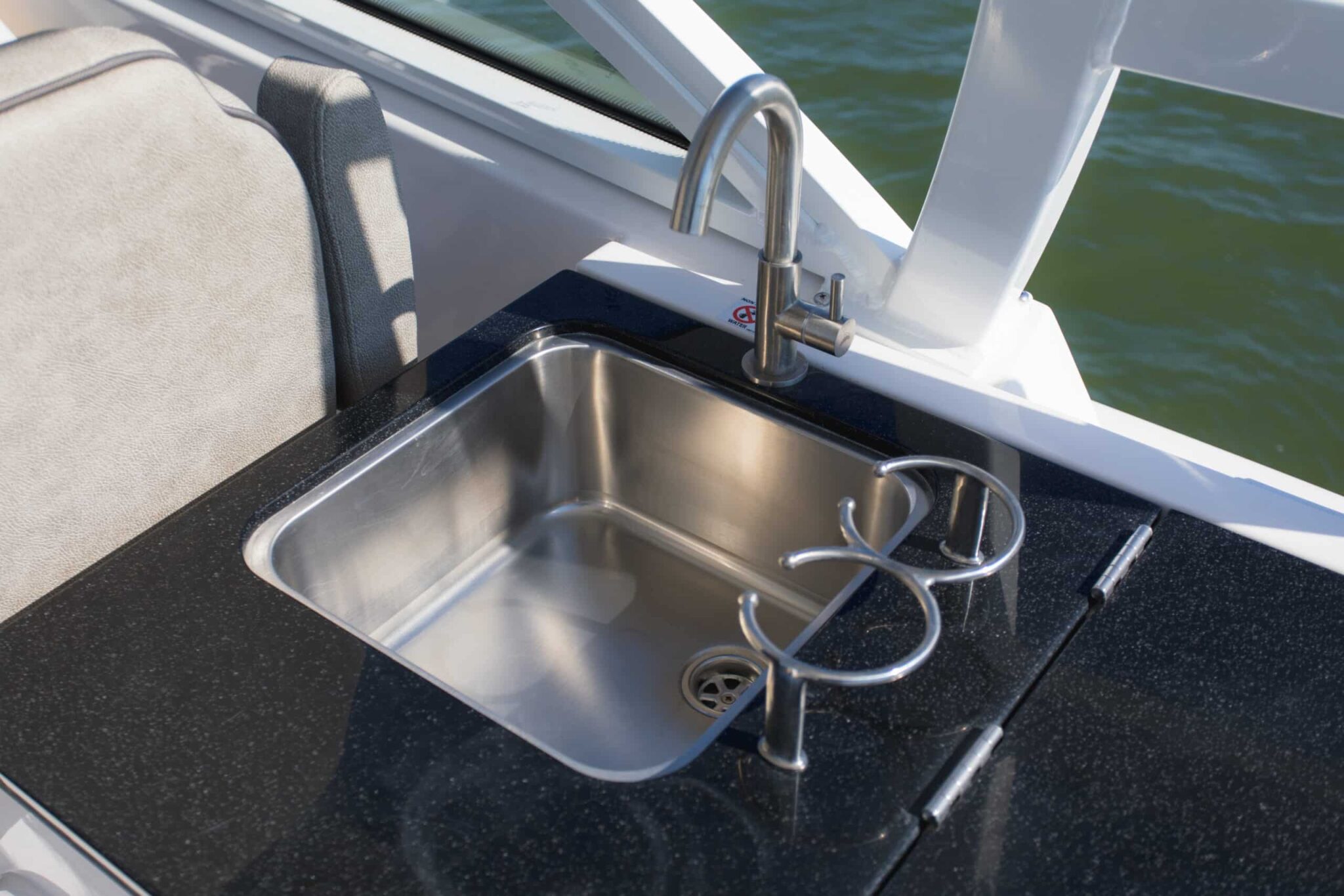

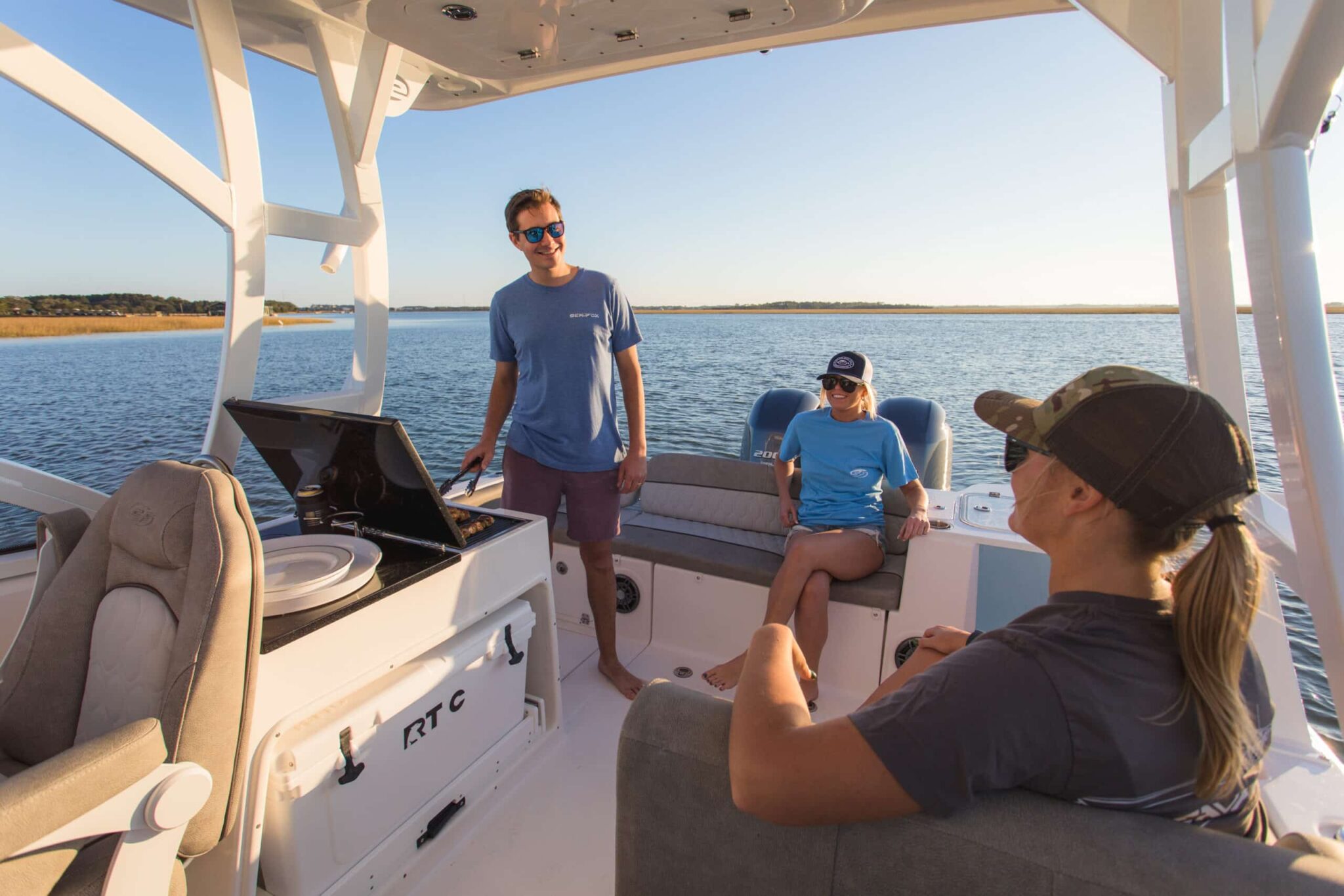

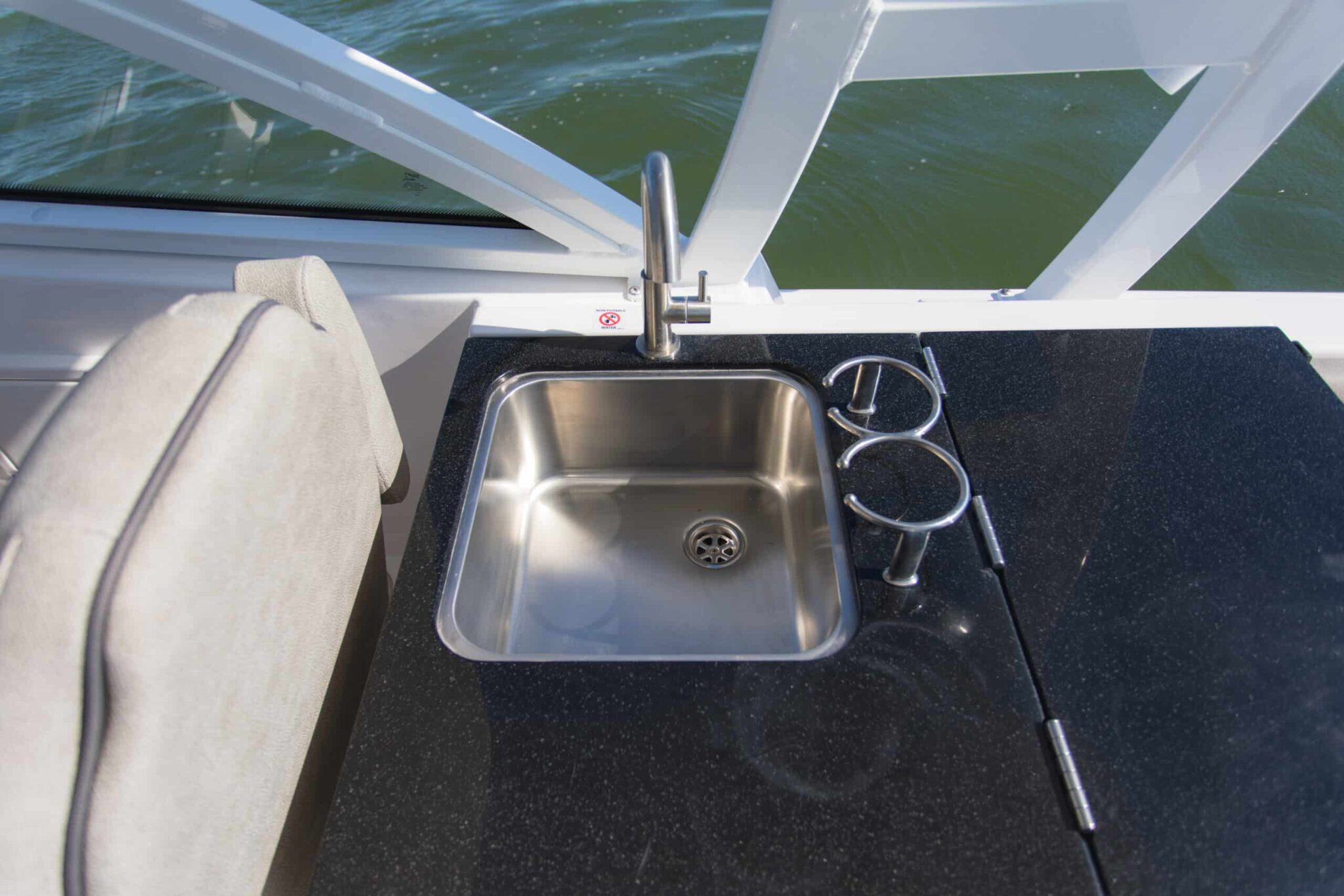

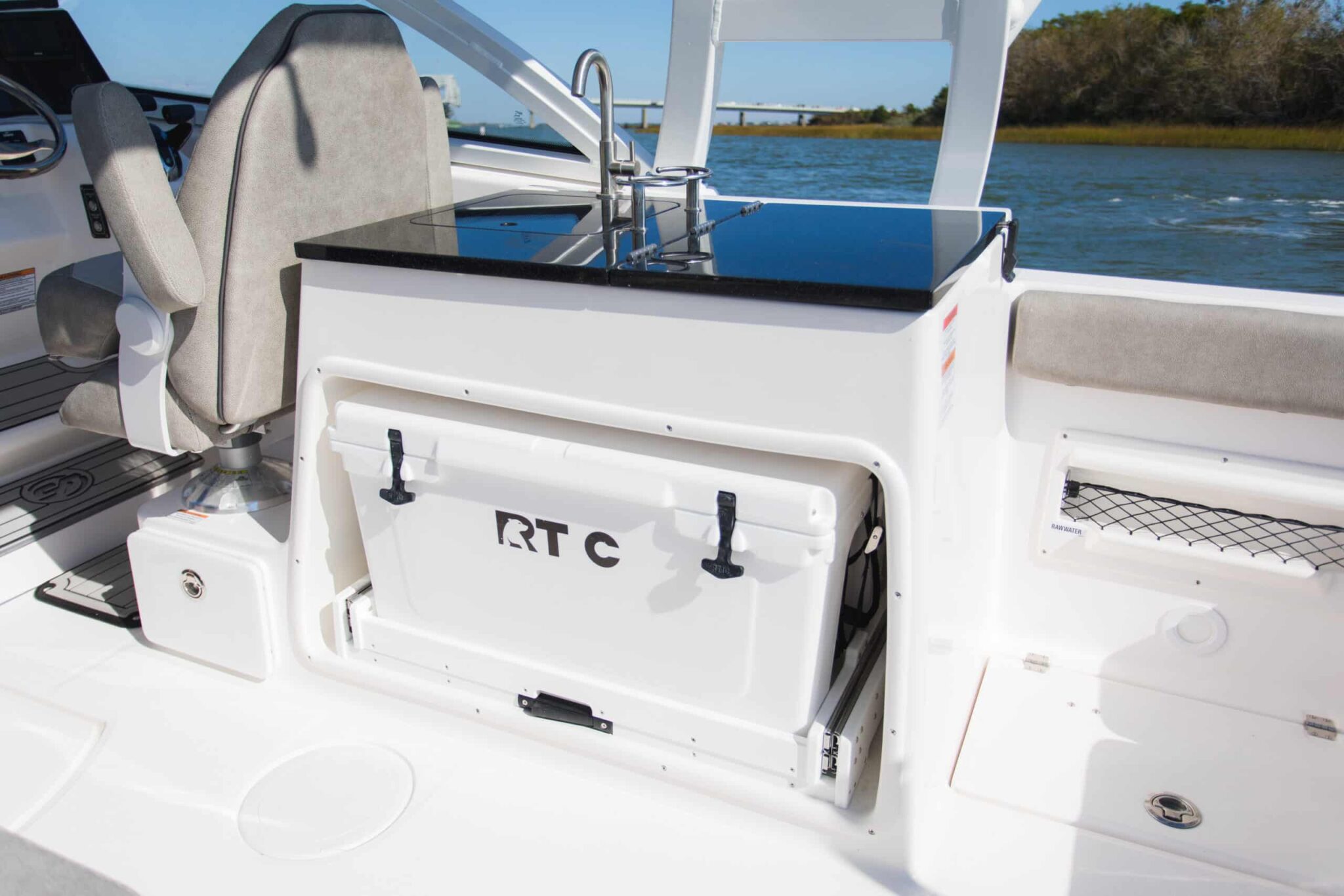

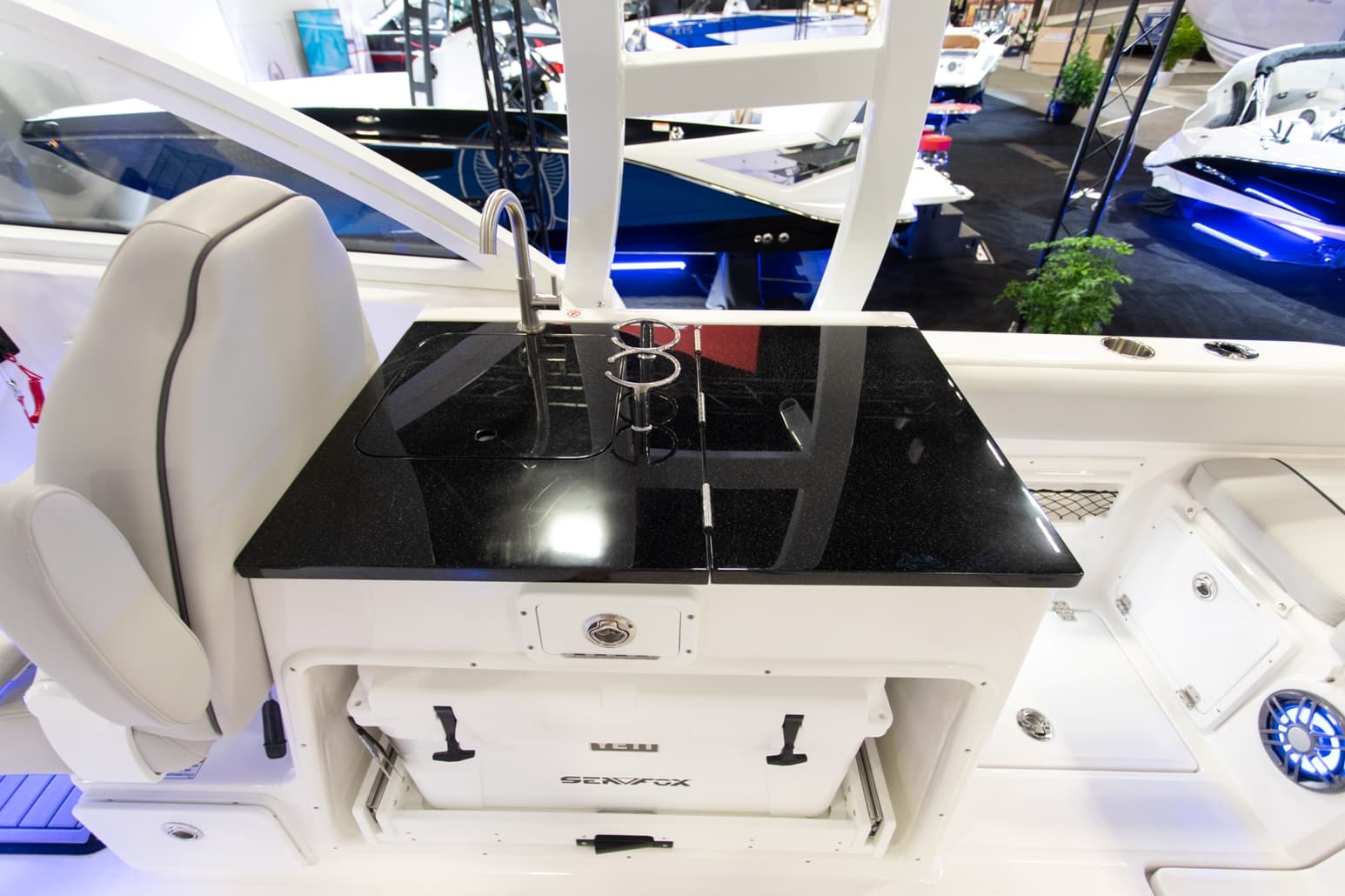

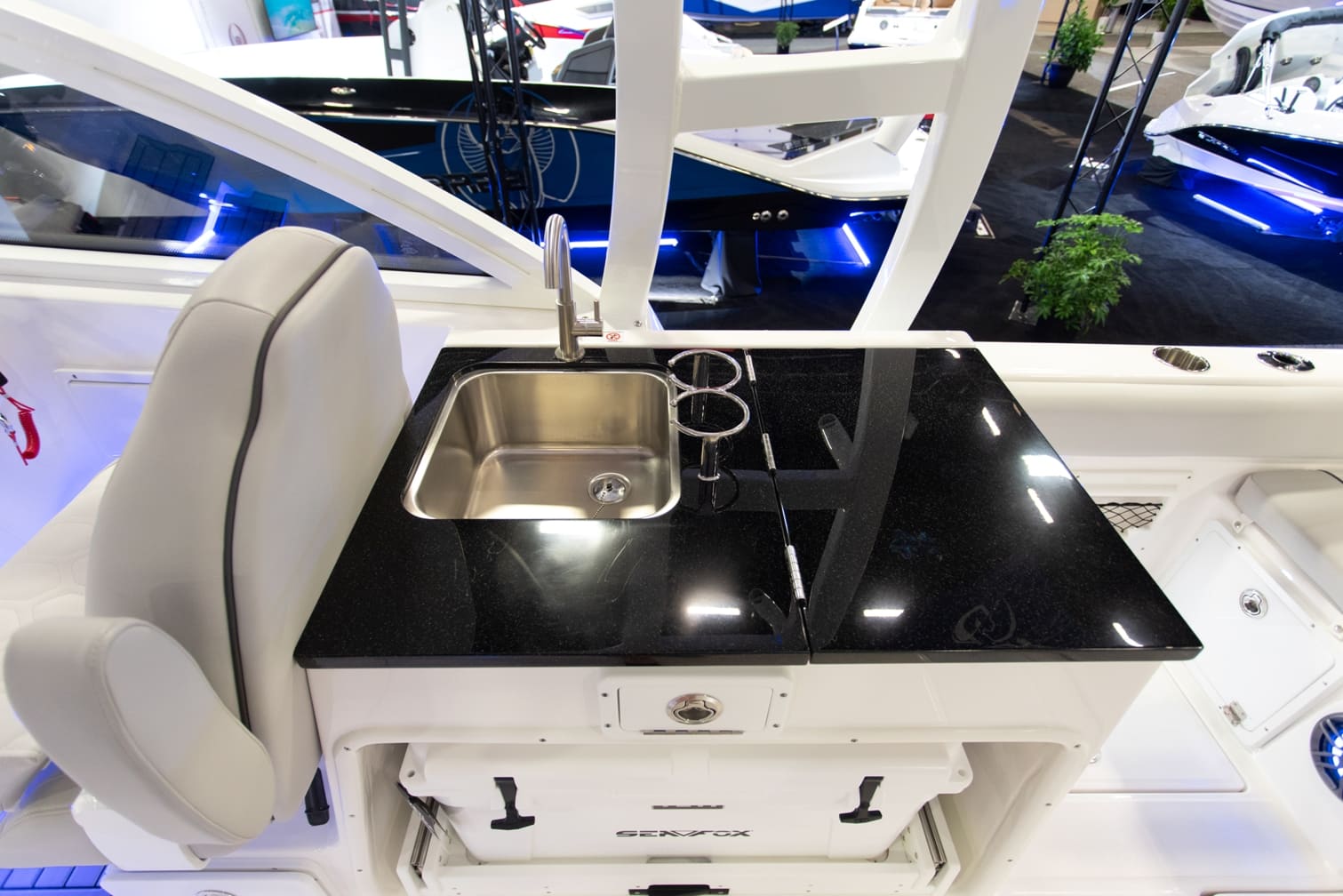

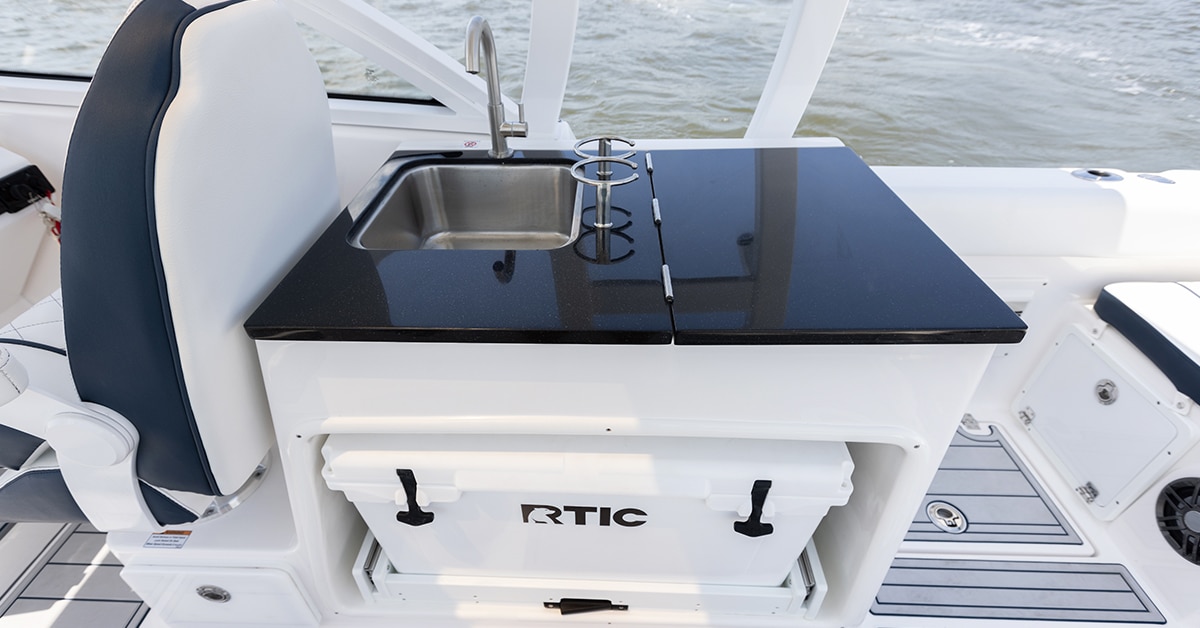

- Galley with hard surface countertop accent, sink and stainless steel fresh water faucet

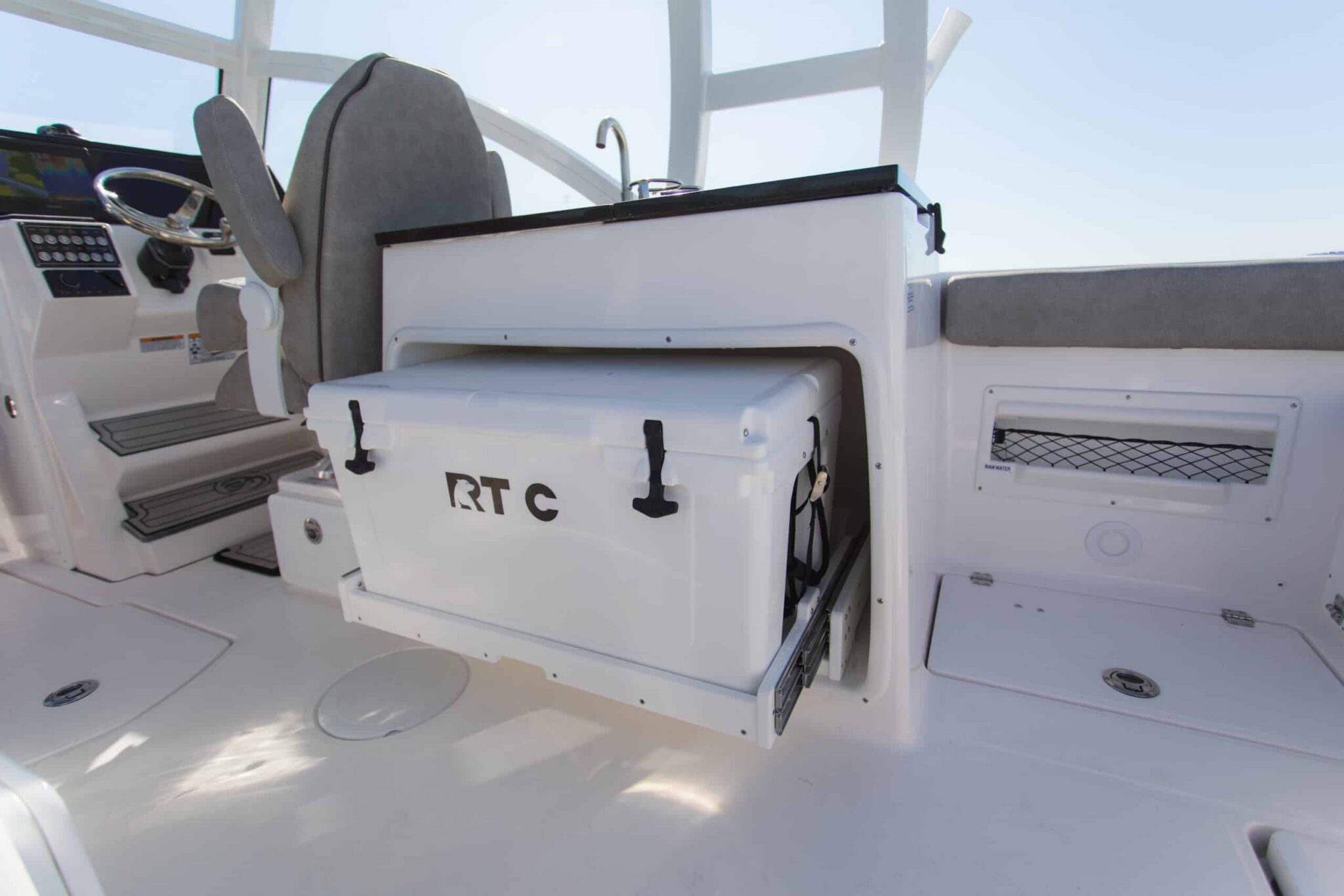

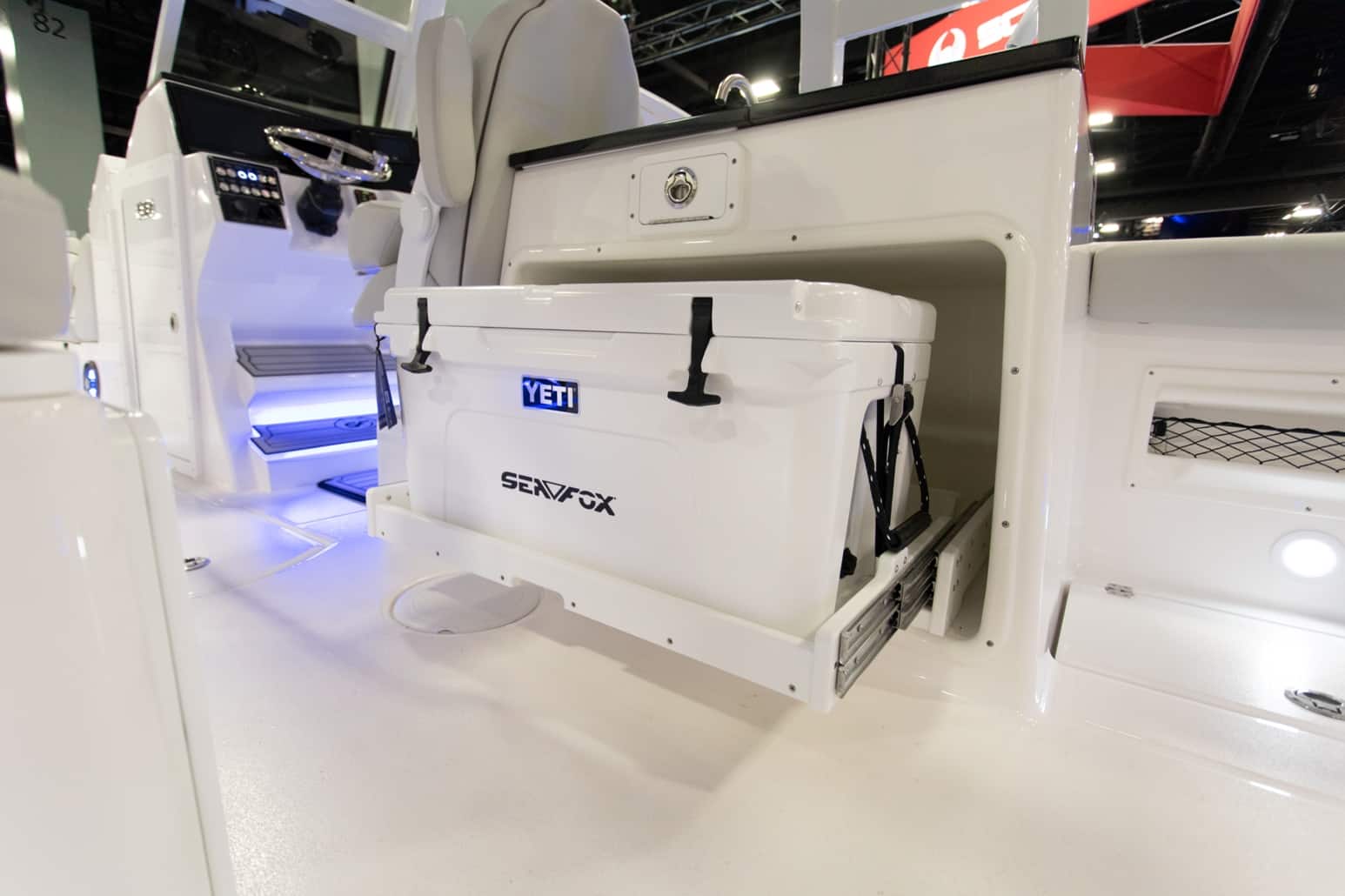

- 65-Quart premium cooler with stainless steel strapdown hardware, mechanical slide tray and kick latch

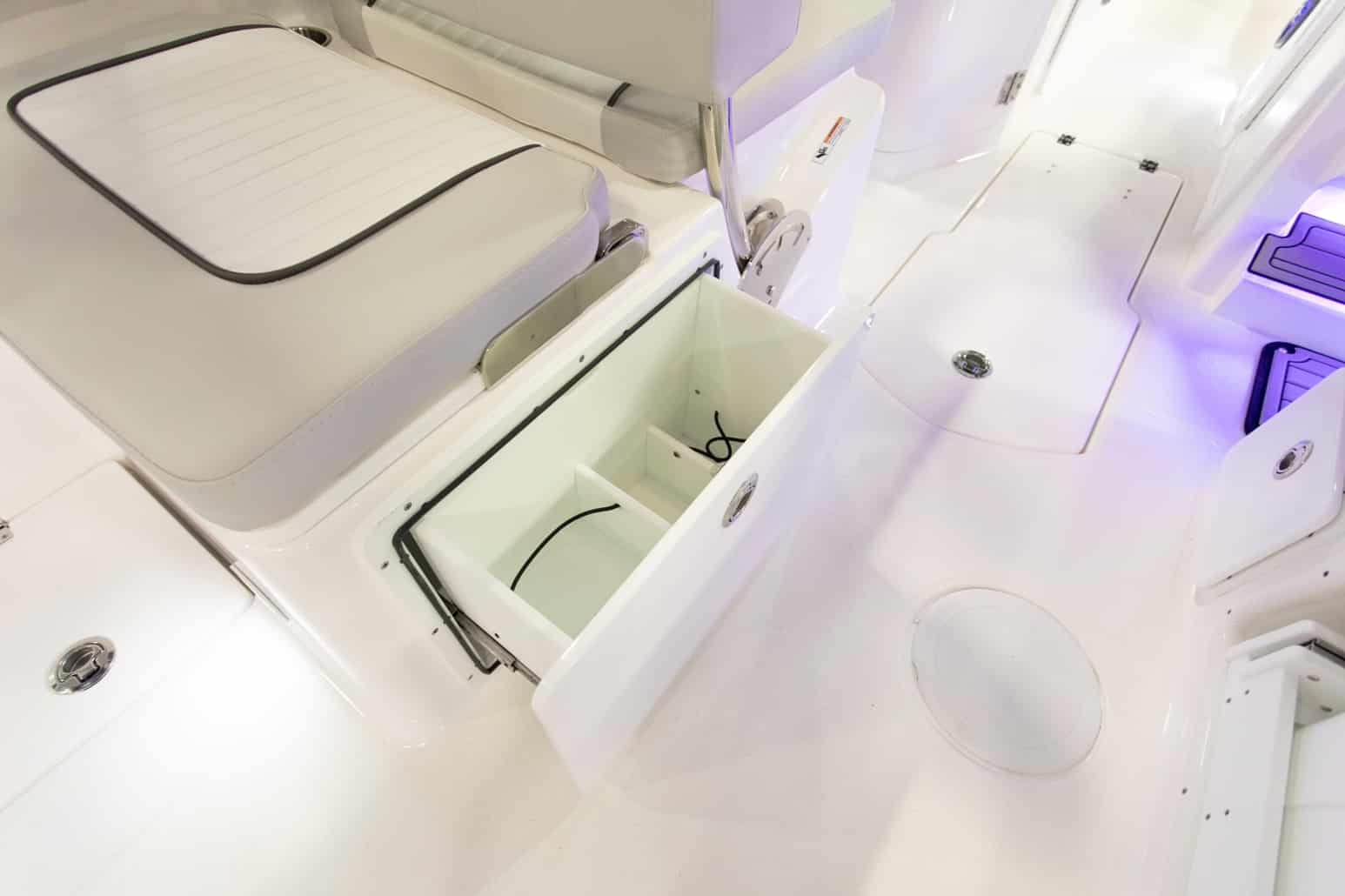

- Multi-use storage drawer with first aid kit

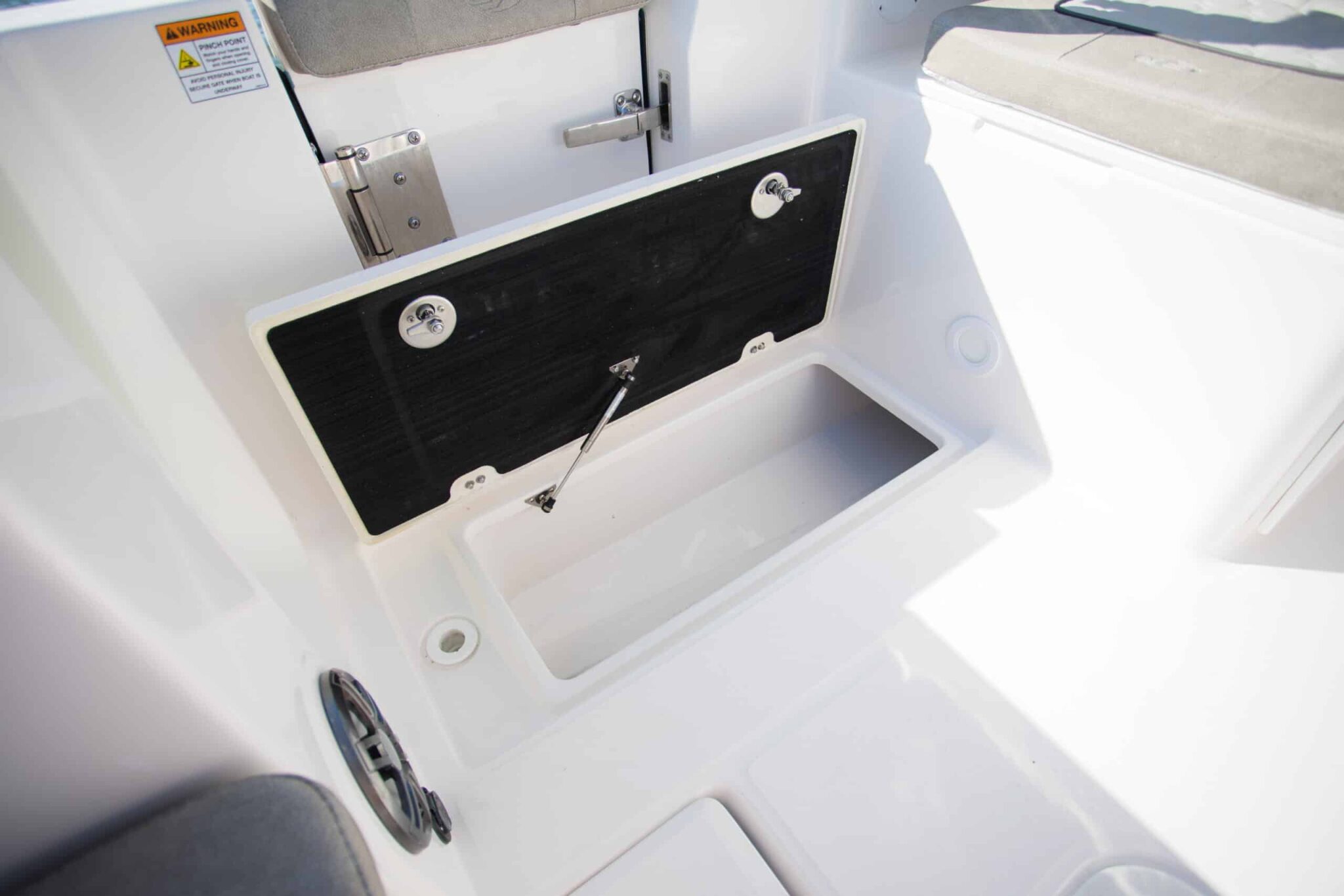

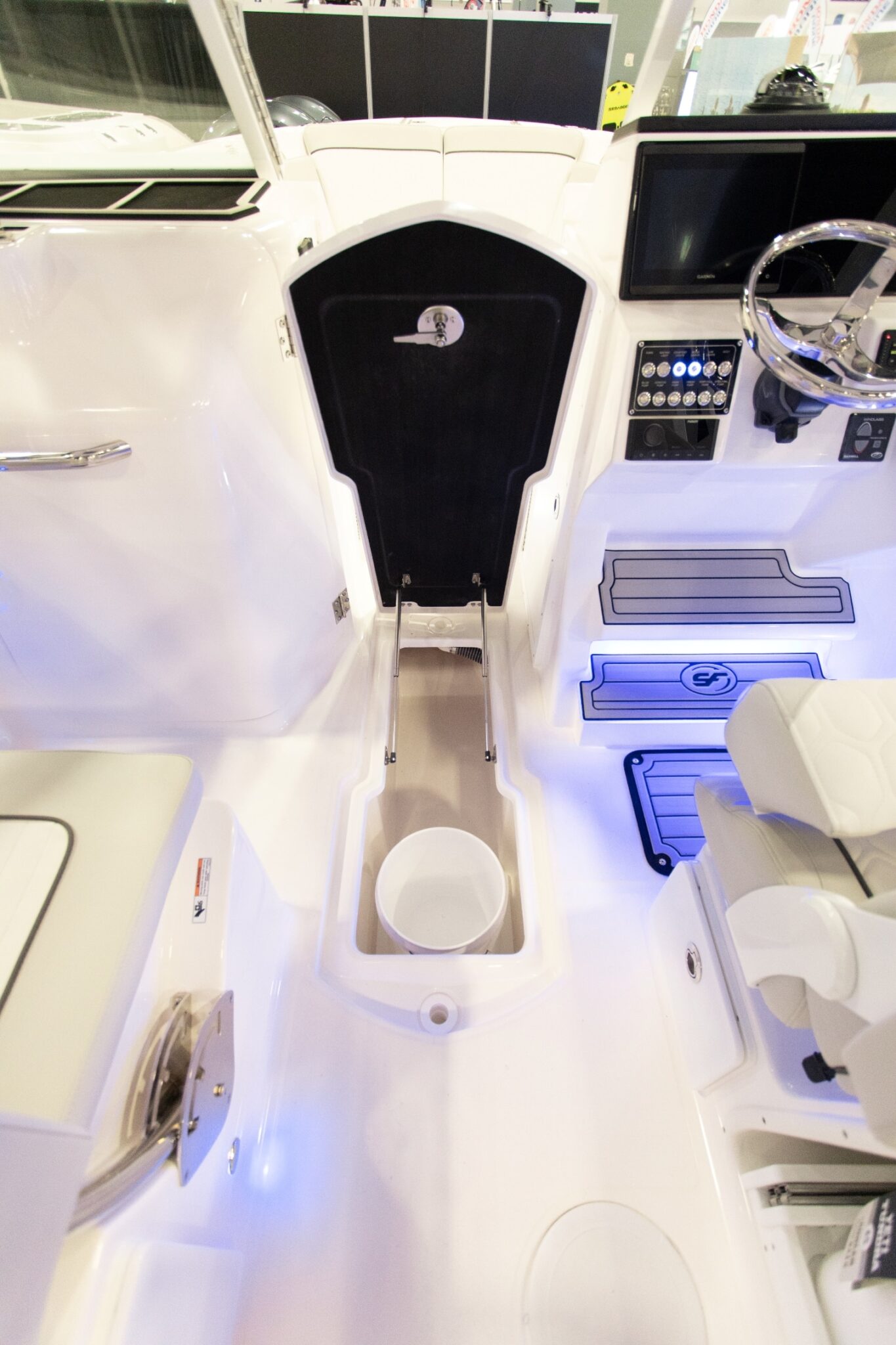

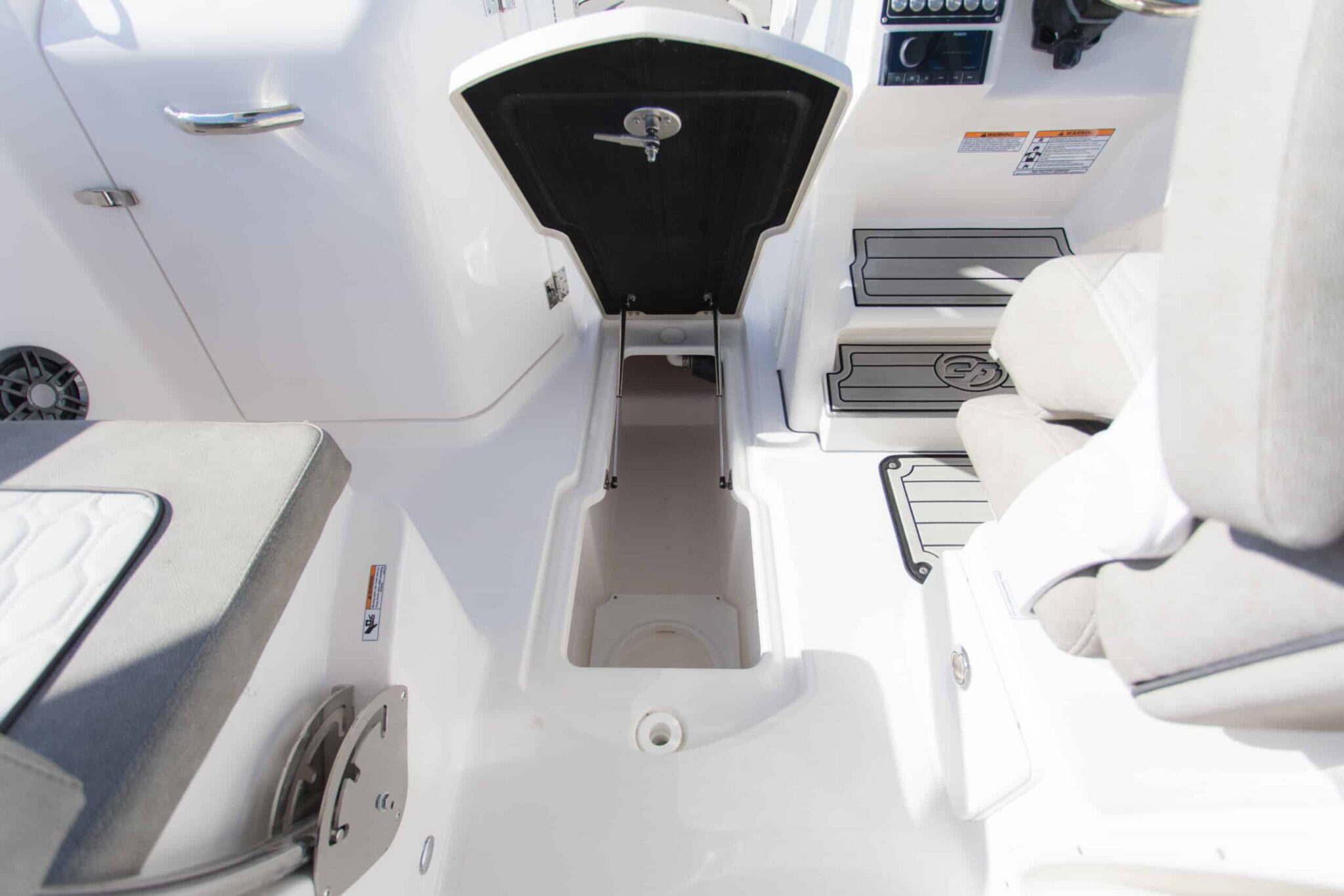

- In-floor watersport storage with 5 gallon bucket
- Insulated in floor fishboxes with overboard discharge pumps
- Stainless steel compression latches

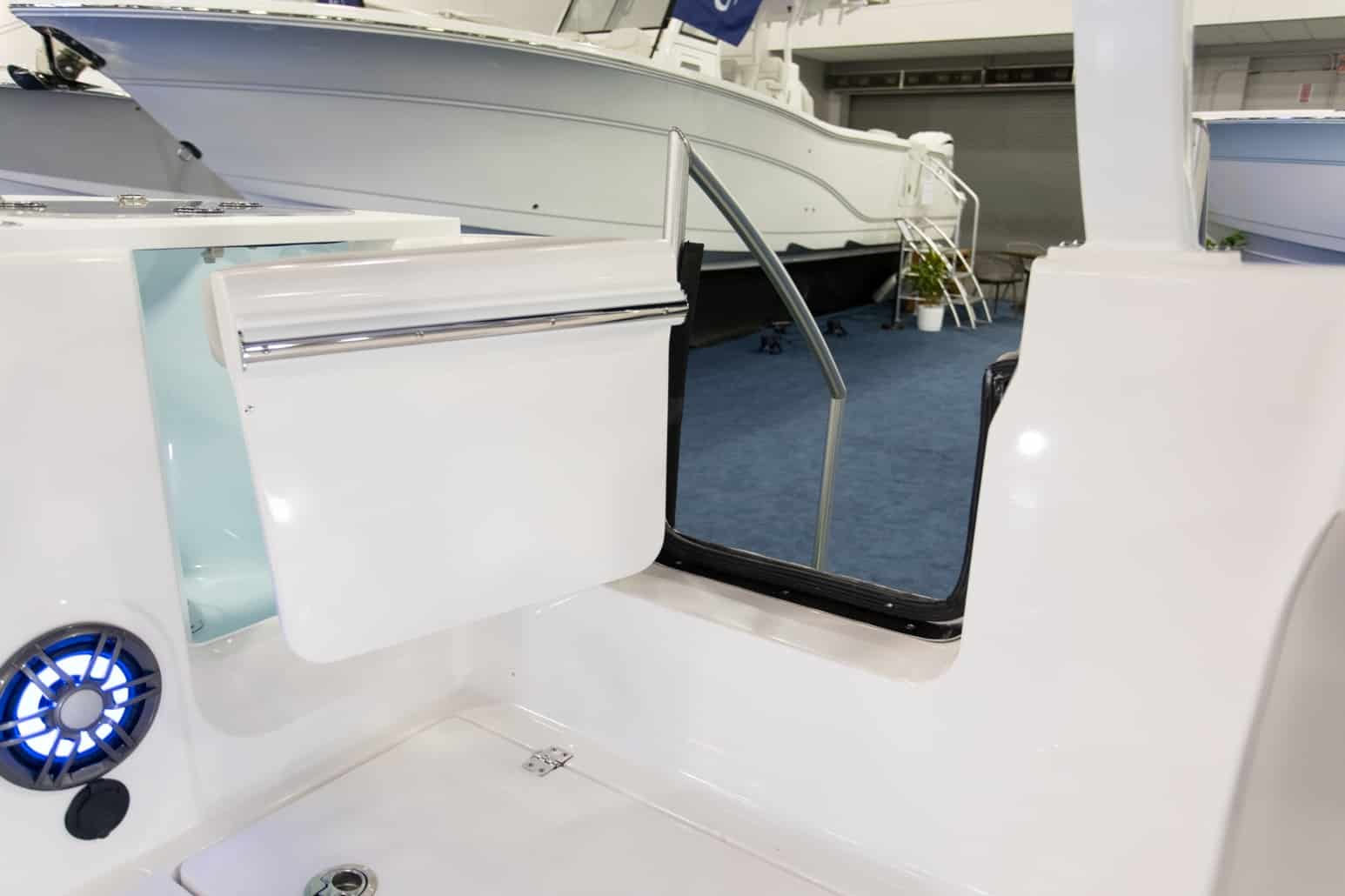

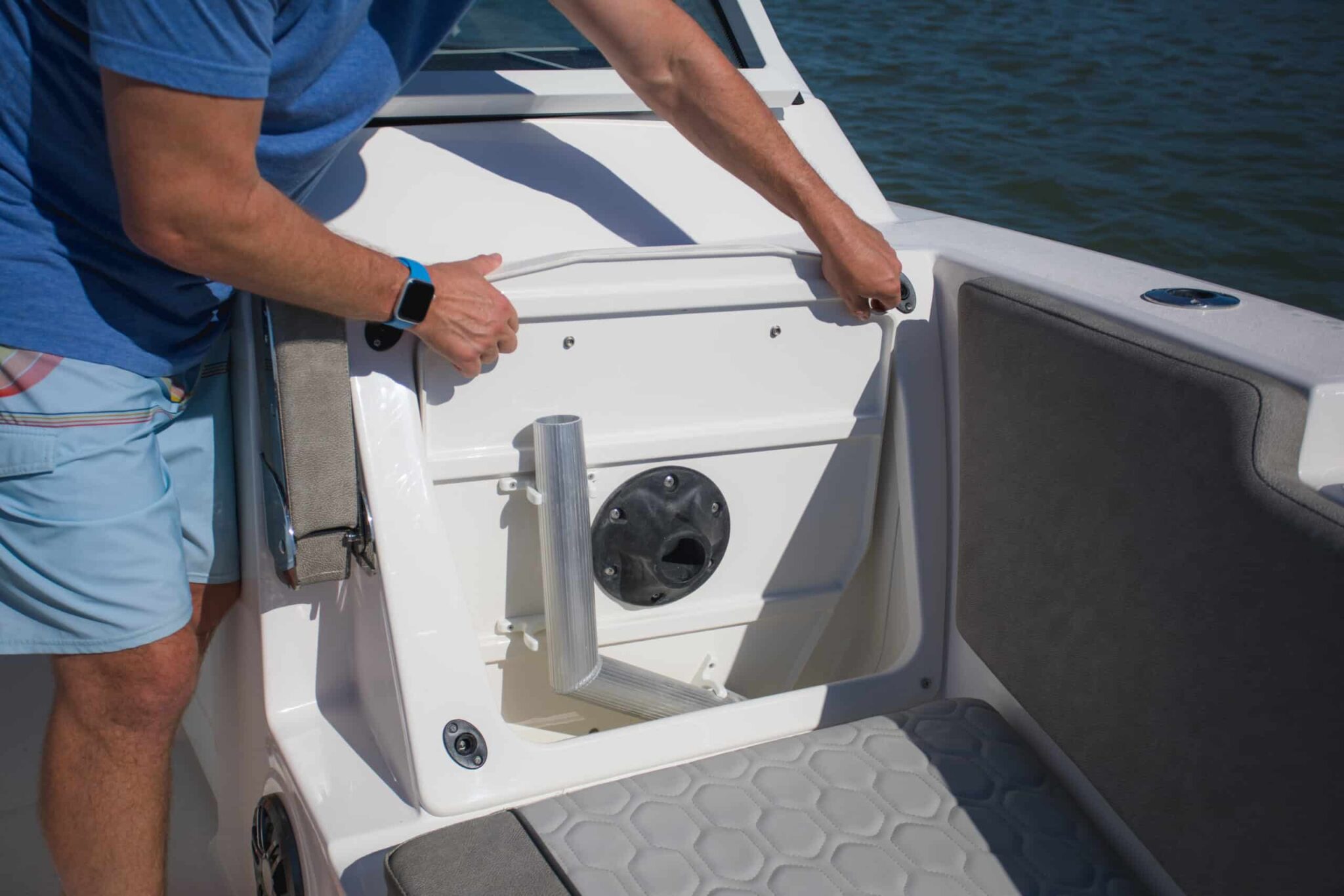

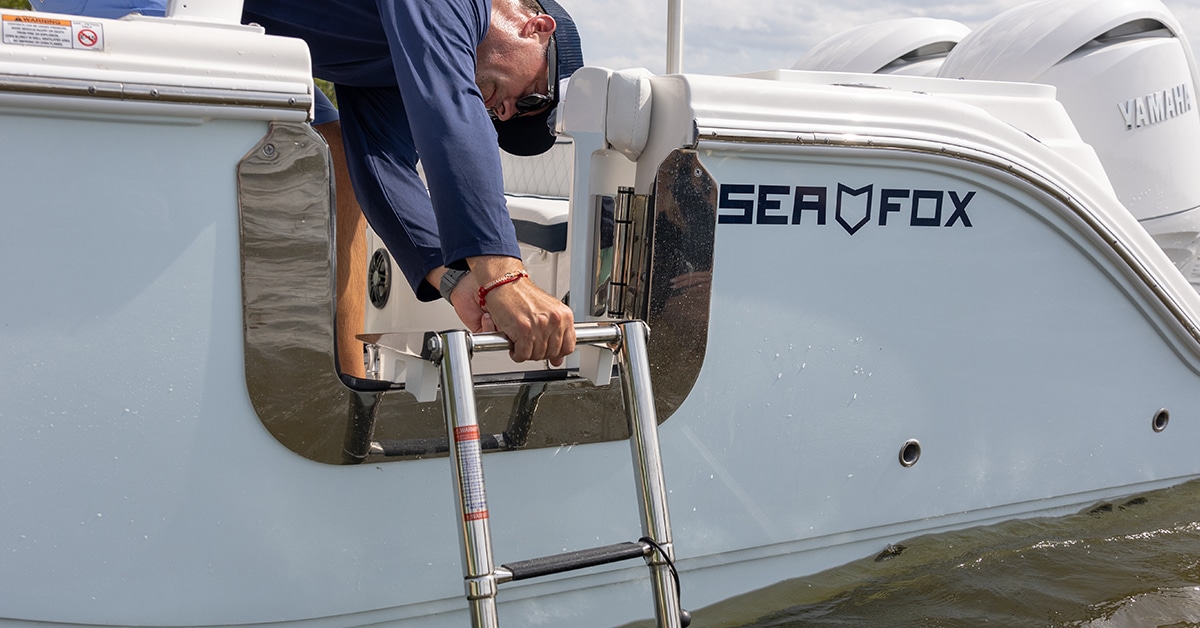

- Port side dock - dive - fish door with stainless steel frame and latch
- Cup holders (9)
- Stainless steel rod holders (2)

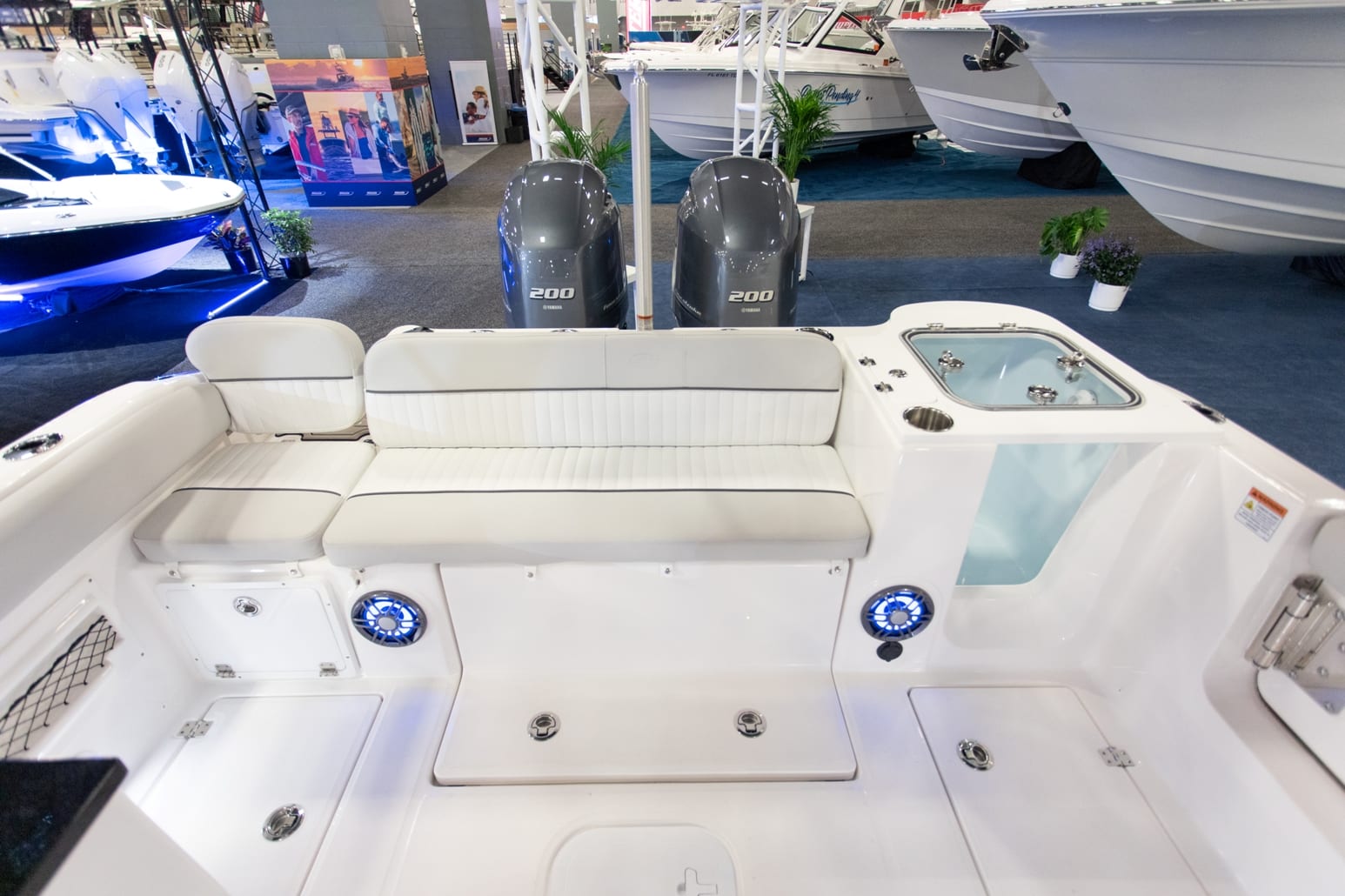

- Aft bench seat with removeable cushions
- Self bailing cockpit with stainless steel grates
- Raw water washdown outlet with hose fiddle

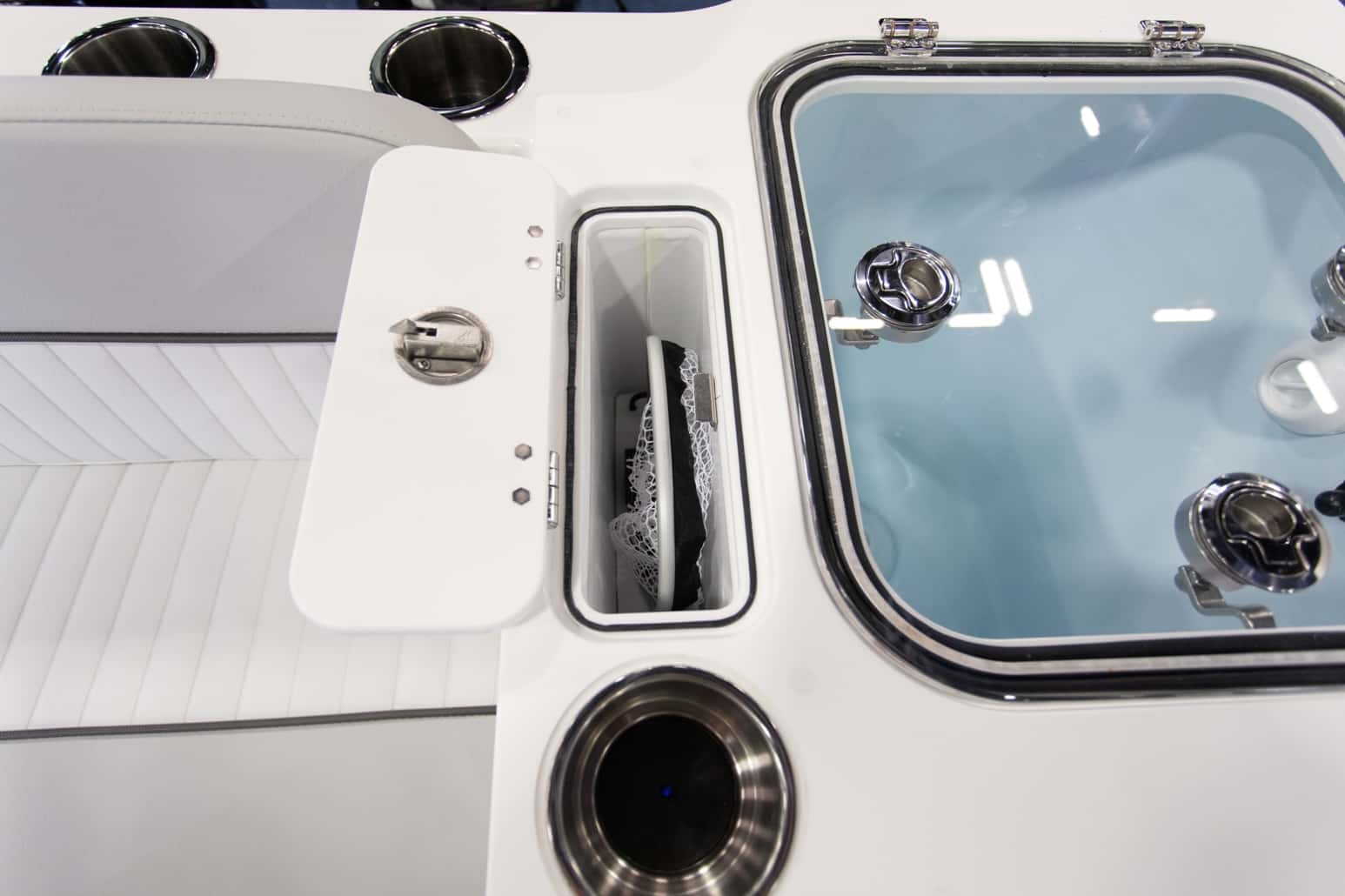

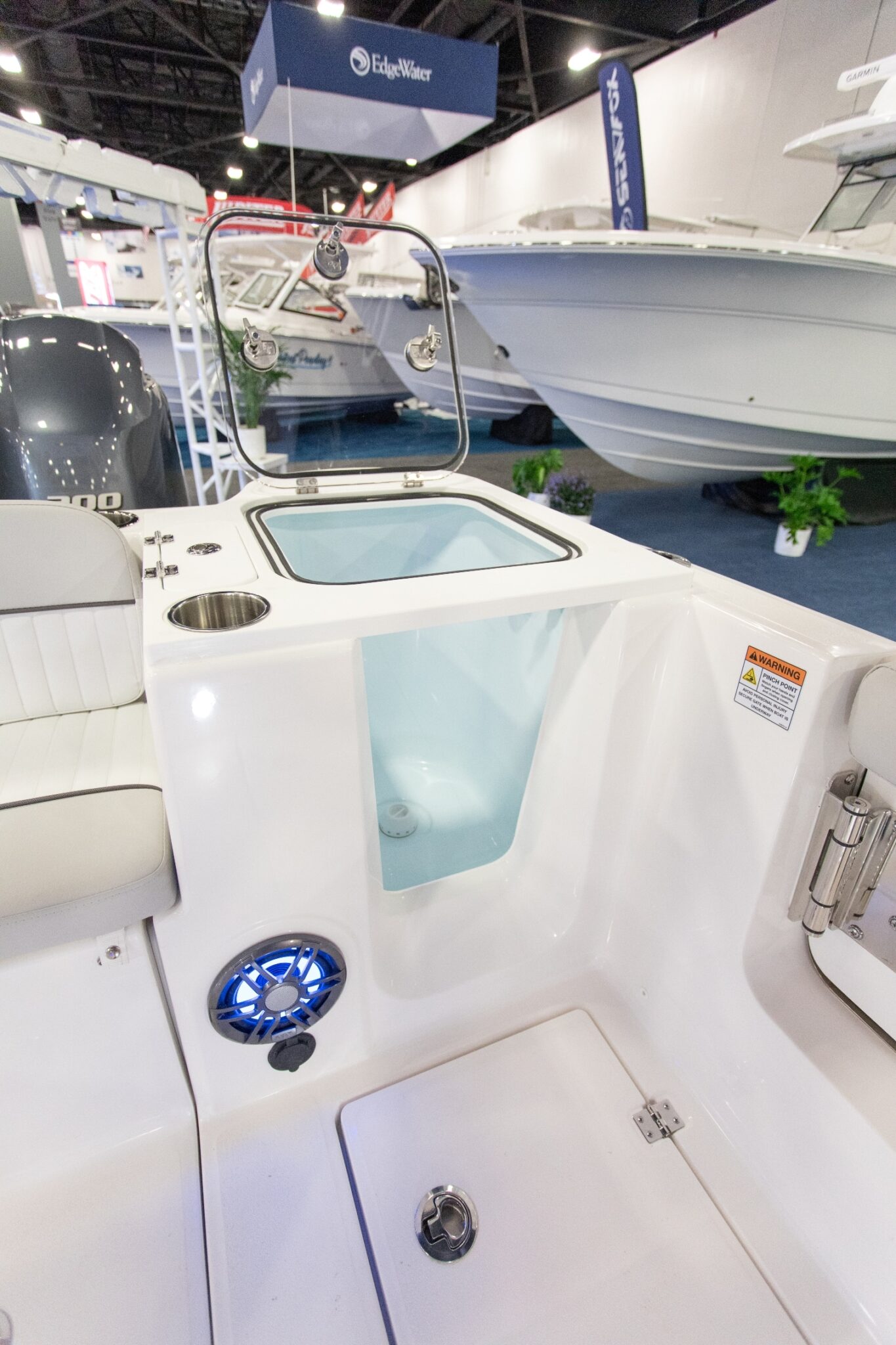

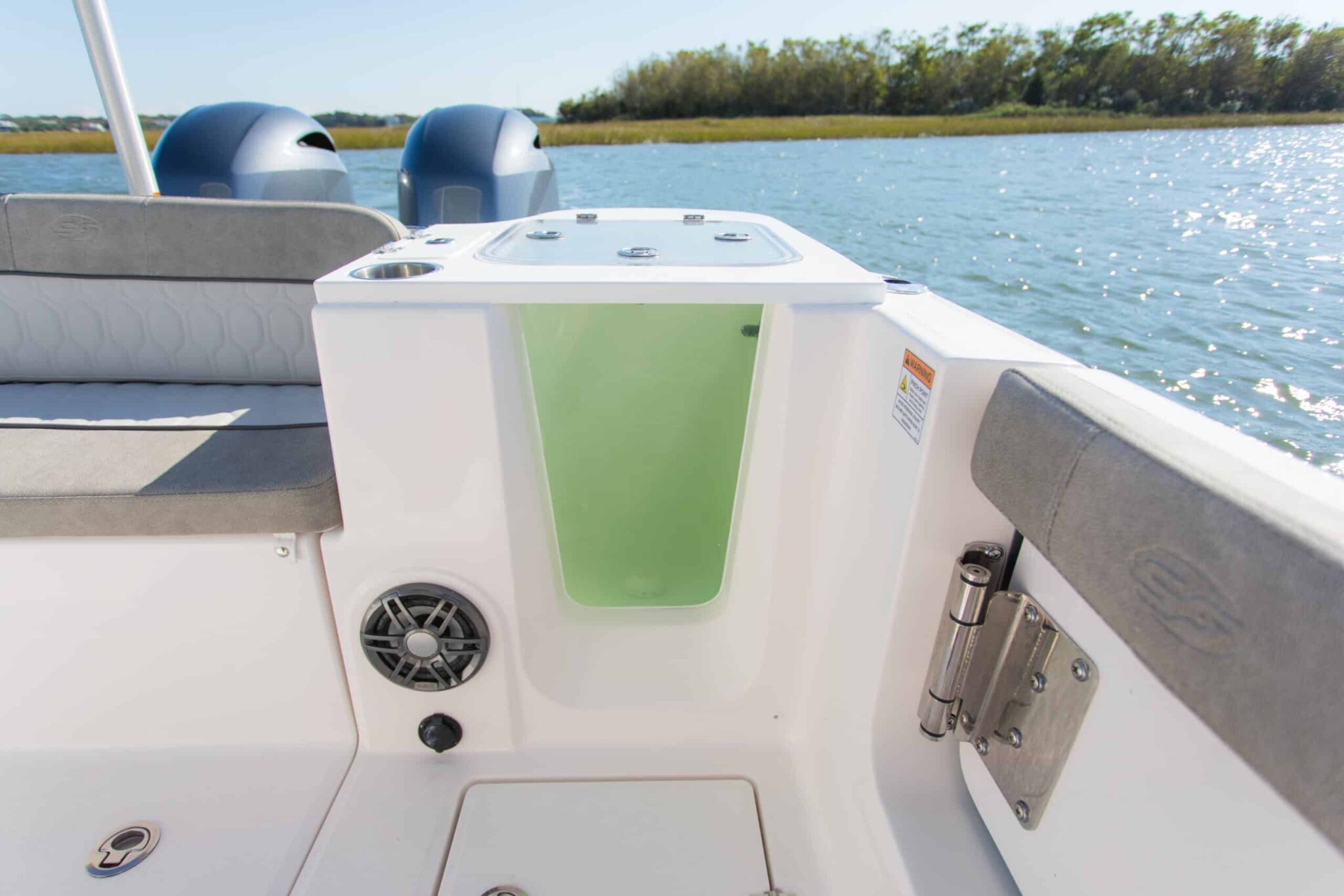

- Aquarium style pressurized livewell with window (30 gallons, 800 GPH aerator)

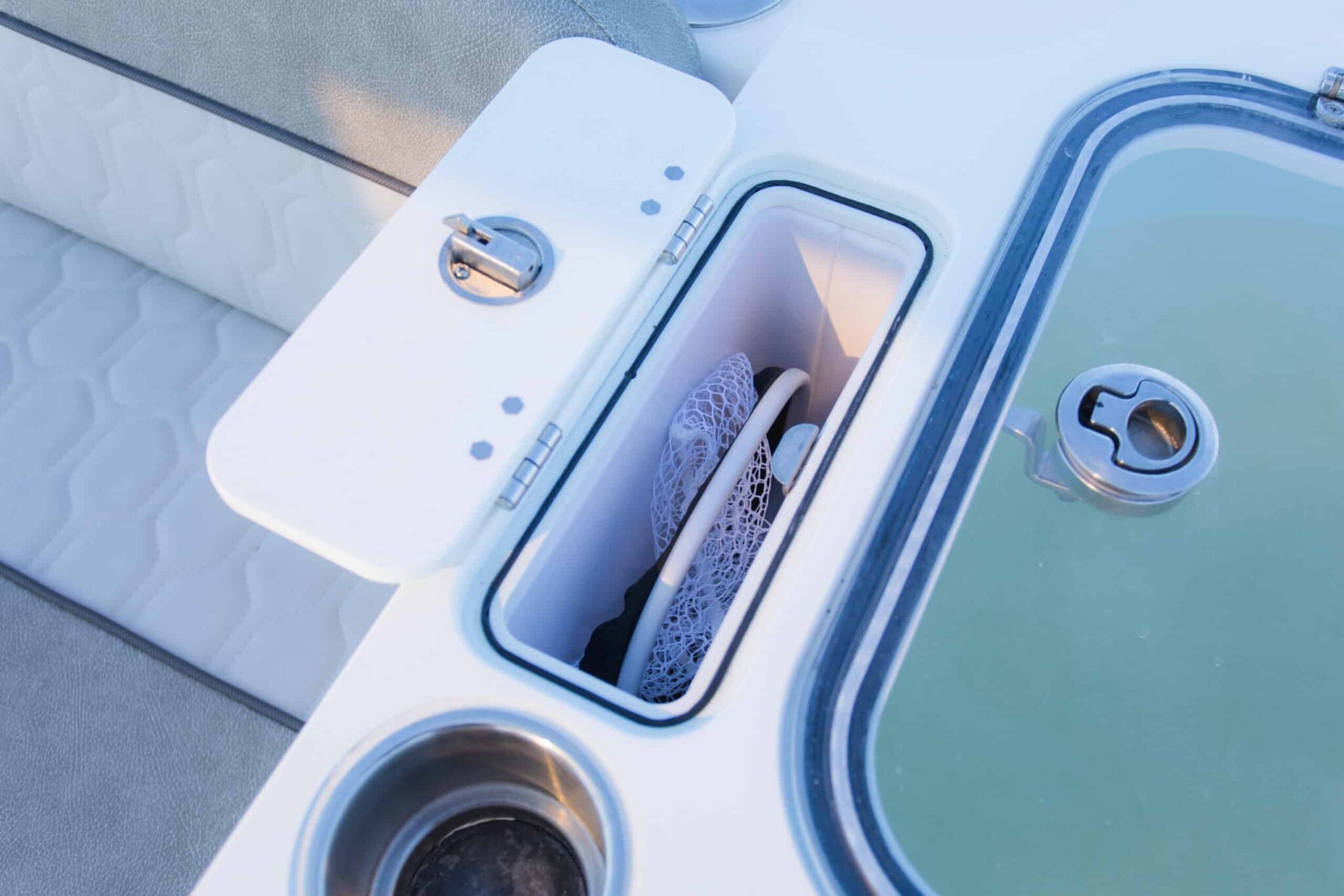

- Dip net with integrated easy access storage
- Livewell light
- Pre-rigging for two or three batteries (depending on motor configuration)

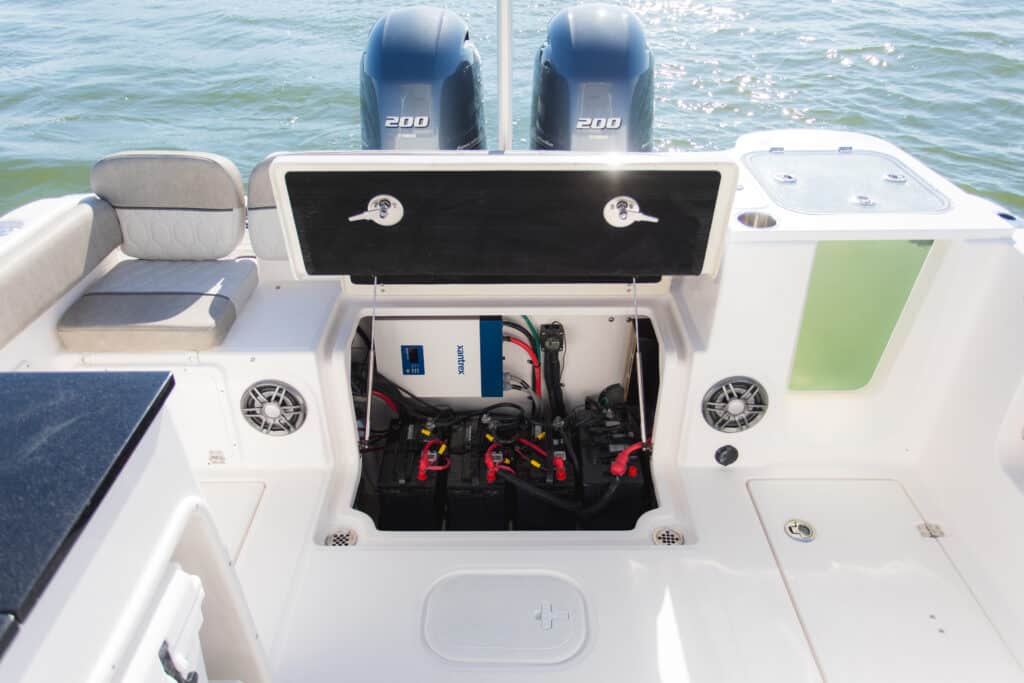

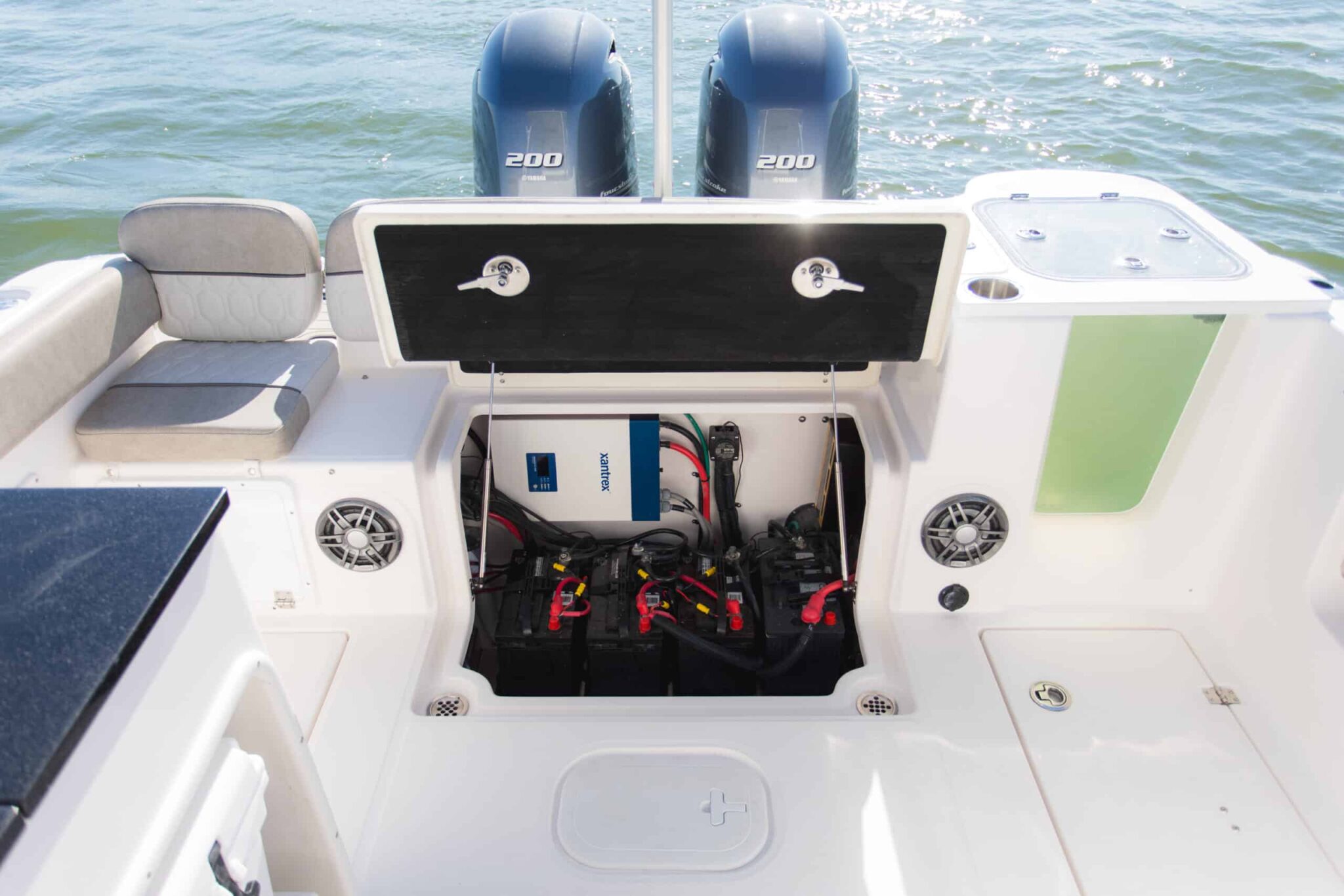

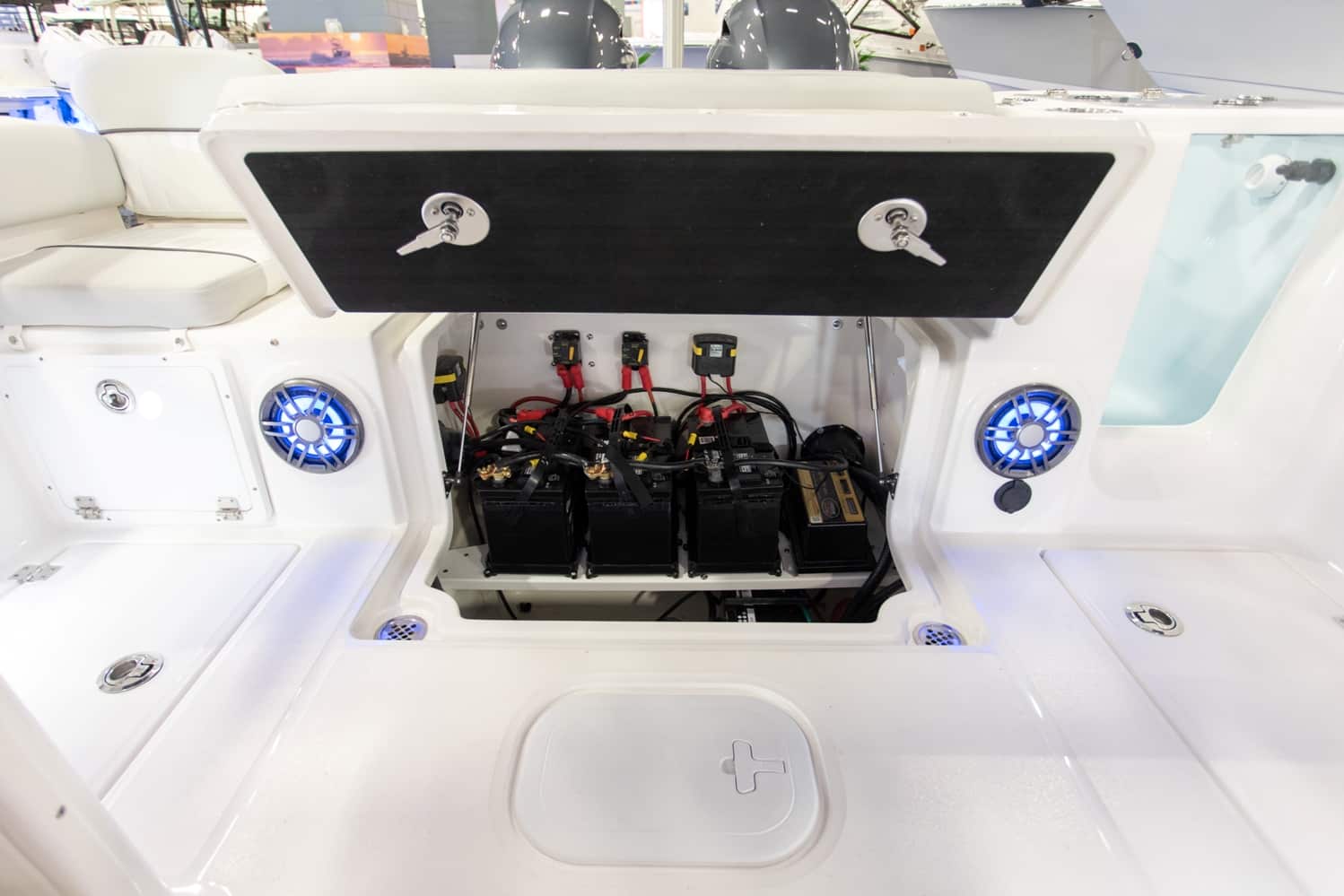

- Trunk access to battery storage and pumphouse with gas shock assist

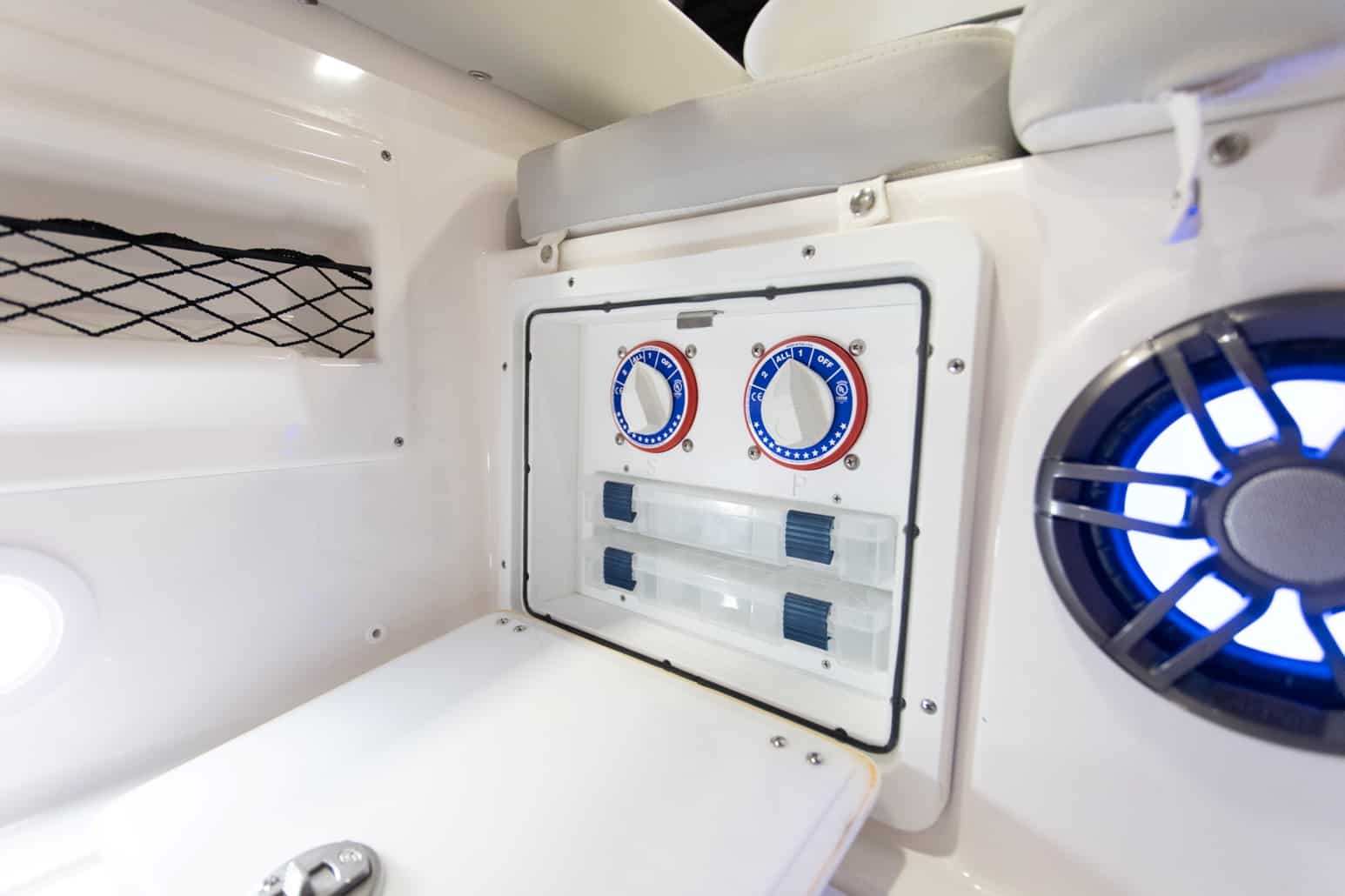

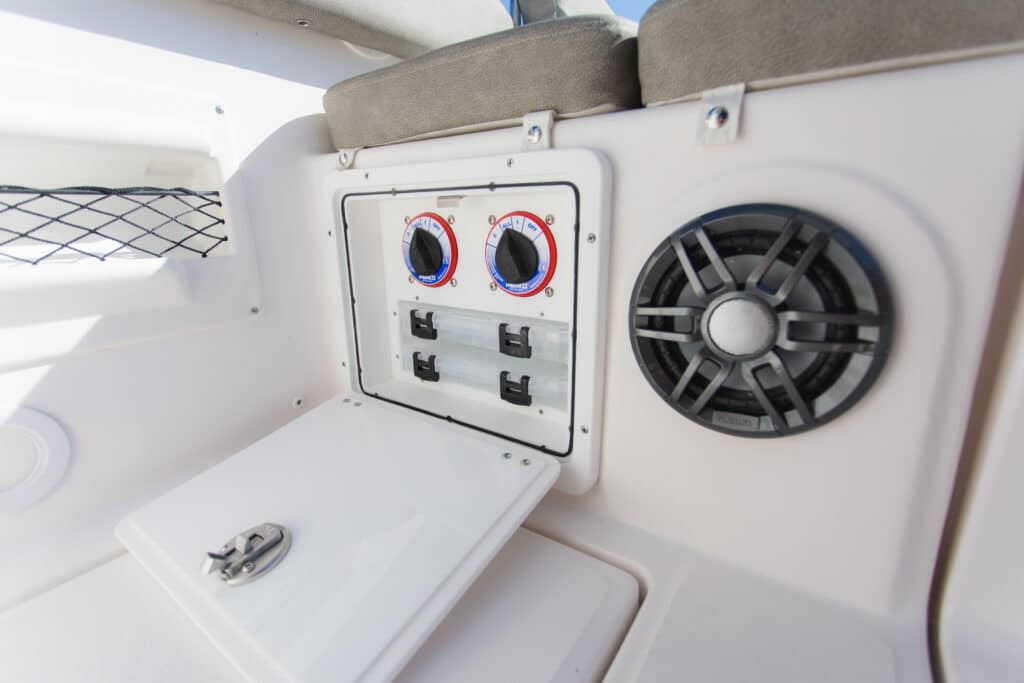

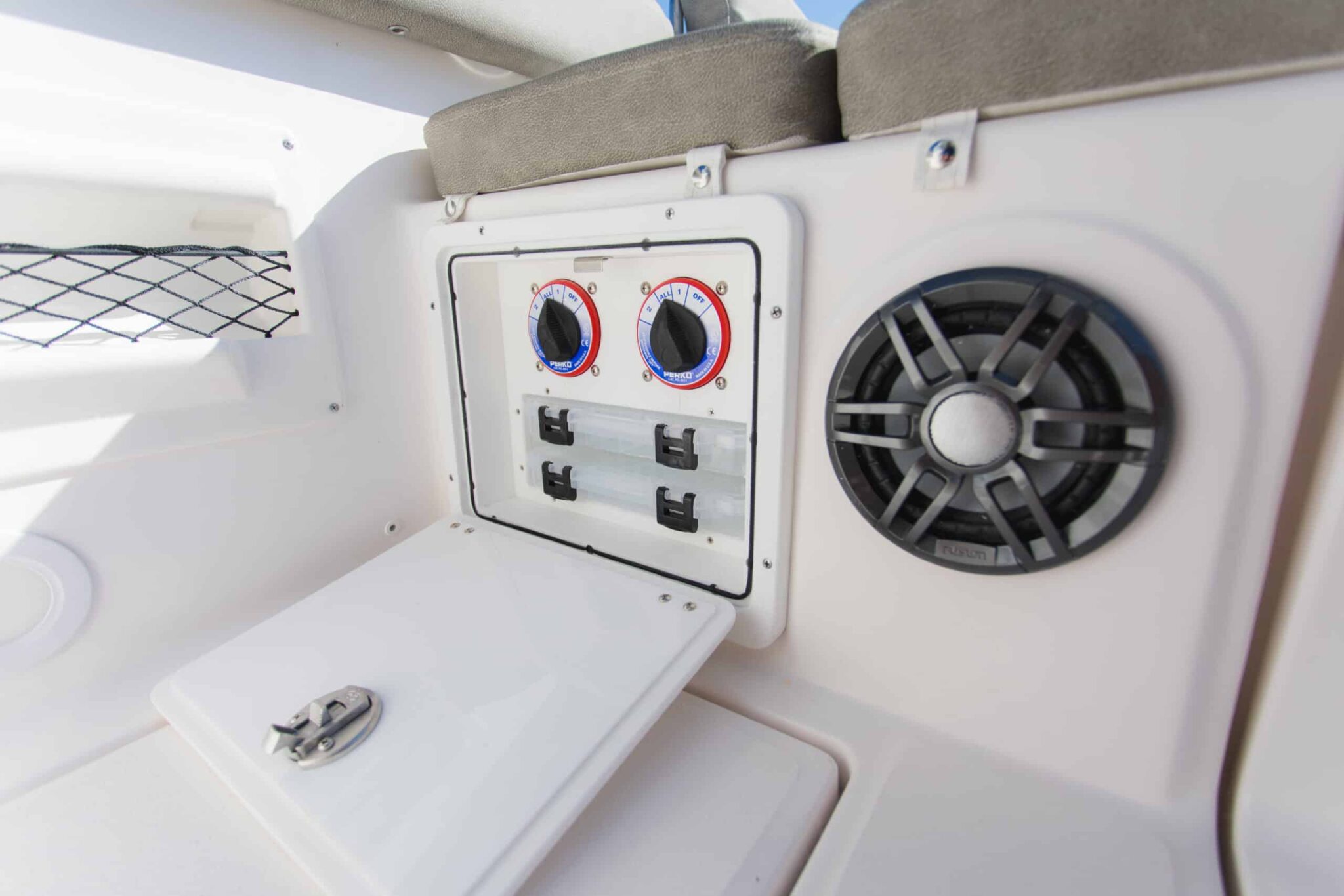

- Battery switches with removable tackle storage
- Four quick release fender deck mounts

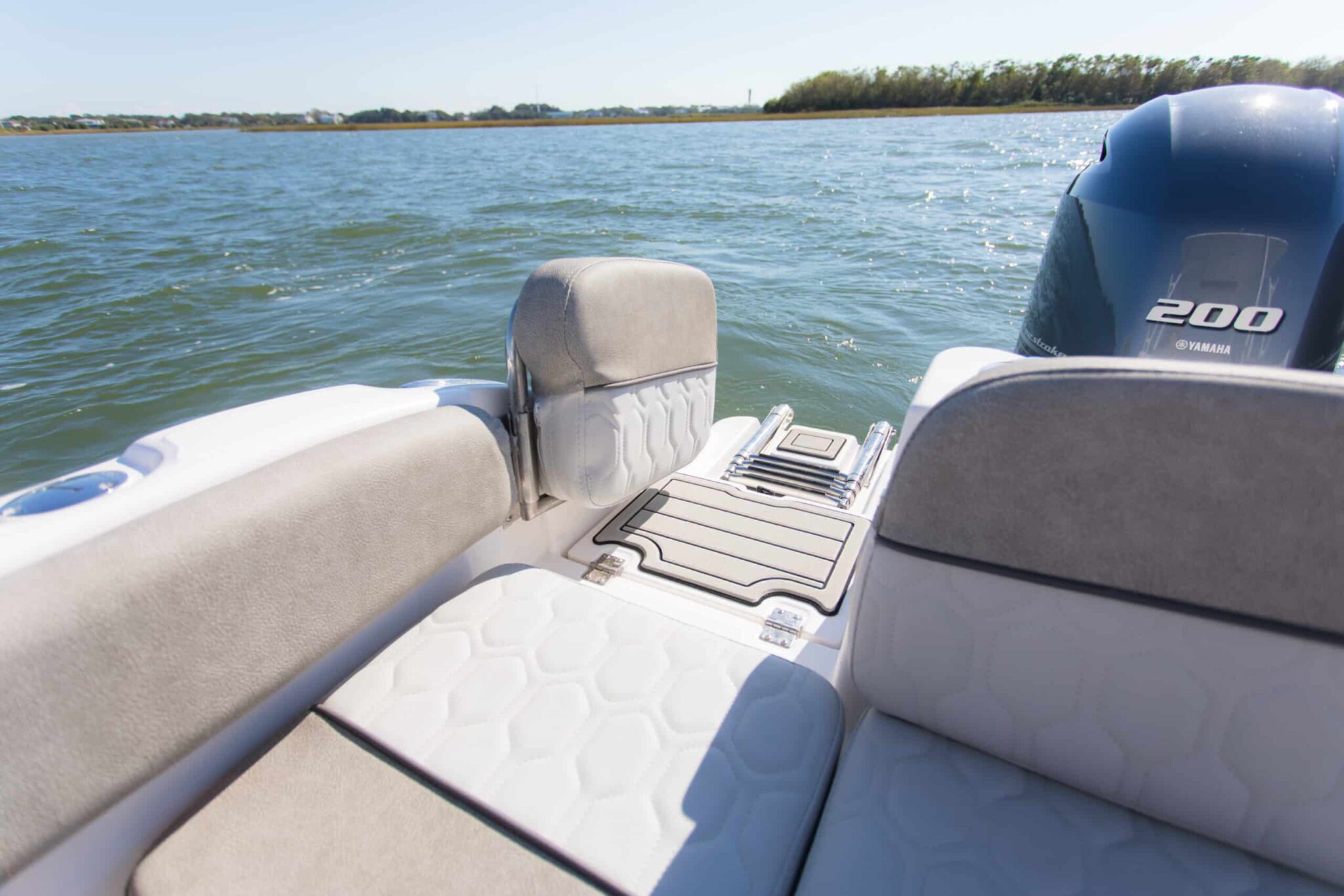

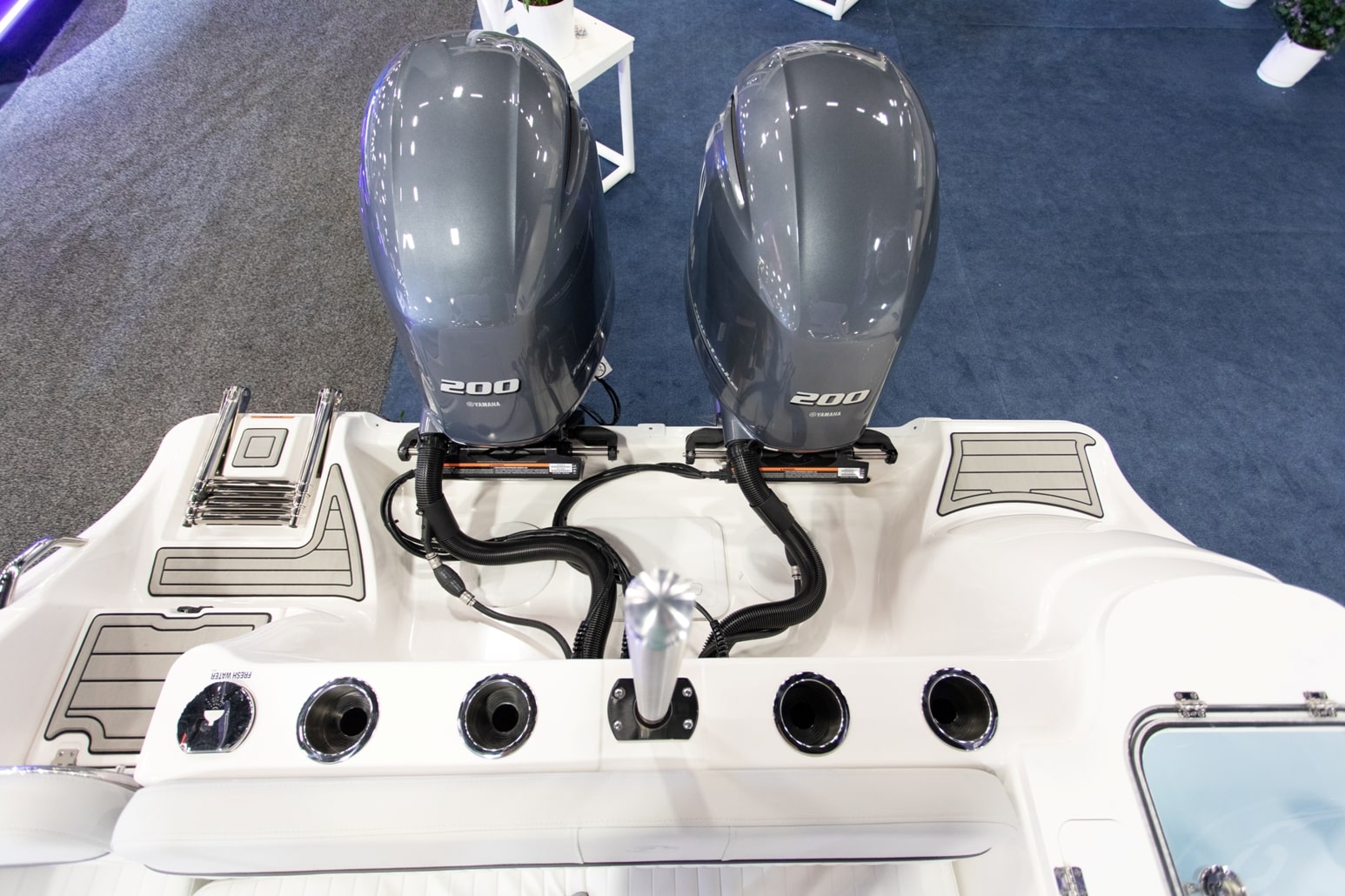

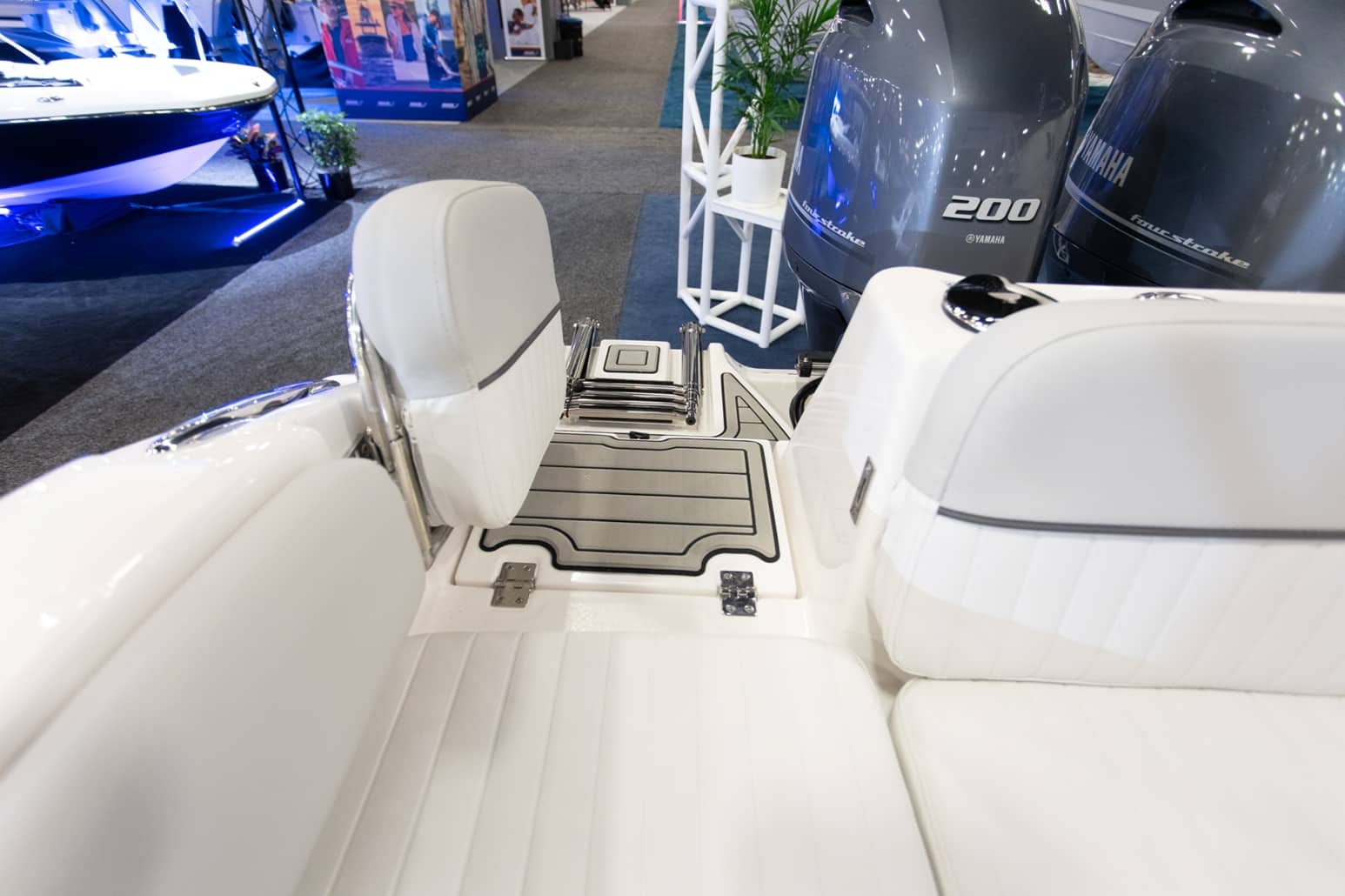

Transom:
- Stainless steel walkthrough gate
- Combination cupholder-rod holders (4)
- Transom storage compartment - plumbed and insulated for use as a cooler and notched for beach anchor storage

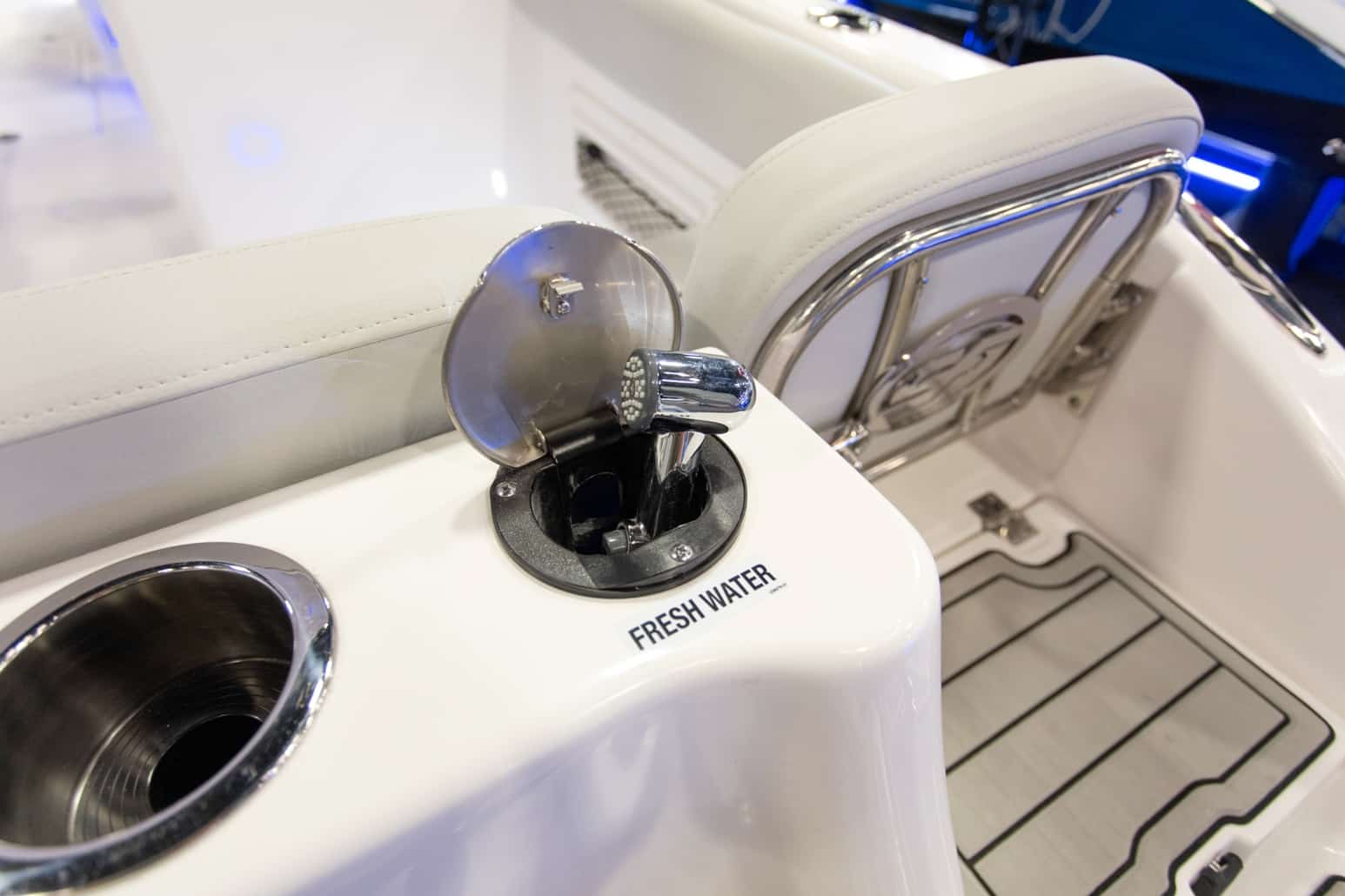

- Freshwater washdown shower with 12 gallon tank
- Stainless steel transom saver
- Stainless steel rear boarding telescopic ladder with integrated boarding handle
- Marine grade soft mat deck accents
- Stainless steel through bolted grab rail
- Recessed electric trim tabs with integrated hull design
- Stainless steel U-bolts on port and starboard transom
Bilge:
- Marine fuel/water separating filters with direct hatch access
- 1100 GPH bilge pumps (primary and back up)
- Electronic automatic float switch
- Mechanical float switch
Other great features:
- Quilted salt marine grade upholstery: antimicrobial vinyl, foam, and white diamond stitching
- Composite hull & deck
- Isothalic gelcoat
- Vinyl ester barrier coat
- Sand-grip deck surface
- Stainless steel rub rail
- Stainless steel fasteners
- Stainless steel through hulls
- Stainless steel pull-up cleats (6)
- Silver boot stripe available on white and full hull gelcoat options
- Limited Lifetime Hull Warranty
Note: Due to Sea Fox's continuous innovation and improvements, standard features and options can change without notice.
Bridge clearance: based on factory installed Ultima hard top, doesn't factor in optional outriggers
Dry weight is approximate & includes: boat plus factory options, but NO motor(s), water, fuel, owner’s gear, or batteries
Maximum weight is approximate & includes: boat plus factory options, full fresh water holding & fuel tanks, 2 batteries, but NO motor(s) or owner’s gear
Fuel capacity can vary due to US EPA Evaporative Standard requirements
Sea Fox Boat Co., Inc. meets US EPA Evaporative Standards using Certified Components
268 TRAVELER Optional Features
Power

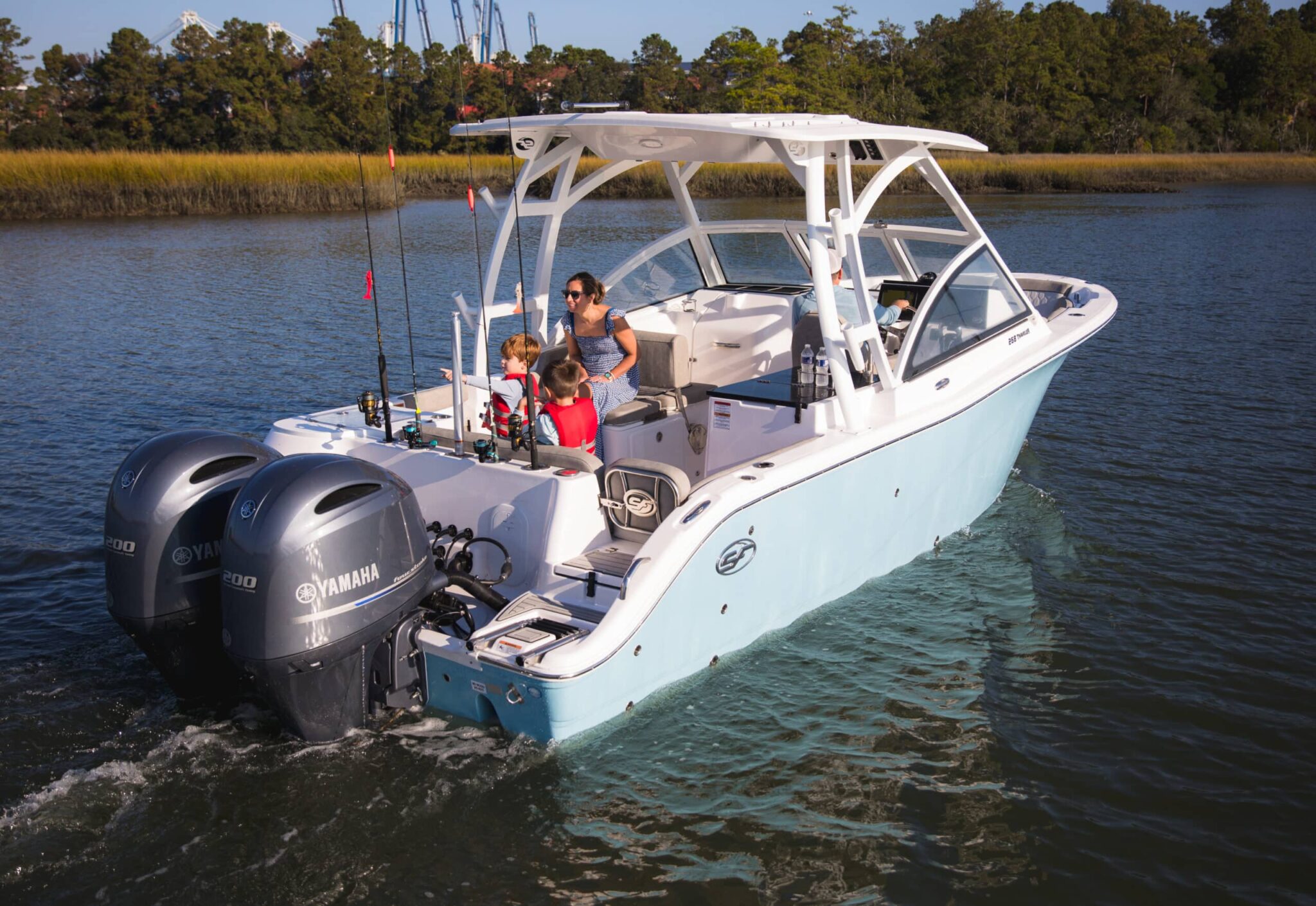

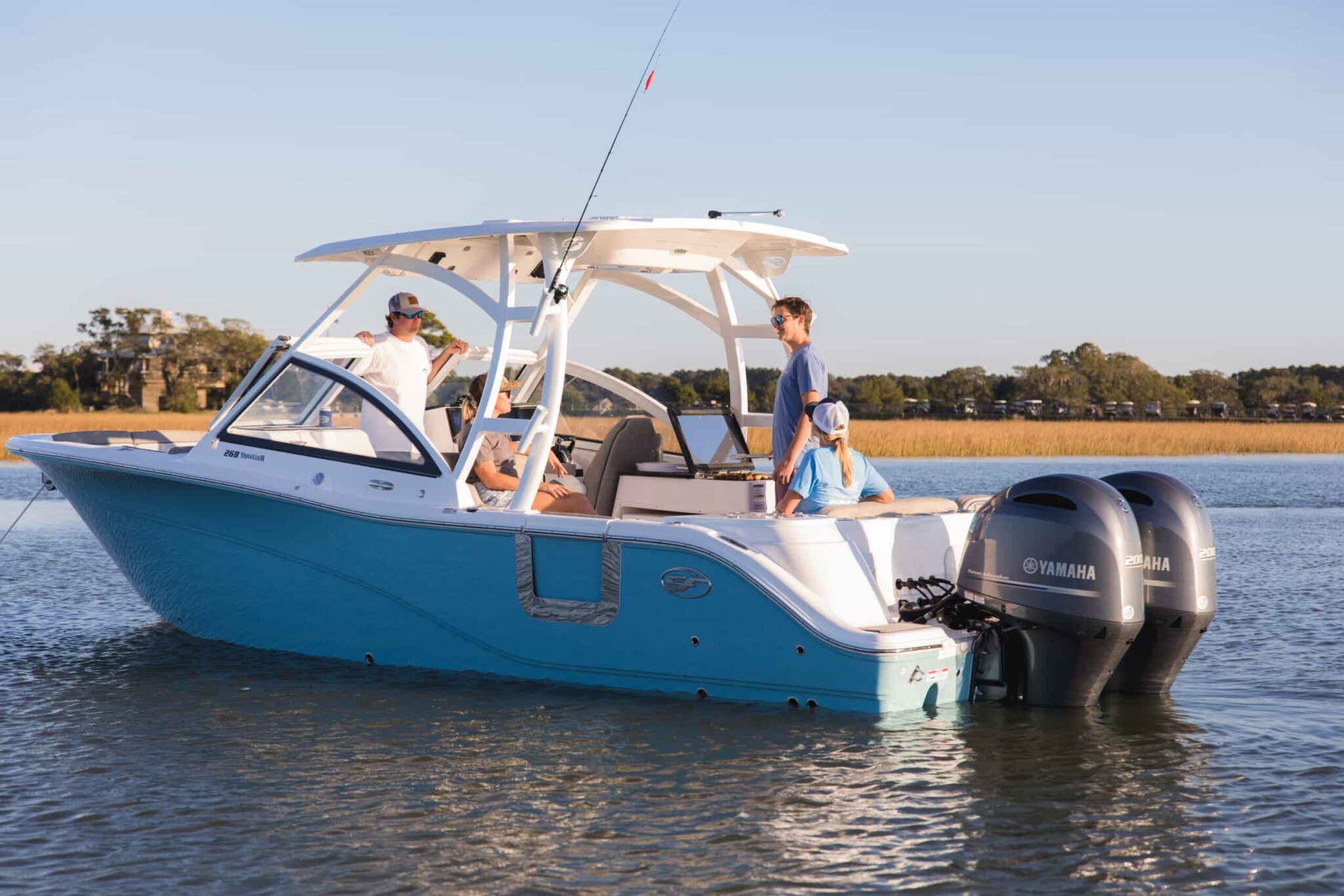

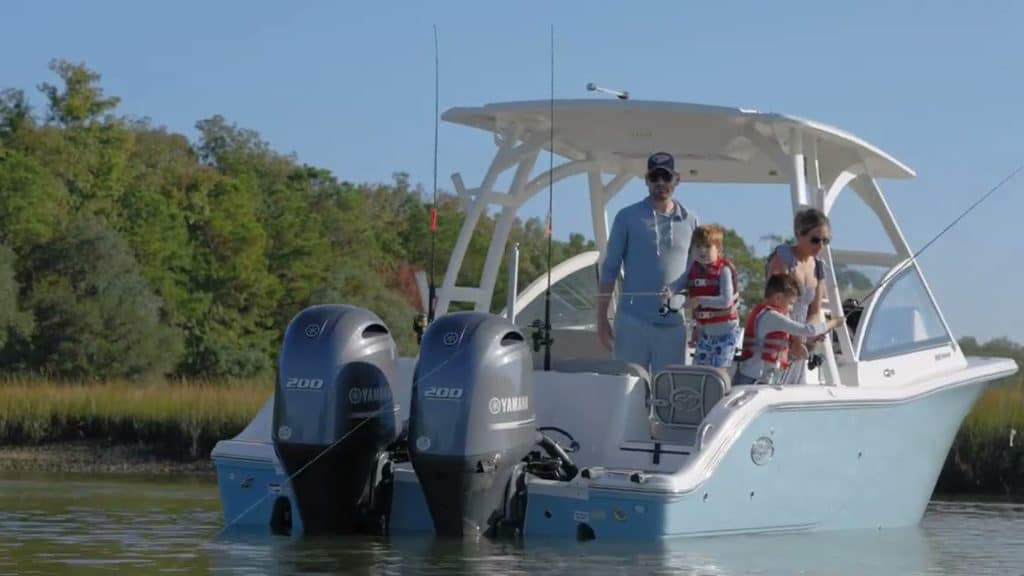

- Twin Yamaha F150XCs
- Steering: Yamaha Hydraulic
- Twin Yamaha F200XCs
- Steering: Yamaha Hydraulic
- Twin Yamaha F200XSA2
- White motors
- top mount digital controls
- CL5 Multifunction Gauge
- Integrated electro-hydraulic steering
- Painted motor
- white or black
- metallic silver decals
Gelcoat Accent
- Stripe
- Sides
- Full Hull
- white pearl
- marsh green
- bahama blue
- artic blue
- channel blue
- silver shark
- bull shark
- jetty grey
Top
- Electric Aft Shade
- retractable 4.5' awning
Aluminum Accent
- Powder Coating
- ultima hard top frame and windshield
Upholstery Accent
- Standard Single Diamond Stitch
- Light Grey
- Navy
- Upgrade Single Diamond Stitch
- Light Grey
- Navy
Upgrade Packages
- Pro Package
- Cushioned foot mat
- gas shocks on floor fish box lids
- two extra rod holders on bow gunwales

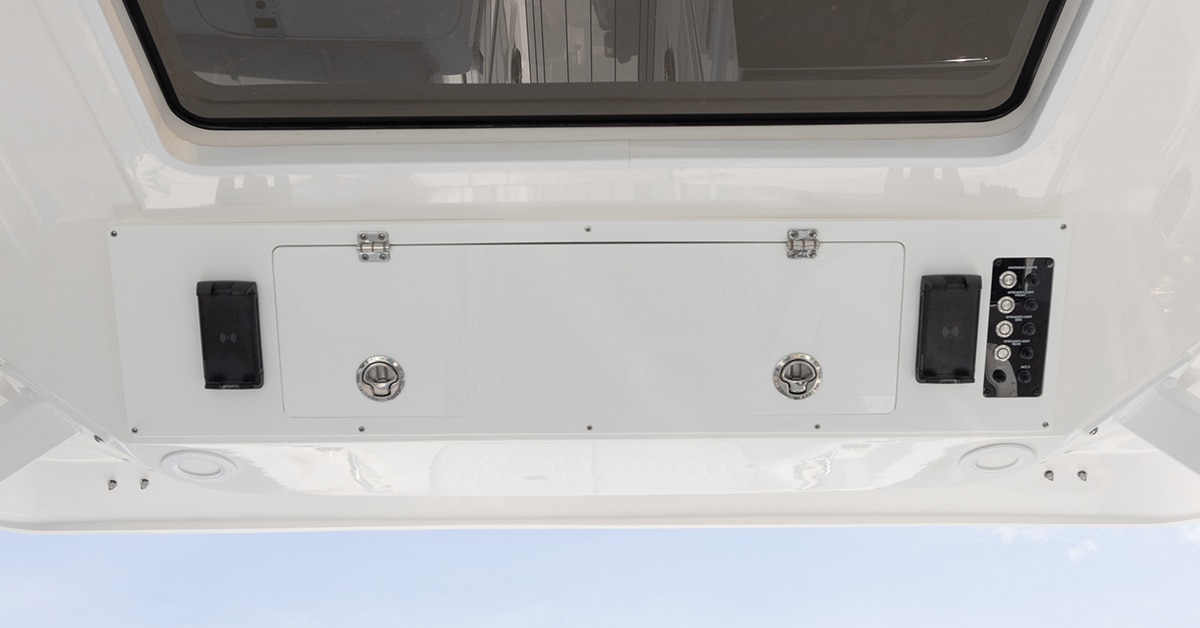

- LED/Tech Package
- Blue mood lights
- power cycle blue/white fade/flash
- underwater lights
- upgraded courtesy lights & wireless cell phone charger
Electronics
- Garmin 8610XSV touchscreen with thru-hull transducer (B150M CHIRP)
- Garmin 8610XSV twin touchscreen with thru-hull transducer (B150M CHIRP)
Other
- Ski tow bar (removable)

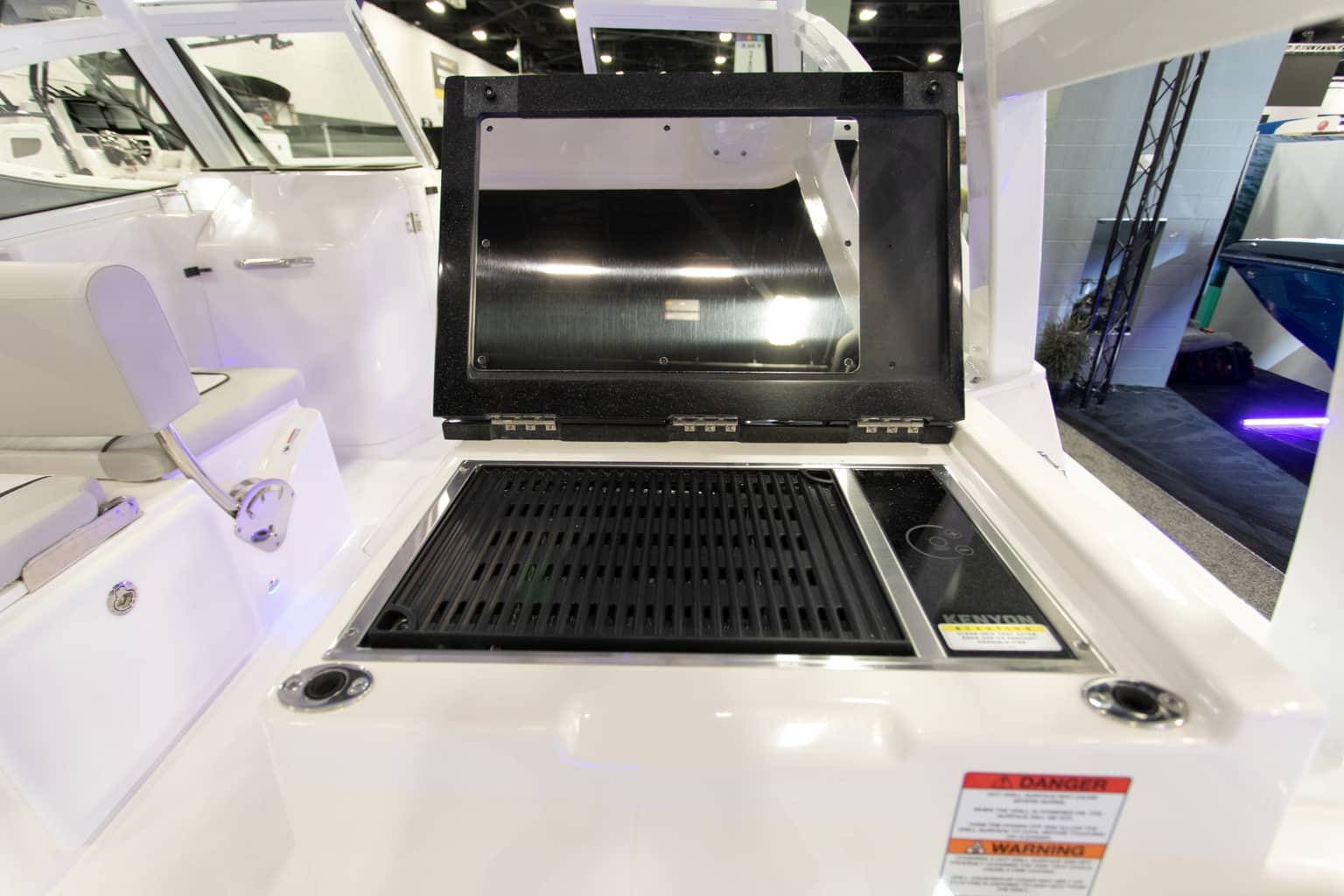

- Removeable cooktop - electric with inverter at galley
- Trim tab - upgraded LED indicator switch

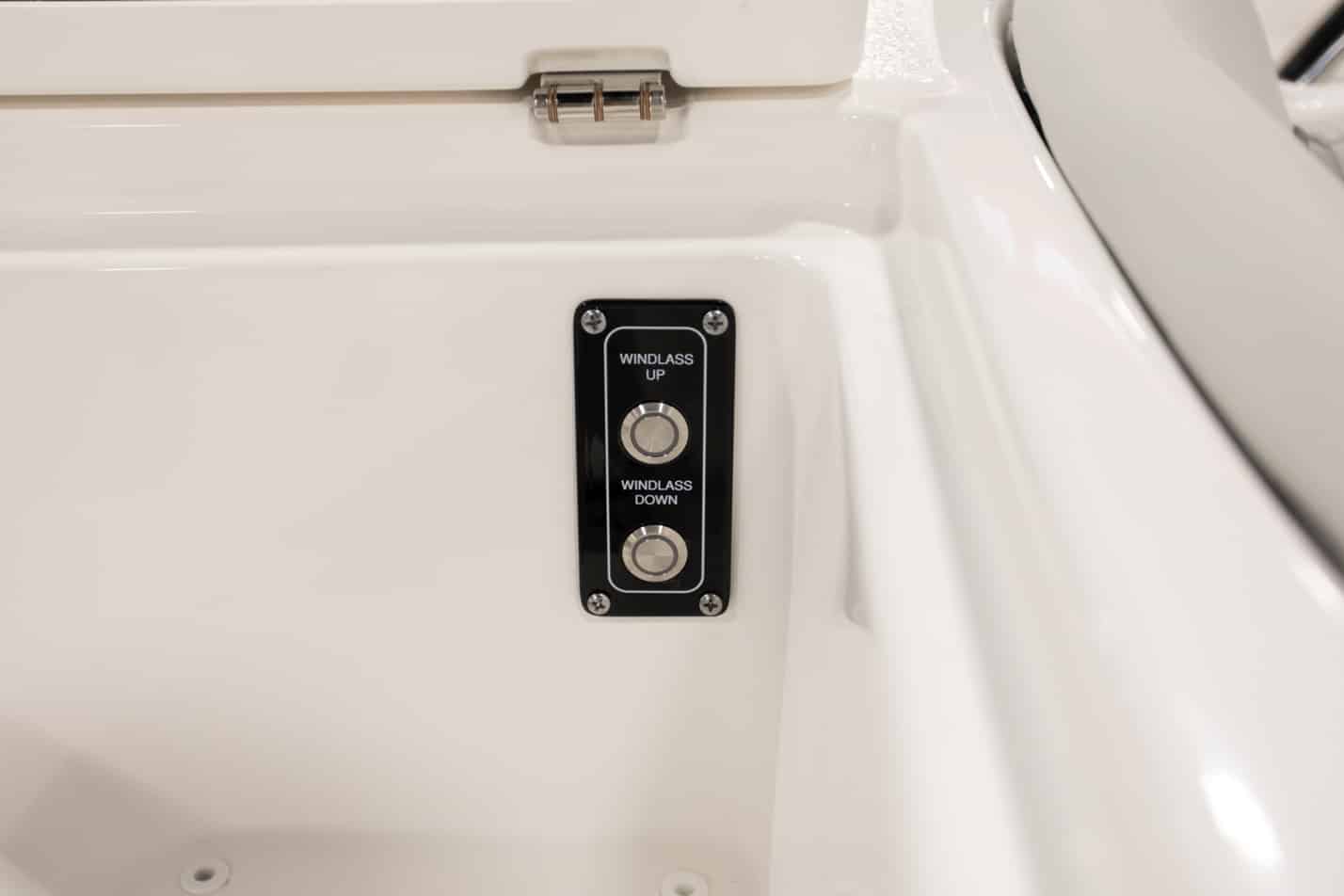

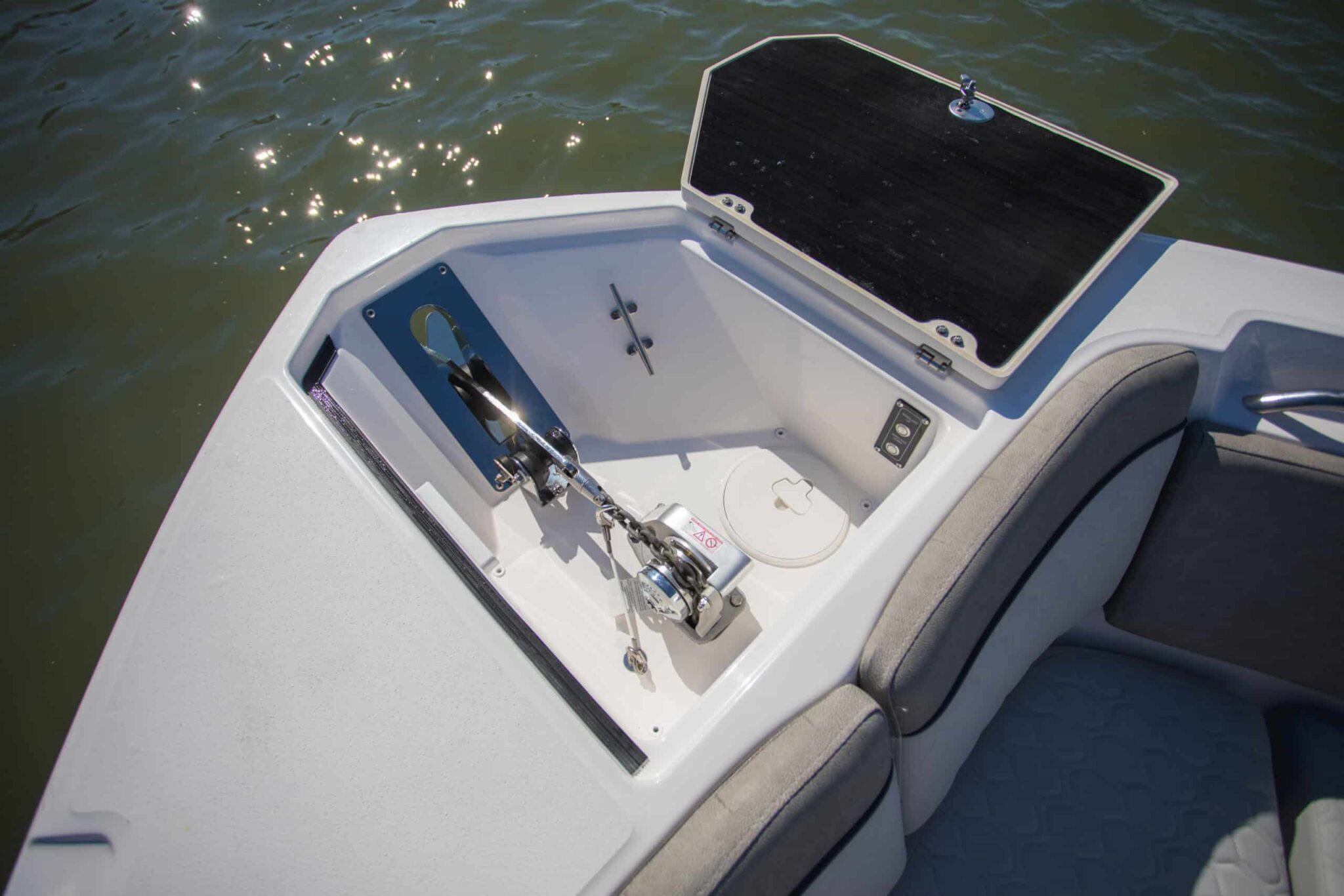

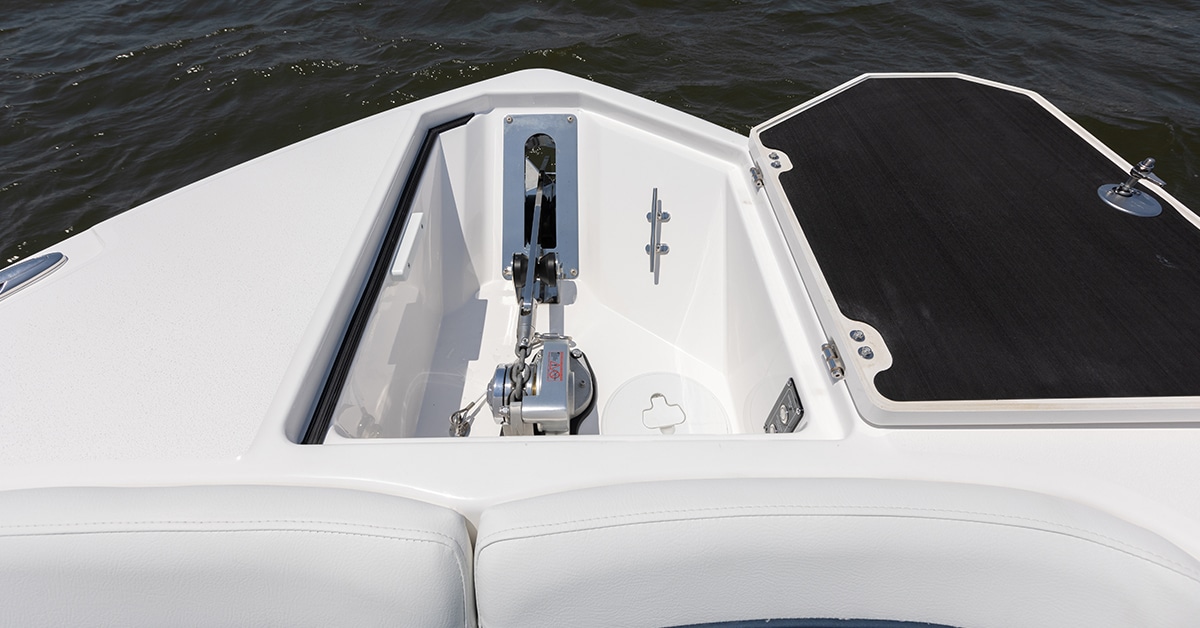

- Anchor - windlass system with controls at helm & bow switch & rode kit (15 ft of chain & 200 ft of rope)
- Prewire for windlass anchor system
- GemLux outrigger bases and telescopic carbon fiber poles
- Battery charger - three bank
- Transhield fitted boat cover
- Waste discharge - overboard electric
- Steering - power assist
- Removable ladder with storage for dive door
