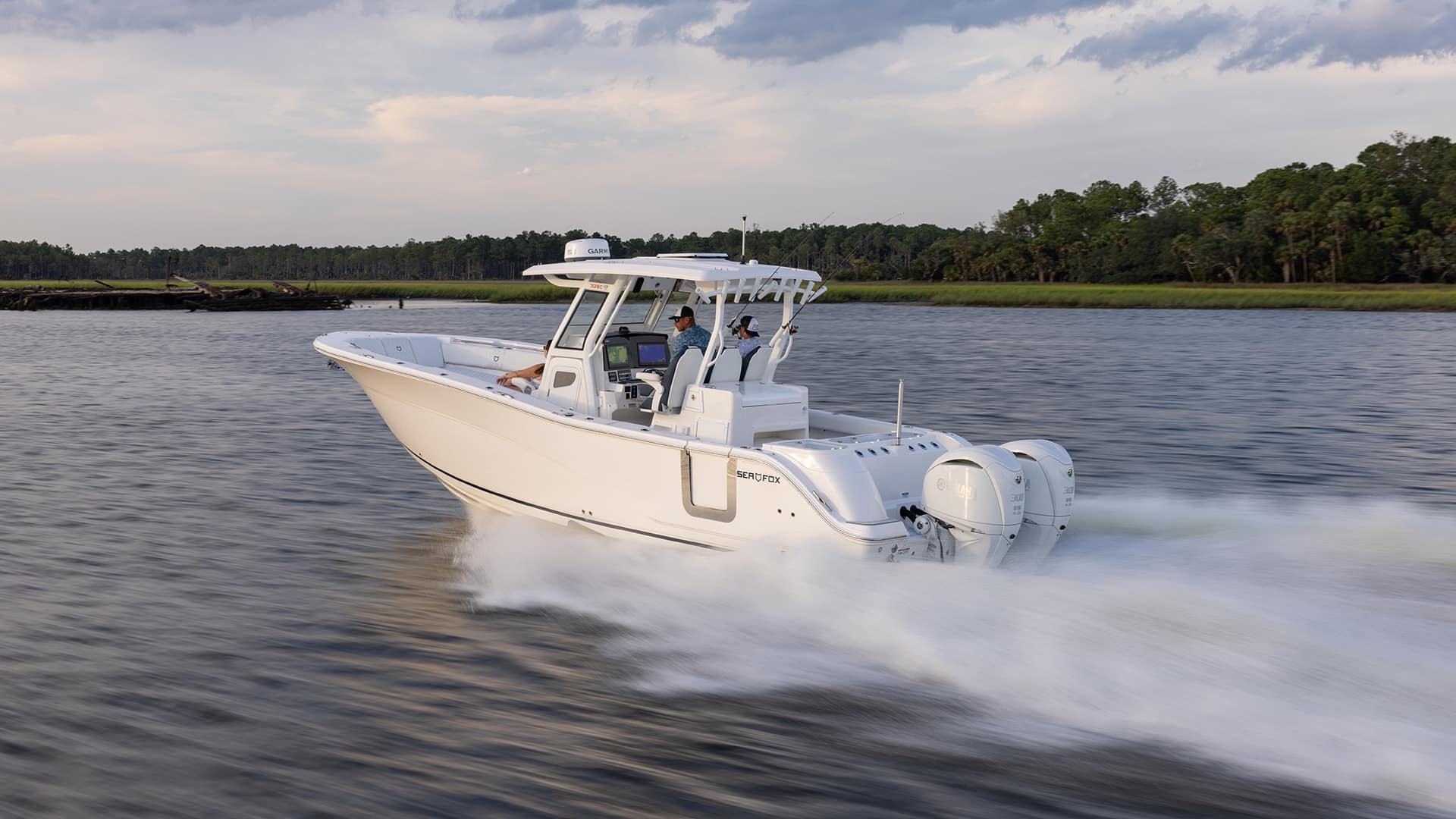

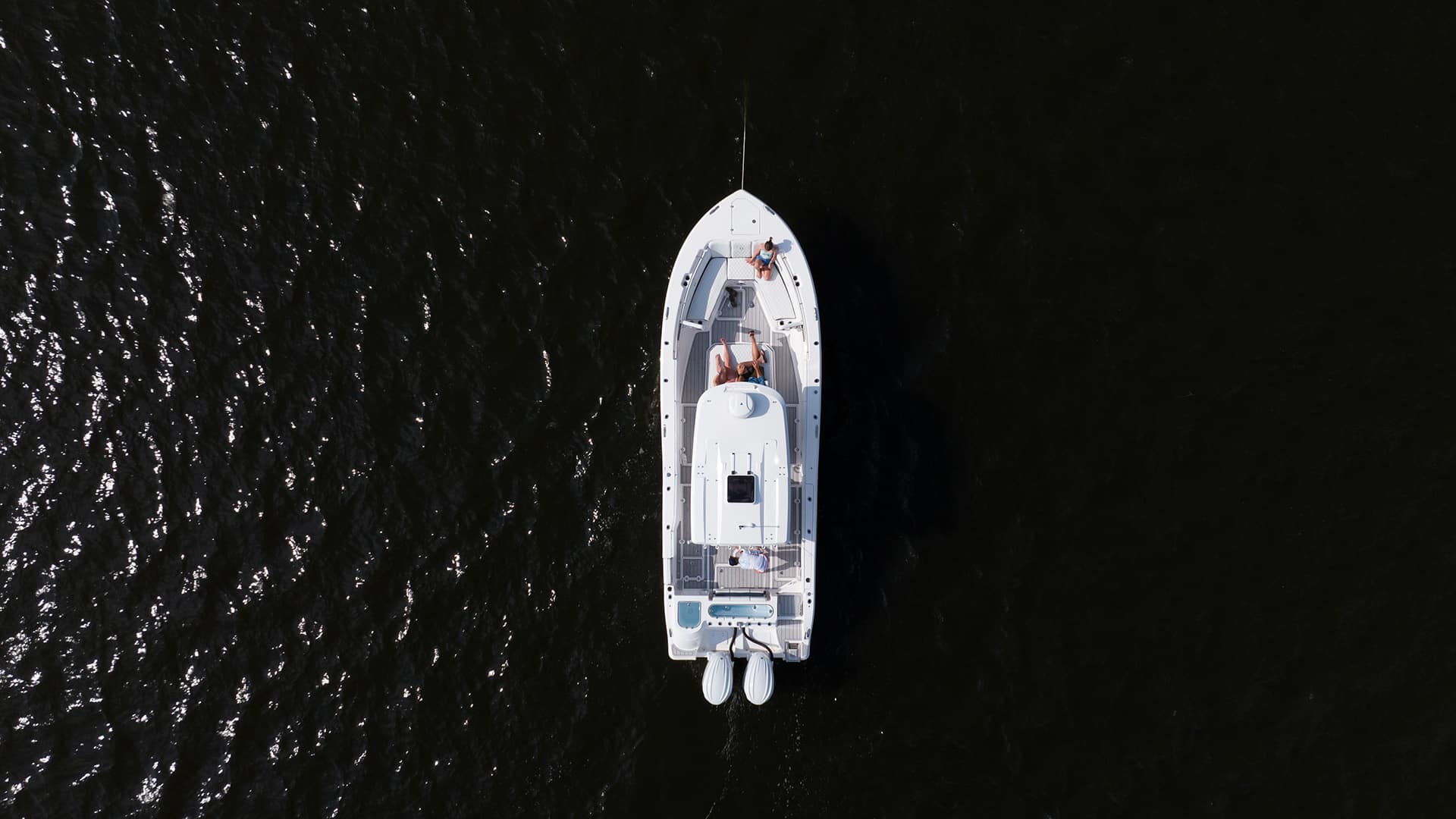

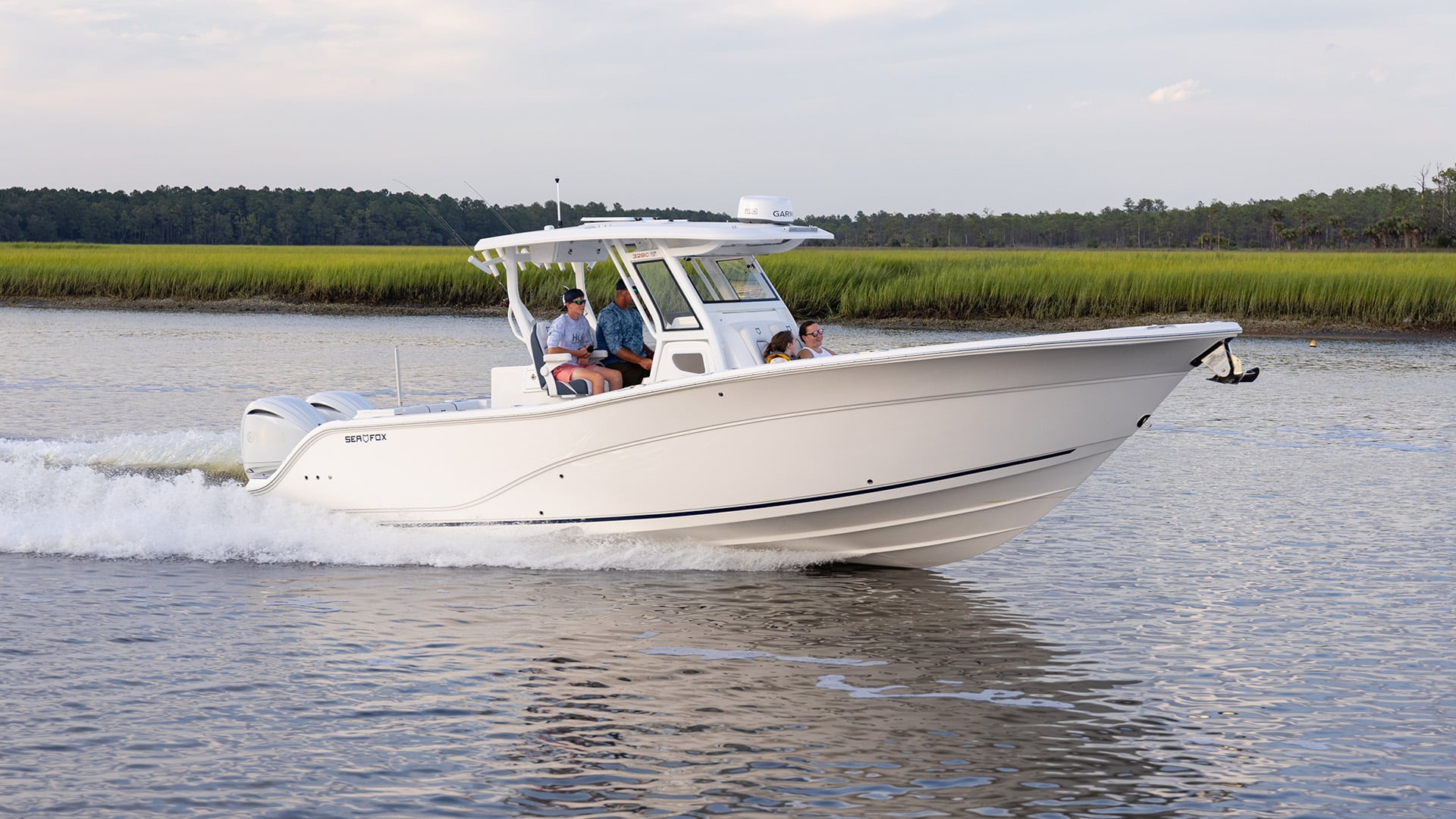

328 COMMANDER
Dimensions
Centerline Length :
32’
Beam :
10’ 8”
Bridge Clearance :
115"
Deadrise :
22.5 degrees
Draft (hull) :
24"
Transom:
35"
Weight
Dry Weight :
8,975 lb
Maximum Weight :
14,001 lb
Capacity
Fuel Capacity :
311 gal
Persons Capacity :
Yacht Certified
Total Capacity :
Yacht Certified
Engines
Maximum Horsepower :
850 hp
Gallery
COLOR CHOICES
Pearl White
Marsh Green
Bahama Blue
Arctic Blue
Channel Blue
Silver Shark
Bull Shark
Jetty Grey
328 COMMANDER Standard Features
Bow:
- Stainless steel bow eye with chafe plate
- Windlass anchoring system with controls at helm & bow
- Anchor & rode kit: 22 pound anchor, 15 feet of chair and 200 feet of rope
- Bow compartment with anchor roller chute, chafe plate, safety strap, rope storage and access
- Rub rail mounted LED navigation lights
- Curved bow backrest cushions (aft-facing) with removeable bottom cushions
- Full cockpit coaming pads with integrated fold out (forward-facing) bow backrests
- Underseat storage-cooler-fishbox
- Stainless steel recessed grab rail at bow
- In-floor storage with 5-gallon bucket
- Forward console lounger (52") with folding armrests
- Dry storage under console lounger
- Stainless steel table mounts (2)
- Removable table with leg
Helm:
- Electronic power steering with available upgrades in motor packages
- For Yamaha digital motors (XC twin application):
- Multifunction instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions
- Display may vary with availability
- For Mercury digital motors:
- SmartCraft instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions
- Fusion stereo head unit with USB adapter
- JL Audio custom sound system: two amplifiers, two 10-inch subwoofers, and six 7-inch speakers featuring sport grilles
- Lighted speakers
- Windscreen
- Top mount compass on console
- Console dash shroud
- Black acrylic console display
- Garmin 8616XSV twin touchscreens
- Tilt helm with stainless steel steering wheel and turning knob
- Trim tab indicator switch with LED display
- Battery switch push button remote controlled at helm
- Lockable console door with bottle opener and magnetic cap catch
- Two-level console footrest
- 12-volt power point
- Console courtesy lights
- Fogged glass console windows (portlights)
- Electric ceramic toilet with 12 gallon holding tank and macerated overboard discharge
- Two-part fiberglass console with Class A finish on inner liner and easy access hatches for service

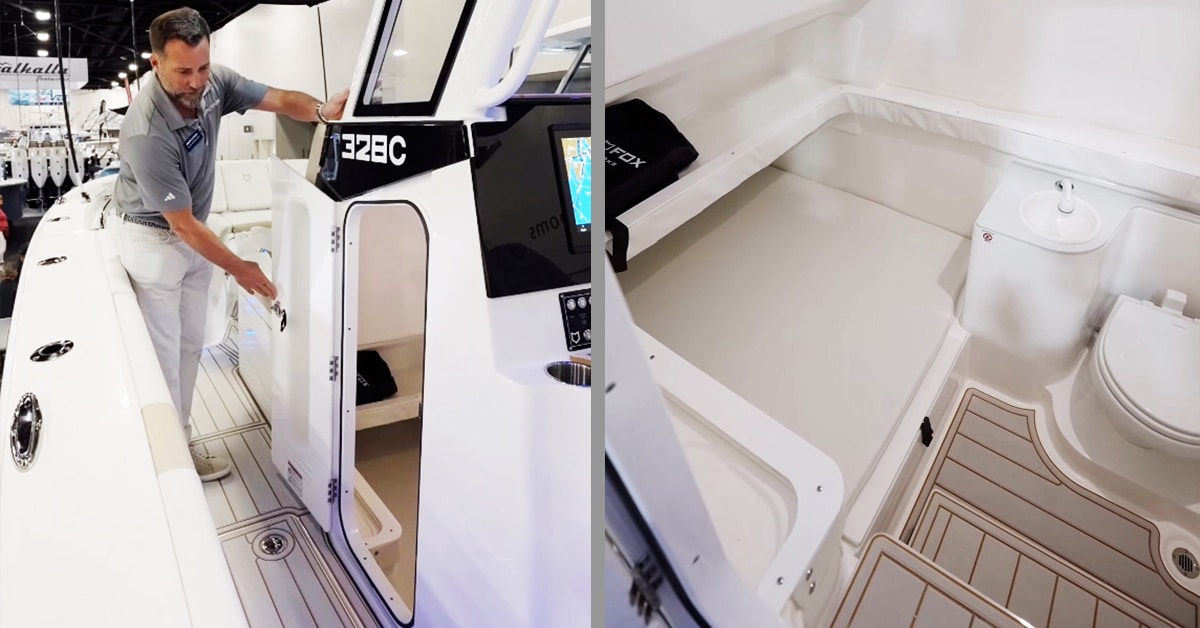

- Forward sleeping berth with storage
- Freshwater sink with shower wand and hard surface countertop accents
- Marine grade soft mat decking and console accents
Ultima hard top:
- White powder coat frame (black and grey powder coating also available)
- D-tube frame and rear support
- LED lightbar (20")
- Two LED spreader lights

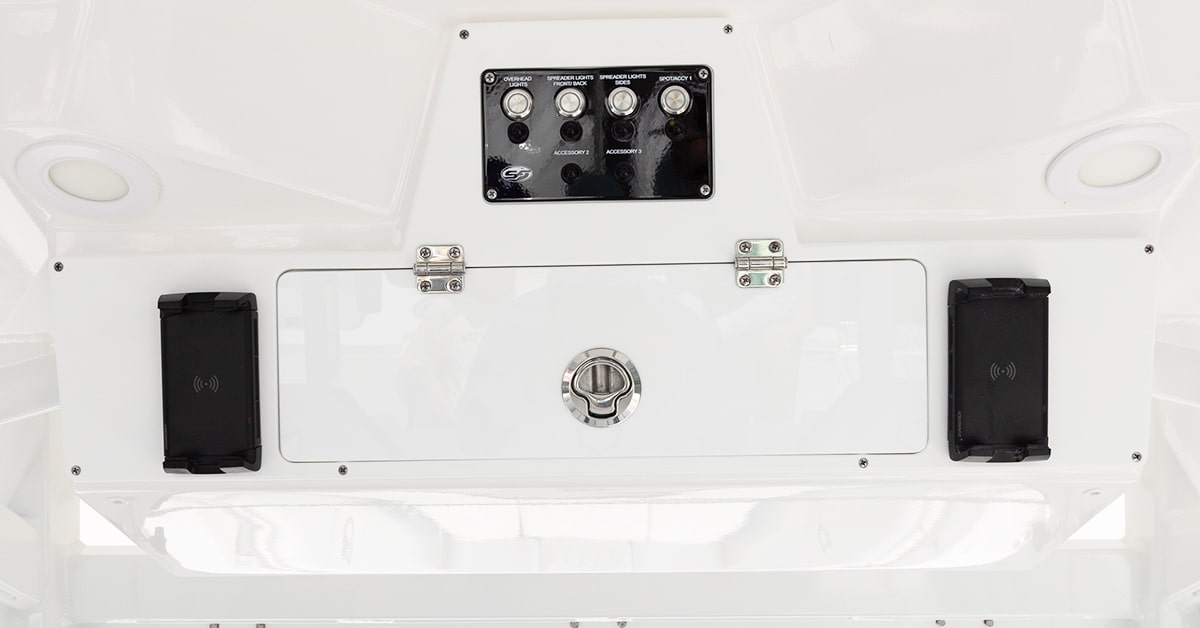

- Illuminated switch panel
- Two molded-in storage boxes
- Safety storage bow forward
- Moonroof with slide open glass
- Horn
- Two LED overhead lights (red, white, & blue power cycle)
- All around folding navigation-anchor light
- Rod holders (13)
- Rear Supports
- Reinforced mounting pad for radar and antenna installation
Cockpit:

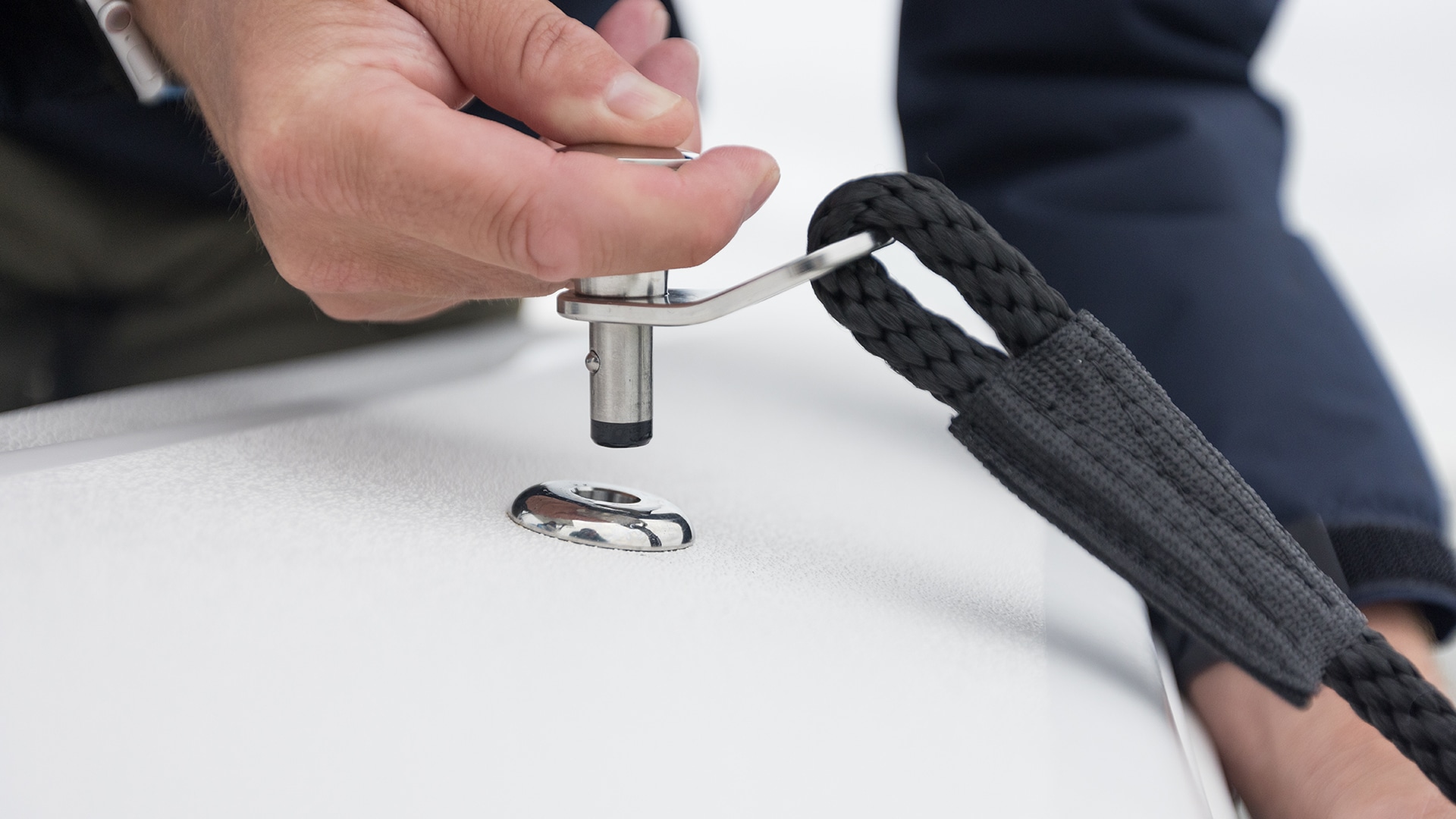

- Quick release fender mounts (pins included)
- Freshwater washdown outlet located on seating pod (26-gallon freshwater tank)
- Raw water washdown outlet located on seating pod
- Sand-grip deck surface
- Insulated in floor fishboxes (82-gallon port, 107-gallon starboard) with overboard discharge pumps
- Insulated in floor mid-ship rod storage boxes
- Stainless steel compression latches
- Gas shocks on all lids (except anchor locker & bucket storage)

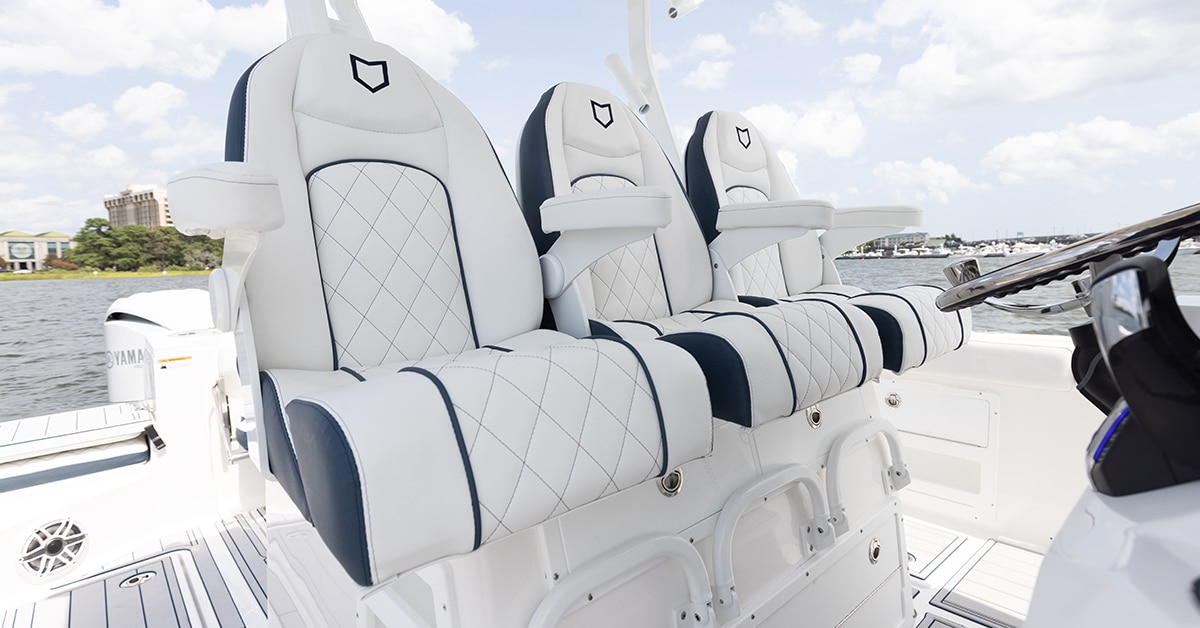

- Fiberglass helm seating pod with three deluxe bucket chairs, adjustable armrests, adjustable footrests, rigging station and cooler storage
- 65-Quart premium cooler with stainless steel strapdown hardware, mechanical slide tray and kick latch
- Pod Storage: Tackle tray storage center, forward drawer, chart tubes, water hose coil fiddles
- Pod double sink with freshwater shower faucet/wand, cutting board, bait storage tray, and hard surface accents
- Under gunwale recessed rod storage on starboard with stainless toe-rail
- Stainless steel closeout rings for rod holders

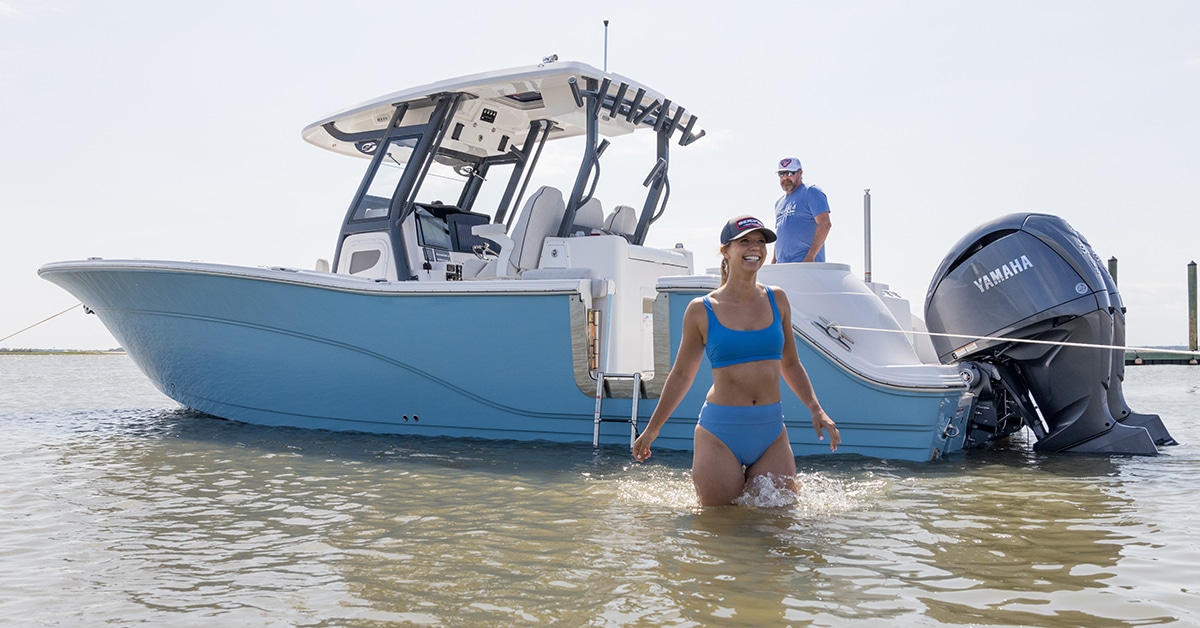

- Port side dock - dive - fish door with stainless steel frame and latch
- Port wall storage compartment
- Cup holders (14)
- Stainless steel rod holders (21)

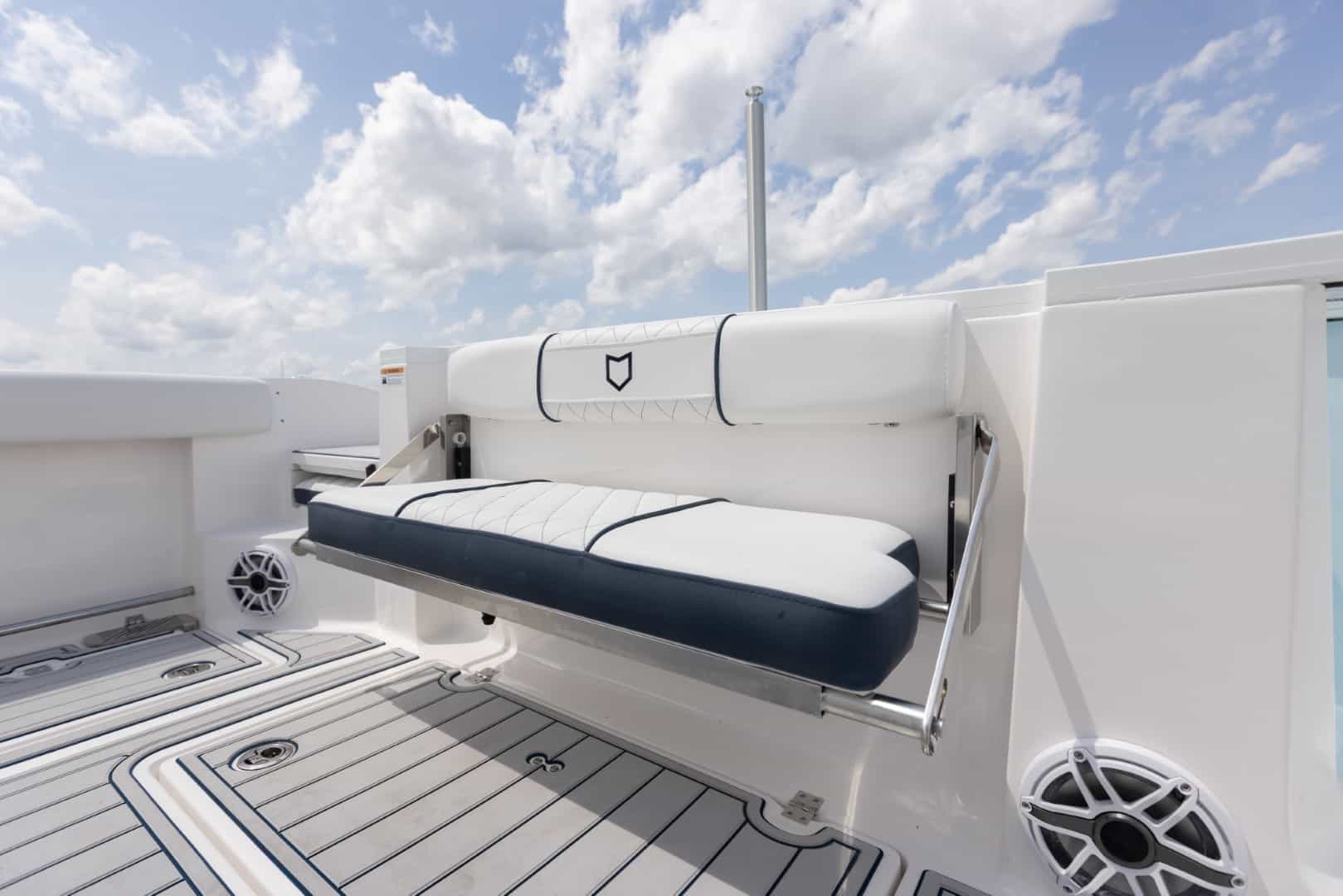

- Stainless steel aft folding bench seat with backrest
- Self bailing cockpit with stainless steel grate
- Aquarium style pressurized livewell with window (35 gallons, 1100 GPH aerator)
- Center pressurized livewell (55 gallons, 1100 GPH aerator)
- Livewell light
- Easy access floor pump house for quick serviceability
- Marine fuel/water separating filters with direct access
- Pre-rigging for four batteries with easy access through seating pod
- Factory prep - outfitted w/2 starting batteries, 2 deep cycle batteries, optional air conditioning batteries, motor oil & 50-gallons of gas
Transom:
- Aft jump seat with below deck bucket storage – folds down for an easy access walkthrough transom
- Stainless steel transom savers
- Stainless steel rear boarding telescopic ladder with integrated boarding handle
- Marine grade soft mat deck accents
- Stainless steel through bolted grab rail
- Recessed electric trim tabs with integrated hull design
- Stainless steel lifting points on port and starboard transom
Bilge:
- 1500 GPH bilge pumps (primary and back up)
- Electronic automatic float switch
- Mechanical float switch
- Thru-hull transducers (B175L CHIRP & B175H CHIRP)
Other great features:
- Quilted salt marine grade upholstery: antimicrobial vinyl, foam, and white diamond stitching
- Transhield fitted boat transport cover
- Composite hull & deck
- Isothalic gelcoat
- Vinyl ester barrier coat
- Stainless steel rub rail
- Stainless steel fasteners
- Stainless steel through hulls
- Stainless steel 10" pull-up cleats (8)
- Silver boot stripe available on white and full hull gelcoat options
- Limited Lifetime Hull Warranty
Note: Due to Sea Fox's continuous innovation and improvements, standard features and options can change without notice.
Bridge clearance: based on factory installed Ultima hard top. Doesn’t factor in optional outriggers.
Dry weight is approximate & includes: boat plus factory options, but NO motor(s), water, fuel, owner's gear or batteries.
Maximum weight is approximate & includes: boat plus factory options, 4 batteries, but NO motor(s), water, fuel or owner’s gear
Fuel capacity can vary due to US EPA Evaporative Standard requirements
Sea Fox Boat Co., Inc. meets US EPA Evaporative Standards using Certified Components
328 COMMANDER Optional Features
Power
- Twin Yamaha F300NSB2
- White motors
- top mount digital controls
- CL5 multifunction gauge
- Yamaha digital electric steering (DES)
- Twin Mercury 400 V10 6.4ES (White)
- White motors
- top mount digital controls
- Smartcraft multifunction gauge
- electric assist JPO Steering
- joystick, & autopilot
- Twin Yamaha XF450NSA XTO
- Steering: Yamaha Helmmaster EX FM
- Painted motor
- white or black
- metallic silver decals
Gelcoat Accent
- Stripe
- Sides
- Full Hull
- white pearl
- marsh green
- bahama blue
- artic blue
- channel blue
- silver shark
- bull shark
- jetty grey
Top
- Ultima Hard Top Underside Paint
- Bahama Blue
- Arctic Blue
- Silver Shark Gray
- Full glass enclosure for ultima hardtop
Aluminum Accent
- Powder Coating
- top & leaning post footrest, and rear supports
- White
- Light Grey
- Jetty Grey
- Black
- top & leaning post footrest, and rear supports
Upholstery Accent
- Standard Single Diamond Stitch
- Light Grey
- Navy
- Upgrade Double Diamond Stitch
- Light Grey
- Light Grey Double Diamond Stitch Orange Logo
- Navy
- Navy Double Diamond Stitch Orange Logo
Electronics
- Four Bank Battery Charger
- Air Conditioning Unit
- 3.5 kW with inverter/charger
- two 6-volt batteries
- Helmmaster FM Joystick & Auto Pilot Upgrade
- Garmin GMR 18 xHD 8-bit True Color High Resolution Radar
Other
- Transhield Fitted Boat Cover
- Removable Ski Tow Bar
- Removable ladder with storage for dive door
- Bow shade (Weathermax) with four carbon fiber support poles
- with four carbon fiber support poles
- Aft shade (Weathermax) with two carbon fiber support poles
- GemLux outrigger bases and telescopic carbon fiber poles
- DEKit marine mat flooring
