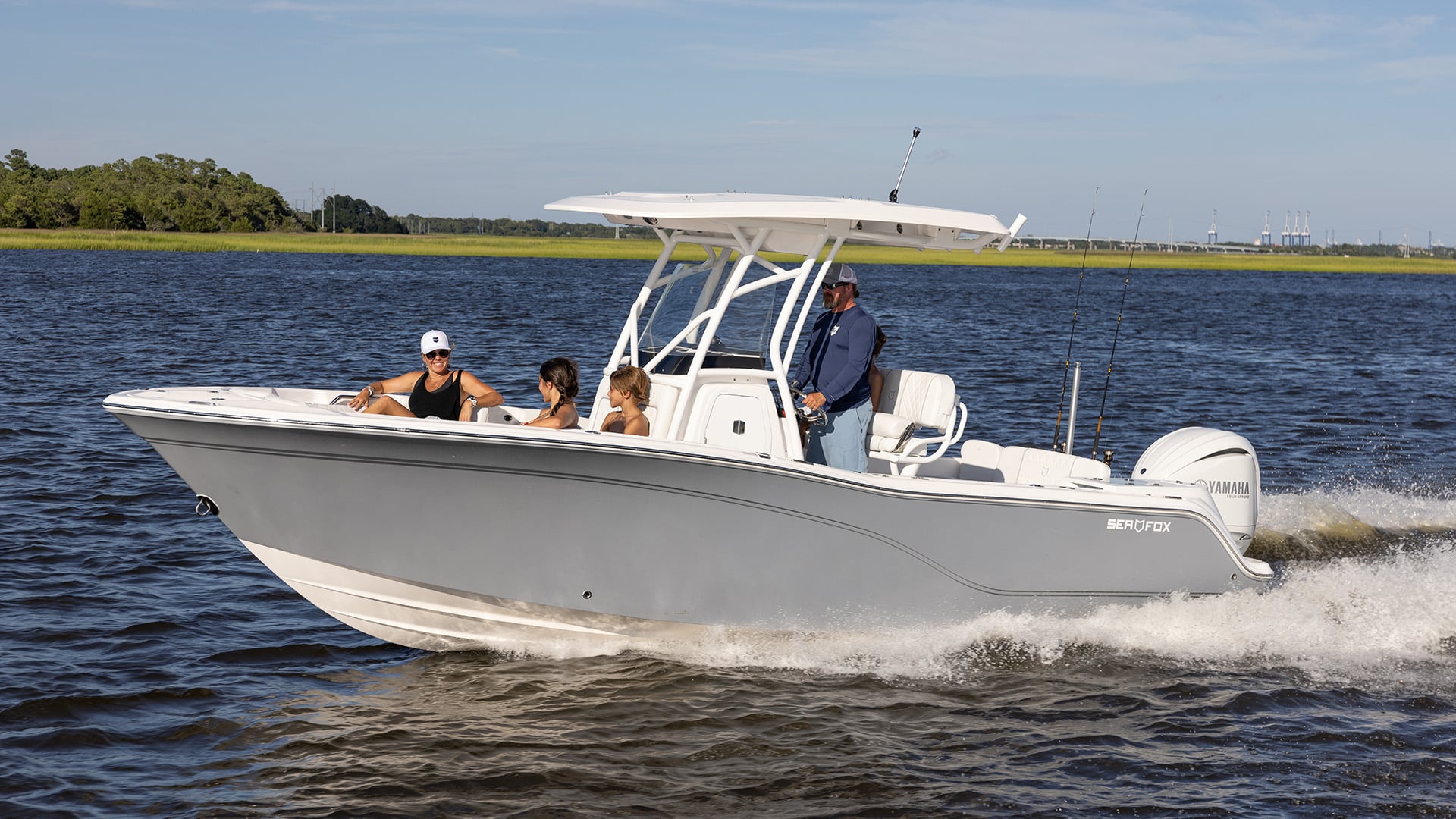

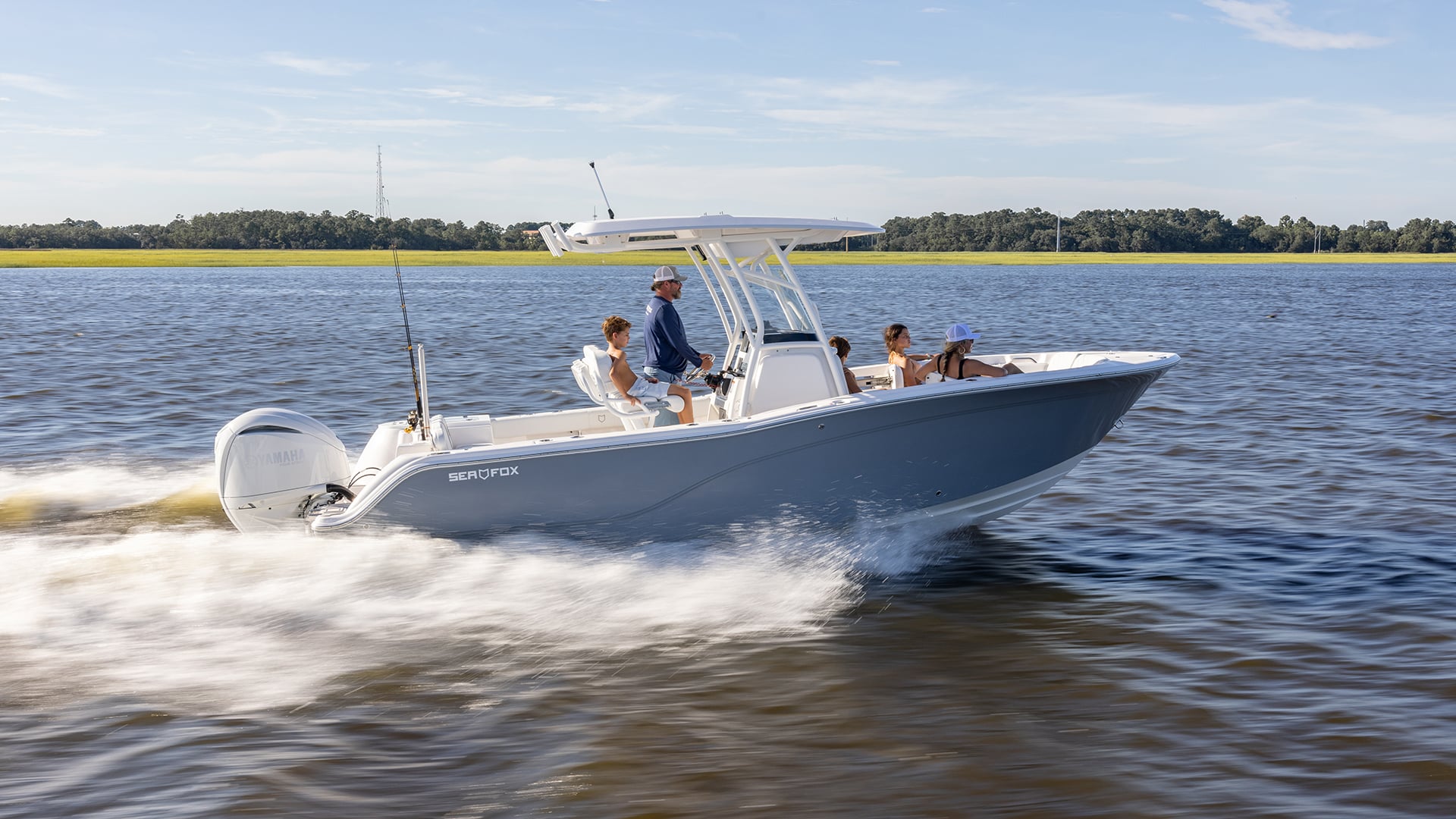

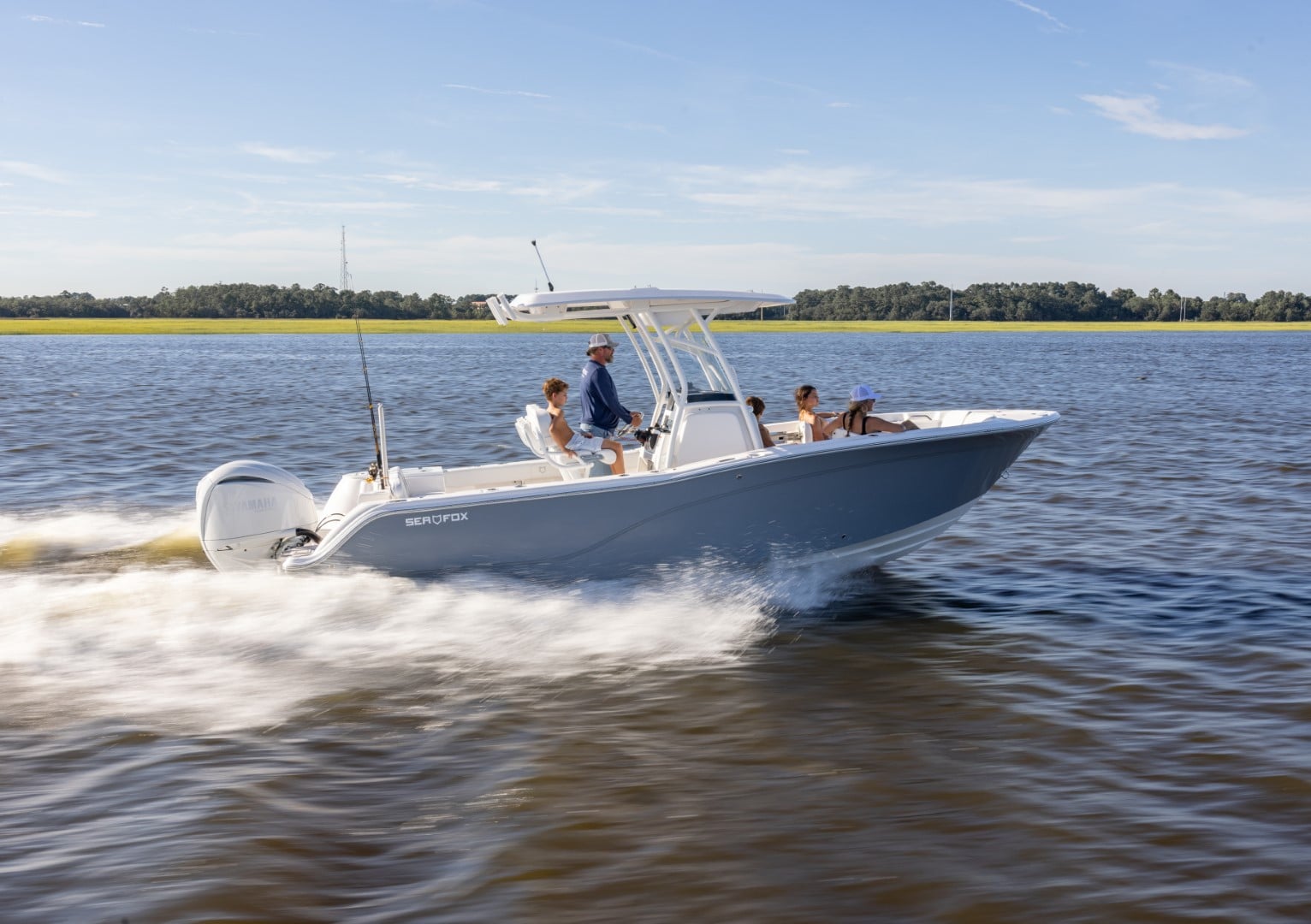

248 Commander

About 248 COMMANDER

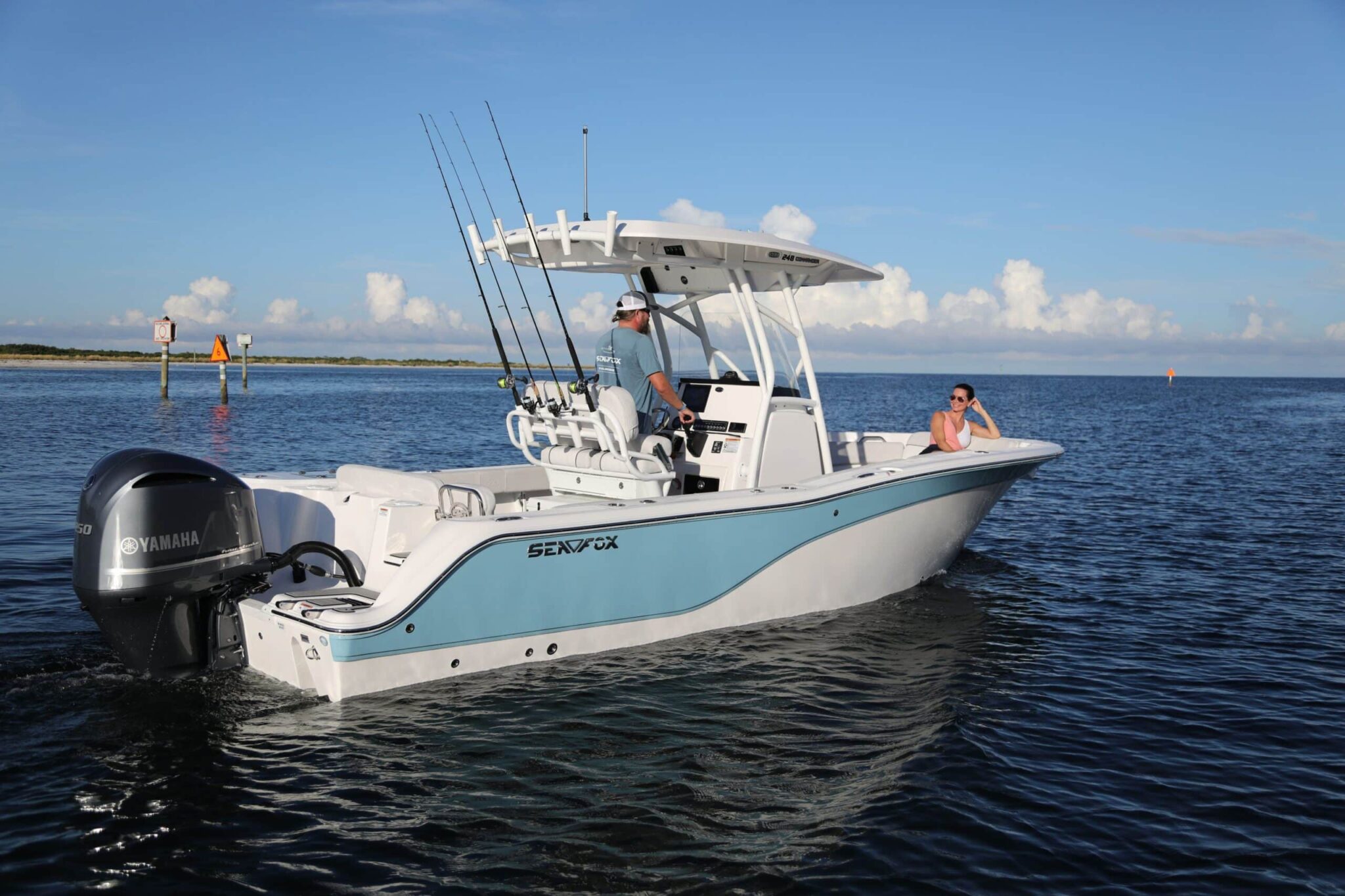

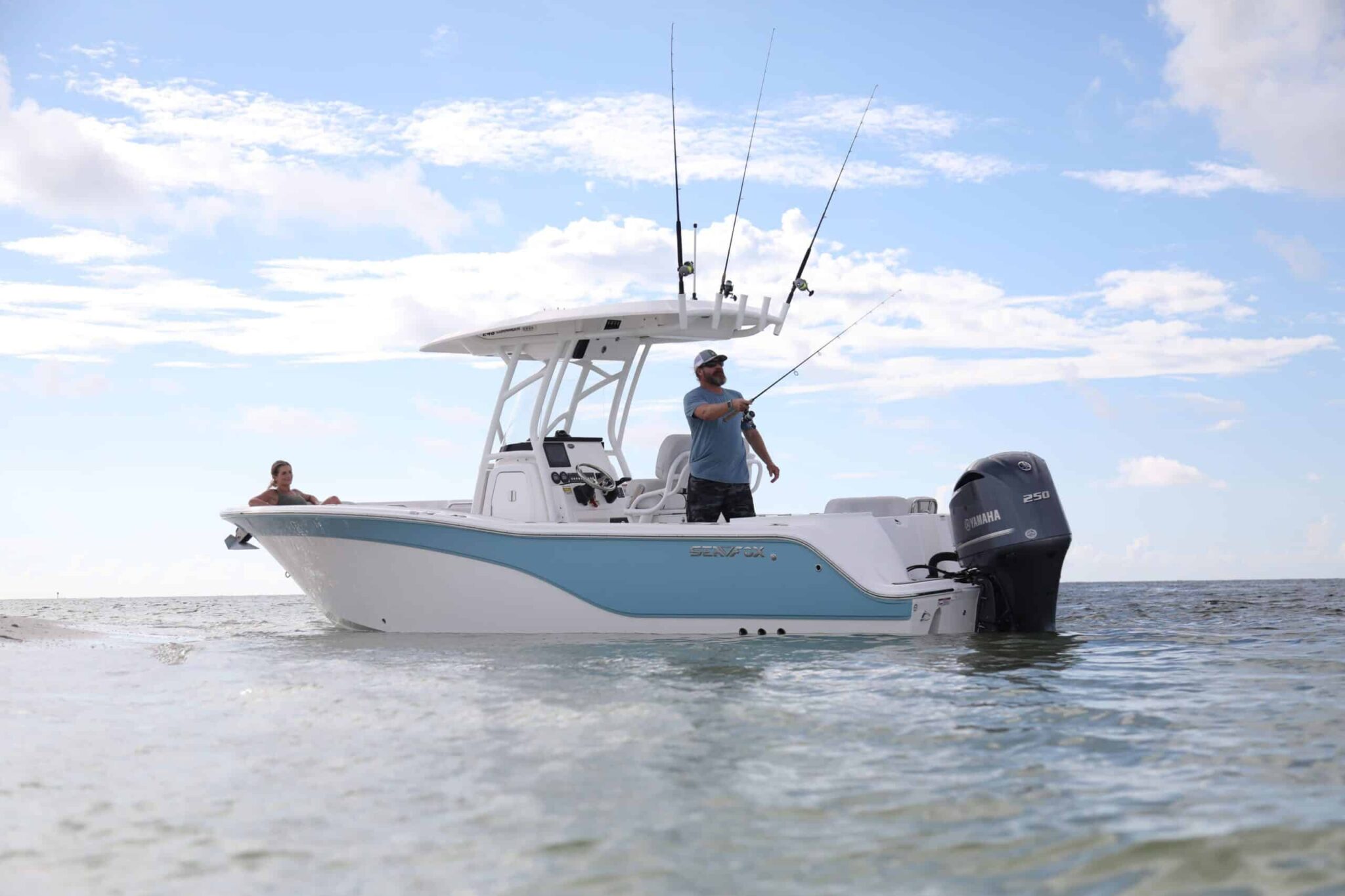

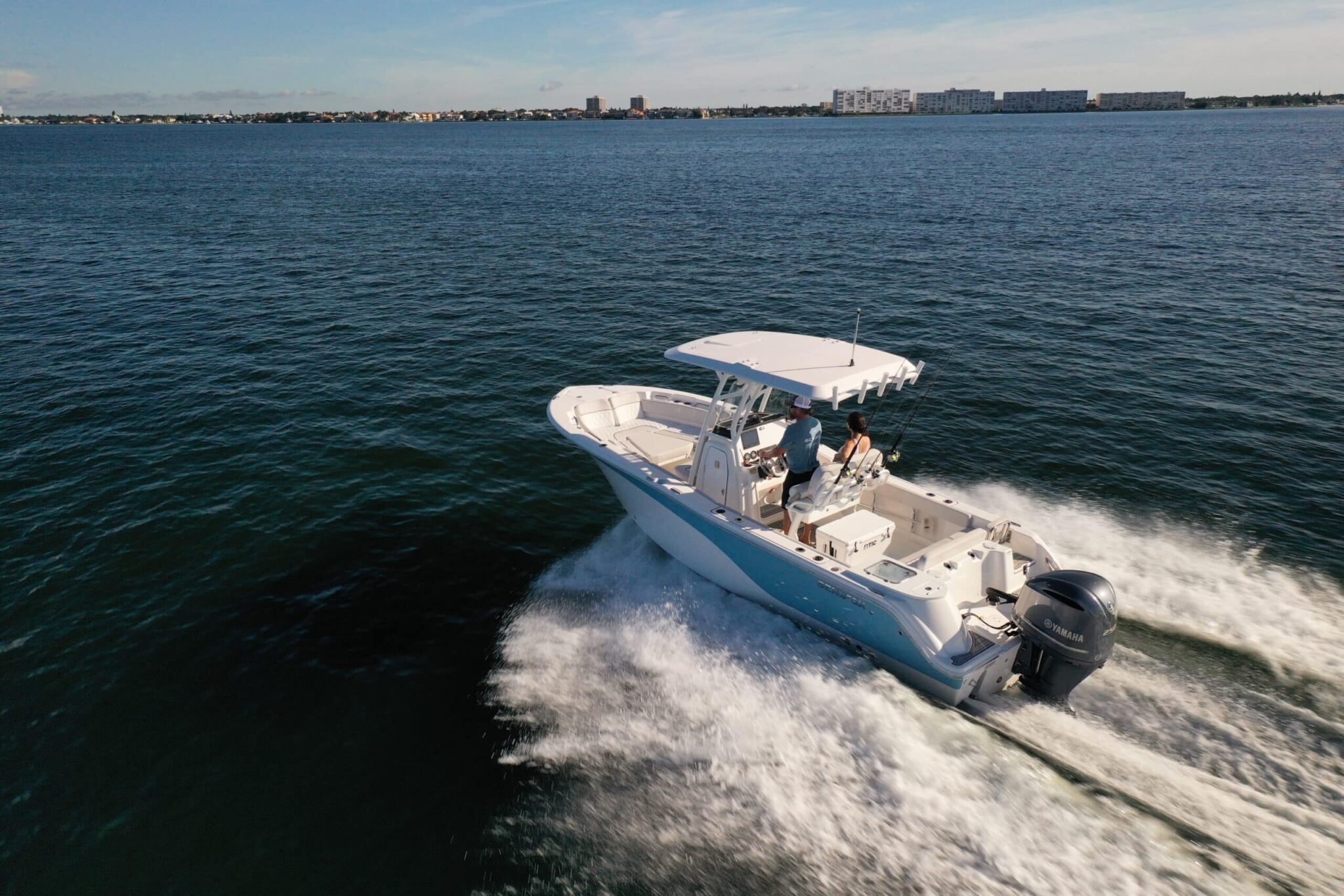

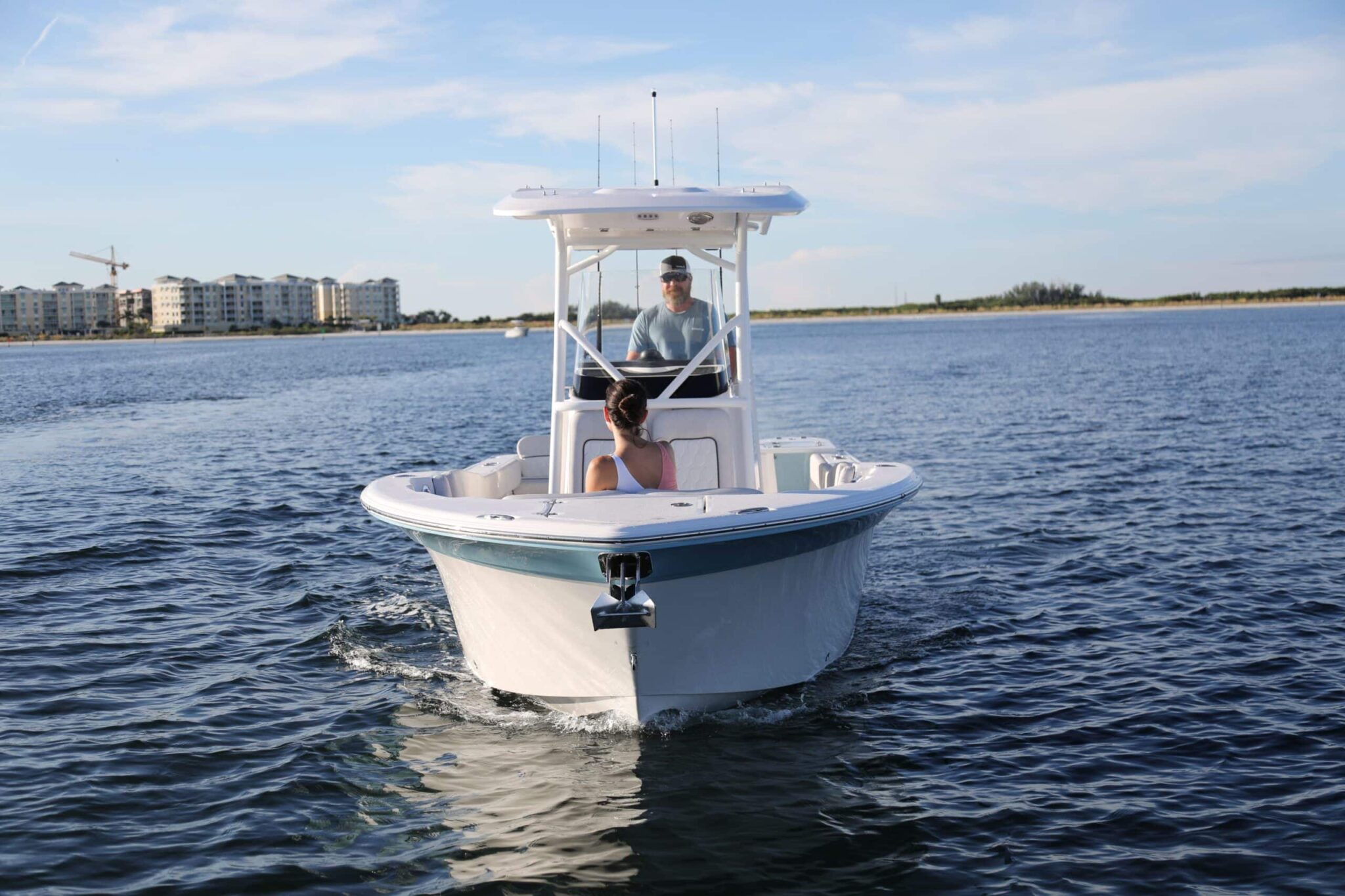

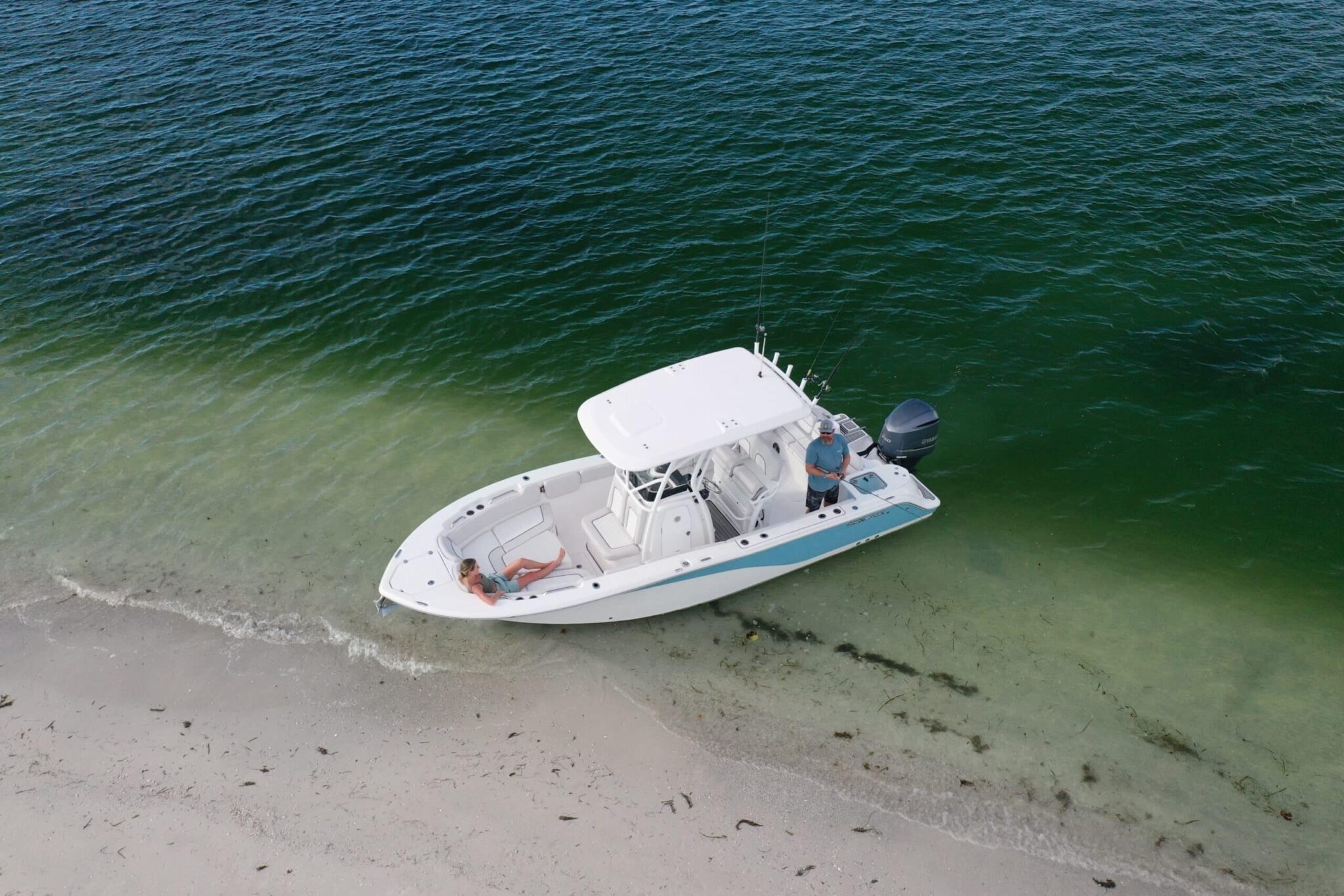

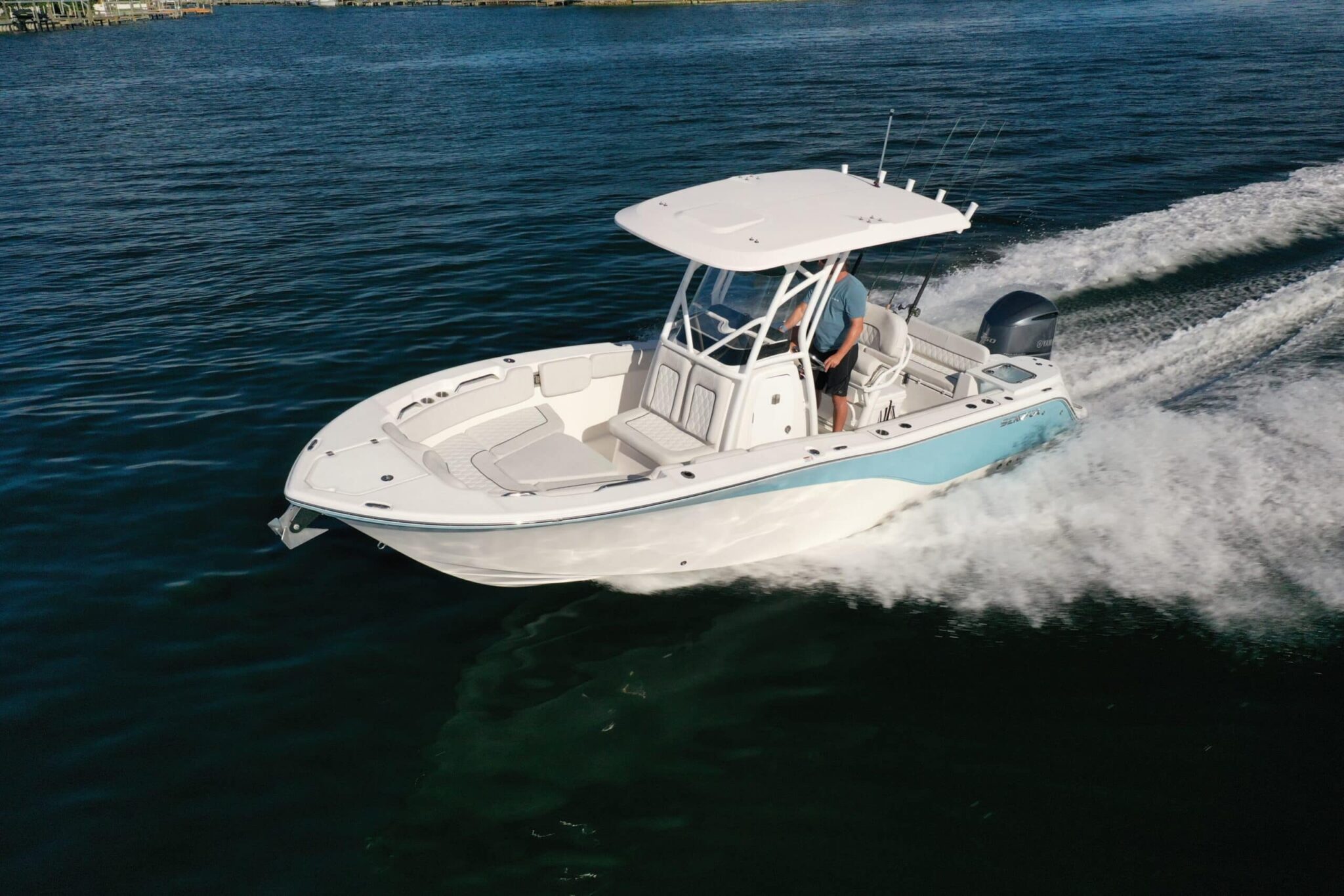

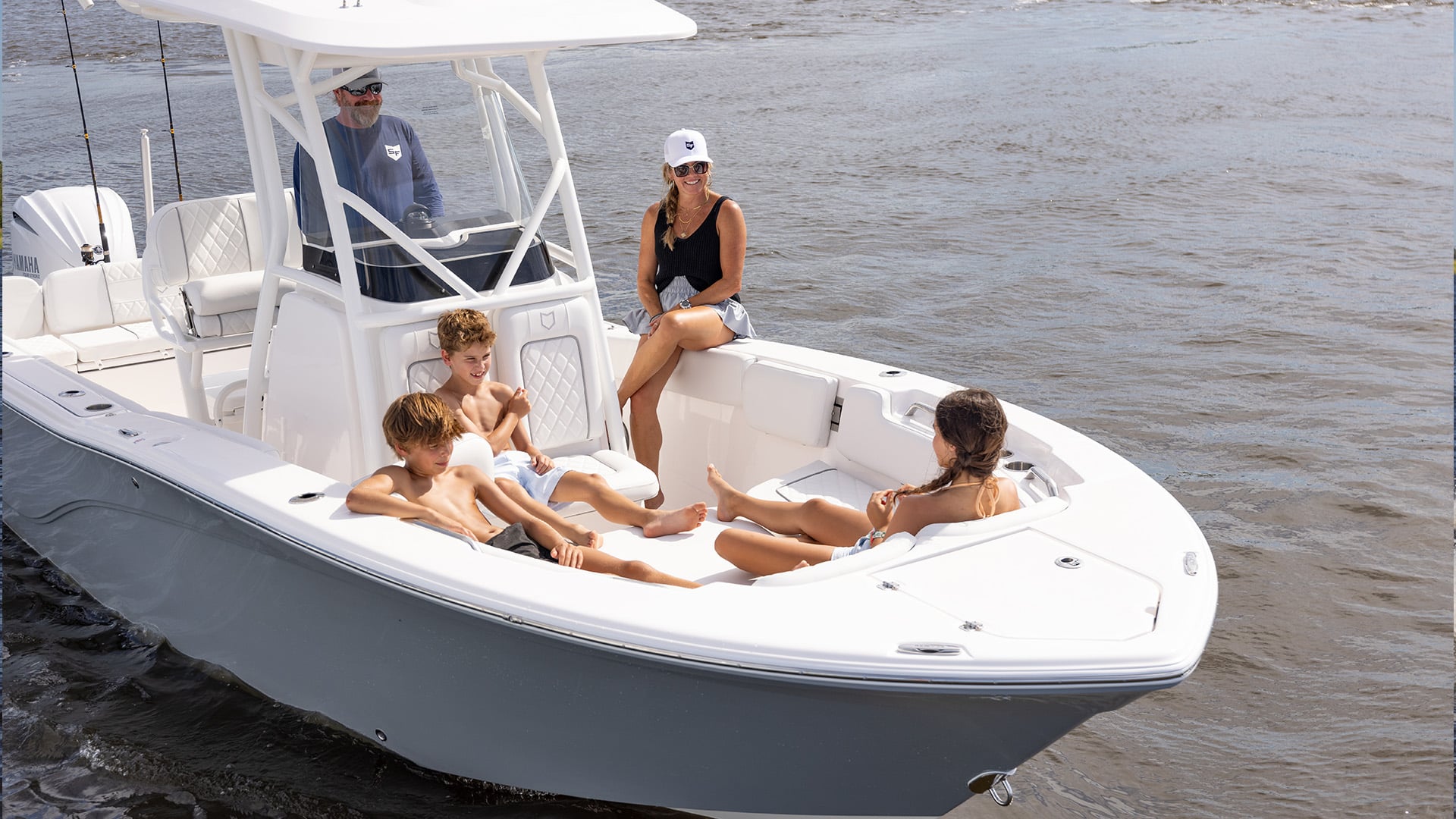

The Sea Fox 248 Commander boasts a redesigned layout and console that draws in many of the popular features found on our larger Commander models. New additions include our popular aquarium view livewell, flip-out bow backrests and new bow table design. The result is a refined, capable offshore platform with more than a touch of style.

Press

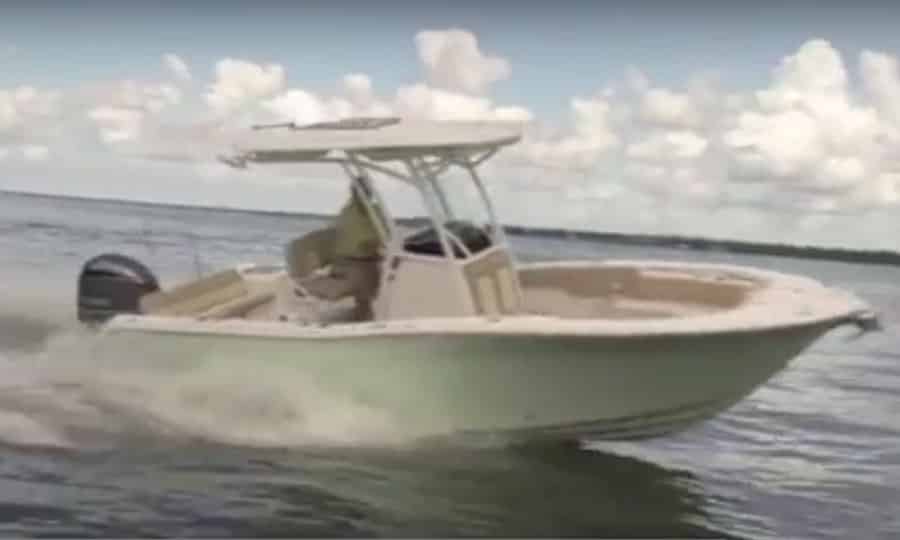

Sea-Fox-248-Commander-01
sport-logo

Sea Fox 248 Commander review by Sport Fishing Magazine

SPECS

    Fill the form below to download hi resolution image now!

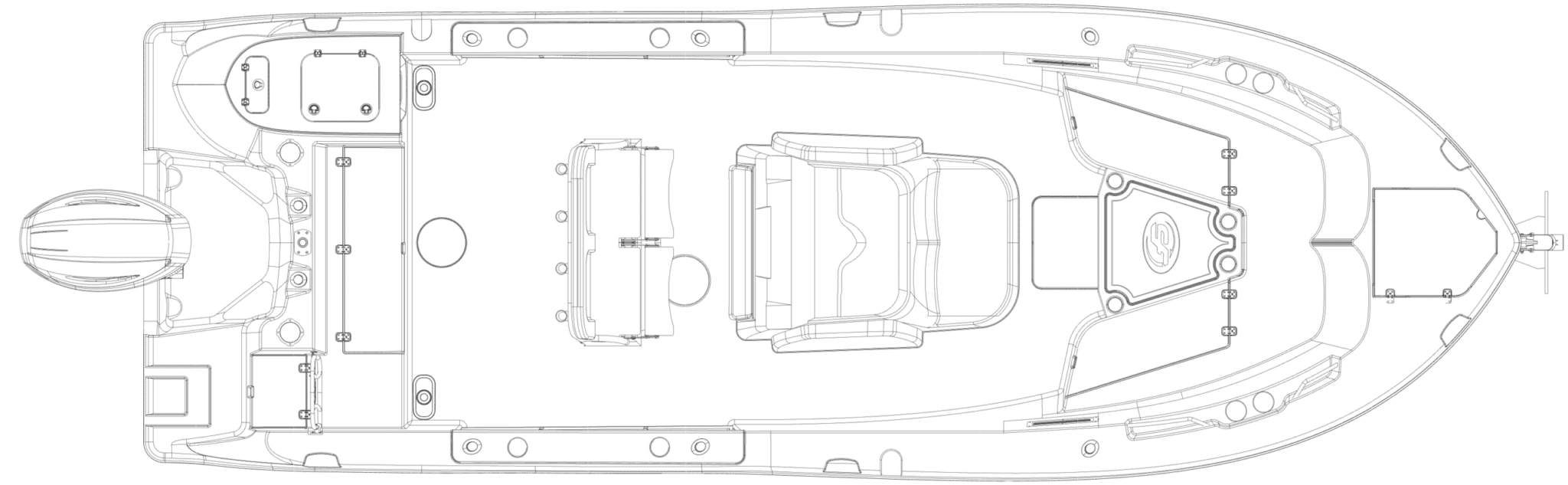

    248-plan-view-New

    Select Category

    Dimensions

    Centerline Length :
    24' 4"

    Beam :
    8' 6"

    Bridge Clearance :
    99"

    Deadrise :
    18 degrees

    Draft (hull) :
    14"

    Transom:
    25"

    Weight

    Dry Weight :
    3,400 lb

    Maximum Weight :
    5,260 lb

    Capacity

    Fuel Capacity :
    117 gal

    Persons Capacity :
    10 people

    Total Capacity :
    2,500 lb

    Engines

    Maximum Horsepower :
    300 hp

    Dimensions

    Centerline Length :
    24' 4"

    Beam :
    8' 6"

    Bridge Clearance :
    99"

    Deadrise :
    18 degrees

    Draft (hull) :
    14"

    Transom:
    25"

    Weight

    Dry Weight :
    3,400 lb

    Maximum Weight :
    5,260 lb

    Capacity

    Fuel Capacity :
    117 gal

    Persons Capacity :
    10 people

    Total Capacity :
    2,500 lb

    Engines

    Maximum Horsepower :
    300 hp

    Get your dream boat today!

    COLOR CHOICES

    Pearl White

    Silver Shark

    Bahama Blue

    Arctic Blue

    248 COMMANDER STANDARDS

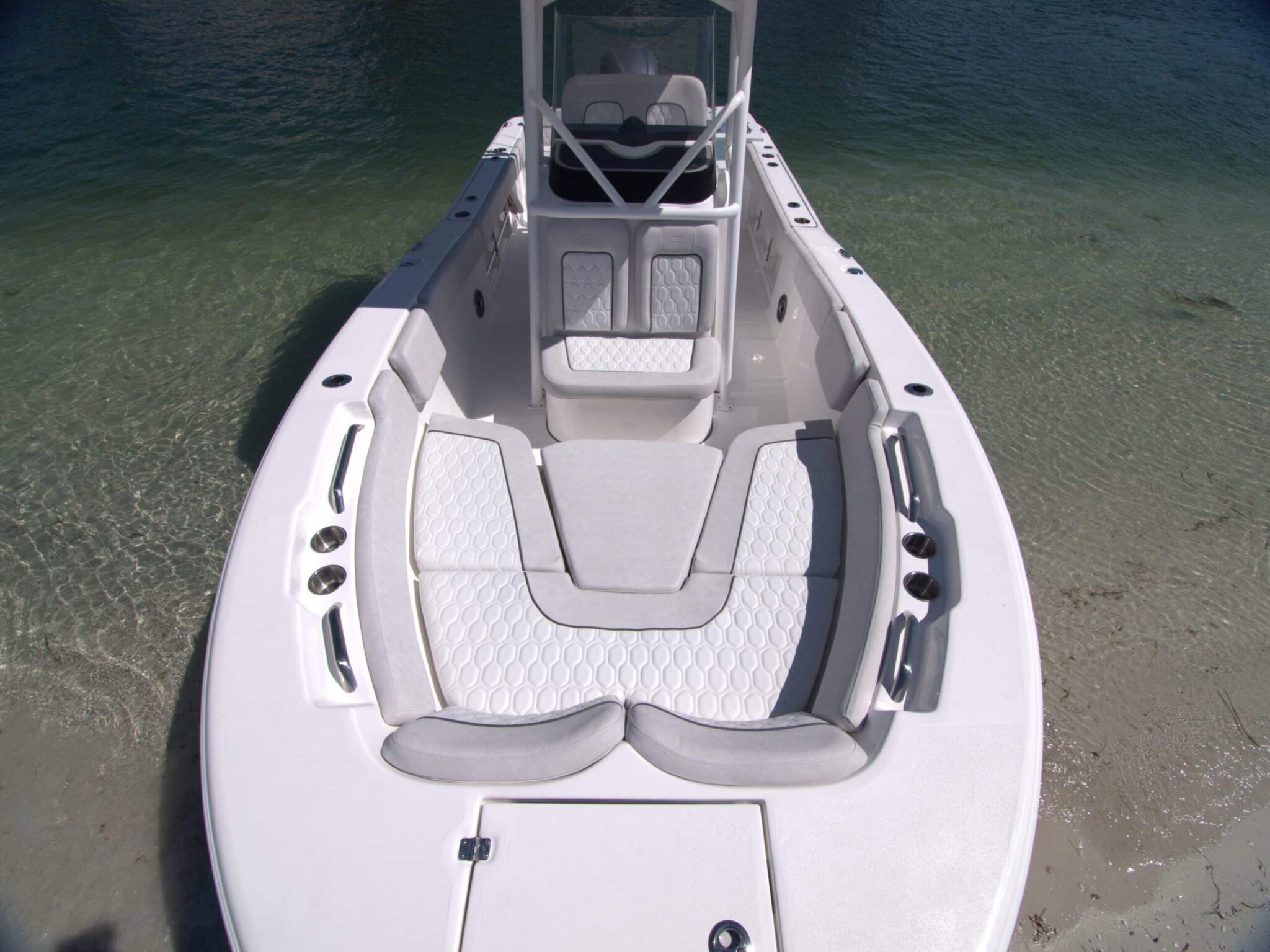

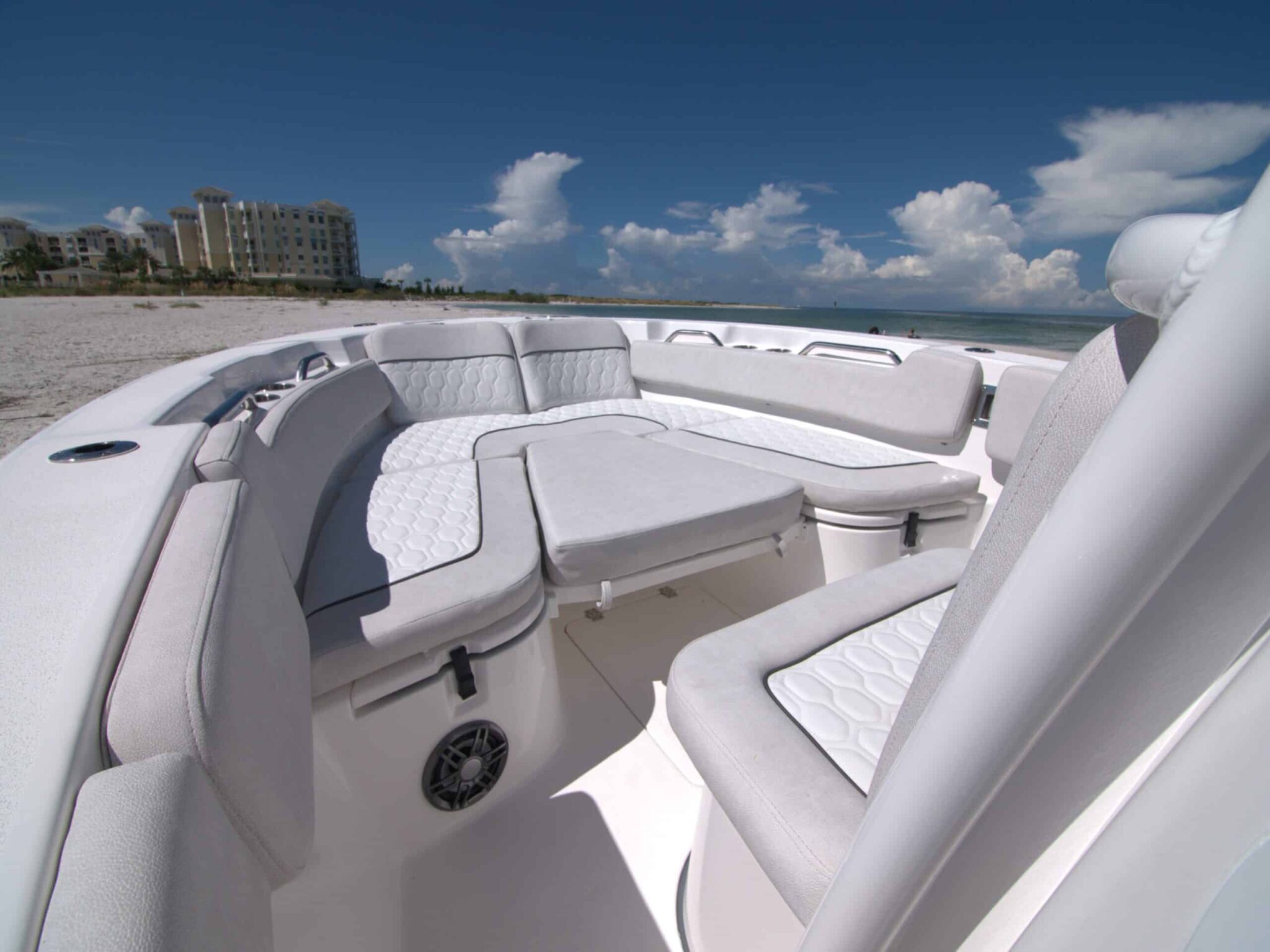

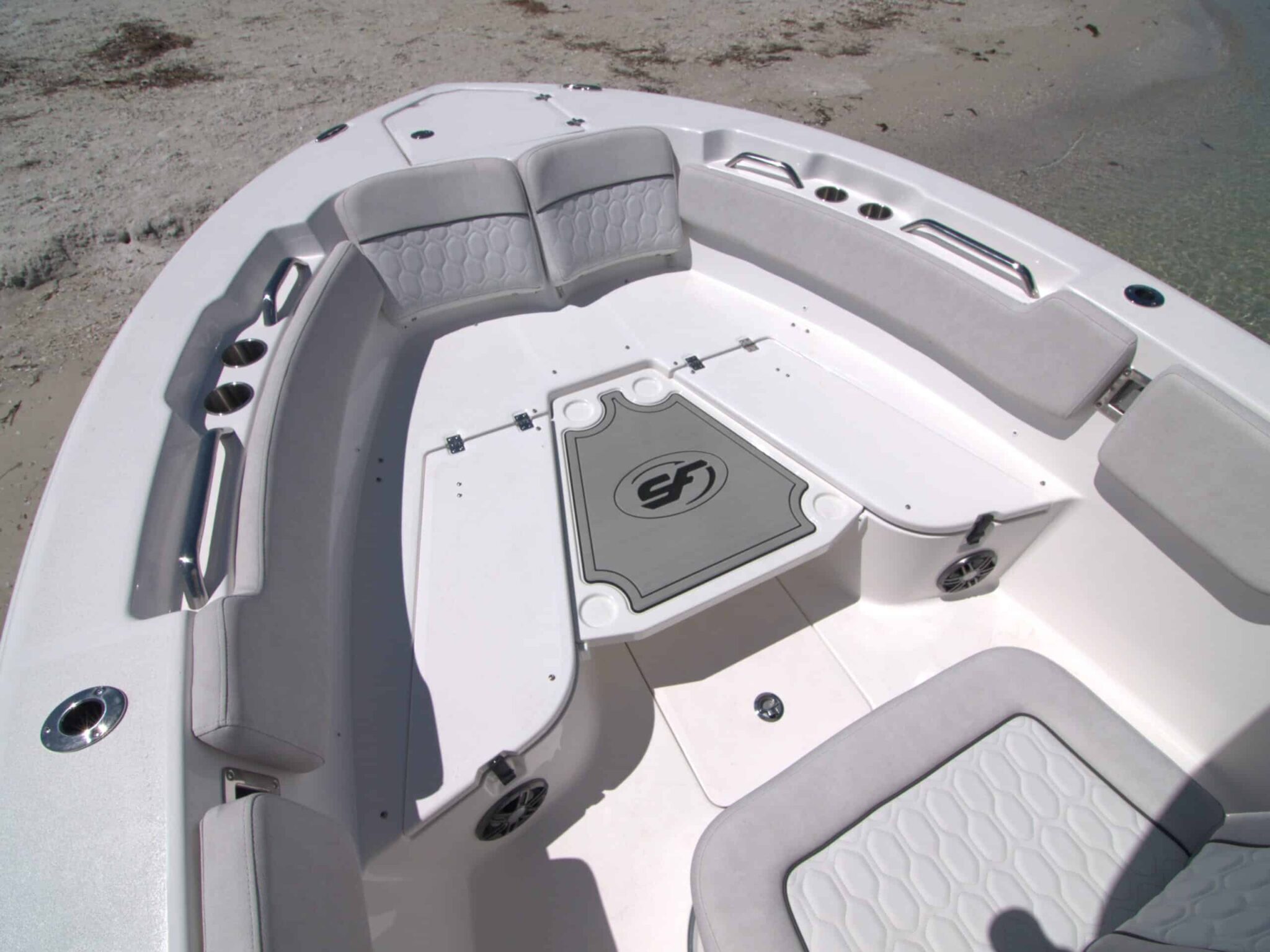

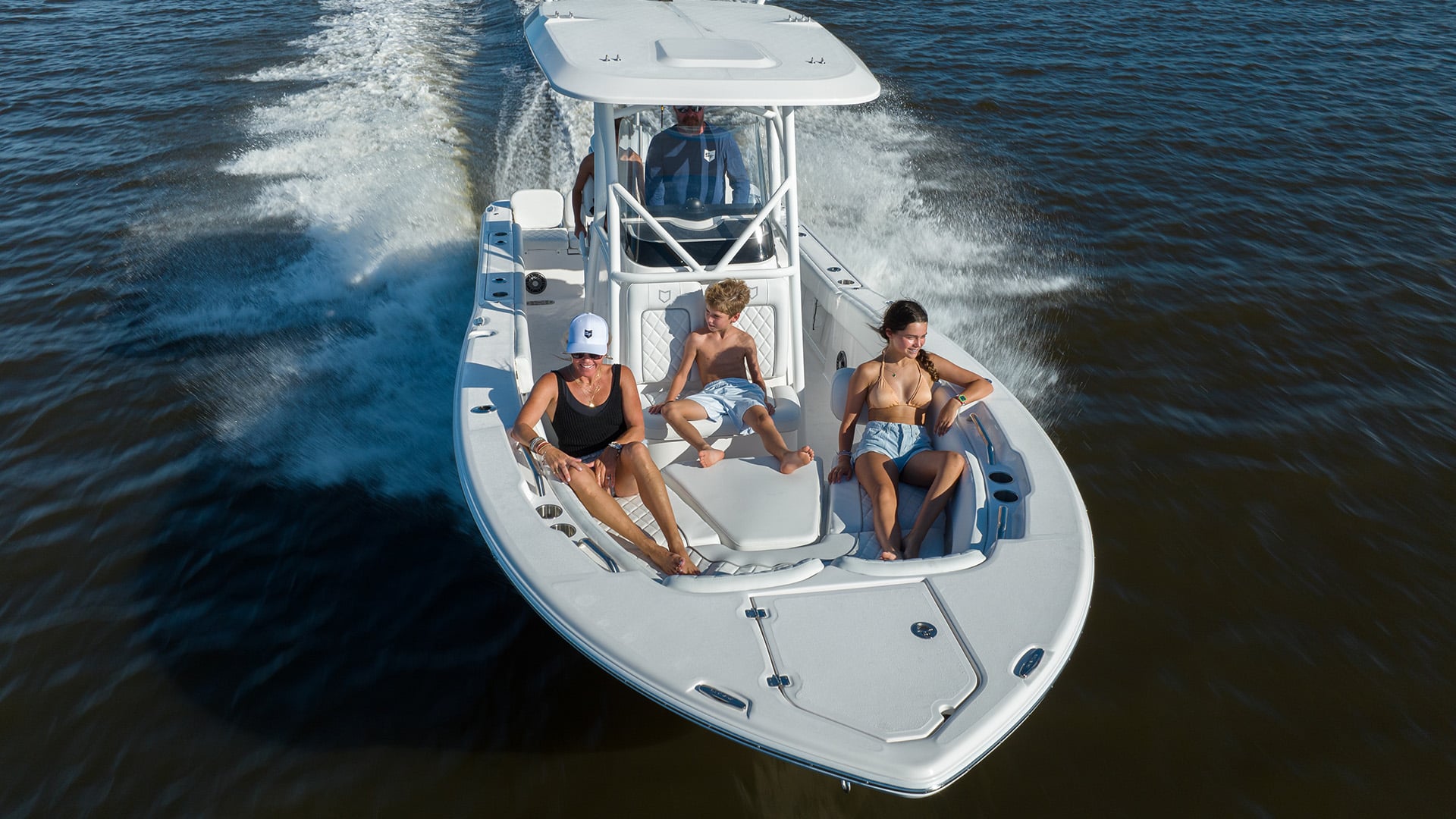

    Bow:

    • Stainless steel bow eye with chafe plate
    • Anchor compartment with rope storage locker
    • Rub rail mounted LED navigation lights

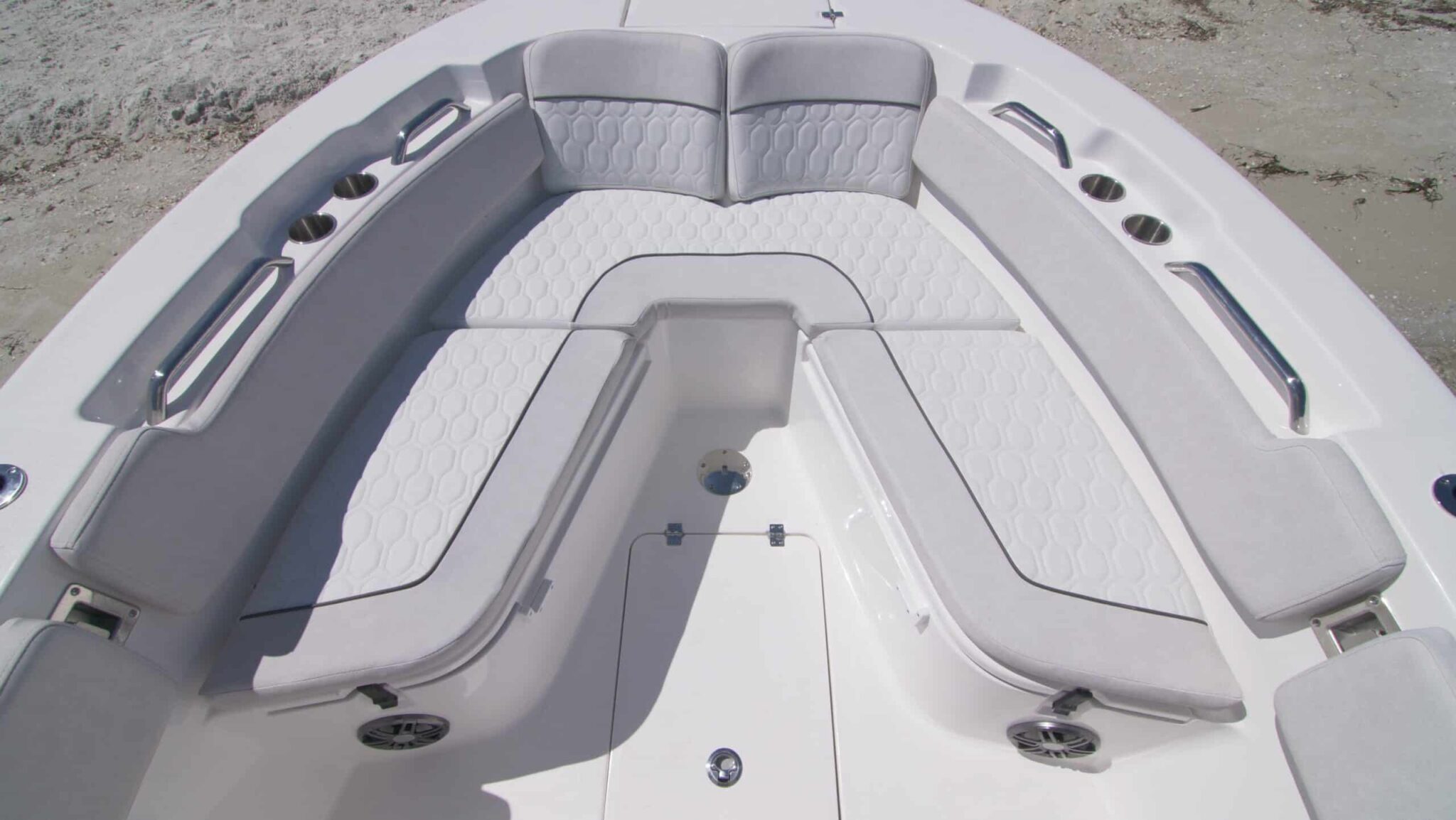

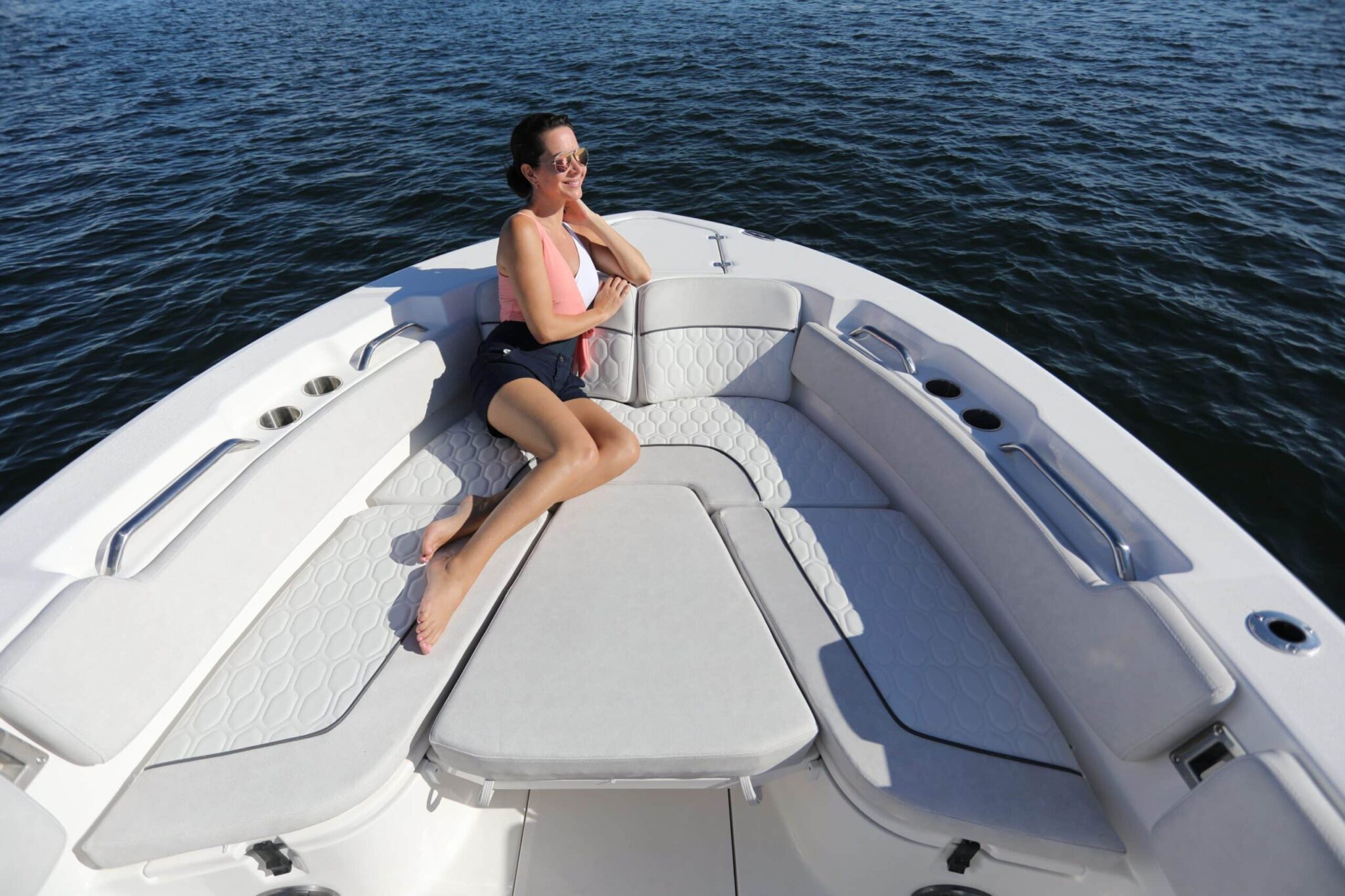

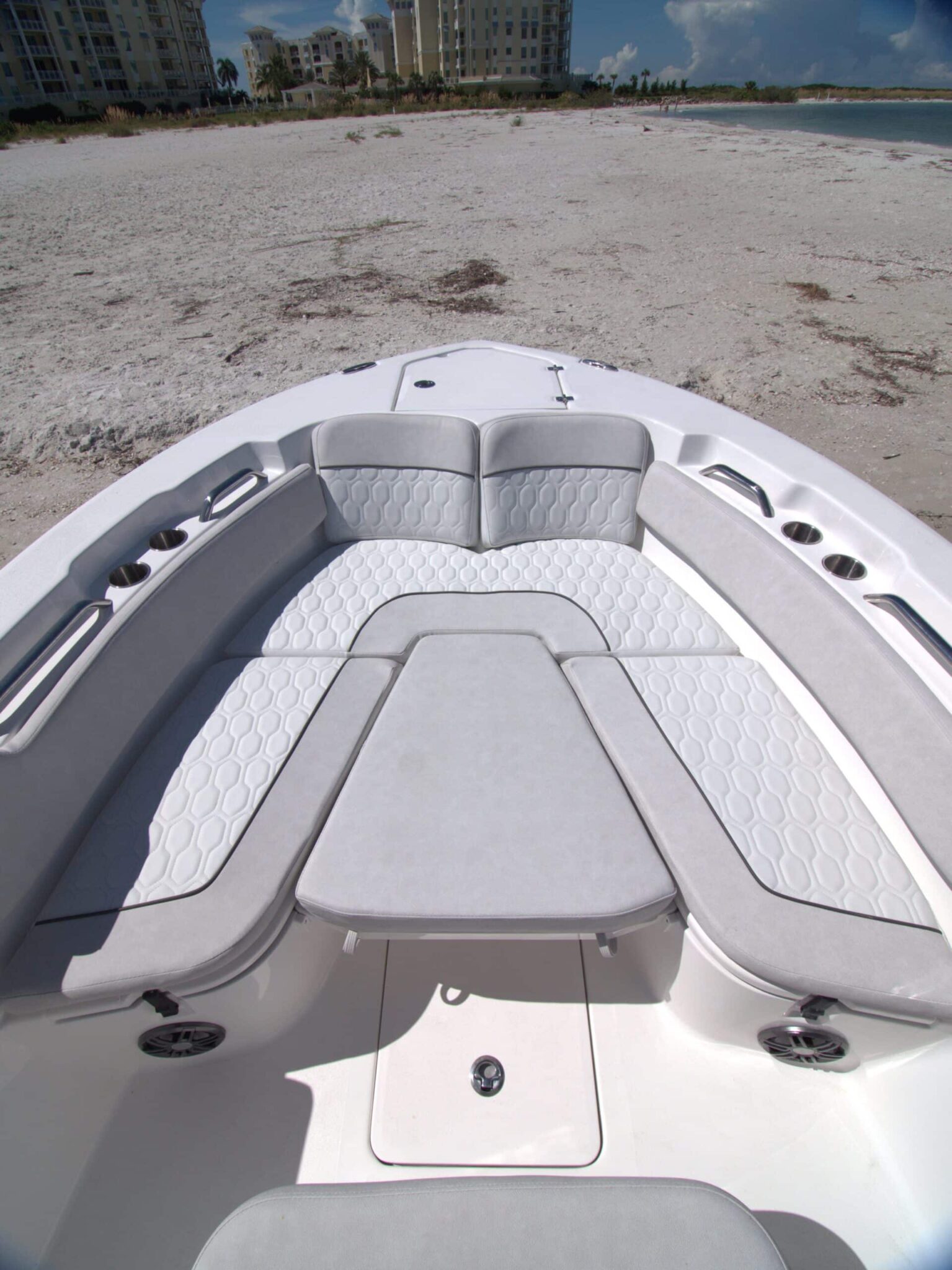

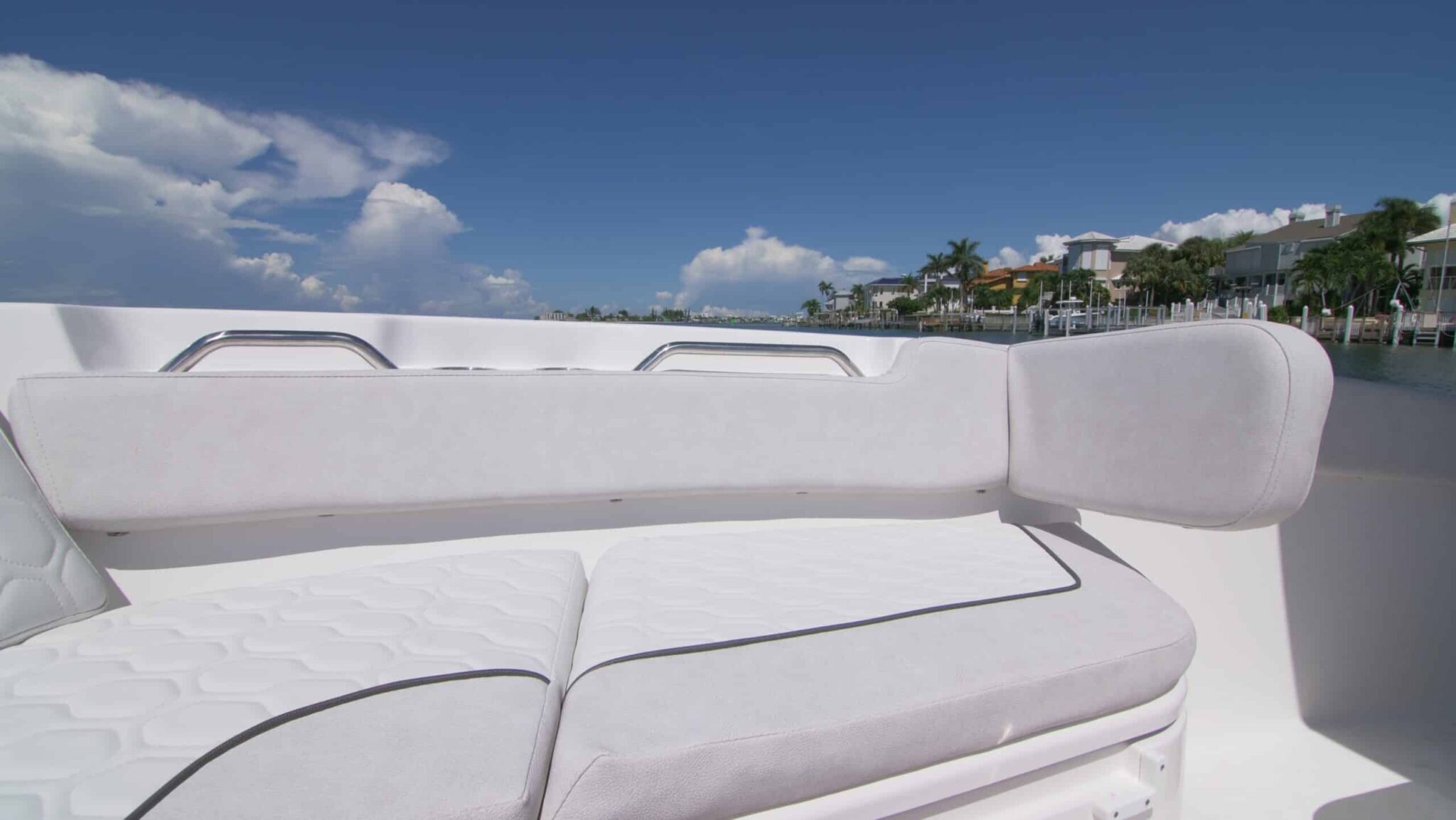

    • Curved bow backrest cushions

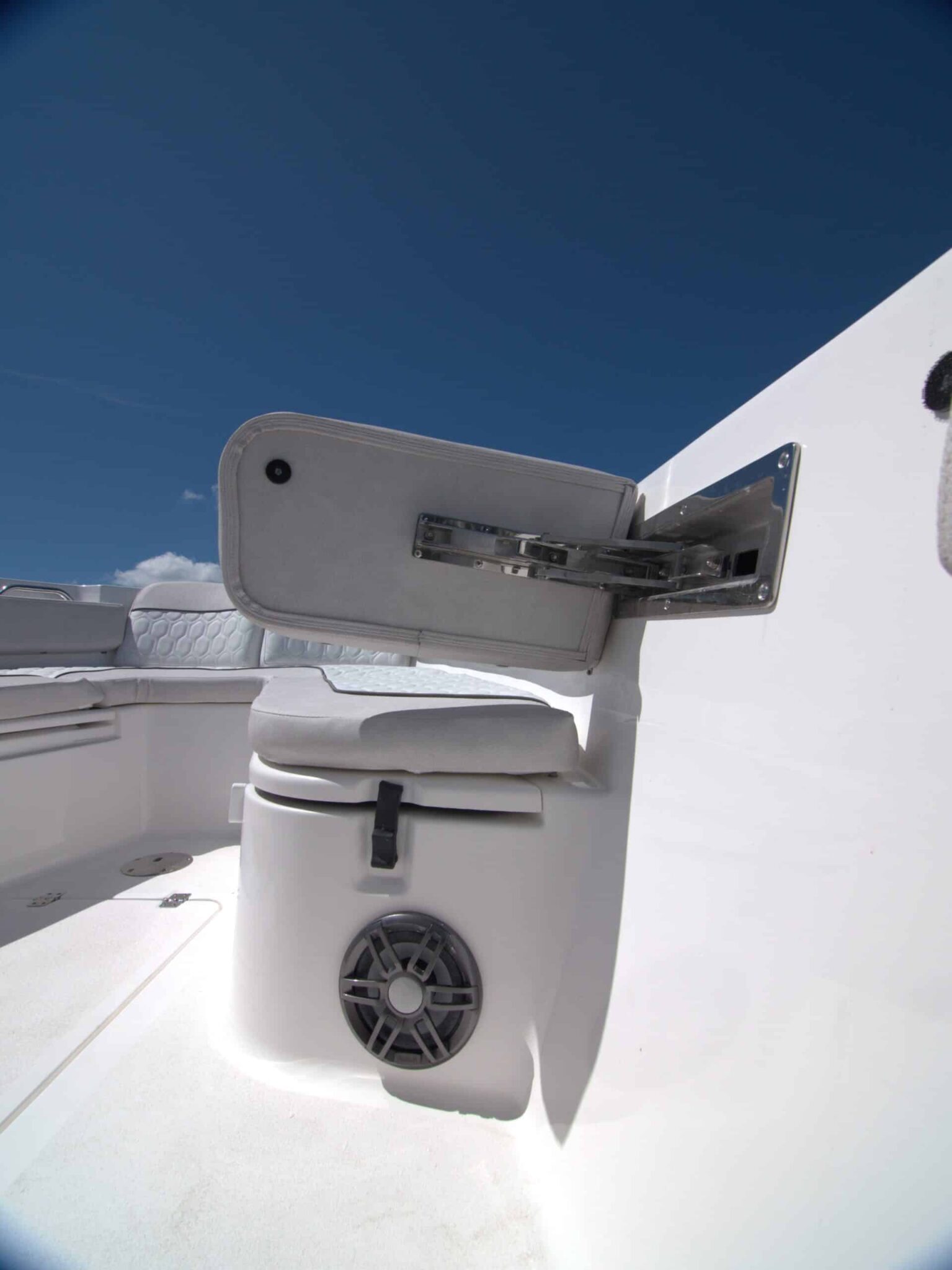

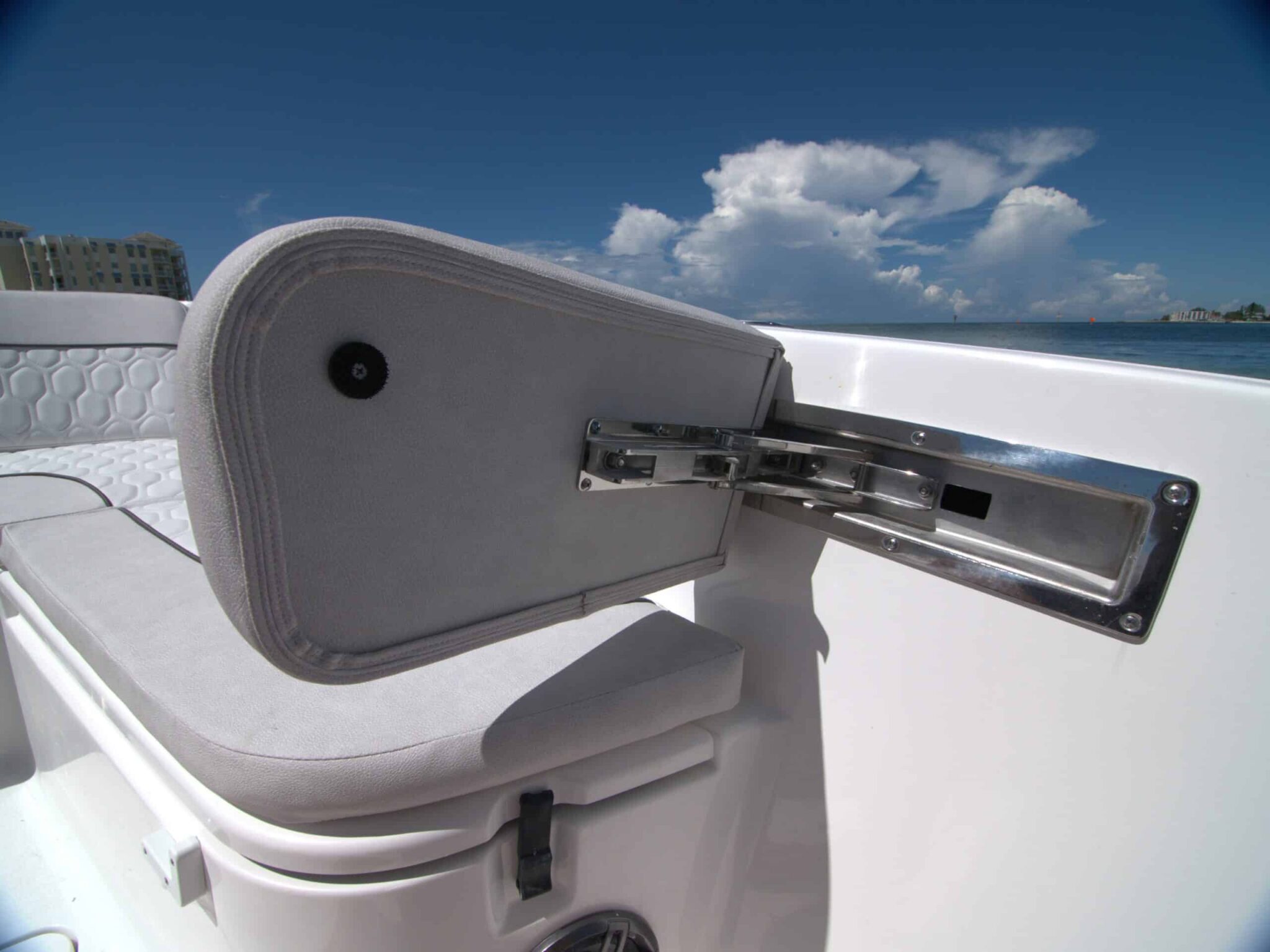

    • Full cockpit coaming pads with integrated fold out forward facing bow backrests

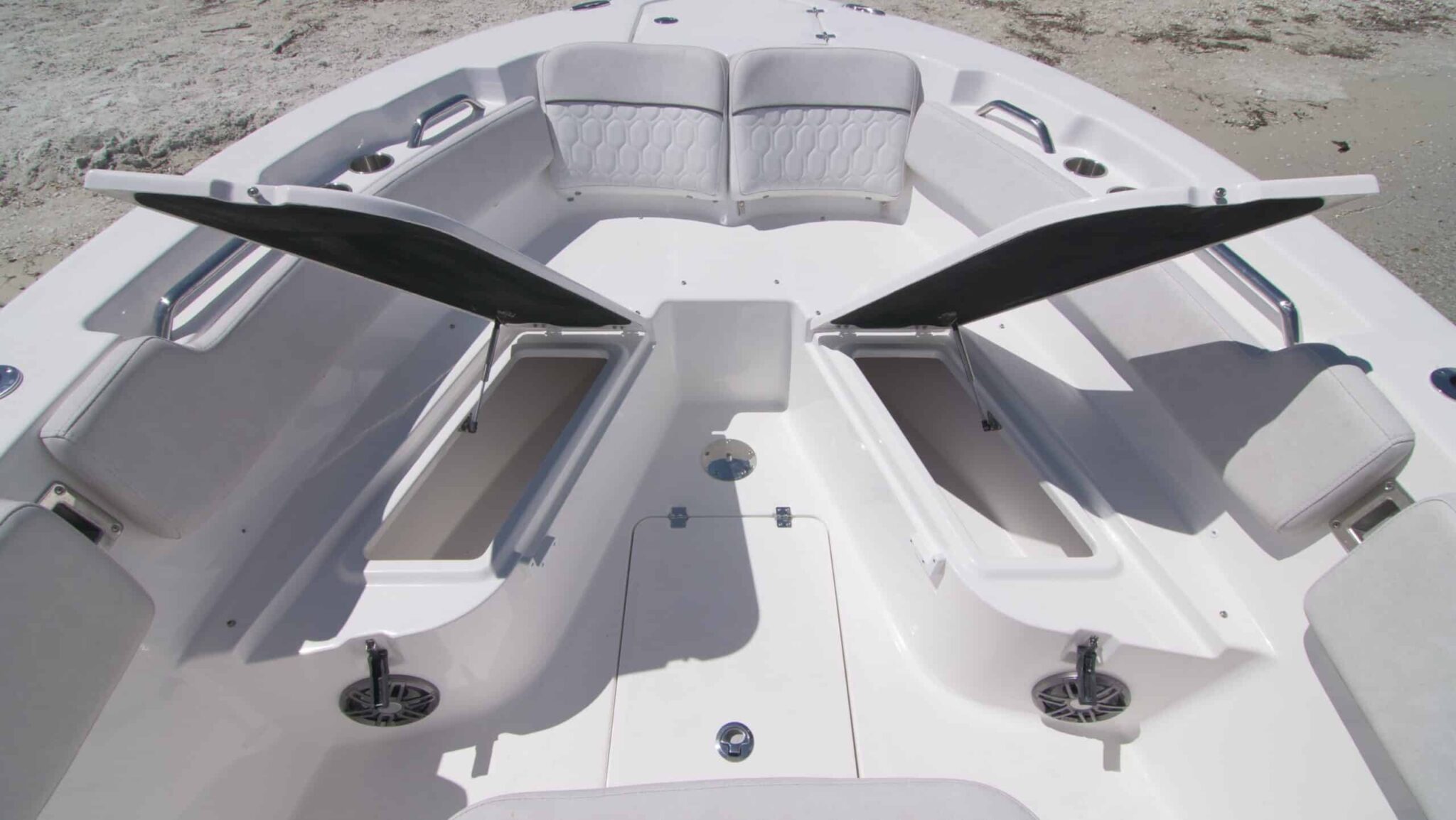

    • Underseat storage-cooler-fishbox
    • Casting deck with removable filler board
    • Stainless steel recessed grab rail at bow
    • In-floor storage with 5-gallon bucket
    • Stainless steel table mount

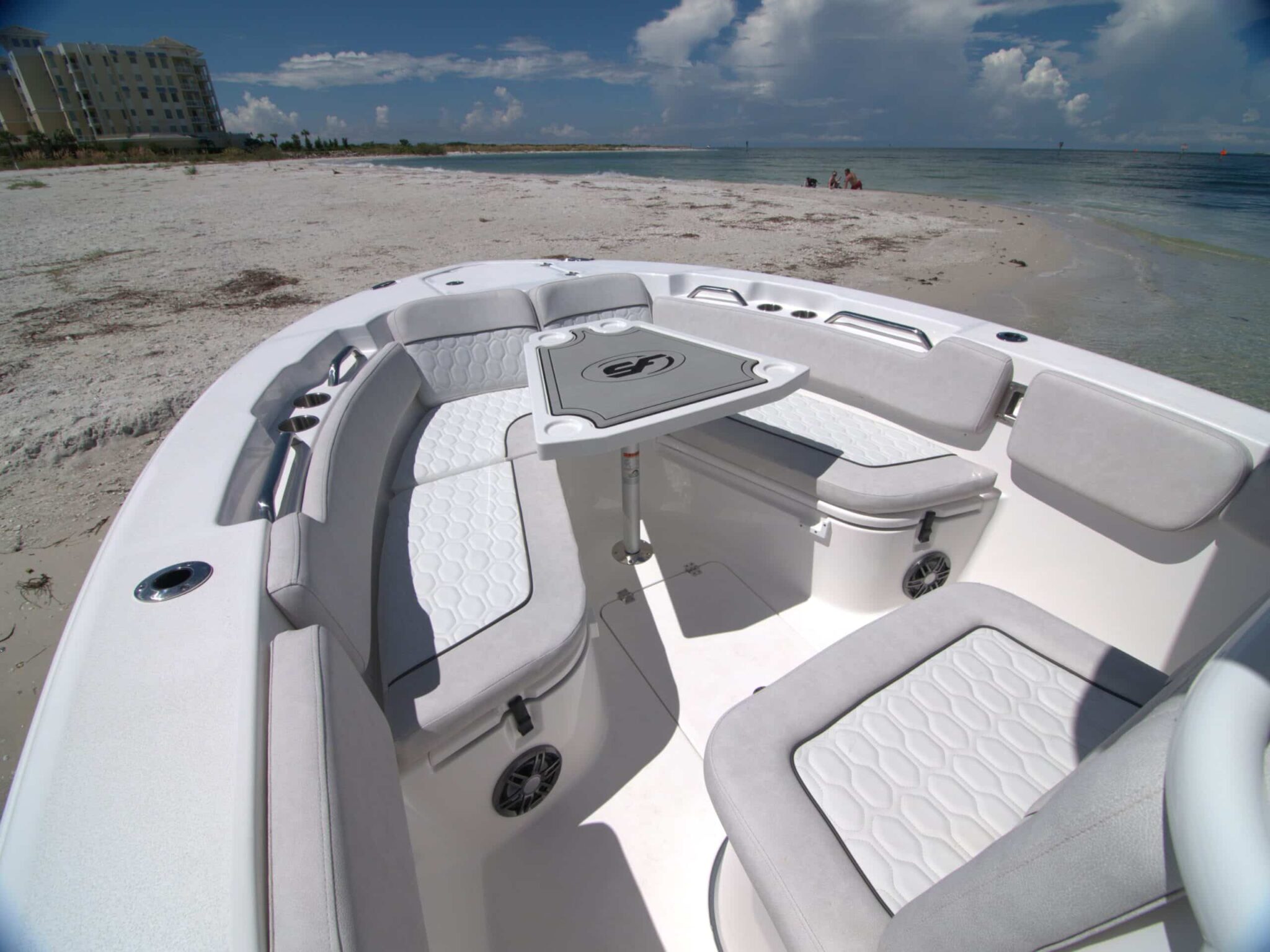

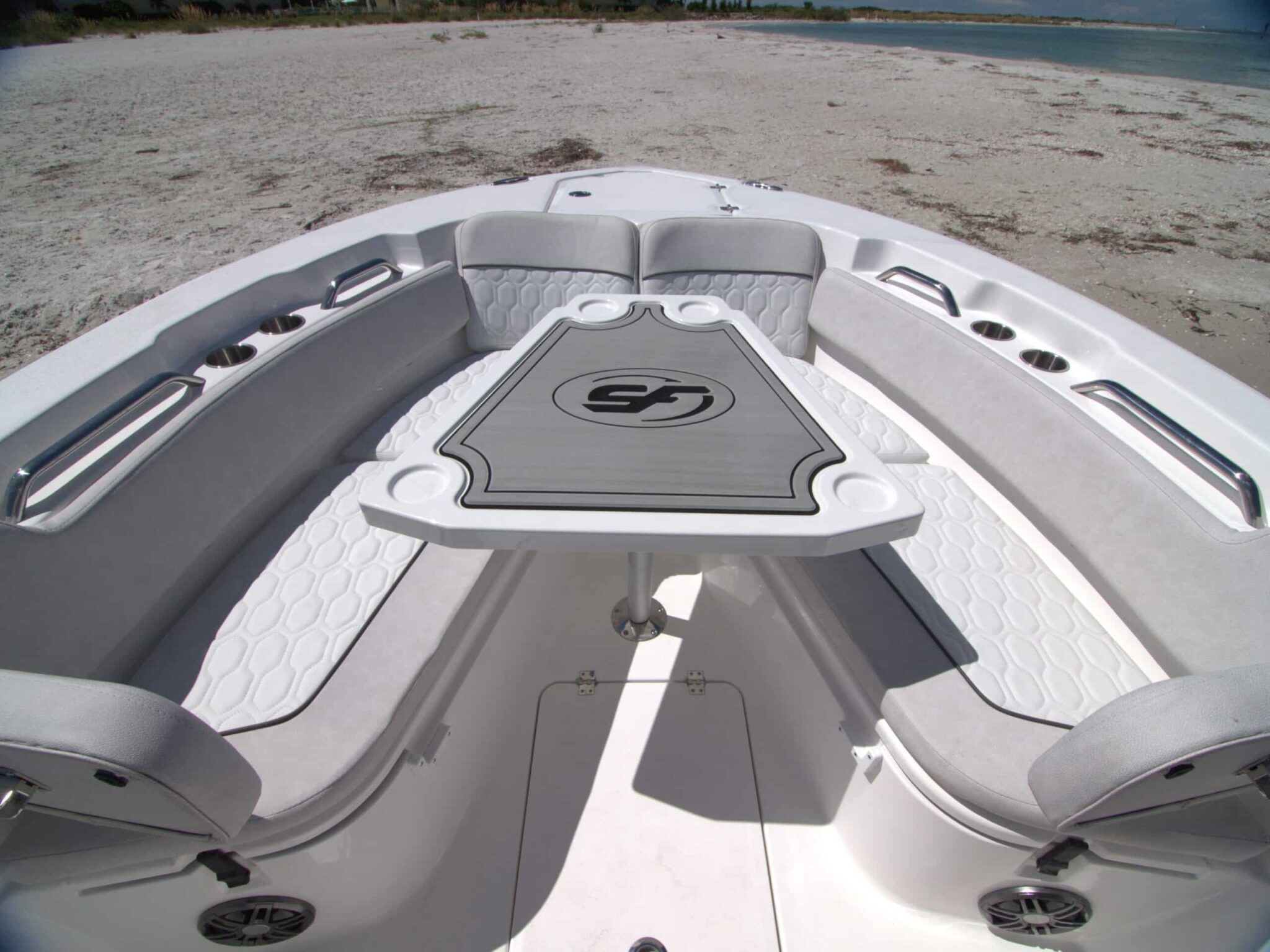

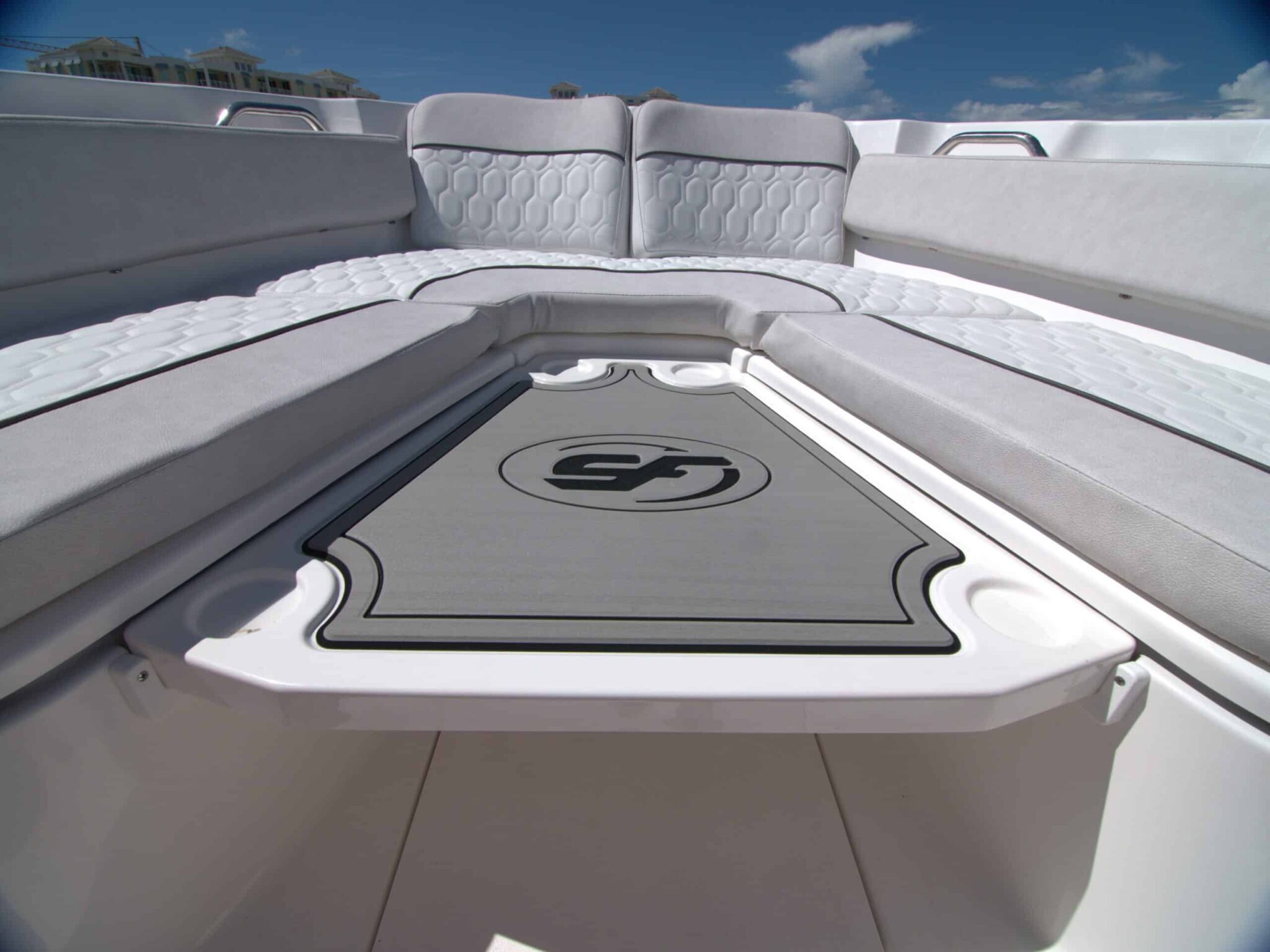

    • Removable filler board table with leg

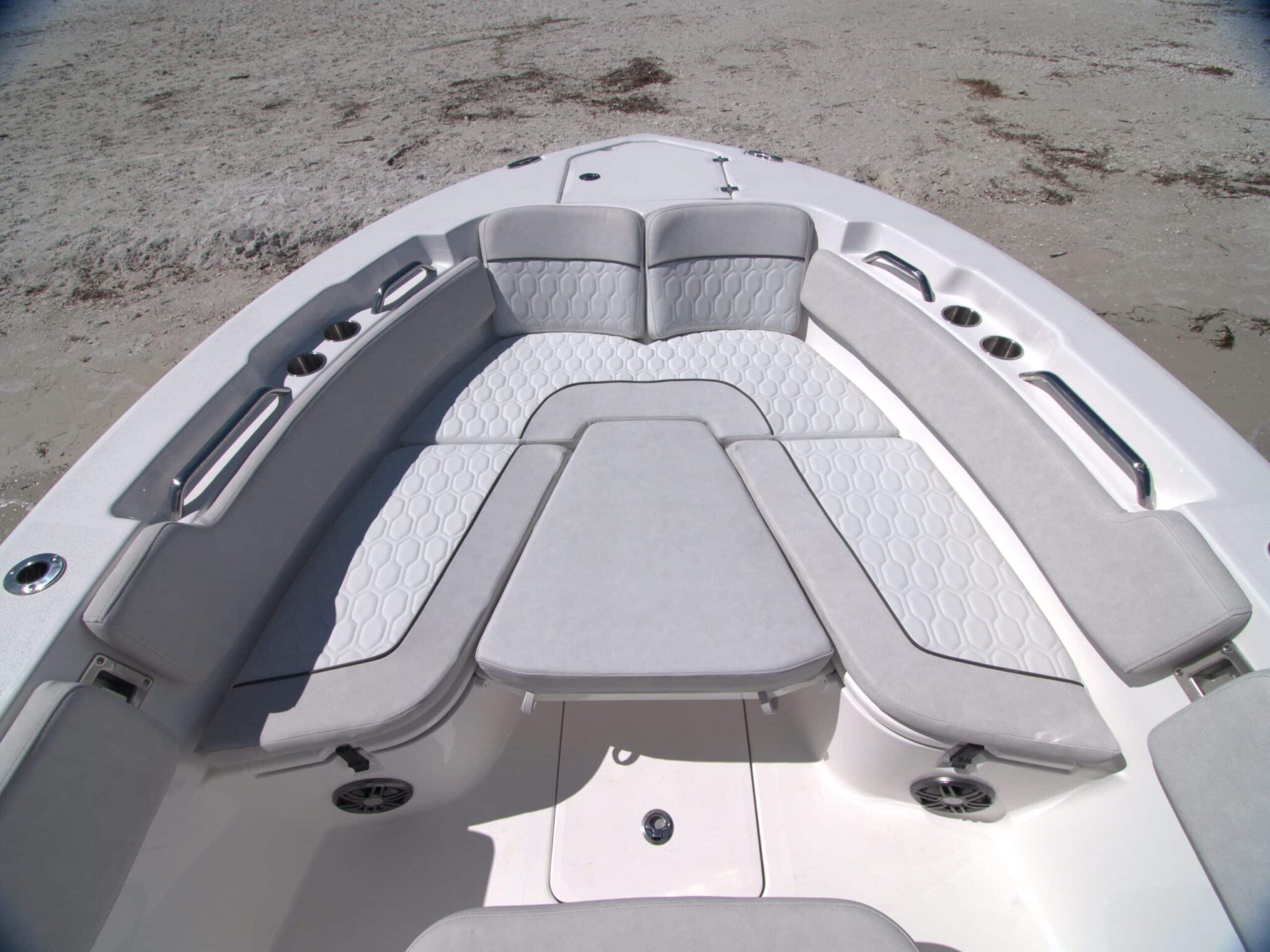

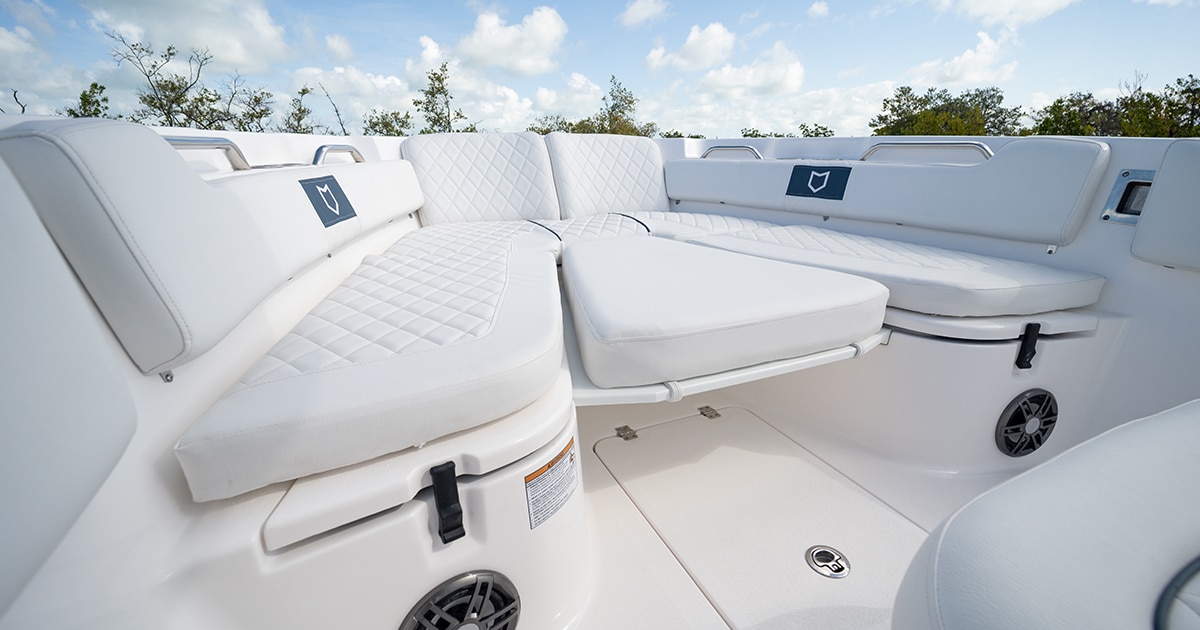

    • Removable bow filler cushion

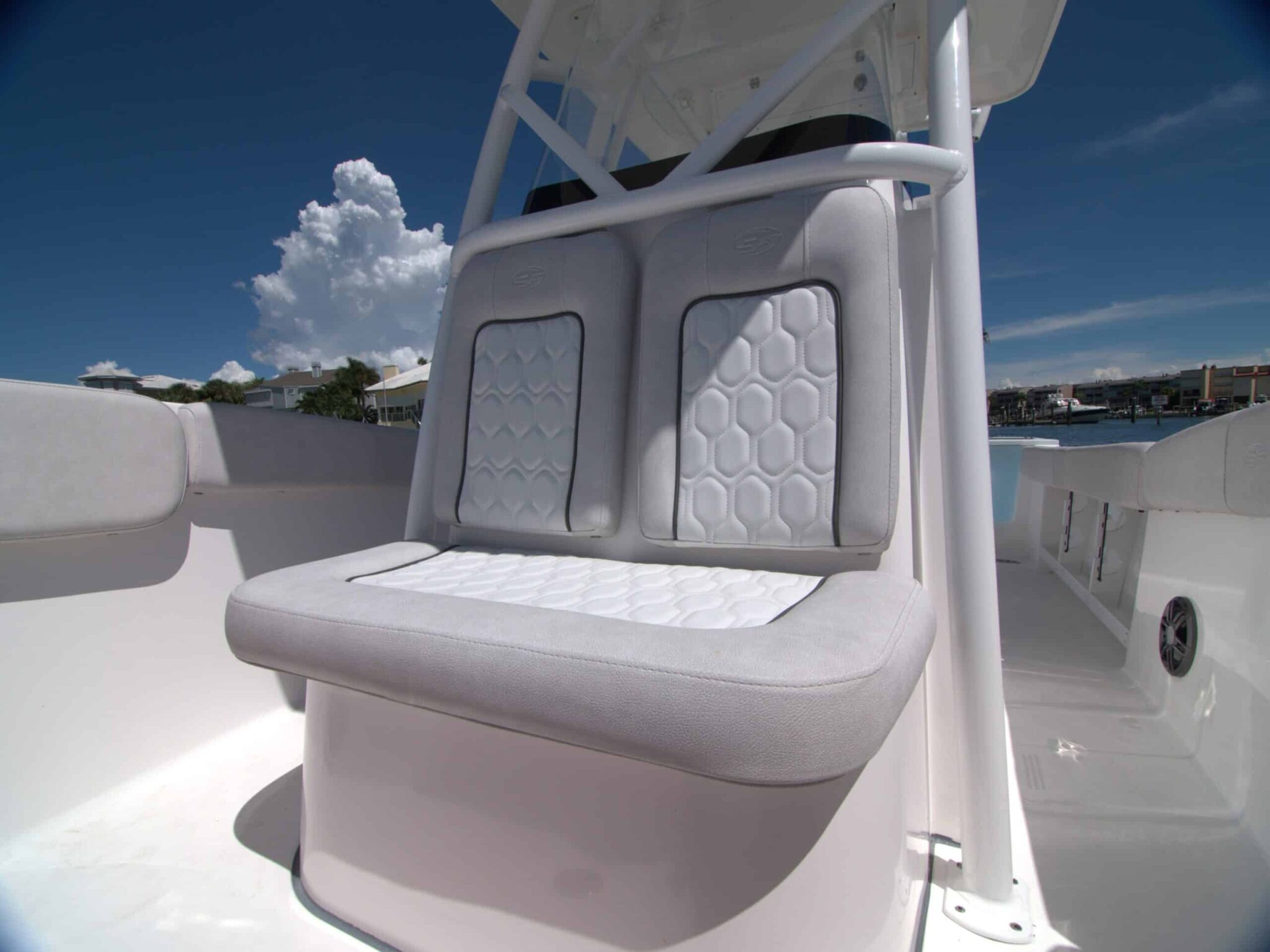

    • Forward console seating with contoured backrests

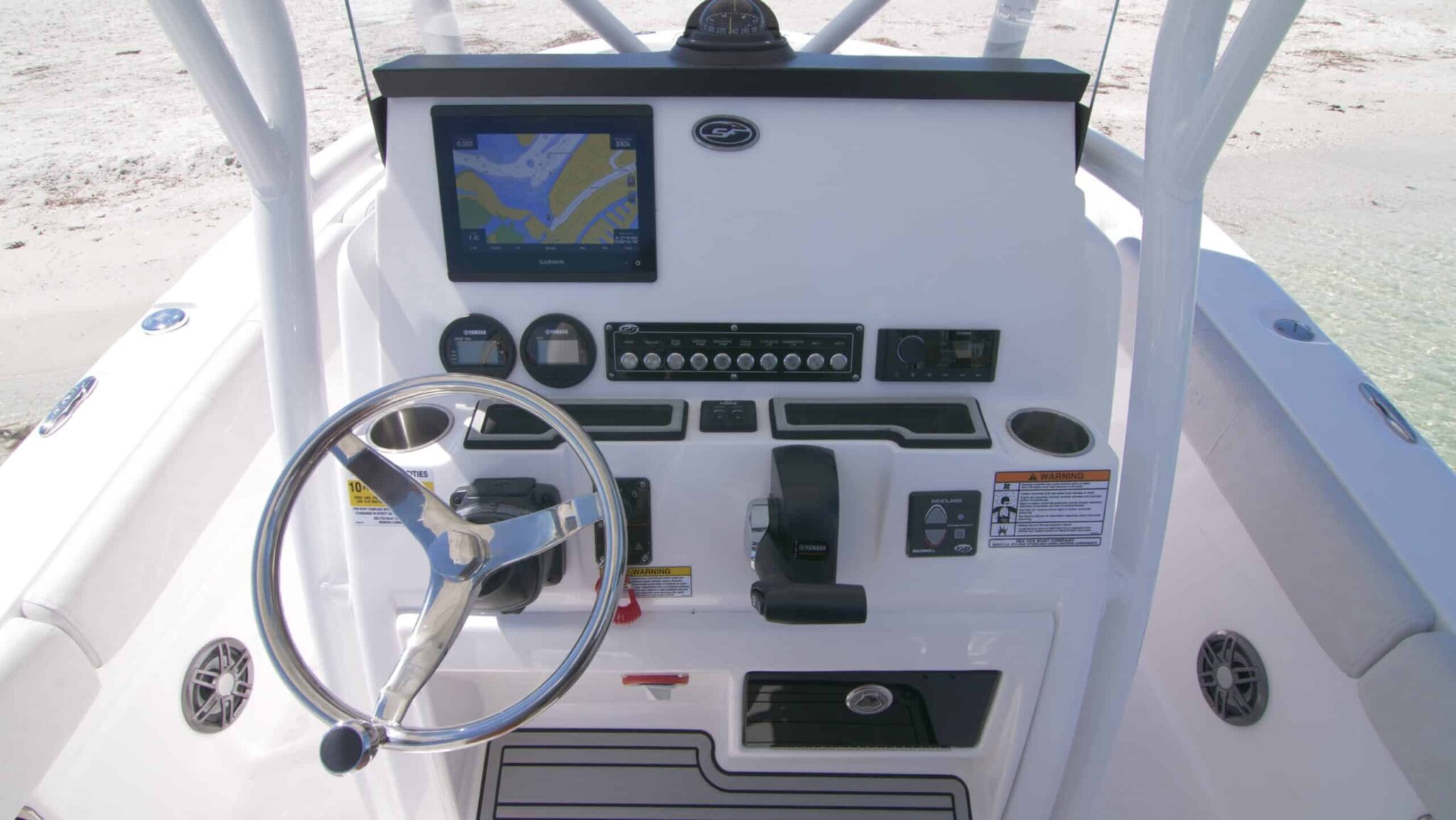

    Helm:

    • T-Top with canvas awning, rear spreader lights, tulip rod holders (4) and LED anchor light
    • Dometic SeaStar hydraulic steering system with tilt helm
    • For Yamaha mechanical motors (XB single application):
      • Two digital gauges with backlighting. Tachometer and speedometer with volt, fuel, and push button functions
    • For Yamaha digital motors (XC single application):
      • Multifunction instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions. Display may vary with availability.
    • Fusion stereo with USB adapter
    • Six Fusion speakers in deck

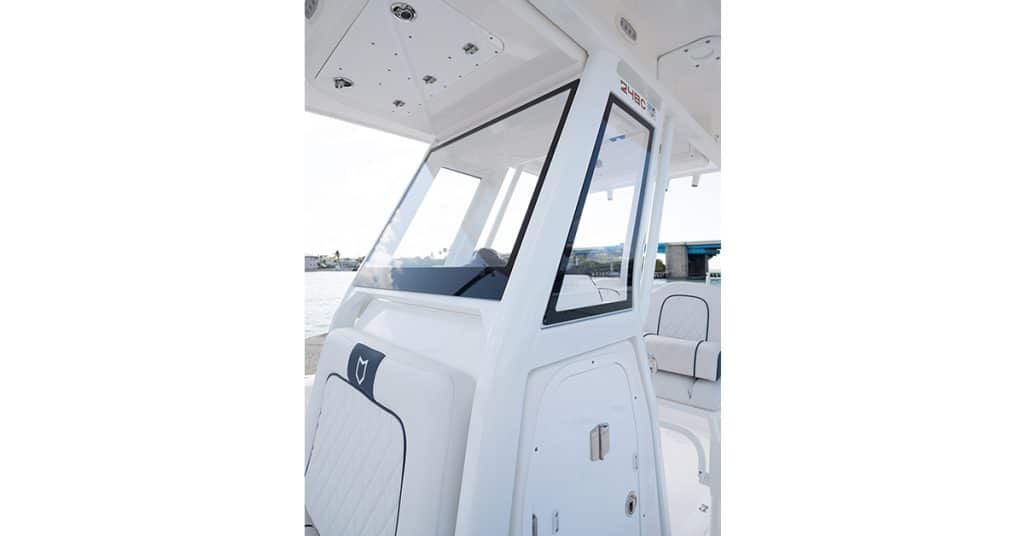

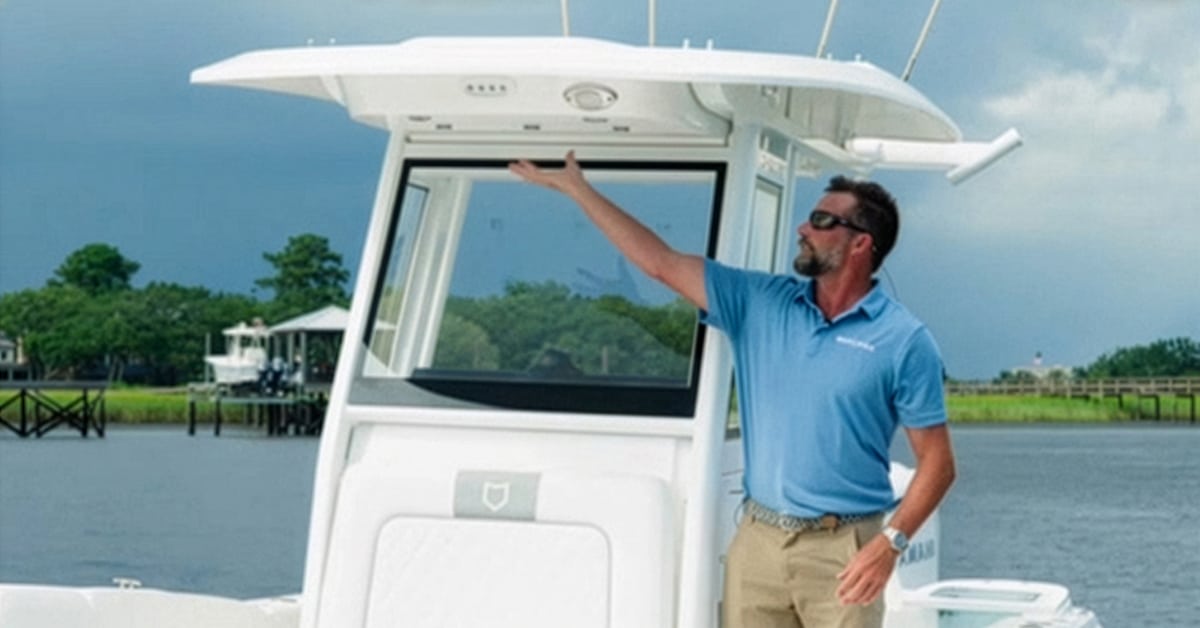

    • Windscreen
    • Top mount compass on console
    • Console dash shroud
    • Backlit SF badge on console
    • Dash space for flush electronics (compatible for two 10" displays)
    • Stainless steel steering wheel with turning knob
    • Lockable console door
    • Horn

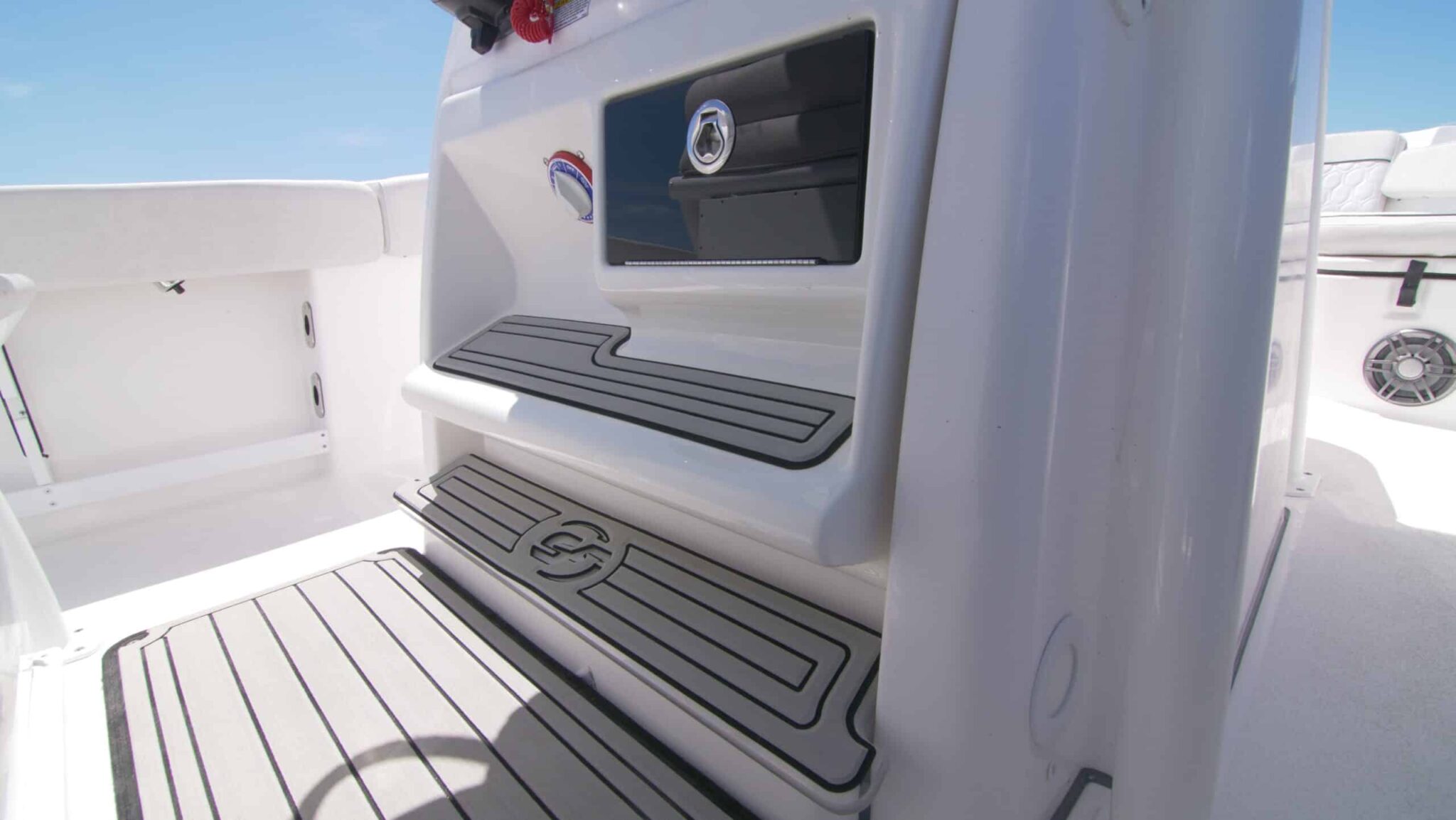

    • Integrated console footrest with backlit lower level footrest
    • 12-volt power point
    • Battery switch
    • Console courtesy lights
    • Pre-rigging for two batteries
    • Portable toilet
    • Marine grade soft mat decking and console accents

    Cockpit:

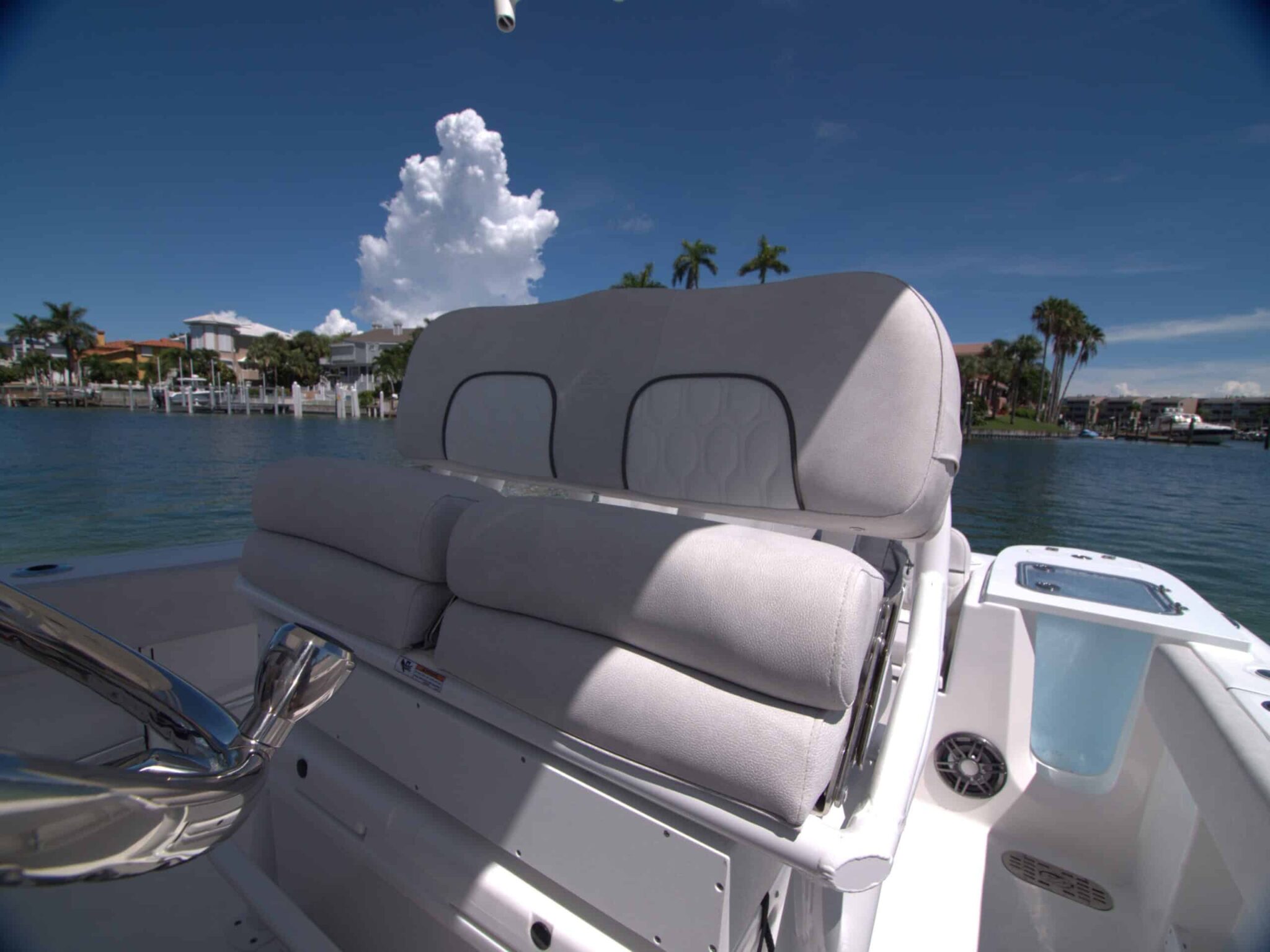

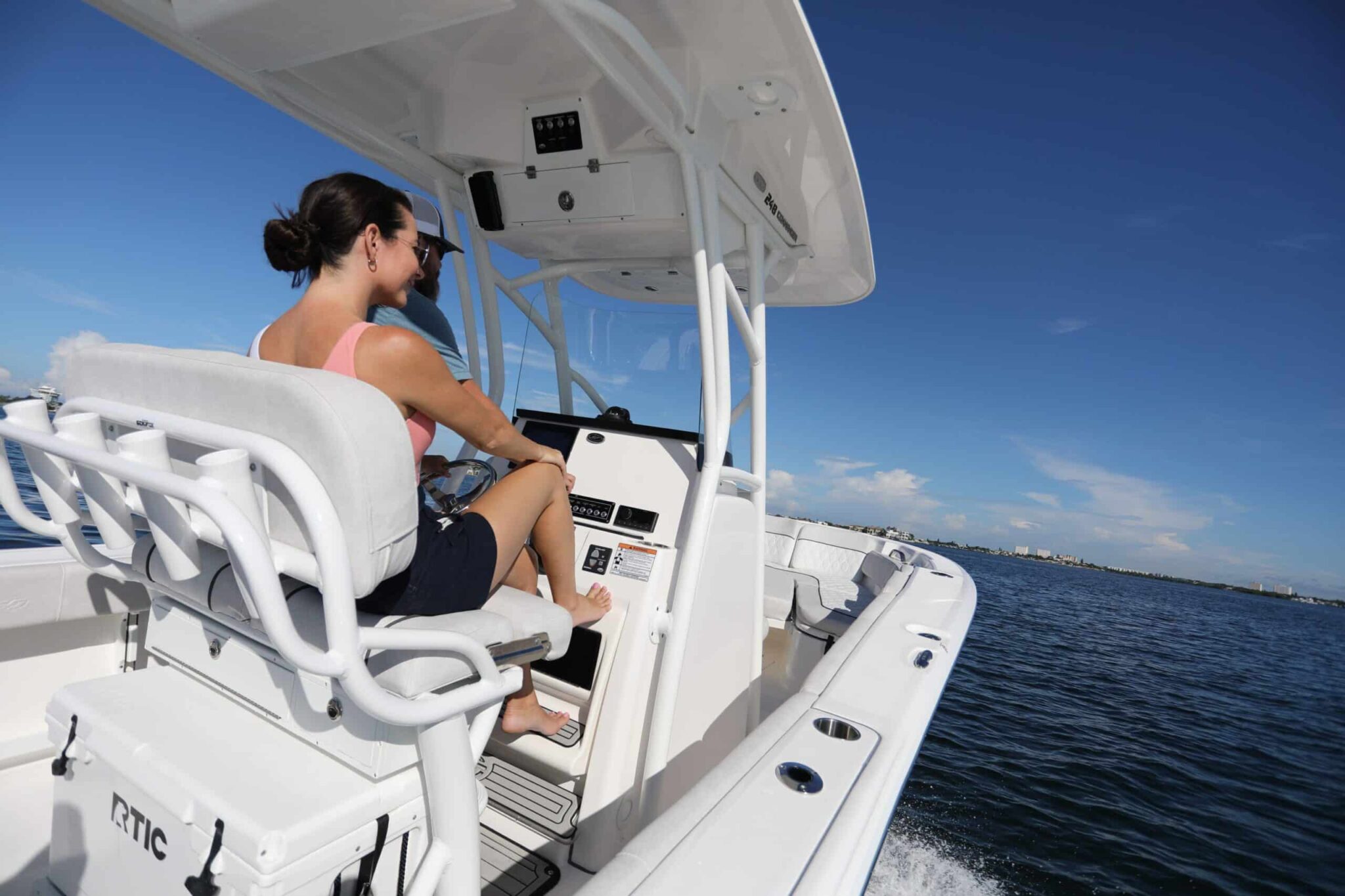

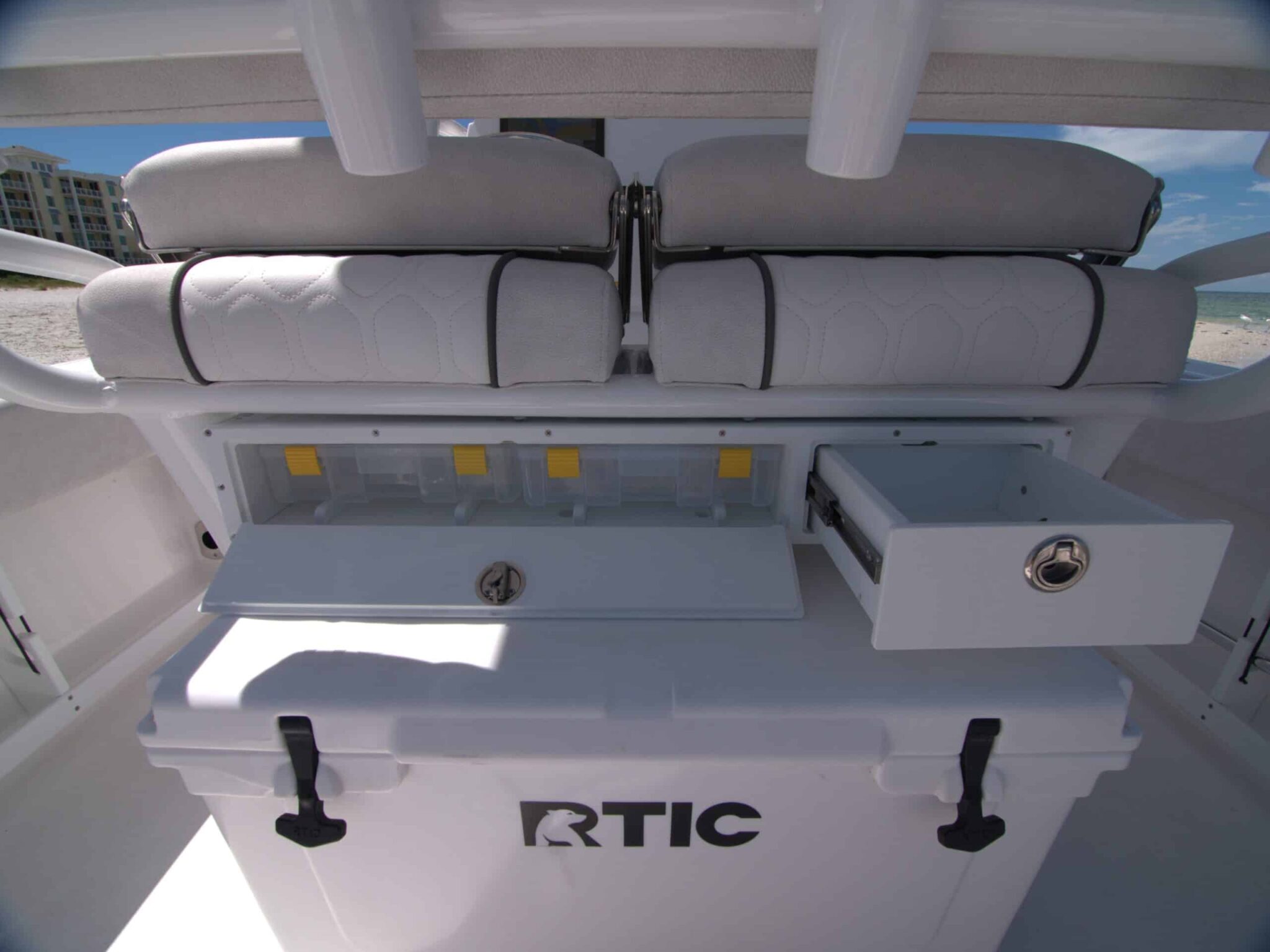

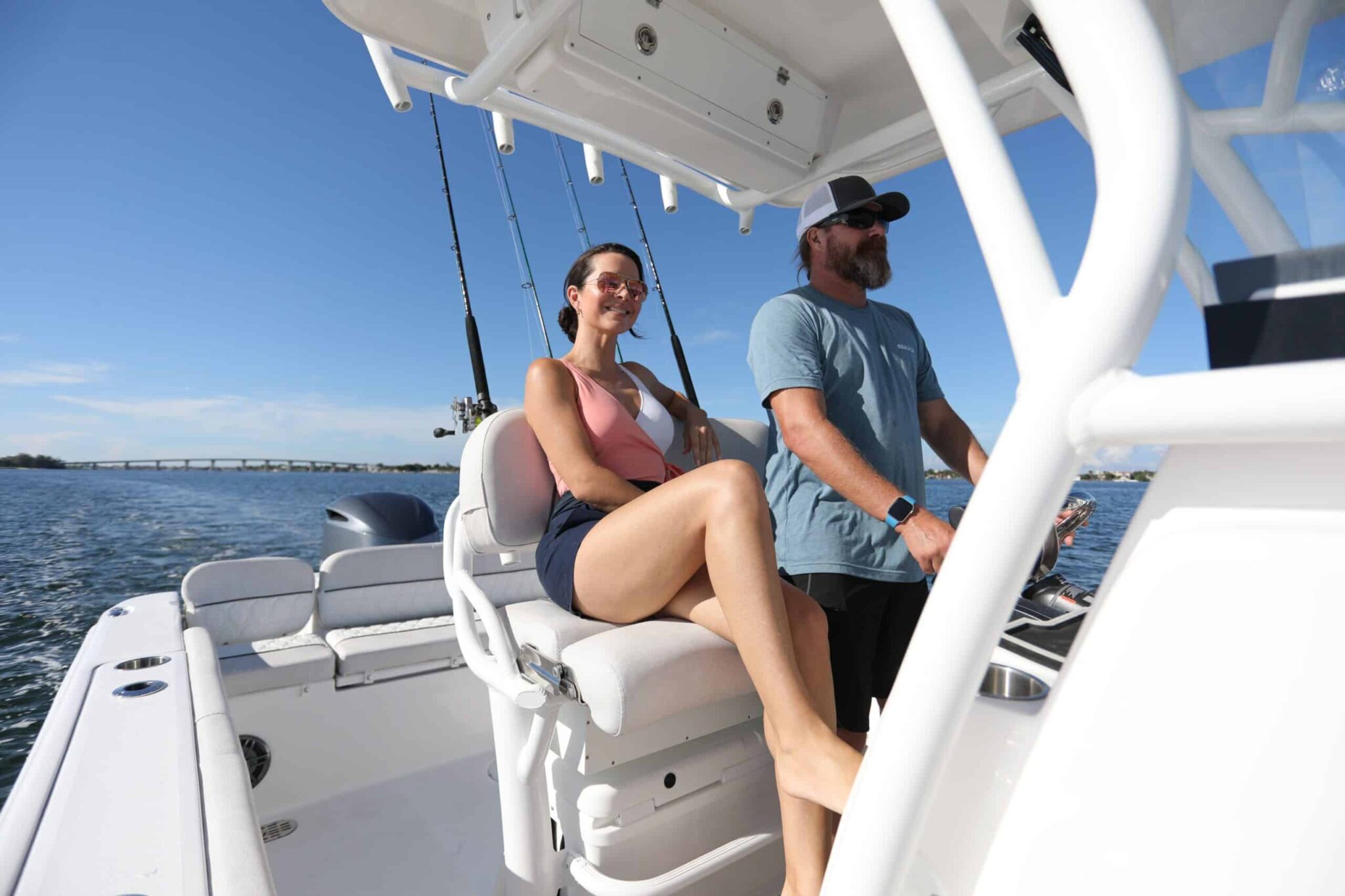

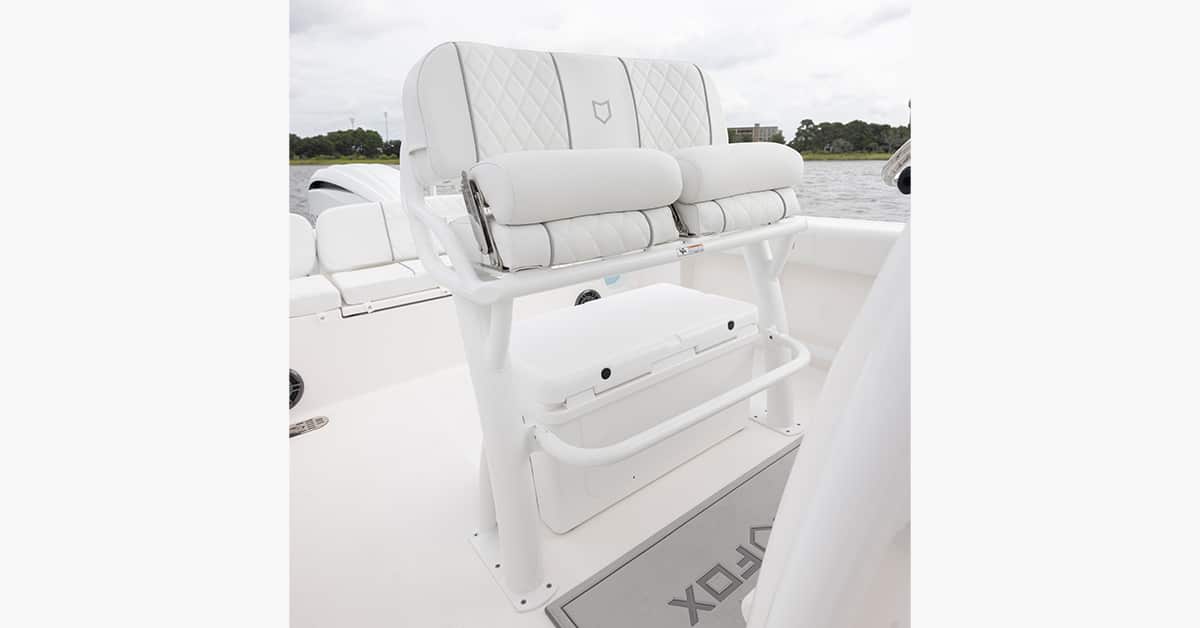

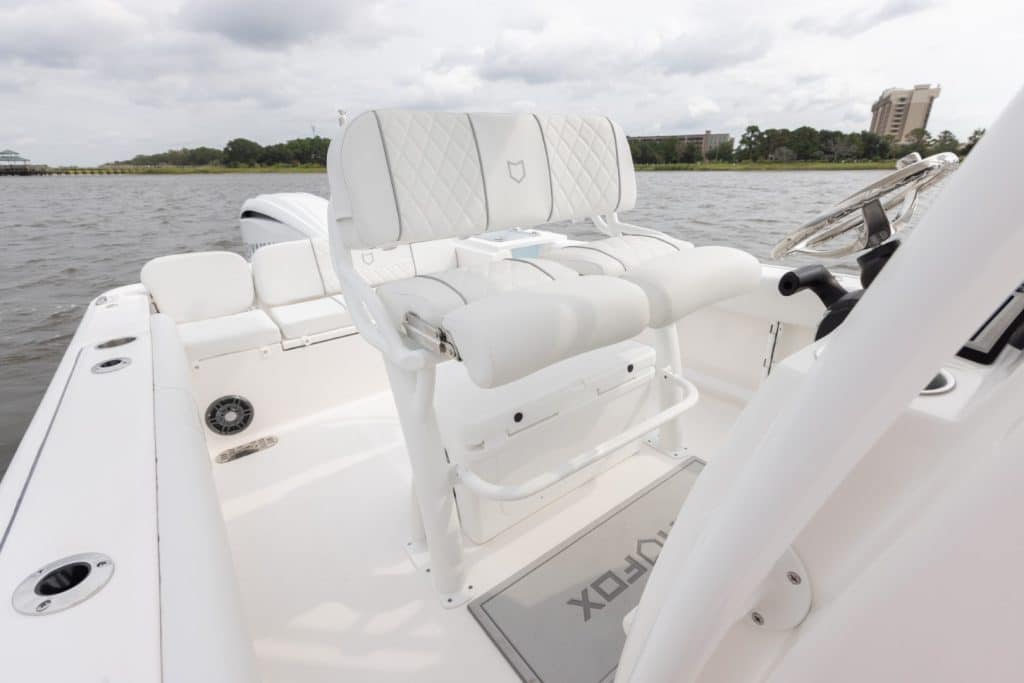

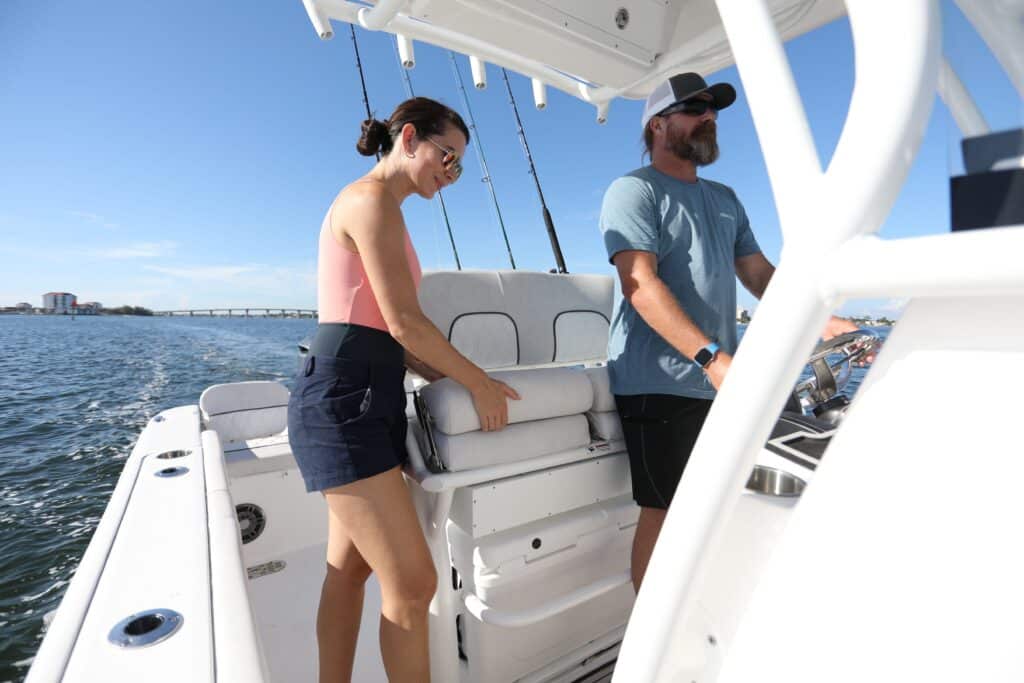

    • Leaning post helm seating with backrest and hinged bolsters
    • 65-Quart premium cooler with stainless steel strapdown hardware
    • Stainless steel compression latches
    • Under gunwale recessed rod storage with powder coated toe-rail
    • Stainless steel closeout rings for rod holders

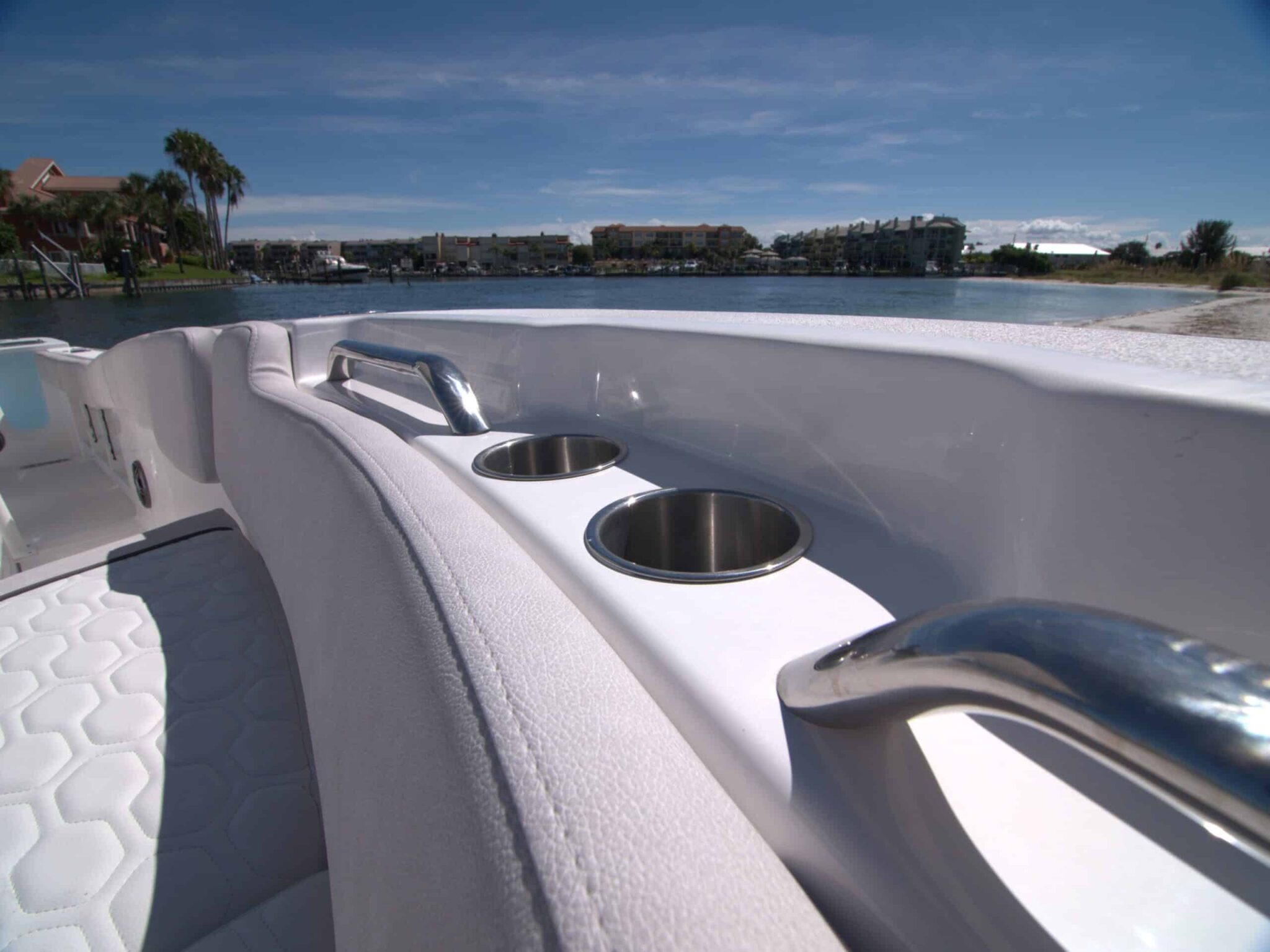

    • Cup holders (10)
    • Stainless steel rod holders (4)

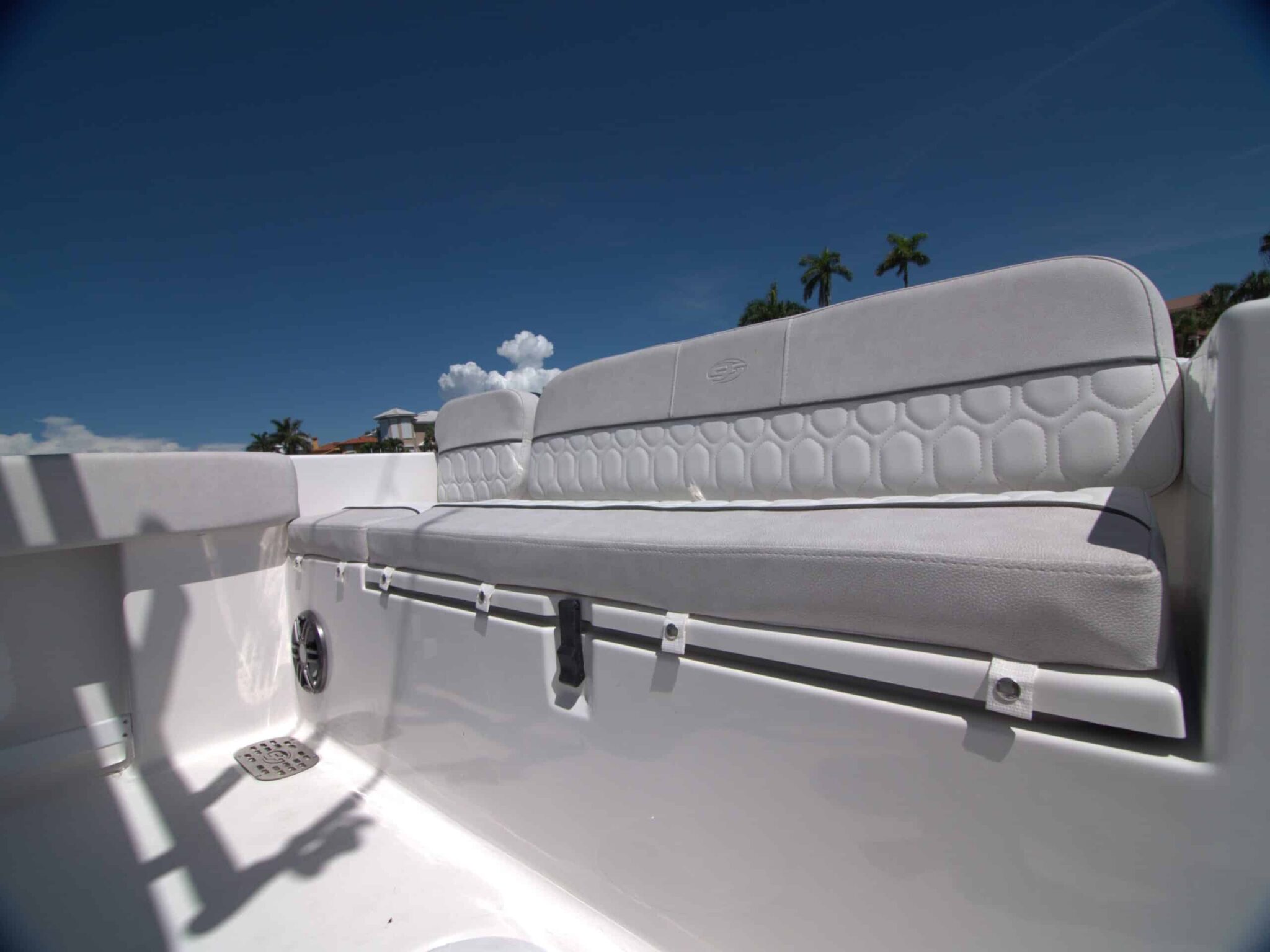

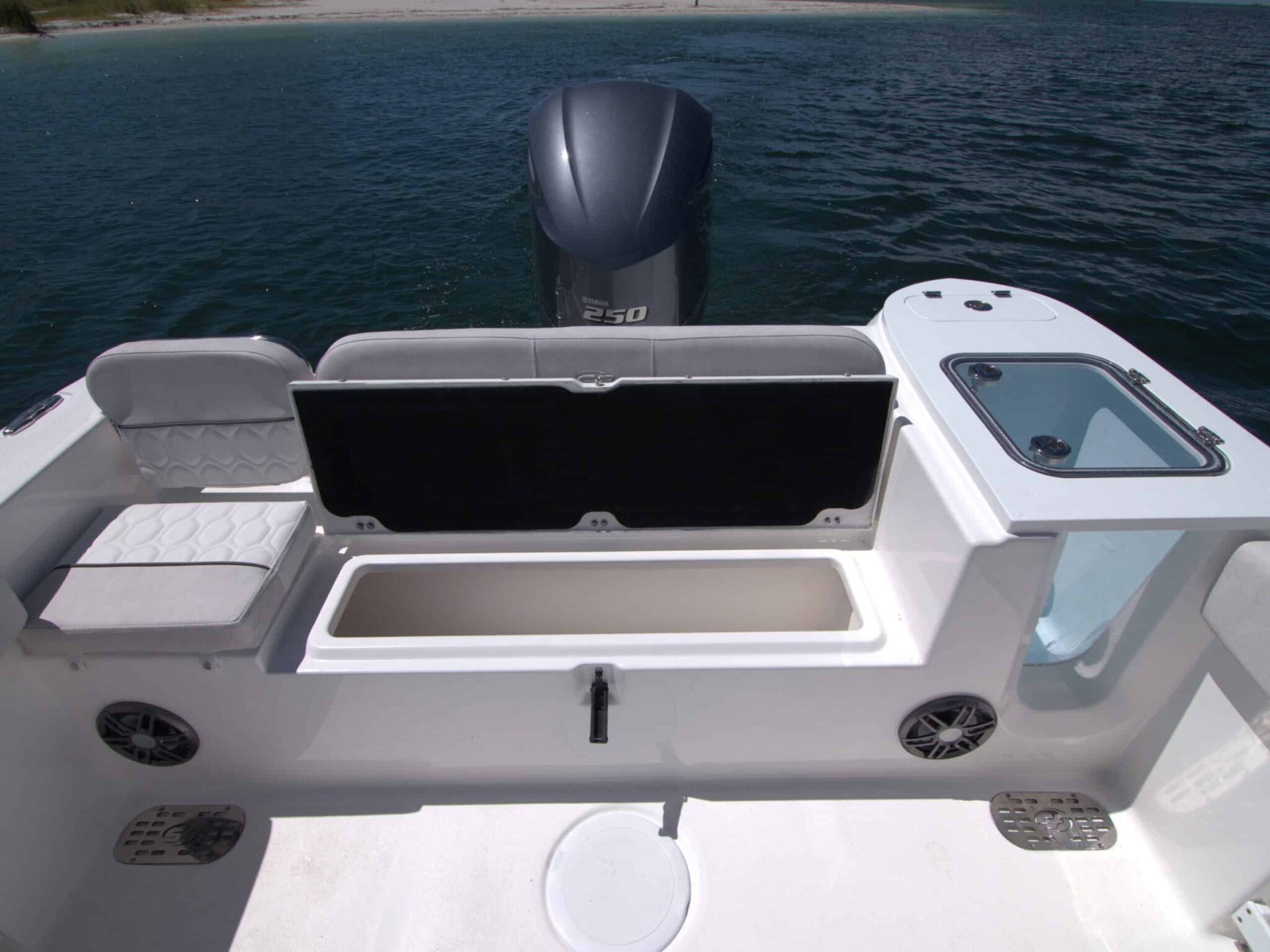

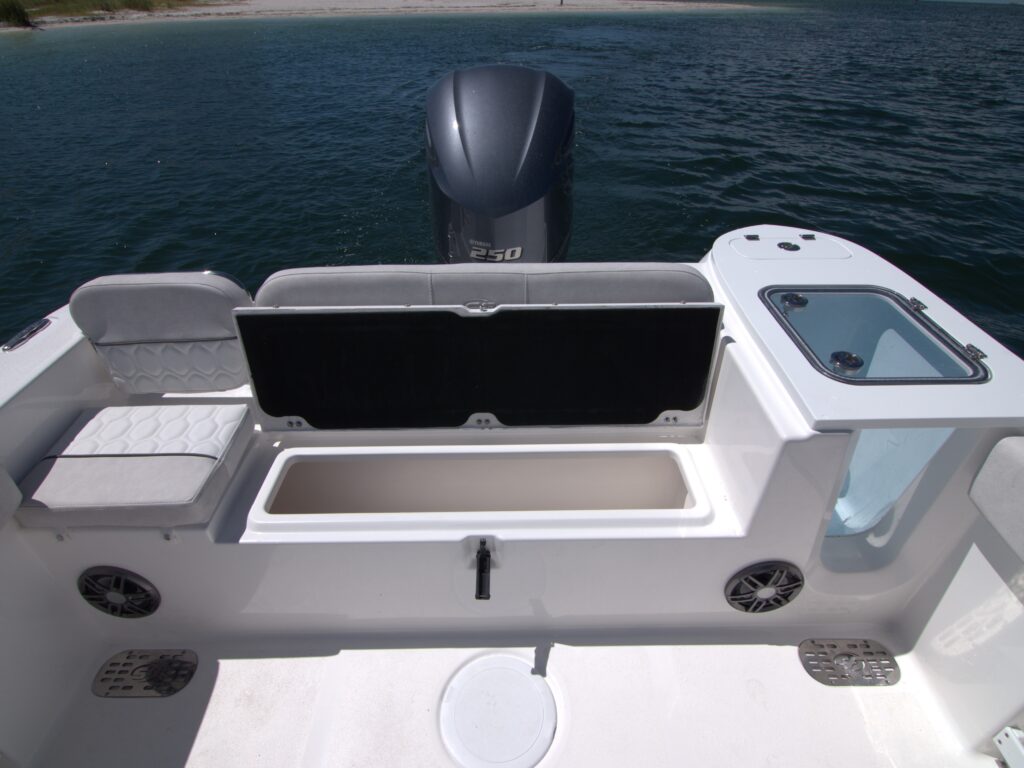

    • Aft bench seat with removeable cushions
    • Self bailing cockpit with stainless steel grates

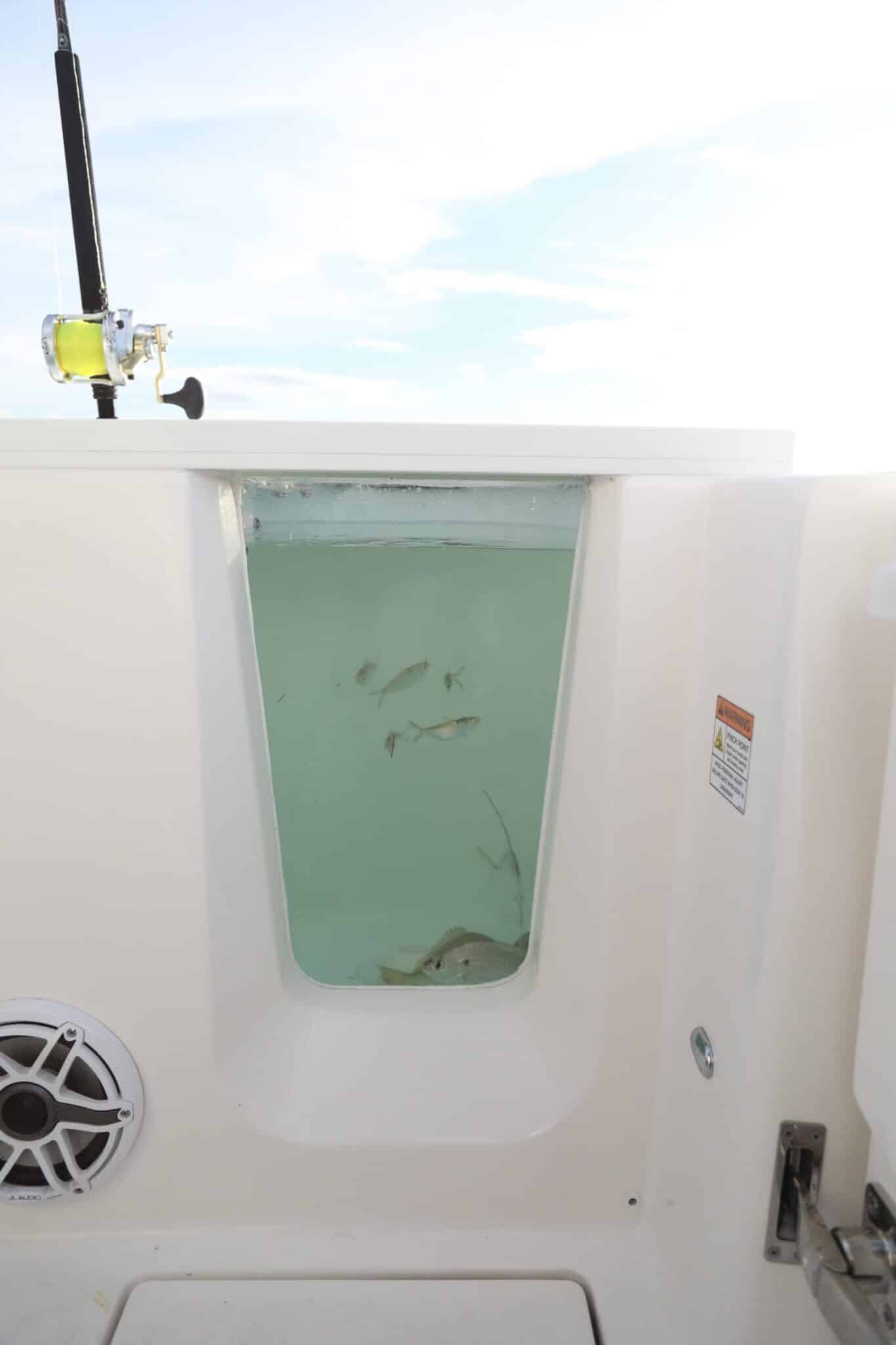

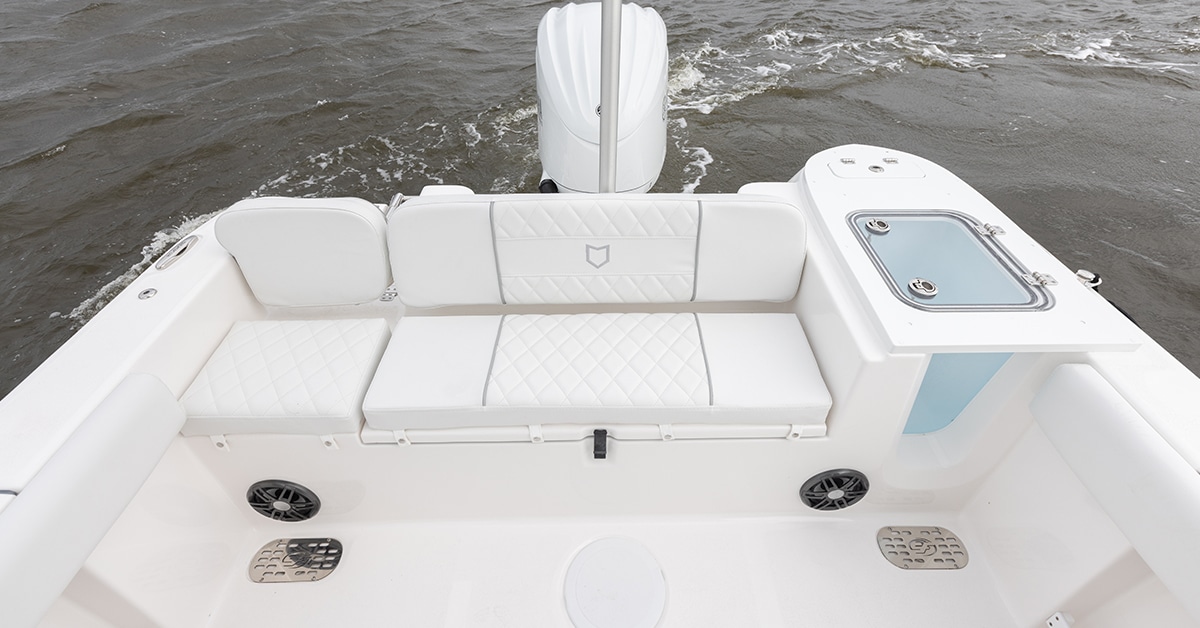

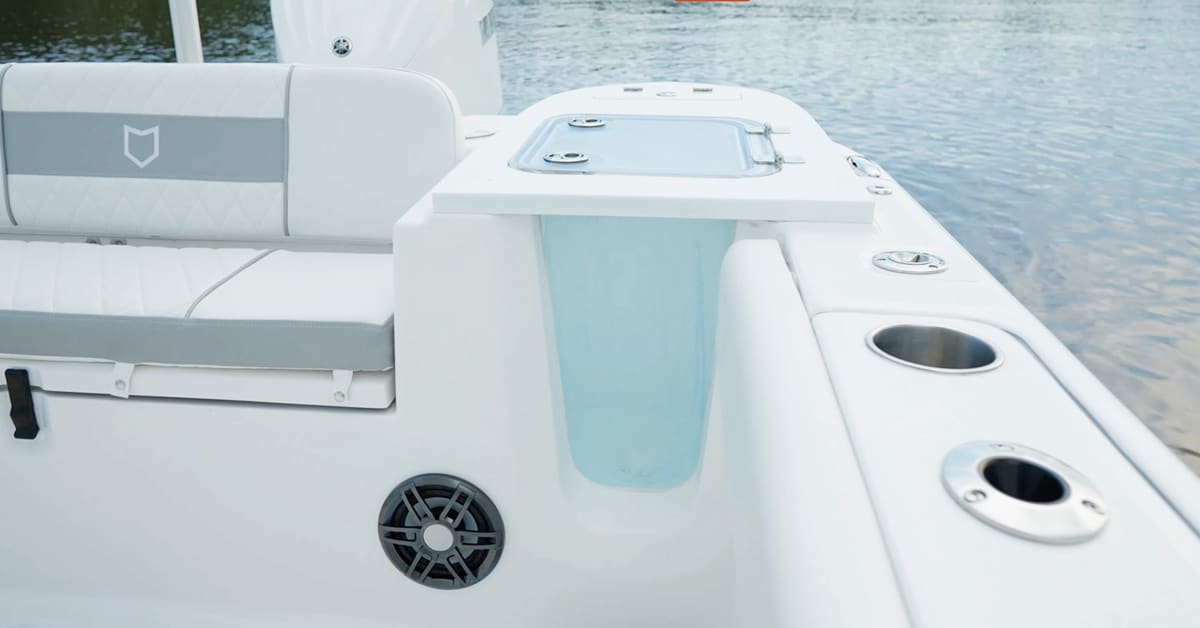

    • Aquarium style pressurized livewell with window (30 gallons, 800 GPH aerator)
    • Livewell light
    • Dip net with integrated easy access storage

    Transom:

    • Stainless steel walkthrough gate

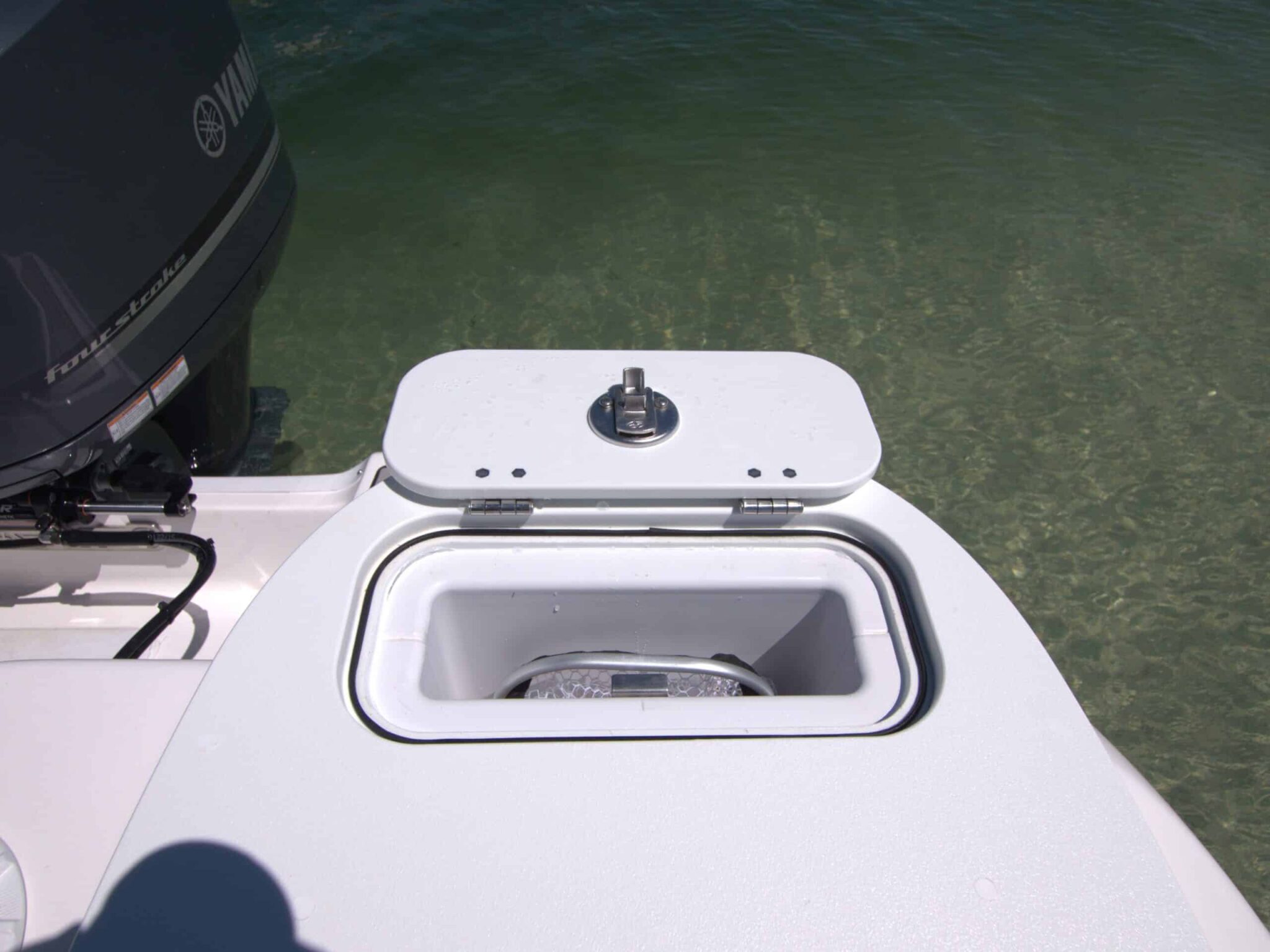

    • Transom storage compartment - plumbed and insulated for use as a cooler and notched for beach anchor storage
    • Raw water washdown hose with storage tube on aft bulkhead - 15' of hose with adjustable nozzle
    • Fresh water washdown hose with storage tube on aft bulkhead - 15' of hose with adjustable nozzle. 12 gallon freshwater tank.
    • Bulkhead fittings for hydraulic hoses in splashwell
    • Stainless steel transom saver
    • Stainless steel rear boarding telescopic ladder with integrated boarding handle
    • Marine grade soft mat deck accents
    • Stainless steel through bolted grab rail
    • Recessed electric trim tabs with integrated hull design
    • Stainless steel U-bolts on port and starboard transom

    Bilge:

    • Marine fuel/water separating filter
    • 1100 GPH bilge pumps (primary and back up)
    • Electronic automatic float switch
    • Mechanical float switch
    • Freshwater pump
    • Raw water pump

    Other great features:

    • Oyster grey marine grade upholstery: antimicrobial vinyl, foam, and stitching
    • Composite hull & deck
    • Isothalic gelcoat
    • Vinyl ester barrier coat
    • Sand-grip deck surface
    • Stainless steel rub rail
    • Stainless steel fasteners
    • Stainless steel through hulls
    • Stainless steel pull-up cleats (6)
    • Silver boot stripe available on white and full hull gelcoat options
    • Limited Lifetime Hull Warranty

    Note: Due to Sea Fox's continuous innovation and improvements, standard features and options can change without notice.

    Bridge clearance: based on factory installed Ultima hard top or T-top. Doesn't factor in optional outriggers.

    Dry weight is approximate & includes: boat plus factory options, but NO motor(s), water, fuel, owner's gear or batteries.

    Maximum weight is approximate & includes: boat plus factory options, full fresh water, holding & fuel tanks, 2 batteries, but NO motor(s) or owner's gear.

    Fuel capacity can vary due to US EPA Evaporative Standard requirements.

    Sea Fox Boat Co., Inc. meets US EPA Evaporative Standards using Certified Components.

    248 COMMANDER OPTIONS

    Power

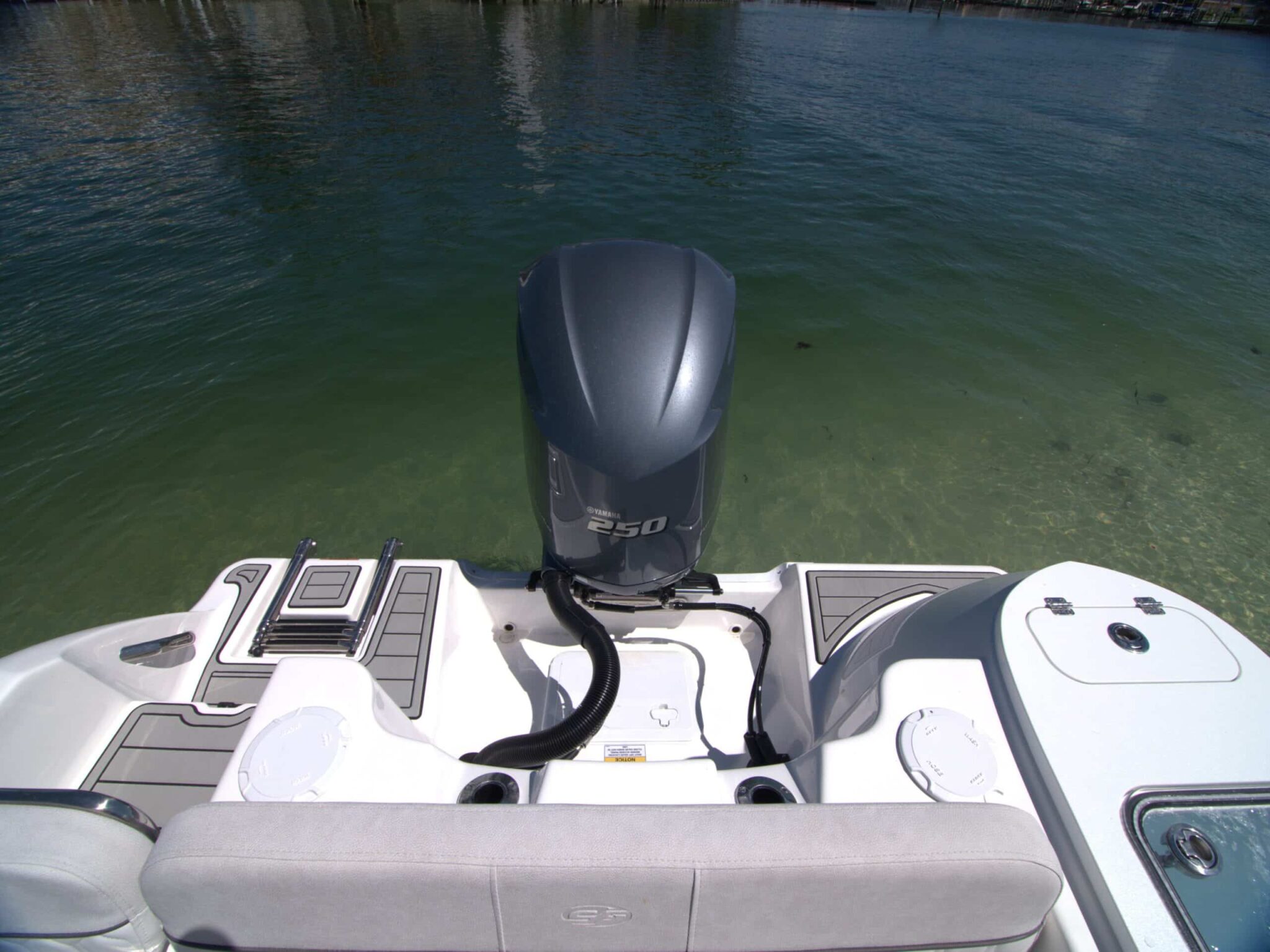

    • Yamaha F250XCB
      • Hydraulic steering
    • Yamaha F300XCB
      • Hydraulic steering
    • Painted motor
      • white or black
      • metallic silver Yamaha decals

    Gelcoat Accent

    • Colored hull complete with silver boot stripe
    • Colored hull sides
    • Colored hull stripe

    Top

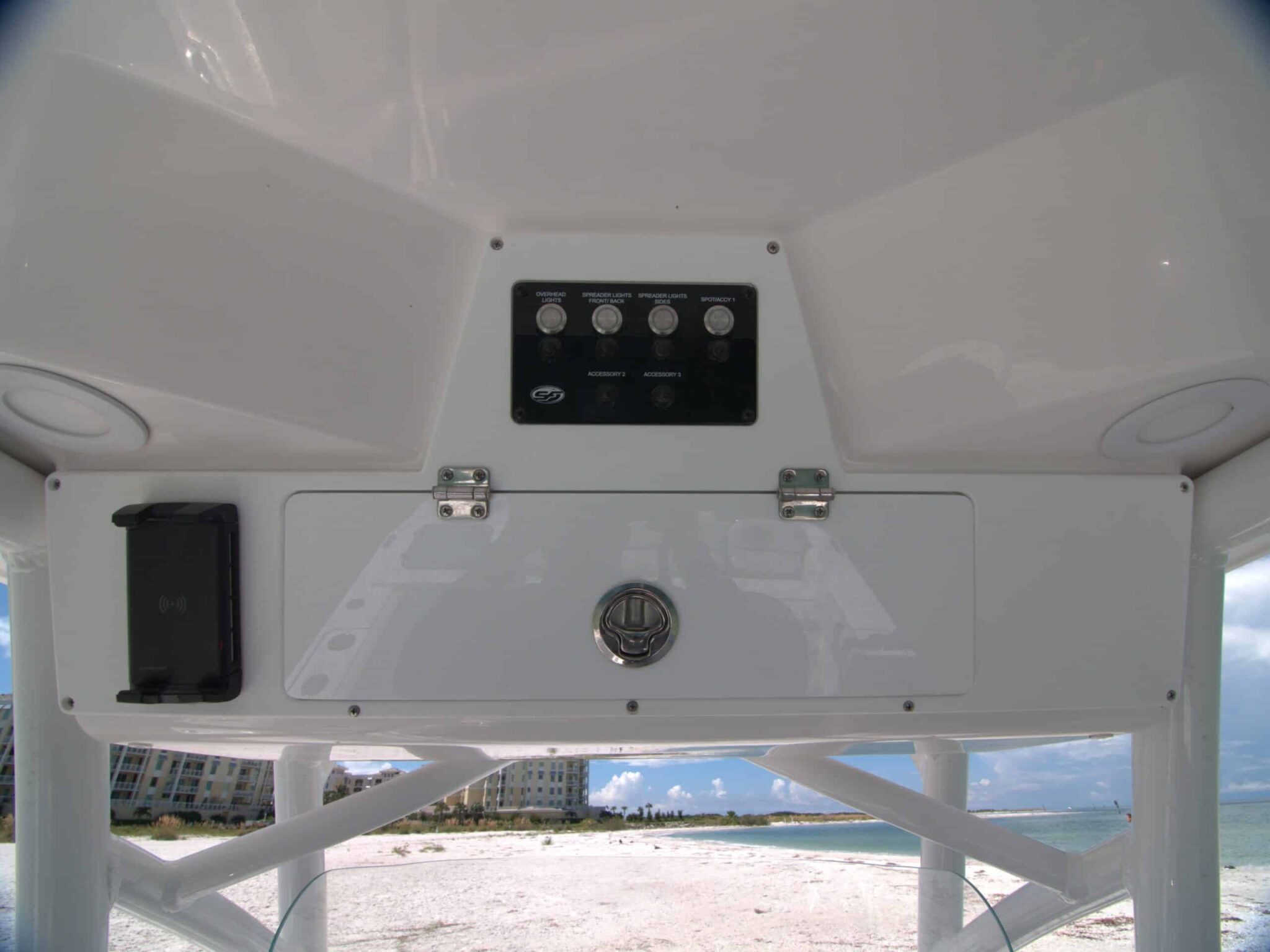

    • Ultima hard top upgrade
      • includes:
        • LED spreader lights

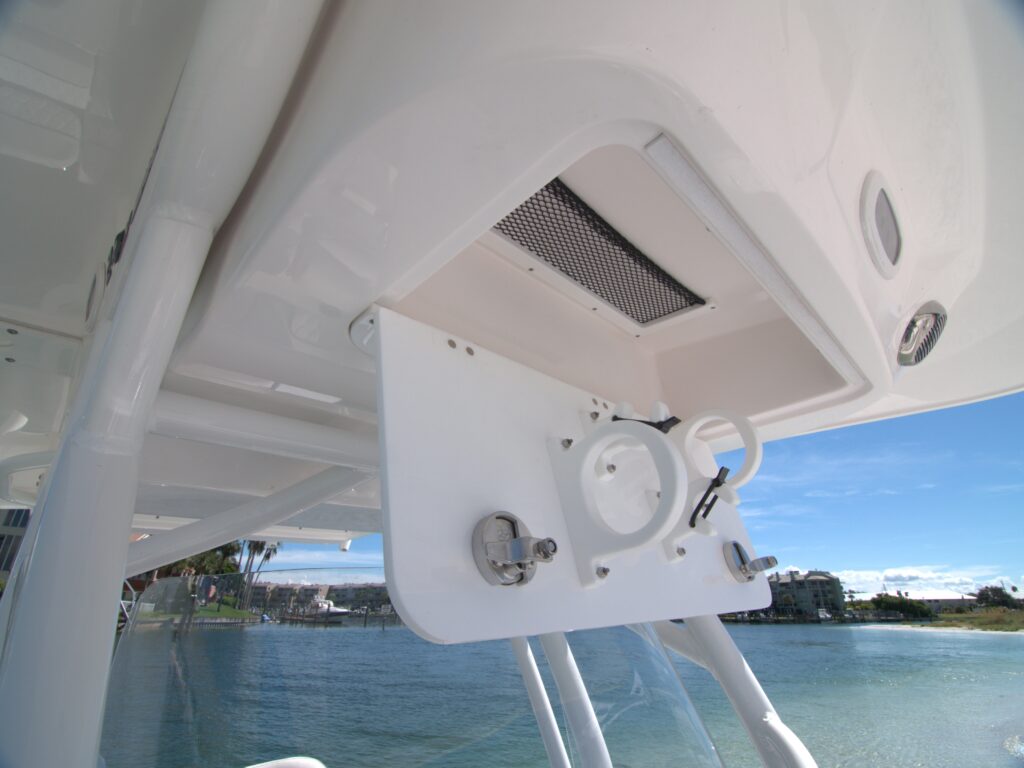

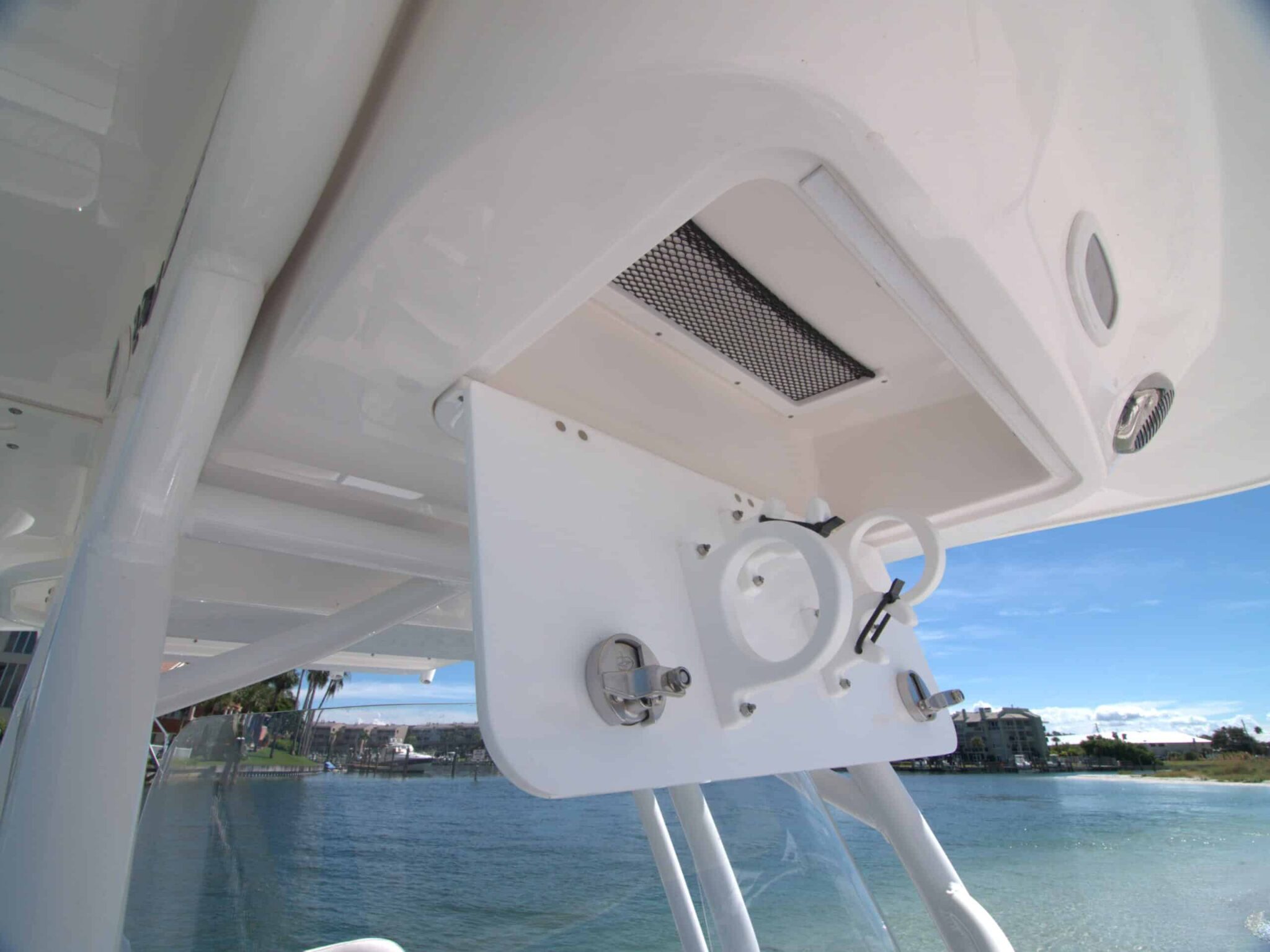

        • molded-in storage boxes
        • safety storage box forward
        • Fusion stereo with USB adaptor
        • 6 Fusion speakers in deck, LED lights: red, blue, & white (power cycle)
        • 5 rod holders

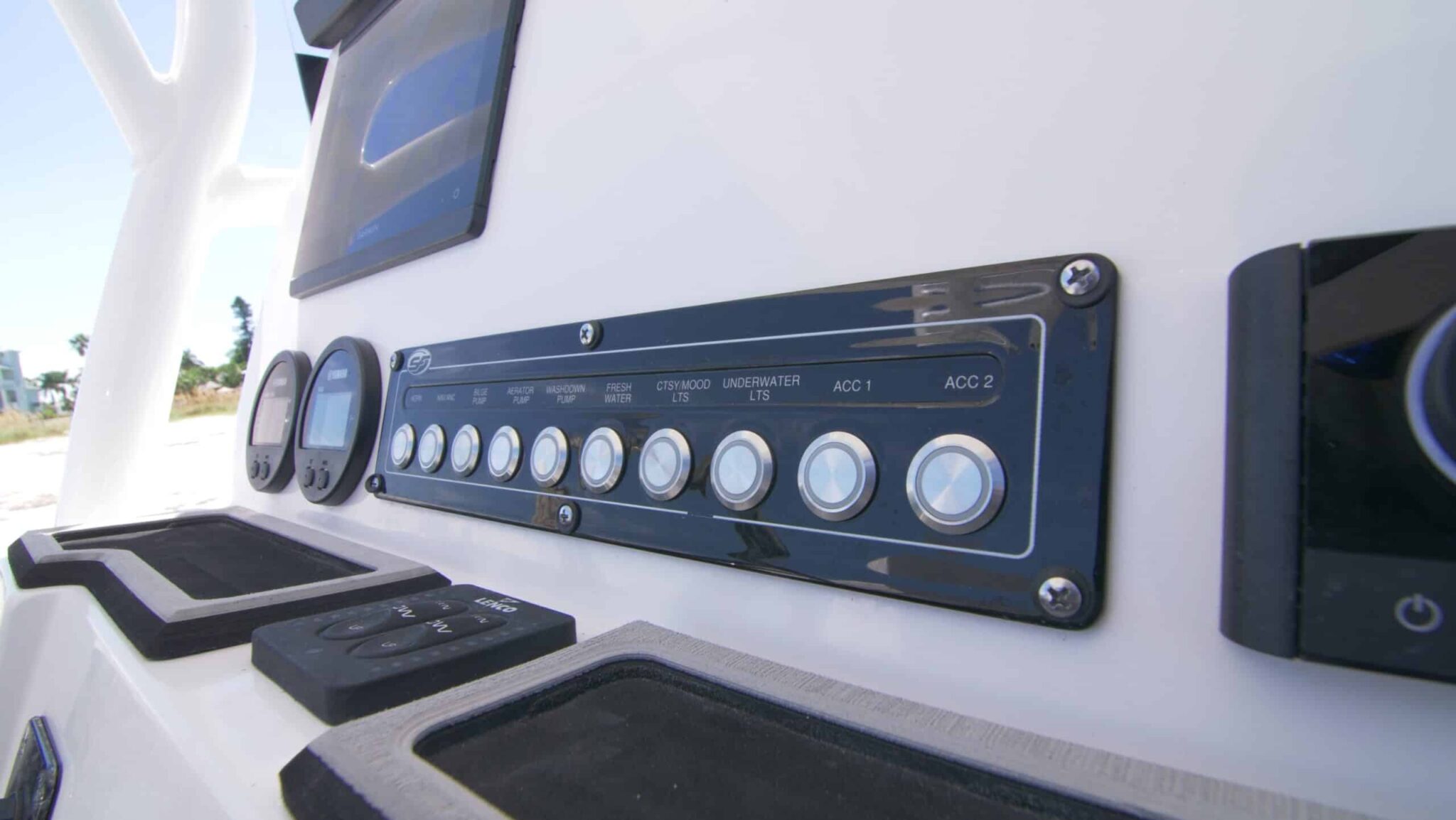

        • illuminated switch panel
        • reinforced pad for Garmin radar
    • Weathermax bow shade with four carbon fiber support poles (requires ultima hard top option)
    • Weathermax aft shade with two carbon fiber support poles (requires ultima hard top option)

    Aluminum Accent

    • Powder coating
      • top & leaning post
      • white, black, or jetty grey

    Upholstery Accent

    • Platinum upgrade
      • offshore stitch
      • two tone: textured light grey with white
    • Titanium upgrade
      • offshore stitch
      • two tone: textured dark grey with white

    Upgrade Packages

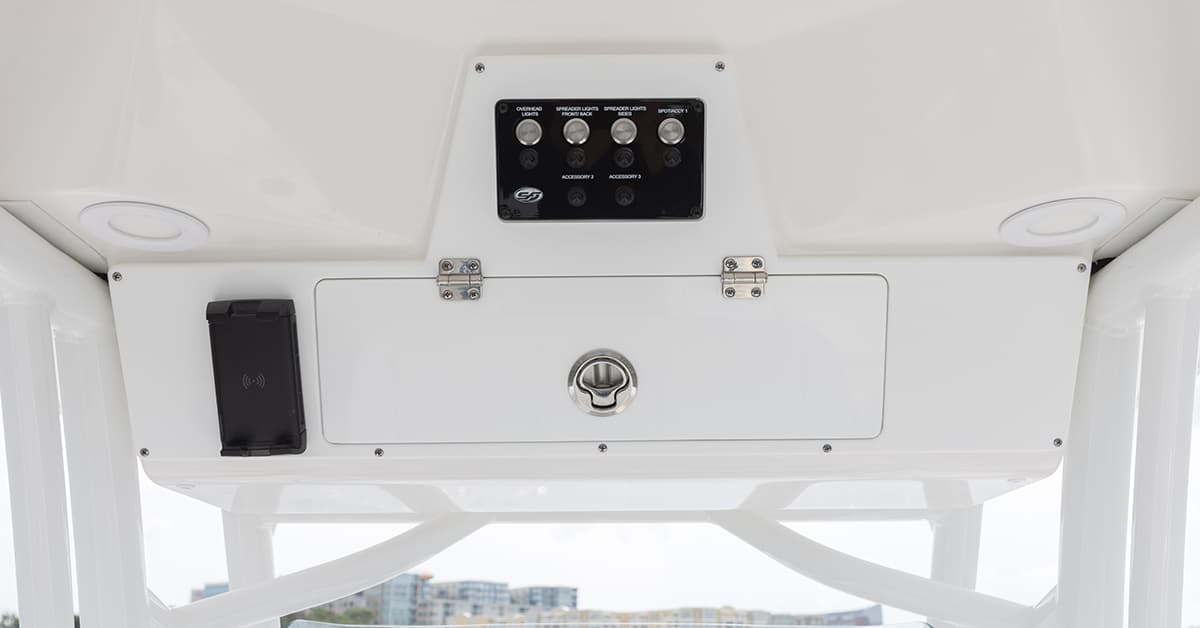

    • LED/Tech package
      • includes:
        • blue mood lights
        • power cycle blue/white fade/flash
        • underwater lights
        • upgraded courtesy lights
        • wireless cell phone charger
    • Pro package
      • includes:
        • cushioned foot mat
        • gas shocks on 2 bow lids
        • 2 extra rod holders on bow gunwales
        • four quick release fender deck mounts

    Electronics

    • Garmin 94SV GPS Map with thru-hull transducer (P19)
    • Garmin 8610XSV touchscreen with thru-hull transducer (B150M CHIRP)
    • Garmin 8610XSV twin touchscreen with thru-hull transducer (B150M CHIRP)

    Head

    • Electric porcelain toilet with 12.5 gallon holding tank
    • Waste discharge - electric overboard (requires electric toilet option)

    Other

    • Thru-hull windlass system with anchor roller
      • includes:
        • controls at helm & bow
        • rode kit:
          • 15' chain
          • 150' rope

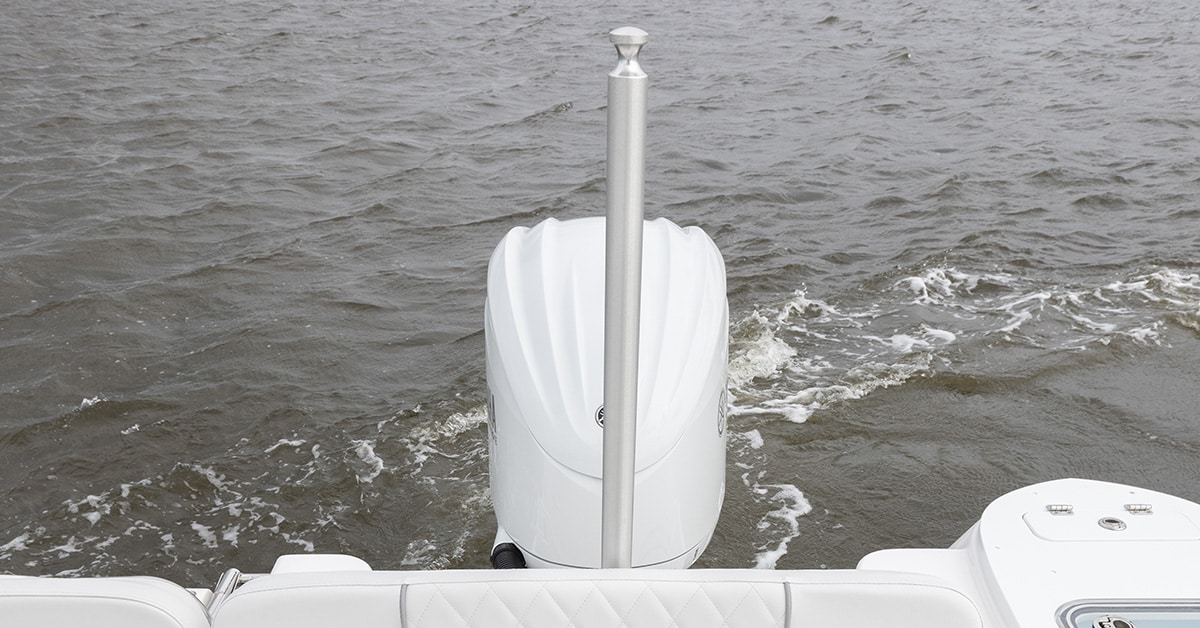

    • Ski tow bar (removable)
    • Lenco switch for trim tabs with LED indicators
    • Battery charger - two bank
    • Power assist steering pump

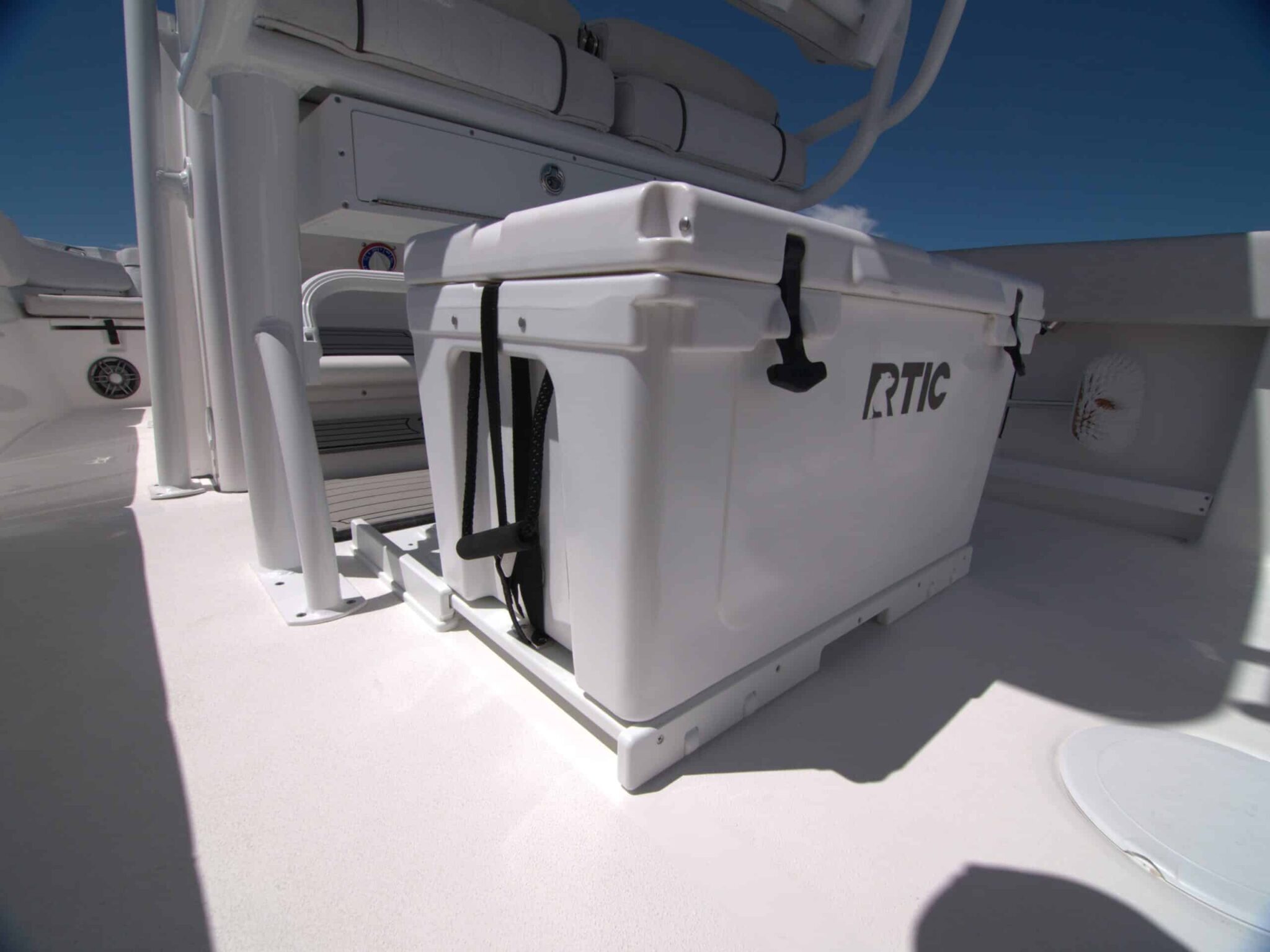

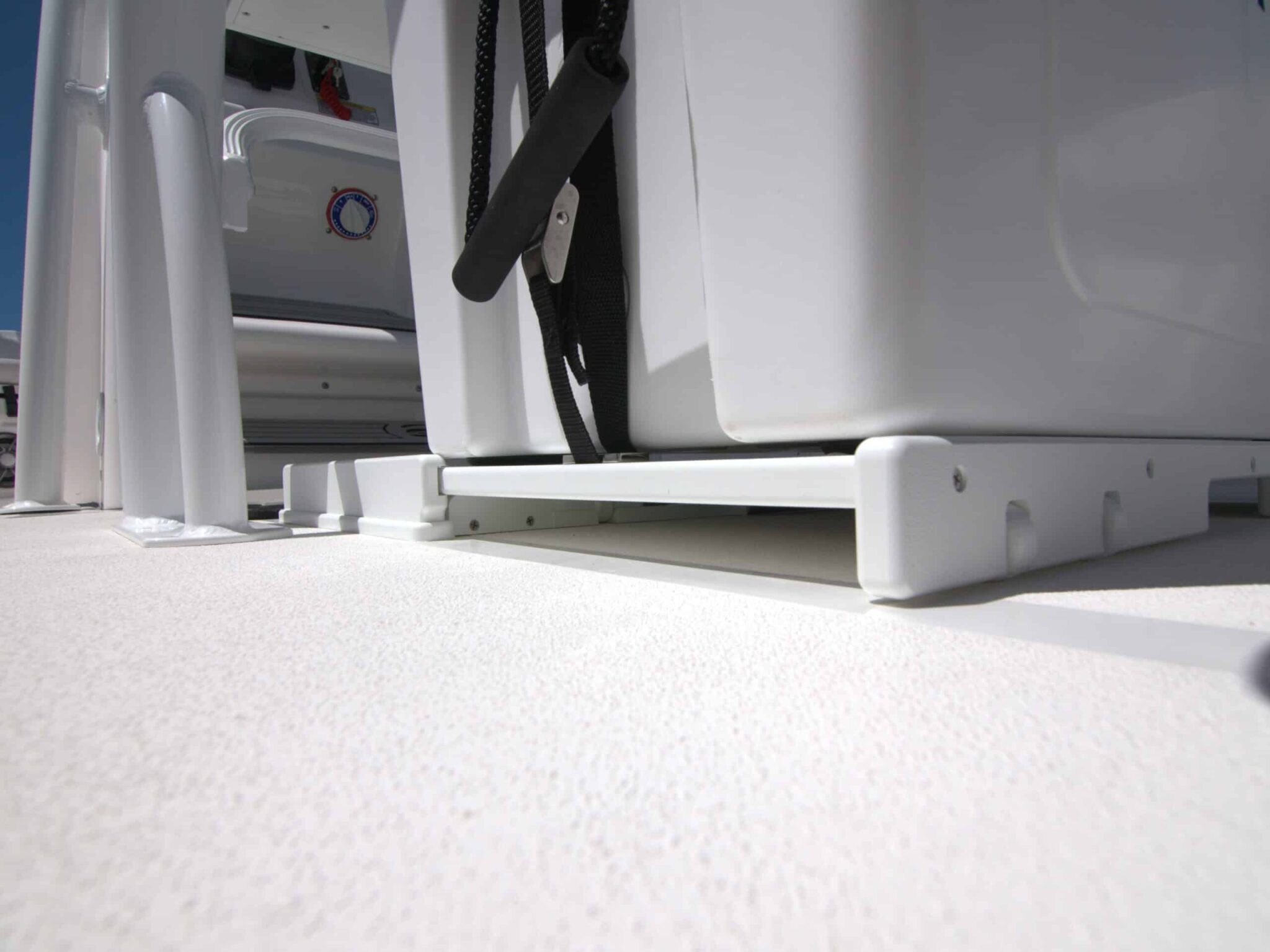

    • Slide-out cooler tray mechanism with foot release & leaning post tackle center

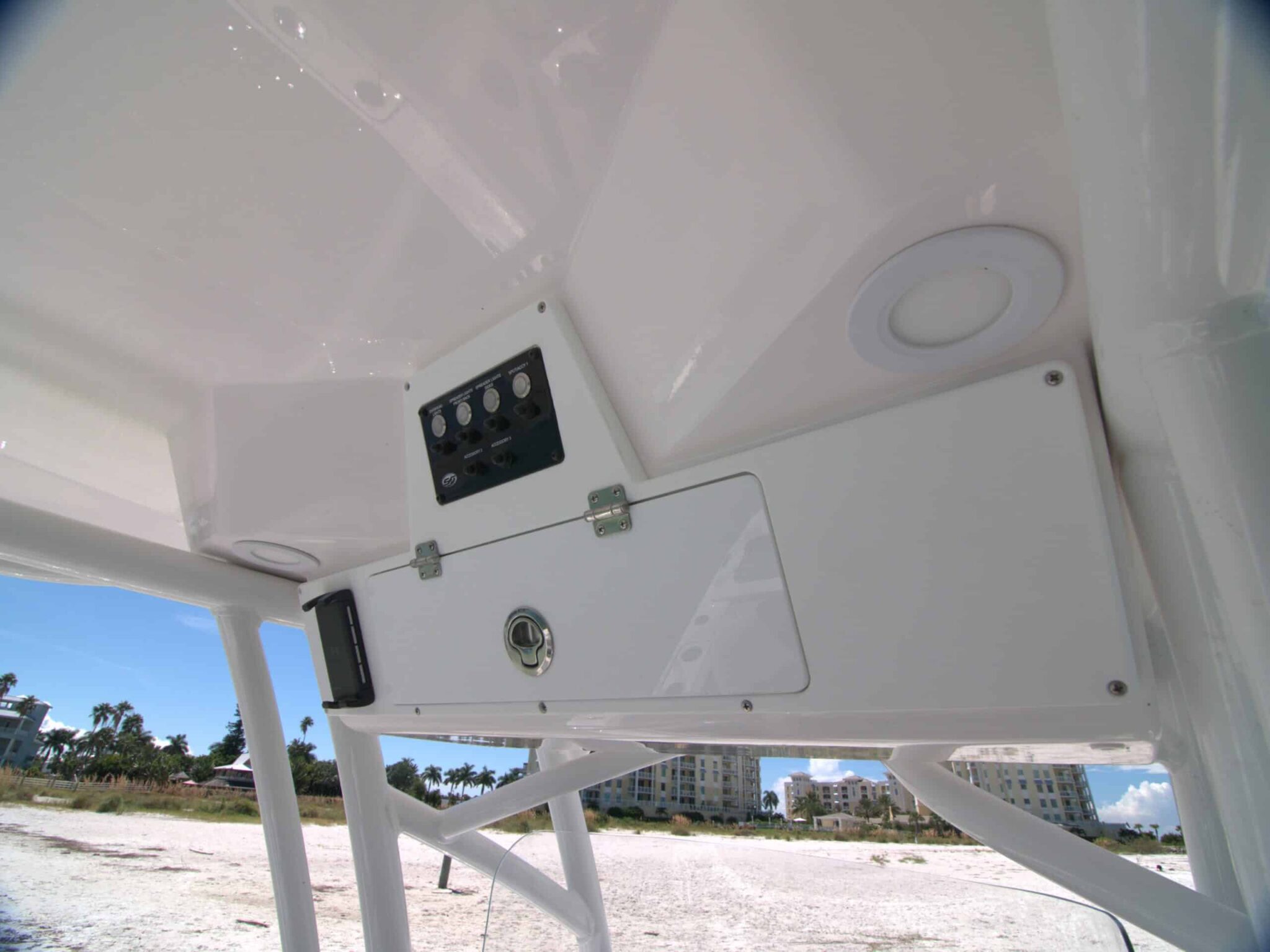

    • Electronics box for t-top
    • Transhield fitted boat cover
