Sea Fox 251 Bay Fox

251 Bay Fox

Master the flats, swift and silent as a fox

HULL DESIGN

Carolina Flare

Length

24'4"

Livewells

2 Maximum Horsepower

300 HP

Search All Features

Tournament-Ready Bow Casting Platform

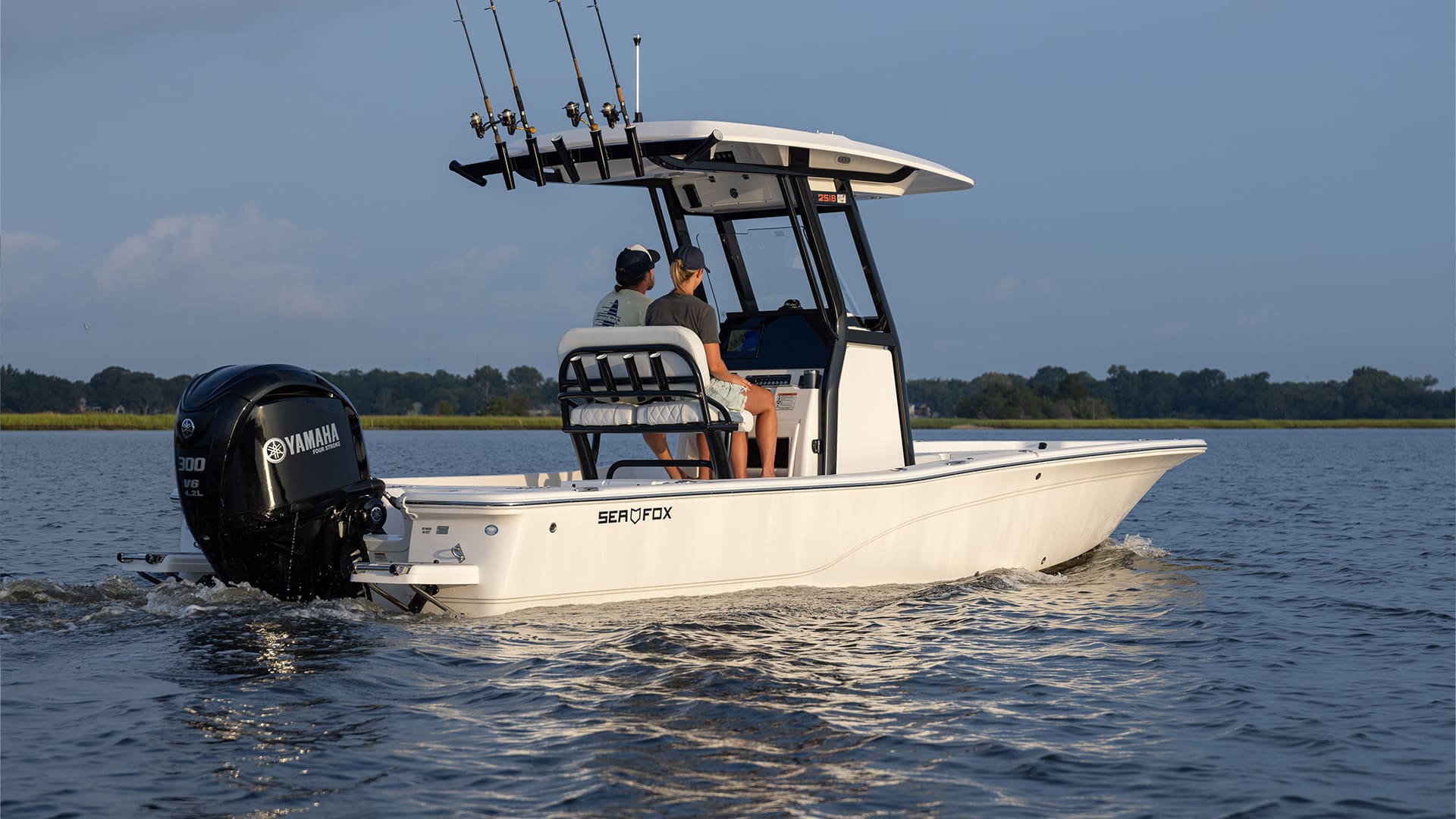

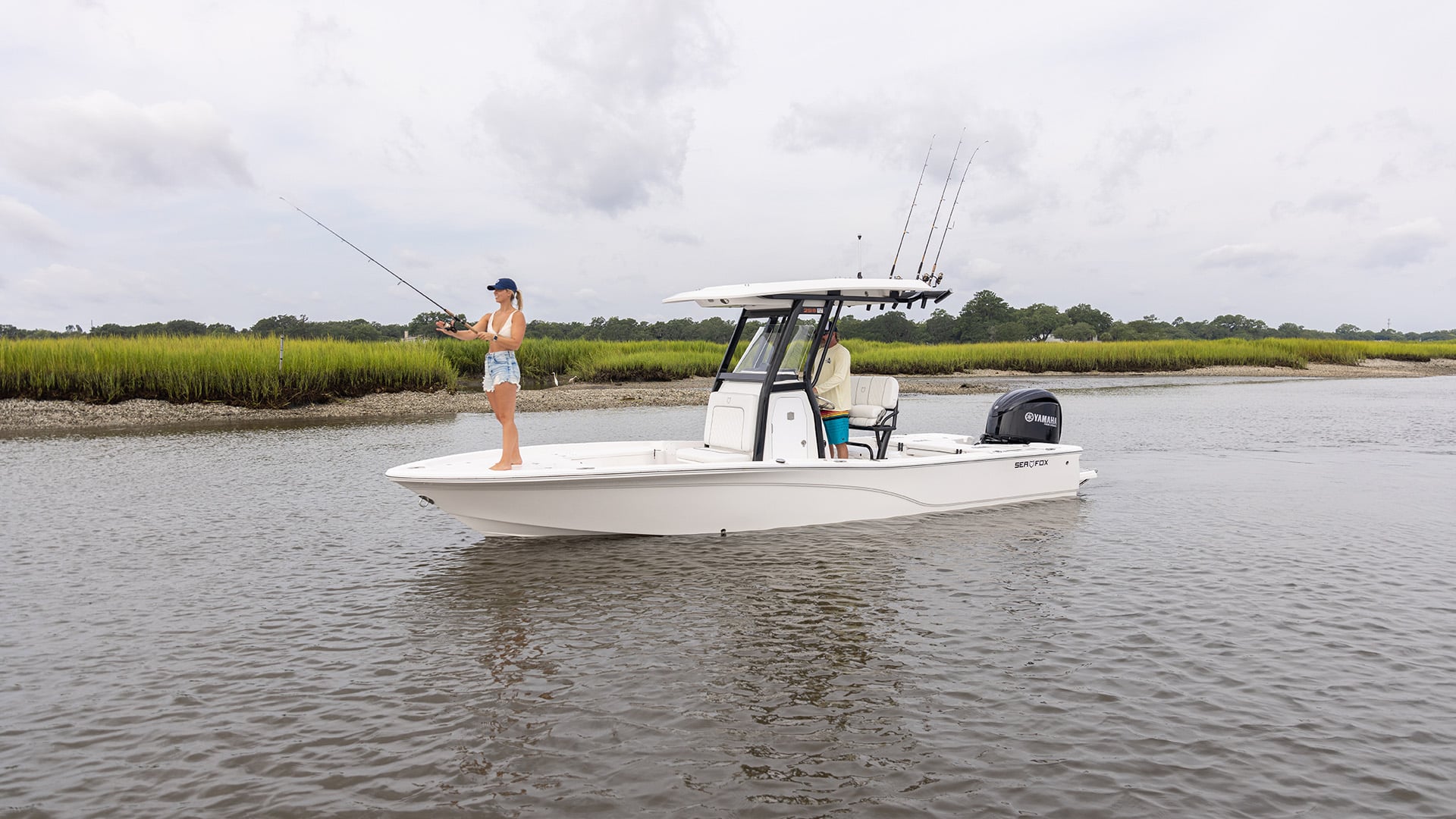

CEO Freddy Renken, a 3rd generation boat manufacturer, founded the Sea Fox Boat Company in 1995 and builds great center console offshore boats and more.

251 Bay FOX

Designed with Anglers in Mind

Designed to do it all, this bay boat transitions seamlessly from serious inshore fishing to laid-back days on the water. The spacious bow casting platform offers ample room to fish with ease, while integrated forward deck steps provide convenient storage for gear, fish, or PFDs. At the helm, the console features a sleek black acrylic dash with excellent visibility and generous space for a range of navigation screen sizes and layouts.

Design your boat today!

Build this Boat

Gallery

251 Bay Fox Videos

top standard features

Sea Fox 2024 B 1200x628 231 B 231BayFox Fusion Stereo

Fusion Apollo Stereo

The Fusion Apollo marine stereo provides rich, dynamic sound to keep the energy going all day on the water.

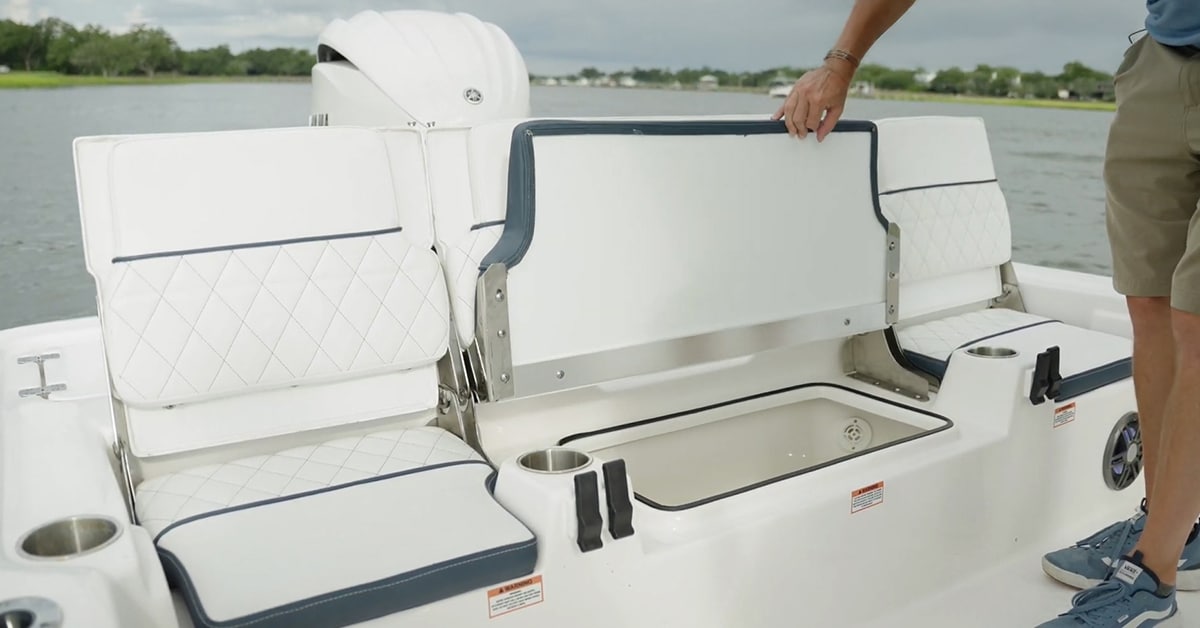

2 Livewells

Dual livewells (30-gallon transom and 12-gallon console) keep bait healthy and ready, giving anglers the capacity needed for a full day on the water.

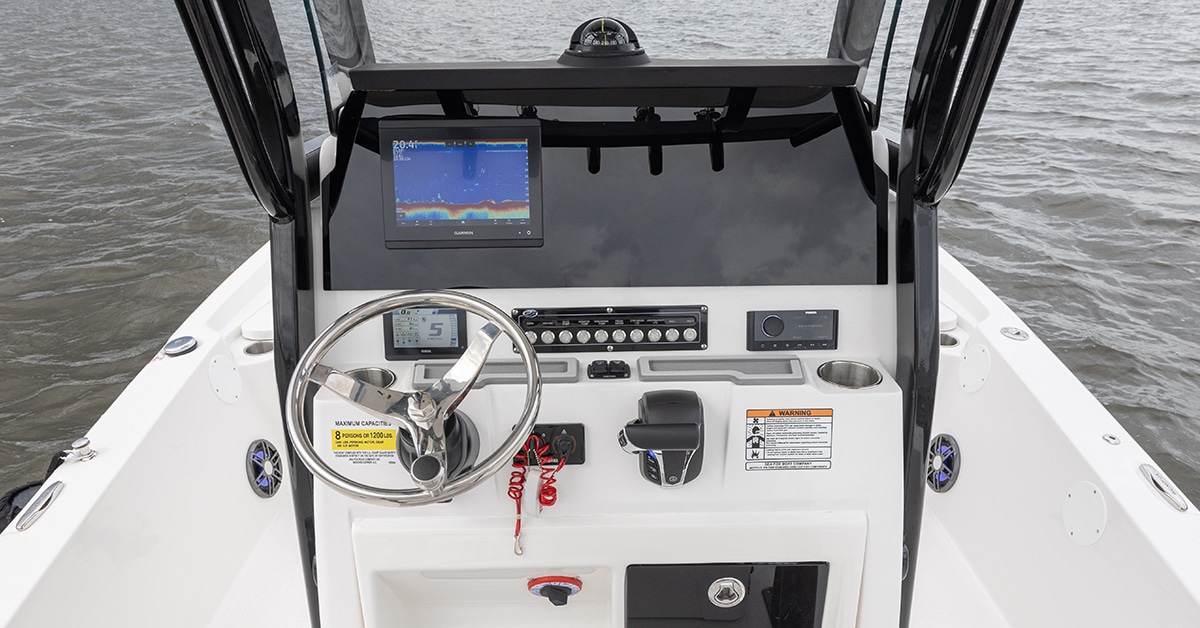

Acrylic Dash

A smooth acrylic dash panel gives the helm a refined appearance and an ideal platform for electronics installation.

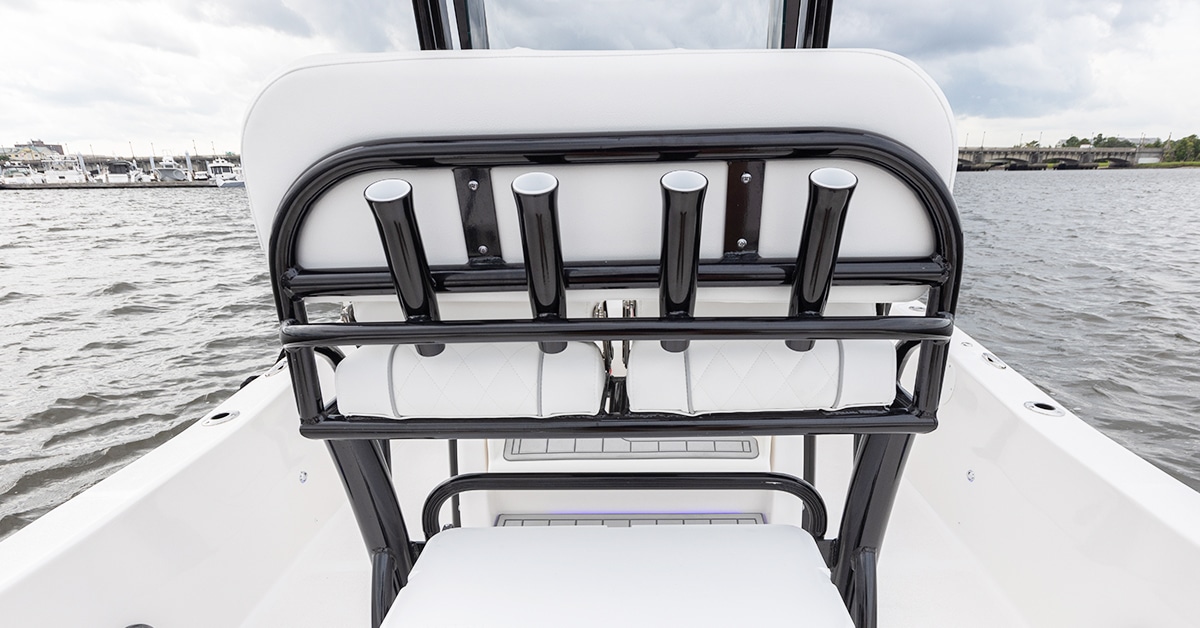

Rod Holders

Equipped with four stainless steel rod holders to keep rods organized and within easy reach.

From Casting to Cruising

The 251 Bay Fox is designed to balance serious fishing capability with everyday comfort, giving you the flexibility to spend your time on the water however you choose. The aft deck transitions seamlessly from a casting platform to comfortable seating, while the optional bow seating package extends that versatility forward, creating a relaxed, inviting space throughout the boat. Added conveniences like the onboard battery charger ensure you’re always ready for the next trip.

Aft deck easily transitions from a casting platform to comfortable seating
Optional bow seating package enhances forward comfort and versatility
Built-in 2-bank battery charger keeps onboard batteries charged and ready
Distinct Bay Fox design with a sleek, stealth-inspired look

top optional features

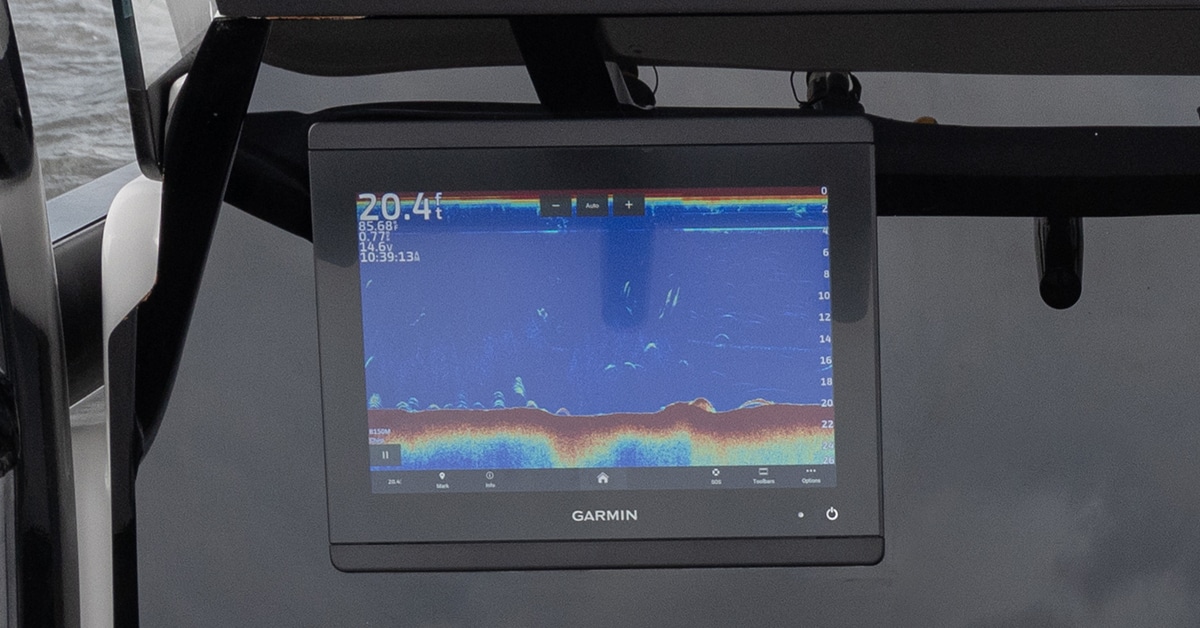

Garmin 1243XSV

The Garmin 1243XSV provides advanced navigation, sonar, and charting on a bright 12 inch touchscreen display.

Sea Fox 2024 B 1200x1200 251 B 251 lenco switch

Lenco switch for trim tabs

The Lenco trim tab switch with LED indicators provides clear feedback on tab position for quick, easy adjustments and a smoother ride.

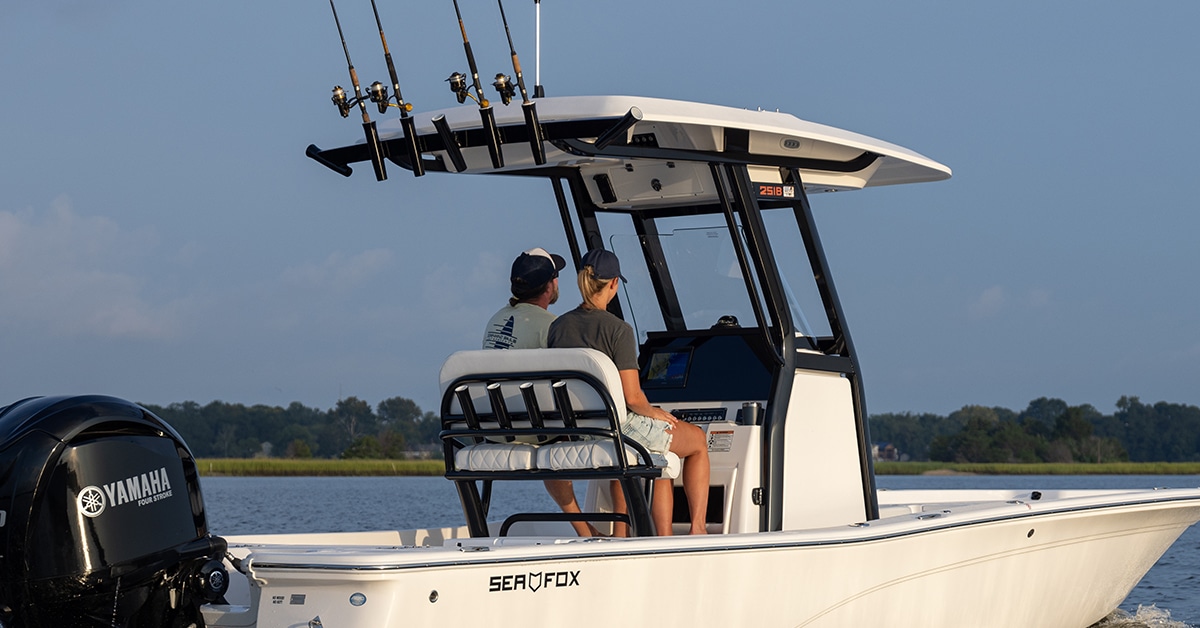

Ultima Hard top with d-tubing and full enclosure

The Ultima hardtop with D-tubing and full enclosure provides excellent protection from the elements while giving the helm a sleek, modern look and added functionality.

Next Level Fox

The Pro Pack

The Pro Pack adds smart upgrades for comfort and convenience, including a cushioned foot mat at the helm, gas shocks on two bow lids for easier storage access, four quick release fender mounts for simple docking, and a livewell bubbler to help keep bait fresh.

251 Bay Fox Product Information Guide

Performance Data

Dimensions

Centerline Length:
24’4"

Beam:
8’6”

Bridge Clearance:
92"

Deadrise:
15 degrees

Draft (hull):
14"

Transom Height (Centerline):
25"

Weight

Dry Weight :
3,362 lbs

Maximum Weight :
5,301 lbs

Capacity

Fuel Capacity:
72 gal

Persons Capacity:
8

Total Capacity:
2,200 lbs

Engines

Maximum Horsepower:
300 hp

Bridge clearance: based on factory installed Ultima hard top, doesn't factor in optional outriggers.

Dry weight is approximate & includes: boat plus factory options, but NO motor(s), water, fuel, owner’s gear, or batteries

Maximum weight is approximate & includes: boat plus factory options, full fresh water holding & fuel tanks, 2 batteries, gear, and largest motor(s)

Fuel capacity can vary due to US EPA Evaporative Standard requirements

COLOR CHOICES

Pearl White

Marsh Green

Bahama Blue

Arctic Blue

Channel Blue

Silver Shark

Bull Shark

251 Bay Fox Standard Features

Clear Search

Bow:

Stainless steel bow eye with chafe plate
Anchor compartment with rope storage locker
Trolling motor outlet & harness (12/24/36 volt)
LED navigation lights
LED livewell light
Large casting deck
Insulated bow storage boxes
Rod storage lockers (Port and Starboard)

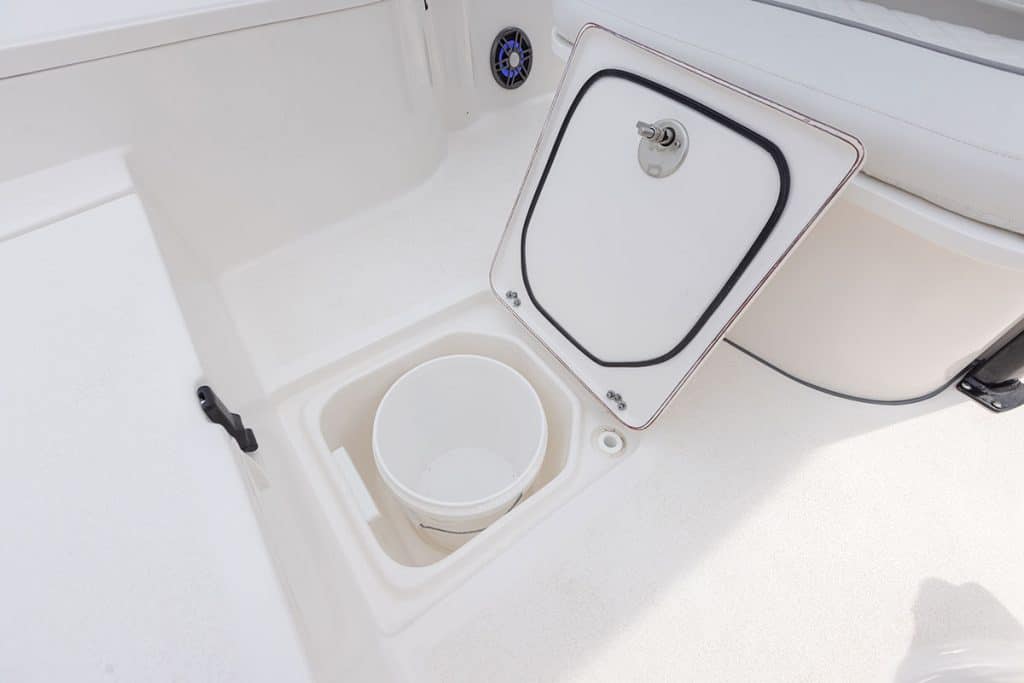

In-floor storage with 5-gallon bucket
Forward console seating with contoured backrest
Console livewell (10) gallons, 800 GPH aerator
Livewell lid window

Helm:

Dometic SeaStar hydraulic steering system with tilt helm
Two digital gauges with backlighting. Tachometer and speedometer with volt, fuel, and push button functions
For Yamaha digital motors (Multifunction instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions. Display may vary with availability. Helm will vary with engine choice.)
Acrylic Dash
Fusion Apollo Marine Stereo
Six Fusion marine speakers in deck
Windscreen
Top mount compass on console
Console dash shroud
Dash space for flush electronics (compatible for two 12" displays)
Stainless steel steering wheel with turning knob
Lockable console door
Horn
Console handrails
Integrated console footrest
12-volt power point
Battery switch
Console courtesy lights
Pre-rigging for two batteries
Marine grade soft mat decking and console accents
Easy access battery compartment (holds up to six batteries)

Cockpit:

Leaning post helm seating with backrest and hinged bolsters
Stainless steel compression latches
Cup holders (6)
Stainless steel rod holders (4)
Aft bench seat with easy access hinged cushions
Self bailing cockpit with stainless steel grates
Transom livewell (26) gallons, 800 GPH aerator
Livewell light

Transom:

Transom storage compartments - plumbed and insulated for use as a cooler
Raw water washdown with splashwell outlet
Bulkhead fittings for hydraulic hoses in splashwell
Stainless steel transom saver
Stainless steel rear boarding telescopic ladders with integrated hull platforms
Marine grade soft mat decking and console accents
Stainless steel through bolted grab rail
Electric trim tabs
Stainless steel U-bolts on port and starboard transom

Bilge:

Marine fuel/water separating filter
1100 GPH bilge pumps with built in electronic float switches (2)
Raw water pump

Other great features:

Composite hull & deck
Isothalic gelcoat
Vinyl ester barrier coat
Sand-grip deck surface
Stainless steel rub rail
Stainless steel fasteners
Stainless steel through hulls
Stainless steel pull-up cleats (7)
Limited Lifetime Hull Warranty

Note: Due to Sea Fox’s continuous innovation and improvements, specifications can change without notice

Please visit our website for the most current list of available standards and options
