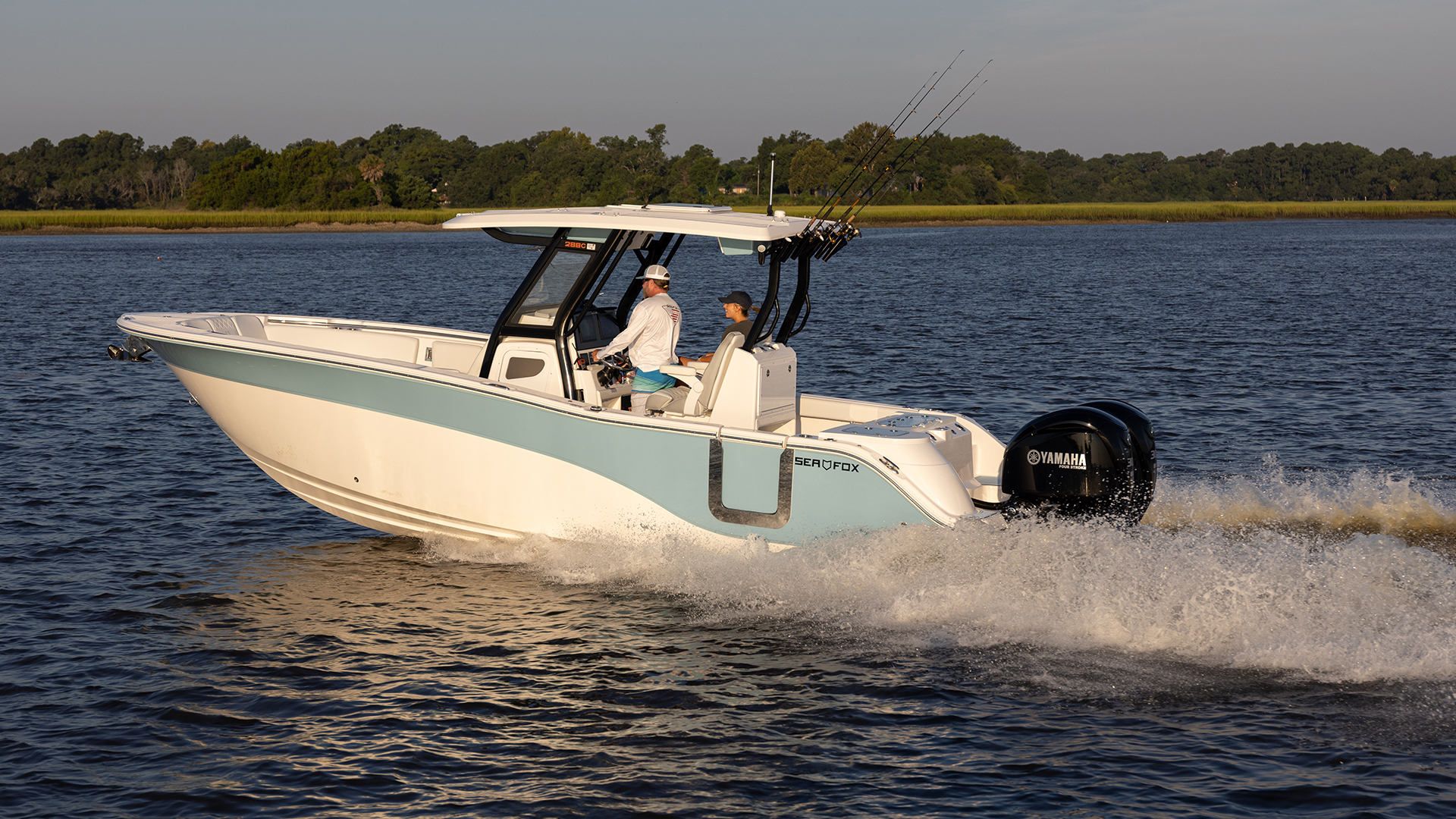

288 COMMANDER
Dimensions
Centerline Length :
28’
Beam :
9’ 8”
Bridge Clearance :
100"
Deadrise :
18 degrees
Draft (hull) :
18"
Transom:
30"
Weight
Dry Weight :
6,000 lb
Maximum Weight :
9,240 lb
Capacity
Fuel Capacity :
185 gal
Persons Capacity :
Yacht Certified
Total Capacity :
Yacht Certified
Engines
Maximum Horsepower :
600 hp
Gallery
COLOR CHOICES
Pearl White
Marsh Green
Bahama Blue
Arctic Blue
Channel Blue
Silver Shark
Bull Shark
Jetty Grey
288 COMMANDER Standard Features

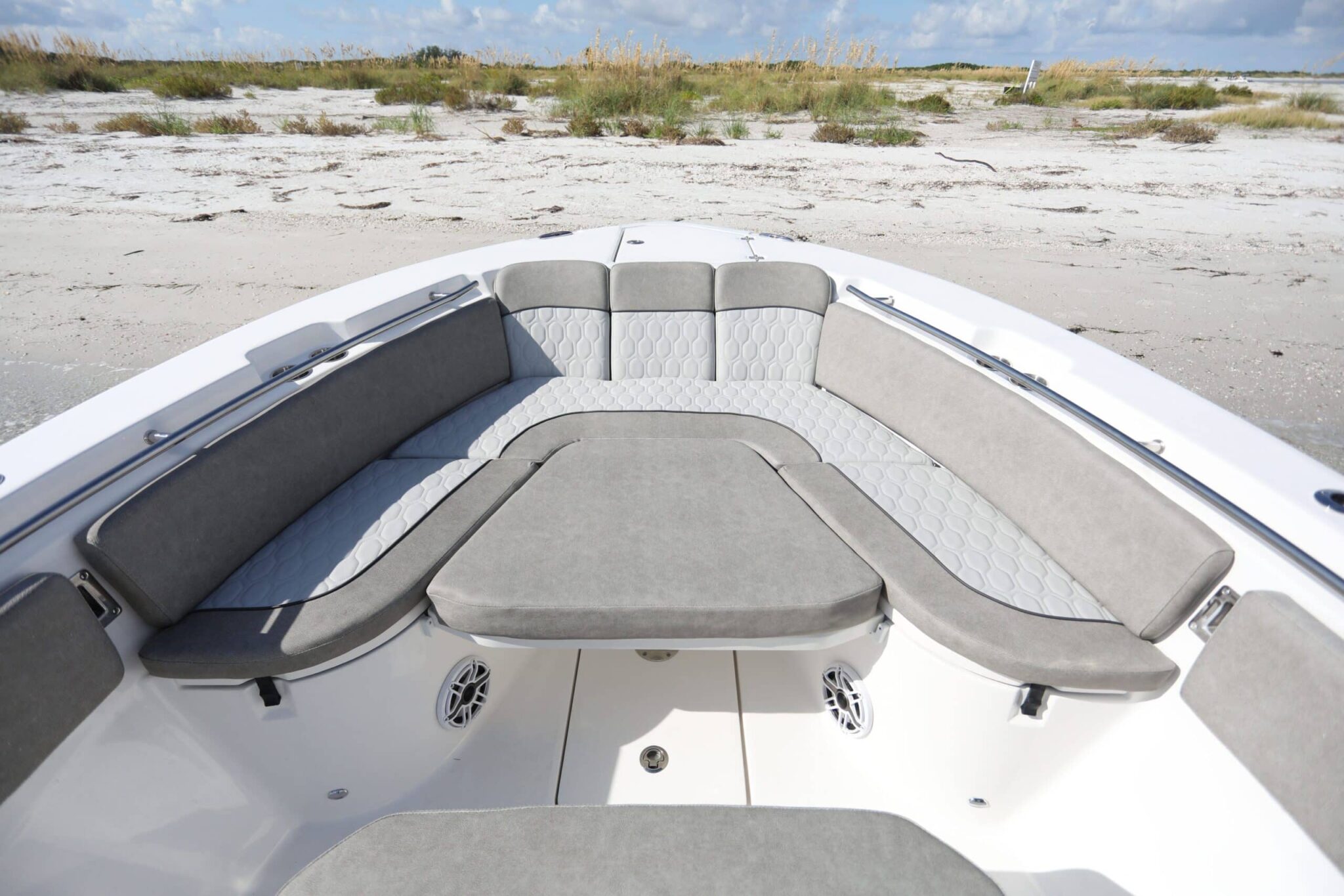

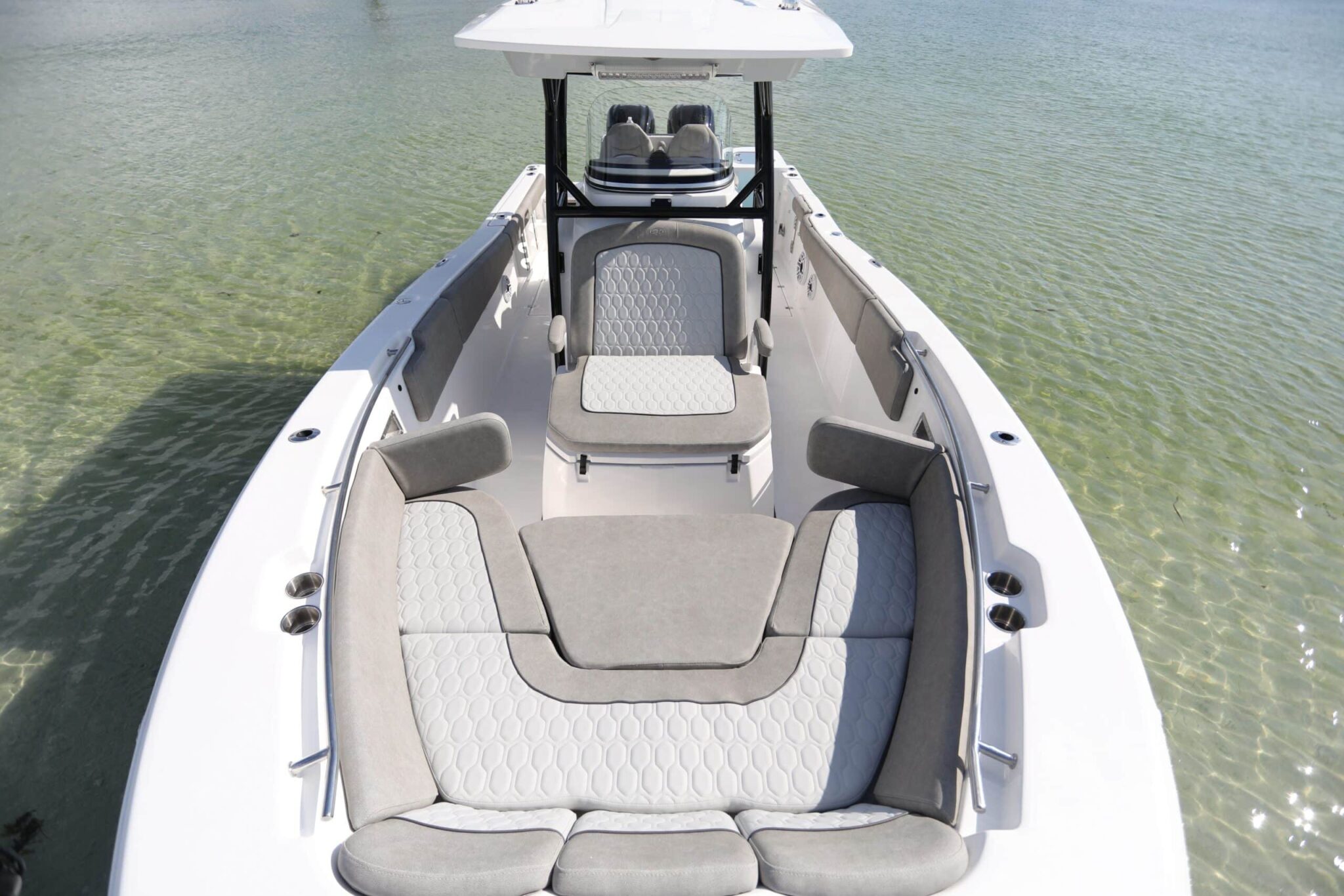

Bow:
- Stainless steel bow eye with chafe plate

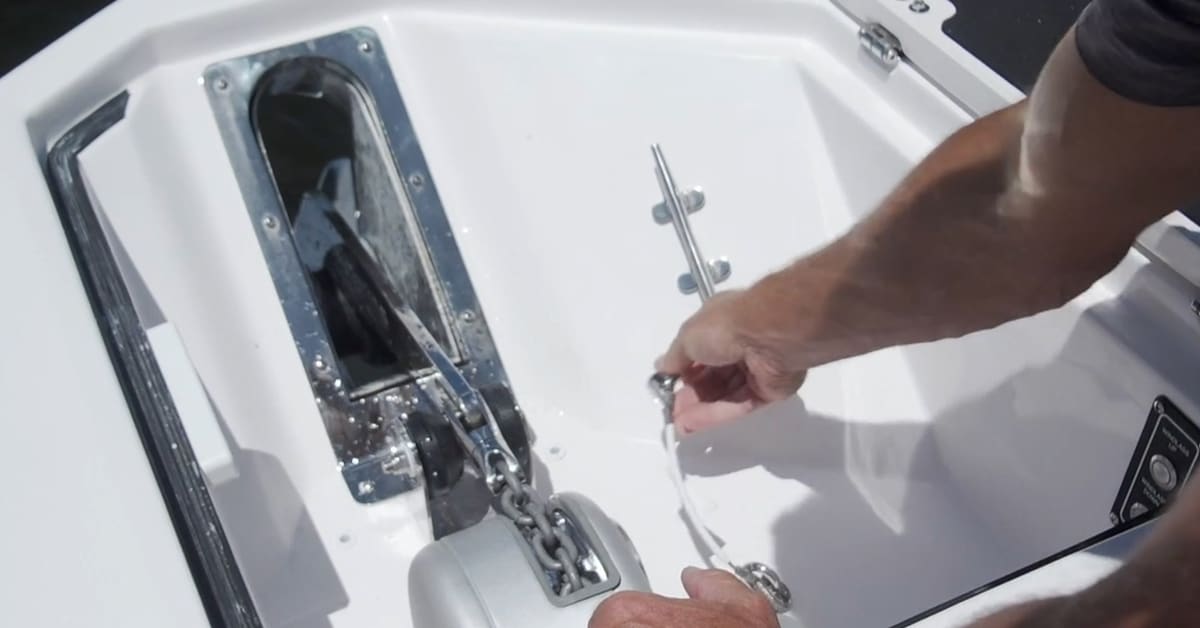

- Windlass anchoring system with controls at helm & bow
- Bow compartment with anchor roller chute, chafe plate, safety strap, rope storage and access
- Rub rail mounted LED navigation lights

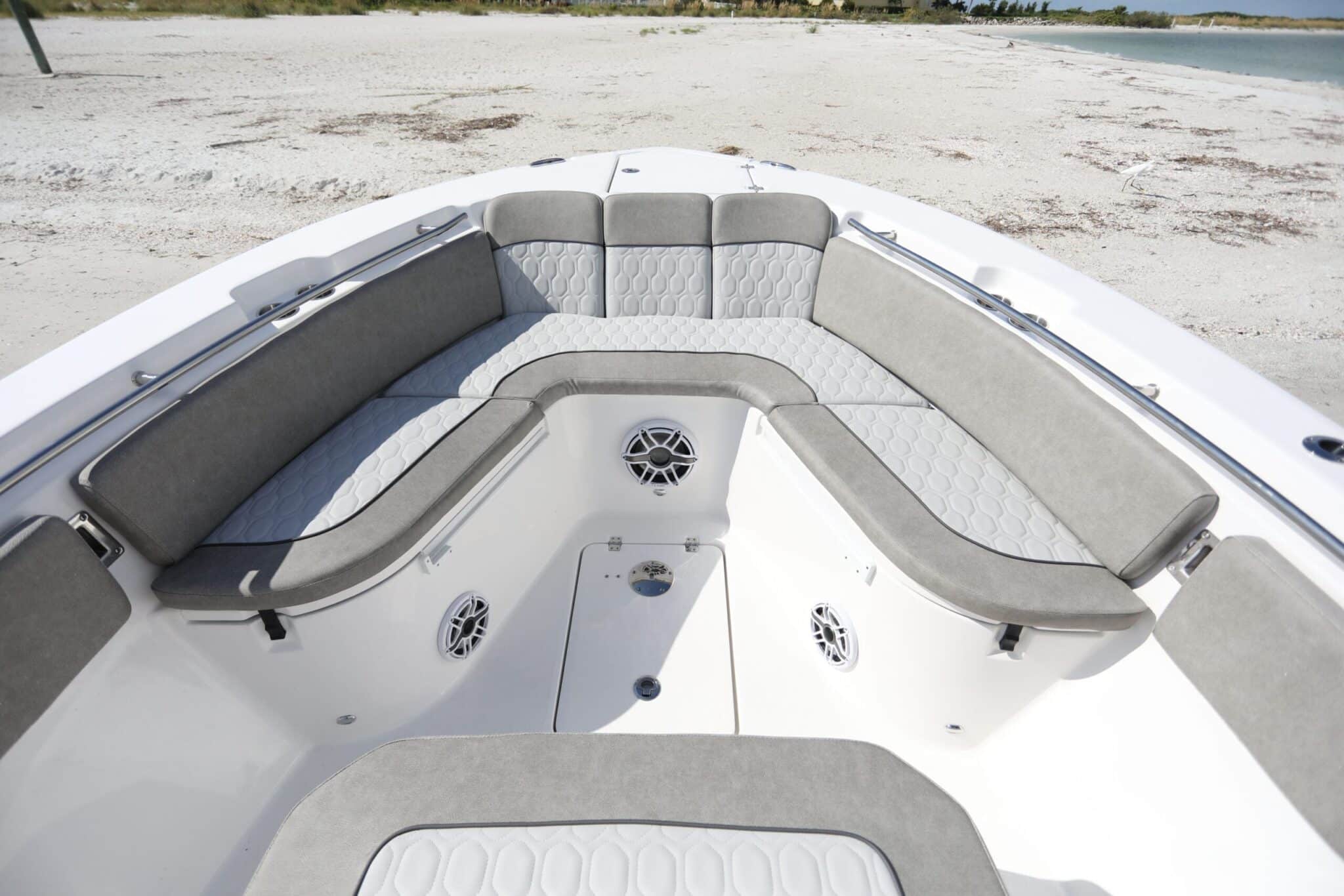

- Curved bow backrest cushions (aft-facing) with removeable bottom cushions
- Full cockpit coaming pads with integrated fold out (forward-facing) bow backrests
- Under seat storage-cooler-fishbox
- Casting deck with removable filler board
- Stainless steel recessed grab rail at bow
- In-floor storage with 5-gallon bucket

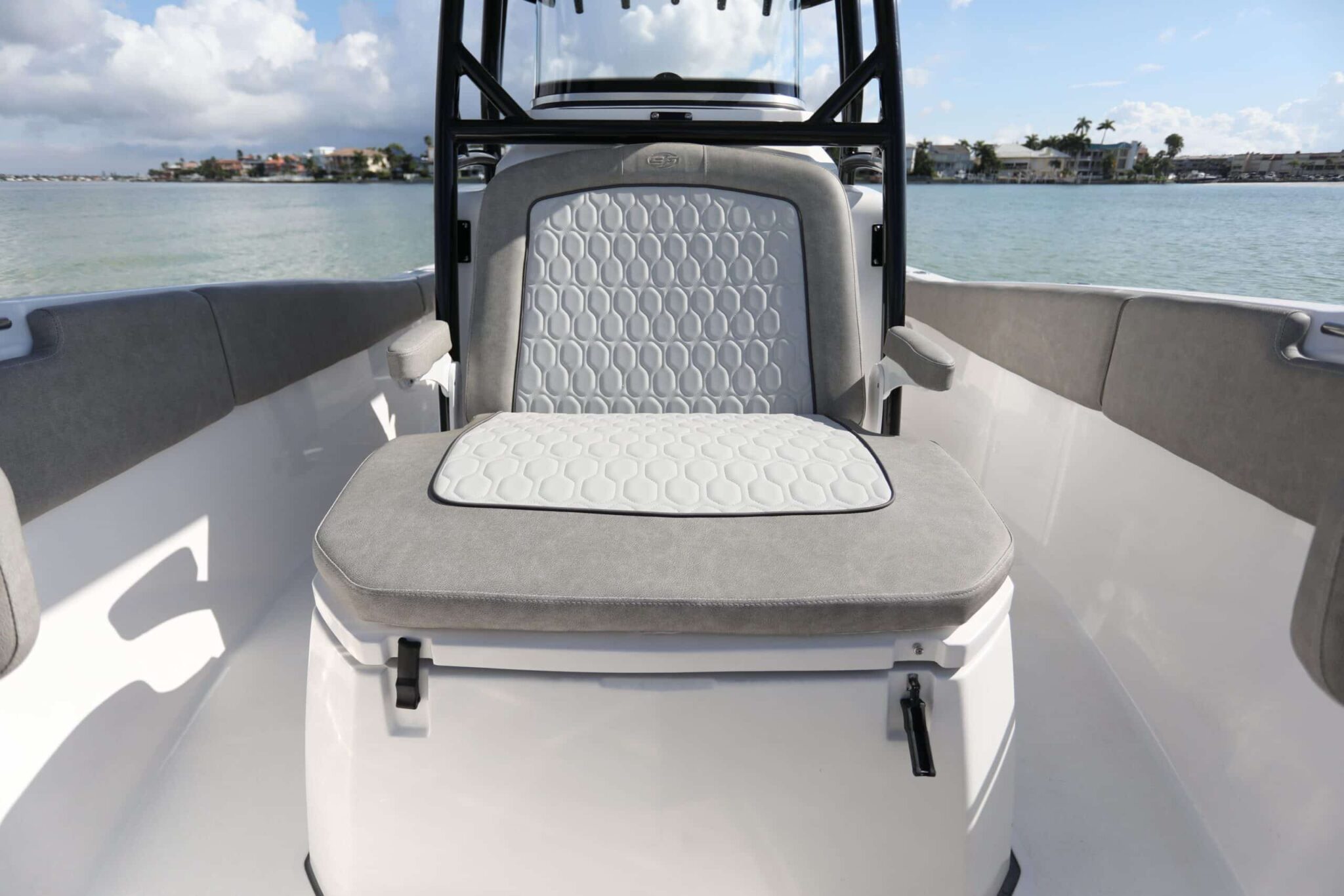

- Forward console lounger (40") with folding armrests

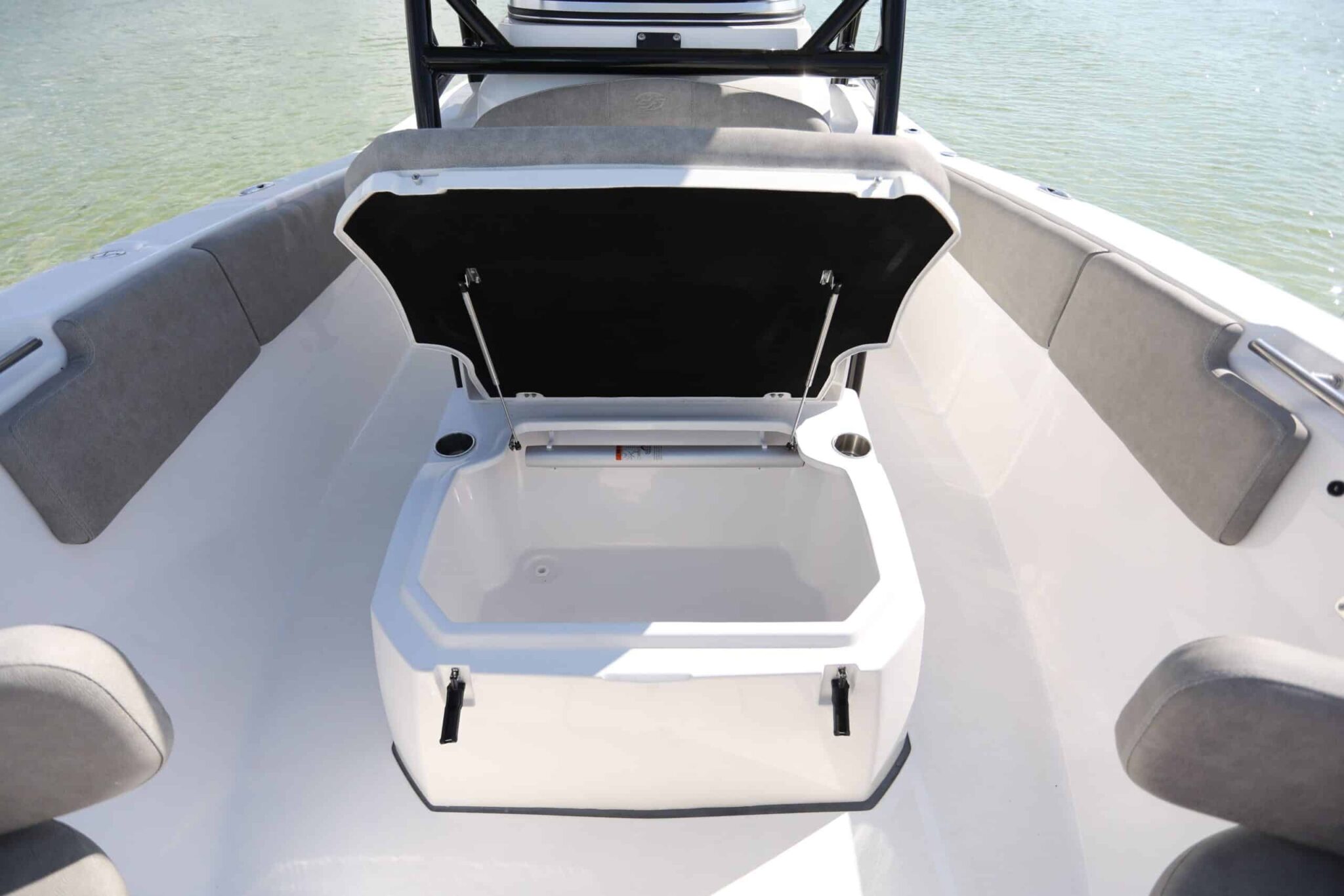

- Dry storage under console lounger

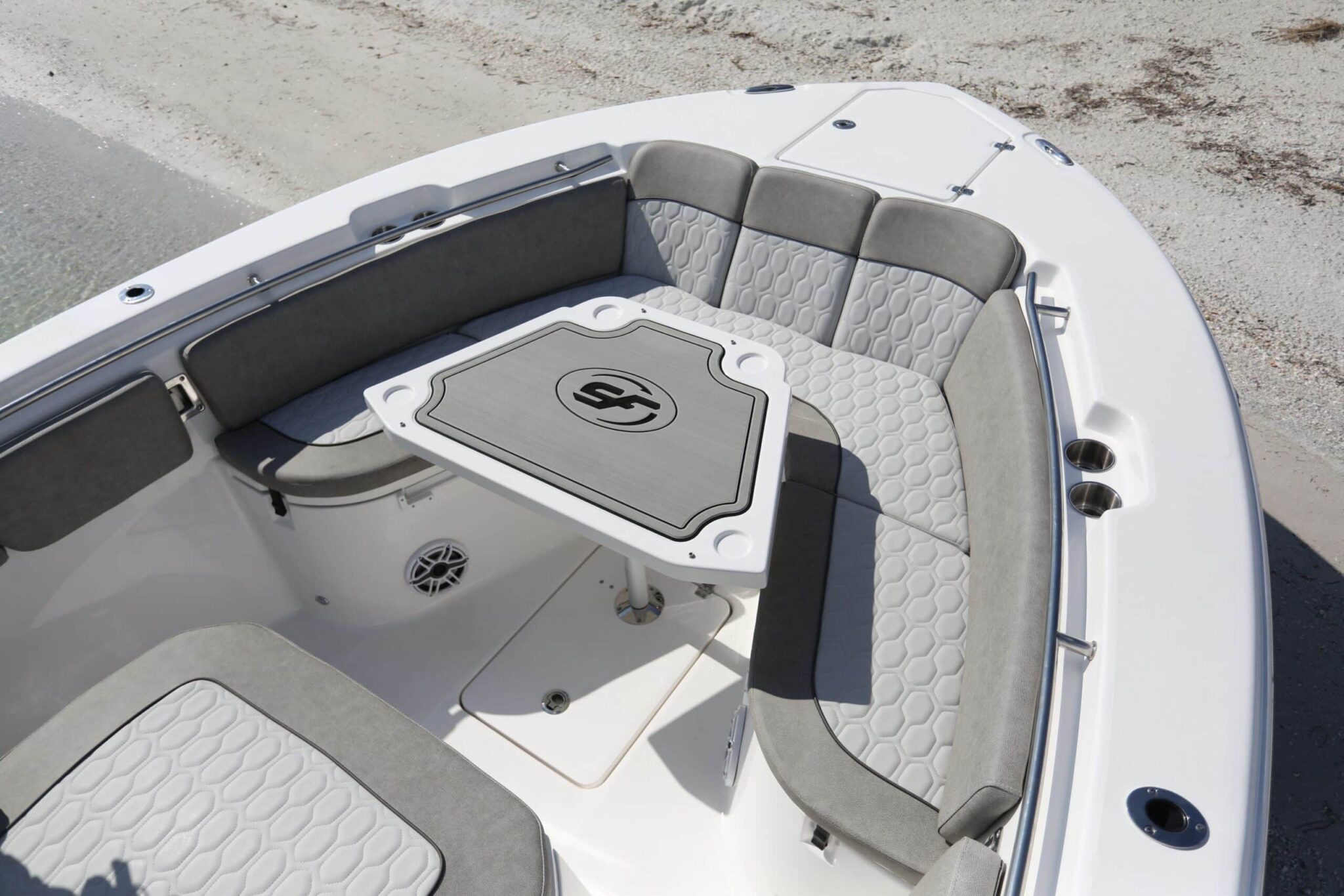

- Stainless steel table mount
- Removable filler board table with leg
- Removable bow filler cushion

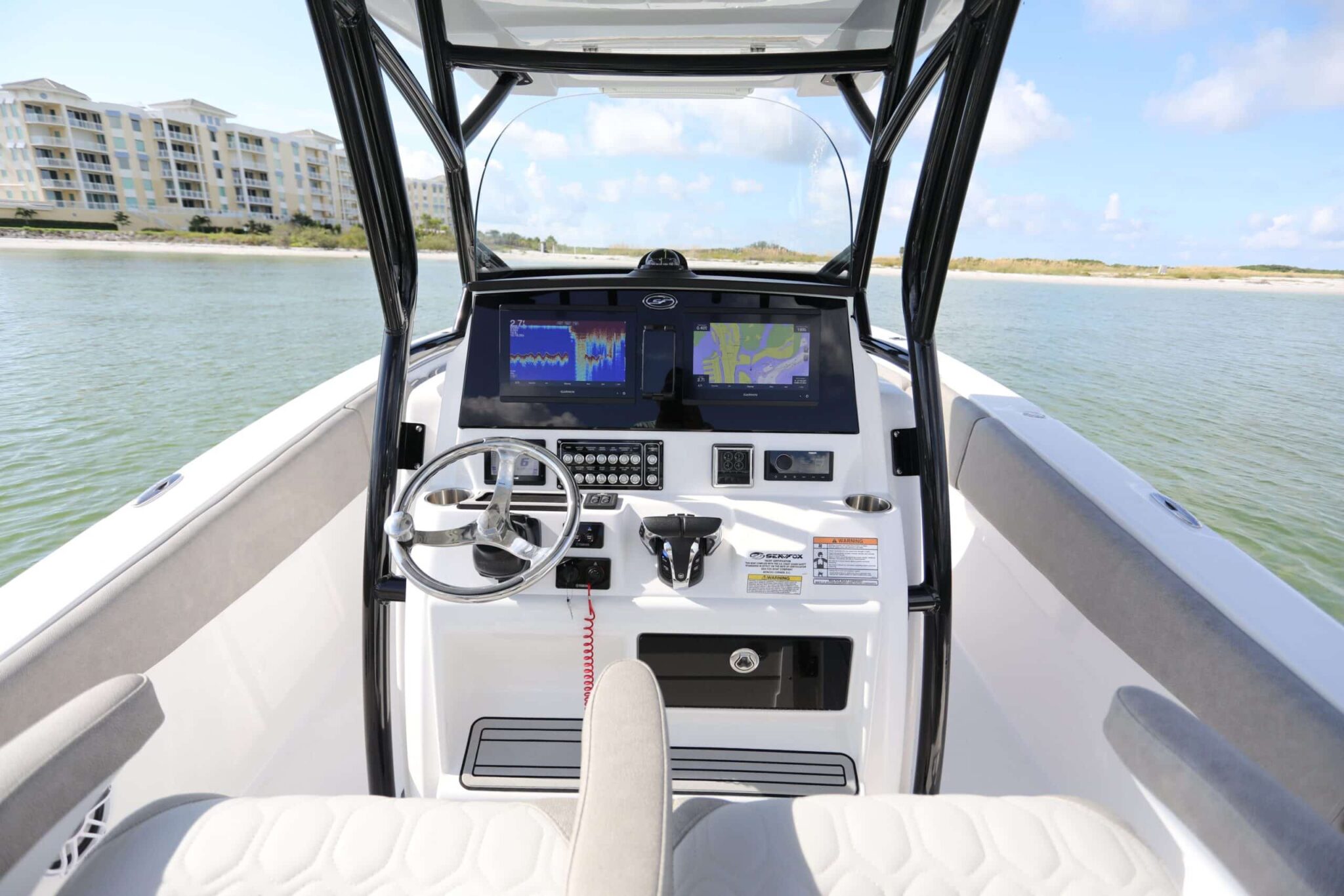

Helm:
- Dometic SeaStar Optimus electronic power steering (EPS) with tilt helm
- For Yamaha digital motors (XC twin application):
- Multifunction instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions
- Display may vary with availability
- Fusion stereo head unit with USB adapter
- JL Audio custom sound system: two amplifiers, two 10-inch subwoofers, and six 7-inch speakers featuring sport grilles
- Lighted speakers
- Windscreen
- Top mount compass on console
- Console dash shroud
- Black acrylic console display

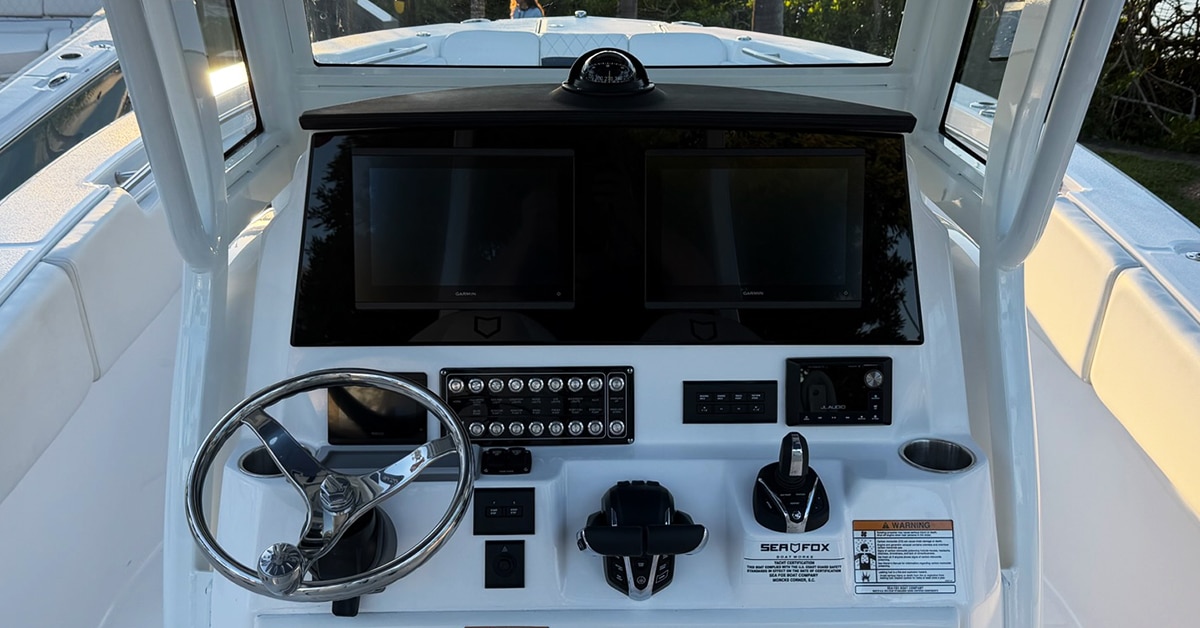

- Garmin 8612XSV twin touchscreens
- Battery switch push button remote controlled at helm
- Stainless steel steering wheel with turning knob
- Lockable console door with bottle opener and magnetic cap catch
Integrated console footrest with backlit lower level footrest - 12-volt power point
- Console courtesy lights
- Fogged glass console windows (portlights)

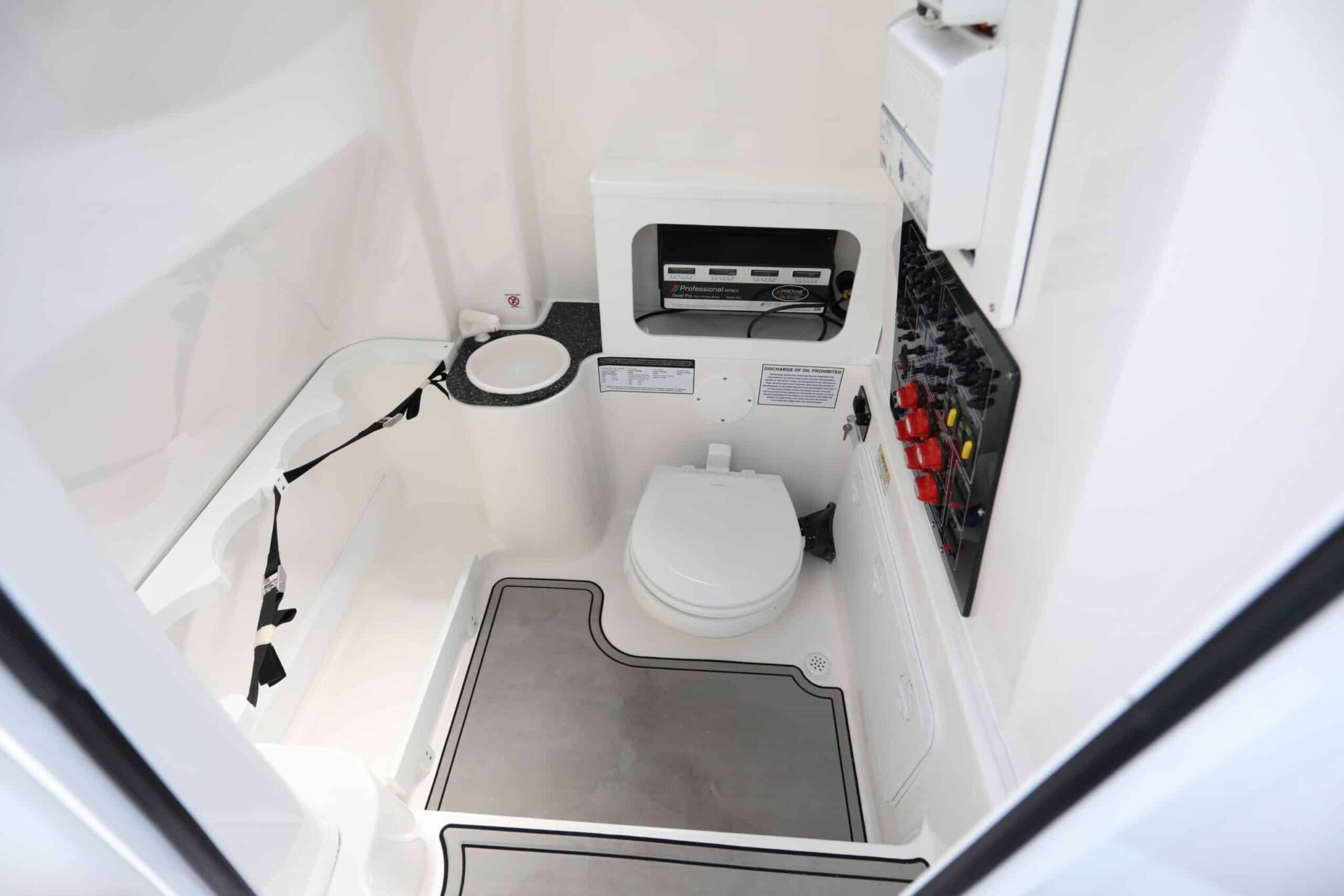

- Electric ceramic toilet with 12 gallon holding tank

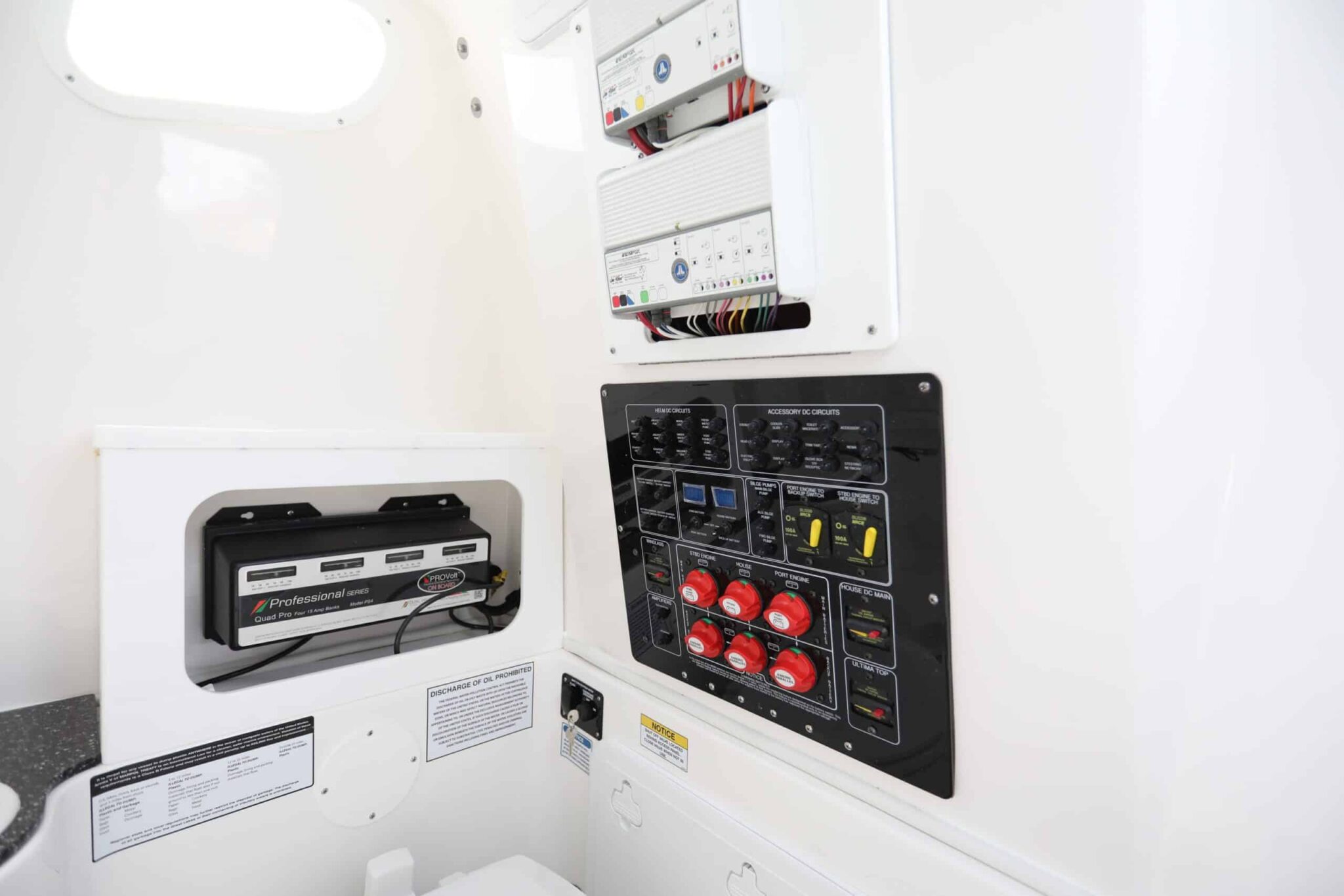

- Two-part fiberglass console with Class A finish on inner liner and easy access hatches for service
- Freshwater sink with hard surface countertop accents and mirror
- Marine grade soft mat decking and console accents
Ultima hard top:
- White powder coat frame (black and grey powder coating also available)
- D-tube frame and rear support
- LED lightbar (20")
- Two LED spreader lights
- Illuminated switch panel
- Two molded-in storage boxes
- Safety storage bow forward

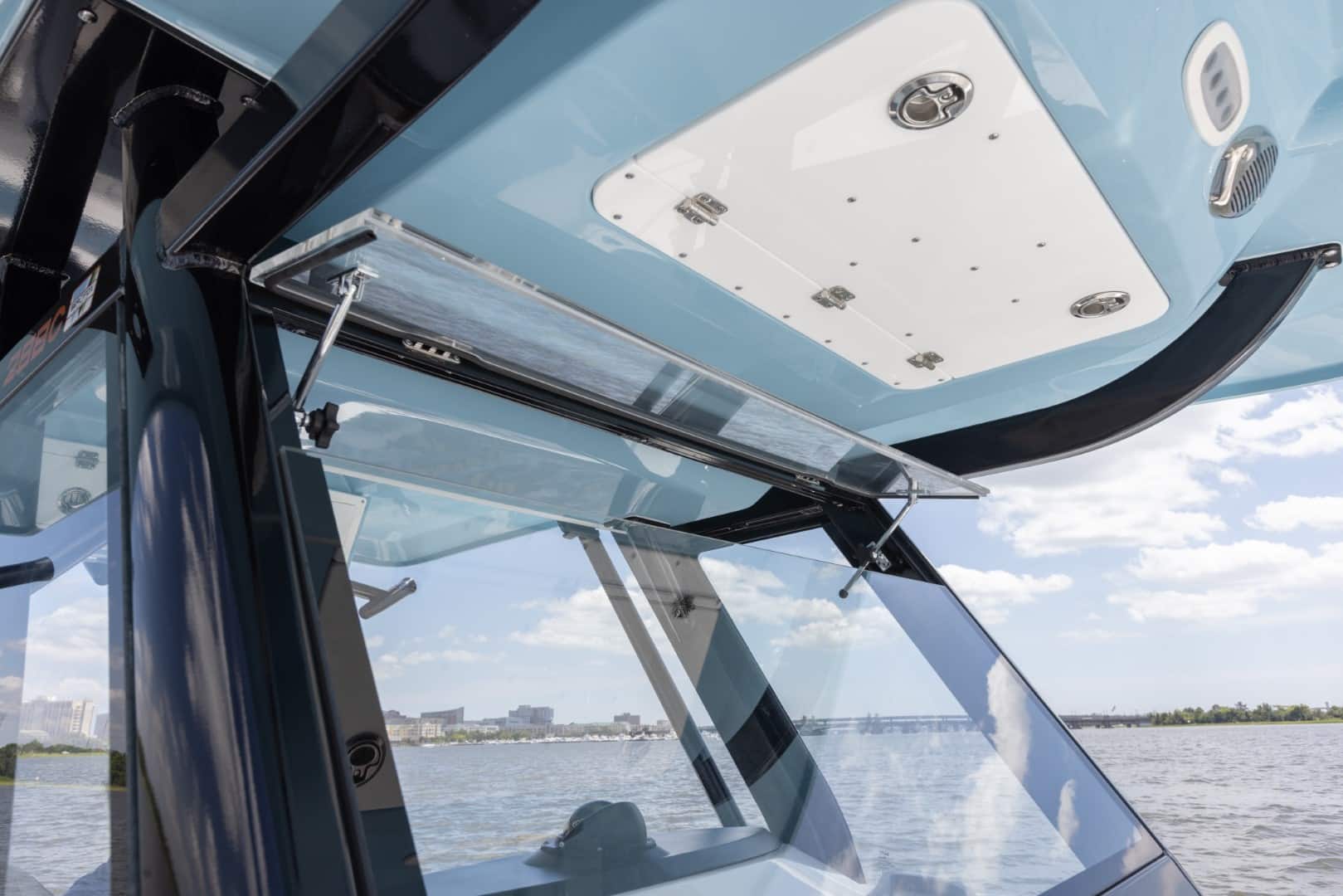

- Moonroof with slide open glass
- Horn
- Two LED overhead lights (red, white, & blue power cycle)
- All around folding navigation-anchor light
- Seven rod holders
- Reinforced mounting pad for radar and antenna installation
Cockpit:

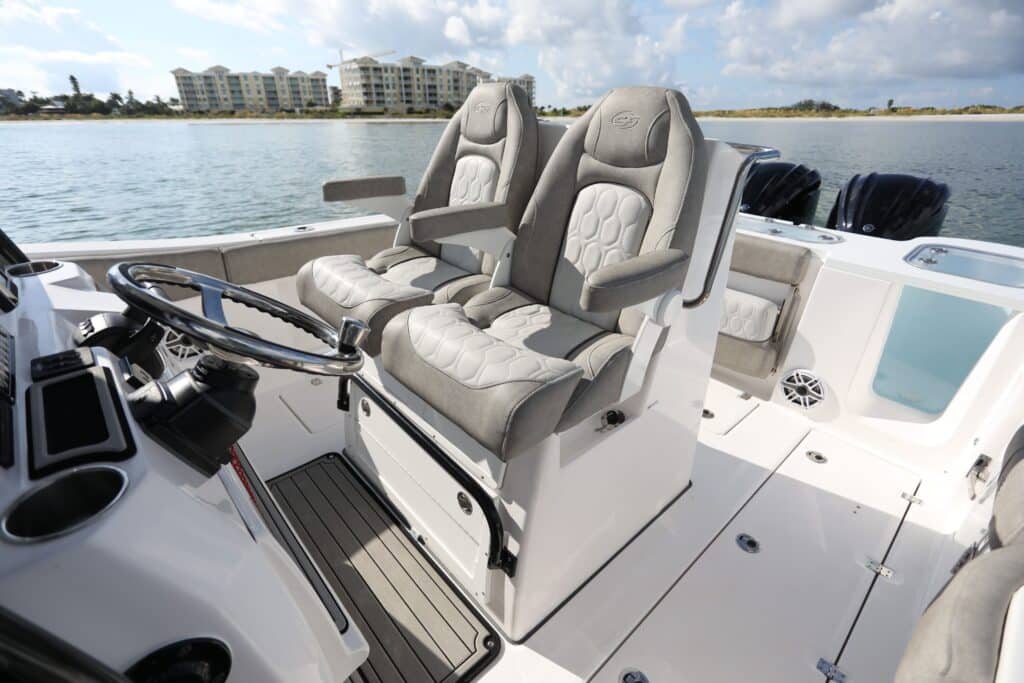

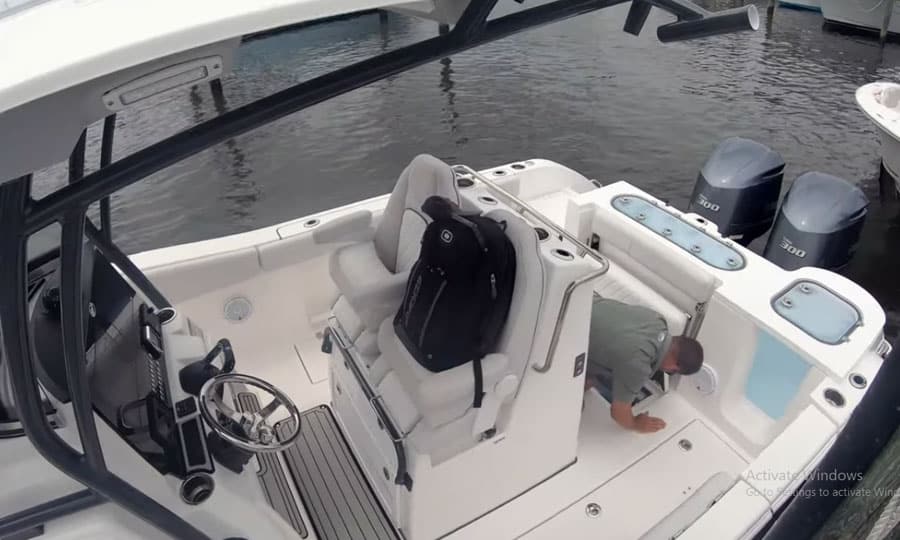

- Fiberglass helm seating pod with deluxe bucket chairs, adjustable armrests, rigging station and cooler storage
- Freshwater washdown located on seating pod (26-gallon freshwater tank)
- Raw water washdown located on seating pod
- Insulated in floor fishboxes (40-gallon port, 45-gallon starboard) with overboard discharge pumps
- Stainless steel compression latches

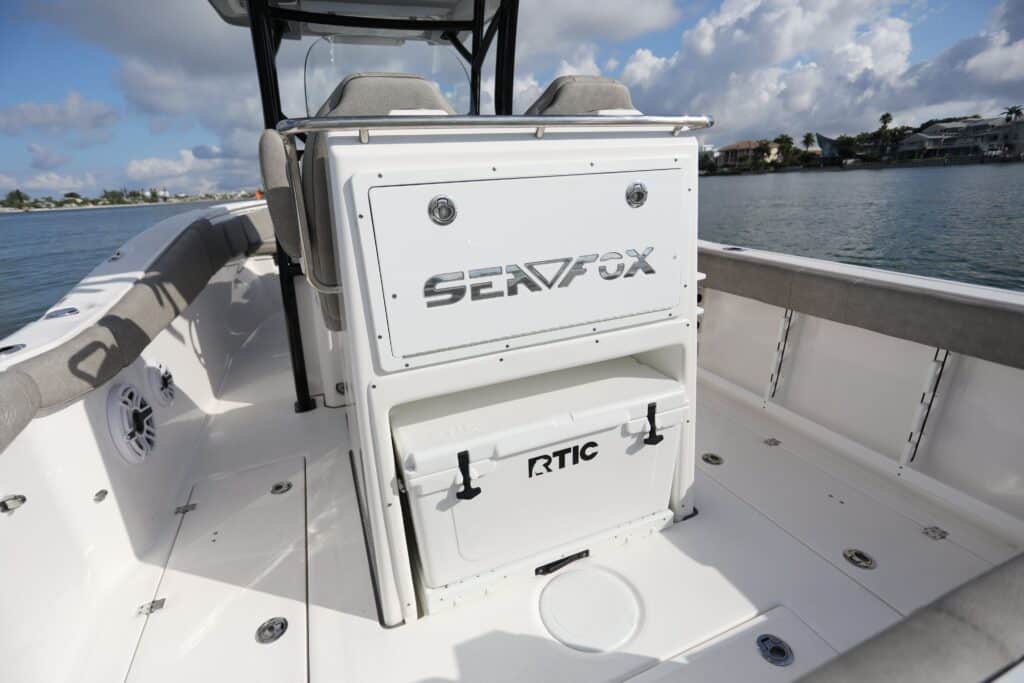

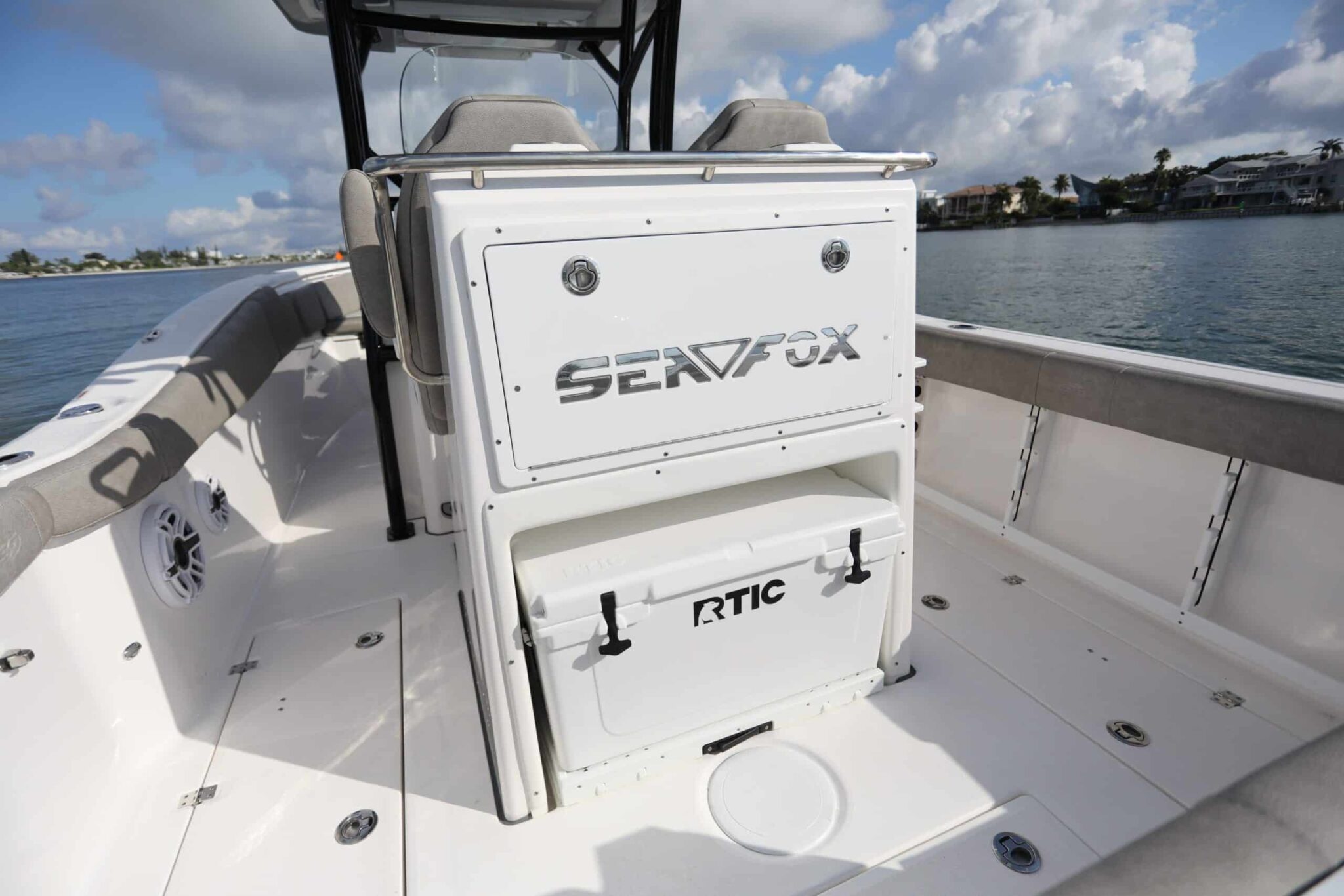

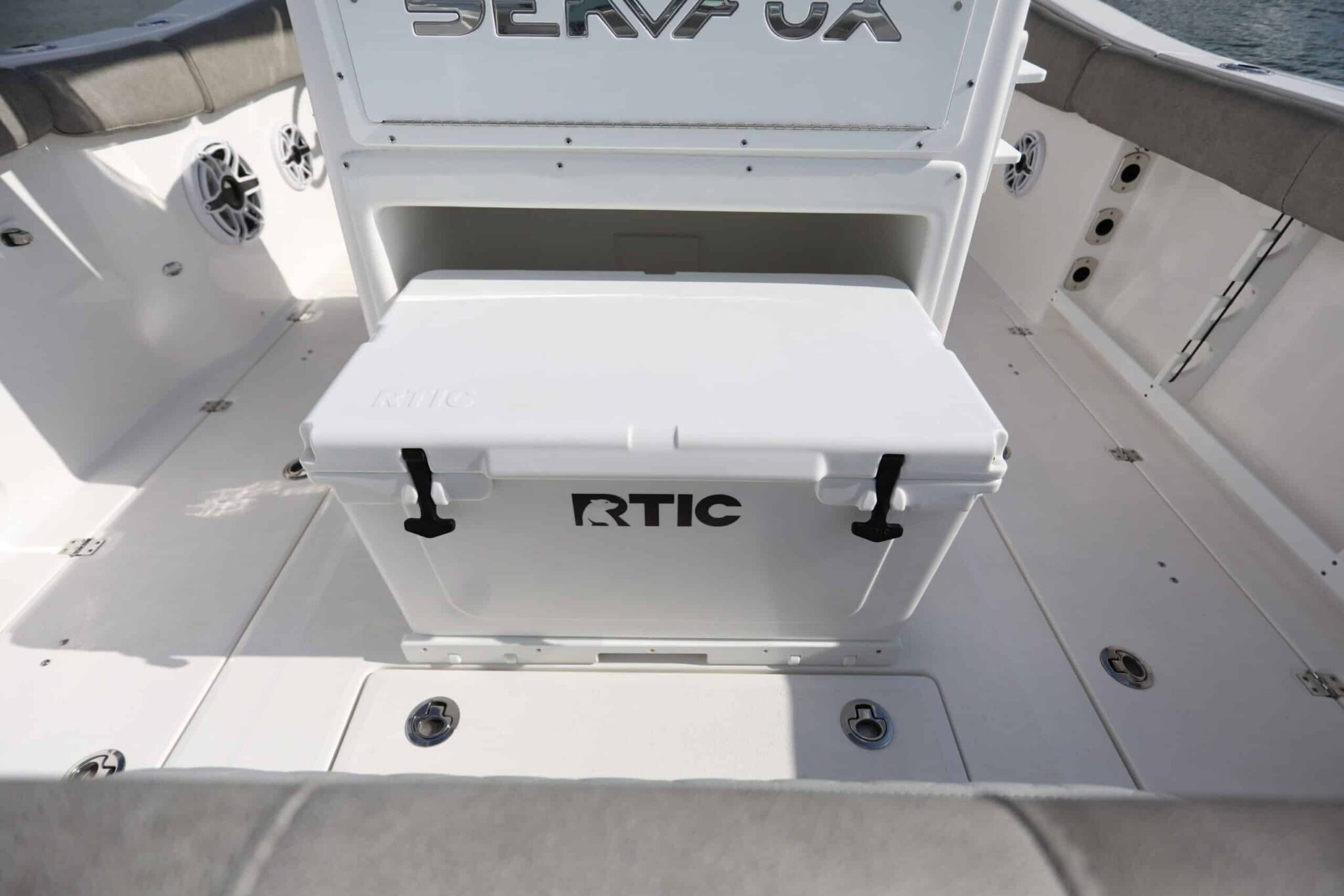

- 65-Quart premium cooler with stainless steel strapdown hardware, mechanical slide tray and kick latch

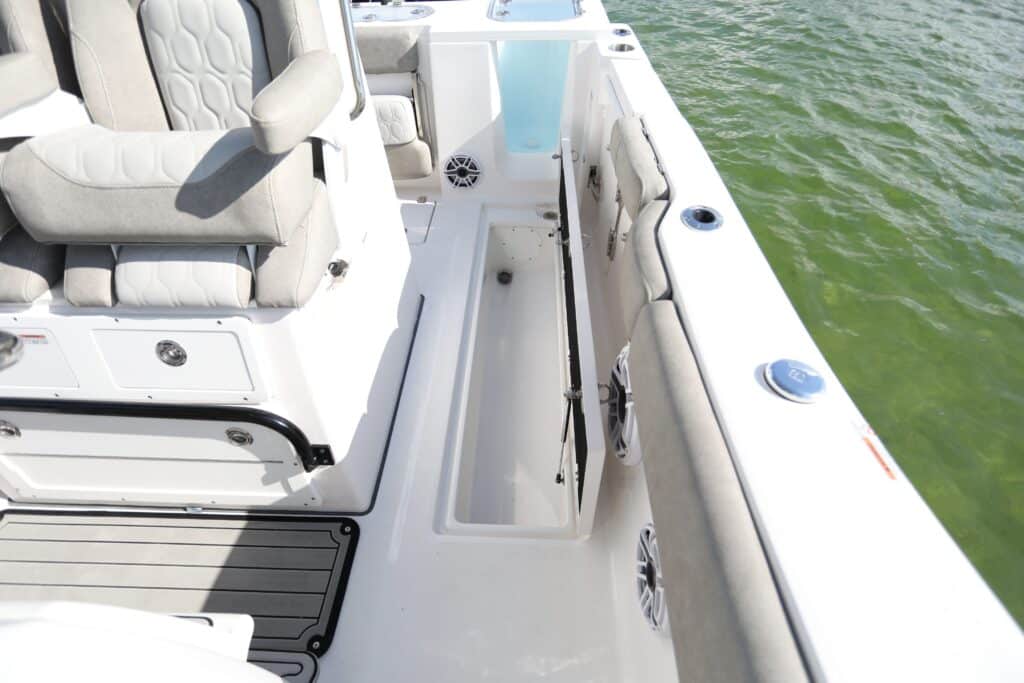

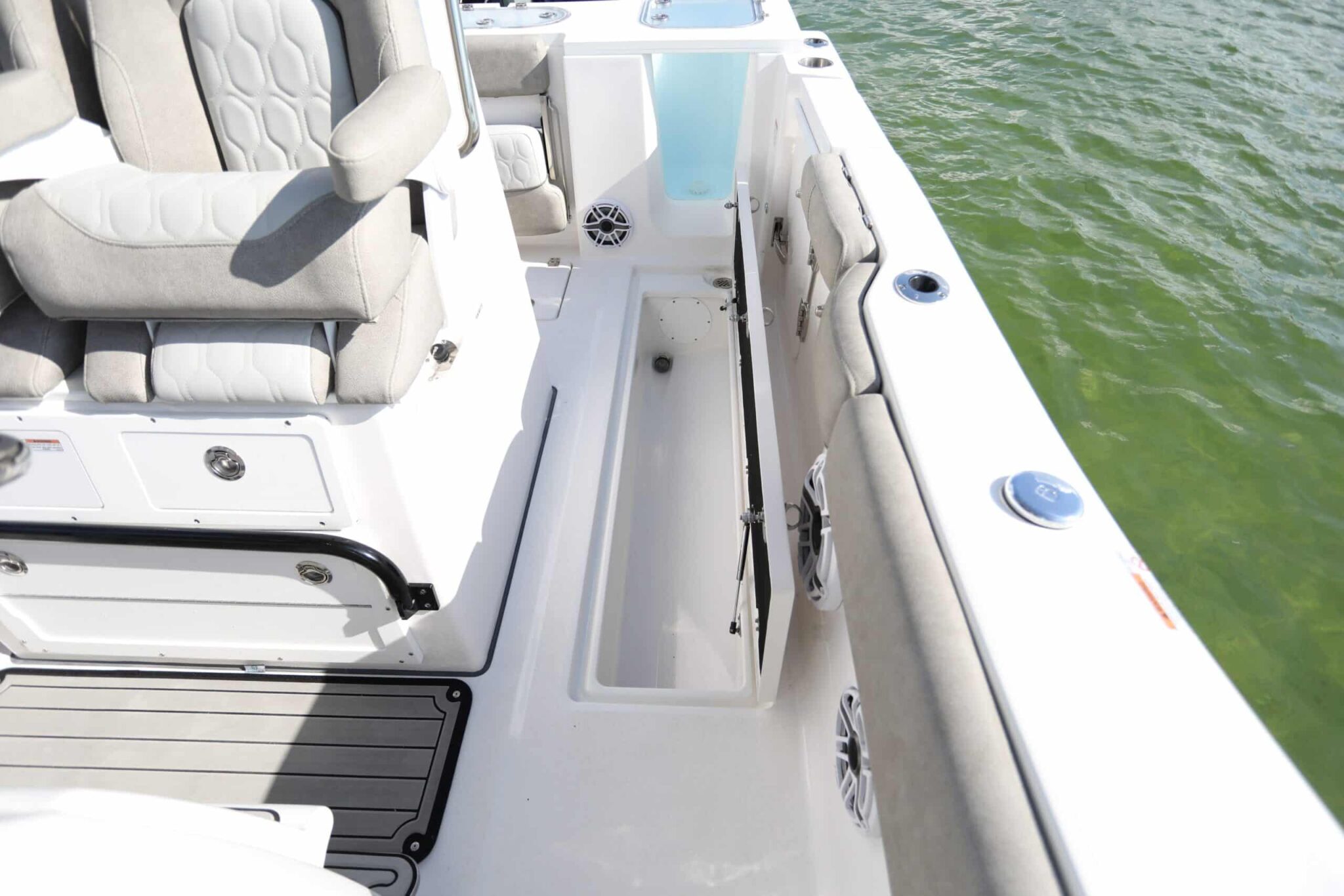

- Under gunwale recessed rod storage on starboard with stainless toe-rail
- Stainless steel closeout rings for rod holders

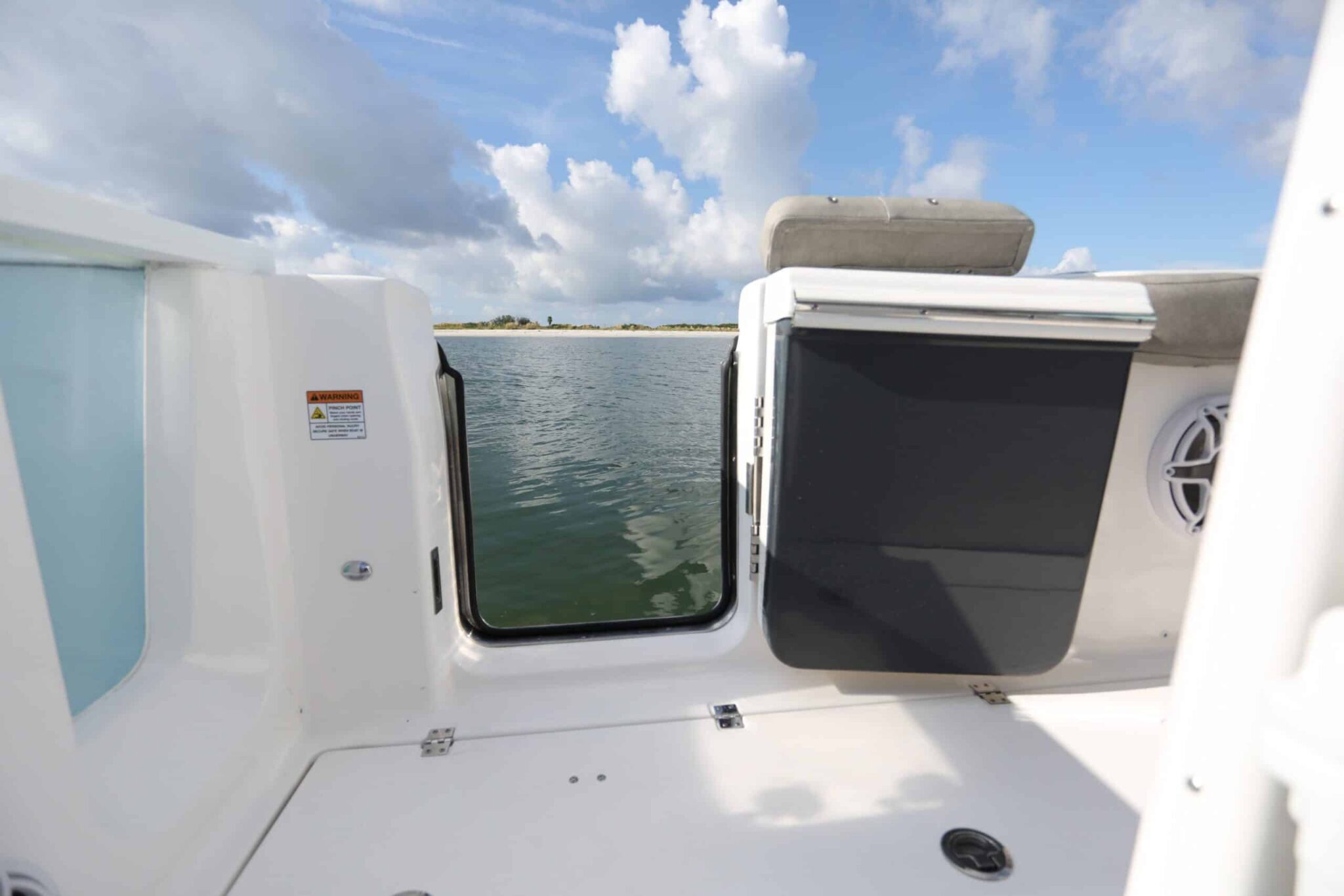

- Port side dock - dive - fish door with stainless steel frame and latch
- Cup holders (14)
- Stainless steel rod holders (8)

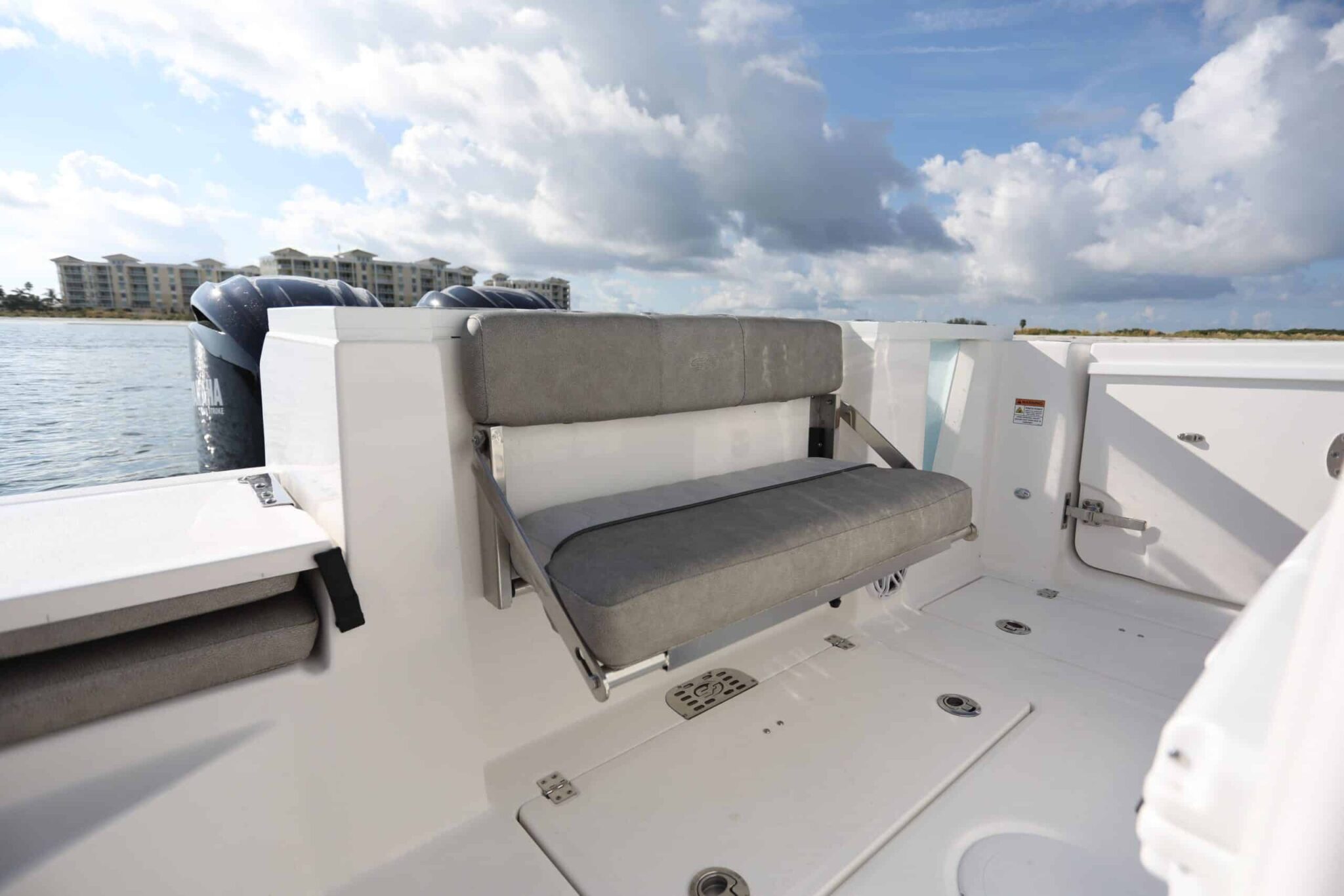

- Stainless steel aft folding bench seat with backrest
- Self bailing cockpit with stainless steel grate
- Aquarium style pressurized livewell with window (30 gallons, 1100 GPH aerator)
- Center pressurized livewell (60 gallons, 1100 GPH aerator)
- Livewell lights
- Easy access floor pump house for quick serviceability
- Marine fuel/water separating filters with direct access
- Pre-rigging for four batteries with easy access through seating pod

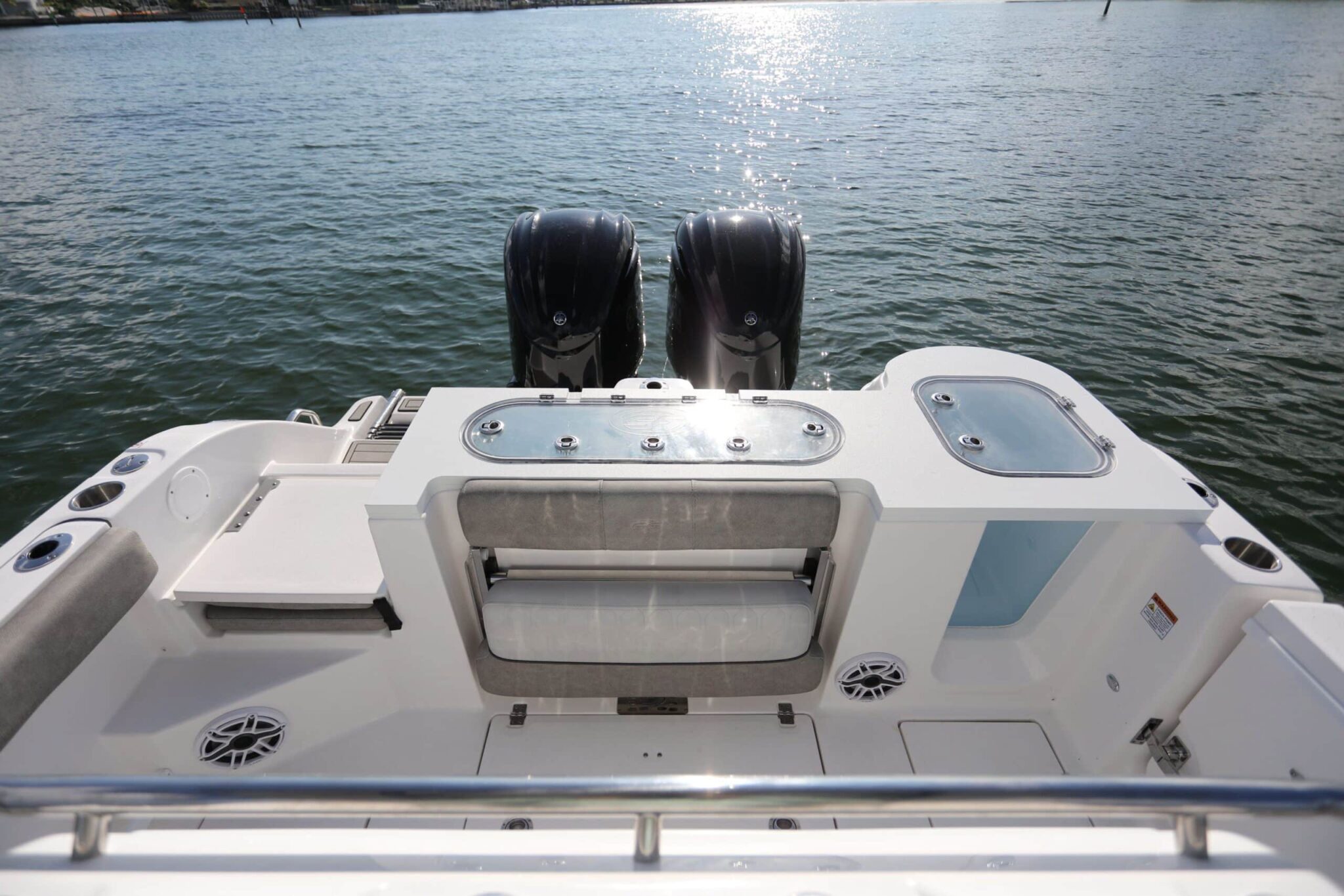

Transom:

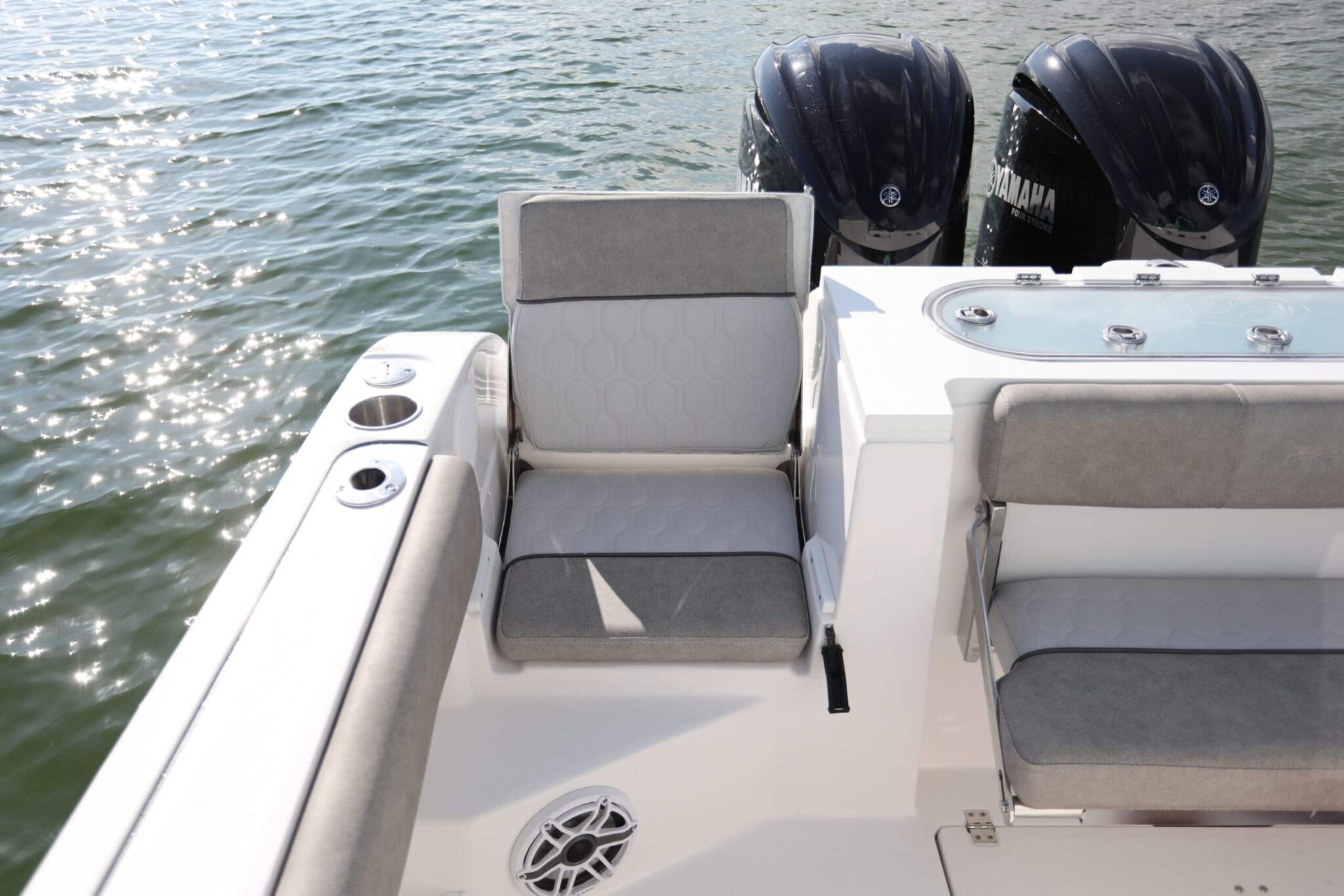

- Aft jump seat with below deck bucket storage – folds down for an easy access walkthrough transom
- Bulkhead fittings for hydraulic hoses or steering controls in splashwell
- Stainless steel transom savers
- Stainless steel rear boarding telescopic ladder with integrated boarding handle
- Marine grade soft mat deck accents
- Stainless steel through bolted grab rail
- Recessed electric trim tabs with integrated hull design
- Stainless steel lifting points on port and starboard transom
Bilge:
- 1500 GPH bilge pumps (primary and back up)
- Electronic automatic float switch
- Mechanical float switch
- Thru-hull transducer (B150M chirp)
Other great features:
- Quilted salt marine grade upholstery: antimicrobial vinyl, foam, and white diamond stitching
- Composite hull & deck
- Isothalic gelcoat
- Vinyl ester barrier coat
- Sand-grip deck surface
- Stainless steel rub rail
- Stainless steel fasteners
- Stainless steel through hulls
- Stainless steel pull-up cleats (6)
- Silver boot stripe available on white and full hull gelcoat options
- Limited Lifetime Hull Warranty
Note: Due to Sea Fox's continuous innovation and improvements, standard features and options can change without notice.
Bridge clearance: based on factory installed Ultima hard top. Doesn’t factor in optional outriggers.
Dry weight is approximate & includes: boat plus factory options, but NO motor(s), water, fuel owner's gear or batteries.
Maximum weight is approximate & includes: boat plus factory options, full fresh water, holding & fuel tanks, 2 batteries, but NO motor(s) or owner's gear.
Fuel capacity can vary due to US EPA Evaporative Standard requirements
Sea Fox Boat Co., Inc. meets US EPA Evaporative Standards using Certified Components
288 COMMANDER Optional Features
Power
- Twin Yamaha F250XCBs
- Gray motors
- Top-mount digital controls
- CL5 multifunction gauge
- Dometic Optimus steering
- Twin Yamaha F300XCBs
- Gray motors
- Top-mount digital controls
- CL5 multifunction gauge
- Dometic Optimus steering
- Twin Yamaha F300XCBs
- White motors
- Top-mount digital controls
- CL5 multifunction gauge
- Yamaha digital electric steering (DES)
- Painted motor
- white or black
- metallic silver Yamaha decals
Gelcoat Accent
- Stripe
- Sides
- Full Hull
- white pearl
- marsh green
- bahama blue
- artic blue
- channel blue
- silver shark
- bull shark
- jetty grey
Top
- Ultima Hard Top with D-Tubing
- Ultima Hard Top Underside Paint
- Bahama Blue
- Arctic Blue
- Silver Shark
- Full Enclosure for Ultima Hard Top
Aluminum Accent
- Powder coating
- Top & leaning post footrest
- White, Light Gray, Jetty Gray, Black
Upholstery Accent
- Standard Single Diamond Stitch
- Light Grey
- Navy
- Upgrade Double Diamond Stitch
- Light Grey
- Light Grey Double Diamond Stitch Orange Logo
- Navy
- Navy Double Diamond Stitch Orange Logo
Upgrade Packages

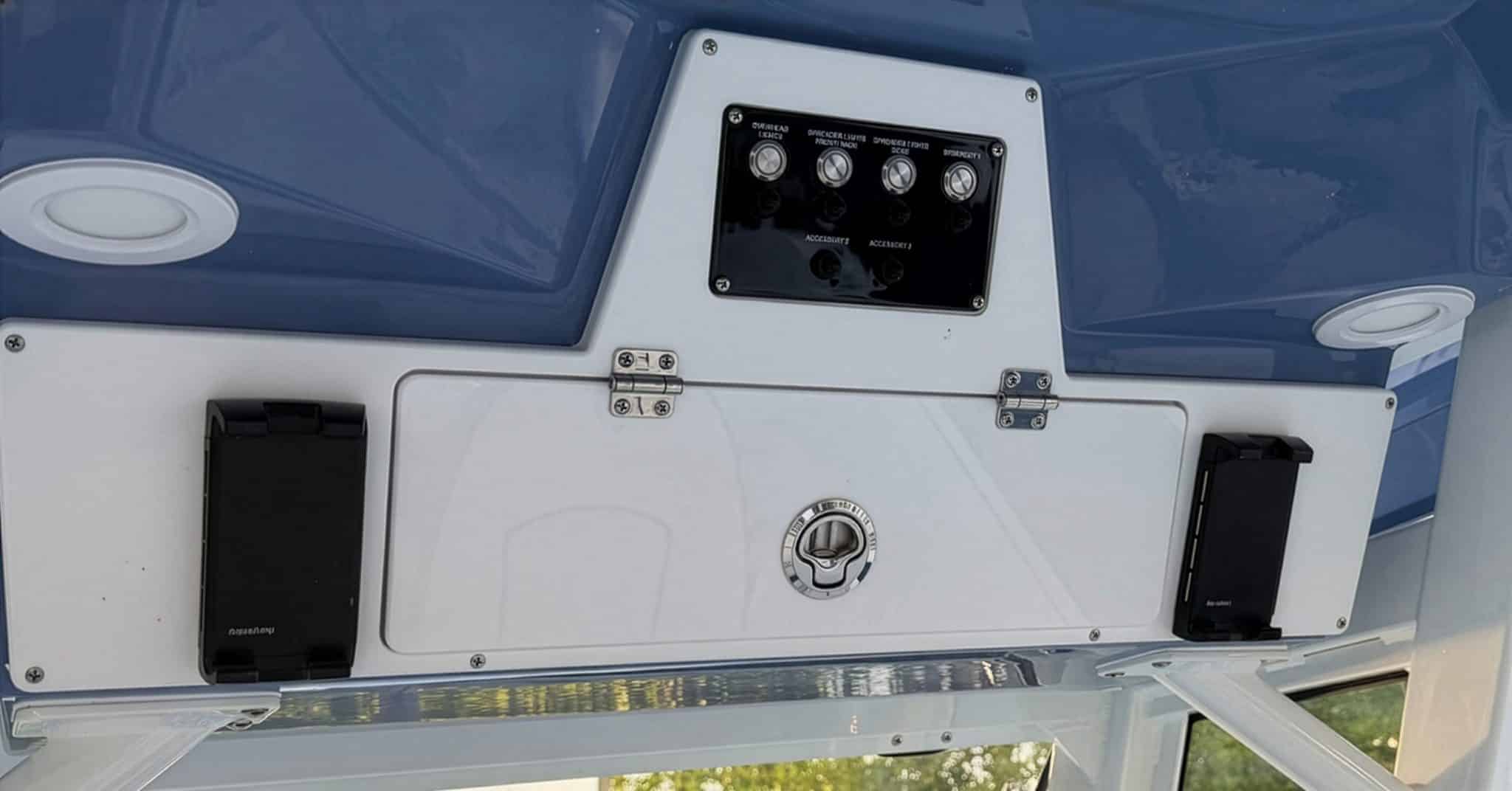

- LED/Tech package
- Blue mood lights
- power cycle blue/white fade/flash underwater lights
- upgraded courtesy lights & wireless cell phone charger
- Pro Package
- Cushioned foot mat
- gas shocks on floor fish box lids

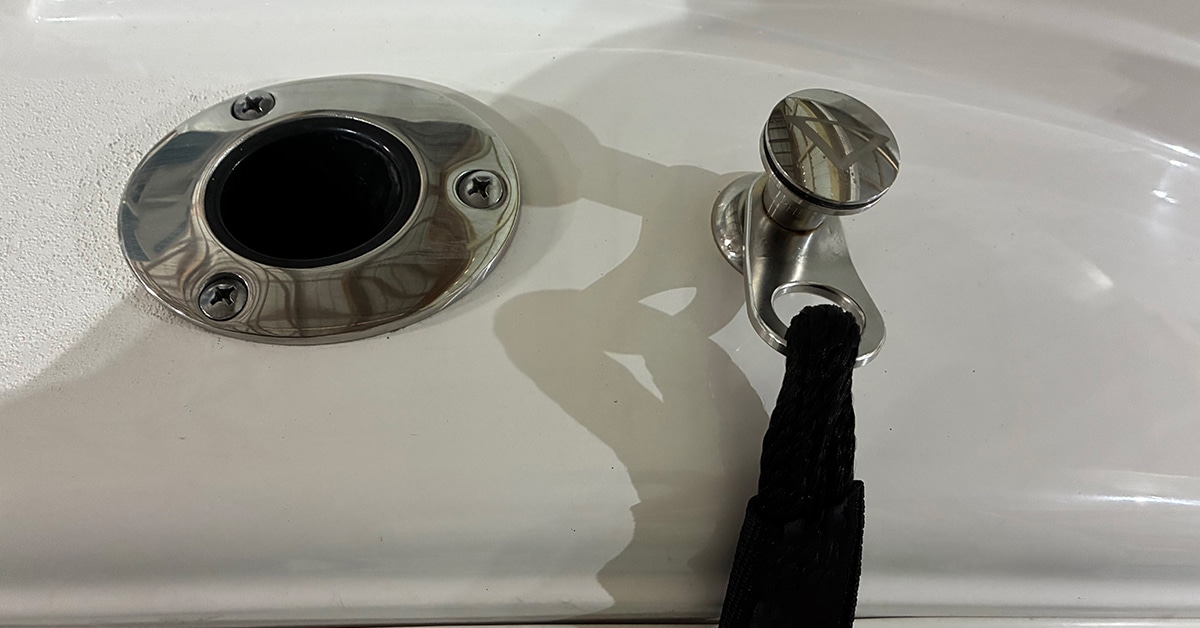

- two extra rod holders on bow gunwales and four quick-release fender deck mounts
Electronics
- Lenco Switch for Trim Tabs
- includes LED indicators
- Four Bank Battery Charger
- Helmmaster FM Joystick & Auto Pilot Upgrade
- Requires DES Motor Package
- Garmin 8612XSV
- twin touchscreen
- thru-hull transducer (B150M CHIRP)
- Garmin GMR 18 xHD 8-bit True Color High Resolution Radar
Head

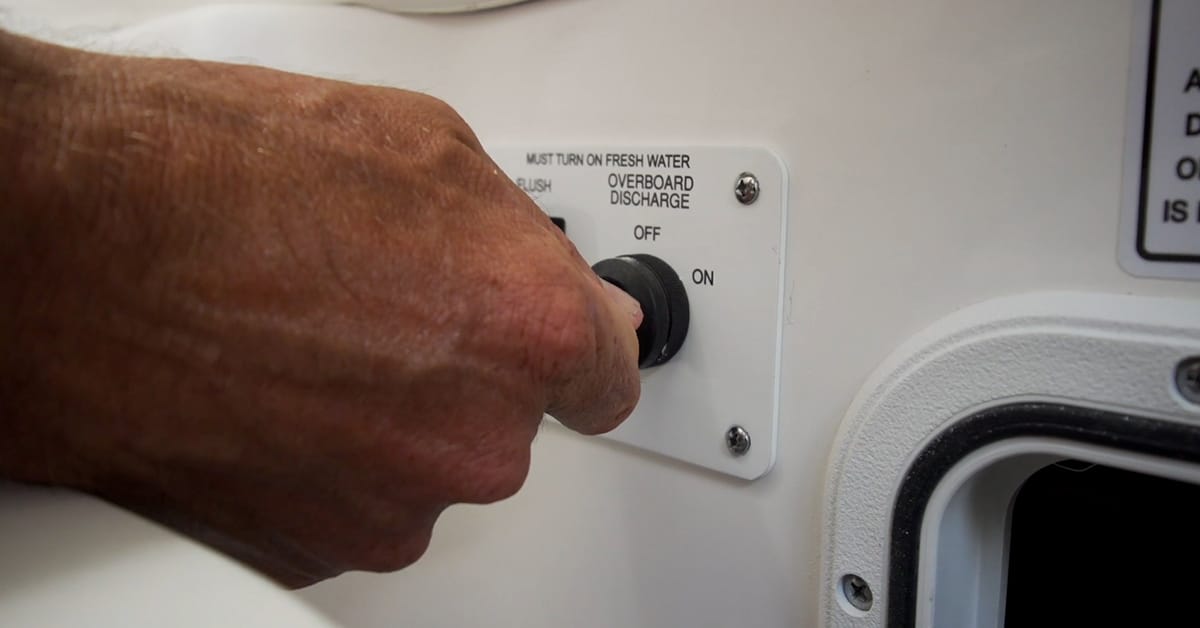

- Electric Overboard Waste Discharge
- Storage Rack for Dive Tanks or Fenders
Other
- Prewire for trolling motor
- Removable Ski Tow Bar
- Removable ladder with storage for dive door
- Transhield Fitted Boat Cover
- Bow shade (Weathermax) with four carbon fiber support poles
- with four carbon fiber support poles
- Aft shade (Weathermax) with two carbon fiber support poles
- GemLux outrigger bases and telescopic carbon fiber poles
