231 Bay Fox
Where Inshore Performance Begins
HULL DESIGN
Carolina Flare
Length
22'4"
Livewells
2
Maximum Horsepower
250
Created by anglers, for anglers
231 Bay fox
From Casting Deck to Comfort in Seconds
The 231B offers a versatile fishing platform with many of the same advantages as the 251B in a slightly smaller package. Integrated fiberglass swim platforms on the port and starboard plane pods provide easy access in and out of the boat. Whether you are stalking the flats or trolling offshore, the 231B delivers the kind of versatility, smart design, and capability that make the Bay Fox stand out.
Gallery
top standard features

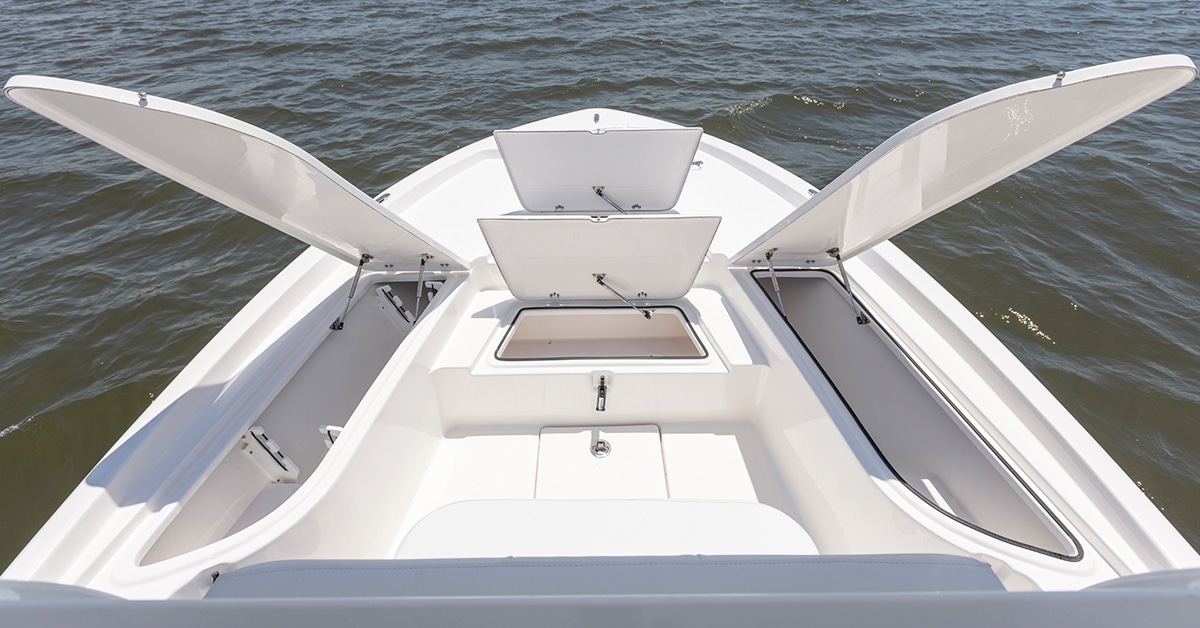

Insulated Bow Storage
Insulated bow storage boxes protect gear, keep catches fresh, and maximize usable storage in the forward deck.
Fusion Apollo Stereo
The Fusion Apollo marine stereo provides rich, dynamic sound to keep the energy going all day on the water.

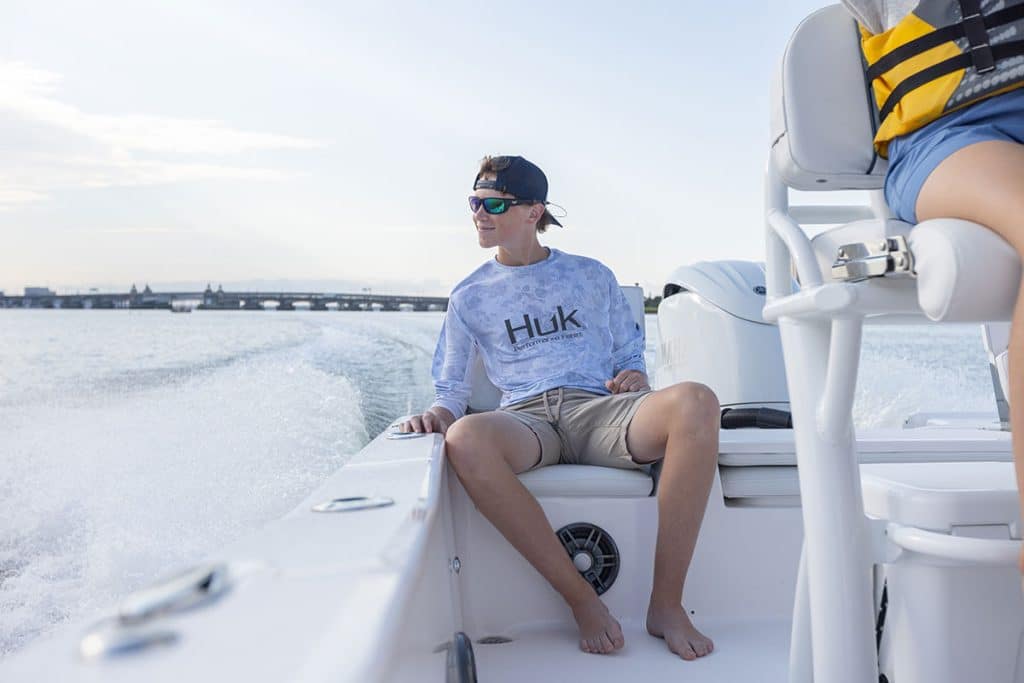

Leaning Post Helm Seating
Designed for adaptable helm comfort, this leaning post includes a backrest and hinged bolsters for both upright bracing and cushioned seating.

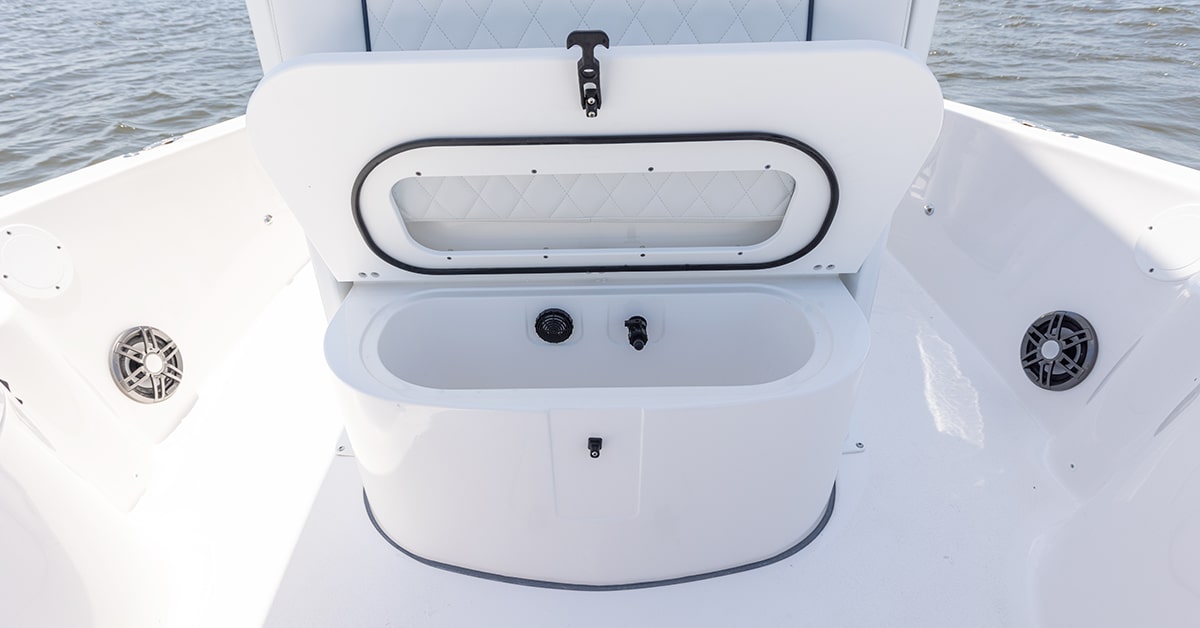

2 Livewells
Keep bait fresh and active with dual livewells: a 30-gallon transom well and a 12-gallon console well, both supported by 800 GPH aerators.
top optional features

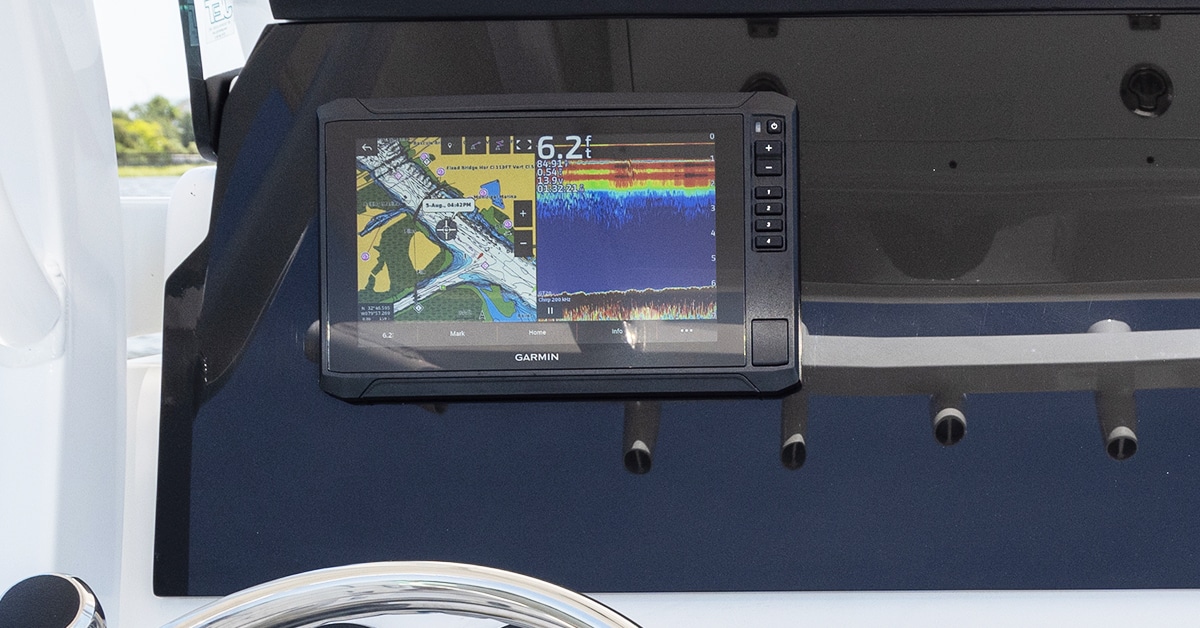

Garmin 943XSV
The Garmin 943XSV provides advanced navigation, sonar, and charting on a bright 9 inch touchscreen display.

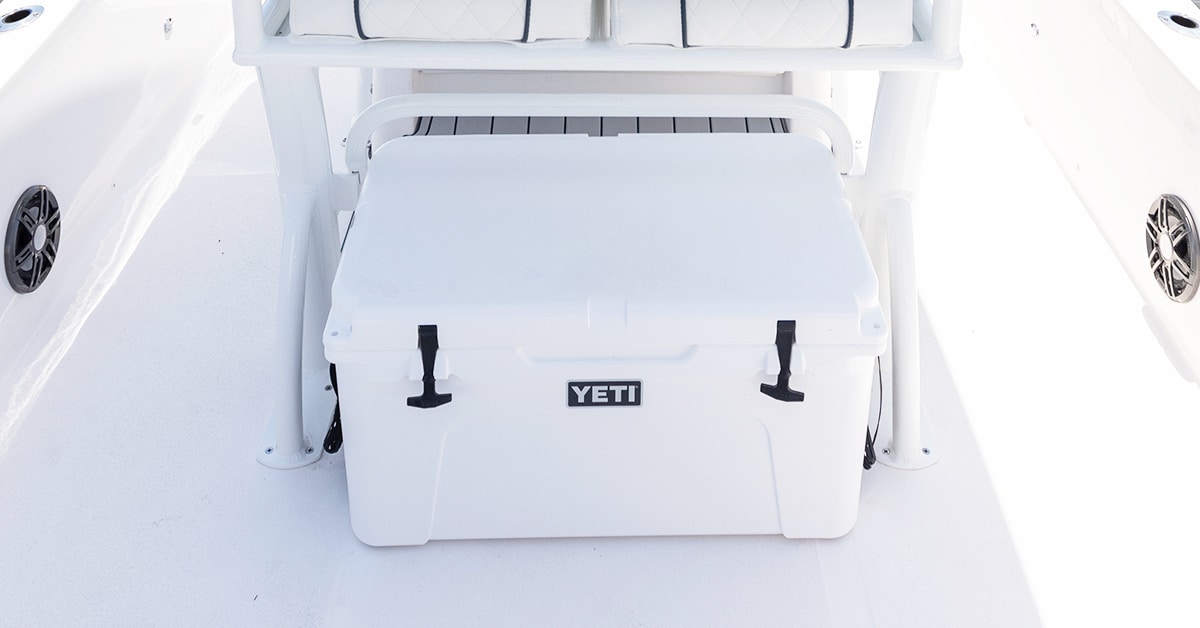

65 Quart Premium Cooler
A 65 quart premium cooler with stainless steel strap down hardware is mounted at the leaning post to keep drinks or bait cold and secure while underway.

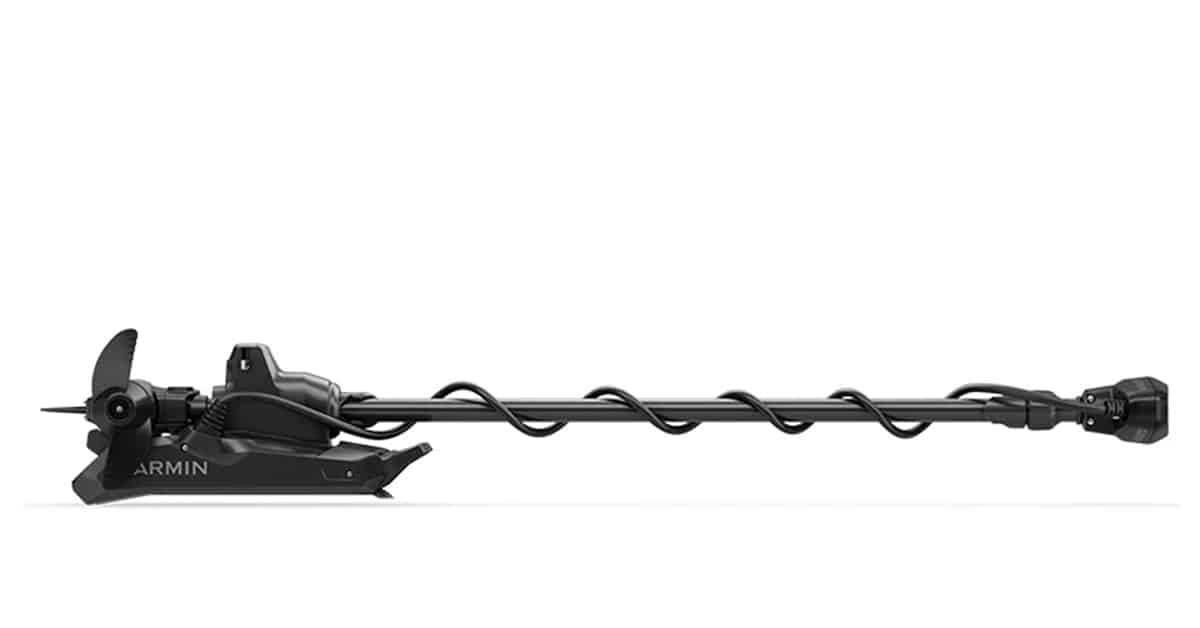

Garmin Kracken Trolling Motor
The Garmin Kraken trolling motor delivers powerful, ultra-quiet performance with precise GPS anchoring and control for serious shallow-water anglers.
Next Level Fox
Ultima Hard Top with D Tubing
With built-in functionality and advanced lighting, this setup delivers everything. This hard top option includes secure molded-in and safety storage, rod holders, 360-degree spreader lights, and LED overhead lighting. A reinforced Garmin radar pad and illuminated switch panel round out the professional-grade features.
Dimensions
Centerline Length :
22'-4"
Beam :
8'-6"
Bridge Clearance :
93"
Deadrise :
15 degrees
Draft (hull) :
14"
Transom Height (Centerline):
25"
Weight
Dry Weight :
2,225 lbs
Maximum Weight :
3,962 lbs
Capacity
Fuel Capacity :
54 gal
Persons Capacity :
8
Total Capacity :
2,100 lbs
Engines
Maximum Horsepower :
250 hp
Bridge clearance: based on factory installed Ultima hard top, doesn't factor in optional outriggers.
Dry weight is approximate & includes: boat plus factory options, but no motor(s), water, fuel, owner’s gear, or batteries
Maximum weight is approximate & includes: boat plus factory options, full fresh water holding & fuel tanks, 2 batteries, gear, and largest motor(s)
Fuel capacity can vary due to US EPA Evaporative Standard requirements
COLOR CHOICES
Pearl White
Marsh Green
Bahama Blue
Arctic Blue
Channel Blue
Silver Shark
Bull Shark
231 Bay Fox Standard Features
Bow:
- Stainless steel bow eye with chafe plate
- Anchor compartment with rope storage locker
- Trolling motor outlet & harness (12/24/36 volt)
- LED navigation lights
- LED livewell light
- Large casting deck
- Insulated bow storage boxes
- Rod storage lockers (Port and Starboard)
- In-floor storage with 5-gallon bucket
- Forward console seating with contoured backrest
- Console livewell (10) gallons, 800 GPH aerator
- Livewell lid window

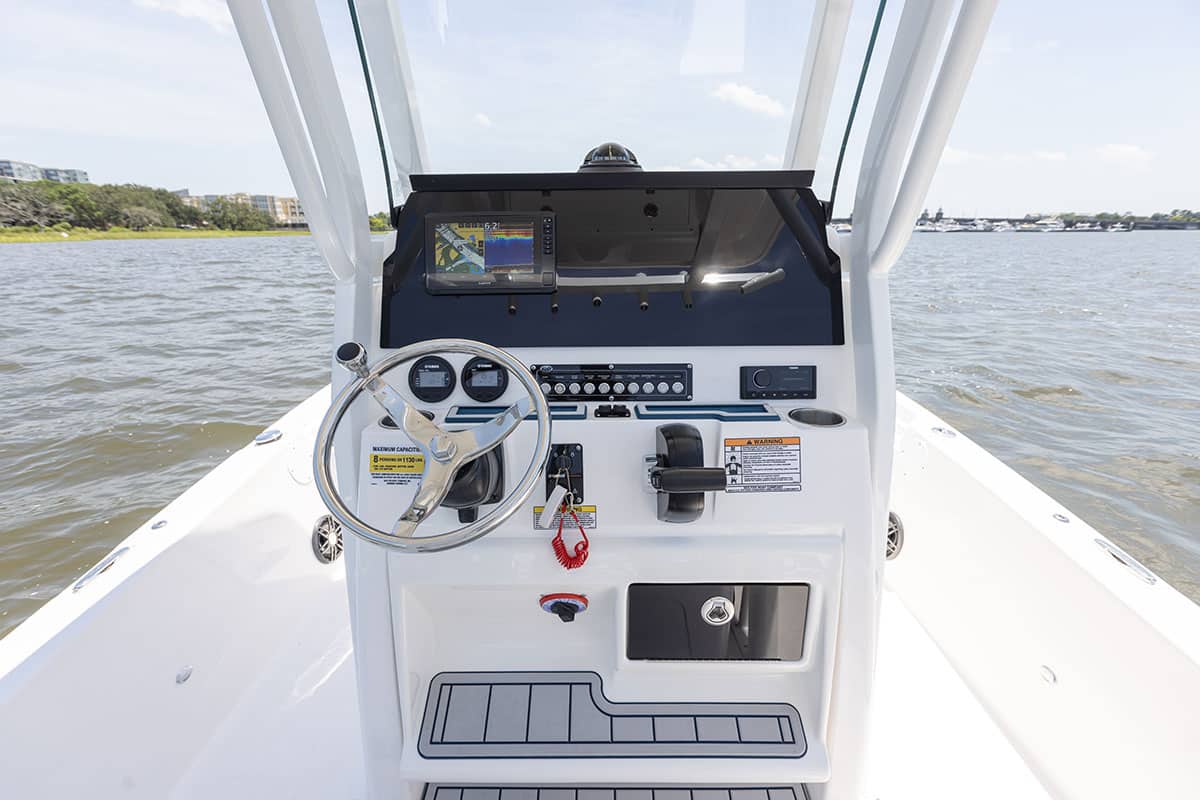

Helm:
- Dometic SeaStar hydraulic steering system with tilt helm
- Two digital gauges with backlighting. Tachometer and speedometer with volt, fuel, and push button functions
- For Yamaha digital motors (Multifunction instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions. Display may vary with availability. Helm will vary with engine choice.)
- Acrylic Dash
- Fusion Apollo Marine Stereo
- Six Fusion marine speakers in deck
- Windscreen
- Top mount compass on console
- Console dash shroud
- Dash space for flush electronics (compatible for two 12" displays)
- Stainless steel steering wheel with turning knob
- Lockable console door
- Horn
- Console handrails
- Integrated console footrest
- 12-volt power point
- Battery switch
- Console courtesy lights
- Pre-rigging for two batteries
- Marine grade soft mat decking and console accents
- Easy access battery compartment (holds up to six batteries)
Cockpit:
- Leaning post helm seating with backrest and hinged bolsters
- Stainless steel compression latches
- Cup holders (6)
- Stainless steel rod holders (4)
- Aft bench seat with easy access hinged cushions
- Self bailing cockpit with stainless steel grates
- Transom livewell (26) gallons, 800 GPH aerator
- Livewell light
Transom:
- Transom storage compartments - plumbed and insulated for use as a cooler
- Raw water washdown with splashwell outlet
- Bulkhead fittings for hydraulic hoses in splashwell
- Stainless steel transom saver
- Stainless steel rear boarding telescopic ladders with integrated hull platforms
- Marine grade soft mat decking and console accents
- Stainless steel through bolted grab rail
- Electric trim tabs
- Stainless steel U-bolts on port and starboard transom
Bilge:
- Marine fuel/water separating filter
- (2) 1100 GPH bilge pumps with built in electronic float switches
- Raw water pump
Other great features:
- Composite hull & deck
- Isothalic gelcoat
- Vinyl ester barrier coat
- Sand-grip deck surface
- Stainless steel rub rail
- Stainless steel fasteners
- Stainless steel through hulls
- Stainless steel pull-up cleats (7)
- Limited Lifetime Hull Warranty
Note: Due to Sea Fox’s continuous innovation and improvements specifications can change without notice
Please visit our website for the most current list of available standards and options
231 Bay Fox Optional Features
Power:
- Yamaha F200XD
- Yamaha F200XSA2
- Painted Motor
- White
- Black
- Light Gray
Gelcoat Accent:
- Stripe
- Sides
- Full Hull
- White Pearl
- Marsh Green
- Bahama Blue
- Arctic Blue
- Channel Blue
- Silver Shark
- Bull Shark
- Dune
- South Beach Teal
Top:
- Ultima Hard Top with D Tubing
- Ultima Hardtop with D Tubing and Glass Enclosure
Aluminum Accent:
- Powder Coating
- White
- Light Gray
- Jetty Gray
- Black
Upholstery Accent:
- Standard:
- Light Gray Single Diamond Stitch
- Navy Single Diamond Stitch
- Upgrade:
- Light Gray Double Diamond Stitch
- Navy Double Diamond Stitch
- Harbor Double Diamond Stitch
- Dune Double Diamond Stitch
- Midnight Double Diamond Stitch
- Upgrade
- Bow Seating Package
Upgrade Packages:
- Tech Pack
- Lighted Speakers
- Underwater Lights
- Upgraded Courtesy Lights
- Wireless Phone Charger
- Pro Pack
- Cushioned Foot Mat
- Gas Shocks on Two Bow Lids
- Four Quick Release Fender Deck Mounts
- Aft Livewell Bubbler
- Electronic:
- Two Bank Battery Charger
- Lenco Switch for Trim Tabs
- LED indicators
- Garmin 943 XSV Touchscreen
- Thru-hull Transducer
- (B150M CHIRP)
- Garmin 1243 XSV Touchscreen
- Thru-hull Transducer
- (B150M CHIRP)
- (2) Garmin 1243 XSV Twin Touchscreen
- Thru-hull Transducer
- (B150M CHIRP)
- Garmin Kraken Trolling Motor
Other:
- Freshwater Washdown
- Five Gallon Tank
- Jack Plate
- 8" offset
- Blinker Switch
- 65- Quart Premium Cooler with Stainless Steel Tie-Down Kit
- Weathermax Bow Shade
- Four Carbon Fiber Support Poles
- Requires Hardtop Upgrade
- Leaning Post Tackle Center
