228 TRAVELER
Built with your family in mind
HULL DESIGN
Carolina Flare
Length
22' 4"
Livewell
19 GAL
Maximum Horsepower
250
Adventure-ready and family-approved

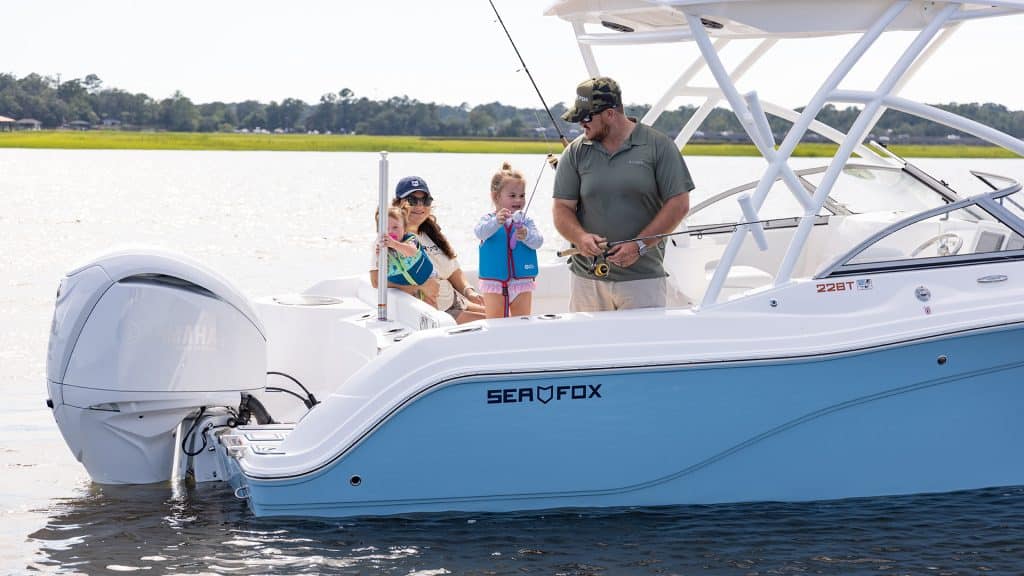

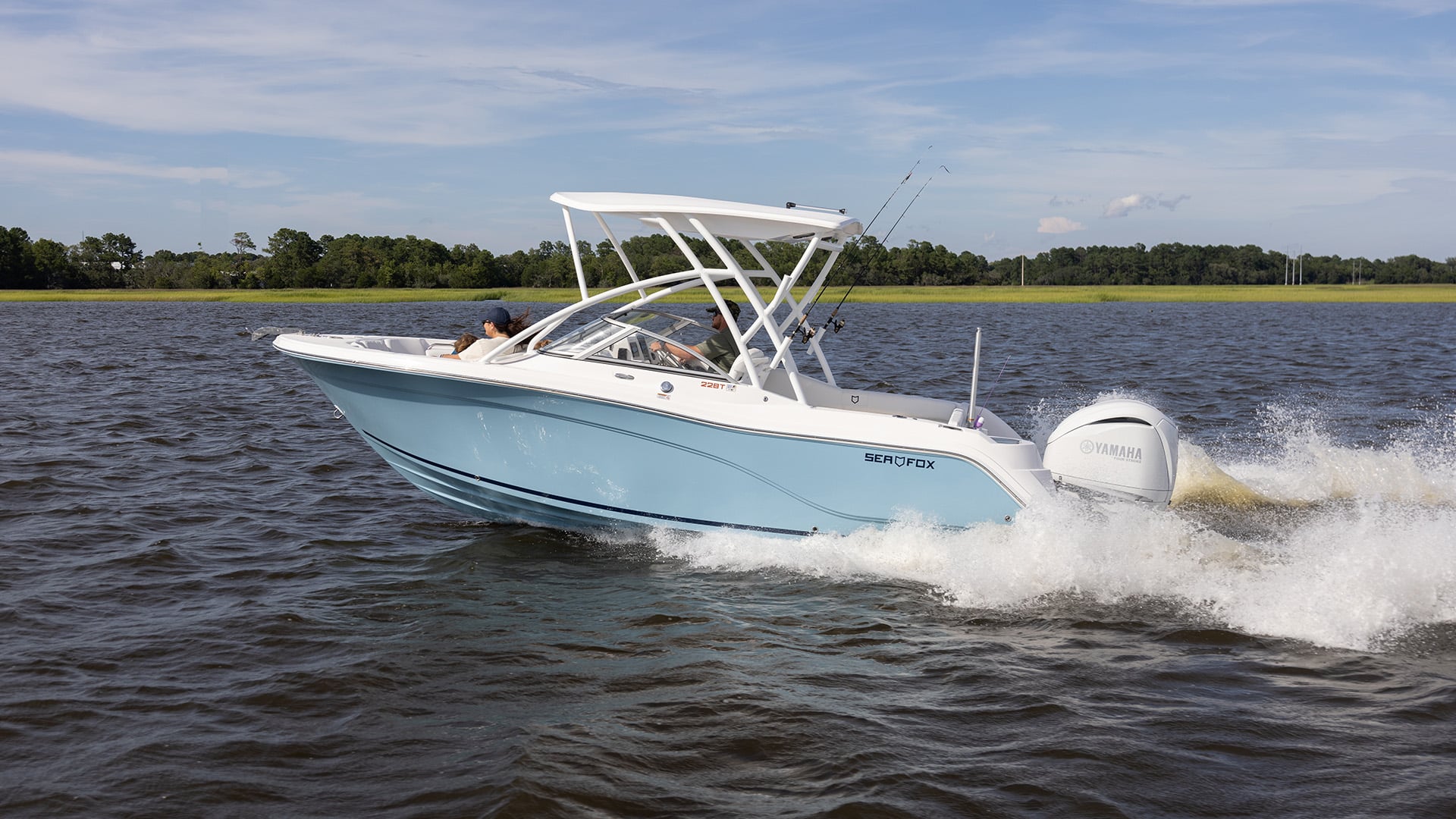

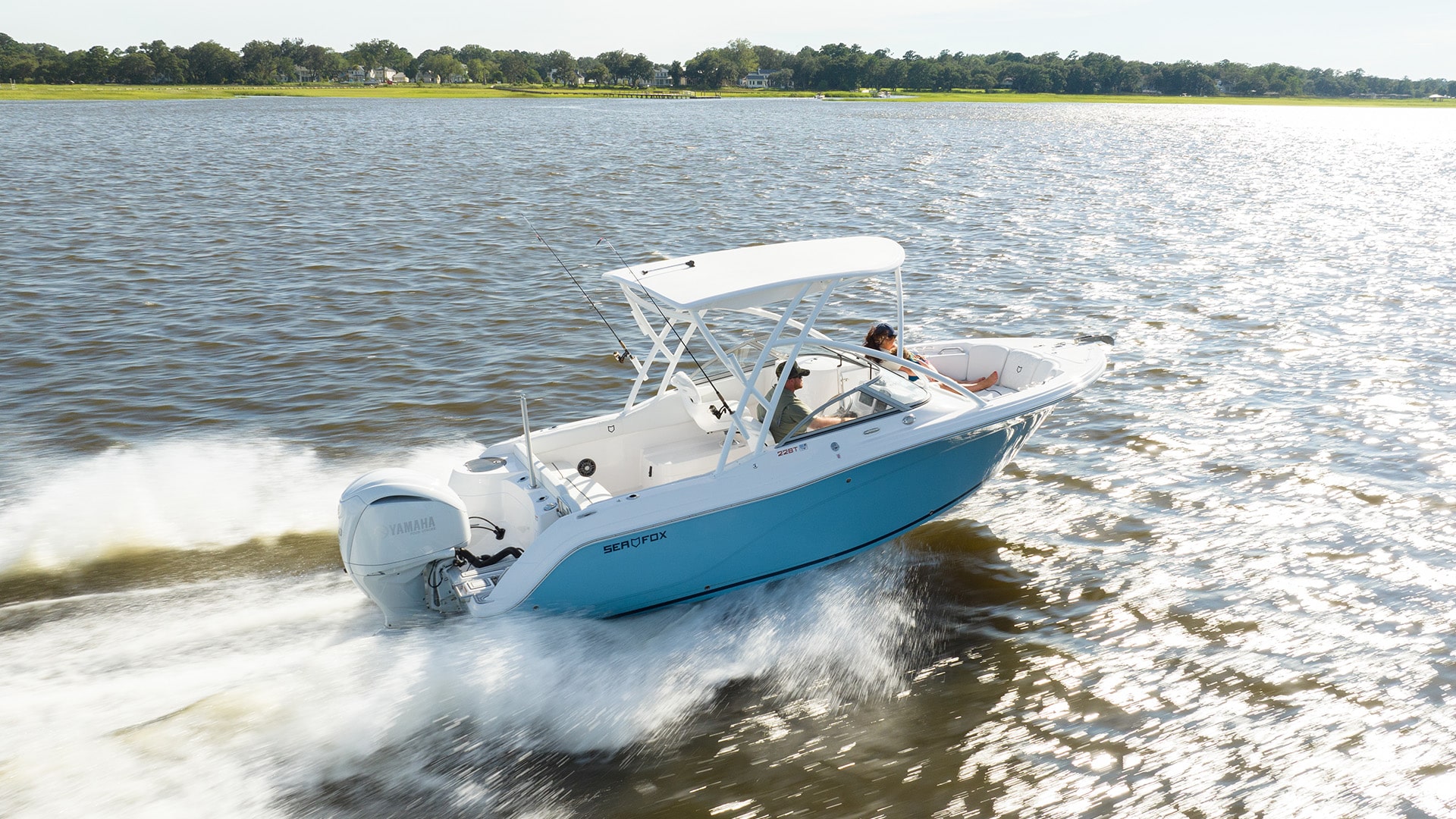

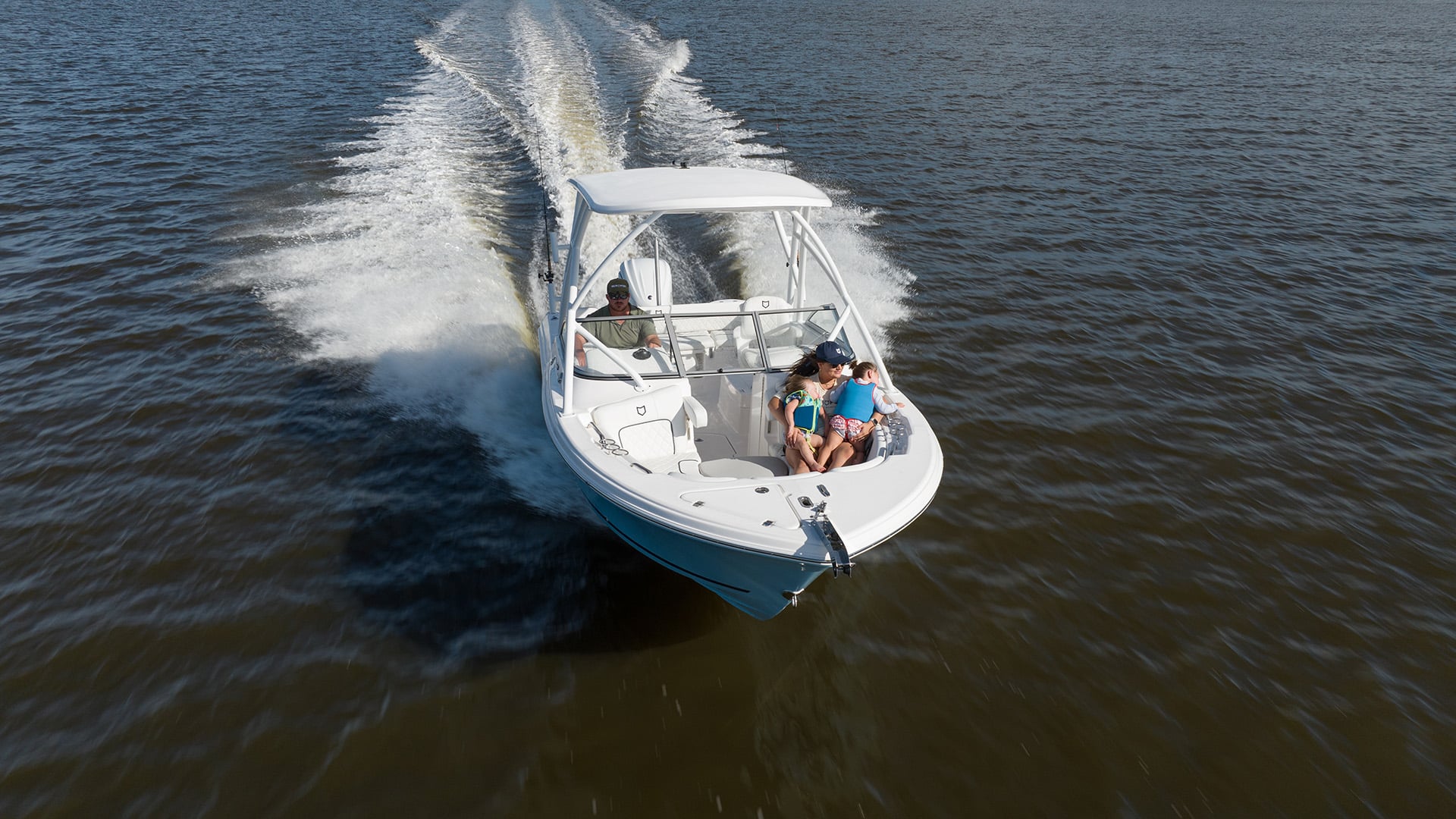

228 Traveler
Smooth performance that makes every trip more enjoyable
Built on the same offshore hull platform as our Commander series, this boat brings the signature ride of our center consoles to a dual console application. A thoughtful open aft fishing deck offers plenty of seating for all of your friends and family. A step down head with optional electric toilet, large watersports storage box, and deep bow seating help give this Traveler the feel of some of our larger boats with the versatility of a 22’ boat.
Gallery
top standard features

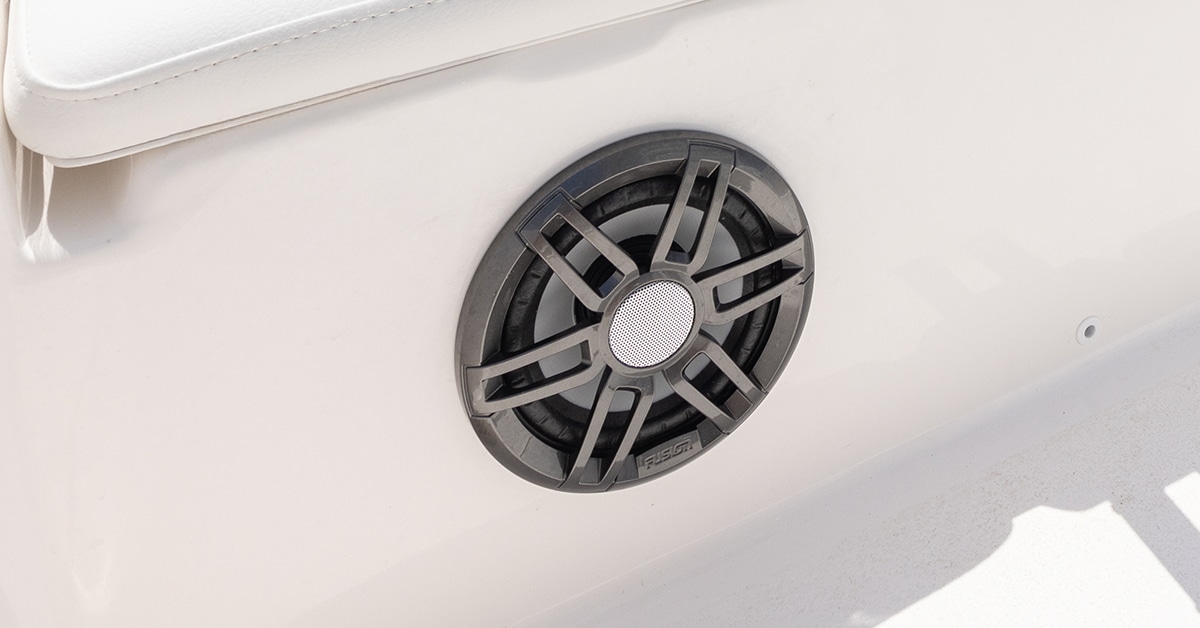

Fusion Apollo Stereo
The Fusion Apollo marine stereo provides rich, dynamic sound to keep the energy going all day on the water.

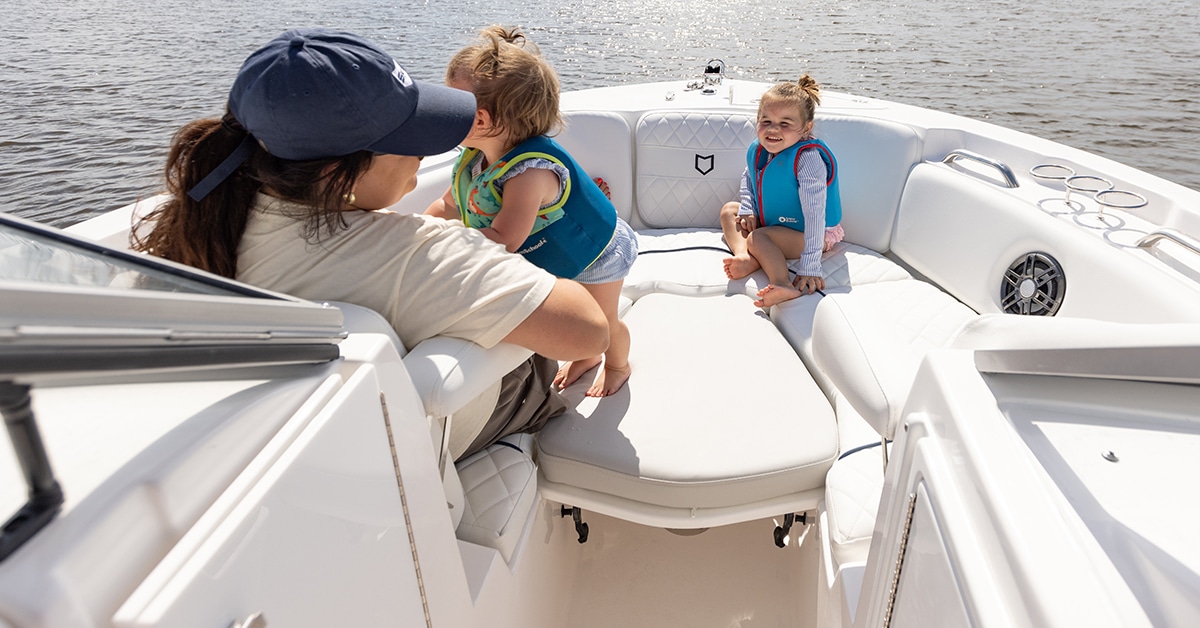

Casting Deck with Removable Filler
The bow casting deck with removable filler quickly converts from comfortable seating to a spacious fishing platform.

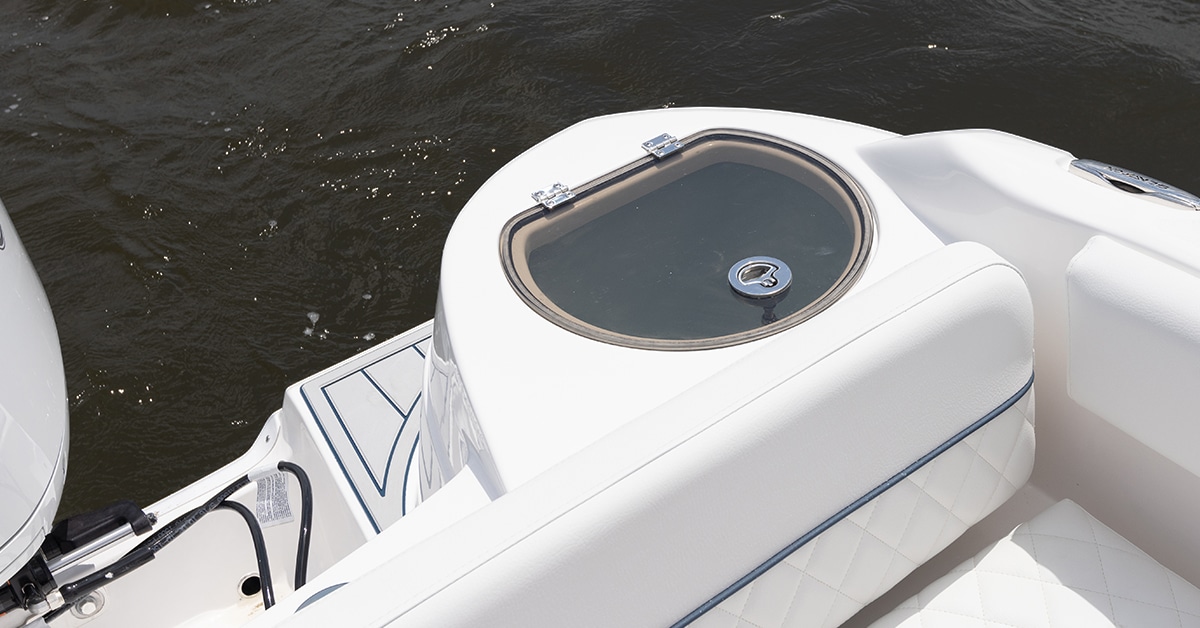

19 Gallon Livewell
The 19-gallon livewell provides ample capacity to keep bait lively and within easy reach.

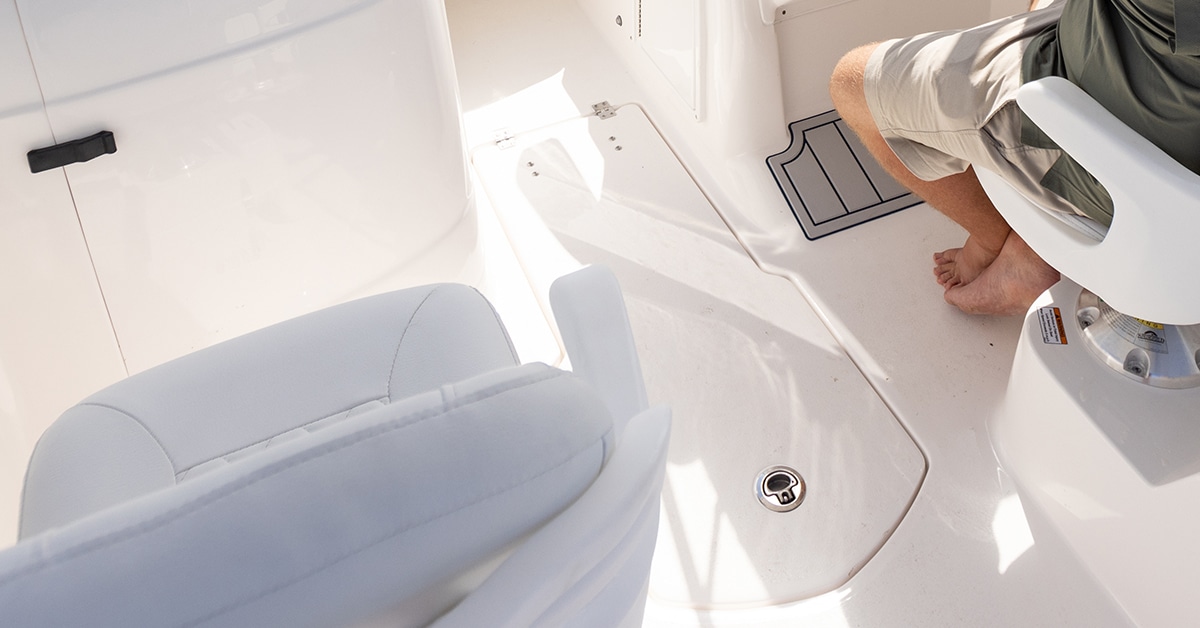

In-floor Watersport Storage
Dedicated watersports storage keeps tubes, skis, and towables organized and ready for action.
top optional features

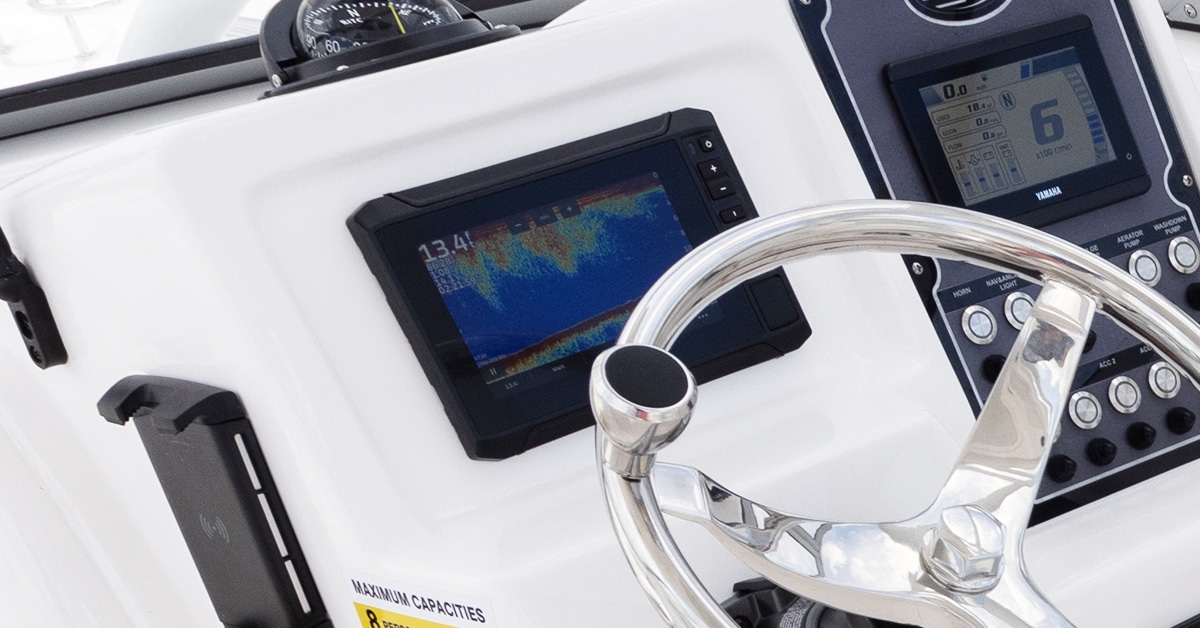

garmin 943xsv
The Garmin 943XSV provides advanced navigation, sonar, and charting on a bright 9 inch touchscreen display.

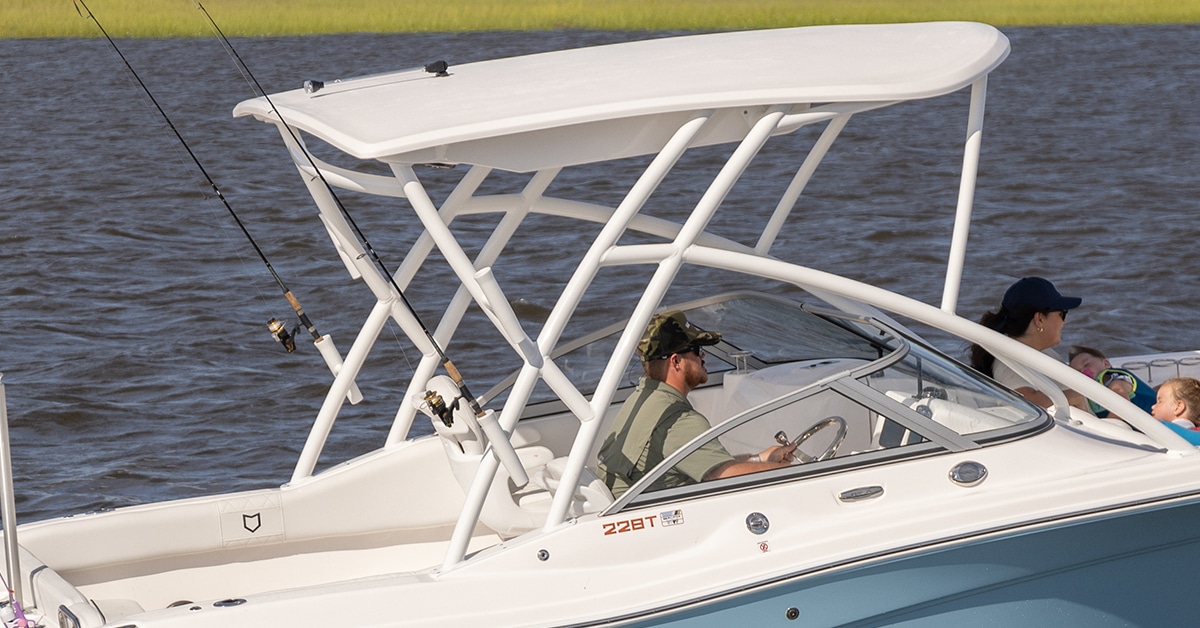

Ultima hardTop with Speakers
The Ultima Hard Top delivers shade, sound, and smart storage with LED lighting, four speakers, rod holders, and an integrated electronics box.

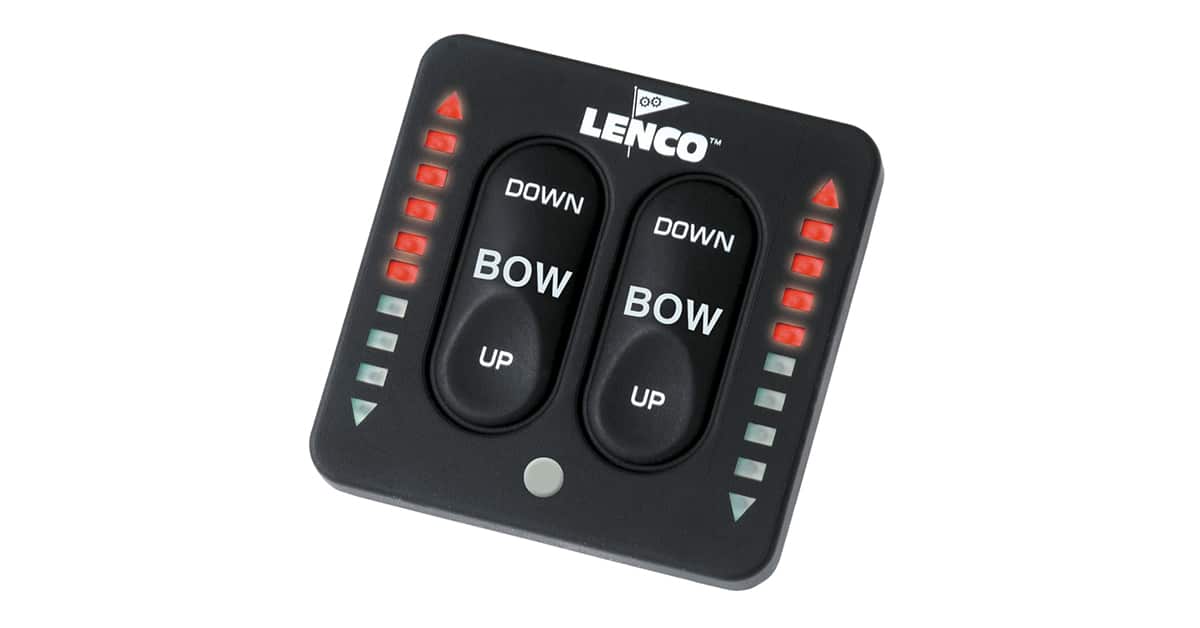

Lenco switch for trim tabs
The Lenco trim tab switch with LED indicators provides clear feedback on tab position for quick, easy adjustments and a smoother ride.
Next Level Fox
Watersports pack
The Watersports Pack makes it easy to get out and play, featuring an integrated 12V, IPX6-rated air station for quick inflation and deflation. With an 8' hose, multiple adapters, and a removable stainless ski tow bar, you're ready for a full day on the water.
Dimensions
L.O.A. :
22' 4"
Beam :
8' 6"
Bridge Clearance :
99” (with top)
Deadrise :
18 degrees
Draft (hull) :
16"
Transom Height (Centerline):
25"
Weight
Dry Weight :
3,191 lbs
Maximum Weight :
5,226 lbs
Capacity
Fuel Capacity :
106 gal
Persons Capacity :
8
Total Capacity :
2,200 lbs
Engines
Maximum Horsepower :
250 hp
Bridge clearance: based on factory installed ultima hard top
Dry weight is approximate & includes: boat plus factory options, & 2 batteries (no motor(s), water, fuel or owner’s gear)
Maximum weight is approximate & includes: boat plus factory options, full fresh water holding & fuel tanks, & 2 batteries, gear, and largest motor(s).
Fuel capacity can vary due to US EPA Evaporative Standard requirements
COLOR CHOICES
Pearl White
Marsh Green
Bahama Blue
Arctic Blue
Channel Blue
Silver Shark
Bull Shark
228 TRAVELER Standard Features
Bow:
- Stainless steel bow eye with chafe plate
- Anchor storage compartment with rope storage and anchor holding cleats
- LED navigation lights
- Curved bow backrest cushions
- Under seat insulated storage & fishbox
- Casting deck with removable filler board
- Stainless steel recessed grab rail at bow
- Removable bow filler cushion
- Forward console seating with contoured backrests and adjustable armrests
- Wind-dam with helm access console door
Helm:
- Dometic SeaStar hydraulic steering system with tilt helm
- Two digital gauges with backlighting. Tachometer and speedometer with volt, fuel, and push button functions
- For Yamaha digital motors (multifunction instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions, display may vary with availability, helm will vary with engine choice)
- Curved glass windshield with walkthrough
- Fusion Apollo Marine Stereo
- Fusion marine speakers
- Pedestal style captain's chair
- Bimini top with marine canvas
- Top mount compass on console
- Horn
- 12-volt power point
- Dash space for flush electronics (compatible for up to 7-inch display)
- Stainless steel steering wheel with turning knob
- Integrated console footrest
- Lockable head door
- Console courtesy lights
- Freshwater sink with hard surface countertop accent in white cloud
- Marine grade soft mat decking and console accents
Cockpit:
- Back-to-back passenger lounge chair
- Full cockpit coaming pads
- Stainless steel compression latches
- Cup holders (5)
- Stainless steel rod holders (6)
- In-floor watersport storage

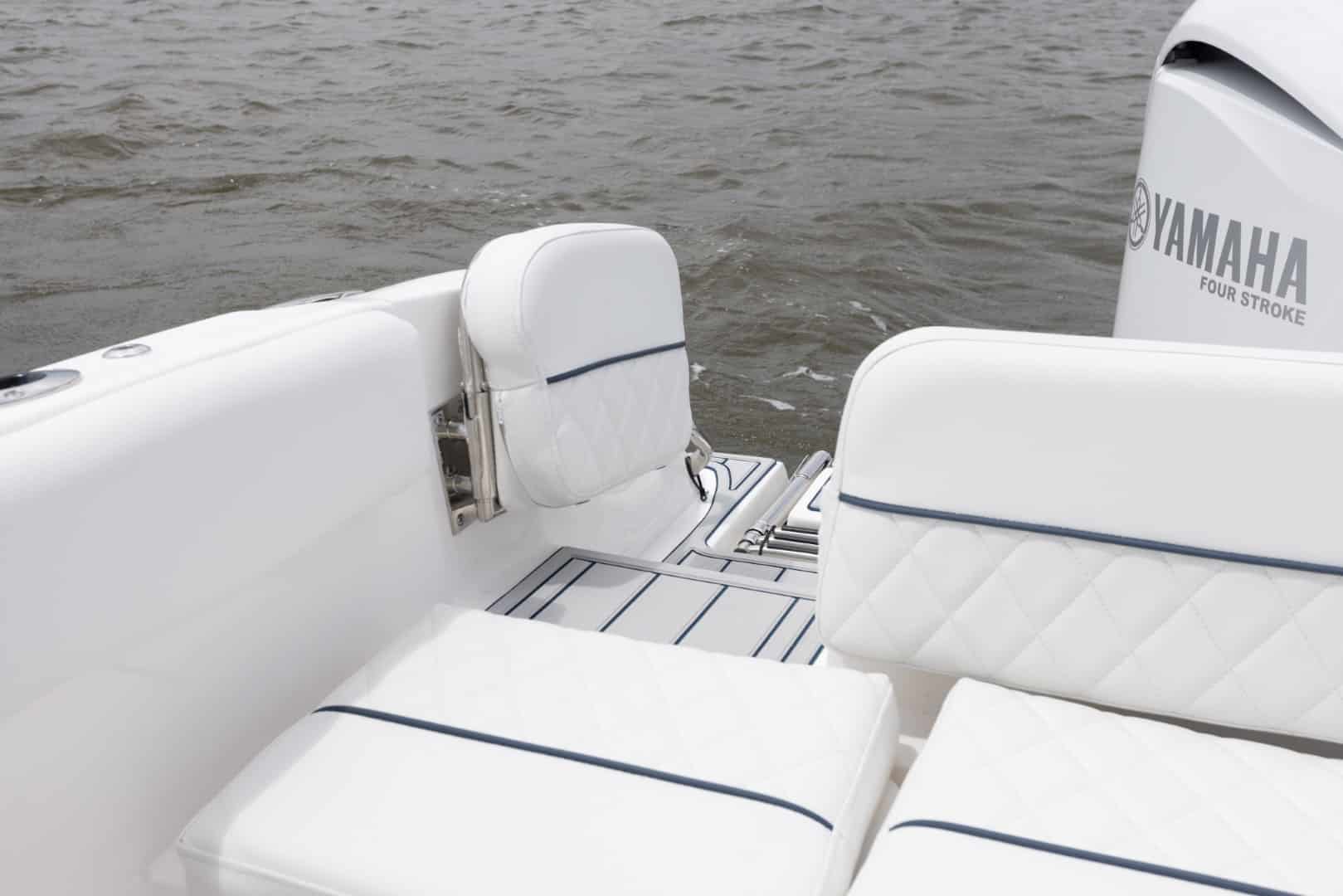

- Aft bench seat with removeable cushions
- Self bailing cockpit with stainless steel grates
- Aft livewell with window (19 gallons, 800 GPH aerator)
- Livewell light
- Battery switch
- Pre-rigging for two batteries
Transom:
- Stainless steel walkthrough gate
- Freshwater washdown shower with 12 gallon tank
- Removable all around navigation-anchor light
- Raw water washdown outlet
- Bulkhead fittings for hydraulic hoses in splashwell
- Stainless steel transom saver
- Stainless steel rear boarding telescopic ladder with integrated boarding handle
- Marine grade soft mat deck accents
- Stainless steel through bolted grab rail
- Recessed electric trim tabs with integrated hull design
- Stainless steel U-bolts on port and starboard transom
Bilge:
- Marine fuel/water separating filter
- (2) 1100 GPH bilge pumps with built in electronic float switches
- Raw water pump
- Freshwater pump
Other great features:
- Composite hull & deck
- Isothalic gelcoat
- Vinyl ester barrier coat
- Sand-grip deck surface
- Stainless steel rub rail
- Stainless steel fasteners
- Stainless steel through hulls
- Stainless steel pull-up cleats (5)
- Silver boot stripe available on white and full hull gelcoat options
- Limited Lifetime Hull Warranty
Note: Due to Sea Fox’s continuous innovation and improvements, specifications can change without notice
Please visit our website for the most current list of available standards and options
228 TRAVELER Optional Features
Power
- Yamaha F200XD
- Integrated Hydraulic Steering
- Yamaha F200XSA2
- Integrated Electro-hydraulic Steering
- Painted motor
- White
- Black
- Light Gray
Gelcoat Accent
- Stripe
- Sides
- Full Hull
- White Pearl
- Marsh Green
- Bahama Blue
- Arctic Blue
- Channel Blue
- Silver Shark
- Bull Shark
- Dune
- South Beach Teal
Top
- Ultima Hard Top Upgrade
- Includes:
- Brushed Aluminum Frame
- Two Recessed Spreader Lights
- Molded In Electronics Box
- Four Speakers
- Red, White, and Blue Power Cycle LED Lights
- 7 Rod Holders
- Illuminated Switch Panel
- Includes:
Aluminum Accent
- Powder Coating
- White
- Black
- Light Gray
- Jetty Gray
Seating
- Deluxe Captain Chairs
Upholstery Accent
- Upholstery Accent
- Standard:
- Light Gray Single Diamond Stitch
- Navy Single Diamond Stitch
- Upgrade:
- Light Gray Double Diamond Stitch
- Navy Double Diamond Stitch
- Harbor Double Diamond Stitch
- Dune Double Diamond Stitch
- Midnight Double Diamond Stitch
- Standard:
Upgrade Packages
- Tech Pack
- Blue Mood Lights
- Underwater Lights
- Wireless Phone Charger
- Pro Pack
- Cushioned Foot Mat
- Gas Shocks on Two Bow Lids
- Four Quick Release Fender Deck Mounts
- Watersports Pack
- Integrated Air Station
12V, IPX6 rated two-stage pump system for quick inflation and deflation. - Includes 8' hose and valve adapters
- Removable and Stainless Ski Tow Bar
- Integrated Air Station
Electronics
- Two Bank Battery Charger
- Lenco Switch for Trim Tabs
- LED indicators
- Sea Fox Pro Ride Featuring Lenco Pro Control
- Garmin 943 XSV Touchscreen
- Thru-hull Transducer
- (B150M CHIRP)
Head
- Electric Porcelain Toilet
- 6 Gallon Holding Tank
Other
- Transhield Fitted Boat Cover
- Fit to Windshield
- Transhield Fitted Boat Cover
- Fit to Ultima Hard Top
- Bow Shade (Requires Hard Top Upgrade)
- With Four Carbon Fiber Support Poles
- Bow Table
