About 228 COMMANDER
Like all Sea Fox models the 228 Commander is designed to exceed the needs of the most demanding Captain, as well as accommodate his family. As Fisherman and boating enthusiasts we believe it is important to provide all of the necessities for the serious fisherman, but then go further and design family-friendly amenities into each model to truly offer a distinctive and versatile vessel.
Press
Boat Review – Sea Fox 228 Commander
Sea Fox 228 Commander Boat Review | Club Marine
Sea Fox
228 Commander
Resources
SPECS
Dimensions
Centerline Length :
22' 4"
Beam :
8' 6"
Bridge Clearance :
99"
Deadrise :
18 degrees
Draft (hull) :
14"
Transom:
25"
Weight
Dry Weight :
2,700 lb
Maximum Weight :
4,441 lb
Capacity
Fuel Capacity :
90 gal
Persons Capacity :
8 people
Total Capacity :
2,200 lb
Engines
Maximum Horsepower :
250 hp
COLOR CHOICES
Pearl White
Marsh Green
Bahama Blue
Arctic Blue
Channel Blue
Silver Shark
Bull Shark
Jetty Grey
228 COMMANDER Standard Features

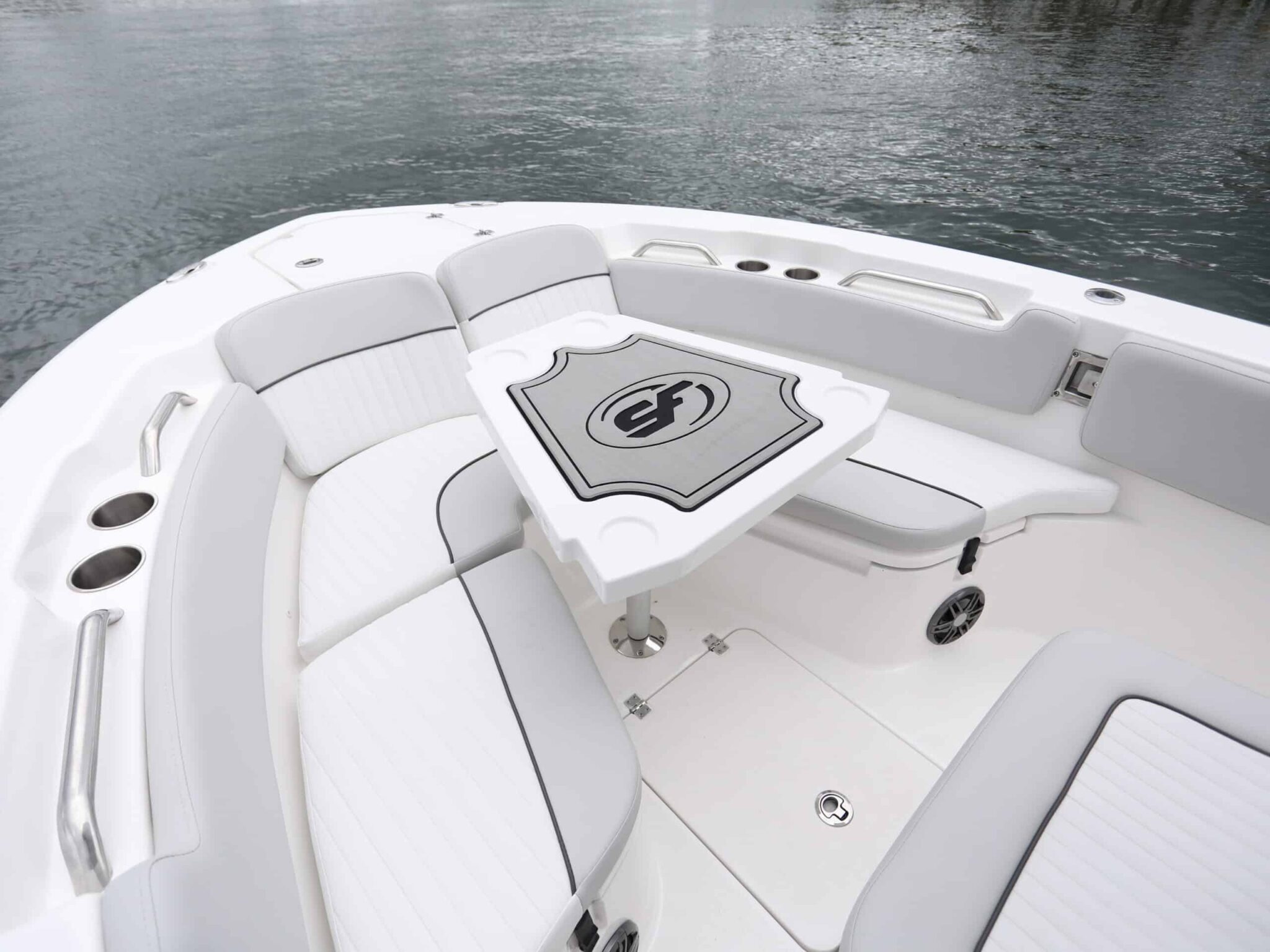

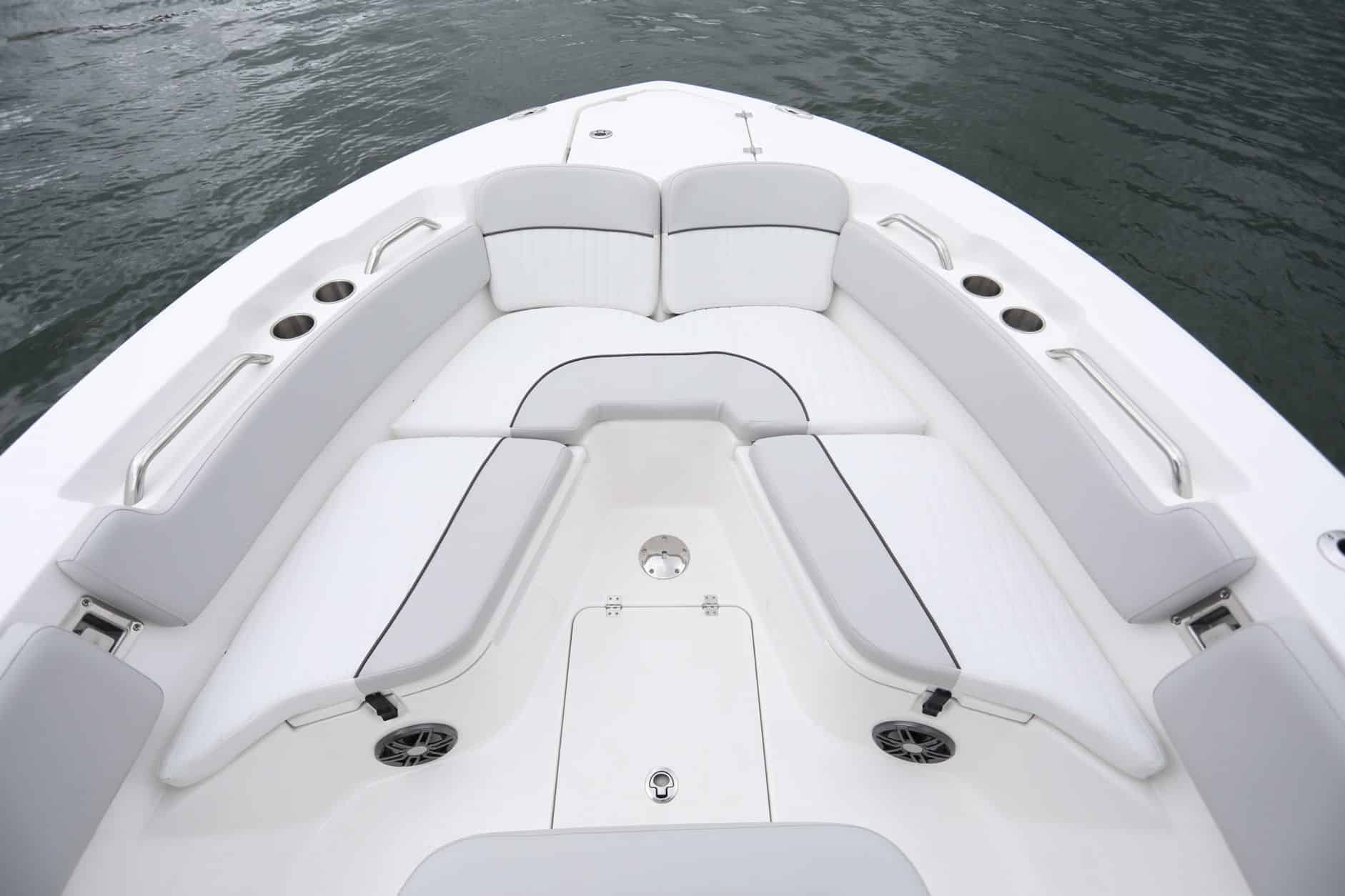

Bow:
- Stainless Steel Bow Eye
- with chafe plate
- Anchor Compartment
- with rope storage locker
- Rub Rail Mounted LED Navigation Lights

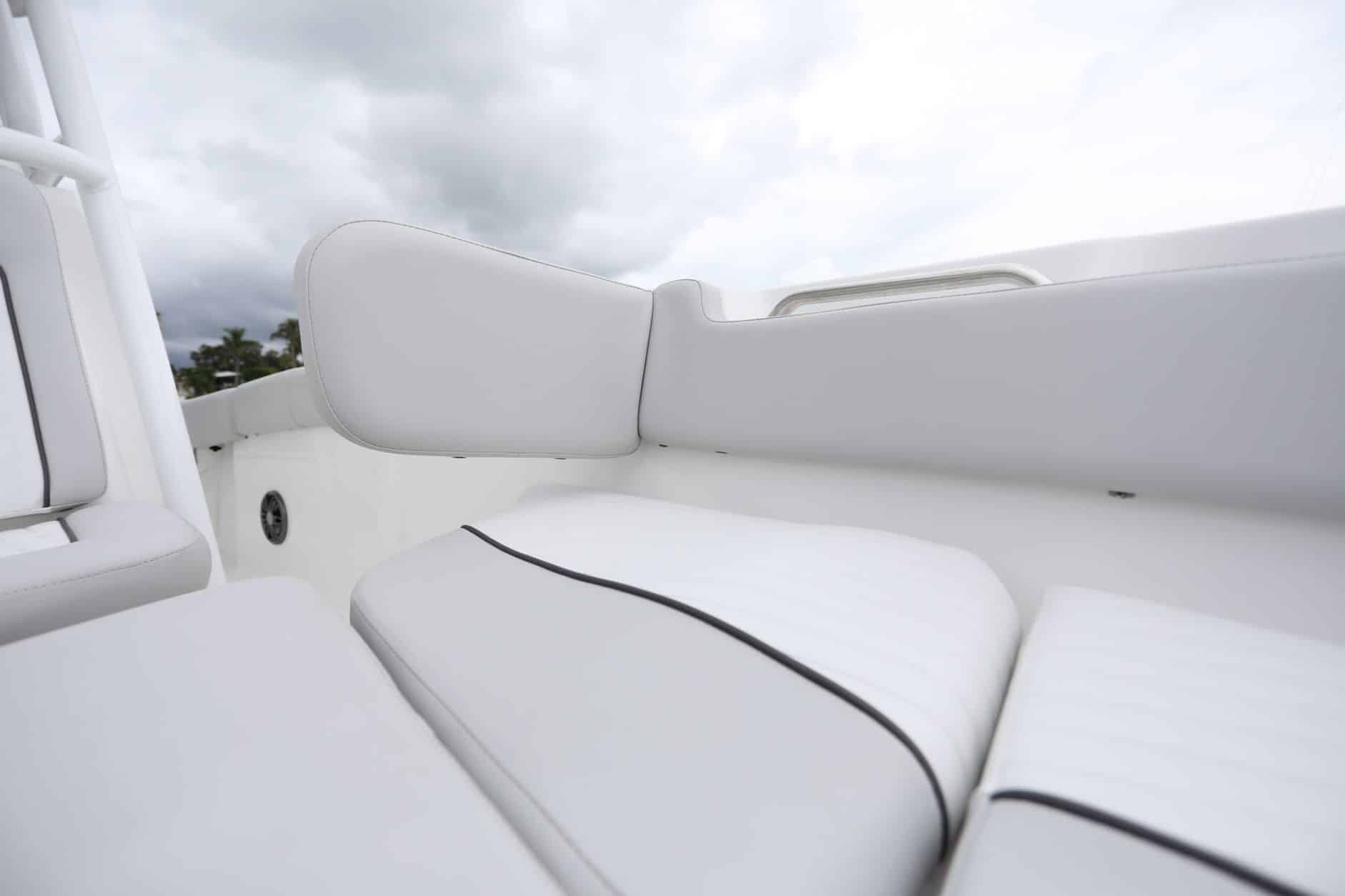

- Curved Bow Backrest Cushions
- Full Cockpit Coaming Pads
- with integrated fold out forward facing bow backrests

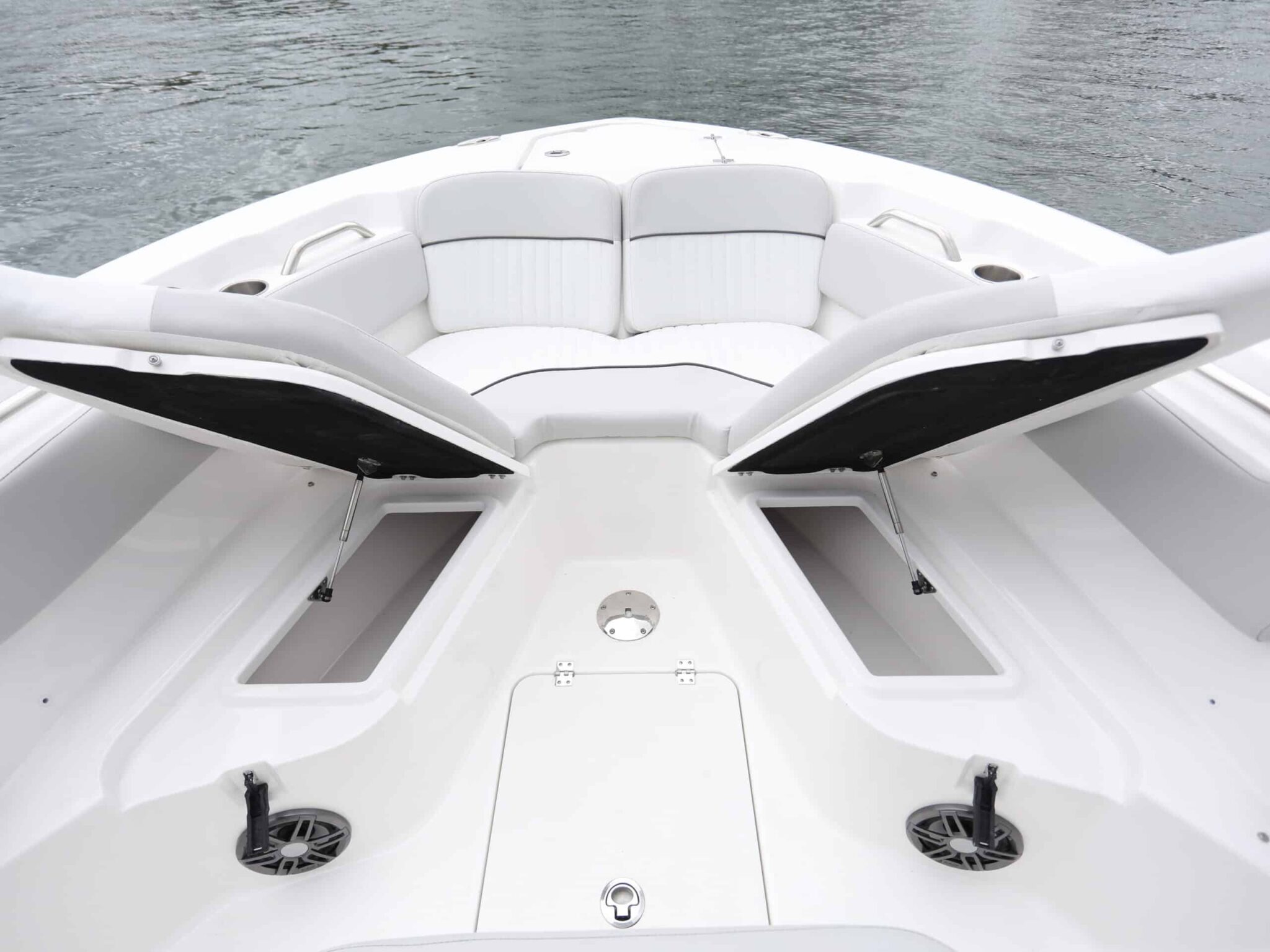

- Under Seat Storage
- cooler
- fishbox
- Casting Deck
- removable filler board
- Stainless Steel Recessed Grab Rail at Bow

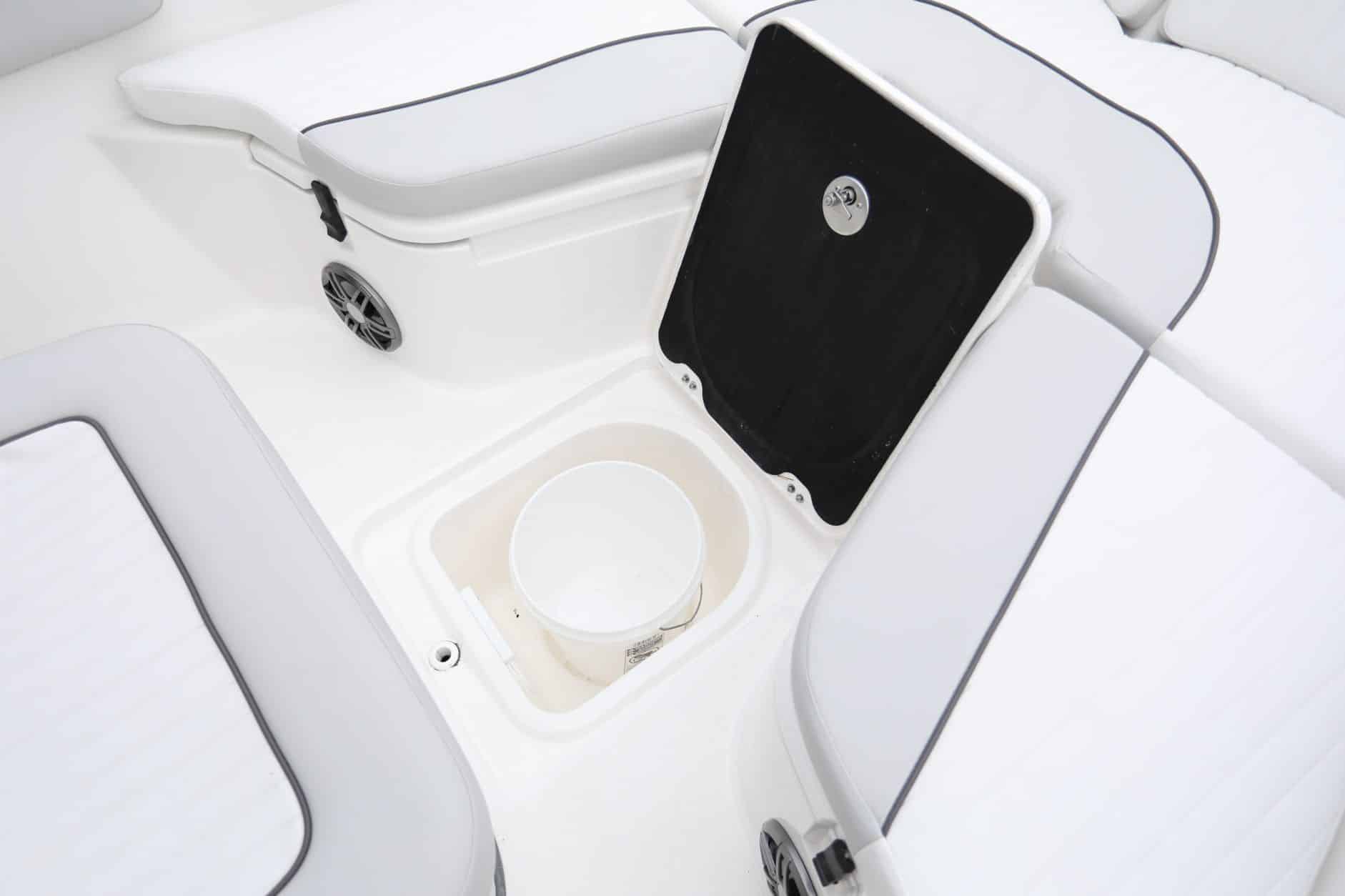

- In-floor Storage
- five gallon bucket

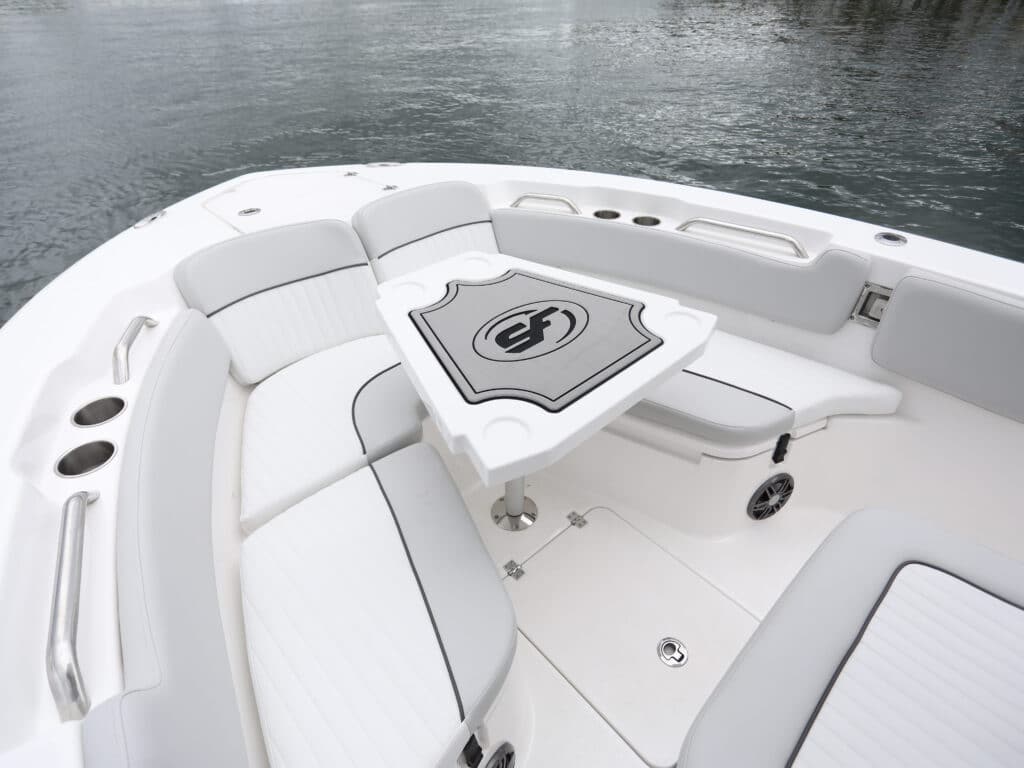

- Stainless Steel Table Mount
- Removable Filler Board Table with Leg
- Removable Bow Filler Cushion

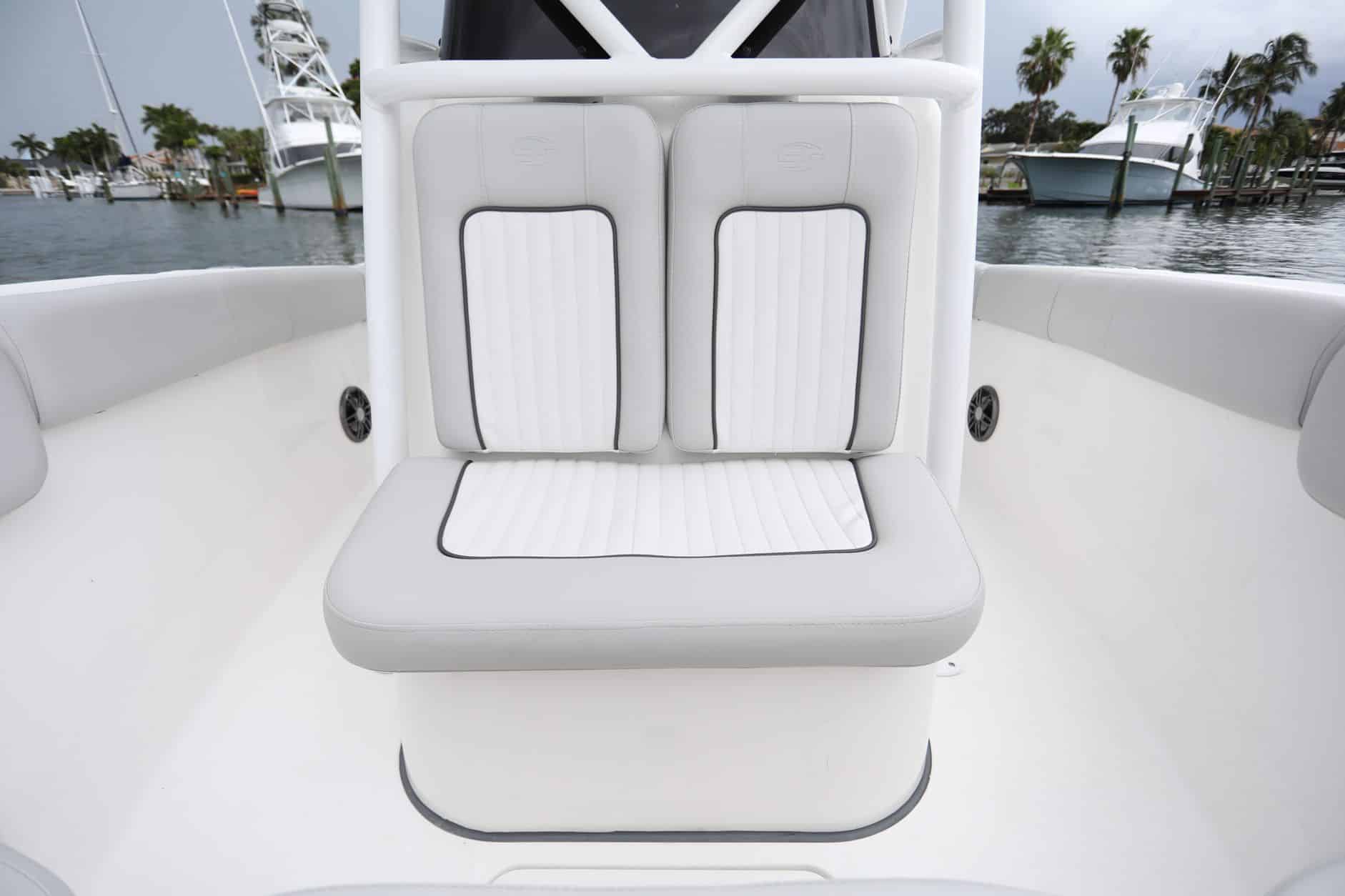

- Forward Console Seating
- with contoured backrests
Cockpit:

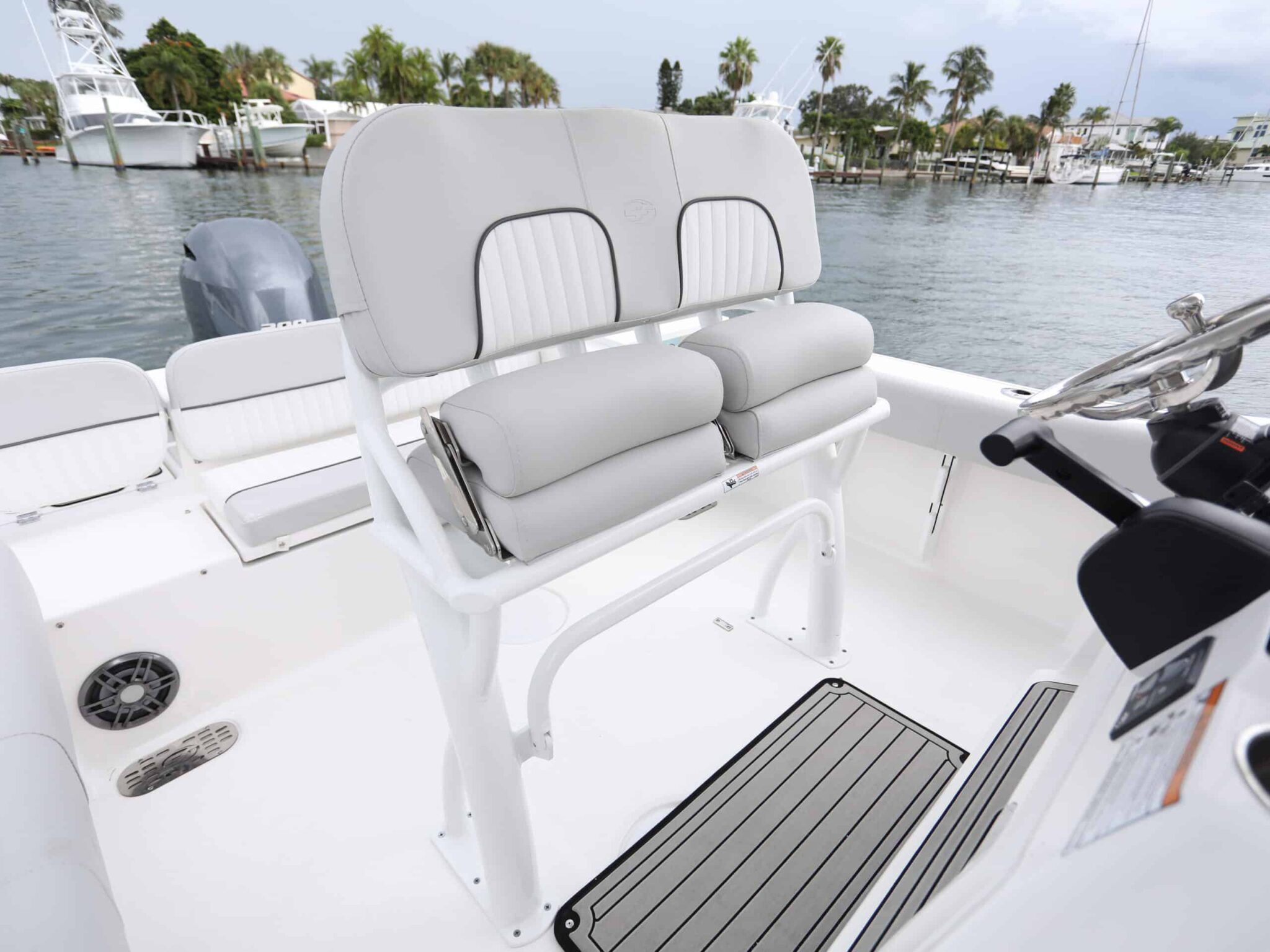

- Leaning Post Helm Seating
- backrest
- hinged bolsters
- 65-Quart Premium Cooler
- stainless steel strapdown hardware
- Stainless Steel Compression Latches
- Under Gunwale Recessed Rod Storage
- powder coated toe-rail
- Stainless Steel Closeout Rings for Rod Holders

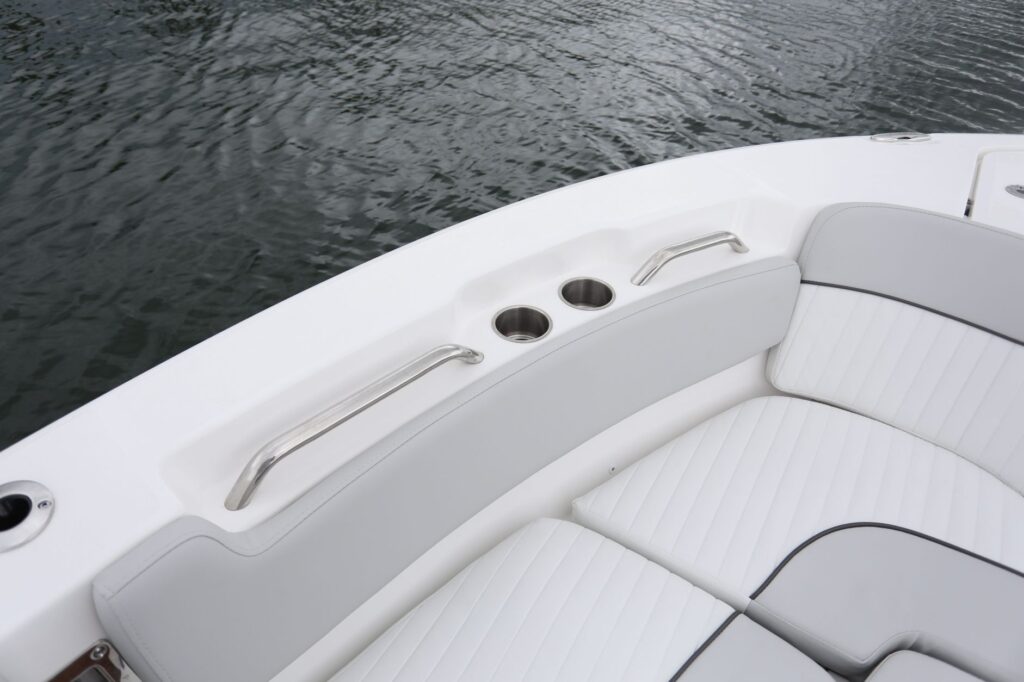

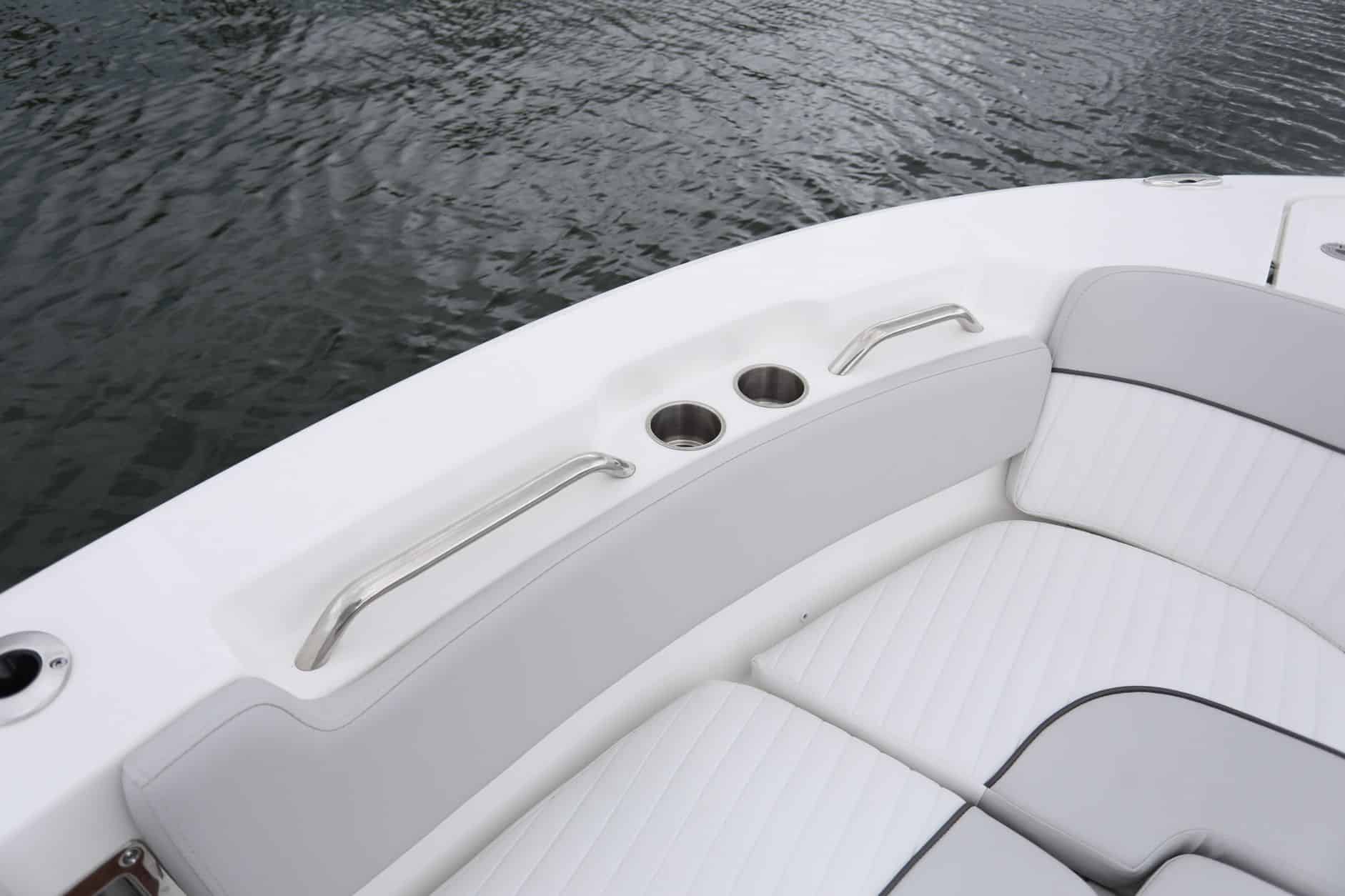

- Ten Cup Holders
- Four Stainless Steel Rod Holders

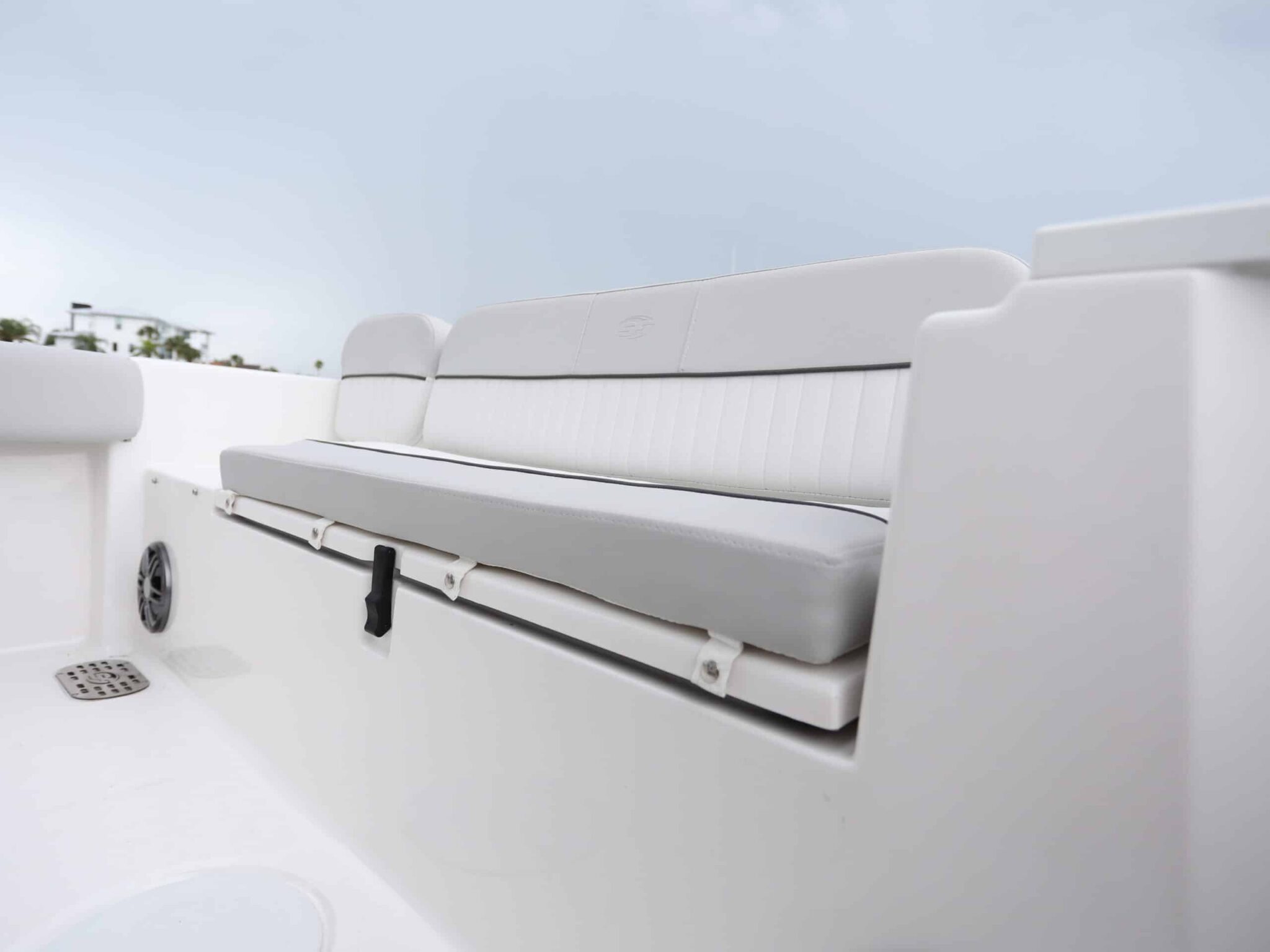

- Aft Bench Seat
- removeable cushions
- Self Bailing Cockpit
- stainless steel grates

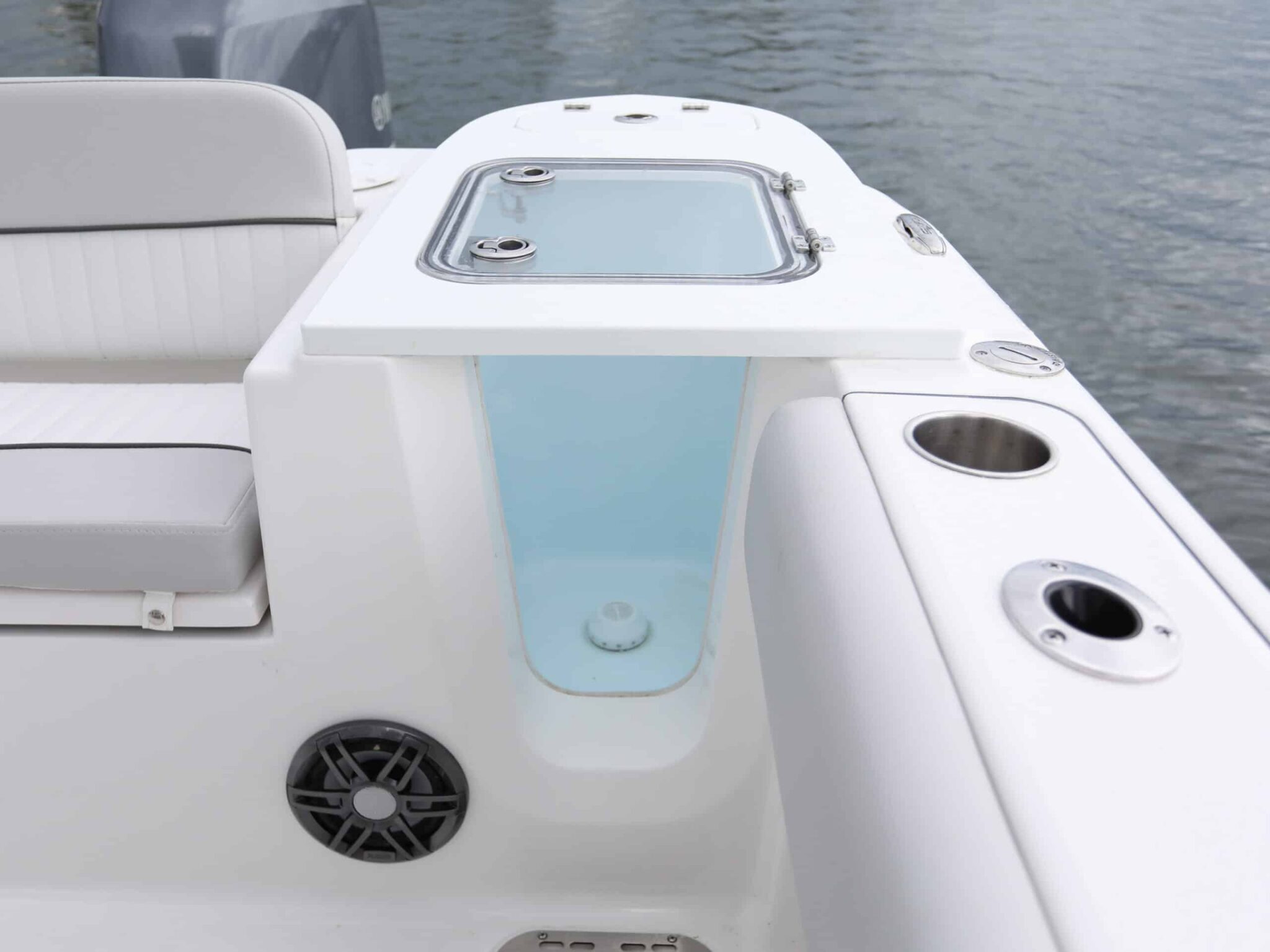

- Aquarium Style Pressurized Livewell with Window
- 30 gallons
- 800 GPH aerator
- Livewell Light
- Dip Net
- integrated easy access storage
Other:
- Composite Hull & Deck
- Isothalic Gelcoat
- Vinyl Ester Barrier Coat
- Sand-grip Deck Surface
- Stainless Steel Rub Rail
- Stainless Steel Fasteners
- Stainless Steel Through Hulls
- Stainless Steel Pull-up Cleats (6)
- Silver Boot Stripe
- available on white and full hull gelcoat options
- Limited Lifetime Hull Warranty

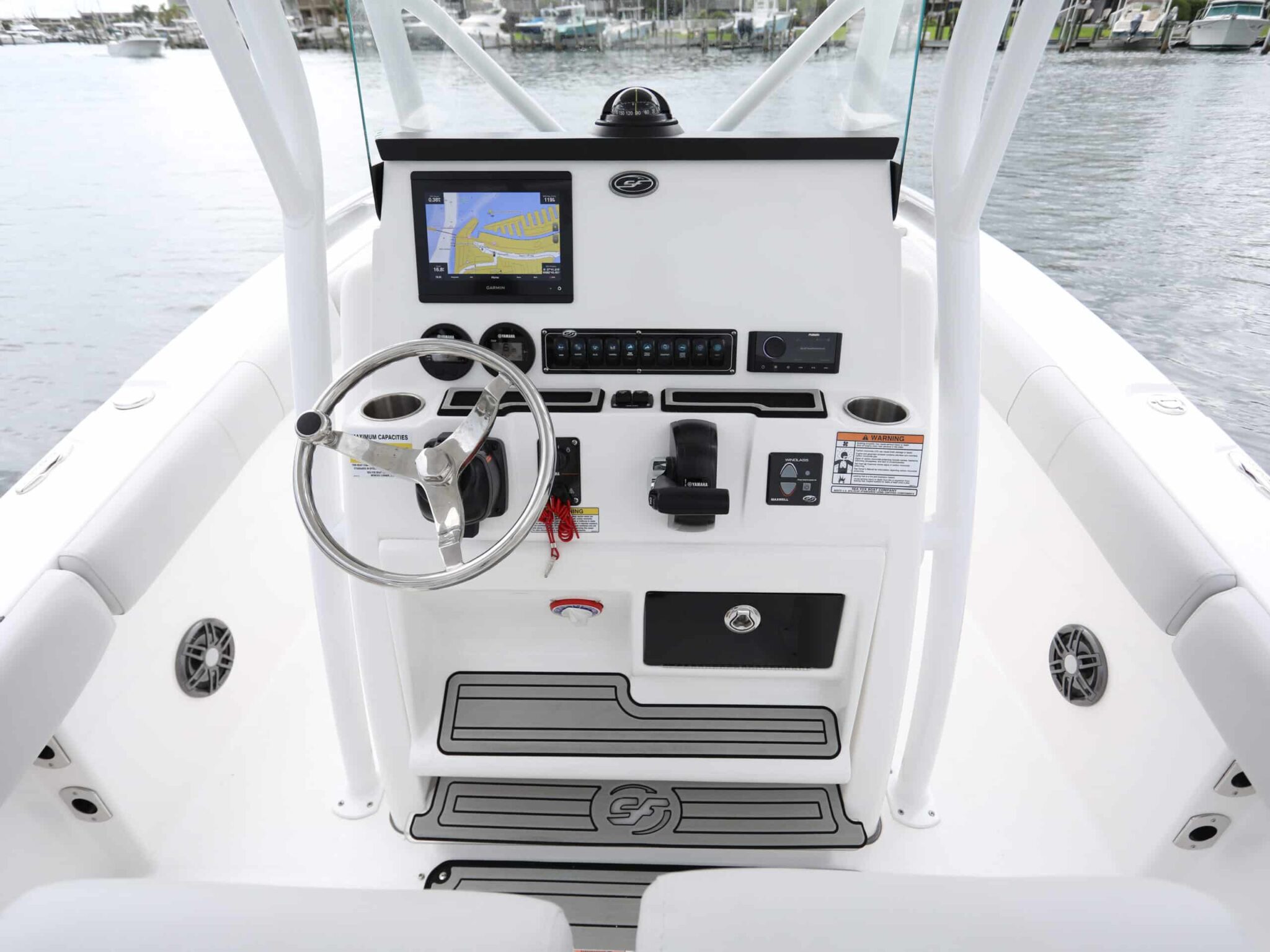

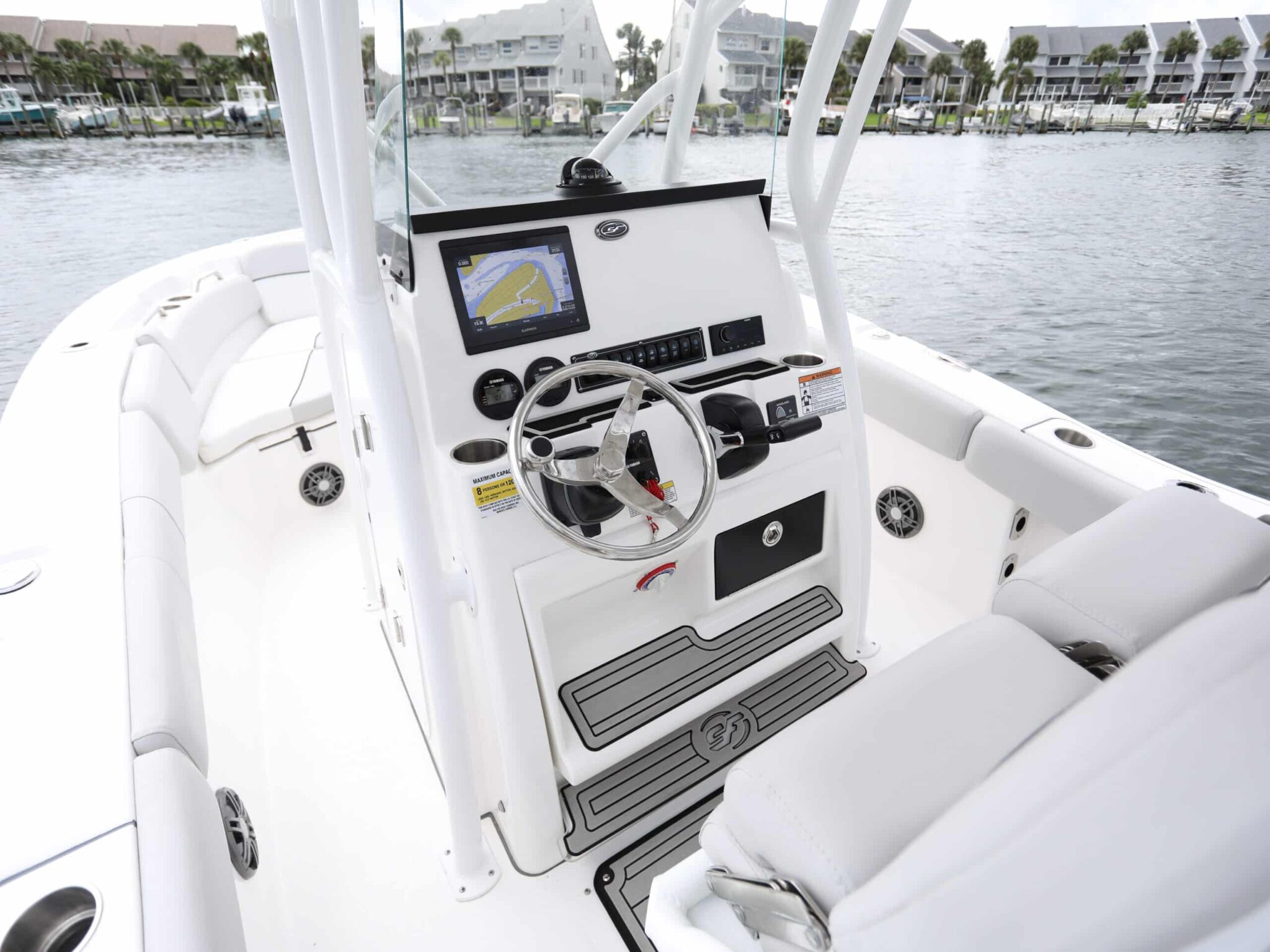

Helm:

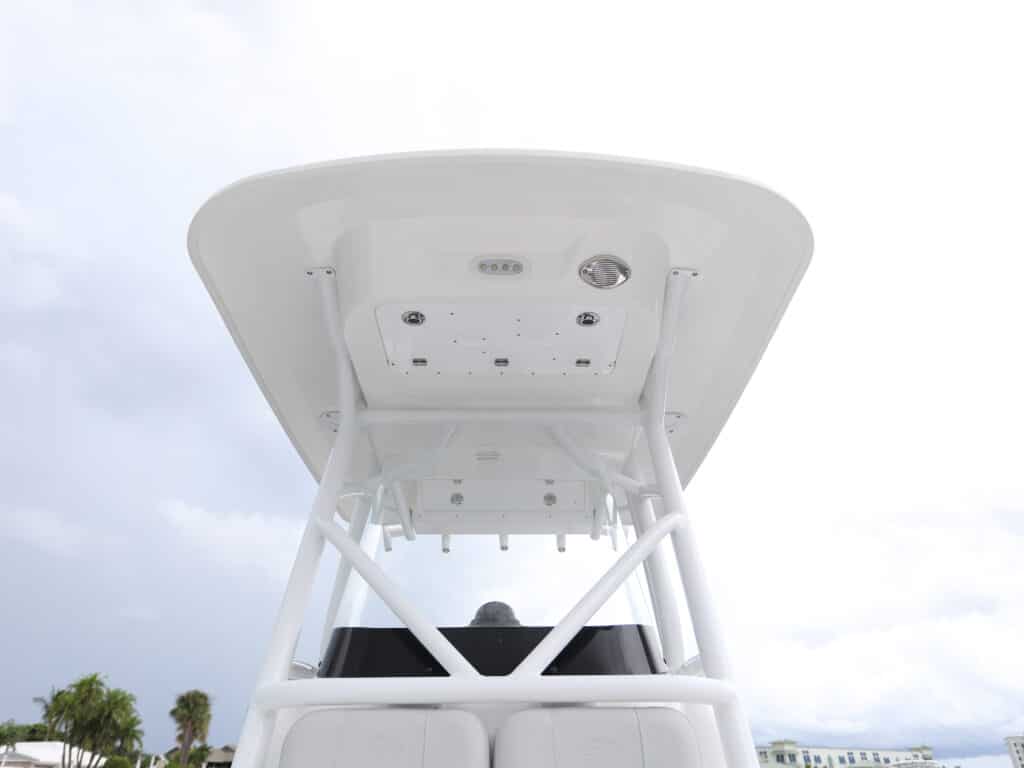

- T-Top with canvas awning, rear spreader lights, tulip rod holders (4) and LED anchor light
- Dometic SeaStar hydraulic steering system with tilt helm
- For Yamaha Mechanical Motors:
- XB single application
- two digital gauges with backlighting
- tachometer and speedometer with volt, fuel, and push button functions
- For Yamaha Digital Motors
- XC single application
- multifunction instrumentation with tachometer, speedometer, volt, fuel, and fuel management functions. Display may vary with availability.
- Fusion Stereo
- with USB adapter
- Six Fusion Speakers in Deck
- Windscreen
- Top Mount Compass on Console
- Console Dash Shroud
- Dash Space for Flush Electronics
- compatible for two 10" displays
- Stainless Steel Steering Wheel
- with turning knob
- Lockable Console Door
- Horn
- Integrated Console Footrest
- with backlit lower level footrest
- 12-volt Power Point
- Battery Switch
- Console Courtesy Lights
- Pre-rigging for Two Batteries
- Portable Toilet
- Marine Grade Soft Mat Decking
- and console accents

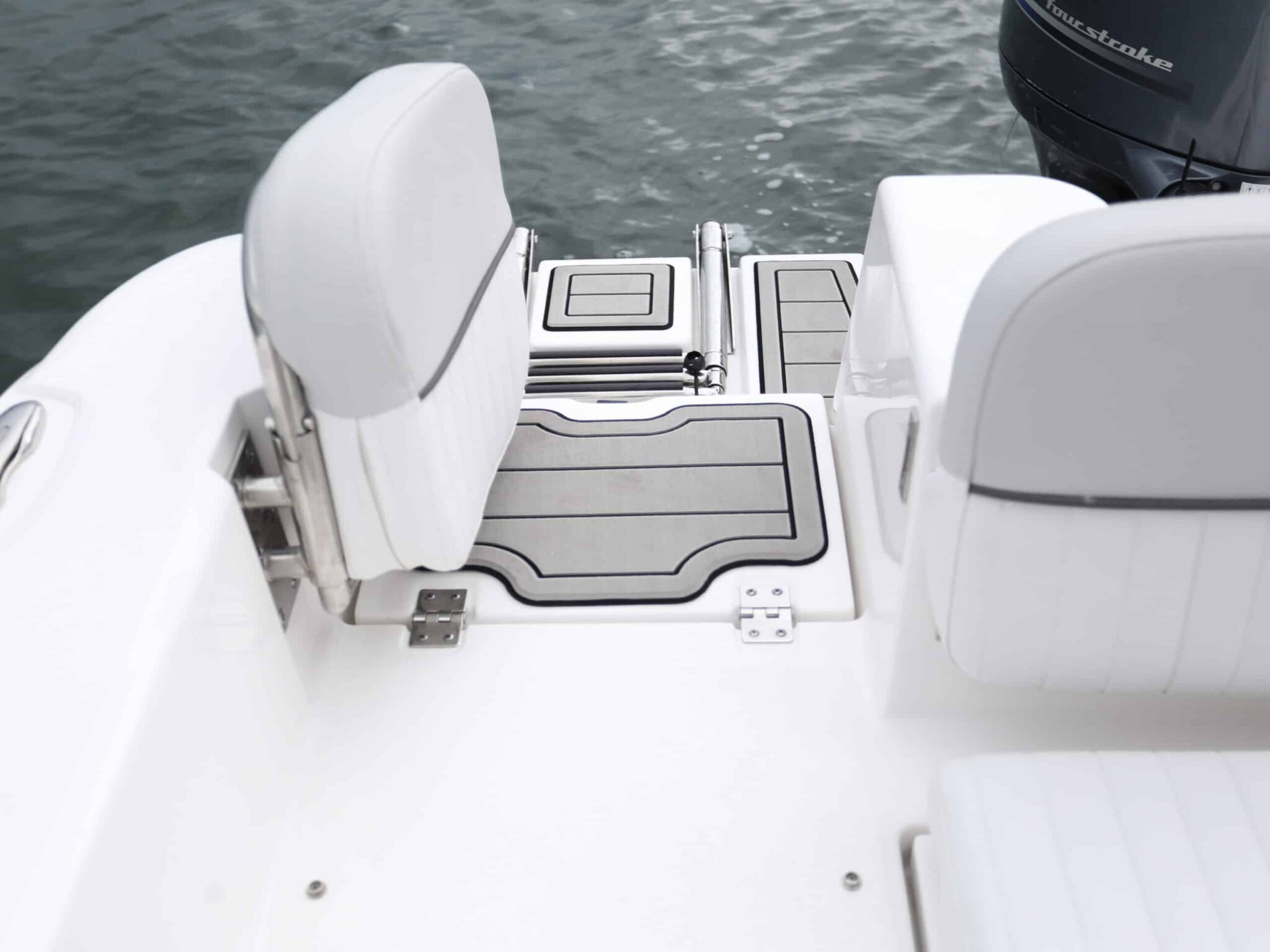

Transom:
- Stainless Steel Walkthrough Gate

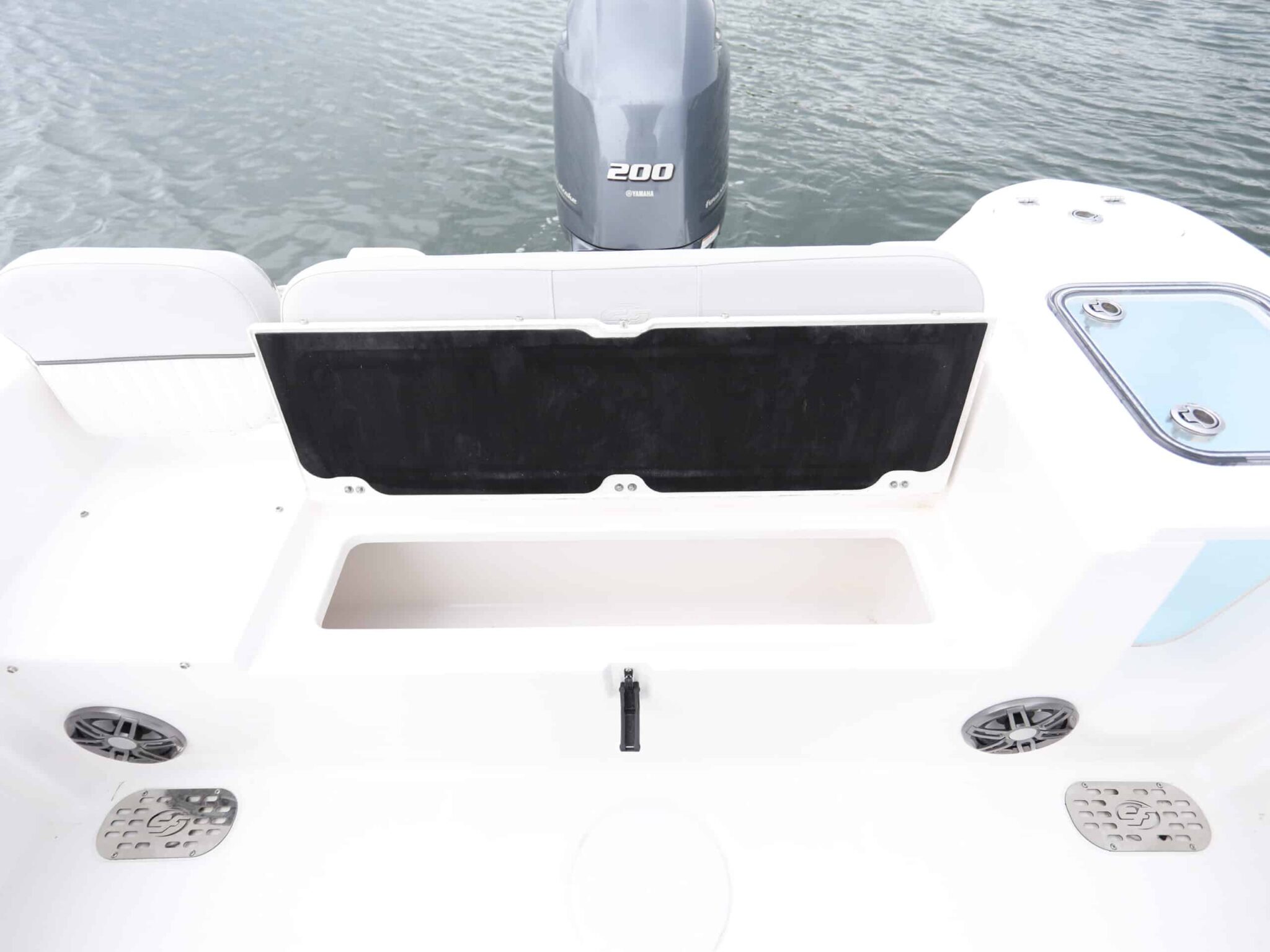

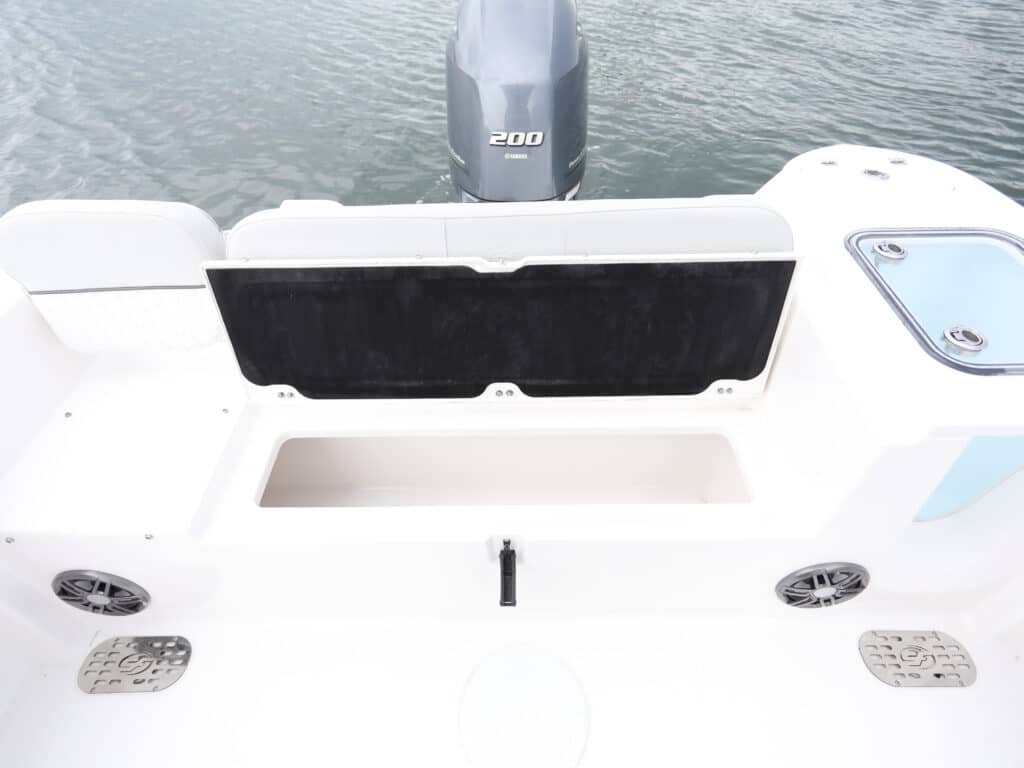

- Transom Storage Compartment
- plumbed and insulated for use as a cooler and notched for beach anchor storage
- Raw Water Washdown Hose
- storage tube on aft bulkhead
- 15' of hose with adjustable nozzle
- Bulkhead Fittings for Hydraulic Hoses in Splashwell
- Stainless Steel Transom Saver
- Stainless Steel Rear Boarding Telescopic Ladder
- integrated boarding handle
- Marine Grade Soft Mat Decking
- and console accents
- Stainless Steel Through Bolted Grab Rail
- Recessed Electric Trim Tabs
- integrated hull design
- Stainless Steel U-bolts on Port and Starboard Transom
Bilge:
- Marine Fuel/Water Separating Filter
- 1100 GPH Bilge Pumps
- primary and back up
- Electronic Automatic Float Switch
- Mechanical Float Switch
- Raw Water Pump
Note: Due to Sea Fox's continuous innovation and improvements, standard features and options can change without notice.
Bridge clearance: based on factory installed Ultima hard top or T-top. Doesn't factor in optional outriggers.
Dry weight is approximate & includes: boat plus factory options, but NO motor(s), water, fuel, owner's gear or batteries
Maximum weight is approximate & includes: boat plus factory options, full fresh water, holding & fuel tanks, 2 batteries, but NO motor(s) or owner's gear
Fuel capacity can vary due to US EPA Evaporative Standard requirements.
Sea Fox Boat Co., Inc. meets US EPA Evaporative Standards using Certified Components.
228 COMMANDER Optional Features
Power:
- Yamaha F150XB
- Yamaha F200XB
- Yamaha F200XCA
- Yamaha F250XCB
- Painted motor
- white
- black
Gelcoat Accent
- Stripe
- Sides
- Full Hull
- white pearl
- marsh green
- bahama blue
- artic blue
- channel blue
- silver shark
- bull shark
- jetty grey
Top

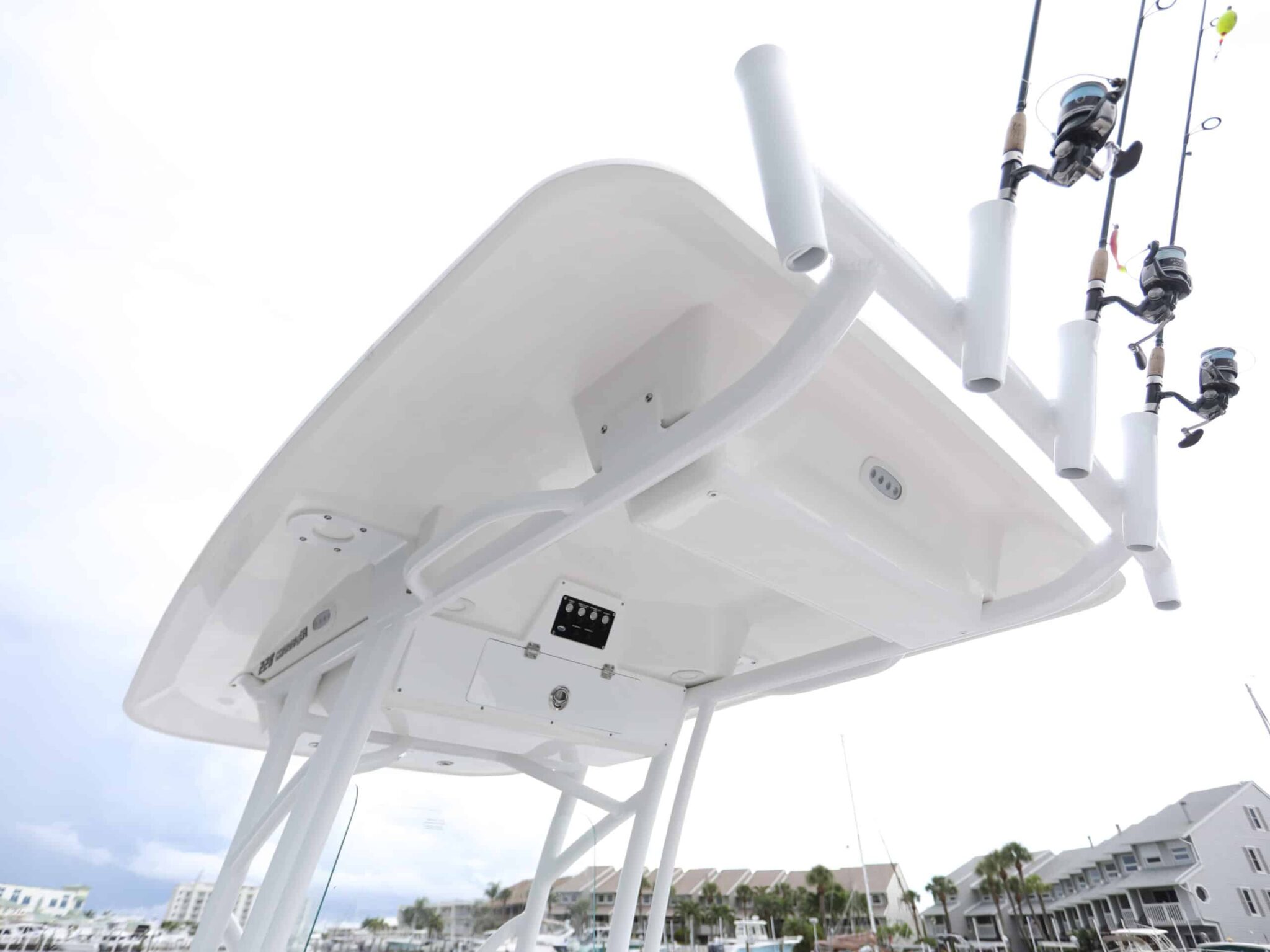

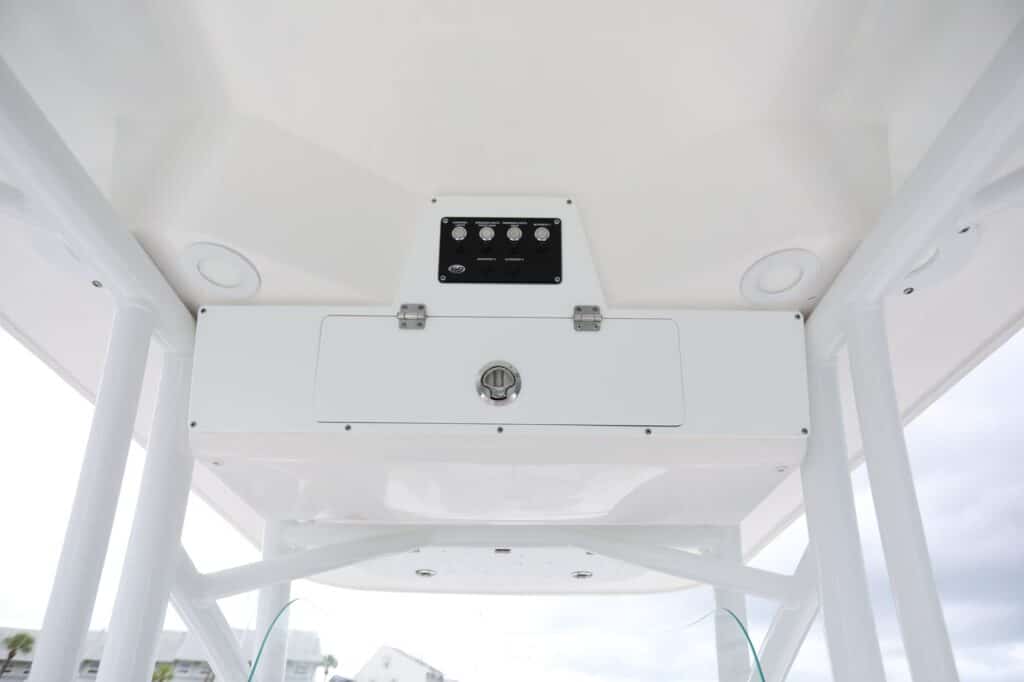

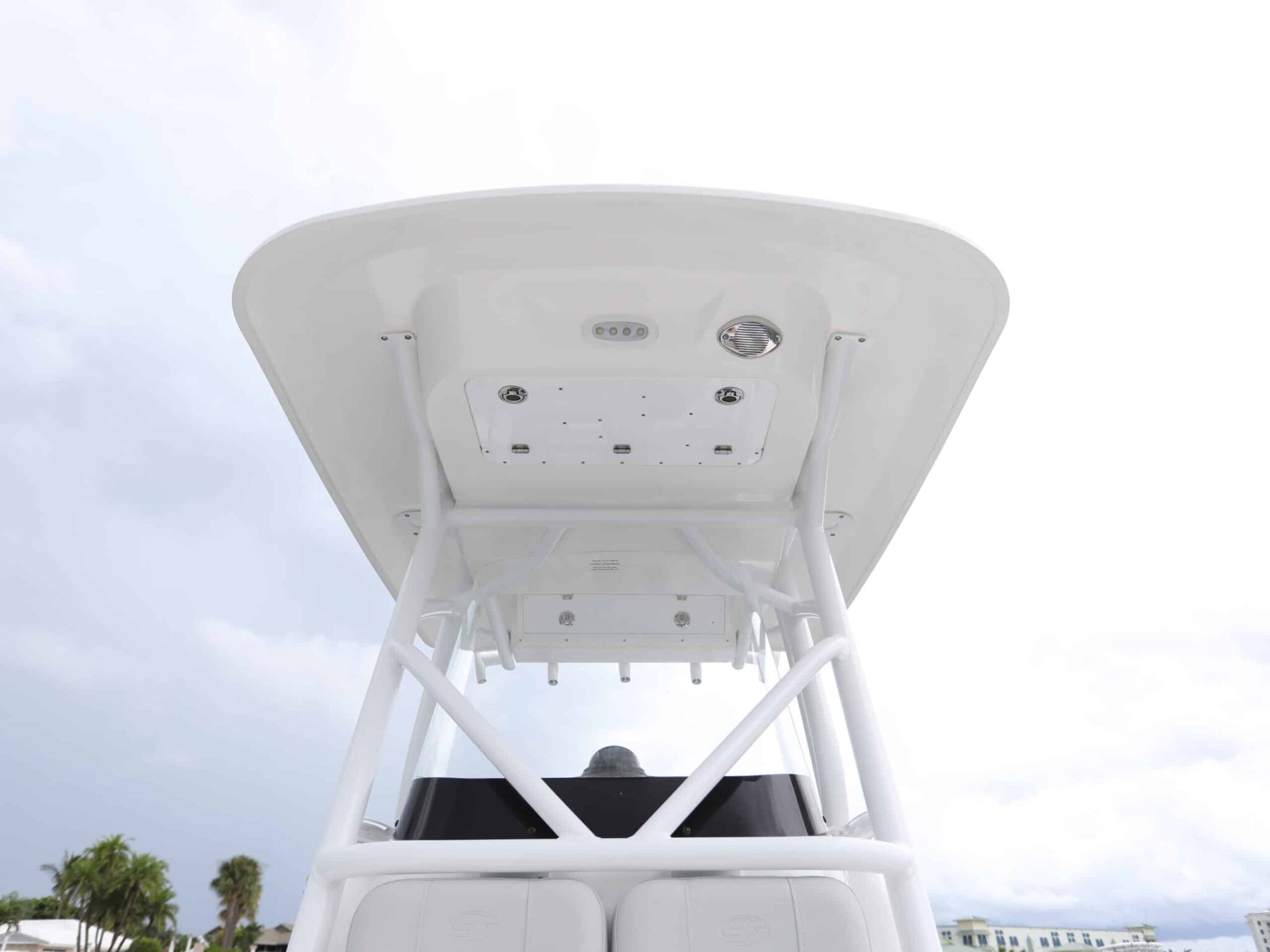

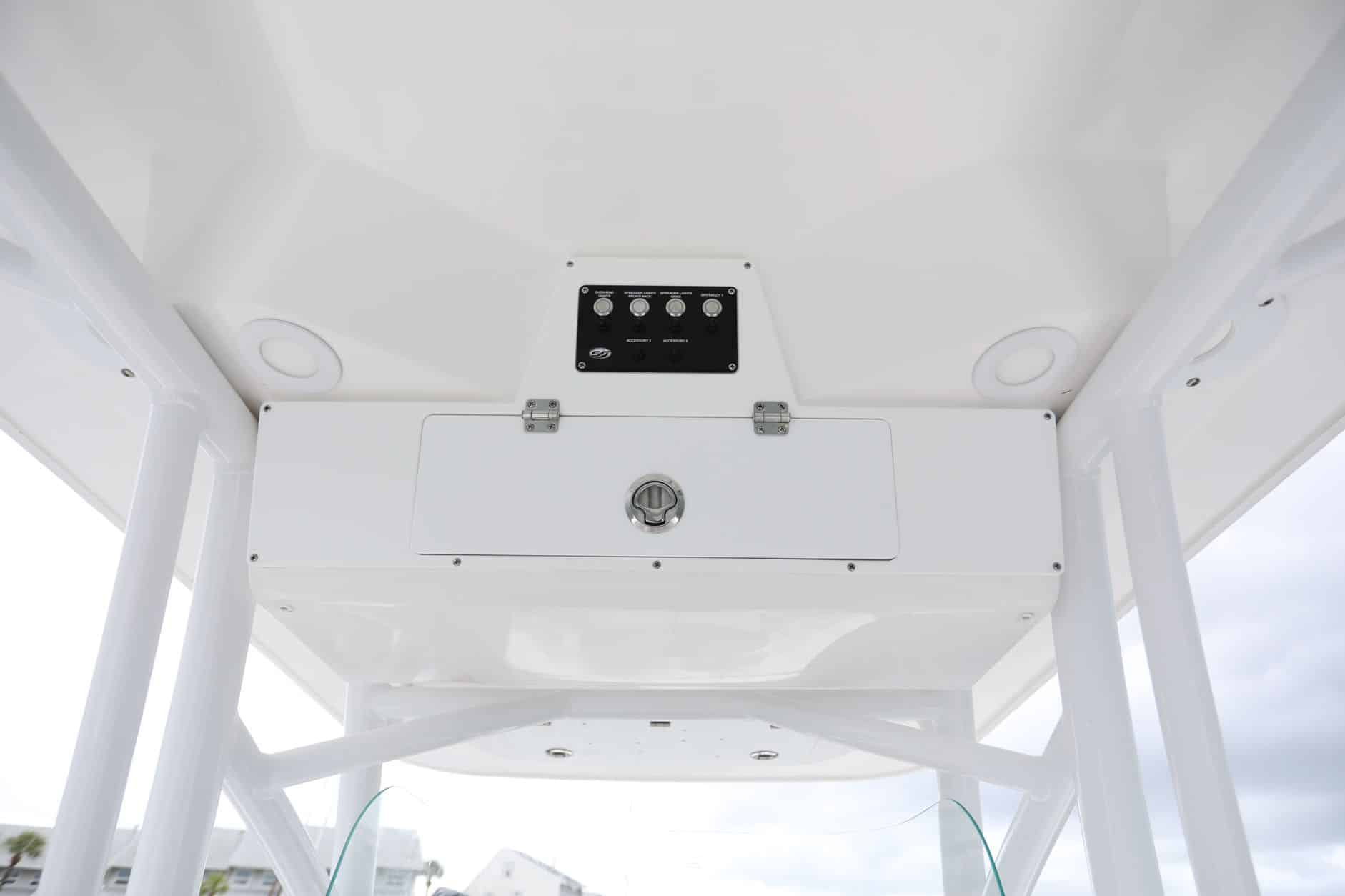

- Ultima Hard Top
- includes:
- LED spreader lights
- molded-in storage boxes
- safety storage box forward
- Fusion stereo with USB adaptor
- Six Fusion speakers in deck
- LED lights: red, blue, & white (power cycle)
- five rod holders
- illuminated switch panel
- reinforced pad for Garmin radar
- includes:
- Weathermax Bow Shade
- four carbon fiber support poles
- requires ultima hard top option
- Weathermax Aft Shade
- two carbon fiber support poles
- requires ultima hard top option
Aluminum Accent:
- Powder Coating
- white
- light grey
- jetty grey
- black
Upholstery Accent:
- Standard:
- light grey single diamond white stitch
- navy single diamond white stitch
- Upgrade:
- light grey single diamond stitch
- navy single diamond stitch
Upgrade Packages:
- LED/Tech package
- includes:
- blue mood lights
- underwater lights
- upgraded courtesy lights
- wireless phone charger
- includes:
- Pro Package
- includes:
- cushioned foot mat
- gas shocks on two bow lids
- two extra rod holders on bow gunwales
- four quick release fender deck mounts
- includes:
Electronics:
- Garmin 94SV GPS Map
- thru-hull transducer
- (P19)
- Garmin 8610XSV
- touchscreen
- thru-hull transducer
- (B150M CHIRP)
- Garmin 8610XSV
- twin touchscreen
- thru-hull transducer
- (B150M CHIRP)
Head:
- Electric Porcelain Toilet
- 12.5 gallon holding tank
- includes freshwater washdown option
- Electric Overboard Waste Discharge
- requires electric toilet option
Other:
- Thru-hull Windlass System with Anchor Roller
- includes:
- controls at helm & bow
- rode kit:
- 15' chain
- 150' rope
- includes:
- Removable Ski Tow Bar
- Lenco Switch for Trim Tabs
- LED indicators
- Two Bank Battery Charger
- Freshwater Washdown
- 12 gallon tank
- included in electric toilet option
- Electronics Box for T-Top
- Transhield Fitted Boat Cover
